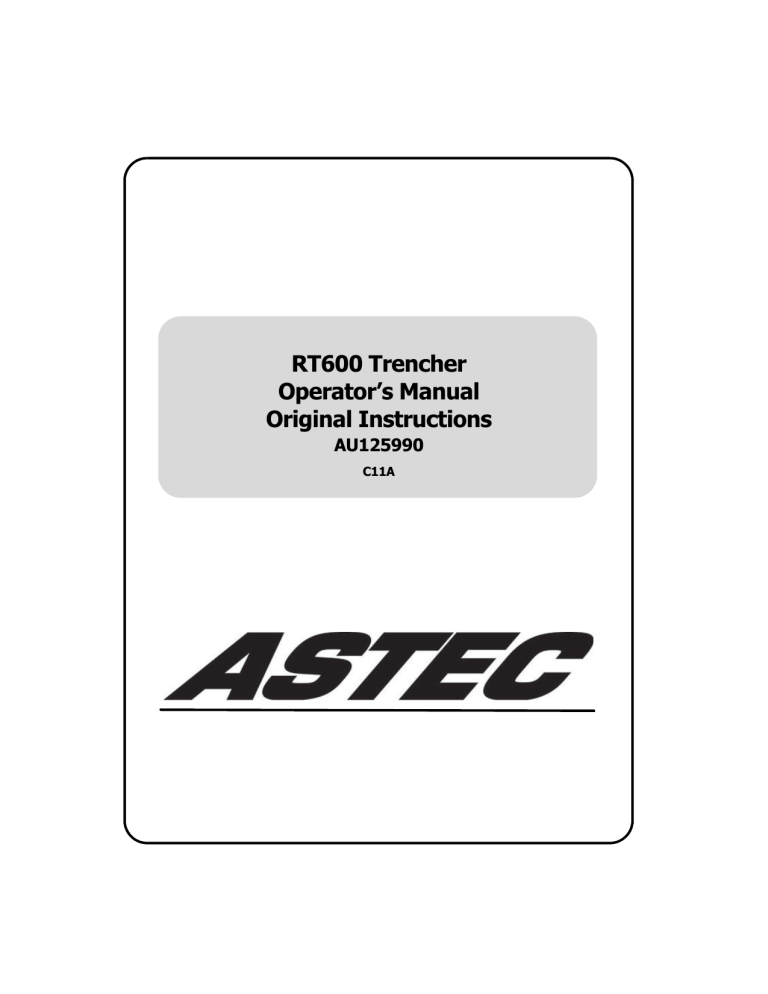

RT600 Trencher
Operator’s Manual
Original Instructions
AU125990
C11A
THIS SAFETY ALERT SYMBOL INDICATES IMPORTANT SAFETY
MESSAGES IN THIS MANUAL. WHEN YOU SEE THIS SYMBOL,
CAREFULLY READ THE MESSAGE THAT FOLLOWS AND BE ALERT TO
THE POSSIBILITY OF PERSONAL INJURY OR DEATH.
Safety Decals on this machine use the words Danger, Warning or Caution, which
are defined as follows:
• DANGER: Indicates an immediate hazardous situation which,
if not avoided, will result in death or serious injury.
The color associated with Danger is RED.
• WARNING: Indicates a potentially hazardous situation which,
if not avoided will result in serious injury.
The color associated with Warning is ORANGE.
• CAUTION: Indicates a potentially hazardous situation which,
if not avoided, may result in minor or moderate injury.
It may also be used to alert against unsafe practices.
The color associated with Caution is YELLOW.
IMPROPER OPERATION OF THIS MACHINE CAN CAUSE INJURY OR DEATH.
BEFORE USING THIS MACHINE, MAKE CERTAIN THAT EVERY OPERATOR:
• Is instructed in safe and proper use of the machine.
• Reads and understands the Manual(s) pertaining to the machine.
• Reads and understands ALL Safety Decals on the machine.
• Clears the area of other persons.
• Learns and practices safe use of machine controls in a safe, clear area
before operating this machine on a job site.
It is your responsibility to observe pertinent laws and regulations and
follow Astec instructions on machine operation and maintenance.
© 2011 Astec Underground AU125990
TABLE OF CONTENTS
TO THE OWNER ...................................................... 1
RT600 TRENCHER ..................................................... 1
AFTER DELIVERY CHECK ........................................... 2
RIGHT, LEFT, FRONT AND REAR OF MACHINE ............. 2
IDENTIFICATION NUMBERS ................................. 3
MACHINE COMPONENTS - VIEWED FROM LEFT SIDE .. 5
SAFETY/DECALS/HAND SIGNALS ......................... 7
SAFETY MESSAGE ..................................................... 7
PERSONAL SAFETY .................................................... 7
UTILITY SAFETY ....................................................... 8
BEFORE OPERATIONS .............................................. 8
FAILURE IN OPERATION ........................................... 9
MACHINE OPERATION .............................................. 9
PARKING THE MACHINE ......................................... 10
WHEEL AND TIRE SAFETY ...................................... 10
CAST DUCTILE IRON .............................................. 10
MAINTENANCE ....................................................... 10
ROPS ..................................................................... 11
BURN PREVENTION ................................................ 11
PRESSURIZED HYDRAULIC FLUID AND GREASE ....... 11
HAZARDOUS CHEMICALS ........................................ 11
FIRE OR EXPLOSION PREVENTION .......................... 12
FIRE EXTINGUISHER .............................................. 12
READ OPERATOR’S MANUAL ................................... 12
SAFETY DECALS ..................................................... 13
HAND SIGNALS ...................................................... 17
INSTRUMENTS AND CONTROLS ........................ 19
INSTRUMENT PANEL .............................................. 19
GROUND DRIVE AND ENGINE CONTROLS ................ 20
OPERATOR SEAT .................................................... 22
EQUIPMENT CONTROLS ......................................... 23
REAR ATTACHMENT CONTROL ................................ 23
Cable Plow .............................................................. 24
Trencher ................................................................. 24
AUXILIARY HYDRAULICS CONTROL ......................... 24
OPERATING INSTRUCTIONS .............................. 25
PARKING BRAKE OPERATION .................................. 25
KEY SWITCH OPERATION ........................................ 25
ENGINE OPERATION ............................................... 25
RUN-IN MAINTENANCE SCHEDULE .......................... 26
OPERATING IN HOT WEATHER ................................ 26
OPERATING IN COLD WEATHER .............................. 26
STARTING THE ENGINE .......................................... 27
ENGINE SPEED ...................................................... 27
THROTTLE OPERATION ........................................... 28
THROTTLE LOCK OPERATION .................................. 28
COLD WEATHER STARTING ..................................... 28
ENGINE COOLANT HEATER ..................................... 28
BOOSTER BATTERY CONNECTIONS ......................... 28
BEFORE YOU OPERATE EACH DAY ........................... 29
MACHINE OPERATION ............................................ 29
PARKING AND STOPPING THE ENGINE ....................
SEAT INTERLOCK SYSTEM ......................................
FOOT PEDAL CONTROL ..........................................
HAND CREEP CONTROL ..........................................
TRANSMISSION OPERATION ...................................
STEPS AND HAND RAILS ........................................
TRANSPORTING THE MACHINE ON A TRAILER ........
UNLOADING FROM A TRAILER ................................
MOVING A DISABLED MACHINE ..............................
LIFTING MACHINE WITH SPREADER BAR ................
29
30
30
31
31
32
32
33
33
34
ATTACHMENTS .................................................... 35
BACKFILL BLADE - RT600 .......................................
P75 CABLE PLOW & REEL CARRIER - RT600 QUAD ...
P85 CABLE PLOW & REEL CARRIER - RT600 ............
D100 BACKHOE ......................................................
HD125 BACKHOE ...................................................
HYDRA-BORER CONTROLS .....................................
TRENCHER CONTROLS - RT600 ..............................
BOOM, CHAIN & TOOTH RECOMMENDATIONS .........
35
36
41
46
49
53
56
59
WHEELS AND TIRES ........................................... 63
LUBRICATION ..................................................... 65
GENERAL SAFETY BEFORE YOU SERVICE MACHINE ..
PLASTIC AND RESIN PARTS ....................................
ENVIRONMENT ......................................................
ENGINE HOURMETER .............................................
CAPACITIES AND LUBRICANT SPECIFICATIONS .......
GREASE POINTS MAINTENANCE CHART ..................
LUBRICATION/MAINTENANCE CHART ......................
ACCESS DOORS AND COVERS .................................
GREASE FITTINGS LOCATIONS ...............................
ENGINE LUBRICATION ...........................................
AIR CLEANING SYSTEM ..........................................
ENGINE COOLING SYSTEM .....................................
DIESEL FUEL SYSTEM ............................................
HYDRAULIC OIL SYSTEM ........................................
AXLES AND TRANSMISSION ....................................
TRENCHER DRIVE PLANETARY ................................
65
65
65
65
66
67
68
70
71
75
77
78
80
83
85
86
ADJUSTMENT/MAINTENANCE ........................... 89
ENGINE COOLING FAN DRIVE BELT .........................
TRENCHER DIGGING CHAIN TENSION .....................
CHAIN DRIVE SPROCKET ........................................
TRENCHER CHAIN WEAR PADS ...............................
TOOTH MOUNTING BOLTS ......................................
ROLL-OVER PROTECTION STRUCTURE ....................
HYDRAULIC CONNECTIONS ....................................
FIRE EXTINGUISHER MAINTENANCE .......................
89
89
91
91
92
92
94
95
ELECTRICAL ........................................................ 97
BATTERY ............................................................... 97
TOC-1
AU125990 C11A
TABLE OF CONTENTS
SPECIFICATIONS ................................................ 99
BOOM IDENTIFICATION ......................................... 99
ENGINE DATA ...................................................... 100
TRAVEL SPEEDS ................................................... 100
ELECTRICAL SYSTEM ............................................ 100
OPERATING WEIGHTS .......................................... 100
BASIC MACHINE DIMENSIONS .............................. 101
BACKFILL BLADE .................................................. 102
TRENCHER .......................................................... 103
CABLE PLOW ....................................................... 104
REEL CARRIER ..................................................... 105
D100 BACKHOE .................................................... 106
D125 BACKHOE .................................................... 107
HD125 BACKHOE ................................................. 108
BACKHOE BUCKETS .............................................. 109
BOLT TORQUES .................................................... 110
INDEX .................................................................... 1
MACHINE STORAGE ................................................. II
TORQUE SPECIFICATIONS ...................................... III
AFTER DELIVERY CHECK ......................................... IX
ASTEC TECHNICAL MANUALS ................................ XIII
CE DECLARATION OF CONFORMITY ........................ XV
AU125990 C11A
TOC-2
TO THE OWNER
RT600 TRENCHER
RT600_1
This manual contains important information about the
safe operation, adjustment and maintenance of your
Astec trencher. Refer to the Master Index at the end of
this manual for locating specific items about your
machine. This trencher conforms to current safety
regulations.
The attachments listed in this manual describe available
configurations of the Astec RT600. See your Astec dealer
t o c o n v e r t f r o m o n e c o n f i g u r a t i o n t o a n o t h e r.
Unauthorized modifications may cause serious injury or
death.
Recommended all-year climate condition for ultimate
operator comfort is between 40°F and 100°F (5°C and
38°C) and no foreseeable adverse weather conditions.
Use this manual as a guide. Your trencher will remain a
reliable working tool as long as it is kept in good working
condition and serviced properly.
Do Not operate or permit anyone to operate or
service this machine until you or the other persons
have read and understand the safety, operation
and maintenance instructions in this manual. Use
only trained operators who have demonstrated the ability
to operate and service this machine correctly and safely.
RT600_72
This trencher, with standard equipment and authorized
attachments, is intended to be used for general earth
moving purposes, handling, boring, ditch digging, etc.
Make sure that the machine is properly equipped and
follow instructions and safety precautions in this manual.
This Operator’s Manual is to be stored in the manual
compartment equipped on this machine behind the
operators seat. Make sure this manual is complete and in
good condition. Contact your dealer to obtain additional
manuals.
Do Not use this machine for any application or
purpose other than those described in this manual.
Consult an authorized Astec dealer on changes, additions
or modifications that can be required for this machine to
comply with various country regulations and safety
requirements.
Contact your dealer for any additional information or
assistance with your machine. Your dealer has Astecapproved service parts. Your dealer has technicians with
special training that know the best methods of repair and
maintenance for your trencher.
1
AU125990 C11A
TO THE OWNER
AFTER DELIVERY CHECK
Two copies of the After Delivery Check are in the back of this manual. One copy is for you and one copy is for the
dealer. Make sure that your dealer does the After Delivery Check after the first 100 hours of machine operation.
Your cost for this inspection will be for filters, oil or other accessories. If the dealer comes to your machine, there can
also be a cost for the time and distance.
RIGHT, LEFT, FRONT AND REAR OF MACHINE
Right-hand and left-hand, when used in this manual, indicate the right and left sides of the machine as seen from the
operators seat.
RIGHT SIDE
FRONT
REAR
LEFT SIDE
B860209J
RIGHT SIDE
FRONT
REAR
LEFT SIDE
B860670J
AU125990 C11A
2
IDENTIFICATION NUMBERS
Write your machine Product Identification Number (PIN) and Serial Numbers on the lines provided below. If needed,
give these numbers to your dealer when you need parts or information for your machine.
Make a record of the numbers. Keep the record in a safe place. If the machine is stolen, report the numbers to your
local law enforcement agency.
RT600 Trencher
MACHINE MODEL NUMBER:
PRODUCT IDENTIFICATION NUMBER (PIN)
_________________________________________________________
ENGINE SERIAL NUMBER
_________________________________________________________
ROPS SERIAL NUMBER
_________________________________________________________
FRONT AND REAR AXLE SERIAL NUMBERS
_________________________________________________________
TRENCHER SERIAL NUMBER
_________________________________________________________
CABLE PLOW MODEL AND SERIAL NUMBER
_________________________________________________________
D100 BACKHOE MODEL AND SERIAL NUMBER _________________________________________________________
HD125 BACKHOE MODEL AND SERIAL NUMBER________________________________________________________
1
3
RT600_2
1. PRODUCT IDENTIFICATION NUMBER
RT600_6
3. ROPS SERIAL NUMBER
Located on the left side frame.
Located at the top of the front left support.
2
4
2. ENGINE SERIAL NUMBER
RT600_5
4. FRONT AND REAR AXLE SERIAL NUMBER
RT600_7
Located on each axle.
Located on left side of engine block.
3
AU125990 C11A
IDENTIFICATION NUMBERS
5
7
A19487
5. TRENCHER SERIAL NUMBER
B4051390
7. D100 BACKHOE SERIAL NUMBER
6
8
6. CABLE PLOW SERIAL NUMBER
AU125990 C11A
B4051891
8. HD125 BACKHOE SERIAL NUMBER
4
B4047491
IDENTIFICATION NUMBERS
MACHINE COMPONENTS - VIEWED FROM LEFT SIDE
13
12
9
11
14
2
1
4
10
8
15
6
5
7
3
RT600_1
1.
2.
3.
4.
5.
TRENCHER
RESTRAINT BAR
STEPS
GRAB HANDLE
WALKWAY
6.
7.
8.
9.
10.
ENGINE COVER
BACKHOE STABILIZER
BACKFILL BLADE
BACKHOE BOOM
BACKHOE BUCKET
5
11.
12.
13.
14.
15.
BACKHOE OPERATOR SEAT
BACKHOE CONTROLS
ROPS ENCLOSURE
BACKHOE HAND RAIL
FUEL RESERVOIR
AU125990 C11A
IDENTIFICATION NUMBERS
NOTES
AU125990 C11A
6
SAFETY/DECALS/HAND SIGNALS
SAFETY MESSAGE
WARNING: IMPROPER OPERATION OF THIS MACHINE
CAN CAUSE INJURY OR DEATH. BEFORE USING THIS
MACHINE, MAKE CERTAIN THAT EVERY OPERATOR:
• Is instructed in the safe and proper use of the machine.
• Reads and understands the manual(s) pertaining to the
machine.
• Reads and understands ALL safety decals on the
machine.
RT600_72
• Clears the area of other persons.
The safety information given in this manual does not
replace safety codes, insurance regulations, or local laws.
Make sure your machine has the correct equipment
according to these rules or laws.
• Learns and practices safe use of machine controls in a
safe, clear area before operating this machine on a
job site.
It is your responsibility to observe pertinent laws and
regulations and follow Astec instructions on machine
operation and maintenance.
IMPORTANT: Safety messages in this section point out
situations which can be encountered during the normal
operation and maintenance of your machine. These safety
messages also give possible ways of dealing with these
conditions. Additional safety messages are used in the
text of the manual to show specific safety hazards.
This machine has been designed and built to meet or
exceed current safety regulations and standards.
However, this does not completely exclude the risk of
accidents. It is therefore essential to follow basic safety
rules and procedures.
PERSONAL SAFETY
Recommended all-year climate condition for ultimate
operator comfort is between 40°F and 100°F (5°C and
38°C) and no foreseeable adverse weather conditions.
ISO two-panel pictorial symbol decals are shown in both
vertical and horizontal configurations and are defined as
follows:
The strict execution of the instructions provided in this
manual will help prevent accidents during machine use,
maintenance and repair operations.
• The Signal panel indicates the nature of the hazard.
• The Message panel indicates the appropriate avoidance
of the hazard.
These instructions will only be effective if the machine
receives proper maintenance. Any defects or
abnormalities must be repaired immediately.
• Background color is YELLOW.
Do not use the machine for applications other than those
which are described in this manual.
• Prohibition symbols such as
used, are RED.
In the event of a particular problem, requiring some
intervention or application not described in this manual,
contact your Astec dealer immediately.
Safety Decals on this machine use the words Danger,
Warning or Caution, which are defined as follows:
and
STOP
if
• DANGER: Indicates an immediate
hazardous situation which, if not
avoided, will result in death or serious injury. The color
associated with Danger is RED.
Most accidents involving ma chine operation and
maintenance can be avoided by following basic rules and
precautions. Read and understand all the safety
messages in this manual, and the safety signs on the
machine before you operate or service the machine. See
your Astec dealer if you have any questions.
• WARNING: Indicates a potentially
hazardous situation which, if not avoided
will result in serious injury. The color associated with
Warning is ORANGE.
READ THIS MANUAL COMPLETELY and make sure you
understand the characteristics of speed, stability, and
steering of this machine. The machine must be used only
by trained operators. KEEP THE OPERATOR’S MANUAL IN
THE STORAGE BOX provided and make sure it is always
fastened to the machine, in complete and good condition.
See your dealer for additional manuals. Also see the
inside of the rear cover of this manual.
• CAUTION: Indicates a potentially
hazardous situation which, if not
avoided, may result in minor or moderate injury. It may
also be used to alert against unsafe practices. The color
associated with Caution is YELLOW.
7
AU125990 C11A
SAFETY/DECALS/HAND SIGNALS
UTILITY SAFETY
Know the utility color code (U.S.A. and Canada):
Safety precaution MUST be followed when working
near buried utility lines.
Electric .......................................................... Red
Gas, Oil or Petroleum ..................................Yellow
Communication, Telephone, Television ........ Orange
Water ................................................. ..........Blue
Sewer...............................................Green/Brown
Proposed Excavation.................................... White
Surveying ......................................................Pink
Reclaimed Water and Slurry .........................Purple
During operation it is likely that you will be working
around or near buried utility lines which may include, but
are not limited to:
• Electrical Power Line
• Gas Line
After locating the utility lines, carefully dig a hole by hand
and/or automatic vacuum equipment to the utility line to
verify the location and depth of the line.
• Water Line
• Communication Line - Telephone or Cable Television
• Sewer Line
BEFORE OPERATIONS
Before beginning any trenching, drilling or other
construction work it is your responsibility to be
aware of all such utility lines buried in the area of
your project and to avoid them.
• Avoid loose fitting clothing, loose or uncovered long
hair, jewelry and loose personal articles.
• Different jobs may require different protective
equipment. Items such as hard hats, protective shoes,
heavy gloves, reflector type vests, respirators and ear
protection may be required. Know and use the
equipment that is required before you start the job.
WARNING: Always contact your local OneCall system and any utility companies which
do not subscribe to One-Call before the start
of your digging project.
• Be prepared for emergencies. Always have a first aid
kit and a good fire extinguisher with you and know
how to use each.
ALWAYS have all local utility companies mark the location
of their lines.
In the USA and Canada, call one of the “One Call System
Directory” services. In the USA, call 811 or the local
number. If you do not know the local number, call the
national number (USA and Canada only): 1-888-2580808.
• Know the hand signals used on your job. Follow the
instructions of the flagman, signs, etc. See Hand
Signals in this manual.
• Check that all guards, covers and safety decals are
installed correctly or closed. NEVER operate the
machine without guards in place.
Check with local authorities for laws, regulations
and/or strict penalties requiring you to locate and
avoid existing utilities.
• Foreign material such as ice or grease on the steps or
hand rails can cause an accident. Keep these areas
clean.
• Remove all loose objects from the operators area and
from the machine. Loose objects can jam controls and
cause accidents.
• Make sure all persons are away from the machine
before you start the engine.
• Always face the machine and use the hand rails and
steps when getting on the machine. Do not rush.
• Before you start each day, walk around the machine
and check for oil or fluid leaks. Replace all broken,
loose, worn or missing parts and do the required
lubrication and maintenance as shown in this manual.
AU110578
CALL ALL LOCAL UTILITY COMPANIES BEFORE YOU TRENCH
AU125990 C11A
8
SAFETY/DECALS/HAND SIGNALS
• Engine exhaust fumes can cause death. If you operate
this machine in an enclosed area, use good ventilation
to replace the exhaust fumes with fresh air.
• The magnitude of hand-arm vibrations on the steering
wheel and/or control levers is significantly below 2.5
m/s2.
• Know the rules, laws and safety equipment necessary
for transporting this machine on a road or highway.
Rotating beacon, backup alarm, slow moving vehicle
and other safety equipment items are available from
your dealer.
• Check all controls in a clear area and make sure the
machine is operating correctly.
• A frequent cause of personal injury or death is persons
falling off and being run over. Do not permit other
persons to ride on the machine. Only one person - the
operator - must be on the machine when it is in
operation.
• Make sure all controls are in Neutral before starting the
engine.
• Dust, fog, smoke, snow, etc., may decrease your vision
and cause an accident. Stop the machine or decrease
the speed until you can see everything around you in
the work area.
• Before you start the engine, always fasten the seat
belt.
• Operate the machine controls only when seated in the
operators seat.
• Contact with high voltage power lines, underground
cables, etc., can cause serious injury or death from
electrocution.
FAILURE IN OPERATION
• Stay away from hazardous areas such as ditches,
overhangs, etc. Walk around the work area before you
start and look for hazards.
• In the event of poor performance or machine failure,
stop the machine immediately and report the matter.
Take measures to prevent further use until the
malfunction is corrected (Place a DO NOT OPERATE
tag on the control panel, remove the key, turn off all
power sources, etc.). Before working on any hydraulic
or electrical circuits, refer to the maintenance sections
in this manual.
• Before you operate in an area with high voltage lines or
cables, contact your utility companies or one of the
Digging Hot Line numbers. You MUST HAVE THE
POWER DISCONNECTED OR KEEP A SAFE
WORKING DISTANCE from the lines or cables. You
must know the safe working distance from the high
voltage power equipment and must know any federal,
state/provincial or local safety codes or regulations that
apply to the job site.
WARNING: Shut off engine and remove key
before performing any maintenance or repair
work.
• Electrical cables, gas pipes, water pipes or other
underground objects can cause injury or death. Learn
the location of underground hazards before you
operate your machine in a new area.
• Support or lower all attachments to the ground before
leaving or servicing the vehicle.
MACHINE OPERATION
• If this machine turns over, you can be injured or killed.
Do not operate if weather, road or earth conditions do
not allow safe operation on a hill, ramp or rough
ground. Always operate this machine at a slow speed
when on a hill, ramp, or rough ground.
• Sound pressure level at the operator’s seat measures
90.8 LWA dB(A) per ISO 6393. Sound power level
emitted by the machinery is 107.9 LWA dB(A). Hearing
protection is required during use.
• Vibrations from the trencher or plow can cause a
trench, overhang or high bank to fall and cause injury
or death. If you lose control of the machine you can
cause injury or death.
WARNING: Exposure to high noise levels
may cause hearing loss. Hearing protection is
required when operating this machine.
• Be alert and always know the locations of all workers in
your area. Keep all other persons completely away
from your machine. Injury or death can result if you do
not follow these instructions.
• An AEM Subcommittee has summarized whole body
vibration acceleration values for rubber-tired trenching
machines weighting greater than 4500 kg to be as
follows:
x-value
Transport-Avg 0.296 m/s2
Trenching-Avg 0.141 m/s2
Backfilling-Avg 0.281 m/s2
y-value
0.277 m/s2
0.126 m/s2
0.288 m/s2
• If your view of the work area is not clear, always have
a signal person direct your movement. Know and
understand each signal from the signal person before
you start. If your visibility is reduced, install a guard
rail and warning signs to keep other persons away.
z-value
0.823 m/s2
0.508 m/s2
0.487 m/s2
9
AU125990 C11A
SAFETY/DECALS/HAND SIGNALS
CAST DUCTILE IRON
• The rotating parts of the Hydra-Borer can cause injury
or death. All persons must be 1.5 m (5 ft) or more in
distance from the rotating parts during machine
operation.
• Before you weld, cut or drill holes in a part on this
machine, make sure the part is not cast ductile iron.
See your dealer if you do not know if a part is cast
ductile iron.
• A moving digging chain and auger can cause injury or
death. All persons must be 1.5 m (5 ft) or more in
distance from the digging chain and auger during
operation.
• Unauthorized modifications to cast ductile iron parts
can cause injury or death. Welding, cutting or drilling
can cause cast ductile iron to break. Do not weld, cut
or drill to repair or to attach items to cast ductile iron
parts on this machine.
• Operate the machine controls only when seated in the
operators seat.
• DO NOT operate this machine while under the
influence of alcohol or drugs.
MAINTENANCE
• NEVER allow anyone in the trench while digging.
• Before you service the machine, park on a level
surface.
• NEVER allow anyone to stand in the vicinity of the
trench while operating the trencher or backfill blade.
Stop the trencher and ground drive if anyone comes
close to the trench or machine.
• Before you service the machine, put a Do Not Operate
tag on the control panel. A Do Not Operate tag (Part
Number AU103157) is included with each new
machine. Extra tags are available from your dealer.
PARKING THE MACHINE
• When you park the machine, select level ground
whenever possible.
• Before you leave the operators area, always support or
lower all attachments to the ground, stop the engine
and remove the key.
• Follow the instructions in this manual for parking the
machine.
• Always face the machine and use the hand rails and
steps when getting off. Do not rush and do not jump
from the machine.
WHEEL AND TIRE SAFETY
AU103157
• Improper machine inspection and maintenance can
cause accidents. Check all gauges, warning lamps and
indicators frequently during machine operation. Do not
operate this machine if any gauge, warning lamp or
indicator does not work or shows a problem with the
machine.
WARNING: DO NOT weld to wheel or rim
when a tire is installed. Welding will cause an
explosive air/gas mixture that will be ignited
with high temperatures. This can happen to
tires inflated or deflated. Removing air or
breaking bead is not adequate. Tire MUST be
completely removed from the rim prior to
welding.
• Improper service or repair can cause injury or death. If
you do not understand a service or adjustment
procedure, see your dealer.
WARNING: Explosive separation of the tire
• Unauthorized modifications to this machine can cause
injury or death. Do not make unauthorized
modifications to this machine. Always see your dealer
before you weld, cut or drill holes in your machine.
and/or rim parts can cause injury or death.
When tire service is necessary, have a
qualified tire mechanic service the tire.
• When you service this machine, always wear face or
eye protection, safety shoes and other protective items
as required.
AU125990 C11A
10
SAFETY/DECALS/HAND SIGNALS
• If you must service this machine with the engine
running, have another person help you. Follow the
instructions in this manual.
• Battery acid causes severe burns. Batteries contain
sulfuric acid. Avoid contact with skin, eyes, or clothing.
Get medical attention immediately
• Metal chips or debris can cause eye injury. Always
wear eye or face protection especially when you use a
hammer on this machine. Use a hammer with a soft
face, such as brass, to drive hardened pins.
• When the battery electrolyte is frozen, the battery can
explode if, (1) you try to charge the battery, or (2) you
try to jump start and run the engine. To prevent the
battery electrolyte from freezing, try to keep the
battery at full charge. If you do not follow these
instructions, you or others in the area can be injured.
• When you replace parts on your machine, always use
Astec parts. See your dealer.
• Hot coolant can spray out if the radiator cap is
removed. To remove the radiator cap, let the cooling
system cool, turn to the first notch, wait until the
pressure is released, then remove the radiator cap.
• If you must service the machine with an attachment
raised, always block up the attachment.
• To prevent accidental movement of the machine,
always block the tires before you service the machine.
• Missing shields, guards or access panels can cause
injury or death. Always install all shields, guards or
access panels after servicing the machine and before
you start the engine.
PRESSURIZED HYDRAULIC
FLUID AND GREASE
WARNING: Fluid under pressure can pierce
ROPS
skin and cause injury or death. Stay away.
WARNING: You are protected by the ROPS system (Roll
Over Protection Structure). The seat belt is an important
part of the ROPS system. Before you operate this machine,
always fasten the seat belt. If the machine rolls over and
you do not have the seat belt fastened, you can be crushed
by the ROPS or the machine.
• Hydraulic fluid or grease injected into your skin can
cause severe injury or death. Keep your hands and
body away from any pressurized leak. If fluid is
injected into your skin, get medical attention
immediately.
Improper ROPS inspection or maintenance can cause
injury or death. Do the recommended ROPS inspection
shown in this manual. If you must replace the ROPS,
ROPS parts or ROPS mounting hardware, use only the
replacement parts shown in the parts catalog for this
machine.
HAZARDOUS CHEMICALS
WARNING: Improper handling or use of
chemicals may result in illness, injury, or
equipment damage. Follow instructions on
labels and in Material Safety Data Sheets
(MSDS).
• If the ROPS is damaged it must be replaced. Do not
repair or make modifications (weld, drill, etc.) to the
ROPS.
• Removal of the ROPS can cause injury or death. Do not
remove the ROPS except for service or replacement.
Do not operate the machine without the ROPS
installed.
• If you are exposed to or come in contact with
hazardous chemicals you can be seriously injured. The
fluids, lubricants, paints, adhesives, coolants, etc.,
used with your machine can be hazardous.
• Adding additional weight (attachments, etc.) to the
machine can cause injury or death. Do not exceed the
gross weight printed on the ROPS label.
• Material Safety Data Sheets (MSDS) provide
information about the chemical substances within a
product, safe handling procedures, first aid measures
and procedures to be taken when the product is
accidentally spilled or released. MSDS are available
from your dealer.
BURN PREVENTION
• Before you service your machine, check the MSDS for
each fluid, lubricant, etc., used in this machine. This
information indicates what the risks are and how to
service the machine safely. Follow this information
when servicing the machine.
WARNING: Battery acid may cause burns.
Avoid contact.
11
AU125990 C11A
SAFETY/DECALS/HAND SIGNALS
FIRE EXTINGUISHER
• Before you service this machine and before you
dispose of the old fluids and lubricants, always
remember the environment. DO NOT put oil or fluids
into the ground or into containers that can leak.
A fire extinguisher of the type shown is available from a
local distributor for mounting on the machine.
• Check with your local environmental or recycling center
or your dealer for correct disposal information.
FIRE OR EXPLOSION
PREVENTION
WARNING: Fire
or explosion possible.
Fumes could ignite and cause burns. No
smoking, no flame, no spark.
• Engine fuel can cause an explosion or fire. Do not fill
the fuel tank with the engine running, if you are near
an open fire, or if you are welding, smoking, etc.
153L95
This dry chemical fire extinguisher should have a 5 lb (2.3
kg) capacity and be approved for Class A, B and C type
fires. The operating temperature should be from -54 to
49°C (-65 to 120°F).
• Use nonflammable cleaning solvent to clean parts.
• Sparks or flame can cause the hydrogen gas in a
battery to explode. To prevent an explosion, do the
following:
READ OPERATOR’S MANUAL
1. When disconnecting the battery cables, disconnect
the negative (-) cable first; when connecting the
battery cables, connect the negative (-) cable last.
Decals which display the “Read Operators Manual” symbol
are intended to direct the operator to the Operators
Manual for further information regarding safety,
maintenance, adjustments and/or procedures for specific
areas of the machine. When a decal displays the following
symbol refer to the Operators Manual.
2. When connecting jumper cables to start the engine,
use the procedure shown in this manual. See Booster
Battery Connections in this manual.
3. Do not short circuit the battery posts with metal
items.
4. Do not weld, grind, or smoke near a battery.
• Sparks from the electrical system or engine exhaust
can cause an explosion and fire. Before you operate
this machine in an area with flammable dust or vapors,
use good ventilation to remove the flammable dust or
vapors before you start.
• Remove all trash or debris from the machine. Make
sure that oily rags or other flammable materials are not
stored on the machine.
• A fire can cause injury or death. Always have a fire
extinguisher close by. Make sure the fire extinguisher is
serviced according to the manufacturers instructions.
• Check for fuel, oil, and hydraulic fluid leaks. Replace
worn or damaged hoses or lines. After repairs are
made, clean the machine before you operate.
WARNING: Avoid injury or death. Do not
use starting fluid (ether) to start this machine.
Fire or explosion may occur. Engine is
equipped with an electric grid heater that
could ignite fumes and cause burns.
AU125990 C11A
12
SAFETY/DECALS/HAND SIGNALS
SAFETY DECALS
ATTENTION: Injury or death can result if you cannot read a safety decal or if a safety decal is missing.
Replace any missing or damaged safety decal and keep all safety decals clean. See your Astec dealer for new
safety decals.
• Make sure that you read all safety and instruction decals. Check these decals every day before you start. Clean these
decals if you cannot read the words.
• When you clean the decals, use only a cloth, water and mild soap. Do not use solvent, gasoline, etc.
• You must replace a safety decal if the decal is damaged, the decal is missing or the decal cannot be read.
• If a decal is on a part that is replaced, make sure the decal is on the new part or install a new decal on the new part.
See your dealer for new decals.
18
7
11
29
9
4
17
8
28
5
22
6
16
26
23
12
31
14
15
19
1
27
20
25
10
30
3
24
13
21
2
AU125554
13
AU125990 C11A
SAFETY/DECALS/HAND SIGNALS
329045A1
AU121433_0
1. WARNING - HOT COOLANT UNDER PRESSURE
Located on the top engine cover near the radiator.
4. WARNING - DO NOT SHIFT ON HILLSIDES Located on the left side of the operator’s station.
419459A1_H2
AU114054
2. DANGER - BATTERY EXPLOSION HAZARD Located on the battery cover near the operator’s
station.
5. HEARING PROTECTION REQUIRED - Located on
the operator’s console.
175504A1
3. WARNING - ROTATING FAN HAZARD, KEEP
CLEAR - Located on the engine firewall on each side
near the fan.
419430A1
6. WARNING - USE SEAT BELT - Located on the dash
in the operator’s station.
AU125990 C11A
14
SAFETY/DECALS/HAND SIGNALS
391265A1
AU114622
7. WARNING - READ OPERATORS MANUAL Located on the left side of the operator’s station.
10. NO RIDERS - FALL HAZARD - Located on each
side of the operator’s console.
AU114258
AU110578
8. LIFT POINT / TIE DOWN LOCATION - Located on
both front and rear of the machine.
RH99G001
11. CALL BEFORE YOU DIG - Located on the operator’s
console.
419475A1
9. WARNING - HOT SURFACE - Located near the
radiator.
12. FRONT WHEEL STEERING - Located on the
operator’s console.
15
AU125990 C11A
SAFETY/DECALS/HAND SIGNALS
In addition to the safety decals, the following decals and parts are available to keep your machine in top condition. See
your Astec dealer for replacement.
13. H434210 - Anti-Skid Strip
14. H431171 - Anti-Skid Strip
15. AU110418 - Anti-Skid Strip
16. AU110419 - Anti-Skid Strip
17. 412212A1 - Throttle Decal
18. 139879A1 - Diesel Fuel Decal
19. 412215A2 - Hydraulic Oil Supply / Return Decal
20. 433356A1 - Key Switch Pattern Decal
21. AU103156 - 4-Wheel Steering Decal
22. AU100572 - Serial Number Plate
23. AU104193 - Steel Tack Fastener
24. 412214A2 - Hydraulic Oil Level Decal
25. AU108118 - Right-Hand Astec Logo Decal
26. AU110442 - Left-Hand Astec Logo Decal
27. AU117335 - Parking Brake Decal
28. AU107034 - Left-Hand Instrument Panel Decal
29. AU107035 - Right-Hand Instrument Panel Decal
30. 329019A1 - Master Disconnect Switch Decal
31. AU125343 - Model RT600 Decal
AU125990 C11A
16
SAFETY/DECALS/HAND SIGNALS
HAND SIGNALS
It is recommended that you and the flagman on the job use hand signals for communications. Before you start, make
sure that you both understand the signals that will be used.
STOP ENGINE
START ENGINE
MOVE AWAY FROM ME
COME TO ME
030
031
032
033
ALL STOP AND HOLD
GO THIS FAR
EMERGENCY STOP
STOP
17
034
035
036
037
LOWER LOAD OR BUCKET
RAISE LOAD OR BUCKET
LOWER LOAD OR BUCKET SLOWLY
RAISE LOAD OR BUCKET SLOWLY
038
039
040
041
AU125990 C11A
SAFETY/DECALS/HAND SIGNALS
042
TURN MACHINE / SWING LOAD RIGHT
LOWER BACKHOE BOOM
BACKHOE DIPPER OUT
AU125990 C11A
044
046
043
TURN MACHINE / SWING LOAD LEFT
RAISE BACKHOE BOOM
BACKHOE DIPPER IN
18
045
047
BACKHOE BUCKET DUMP
BACKHOE BUCKET DIG
048
049
INSTRUMENTS AND CONTROLS
INSTRUMENT PANEL
8
1
10
9
7
2
6
3
5
4
13
14
11
12
RT600_8D
(1) WAIT TO START WARNING LAMP
This lamp illuminates when the key switch is turned to the
ON position when the engine is cold to alert the operator
to wait for the intake air to be heated before starting. The
engine is equipped with glow plugs which senses the
engine temperature and automatically heats the intake
air. When the proper temperature is attained the lamp will
turn off. Wait for the lamp to turn off before starting the
engine.
(5) CHARGE PRESSURE WARNING LAMP
This lamp illuminates when the key switch is turned to
TEST and the engine is not running, or when the engine is
running and there is a loss of hydraulic charge pressure.
If this warning lamp illuminates when the engine is
running, stop the engine and check the level of the
hydraulic oil and/or leaks in the hydraulic system.
(6) ENGINE OIL PRESSURE WARNING LAMP
This lamp illuminates when the key switch is ON and the
engine is not running, or when the engine is running and
there is a problem with the engine oil pressure. If this
lamp illuminates when the engine is running, stop the
engine and check for the problem.
NOTE: DO NOT use ether to start this machine. The
engine is equipped with glow plugs.
(2) HYDRAULIC CHARGE FILTER RESTRICTION
WARNING LAMP
This lamp illuminates when the key switch is turned to
TEST and the engine is not running, or when the engine is
running and there is restriction in the hydraulic charge
filter. If this warning lamp illuminates when the engine is
running, stop the engine and replace the hydraulic charge
filter.
(7) NEUTRAL INDICATOR LAMP
This lamp illuminates when the key switch is ON and the
direction control, creep control, and trencher digging
control levers are in the NEUTRAL or STOP position.
(8) PARKING BRAKE LAMP
This lamp illuminates when the key switch is ON and the
parking brake is ENGAGED.
(3) AIR FILTER RESTRICTION WARNING LAMP
This lamp illuminates when the key switch is turned to
TEST and the engine is not running, or when the engine is
running and the air cleaner is in need of service. If this
lamp illuminates when the engine is running, stop the
engine and service the air cleaner.
(9) VOLTMETER GAUGE
This gauge indicates the condition of the battery. When
the battery is in good condition and the key switch is
turned to ON, the needle will move to the bottom part of
the green area of the gauge. If the needle is in the lower
red area of the gauge, the charge of the battery is too low
or the alternator is not charging. When the engine starts,
the needle will move to the upper part of the green area
and stay there. If the needles does not move to the upper
green area of the gauge after the engine starts, check the
condition of the battery and the charging system.
(4) HYDRAULIC RETURN FILTER RESTRICTION
WARNING LAMP
This lamp illuminates when the key switch is turned to
TEST and the engine is not running, or when the engine is
running and the hydraulic return filter is restricted. If this
warning lamp illuminates when the engine is running,
stop the engine and replace the hydraulic return filter.
19
AU125990 C11A
INSTRUMENTS/CONTROLS
GROUND DRIVE AND ENGINE
CONTROLS
If the gauge needle moves into the upper red area, the
alternator is charging too much. Damage to the battery
can result if this condition continues. Stop the engine and
check for the problem.
(10) FUEL LEVEL GAUGE
3
This gauge indicates the amount of fuel in the fuel tank.
(11) WATER TEMPERATURE GAUGE
2
This gauge indicates the temperature of the coolant in the
engine cooling system. The temperature of the coolant is
normal when the needle is in the green area of the gauge.
If the needle goes into the red area of the gauge, stop the
engine, allow the engine to cool and check the level of the
coolant. Also check for debris on the radiator or for a
thermostat that does not operate correctly. Also check the
drive belt and belt tensioner.
1
(12) HYDRAULIC OIL TEMPERATURE GAUGE
This gauge indicates the temperature of the hydraulic oil.
The operating temperature of the hydraulic oil is normal
when the needle is in the green area of the gauge. If the
needle goes into the red area of the gauge, reduce work
speed. If the needle remains in the red area, stop the
machine, move the direction control lever to the NEUTRAL
position and run the engine at full throttle. If this
procedure does not reduce the temperature of the oil,
check the oil level and check for obstructions in the
radiator or oil cooler.
RT600_9B
(1) IGNITION SWITCH
B
A
C
D
E
(13) TACHOMETER
The tachometer indicates the engine speed. The speed is
measured in revolutions per minute (rpm). Each number
on the gauge is equal to 1000 rpm. Each space on the
gauge is equal to 200 rpm. Run the engine in the green
area of the gauge.
RT600_73
The ignition switch has the following five positions:
A. ACCESSORY: This position is not used.
(14) HOURMETER
B. OFF: Use this position to stop the engine, de-energize
the electrical system and to remove the key.
The hourmeter indicates the total hours of operation in
hours and tenths of an hour. Use the hourmeter to
measure the time between machine service intervals.
NOTE: For machines equipped with a backhoe
attachment - there is an engine stop control. Push DOWN
the control knob to stop the engine. Pull the control UP
before you start the engine. This control has to be in the
up position for the engine to start.
C. ON: This position will energize the electrical systems.
The key will return to this position after you release the
key from START.
NOTE: Before the engine is started, make sure you are
seated in the operators seat and ALL warning lamps are
functional.
D. TEST: (Position not shown on decal) Turn the key half
the distance between ON and START to test the warning
lamps. Warning lamps 2 through 6 must illuminate.
AU125990 C11A
20
INSTRUMENTS/CONTROLS
E. START: Turn the key to this position to engage the
starter motor to start the engine.
(5) GROUND DRIVE HAND CREEP CONTROL
NOTE: See STARTING THE ENGINE in this manual for the
6
5
correct procedure to start the engine.
NOTE: The creep control lever must be in the NEUTRAL
position, the parking brake switch must be on, and you
must be seated in the operator’s seat before you can start
the engine.
WARNING: Do not leave the machine
running with the key available while
unattended.
7
(2) THROTTLE
Push the button at the center of the knob while pulling UP
to increase the engine speed. You can rotate the knob to
make small adjustments. Rotate the knob
counterclockwise to increase engine speed and clockwise
to decrease engine speed. Push the button at the center
of the knob while pushing the knob DOWN to decrease
engine speed. See THROTTLE LOCK for additional
information.
RT600_11
The creep control lever has three positions; FORWARD,
NEUTRAL, and REVERSE. Use this lever to control the
direction and speed of the machine. The machine will
move in the direction you move the lever. The farther you
push or pull the lever, the faster the machine will move.
The lever will lock in position when you release the lever.
(3) THROTTLE LOCK
FORWARD - Push the lever forward (away from you).
Use the throttle lock to hold the throttle in position during
machine operation. Rotate the throttle lock clockwise to
HOLD and counterclockwise to RELEASE the throttle. Also,
tightening the lock prevents moisture from getting into
the cable and keeps the cable from freezing in cold
weather when the engine is not operating.
REVERSE - Pull the lever to the rear (toward you).
NOTE: The ground drive foot control will override the
hand operated creep control lever.
NOTE: You MUST be seated in the operator’s seat to
move either of the Ground Controls from NEUTRAL
position or the engine will shutdown in 5 seconds.
(4) GROUND DRIVE CONTROL FOOT PEDAL
The NEUTRAL position is detented. You must move the
control out of the detent before moving it forward or
rearward. The ground drive hand creep control must be in
NEUTRAL before you can start the engine.
A
(6) MOTOR SPEED SELECT TOGGLE SWITCH
This switch has two positions, TRANSPORT and WORK.
Select the desired operating position. Pull the switch to
the rear (toward you) for WORK speed or push the switch
forward (away from you) for TRANSPORT speed.
4
(7) TRANSMISSION SELECT ROCKER SWITCH
The transmission has two ranges, HIGH and LOW and is
used in conjunction with the Motor Speed Control.
B
Press the switch to the right (near you) for LOW gear or
press the switch to the left (away from you) for HIGH
gear.
RT600_10
The ground drive control foot pedal controls the
direction of travel and the speed of the machine. Push
down on th e toe (A) of th e pedal for FORWARD
movement and push down on the heel (B) of the pedal
for REVERSE. For maximum speed, push the pedal
completely down. To reduce speed or to stop the
machine, let the pedal up towards the neutral position.
The machine has a hydrostatic drive used with a
transmission to provide four speeds. Select the gear and
speed combination most appropriate for the operation
being performed.
21
AU125990 C11A
INSTRUMENTS/CONTROLS
OPERATOR SEAT
WARNING: The machine can go out of
control if the transmission is in NEUTRAL.
Stop the machine and apply the parking brake
before shifting the transmission control.
Hydrostatic braking will not occur if the
transmission is in NEUTRAL.
(1) OPERATOR SEAT CONTROL
A
•1st GEAR - With the Motor Speed Select toggle switch in
the WORK position, press the Transmission rocker switch
to the right (near you) to shift the transmission into LOW
gear.
B
•2nd GEAR - With the Motor Speed Select toggle switch
in the WORK position, press the Transmission rocker
switch to the left (away from you) to shift the
transmission into HIGH gear.
RT600_14
•3rd GEAR - With the Motor Speed Select toggle switch in
the TRANSPORT position, press the Transmission rocker
switch to the right (near you) to shift the transmission
into LOW gear.
FORWARD AND REARWARD CONTROL: Pull control
bar (A) to the left to adjust the seat forward or rearward.
TO ROTATE SEAT: Pull the seat lever (B) UP and rotate
to the required position. Rotate the seat to the FRONT
position before driving the machine.
•4th GEAR - With the Motor Speed Select toggle switch in
the TRANSPORT position, press the Transmission rocker
switch to the left (away from you) to shift the
transmission into HIGH gear.
GEAR
1ST
2ND
3RD
4TH
MOTOR SPEED
LOW
HIGH
LOW
HIGH
(2) SEAT BELT
NOTE: Due to local regulations, 76 mm (3 inch) belts are
required on some machines. Check with local authorities
for seat belt requirements.
TRANSMISSION SELECT
WORK
WORK
TRANSPORT
TRANSPORT
WARNING: Securely fasten your seat belt. You
are protected by the ROPS system (Roll Over
Protective Structure). The seat belt is an
important part of the ROPS system. Before you
operate this machine, always fasten the seat belt.
If the machine rolls over and you DO NOT have
the seat belt fastened, you can be crushed by the
ROPS or the machine.
(8) PARKING BRAKE
The following illustrations show the correct procedure to
fasten and release the seat belt. Your seat belt may be
different from that shown.
A
B
RT600_12B
PUSH the switch (A) up to apply the parking brake.
PUSH the switch (B) down to release the parking brake
pedal.
RT600_15A
1. To fasten the seat belt, insert the belt end into the
left-hand buckle.
When the engine is stopped, the parking brake is
automatically applied.
AU125990 C11A
2. Make sure the belt end and buckle are securely
fastened.
22
INSTRUMENTS/CONTROLS
(2) BACKFILL BLADE TILT LEVER
Push this control to the right, away from you, to tilt the
blade down on the right. Pull the control lever to the left,
toward you, to tilt the blade down on the left.
(3) ATTACHMENT CONTROL 
(Trencher, Plow or Reel Carrier)
Push this control to the right, away from you, to lower the
attachment. Pull the control to the left, toward you, to
raise the attachment. When released the control lever will
return to the HOLD position automatically.
RT600_15B
3. To release the seat belt, push the button on the
buckle.
(4) REAR WHEEL POSITIONER CONTROL 
(Rear Steering)
EQUIPMENT CONTROLS
Push this control to the right, away from you, to turn the
rear wheels to the right. Pull the control lever to the left,
toward you, to turn the rear wheels to the left.
NOTE: The front wheels are turned by the steering wheel
only.
(5) REAR WHEEL POSITION INDICATOR
5
RT600_17
These controls are located on the right hand side of the
operators station.
This indicator shows the position of the rear wheels when
the Rear Wheel Positioner (4) is engaged.
REAR ATTACHMENT CONTROL
1
4
B
1
2
A
C
E
D
3
RT600_16B
RT600_16B
1. TRENCHER CHAIN DIRECTION/CABLE PLOW SPEED CONTROL
(1) BACKFILL BLADE JOYSTICK
A. Slow chain speed forward direction
Use the joystick to raise, lower, or angle the backfill
blade. Push the joystick forward to lower the blade.
Push all the way forward to float the blade. Pull the
joystick back to raise the blade. Push the joystick to the
right, away from you, to swing the blade right. Pull the
joystick to the left, toward you, to swing the blade left.
B. Fast chain speed forward direction
C. Neutral
D. Slow chain speed reverse (slow plow vibration)
E. Fast chain speed reverse (fast plow vibration)
23
AU125990 C11A
INSTRUMENTS/CONTROLS
AUXILIARY HYDRAULICS CONTROL
Cable Plow
Move the control lever rearward (C) to actuate the
vibration of the blade. Move the control lever fully toward
the rear (D) to increase the vibrations. Move the control
lever toward NEUTRAL (B) to decrease and stop the
vibration. Position (A) has no effect.
Trencher
Move the control lever forward (A) to actuate the digging
chain in the Forward direction. Move the control lever fully
toward the front (B) to increase the chain speed. Move
the control lever to the NEUTRAL (C) position to stop the
chain. Move the control lever rearward (D) to Reverse the
digging chain direction.
1
NOTE: You MUST be seated in the operator’s seat to
move the Rear Attachment Speed Control from the
NEUTRAL position or the engine will shut down in 5
seconds.
2
3
TRENCHER CHAIN DIRECTION
REVERSE
FORWARD
RT600_69
The auxiliary hydraulics control valve is used to power the
optional hydra-borer, sliding offset, and hydraulic crumber.
HYDRA-BORER
FORWARD
Push the lever (1) up to rotate the hydra-borer stem in
the counterclockwise direction.
REVERSE
A21901
Pull the lever (1) down to rotate the hydra-borer stem in
the clockwise direction.
Return the lever (1) to the neutral position to stop the
stem rotation. When released the lever will automatically
return to the neutral position.
SLIDING OFFSET
Push the lever (2) up to move the sliding offset to the left.
Pull the lever (2) down to move the sliding offset to the
right.
Return the lever (2) to the neutral position to stop the
movement. When released the lever will automatically
return to the neutral position.
HYDRAULIC CRUMBER
Push the lever (3) up to lower the crumber.
Pull the lever (3) down to raise the crumber.
Return the lever (3) to the neutral position to stop the
movement. When released the lever will automatically
return to the neutral position.
AU125990 C11A
24
OPERATING INSTRUCTIONS
PARKING BRAKE OPERATION
D. TEST: (Position not shown on decal) Turn the key half
the distance between ON and START to test the warning
lamps. Warning lamps 2 through 6 must illuminate.
E. START: Turn the key to this position to engage the
starter motor to start the engine. When released the key
will return to the ON position.
1
NOTE: See STARTING THE ENGINE in this manual for the
correct procedure to start the engine.
2
WARNING: Avoid
Injury. The operator
MUST be seated in the operators seat to
operate the machine.
RT600_18
ENGINE OPERATION
1. PUSH the parking switch (1) up to apply the parking
brake.
Before Starting The Engine
2. PUSH the parking switch (2) down to release the
parking brake.
When the engine is stopped the parking brake is
automatically applied.
WARNING: Before starting engine, study
operator’s manual safety messages. Read all
safety signs on machine. Clear the area of other
persons. Learn and practice safe use of controls
before operating. It is your responsibility to
understand
and
follow
manufacturer’s
instructions on machine operation and service,
and to observe pertinent laws and regulations.
Operators and service manuals can be obtained
from your equipment dealer.
KEY SWITCH OPERATION
B
A
C
D
E
Walk-Around Inspection
Do the following each day before you start the engine.
1. Check for leaks under the machine. Repair leaks as
necessary.
RT600_73
The ignition switch has the following five positions:
2. Check the tires for wear, damage, and low pressure.
A. ACCESSORY: This position is not used.
3. Check the machine for debris, especially around the
engine area. Make sure this area is clean so engine
cools properly.
B. OFF: Use this position to stop the engine, de-energize
the electrical system and to remove the key.
4. Clean or replace any safety or instructional decal that
cannot be read.
For machines equipped with a backhoe
attachment - there is an engine stop control. Push DOWN
the control knob to stop the engine. Pull the control UP
before you start the engine. The control must be in the
UP position for the engine to start.
NOTE:
5. Clean the steps, hand rails and operator’s area and
remove any loose items.
6. Check the machine for broken, damaged, loose or
missing parts. Replace, tighten or adjust as required
before you operate the machine.
C. ON: This position will energize the electrical systems.
The key will return to this position after you release the
key from START.
7. See the Maintenance Chart in this manual and do all
the 10 hour items.
NOTE: Before the engine is started, make sure you are
seated in the operators seat, the parking switch is on, and
ALL warning lamps are functional.
NOTE: If this is a new machine or a machine with a
rebuilt engine, see Run-In Procedure For a New
Machine.
25
AU125990 C11A
OPERATING INSTRUCTIONS
Run-In Procedure For a New Machine
5. Use the correct engine speed and transmission range
for your operating conditions. Run the engine at high
idle. Do not overload or lug down the engine.
During the first 20 hours of operation for a new machine
or a machine with a rebuilt engine, the following
procedure should be followed:
6. Test the radiator cap before hot weather starts.
Replace the cap if damaged.
1. Keep the engine at normal operating temperatures.
7. Keep the coolant at the correct level in the coolant
reservoir and in the radiator and make sure the
correct solution of 50% Ethylene Glycol and 50%
water is used in the cooling system.
2. Do not run the engine at low idle speeds for long
periods of time.
3. Operate the machine with normal loads for the first
eight (8) hours.
4. See Run-In Maintenance Schedule in this manual for
additional information.
OPERATING IN COLD WEATHER
Cold weather conditions cause special problems. During
these conditions your machine will require special
attention to prevent serious damage. Cold weather
maintenance will extend the service life of your machine.
RUN-IN MAINTENANCE SCHEDULE
The following items are to be done during the Run-In
Period and are in addition to the items listed above as well
as those listed in the Lubrication/Maintenance Chart.
1. BATTERY AND ELECTRICAL SYSTEM: Clean the
battery and make sure the battery is at full charge.
BEFORE OPERATING A NEW MACHINE
NOTE: A fully charged battery at -17°C (0°F) has
only 40 percent of the normal starting power. When
the temperature decreases to -29°C (-20°F), the
battery has only 18 percent of the power remaining.
Check the operation of the parking brake. See Parking
Brake Check in this manual.
AFTER FIRST 10 AND AFTER 30 HOURS OF OPERATION
Check the torque of the bolts/nuts retaining the trencher
chain drive sprocket ......160 to 190 Nm (120 to 140 lb ft)
Machine is shipped with a maintenance free battery. If a
different battery is used and you add water to the battery
when the temperature is below 0°C (32°F), make sure
you charge the battery or run the engine for
approximately 2 hours. This procedure will prevent
battery freezing.
AFTER FIRST 100 HOURS OF OPERATION
Have your dealer do the After Delivery Check. See After
Delivery Check in this manual.
AFTER THE FIRST 250 HOURS OF OPERATION
Inspect the battery cables and terminals. Clean the
terminals and put a coat of grease on each terminal to
prevent corrosion.
Change the chain drive planetary oil. See Trencher Drive
Planetary in this manual.
2. LUBRICANTS: You must follow the recommended oil
and filter service for the engine and the hydraulic
system as shown in this manual. Use the correct
viscosity oil in each component for the ambient
temperatures the machine is operated in (see
Lubrication in this manual).
OPERATING IN HOT WEATHER
Extreme conditions, hot or cold, place unusual demands
on equipment. The owner or operator can minimize
temperature related problems on equipment by following
these general recommendations.
3. FUEL SYSTEM: Fuel must be clean and free of water.
Check for water in the fuel system. Check with your
fuel supplier for the correct cold weather fuel. Engine
power will be reduced if wax particles are in the fuel
filters. Cold temperatures can cause condensation to
form in the fuel tank. Always fill the fuel tank at the
end of the day.
1. Clean all dirt and debris from the radiator, hydraulic
oil cooler and engine area to make sure there is
proper air flow to cool the engine. Wipe debris from
air inlets in the hood side panels.
2. Use lubricants of the correct viscosity. See the
Capacities and Lubricant Specifications Chart in this
manual.
4. COOLING SYSTEM: Check the coolant mixture before
you operate in cold temperatures. A mixture of 50%
Ethylene Glycol and 50% water must be used in this
machine. It is recommended that this Ethylene Glycol
and water mixture be used in your machine all year.
3. Check the air cleaner dust valve more frequently
during extreme dust conditions.
4. Check the condition of the fan drive belt. Replace if
cracked or worn.
AU125990 C11A
26
OPERATING INSTRUCTIONS
5. GENERAL: Before you operate, move the machine
slowly at low speed and actuate each hydraulic
control several times to warm the oil.
8. Turn the key switch to ON and check the Neutral
Indicator, and the Parking Brake and Oil Pressure
warning lamps.
IMPORTANT: The engine and hydraulic system MUST be
at operating temperature before the machine is put to
work.
9. The engine is equipped with glow plugs which sense
the engine temperature. If the engine is cold, the
Wait To Start warning lamp will alert the operator to
wait for the intake air to be heated before starting.
When the proper temperature is attained the lamp
will turn off. Wait until the lamp turns off to start the
engine.
Keep the digging chain and track assemblies free of mud
and snow which might freeze after operation.
NOTE: See Engine Starting Aids in this manual.
10. Turn the key switch half way between the ON and
START positions and check the Air Cleaner, Hydraulic
Return Restriction, Charge Filter Restriction, and
Charge Pressure warning lamps on the instrument
panel to make sure all are working properly.
STARTING THE ENGINE
WARNING: Before starting the engine, sit in
the operator’s seat, fasten the seat belt, apply the
parking brake, and make sure the transmission
direction control and digging control levers are in
NEUTRAL. Give a warning to all persons around
you that you are starting the engine.
11. Turn the key switch to the START position to actuate
the starter motor. Release the key as soon as the
engine starts to run. When the key is released it will
return to the ON position.
WARNING: The parking brake must be engaged before
The Seat Interlock System REQUIRES the operator to be
seated in the operator’s seat when operating this
machine.
starting the engine.
12. If the engine starts and stops, DO NOT actuate the
starter motor again until the starter motor stops
turning.
NOTE: If the operator DOES NOT remain seated when
the control levers are not in NEUTRAL, the system will
stop the ground drive and attachment drive in 5 seconds.
It is the operator’s responsibility to operate this machine
in a safe manner. DO NOT lay a weighted object on the
seat, bypass or tamper with the Seat Interlock System in
any way.
NOTE: DO NOT operate the starter motor until the starter
motor stops turning. DO NOT operate the starter motor
for more than 30 seconds at one time. Let the starter
motor cool for 30 seconds before you actuate the starter
motor again. While the starter motor is engaged, white or
black smoke must be seen at the exhaust pipe. If no
smoke is seen, check the fuel supply.
The following procedure should be followed when starting
the engine on your machine:
13. After the engine starts, check the instruments to
make sure the gauge indications are correct. If any
warning lamp is illuminated, stop the engine and
check for the problem.
1. Check oil level (See Checking Engine Oil in this
manual).
2. Make sure the seat is turned around to the FRONT
position.
14. Run the engine at 1100 rpm until the coolant
temperature is warm.
3. Seat Interlock and Neutral Start: The Seat Interlock
System REQUIRES the operator to be seated on the
operator’s seat when operating this machine.
15. Cycle all unit components before putting the machine
to work. Check that all controls and components work
properly.
4. Adjust the seat and fasten the seat belt.
5. Make sure the parking/emergency brake is applied.
ENGINE SPEED
6. Make sure all control levers (trencher, plow, etc.) are
in the NEUTRAL or STOP position, and make sure the
hand throttle is at IDLE.
Do not run the engine at low idle speed for long periods
of time. This can cause a low operating temperature. Low
operating temperature can cause acids and deposits to
form in the engine oil.
NOTE: If the machine is equipped with a backhoe, make
sure the engine shutoff control is pulled up.
For maximum engine life and machine performance, it is
recommended that you operate the engine at full throttle
when operating conditions permit and when safe to do so.
7. Pull the throttle lever out to 1/2 THROTTLE.
NOTE: If the weather is cold, see Cold Weather Starting
in this manual.
27
AU125990 C11A
OPERATING INSTRUCTIONS
ENGINE COOLANT HEATER
THROTTLE OPERATION
1
2
1
RT600_9B
•
To increase the engine speed, simultaneously push the
throttle center button (1) while pulling the throttle OUT.
•
To make incremental increases to engine speed rotate
the throttle knob COUNTERCLOCKWISE.
•
To make incremental decreases to engine speed rotate
the throttle knob CLOCKWISE.
•
RT600_5
The left side of the engine cylinder head has a passage
(1) for installing an optional coolant heater. Follow the
heater manufacturer’s instructions for installing and
operating the heater.
To decrease engine speed, simultaneously push the
throttle center button while pushing the throttle IN.
THROTTLE LOCK OPERATION
•
With the throttle in the OUT position, rotate the throttle
lock ring (2) clockwise to hold the throttle in position
during machine operation.
•
With the throttle in the OUT position, rotate the throttle
lock ring counterclockwise to release the throttle.
BOOSTER BATTERY CONNECTIONS
Batteries contain acid and
explosive gas. Explosion can result from sparks,
flames or wrong cable connections. To connect
the jumper cables correctly to the battery of this
machine, see the correct method shown on this
page. Failure to follow these instructions can
cause serious injury or death.
WARNING:
NOTE: During cold weather and after stopping the
engine, turn the throttle lock ring clockwise. This will keep
water from getting into the throttle cable and prevent
freezing.
COLD WEATHER STARTING
WARNING: Always wear face protection
1. See Starting the Engine in this manual and use the
correct procedure to start the engine.
when making battery connections.
2. The engine is equipped with glow plugs which sense
the engine temperature. When the engine is cold, the
Wait To Start warning lamp will alert the operator to
wait for the intake air to be heated before starting.
Wait until the proper temperature is attained and the
lamp has turned off to start the engine.
Two persons are required for this procedure. Make sure
the person making the connections is wearing face
protection.
3. Actuate the starter motor by turning the key switch to
the start position.
WARNING: The parking brake must be engaged before
2. Sit in the operator’s seat and have the other person
make the connections. Make sure the jumper battery
is 12 volts.
NOTE: DO NOT actuate the starter motor for more than
3. If using another machine for power, make sure the
two machines DO NOT touch.
1. Make sure all controls are in NEUTRAL and the
Parking/Emergency Brake is in the ON position.
starting the engine.
30 seconds at one time. Wait 30 seconds before retrying
so the charge in the battery can increase and the starter
motor can cool.
4. See Starting the Engine in this manual and do steps 1
through 7.
5. Have the other person do the following:
4. When the engine starts, run at 1,100 rpm until the
coolant temperature is warm.
AU125990 C11A
28
OPERATING INSTRUCTIONS
A. Connect the positive (+) jumper cable to the jump
post.
WARNING: Operate controls only when in the
B. Connect the negative (-) jumper cable to a good
frame ground away from the battery.
operator’s seat.
6. See Starting the Engine in this manual and do steps 8
through 12.
WARNING: CLEAR THE WORK AREA OF ALL
NOTE: If the engine starts and then stops, DO NOT
BY-STANDERS. During digging maintain a
minimum safety zone of 50 ft (15 M) around the
machine.
engage the starter motor again until the starter motor
stops turning. DO NOT actuate the starter motor for more
than 30 seconds at one time. Wait 30 seconds before
retrying so the charge in the battery can increase and the
starter motor can cool.
WARNING: Hillside
operation
can
be
dangerous. Rain, snow, ice, loose gravel, soft
ground, etc., change the ground conditions. You
must make a judgement if your machine can be
safely operated on any hillside or slope.
7. When the engine starts, have the other person first
disconnect the negative (-) jumper cable from the
frame, and then disconnect the positive (+) jumper
cable last.
When the engine is warm do the following:
8. See Starting the Engine in this manual and do steps
13 through 15.
1. Pull the throttle out to FULL.
2. Raise the equipment (trencher, plow, etc.).
BEFORE YOU OPERATE EACH DAY
3. Put the parking brake in OFF (released).
Make sure the seat is adjusted and the seat belt is
fastened before you start operating the machine.
4. Slowly move the ground drive creep control lever
forward or backward. The machine will move in the
direction that you move the control lever.
Check all instruments, NEUTRAL INDICATOR LAMP and
warning lamps for correct indications. Check all controls in
a clear open area.
NOTE: You MUST be seated in the operator’s seat before
moving the machine or the engine will shut down in 5
seconds.
The Neutral Indicator Lamp will illuminate when the key
switch is ON and the ground drive creep control is in the
NEUTRAL position.
NOTE: The speed of machine travel is controlled by the
ground drive creep control lever. The farther you move
the ground drive creep control lever from the NEUTRAL
position, the faster the machine will go.
MACHINE OPERATION
IMPORTANT: Control the speed of machine travel with
the ground drive creep control lever, not the throttle.
WARNING: DO NOT operate the machine while
5. Check the warning lamps frequently.
under the influence of alcohol or drugs.
NOTE: Before you stop the engine, read the instructions
for Parking and Stopping the Engine in this manual.
WARNING: Before each period of operation,
check the machine for correct operation of the
steering, brakes, hydraulic controls, instruments,
and safety equipment. Check the NEUTRAL
position of the Ground Drive Control Lever. A
machine that runs correctly can prevent accidents.
Make all necessary repairs or adjustments before
you operate the machine.
PARKING AND STOPPING THE
ENGINE
WARNING: Jumping
on or off the
machine can cause an injury. Always face
the machine, use the hand rails and steps,
and get on or off the machine slowly.
WARNING: Avoid exposure to dust containing
crystalline silica particles. This dust can cause
serious injury to the lungs (silicosis).
29
AU125990 C11A
OPERATING INSTRUCTIONS
2. Support or lower all attachments to the ground.
3. Apply the parking/emergency brake.
1
4. If the unit has been operating under a heavy load,
decrease the engine speed to 1/4 throttle for two
minutes to evenly cool the engine.
5. Push the throttle lever to the SLOW position and turn
the key switch to the OFF position. Remove the key
from the ignition switch.
6. Always use the hand rail and steps to get on or off the
machine.
7. Fill the fuel tank at the end of each day of operation
to prevent condensation and moisture in the tank.
RT600_18B
SEAT INTERLOCK SYSTEM
WARNING: The
operator
presence/seat
interlock system provides protection from injury.
Do not disable the system.
3
The Seat Interlock System REQUIRES the operator to be
seated in the operator’s seat when operating this
machine.
RT600_12B
The NEUTRAL INDICATOR LAMP will illuminate when the
key switch is in the ON position and the ground drive and
attachment control are in the NEUTRAL position.
2
NOTE: If the operator DOES NOT remain seated when
the Ground Drive Control lever is not in NEUTRAL, the
system will stop the engine in 5 seconds. It is the
operator’s responsibility to operate this machine in a safe
manner. DO NOT lay a weighted object on the seat,
bypass or tamper with the Seat Interlock System in any
way.
FOOT PEDAL CONTROL
RT600_11B
This machine has hydrostatic braking. When you remove
your foot from the ground drive foot pedal (1) or move
the ground drive creep control (2) back to NEUTRAL, the
machine will stop. Always apply the parking brake (3)
after the machine is stopped and before you stop the
engine.
WARNING: Avoid
Injury. The operator
MUST be seated in the operator’s seat to
operate the machine.
1. When the work day is finished, make sure the
machine is parked on level ground. The machine must
b e o n l e vel g ro u n d b e fo re yo u d o s c h e d u l e d
maintenance.
IMPORTANT: If you must temporarily park the machine
on a slope or incline, position the machine at right angle
to the slope, with the front of the machine toward the
bottom of the hill. Make sure the machine is behind an
object that will not move.
1
RT600_18
AU125990 C11A
30
OPERATING INSTRUCTIONS
The ground drive foot pedal (1) controls the direction
of travel and the speed of the machine.
5. Return the lever to NEUTRAL to stop forward or
rearward movement.
Push down on the toe (top) of the pedal to move the
machine in the FORWARD direction.
NOTE: The ground drive foot pedal will override the
•
•
Push down on the heel (bottom) of the pedal to move
the machine in REVERSE.
•
For maximum speed, push the pedal completely down.
•
To reduce speed or to stop the machine, release the
pedal and allow it to return to the neutral position.
hand-operated creep control lever. If the hand-operated
lever is overridden by the foot pedal, the lever must be
moved to the NEUTRAL position to release the override
and to return the lever to operation.
TRANSMISSION OPERATION
1
HAND CREEP CONTROL
W
H
1
T
2
L
RT600_11B
(1) MOTOR SPEED SELECT TOGGLE SWITCH
This control has two positions, TRANSPORT and WORK.
Select the desired operating position. Pull the switch to
the rear (toward you) for WORK speed (W) or push the
switch forward (away from you) for TRANSPORT speed
(T).
RT600_11B
The Ground Drive Hand Creep Lever (1) controls the
direction of travel and the speed of the machine during
the trenching, plowing, and boring operations.
(2) TRANSMISSION SELECT ROCKER SWITCH
WARNING: Avoid
Injury. The operator
MUST be seated in the operator’s seat to
operate the machine.
The transmission has two ranges, HIGH and LOW and are
used in conjunction with the Motor Speed Control.
Press the switch to the right (toward you) for LOW gear
(L) or press the switch to the left (away from you) for
HIGH gear (H). The machine must be stopped and the
ground drive control must be in neutral with the neutral
light ON to shift transmission.
NOTE: The operator MUST be seated in the operator’s
seat or the engine will stop in 5 seconds.
1. Release the parking brake.
2. The center detent position is NEUTRAL. Move the
lever (1) out of NEUTRAL and in the desired direction
of travel:
•
•
The machine has hydrostatic drive with a transmission to
p ro v i d e fo u r s p e e d s . S e l ec t t h e g e a r a n d s p e e d
combination most appropriate for the operation being
performed.
Move the lever forward (towards the front of the
machine) to move the machine in the FORWARD
direction.
WARNING: The machine can go out of
control if the transmission is in NEUTRAL.
Stop the machine and apply the parking brake
before shifting the transmission control.
Hydrostatic braking will not occur if the
transmission is in NEUTRAL.
Move the lever rearward (towards the rear of the
machine) to move the machine in REVERSE.
3. Move the lever completely forward or rearward for
maximum speed.
4. Release the lever. The lever is held in place front-torear by friction so as to maintain a constant speed.
31
AU125990 C11A
OPERATING INSTRUCTIONS
• 1st GEAR - With the Motor Speed Select toggle switch in
the WORK position, press the Transmission rocker switch
to the right (toward you) to shift the transmission into
LOW gear.
WARNING: Jumping on or off the machine can
cause an injury. Always face the machine, use the
hand rails and steps, and get on or off the
machine slowly.
• 2nd GEAR - With the Motor Speed Select toggle switch
in the WORK position, press the Transmission rocker
switch to the left (away from you) to shift the
transmission into HIGH gear.
WARNING: Operate controls only when in the
3rd GEAR - With the Motor Speed Select toggle switch
in the TRANSPORT position, press the Transmission
rocker switch to the right (toward you) to shift the
transmission into LOW gear.
•
operator’s seat.
Face the machine and use the steps and hand rails (1) to
get on and off of the machine. DO NOT use control levers
or steering wheel as grab handles.
4th GEAR - With the Motor Speed Select toggle switch
in the TRANSPORT position, press the Transmission
rocker switch to the left (away from you) to shift the
transmission into HIGH gear.
•
GEAR
1st
2nd
3rd
4th
MOTOR SPEED
LOW
HIGH
LOW
HIGH
TRANSPORTING THE MACHINE ON
A TRAILER
TRANSMISSION SELECT
WORK
WORK
TRANSPORT
TRANSPORT
WARNING: Know the rules, regulations, laws
and safety equipment necessary for transporting
or operating this machine on a road or highway.
Rotating beacon, backup alarm, slow moving
vehicle emblem and other safety equipment items
are available from your dealer.
STEPS AND HAND RAILS
WARNING: The machine can slip and fall from a
trailer or ramp and cause injury or death. Make
sure the trailer and ramp are not slippery. Remove
all oil, grease, mud, ice, etc. Carefully move the
machine off or onto the trailer with the machine
centered on the trailer and ramp.
You must know the rules or laws for safety used in each
area you will be in. Make sure that your truck and
machine are equipped with the correct safety equipment.
1
1. Make sure the trailer and ramp can support both your
weight plus the weight of the machine.
2. Always have the attachments in the TRANSPORT
position when loading or unloading.
3. Put a block at the front and rear of the trailer wheels.
4. Be careful, move the machine slowly onto the
trailer.
5. Lower the attachments to the trailer.
6. Apply the parking brake.
7. Stop the engine and remove the key.
8. Put blocks at the front and rear of each tire of the
machine.
RT600_19
AU125990 C11A
32
OPERATING INSTRUCTIONS
UNLOADING FROM A TRAILER
Put a block at the front and rear of the trailer wheels.
After the blocks and chains are removed from the
machine, start the engine, put the attachments in the
TRANSPORT position. and slowly move the machine off
the trailer.
NOTE: See Starting the Engine in this manual.
MOVING A DISABLED MACHINE
1
If possible, repair a disabled machine at the job location.
1
If your machine is disabled, you must make a judgement
if the machine can be moved without further damage.
1. FRONT TIE-DOWN LOCATION (1 EACH SIDE)
If you must tow the machine, read the following
recommendations and use caution.
RT600_22
NOTE: If you do not have a rigid drawbar, use two towing
machines. Attach a tow chain to the front towing machine
and attach a tow chain to the rear towing machine. The
front machine is used to move the disabled machine and
the rear machine is used to stop the disabled machine.
9. Fasten the front of the machine to the trailer using
chains and a binder. Use the front tie down holes (1)
to secure machine.
2
1
RT600_21B
2. REAR TIE-DOWN LOCATION (1 EACH SIDE) (WITH TRENCHER)
10. Fasten the rear of the machine to the trailer using
chains and a binder. Use the two rear tie down
holes (2) to secure the rear of trencher.
1. Machine has hydrostatic braking. When the engine is
stopped the brakes are automatically applied. Start
the engine and release the parking brake.
11. Measure the distance from the ground to the highest
point of the machine. You must know the clearance
height of the machine.
2. To release the parking brake of a machine that has
lost engine function, disconnect the hydraulic hose
from the parking brake cylinder at the location shown
(1). Connect a Port-A-Power hand pump capable of
producing 350 psi to the brake cylinder. When the setup is complete and the Port-A-Power is pumped, the
brakes will be released.
12. Remove the blocks from the front and rear of the
trailer wheels.
13. After you have driven a few miles, stop the truck
and check your load. Make sure the chains are still
tight and that the machine has not moved on the
trailer.
33
AU125990 C11A
OPERATING INSTRUCTIONS
3. Move the Ground Drive Creep Control to the Neutral
position. The machine can be moved up to 8 km/h (5
mph) and up to 1.6 km (1 mile) distance.
NOTE: You must transport the
trailer if the machine must be
greater than 1.6 km (1 mile).
Machine On A Trailer in this
instructions.
machine on a suitable
moved for a distance
See Transporting The
manual for additional
4. Disconnect the Port-A-Power hand pump and
reconnect the hose back to the parking brake cylinder
before making repairs or to enable brakes.
LIFTING MACHINE WITH SPREADER
BAR
WARNING: Before lifting the machine with a
spreader bar, ensure the lifting device and
spreader bar have a capacity sufficient to safely lift
the entire mass of the machine as it is configured.
See WEIGHTS in this manual.
To lift the machine onto a trailer or truck:
1. Attach a crane lift cable to the single lift point of a
spreader bar.
2. Attach two of the lift cables on one end of the
spreader bar to a lifting bar placed under the rear of
the machine frame.
3. Attach the remaining two spreader bar lift cables to a
lifting bar placed under the front of the machine
frame.
4. Carefully and slowly, lift the machine.
5. Move and lower the machine into the new location.
AU125990 C11A
34
ATTACHMENTS
ATTACHMENTS
BACKFILL BLADE - RT600
WARNING: Operate controls only when in the
operator’s seat.
JOYSTICK
CONTROL
LEVER
CONTROL
RT600_16B
B910850J
When backfilling parallel with the trench, the machine will
do a better job if you make 2 or 3 passes at the spoil pile.
If the spoil pile is too large, operate the machine at right
angles to the trench.
RT600_23
35
AU125990 C11A
ATTACHMENTS
P75 CABLE PLOW & REEL CARRIER RT600 QUAD
Cable Plow Shaker Switch
8
9
RT600_16B
2LEVER_075
A
B
C
D
RT600_16B
The P75 plow shaker is controlled by the rear attachment
speed control lever (8).
A. Reverse (A) has no effect on the plow blade.
B. Move the control lever to neutral (B) to decrease
and stop the vibration of the blade.
C. Move the control lever forrward (C) to actuate the
vibration of the blade.
D. Move the control lever further forrward (D) to
increase the vibration of the blade.
NOTE: You MUST be seated in the operator’s seat to
move the rear attachment speed control lever from the
neutral position or the engine will shut down in 5 seconds.
If equipped with a reel carrier, move the attachment
control lever (9) away from you to lower the reel carrier.
Move the attachment control lever toward you to raise the
reel carrier. When released the control lever will return to
the HOLD position automatically.
The maximum capacity of the reel carrier is 454 kg
(1000 lb).
PLOW P75 - 2LEVER
AU125990 C11A
36
ATTACHMENTS
Operation of the P75 Plow
10
WARNING: Avoid exposure to dust containing
crystalline silica particles. This dust can cause
serious injury to the lungs (silicosis).
WARNING: Make sure all people are clear of the
machine and working area while the plow is
moving. Serious injury or death can result from
contact with the plow or from flying debris.
RT600_9
7. When the engine is warm, pull the throttle (10) out to
FULL THROTTLE.
WARNING: Vibrations from the plow can cause
a trench, overhang or high bank to fall and cause
injury or death. Be careful when working near the
side of a trench. Serious injury or death can result
if the walls of the trench fall.
Cable Chute
12
WARNING: Make sure all people are clear of the
11
work area while the plow is moving. Serious injury
or death can result from contact with the plow.
15
13
14
WARNING: Sharp moving parts - keep clear of
hazardous area. KEEP CLEAR. Serious injury or
death can result from bodily contact.
A21848
The cable chute (11) is attached to the back of the blade
(12). Some chutes have replaceable links and some
chutes are attached directly to the blade.
WARNING: Never allow anyone in the trench
while digging.
To install cable, remove the hairpin (15) and the gate pin
(13) and pull the gate (14) forward. Install the cable and
install the gate - bottom first. Install the gate pin and the
hairpin.
NOTE: You MUST be seated in the operator’s seat to
operate this machine.
NOTE: Check the cable chute frequently for wear or
damage. Replace the links or hardware if damaged.
Before beginning any underground
operations, always check with appropriate local utility
companies to determine if any underground cables, wires,
pipes, etc., may be encountered during operations.
IMPORTANT:
Lowering Blade Into Ground
1. Remove the chute gate and insert cable or tubing.
Install chute gate. Check chute links for wear and
freedom of movement.
6. Start the engine (See Starting The Engine in this
manual).
2. Use the cable plow lift control lever to lower the blade
to the ground (2) and anchor the end of the cable as
necessary.
NOTE: You MUST be in the operator’s seat before the
direction control, trencher digging control, or creep
control levers are moved from the NEUTRAL position or
the engine will shutdown in 5 seconds.
37
AU125990 C11A
ATTACHMENTS
NOTE: The more you push the lever from NEUTRAL the
faster the machine will travel. The lever will stay in this
position when you release the lever. Move the lever to
NEUTRAL to stop the machine travel.
IMPORTANT: Never reverse the machine with the plow
blade in the ground. Damage to chute and cable will
result.
16
NOTE: Slow the machine speed if the tires slip during
plow operation.
NOTE: Slow the machine speed if the blade raises out of
the ground during plow operation.
RT600_18
3. Push the parking brake switch down (16) to release
the parking brake pedal.
IMPORTANT: Slowly lift the plow blade out of the
ground as the machine moves forward. This will prevent
cable damage.
ATTENTION: Do not start plow operation (vibration)
until the blade tip has entered the ground.
NOTE: A second method of starting is shown. A hole is
dug next to the building and the blade is lowered to full
depth. The cable or tubing is threaded into the chute and
pushed through the wall. Secure the cable end and slowly
move the machine forward. As the blade enters the
ground, start the vibrator.
17
RT600_11
4. Slowly lower the blade into the ground and start
moving the machine forward slowly with the creep
control lever (17). This will prevent cable or chute
damage.
5. After the blade enters into the ground, start blade
vibration. When the blade is 1/4 the way into the
ground, gradually increase blade vibration and put
the plow swing into FLOAT. Be sure the chute links
are horizontal as the blade enters the ground. You will
damage the cable and chute if the blade is forced into
the ground too fast. If the ground is very hard, you
can power the blade down.
RB97D083
8. Increase the creep speed until the tires begin to slip
or lose traction. Do not allow tires to slip too much, as
this will lower the efficiency of the machine.
6. Use the creep control lever (17) to control the forward
direction and the machine speed during plow
operations. The machine will move in the direction
that you move the lever. The further you move the
lever from NEUTRAL the faster the machine will
travel.
7. When the blade is at full depth, adjust vibrator speed
just fast enough to allow the machine to maintain
desired ground speed. Do not vibrate any faster than
necessary.
AU125990 C11A
38
ATTACHMENTS
9. If an underground obstacle is encountered, increase
vibrator speed and maintain slight forward pressure
with the machine. This lets the obstacle move to one
side or allows the plow blade to move around the
obstacle. Be sure the swing control is in the FLOAT
position. Know the location of underground lines
before starting.
3. For sharp turns without a service hole, if the area is
open, you can lay cable in a 90 degree turn with a
radius of about 0.9 m (3 feet).
EXAMPLE: When making a right turn, put the plow
swing control in FLOAT, then, turn the front wheels to
the right.
NOTE: The links connecting the chute to the blade are
replaceable. Check for wear and freedom of movement at
frequent intervals. Replace the links before they wear out
and the chute breaks away from the blade.
Raising the Blade
If the cable or tubing is not to be plowed into a hole or
trench at the end of the run, proceed as follows:
1. Slow the machine speed and plow vibration.
Service Connections
1. When making a service connection, dig a hole to the
depth the cable is being laid and no wider than 0.6 m
(2 foot). The machine can then drive over the hole
with no problem.
2. Have sufficient cable slack above the chute as the
plow is raised. Damage can result to the cable at the
chute outlet if cable slack is insufficient. Lubrication of
the cable is also recommended in this operation.
2. To make the connection, plow directly into the hole.
Stop the vibrator before the blade enters the hole.
Make a loop in the cable and secure. Move the
machine forward while pushing the cable down the
chute. Start the vibrator slowly after the blade enters
the ground.
3. Move ahead slowly as the plow is slowly raised. When
about halfway out of the ground, stop the vibration
and continue raising the blade. Make sure the swing
control is in the HOLD position before the blade is out
of the ground.
NOTE: The life of the cable plow will be reduced if the
vibrator is operated when the blade is out of the ground.
Operating Tips
•
For normal operation, the boom swing control lever
must be placed in the FLOAT position.
•
The plow motor speed can be adjusted to any speed
in the operating range to obtain the best
performance.
RB97D084
By changing the ground speed setting and the plow
shaker speed setting at the same time, it is possible
to optimize the plow speed for the given soil
conditions. Start with plow shaker speed control
about midway and adjust ground drive speed for best
performance (3 to 10% wheel slip). Adjust the shaker
speed up or down and note performance increase/
decrease. Continue until best performance is
obtained.
Turning
The machine can make sharp or gradual turns depending
on the conditions of the ground.
1. If a sharp turn is to be made with little room to turn
the machine, dig a hole the same depth as the cable.
It must be no wider than 0.6 m (2 feet). The machine
can then drive over the hole, laying cable into it. Stop
the blade vibration, and move the swing control to
HOLD before the blade enters the hole.
2. As soon as the cable chute is into the hole, remove
the gate and cable. Raise the blade from the hole.
Without cutting the cable, move the machine around
to the side as the cable continues to move and lower
the blade into the ground. Install the cable into the
chute, install the gate, and plow away from the hole.
The blade must be started into the ground before
starting the vibration.
39
•
In general, loose or sandy soils can be plowed with a
slow plow shaker speed.
•
Tougher clay soils require plowing with faster plow
motor speed.
•
An operator will usually find that the fastest plowing
speed will be achieved when the ground drive speed
and plow shaker speed are set to provide the least
amount of vibration at the operator’s area.
AU125990 C11A
ATTACHMENTS
•
The plow swing will assist in making tight turns while
plowing by reducing side draft. Return the swing
control to FLOAT when making minor direction
changes.
Always turn the plow shaker off whenever the plow is out
of the ground or when the plow is in the ground with the
machine stopped. This will prevent excessive vibration.
Transport Position
RD97H109
Raise the P75 Cable Plow to full height for transport.
Sod Cutter
The plow can be fitted with an optional sod cutter.
AU125990 C11A
40
ATTACHMENTS
P85 CABLE PLOW & REEL CARRIER RT600
Cable Plow Shaker Switch
9
10
RT600_16B
3LEVER_075/085
A
B
C
D
RT600_16B
The P85 plow shaker is controlled by the rear attachment
speed control lever (9).
A. Reverse (A) has no effect on the plow blade.
B. Move the control lever to neutral (B) to decrease
and stop the vibration of the blade.
C. Move the control lever forward (C) to actuate the
vibration of the blade.
D. Move the control lever further forward (D) to
increase the vibration of the blade.
NOTE: You MUST be seated in the operator’s seat to
move the rear attachment speed control lever from the
neutral position or the engine will shut down in 5 seconds.
If equipped with a reel carrier, move the attachment
control lever (10) away from you to lower the reel carrier.
Move the attachment control lever toward you to raise the
reel carrier. When released the control lever will return to
the HOLD position automatically.
The maximum capacity of the reel carrier is 454 kg
(1000 lb).
PLOW P85 - 3LEVER
41
AU125990 C11A
ATTACHMENTS
Operation of the P85 Plow
11
WARNING: Avoid exposure to dust containing
crystalline silica particles. This dust can cause
serious injury to the lungs (silicosis).
WARNING: Avoid exposure to dust containing
crystalline silica particles. This dust can cause
serious injury to the lungs (silicosis).
RT600_9
5. When the engine is warm, pull the throttle (11) out to
FULL THROTTLE.
WARNING: Make sure all people are clear of the
Cable Chute
machine and working area while the plow is
moving. Serious injury or death can result from
contact with the plow or from flying debris.
13
WARNING: Vibrations from the plow can cause
a trench, overhang or high bank to fall and cause
injury or death. Be careful when working near the
side of a trench. Serious injury or death can result
if the walls of the trench fall.
16
12
14
15
WARNING: Make sure all people are clear of the
work area while the plow is moving. Serious injury
or death can result from contact with the plow.
B4051591
The cable chute (12) is attached to the back of the blade
(13). Some chutes have replaceable links and some
chutes are attached directly to the blade.
WARNING: Sharp moving parts - keep clear of
hazardous area. KEEP CLEAR. Serious injury or
death can result from bodily contact.
To install cable, remove the hairpin (16) and the gate pin
(14) and pull the gate (15) forward. Install the cable and
install the gate - bottom first. Install the gate pin and
hairpin.
NOTE: Check the cable chute frequently for wear or
damage. Replace the links or hardware if damaged.
WARNING: Never allow anyone in the trench
while digging.
NOTE: You MUST be seated in operator’s seat to operate
this machine.
IMPORTANT: Before beginning any underground
operations, always check with appropriate local utility
companies to determine if any underground cables, wires,
pipes, etc. may be encountered during operations.
4. Start the engine (See Starting The Engine in this
manual).
AU125990 C11A
42
ATTACHMENTS
Lowering Blade Into Ground
17
19
RT600_11
5. Put the cable plow lift control in the FLOAT position,
slowly lower the blade into the ground and start
moving the machine forward slowly with the creep
control lever (19). This will prevent cable or chute
damage.
B4051691
1. To release the cable plow from the transport position,
raise the cable plow to full height, pull forward the
transport lock control lever (17) and lower the cable
plow slightly.
2. Remove the chute gate and insert cable or tubing.
Install chute gate. Check chute links for wear and
freedom of movement.
20
3. Use the plow lift control to lower blade to the ground
(2) and anchor the end of cable as necessary.
NOTE: You MUST be in the operator’s seat before the
direction control, trencher digging control, or creep
control levers are moved from the NEUTRAL position or
the engine will shutdown in 5 seconds.
RT600_16B
6. After the blade enters into the ground, start blade
vibration (20). When the blade is 1/4 the way into the
ground, gradually increase blade vibration and put
the plow swing into FLOAT. Be sure the chute links
are horizontal as the blade enters the ground. You will
damage the cable and chute if the blade is forced into
the ground too fast. If the ground is very hard, you
can power the blade down.
18
7. Use the creep control lever (19) to control the forward
direction and the machine speed during plow
operations. The machine will move in the direction
that you move the lever.
RT600_18
4. Push the parking brake switch down (18) to release
the parking brake.
8. When the blade is at full depth, adjust vibrator speed
(20) just fast enough to allow the machine to
maintain desired ground speed. Do not vibrate any
faster than necessary.
ATTENTION: Do not start plow operation (vibration)
until the blade tip has entered the ground.
NOTE: The more you push the Creep Control lever from
NEUTRAL the faster the machine will travel. The lever will
stay in this position when you release the lever. Move the
lever to NEUTRAL to stop the machine travel.
43
AU125990 C11A
ATTACHMENTS
Service Connections
IMPORTANT: Never reverse the machine with the plow
blade in the ground. Damage to chute and cable will
result.
1. When making a service connection, dig a hole to the
depth the cable is being laid and no wider than 0.6 m
(2 foot). The machine can then drive over the hole
with no problem.
NOTE: Slow the machine speed if the tires slip during
plow operation.
2. To make the connection, plow directly into the hole.
Stop the vibrator before the blade enters the hole.
Make a loop in the cable and secure. Move the
machine forward while pushing the cable down the
chute. Start the vibrator slowly after the blade enters
the ground.
NOTE: Slow the machine speed if the blade raises out of
the ground during plow operation.
IMPORTANT: Slowly lift the plow blade out of the
ground as the machine moves forward. This will prevent
cable damage.
NOTE: A second method of starting is shown. A hole is
dug next to the building and the blade is lowered to full
depth. The cable or tubing is threaded into the chute and
pushed through the wall. Secure the cable end and slowly
move the machine forward. As the blade enters the
ground, start the vibrator.
RB97D084
Turning
The machine can make sharp or gradual turns depending
on the conditions of the ground.
1. If a sharp turn is to be made with little room to turn
the machine, dig a hole the same depth as the cable.
It must be no wider than 0.6 m (2 feet). The machine
can then drive over the hole, laying cable into it. Stop
the blade vibration and move the swing control to
HOLD before the blade enters the hole.
2. As soon as the cable chute is into the hole, remove
the gate and cable. Raise the blade from the hole.
Without cutting the cable, move the machine around
to the side as the cable continues to move and lower
the blade into the ground. Install the cable into the
chute, install the gate, and plow away from the hole.
The blade must be started into the ground before
starting the vibration.
RB97D083
9. Increase the creep speed until the tires begin to slip
or lose traction. Do not allow tires to slip too much,
this will lower the efficiency of the machine.
10. If an underground obstacle is encountered, increase
vibrator speed and maintain slight forward pressure
with the machine. This lets the obstacle move to one
side or allows the plow blade to move around the
obstacle. Be sure the swing control is in the FLOAT
position. Know the location of underground lines
before starting.
3. For sharp turns without a service hole, if the area is
open, you can lay cable in a 90 degree turn with a
radius of about 0.9 m (3 feet).
EXAMPLE: When making a right turn, put the plow
swing control in FLOAT, then steer the blade to the
right and allow the blade enough distance to move
completely to the right. Then, turn the front wheels to
the right and crab steer the rear wheels to the right.
Control the turn with the blade steering control.
NOTE: The links connecting the chute to the blade are
replaceable. Check for wear and freedom of movement at
frequent intervals. Replace the links before they wear out
and the chute breaks away from the blade.
AU125990 C11A
44
ATTACHMENTS
Raising the blade
•
In tough soils, a blade with an increased forward
angle or a toe at the bottom of the blade will provide
best performance. In loose, sandy soils or in other
conditions where plow floatation over the top of the
soil is a problem, it is recommended to use a blade
with less angle (closer to vertical) without a toe.
•
Highest plowing productivity is achieved when the
plow is centered behind the machine. As the plow is
offset from the centered position, the draft of the
blade will cause the tires to slip more easily.
•
When the plow is offset from center, it can be helpful
to turn the rear wheels slightly toward the side the
plow is on. This will cancel out the sidedraft of the
plow and let the front wheels be used for normal
steering.
•
The plow can be offset using the boom steering
control, or if the plow is in the ground, the boom
swing control lever can be pushed down and put into
float position. Then, the plow can be offset by
steering the blade.
•
Always turn the shaker motor off whenever the plow
is out of the ground or when the plow is in the ground
with the machine stopped. This will prevent excessive
vibration.
•
The plow swing will assist in making tight turns while
plowing by reducing side draft. Return the swing
control to FLOAT when making minor direction
changes.
If the cable or tubing is not to be plowed into a hole or
trench at the end of the run, proceed as follows:
1. Slow the machine speed and plow vibration.
2. Have sufficient cable slack above the chute as the
plow is raised. Damage can result to the cable at the
chute outlet if cable slack is insufficient. Lubrication of
the cable is also recommended in this operation.
3. Move ahead slowly as the plow is slowly raised. When
about halfway out of the ground, stop the vibration
and continue raising the blade. Make sure the swing
control is in the HOLD position before the blade is out
of the ground.
NOTE: The life of the cable plow will be reduced if the
vibrator is operated when the blade is out of the ground.
Operating Tips
•
•
The plow must be operated with the lift control in the
FLOAT position or excessive vibration will be
transmitted to the prime mover which can result in
damage to the machine. This requirement means the
proper blade length must be used for the job to be
performed. For normal operation, the boom swing
control lever must also be placed in the FLOAT
position.
The plow motor speed can be adjusted to any speed
in the operating range to obtain the best
performance.
Transport Position
By changing the ground speed setting and the plow
shaker speed setting at the same time, it is possible
to optimize the plow speed for the given soil
conditions. Start with plow shaker control about
midway and adjust the ground drive speed for best
performance (3 to 10% wheel slip). Adjust shaker
speed up or down and note performance increase/
decrease. Continue until the best performance is
obtained.
22
•
In general, loose or sandy soils can be plowed with a
slow plow shaker speed.
•
Tougher clay soils require plowing with faster plow
shaker speeds.
•
An operator will usually find that the fastest plowing
speed will be achieved when the ground drive speed
and plow shaker speed are set to provide the least
amount of vibration at the operator’s area.
Raise the P85 Cable Plow to full height and the transport
lock control (22) will engage automatically.
•
In loose soils, it may be necessary to set the plow
skid shoes to their widest position to prevent the plow
from going too deep into the ground.
The plow can be fitted with an optional sod cutter.
B4051691
Sod Cutter
45
AU125990 C11A
ATTACHMENTS
D100 BACKHOE
Backhoe Transport Links
Transport Position
3
4
2
1
1
2
ALL_062
ALL_064
Put the transport links in the transport position when you
are not digging with the backhoe.
3 4
1
1. Remove the klik pin.
2. Move the transport link (2) to the storage position
(1).
2
3. Install the klik pin.
4. Repeat steps 1 through 3 for the transport link on the
other side of the boom.
ALL_063
1. Boom and Swing Control Lever
Operating Position
A. Move lever forward to lower the boom.
B. Move lever backward to raise the boom.
C. Move lever left to swing the boom to the left.
D. Move lever right to swing the boom to the right.
2. Dipper and Bucket Control Lever
A. Move lever forward to move the dipper out.
B. Move lever backward to move the dipper in.
2
C. Move lever left to curl (load) the bucket.
D. Move lever right to dump (unload) the bucket.
3
3. Left Stabilizer
A. Move lever forward to lower left stabilizer.
ALL_065
Put the transport links in the operating position when you
are going to dig with the backhoe.
B. Move lever backward to raise left stabilizer.
4. Right Stabilizer
1. Remove the klik pin.
A. Move lever forward to lower right stabilizer.
2. Move the transport link (2) to the operating position
(3).
B. Move lever backward to raise right stabilizer.
3. Install the klik pin.
4. Repeat steps 1 through 3 for the transport link on the
other side of the boom.
AU125990 C11A
46
ATTACHMENTS
Operation of the D100 Backhoe
Before You Dig With The Backhoe
WARNING: Before each period of operation,
WARNING: Before you operate the backhoe in
an area where your visibility is reduced, such as
next to a building, etc., always install a guard rail
and warning signs to keep other persons away
from your machine.
check the backhoe for correct function of each
control. A backhoe that operates correctly can
prevent accidents. Make all necessary repairs or
adjustments before you operate the backhoe.
WARNING: Before
WARNING: Before you operate the backhoe in
operating the backhoe,
always be in the operators seat. Serious injury or
death can result if you do not follow these
instructions.
an area where your visibility is reduced, such as
next to a building, etc., always install a guard rail
and warning signs to keep other persons away
from your machine.
General
WARNING: Always know the location of all
Be a careful operator, you can prevent accidents. Read
the following information and the Safety section of this
manual.
workers in your area. Warn them before you start
working the machine. Always keep all other
persons away from your area. Serious injury or
death can result if you do not follow these
instructions.
The backhoe will dig more material in less time when a
smooth, short dig cycle is used. A good operator is not
just a fast operator. Keep each dig cycle smooth.
1. Know the location of any underground cables,
pipelines or overhead electric lines.
IMPORTANT: Before you operate the backhoe for the
first time, read and understand the Before You Dig With
The Backhoe instructions in this manual. Then, move the
machine to an open area. Run the engine at 1/3 throttle.
Actuate each backhoe control lever until each movement
is smooth.
2. Remove large rocks, stumps or other obstructions
before you begin to dig.
3. Place the transport links in the storage position.
4. Align the machine with the new digging area.
WARNING: A working backhoe can injure or kill.
5. Before leaving the operator’s seat, the ground drive
and rear attachment controls must be in the neutral
position. The neutral indicator lamp must be
illuminating.
Before you start, always make sure that all
persons are away from the DANGER AREA.
6. Apply the parking brake.
7. Increase engine speed to mid throttle.
DANGER
AREA
(SHADED)
8. While holding the hand rails, use the walkway and
move to the backhoe operator’s seat.
DANGER
AREA
(SHADED)
9. Lower the stabilizers to the ground and lift the weight
of the machine from the tires.
B910127J
47
AU125990 C11A
ATTACHMENTS
Filling the Bucket
Fill the bucket by operating the dipper, boom and bucket
as necessary to keep the bottom of the bucket parallel
with the cut.
WARNING: Before you operate the backhoe in
an area where your visibility is reduced, such as
next to a building, etc., always install a guard rail
and warning signs to keep other persons away
from your machine.
Let the bucket teeth and cutting edge cut through the
ground the same as a knife blade. The type of material
that you dig determines the depth of cut.
IMPORTANT: Do not backfill a trench by swinging the
backhoe bucket against the soil. Use the backfill blade.
WARNING: Always know the location of all
workers in your area. Warn them before you start
working the machine. Always keep all other
persons away from your area. Serious injury or
death can result if you do not follow these
instructions.
CORRECT
Lifting with the Backhoe
The backhoe is NOT a crane and should not be used as
one.
WRONG
BUCKET WILL DIG IN
AND CAUSE A STALL
DO NOT use the backhoe as a lifting device.
WRONG
BUCKET IS PUSHED UP.
THIS WILL SLOW THE
CYCLE TIME.
CORRECT TRENCHING METHOD
BS99C010
AU125990 C11A
48
ATTACHMENTS
HD125 BACKHOE
5. Remote Engine Shutoff Control
1
The remote engine shutoff control (5) is used to stop the
engine when you are in the front mounted backhoe
operator’s seat.
2
6
5
A. Push down (SHUTOFF) to stop the engine.
B. Pull up (RESET) before you start the engine.
3
NOTE: Engine will not start if control knob is not
pulled up to the RESET position.
4
7
6. Throttle Control from Backhoe Position
The remote throttle control (6) allows the backhoe
operator to adjust the engine speed from the front
mounted backhoe operator’s seat.
RT600_59
A. Push the throttle control rocker switch to the right
to increase the engine speed.
B. Push the throttle control rocker switch to the left to
decrease the engine speed.
3 4
1
7. Propel Control
The optional propel switch (7) allows the machine to be
moved forward or backward from the front mounted
backhoe operator’s seat when digging with the backhoe.
2
A. Raise the stabilizers.
ALL_067
1. Boom and Swing Control Lever
B. Push the switch UP to temporarily release the
parking brake which will allow the backhoe boom
to push the machine forward or backward.
A. Move lever forward to lower the boom.
B. Move lever backward to raise the boom.
C. Lower the stabilizers to the ground and remove the
weight of the machine from the tires.
C. Move lever left to swing the boom to the left.
D. Move lever right to swing the boom to the right.
Operation of the HD125 Backhoe
2. Dipper and Bucket Control Lever
WARNING: Before you operate the backhoe in
A. Move lever forward to move the dipper out.
an area where your visibility is reduced, such as
next to a building, etc., always install a guard rail
and warning signs to keep other persons away
from your machine.
B. Move lever backward to move the dipper in.
C. Move lever left to curl (load) the bucket.
D. Move lever right to dump (unload) the bucket.
WARNING: Before
operating the backhoe,
always be in the operator’s seat. Serious injury or
death can result if you do not follow these
instructions.
3. Left Stabilizer
A. Move lever forward to lower left stabilizer.
B. Move lever backward to raise left stabilizer.
General
4. Right Stabilizer
Be a careful operator, you can prevent accidents. Read
the following information and the Safety section of this
manual.
A. Move lever forward to lower right stabilizer.
B. Move lever backward to raise right stabilizer.
The backhoe will dig more material in less time when a
smooth, short dig cycle is used. A good operator is not
just a fast operator. Keep each dig cycle smooth.
49
AU125990 C11A
ATTACHMENTS
IMPORTANT: Before you operate the backhoe for the
6. Increase the engine speed to 1/2 to 3/4 throttle.
first time, read and understand the Before You Dig With
The Backhoe instructions in this manual. Then, move the
machine to an open area. Run the engine at 1/3 throttle.
Actuate each backhoe control lever until each movement
is smooth.
WARNING: A working backhoe can injure or kill.
Before you start, always make sure that all
persons are away from the DANGER AREA.
9
RT600_024
DANGER
AREA
(SHADED)
7. While holding the hand rails, use the walkway (9) and
go to the backhoe operator’s seat.
DANGER
AREA
(SHADED)
B910127
10
Before You Dig With The Backhoe
WARNING: Before each period of operation,
check the backhoe for correct function of each
control. A backhoe that operates correctly can
prevent accidents. Make all necessary repairs or
adjustments before you operate the backhoe.
WARNING: Before you operate the backhoe in
an area where your visibility is reduced, such as
next to a building, etc., always install a guard rail
and warning signs to keep other persons away
from your machine.
RT600_60
8. Push the swing lock pedal down to release the swing
lock control (10).
WARNING: Always know the location of all
workers in your area. Warn them before you start
working the machine. Always keep all other
persons away from your area. Serious injury or
death can result if you do not follow these
instructions.
1. Know the location of any underground cables,
pipelines or overhead electric lines.
2. Remove large rocks, stumps or other obstructions
before you begin to dig.
RT600_001
9. Lower the stabilizers to the ground and lift the weight
of the machine from the tires.
3. Align the machine with the new digging area.
4. Before leaving the operator’s seat, the ground drive
and attachment controls MUST be in the NEUTRAL
position. The Neutral Indicator Lamp MUST be
illuminating before you leave the operator’s seat.
10. Take the backhoe out of the transport locked position.
A. Push the boom control forward.
5. Apply the parking brake and shift the transmission to
WORK.
AU125990 C11A
50
ATTACHMENTS
11
CORRECT
WRONG
BUCKET WILL DIG IN
AND CAUSE A STALL
ALL_069
B. Pull the boom latch control (11) rearward, pull the
boom control rearward and the backhoe will move
out of the transport locked position.
Always operate the backhoe from the backhoe operator’s
seat.
WRONG
BUCKET IS PUSHED UP.
THIS WILL SLOW THE
CYCLE TIME.
Filling the Bucket
CORRECT TRENCHING METHOD
WARNING: Before you operate the backhoe in
B840006
an area where your visibility is reduced, such as
next to a building, etc., always install a guard rail
and warning signs to keep other persons away
from your machine.
IMPORTANT: Do not backfill a trench by swinging the
backhoe bucket against the soil. Use the backfill blade.
Moving the Machine Rearward When
Digging with a Backhoe without Propel
Switch Control
WARNING: Always know the location of all
workers in your area. Warn them before you start
working the machine. Always keep all other
persons away from your area. Serious injury or
death can result if you do not follow these
instructions.
1. Raise the stabilizers and bucket above the ground.
2. Go back to the machine operator’s seat.
NOTE: You MUST be seated in the operator’s seat before
moving the machine or the engine will shutdown in 5
seconds.
Fill the bucket by operating the dipper, boom and bucket
as necessary to keep the bottom of the bucket parallel
with the cut.
3. Release the parking brake.
Let the bucket teeth and cutting edge cut through the
ground the same as a knife blade. The type of material
that you dig determines the depth of cut.
4. Make sure the transmission is in WORK.
5. Move the machine rearward to a new position.
6. Make sure Ground Drive Control is in NEUTRAL
position and Neutral Indicator Lamp is illuminated.
7. Apply the parking brake.
8. Return to the backhoe operator’s seat.
9. Lower the stabilizers to the ground and remove the
weight of the machine from the tires.
51
AU125990 C11A
ATTACHMENTS
Lifting with the Backhoe
Moving The Backhoe Into The Transport
Position
The backhoe is NOT a crane and should not be used as
one.
1. Decrease the engine speed to 1/4 throttle and make
sure the stabilizers are down on the ground.
DO NOT use the backhoe as a lifting device.
2. Swing the boom to the center.
12
ALL_070
3. Pick up on the swing lock pedal (12) to place the
pedal in the locked position.
4. Rotate the bucket completely in and retract the
dipper.
13
ALL_069
5. During this procedure, the backhoe boom will be
moving toward you (past the vertical position).
A. Pull the boom control lever back.
B. When the boom reaches the vertical position,
rapidly move the boom control lever forward. The
boom will continue to move toward you until the
stop is reached. Release the boom control lever.
NOTE: The boom lock (13) will automatically engage the
boom. The boom, dipper and bucket are now in the
transport locked position.
6. Raise the stabilizers completely.
AU125990 C11A
52
ATTACHMENTS
HYDRA-BORER CONTROLS - RT600
HYDRA-BORER OPERATION
The rotating parts of the HydraBorer can cause injury or death. Do not stand
closer than 1.5 m (5 feet) from the rotating parts
during machine operation.
WARNING:
WARNING: Do not hold or stand on the drill
stem during Hydra-borer operation. Personal
Injury or death can result. If the drill stem breaks
or needs adjustment, stop the machine, turn off
the engine and remove the key.
WARNING: Contact with the rotating parts of
1
the Hydra-Borer can cause severe personal injury.
During Hydra-Borer operations, keep all persons
out of the trench and the target hole. If work must
be done in the trench or the target hole, always
stop the Hydra-Borer and stop the engine.
WARNING: Rotating machine parts, stay clear,
keep shields installed to help protect from clothing
entanglement and injury. Wear close-fitting
clothing.
RT600_69
Auxiliary Hydraulics Hydra-Borer Control
WARNING: Always inspect the drill stems prior
The auxiliary hydraulics hydra-borer control lever (1) is
located near the right side of the operator’s seat.
to using them. DO NOT use any cracked, bent or
broken drill stems.
IMPORTANT: Before beginning Hydra-Borer operations,
always check with appropriate local utility companies to
determine if any underground cables, wires, pipes, etc.
may be encountered during operations.
Operating
Before boring operations begin do the following:
1. Survey the jobsite to determine whether the bore can
be completed in a safe and efficient manner. Keep in
mind that the bore needs to be straight. Also, there
needs to be room to place the machine 2 to 3 drill
stems distance behind the starting hole along the
same straight bore path. Consult your dealer if there
are any questions.
2
A19239A
The hydra-borer control lever controls the rotation
direction of the hydra-borer drill stem (2).
2. Locate and dig a target hole. This hole should be
large enough for a man to work in, approximately
1.83 x .61 x 1.22m (6 x 2 x 4 ft).
A. FORWARD: Pull the lever IN (toward you) and hold
in this position to rotate the hydra-borer shaft in
the clockwise direction.
B. STOP: Release the control lever. The lever will
automatically return to the center stop position to
stop the rotation of the hydra-borer shaft.
C. REVERSE: Push the lever OUT (away from you)
and hold in this position to rotate the hydra-borer
shaft in the counterclockwise direction.
2. STARTING HOLE
1. TARGET HOLE
RB97G014
53
AU125990 C11A
ATTACHMENTS
3. Dig a trench (starting hole) to a depth slightly deeper
than the depth at which boring operations will begin.
The starting hole should be approximately two or
three times the length of the drill stems being used.
9
5
7
WARNING: Never allow anyone in the trench
while digging.
Optional Equipment Available:
8
If guiding the drill rod or pipe is necessary, use
optional equipment such as that depicted below,
and follow the proceeding steps. Consult your
dealer if there are any questions.
4
3
4. Place the two guide anchors (1) approximately 1.52
to 2.44m (5 to 8 feet) apart in the starting hole near
the point where boring operations will begin. Place a
guide anchor tube (2) over each anchor. The guide
ring (3) on each tube should face away from the wall
of the starting hole. Make sure that the guide anchors
are firmly secured in the ground so that they will not
move or collapse during the Hydra-Borer operation.
6
237L93
WARNING: Always inspect the drill stems prior
to using them. DO NOT use any cracked, bent or
broken drill stems.
1
6. Attach the required quantity of drill stem segments to
the Hydra-Borer (See Dry Boring in this manual) and
lower the drill stem into the starting trench so that
the drill stem (4) passes through the guide rings (3)
on the guide anchor assemblies (5).
2
7. To level the drill stem, place the level frame (6) over
the drill stem at a point between the two guide
anchors. Use the level gauge (7) on the level frame to
determine if the drill stem is level. If the drill stem is
not level, use the tube adjustment locks (8) on one or
both of the guide anchor assemblies to slide the guide
anchor tube(s). When the level gauge indicates that
the drill stem is level, tighten the tube adjustment
lock(s). When the drill stem is level remove the level
frame from the drill stem.
3
3
236L93
STARTING HOLE
GUIDE ANCHORS
TARGET HOLE
235L93
5. Align the guide anchors in the direction of the boring
path between the starting hole and the target hole.
The handle (9) of the drill stem level assembly or a
string may be used to align the guide anchors with
the boring path.
AU125990 C11A
54
ATTACHMENTS
Dry Boring
3. Begin operations by boring a pilot hole. Use a fishtail
bit (7) for tightly compacted soil or a compaction bit
(8) for soils which are loose or granular. Attach the
drill bit to the drill stem using a female quick lock
adapter (9). If using standard drill pipe the drill bit
will thread directly into the drill pipe.
1
2
3
4. Start the engine, See Starting The Engine in this
manual. When the engine is warm, move the throttle
to full throttle.
4
5. Pull the hydra-borer lever IN toward you to rotate the
hydra-borer shaft in the clockwise direction. Push the
lever OUT away from you to rotate the hydra-borer
shaft counterclockwise. The lever will return to the
STOP position automatically when released to stop
the rotation of the hydra-borer shaft.
6
6. Use the creep control lever to control the forward/
reverse direction and the machine speed during
boring operations. The machine speed should be
sufficient to allow the bit to work freely while boring.
DO NOT FORCE BORE THE HOLE.
8
6
NOTE: You MUST be seated in the operator’s seat or the
engine will shut down in 5 seconds.
5
After the target hole is reached you may wish to change
the bit and use another accessory (10) to backream and
enlarge the hole. If you do, STOP THE MACHINE,
TURN OFF THE ENGINE AND REMOVE THE KEY.
Make sure that the drill stem is not turning before you
attempt to change or remove the bit.
9
7
10
283L93
1. Attach a 1 inch male adapter (2) and a male quick
lock adapter (3) or a male quick lock adapter (4) to
the Hydra-Borer universal joint (1) (if using standard
1 inch drill pipe only item (2) is required).
WARNING: Always inspect the drill stems prior
to using them. DO NOT use any cracked, bent or
broken drill stems.
2. Attach a maximum of three drill stems (5) outside the
hole being bored. When one stem length is under
ground, another can be added before boring
operations continue. Minimize the number of drill
stems outside the hole. Excess lengths tends to bow
or whip unless restrained by the guide anchors.
IMPORTANT: Be sure to use the correct retainer (6).
Make sure that the retainer DOES NOT protrude through
the drill stem.
NOTE: If standard 1 inch pipe is used, it may be left in
the hole to act as a conduit for wire, etc.
55
AU125990 C11A
ATTACHMENTS
TRENCHER CONTROLS - RT600
WARNING: Vibrations from the trencher can
cause a trench, overhang or high bank to fall and
cause injury or death. Be careful when working
near the side of a trench. Serious injury or death
can result if the walls of the trench fall.
FORWARD
WARNING: Make sure all people are clear of the
trencher while the chain is moving. Serious injury
or death can result from contact with the digging
chain.
FORWARD
091
Sharp moving parts - hazardous
area. KEEP CLEAR. Serious injury or death can
result from bodily contact.
1
WARNING:
C
WARNING: Never allow anyone in the trench
B
A
while digging.
WARNING: Avoid exposure to dust containing
D
E
RT600_16B
crystalline silica particles. This dust can cause
serious injury to the lungs (silicosis).
A. NEUTRAL
B. SLOW CHAIN SPEED FORWARD
C. FAST CHAIN SPEED FORWARD
D. SLOW CHAIN SPEED FORWARD
E. FAST CHAIN SPEED REVERSE
Move the rear attachment speed control lever (1) forward
(D) to actuate the digging chain in the forward direction.
Move the lever further forward (E) to increase the chain
speed. Move the control to the NEUTRAL position (A) to
stop the chain. Move the control lever rearward (B) to
reverse the chain direction.
NOTE: You MUST be seated in the operator’s seat to
move the rear attachment speed control from the neutral
position or the engine will shut down in 5 seconds.
RT600_1
To lower the trencher boom to the necessary depth, push
the attachment control lever (2) away from you. Pull the
control lever toward you to raise the trencher boom.
When released the control lever will return to the neutral
(hold) position automatically.
1
Trencher Operation
WARNING: Operate controls only when seated
in the operator’s seat.
2
RT600_16B
AU125990 C11A
56
ATTACHMENTS
3. Select the chain type (tensile strength and standard
or anti-backflex).
WARNING: CLEAR THE WORK AREA OF ALL
BY-STANDERS. During digging maintain a
minimum safety zone of 50 ft. (15 M) around the
machine.
4. Choose the teeth (cupped, rock and frost carbide
cutters, or both).
5. Choose the tooth width and arrangement.
6. Determine if you need dirt drags.
WARNING: Make sure all people are clear of the
Trencher Boom
digging chain while the digging chain is rotating.
Serious injury or death can result from contact
with the digging chain.
WARNING: CLEAR THE WORK AREA OF ALL
BYSTANDERS.
DURING
DIGGING
KEEP
SPECTATORS AWAY. The digging chain of your
trencher can throw rock and soil debris a
considerable distance.
WARNING: Sharp moving parts - do not remove
restraint bar. Keep clear of hazardous area. KEEP
CLEAR. Serious injury or death can result from
bodily contact.
WARNING: Know the location of underground
cables, water pipes, gas lines, etc. Injury or death
can result from cutting a cable or gas line.
WARNING: Never allow anyone in the trench
while digging.
B865312
Sprocket Boom (if equipped)
The sprocket boom is the most efficient boom for digging
in light to medium soil. Friction is reduced because the
chain is riding on sprockets and not rubbing on a boom
channel. More power is available for digging when friction
is reduced.
WARNING: Be careful when working near the
side of a trench. Serious injury or death can result
if the walls of the trench fall.
Selecting Correct Tools for the Job
You can increase the digging speed and still get long life
from you trencher if you use the correct trencher
components. Read the following section on how to select
the correct combination of parts for your machine.
Then, see your Astec dealer and ask for complete
information on trencher parts.
As a general rule, always select the shortest boom,
lightest chain and lightest teeth to get the job done.
Then, in hard digging conditions, select a high tensile
strength chain, a rock boom, and anti-backflex chain with
rock and frost teeth.
B4049491
Rock Channel Boom (if equipped)
When you make the selection, know the trench width,
trench depth, soil and weather conditions of the job.
The rock channel boom is designed to give support to the
chain when digging in hard or rocky ground or when the
ground is frozen. The design also prevents rocks from
getting between the chain and the boom and gives full
support to the digging chain.
1. Select the boom length.
2. Select the boom type (sprocket or channel).
57
AU125990 C11A
ATTACHMENTS
Boom Position When Digging
Anti-Backflex Digging Chain
For the best digging performance and smoothest machine
operation, the boom must be in the full down digging
position. In this position, the machine is pulled down for
better traction. The ground drive simply pulls the digging
teeth into the face of the trench.
A standard digging chain works fine in some digging
conditions. However, because of the design, a standard
chain’s teeth can rotate back (backflex) when digging in
heavy or rocky ground. When this backflexing action
starts, the teeth do not remain at the correct digging
angle and the trenching speed is reduced.
When the boom is raised from the full down position, the
digging load pulls the machine more rearward. This
pulling reduces traction and may cause the machine to
bounce and pull when the chain contacts roots or rocks.
The rearward pull of the digging operation also works
against the ground drive causing the machine engine to
work harder.
This machine is equipped with an Anti-Backflex digging
chain. This chain is designed for hard digging conditions.
The side plates of each link are close together. As the
chain leaves the sprocket, each link comes together with
the next and forms a solid digging channel. This action
keeps each digging tooth at the correct digging angle.
IMPORTANT: Correct chain tension is very important. If
the digging chain is adjusted too tight or too loose the
digging efficiency of the trencher is decreased and the
wear of the parts is increased. See Digging Chain
Adjustment in this manual.
WARNING: Make sure all people are clear of the
machine and working area while the digging chain
is rotating. Serious injury or death can result from
contact with the digging chain or flying debris.
MOST EFFICIENT
Chain Tension
LEAST EFFICIENT
BOOM IN FULL
DOWN POSITION
If you adjust the digging chain too tight or too loose, the
digging efficiency of the trencher is decreased and the
wear of parts is increased. See Decreasing/Increasing
Chain Tension in this manual for correct chain adjustment.
BOOM NOT IN FULL
DOWN POSITION
IMPORTANT: When digging in extremely hard ground,
remove all deflection from the chain. Adjust the chain for
normal digging conditions as soon as possible.
DIGGING
LOAD
Teeth
DIGGING
LOAD
SHORTER
The most important parts of the trencher are the teeth.
The type of teeth that you select and the arrangement
you use makes a big difference in the digging efficiency
and tooth life.
LONGER
B2228A88
Trencher Chain
Chain Strength
The correct chain for the job is very important. Soil
conditions determine the chain needed. A chain that is
too light will wear fast or break. A chain that is too heavy
increases the load and slows the trencher speed.
NOTE: Heavy chain has longer wear life than lighter
chain.
Digging chains are rated by tensile strength. For example:
a 22,680 kg (50,000 pound) chain takes a minimum of
50,000 pounds of pull to break.
A19593
Cupped Teeth
Cupped teeth are the best in cutting light to medium soil.
The cupped design of the tooth cuts the soil and then
moves the soil up and out of the trench.
AU125990 C11A
58
ATTACHMENTS
Tooth Arrangements
The tooth arrangement is where and how each tooth is
attached to the digging chain. Use the following
guidelines when selecting tooth arrangements.
1. Install teeth of the same width at equal spaces
around the chain.
2. Use less teeth on the chain when operating in wet
clay or gumbo.
3. Install more teeth when working in sandy loam or
rocky ground.
RT6602040
4. Use dirt drags in sand or loose soil.
Shark/Rock and Frost Teeth
Tooth Combinations
Use Shark or Rock and Frost teeth when the ground is
very hard, rocky or frozen, or when cutting through
blacktop.
Different types and combinations of teeth and dirt drags
can be used in several ways to increase productivity in
different digging conditions. The rock and frost and shark
teeth give good penetration and the cupped teeth help
with soil removal. Try several combinations to find the one
best suited for your area.
BOOM, CHAIN & TOOTH RECOMMENDATIONS FOR SOIL TYPE
Boom Type
Sprocket
Boom
Soil Type
Chain Type
Rock
Boom
Standard
Astec Chain
HD ABF
Digging Teeth
H-Plate
Cup Cutter
Sand
X
X
X
Sandy Loam
X
X
X
Loose Shale
X
X
X
Top Soil
X
X
X
X
Caliche (Hard)
X
Clay (Gumbo)
X
X
X
X
X
Rock/Frost
Mining Bit
Shark
X
X
X
Coral
X
X
X
X
X
Rock (Loose)
X
X
X
X
X
Asphalt
X
X
X
X
X
Hard Clay
X
X
X
Frozen Soil
X
X
X
X
Mixed
X
X
X
X
X
X
X
Note: A rock wheel is required to cut solid rock or concrete.
Restraint Bar and Crumber
Crumber blades (shoes) aid in cleaning the bottom of the
trench. The blades attach to the crumber bracket (if
equipped).
Only operate the trencher with a restraint bar installed.
2
1
1. Park the machine on firm, level ground.
2. Apply the parking brake, stop the engine, and remove
the ignition key.
3. Move the crumber bar (if equipped) (1) from the
transport position (2) to the operating position (3).
4
4. Install a crumber wear blade (shoe) (4) which is 25.4
mm (1 in) less in width than the trench width.
3
RT160035
59
AU125990 C11A
ATTACHMENTS
Starting A Trench
Before Operating Trencher
NOTE: Know the location of all underground utilities
before starting.
WARNING: Be careful when working near the
side of a trench. Serious injury or death can result
if the walls of the trench fall.
1. Make sure all persons are away from the machine
before you start the engine and while you are
trenching.
2. See Starting the Engine in this manual. Start the
engine. Run the engine at 1/4 throttle until the engine
is at operating temperature.
WARNING: Make sure all people are clear of the
digging chain while the digging chain is rotating.
Serious injury or death can result from contact
with the digging chain.
3. Put the crumber (if equipped) in the TRANSPORT
position.
WARNING: Sharp moving parts - do not remove
TRANSPORT
POSITION
restraint bar. Keep clear of hazardous area. KEEP
CLEAR. Serious injury or death can result from
bodily contact.
WARNING: Never allow anyone in the trench
while digging.
B4049491
4. After the engine has reached operating temperature,
move the machine to the work area and put the
machine in the correct position to cut the trench.
Make sure that the end of the trencher boom is
several feet beyond the starting point of the trench.
WARNING: Operate controls only when seated
in the operator’s seat.
5. Align the machine to the center line of the new
trench.
WARNING: CLEAR THE WORK AREA OF ALL
BY-STANDERS. During digging maintain a
minimum safety zone of 50 ft. (15 M) around the
machine.
6. Adjust the engine speed to FULL throttle and lower
the boom to just above the ground.
7. Start the digging chain by moving the attachment
motor speed control toward the rear of the machine.
WARNING: Know the location of underground
cables, water pipes, gas lines, etc. Injury or death
can result from cutting a cable or gas line.
NOTE: You MUST be seated in the operator’s seat before
engaging the digging chain or the engine will shut down
in 5 seconds.
Seat Position for Trenching
NOTE: The crumber will automatically move from the
TRANSPORT position into the OPERATING position when
the trencher attachment reaches maximum dig depth.
1. Rotate the seat to the trenching position (see
Operator’s Seat in this manual).
8. Move the ground drive creep control lever forward
until the machine starts to move forward. Then lower
the boom into the ground.
2. Fasten the seat belt. Make sure the seat belt is
fastened during trencher operation.
NOTE: The operator MUST be seated in the operator’s
seat before engaging the digging chain or the engine will
shut down in 5 seconds.
AU125990 C11A
9. When the digging chain is lowered to the correct
depth, move the ground drive creep control forward
until the engine speed decreases about 10 percent
(200 to 300 rpm). Remember that speed on the
tachometer.
60
ATTACHMENTS
If the Trench Becomes Crooked
10. Decrease the digging chain speed and look at the
tachometer. If the engine speed increases, push the
ground drive creep control forward until the engine
speed is the same as before.
As the trencher is digging it may vary slightly from a
straight line. This can occur if you are digging too fast for
the soil conditions. To straighten the trench, raise the
boom, reverse the ground travel and move the trencher
forward until the digging chain clears the trench. Correct
the alignment of the trencher to the trench and lower the
boom.
Repeat this procedure to reach the best trenching speed.
NOTE: Some hard ground conditions will let you dig a
trench faster by reducing the chain speed.
Cutting A Curved Trench
DO NOT operate trencher
attachment without restraint bar or a crumber.
WARNING:
NOTE: Do not make sharp turns with the boom in the
ground. Sharp turns with the trencher operating will
cause damage to the machine.
A gradual curve can be made by GRADUALLY moving the
direction/speed control to slightly articulate the machine.
Do not make steering corrections, as this will swing the
boom into the side of the trench and undercut it. To cut a
sharp curve with the trencher, see the illustration below.
NOTE: The trencher operates best at full throttle. Adjust
ground speed to keep from lugging the engine.
11. Any steering must be gradual. Do not make sharp
turns with the boom in the ground. Sharp turns with
the trencher operating will cause damage to the
machine.
12. Check the digging chain tension when starting a new
trench in each location. See Trencher Digging Chain
Tension in this manual.
BACKHOE
EXCAVATION
HOLE
Do the following when you have finished the trench:
1. When the trench is completed, stop the machine.
Raise the boom slowly until the boom is out of the
trench approximately 152 mm (6 inches).
EXAMPLE “A”
EXAMPLE “B”
B1493A88
Example “A” - If the cable or pipe is flexible enough for
a sharp 90 degree corner, cut a new trench 90 degrees to
the previous trench.
2. Move the attachment motor speed control to the
neutral (disengaged) position to stop the digging
chain.
Example “B” - If the cable or pipe is not flexible enough
for a sharp corner, use a backhoe to open up the corner
to allow for a more gradual bend.
3. Pull the attachment lift lever back to RAISE until the
boom is in the TRANSPORT position.
4. Move the throttle to IDLE and stop the engine, apply
the parking brake, and remove the key.
Digging Efficiency
In order to obtain maximum digging efficiency from your
trencher, always keep good sharp teeth at the necessary
spaces. As teeth become worn, replace them immediately.
Maximum Chain Speed
Some ground conditions (mud, etc.) can require a faster
chain speed. Move the chain speed control further from
neutral. It is possible that you will reduce the life of the
digging chain with extended use at higher chain speeds.
Cutting A Straight Trench
To cut a straight trench, stretch a string line parallel to the
proposed trench on the opposite side of the machine
auger. Using the tire as a reference point on the machine,
move the trencher parallel to the string line. Maintain an
equal distance between the tire and the string line and
the trench will be straight.
61
AU125990 C11A
ATTACHMENTS
NOTES
AU125990 C11A
62
WHEELS AND TIRES
Adding Air to the Tires
WARNING: Exploding tires and/or rim parts can
This procedure is only for adding air to the tire. If the tire
has lost most or all of the air, do the following:
cause injury or death. Keep yourself and others
out of the DANGER AREA. Stand on the tread side
of the tire. Always use the correct air pressure
and follow the instructions in this manual for
adding air or servicing the tires.
WARNING: DO NOT weld to wheel or rim when
a tire is installed. Welding will cause an explosive
air/gas mixture that will be ignited with high
temperatures. This can happen to tires inflated or
deflated. Removing air or breaking bead is not
adequate. Tire MUST be completely removed
from the rim prior to welding.
WARNING: Explosive separation of the tire
RH97F013
and/or rim parts can cause injury or death. When
tire service is necessary, have a qualified tire
mechanic service the tire.
1. Before you add air, have the wheel correctly
installed on the machine or put the wheel in a
restraining device (tire inflation cage).
2. Use an air hose with remote shutoff valve and a
self-locking air chuck.
DANGER AREA
RH97F014
3. Stand behind the tread of the tire and make sure all
persons are away from the side of the tire before
you start to add air.
4. Inflate the tire to the recommended air pressure.
DO NOT inflate the tire more than the
recommended pressure given on the next page.
RH97F012
The above illustrations show danger areas caused by
exploding tires and/or rim parts. KEEP YOURSELF AND
OTHERS OUT OF THESE DANGER AREAS.
Tire or Rim Service
Always have a qualified tire technician service the tires
and rims for this machine. It is recommended that you
have this technician inflate the tires. To prevent accidents,
use a restraining device (tire inflation cage), correct
equipment and correct procedure. Explosive separation of
the tire (single piece rim) or the tire and/or rim parts
(multi-piece rim) can cause serious injury or death.
Correct Methods for Adding Air or
Servicing Tires
Check the air pressure and the condition of the tires every
50 hours of operation. See Tire Pressure in this manual
for the correct tire air pressure.
63
AU125990 C11A
WHEELS AND TIRES
Tire Tread Direction
Tire Pressure
Check tire pressure and tire condition every 50 hours of
operation. To maintain tire pressures shown below, follow
the procedure shown in Adding Air to the Tires in this
manual.
31 X 15.5 X 15, 8 PR .................310 kPa, 3.1 bar (45 psi)
35 X 19 X 16, 10 PR ..................379 kPa, 3.8 bar (55 psi)
NOTE: Maintaining correct tire pressure is very important
in order to prevent slippage between the wheel and tire
bead.
FORWARD
B770164R
When the tire is installed on the wheel make sure the tire
tread is in the direction shown.
Wheel Nut Torque
RT600_1
Use the sequence shown in the illustration below and
tighten the wheel nuts to a torque of 300 Nm (225 lb ft).
IMPORTANT: Special washers are used with the wheel
nuts. Only use these washers on you machine.
B851080J
AU125990 C11A
64
LUBRICATION
GENERAL SAFETY BEFORE YOU
SERVICE MACHINE
Use the correct safety clothing and safety equipment.
Understand how to use a fire extinguisher and first aid kit.
PLASTIC AND RESIN PARTS
Improper service or repair can
cause injury or death. If you do not understand
the service procedures for this machine, see your
dealer or the service manual for this machine.
WARNING:
Avoid using gasoline, kerosene, paint thinner, etc., when
cleaning plastic windows, console, instrument cluster,
monitor, gauges, etc. Use ONLY water, mild soap and a
soft cloth when you clean these parts.
Using gasoline, kerosene, paint thinner, etc., will cause
discoloration, cracking or deformation of the part being
cleaned.
WARNING: Raised equipment on the machine
without an operator can cause injury or death.
Before you leave the operator’s compartment,
always support or lower the equipment (backhoe,
blade, boom, bucket, etc.) to the ground and stop
the engine.
ENVIRONMENT
Before you service this machine and before you dispose of
the old fluids or lubricants always remember the
environment. DO NOT put oil or fluids into the ground or
into containers that can leak.
WARNING: Replace all covers or guards after
servicing or cleaning the machine. NEVER operate
the machine with covers or guards removed.
Check with your local environment or recycling center or
your dealer for correct oil and fluid disposal information.
Read the safety decals and information decals on the
machine. Read the operator’s manual. Understand the
operation of the machine before you start servicing.
ENGINE HOURMETER
1
B801147
RT600_8D
The engine Hourmeter (1) shows the amount of actual
hours the engine has run. Use the engine Hourmeter
along with the Lubrication/Maintenance Chart to service
your machine at the correct time periods.
AU103157
Before you service the machine, put a Do Not Operate
tag on the instrument panel. This tag, Astec part number
AU103157, is available from your dealer. The Do Not
Operate tag is included with your machine.
65
AU125990 C11A
LUBRICATION/MAINTENANCE
CAPACITIES AND LUBRICANT SPECIFICATIONS
ENGINE CRANKCASE
Capacity with filter change .......................................................................................................11 L (11.6 U.S. Qts.)
Type of Oil ................................................................................................. ( see Engine Lubrication in this manual)
FUEL TANK
Capacity ................................................................................................................................. 75.7 L (20 U.S. Gal.)
Type of Fuel .........................................................................................................................Ultra Low Suffer Diesel
COOLING SYSTEM
Capacity .............................................................................................................................. 13.7 L (14.5 U.S. Qts.)
Specifications ..................................................................................................50% Water and 50% Ethylene Glycol
HYDRAULIC SYSTEM
Capacity ................................................................................................................................. 98.4 L (26 U.S. Gal.)
Tank Only ............................................................................................................................... 75.7 L (20 U.S. Gal.)
Specifications ...................................................................................................... Astec Hydraulic Transmission Fluid
TRANSMISSION
Capacity ..................................................................................................................................1.7 L (1.8 U.S. Qts.)
Specifications .....................................................................................................Astec 85W140 Synthetic Gear Lube
AXLES
Capacity - center bowl (each)...................................................................................................... 3.8 L (4 U.S. Qts.)
Capacity - planetary end (each)...............................................................................................0.6 L (0.65 U.S. Qts.)
Specifications ..................................................................................................................... Astec 85W140 API GL-5
TIRES
Size ........................................................................................................................................ 31 x 15.5 x 15, 8 PR
Air Pressure ......................................................................................................................310 kPa, 3.1 bar (45 psi)
GREASE FITTINGS
Quantity ............................................................................................................................................. As Required
Type of Lubricant .......................................................................................................... Lithium Base Grease (Blue)
TRENCHER DRIVE PLANETARY
Capacity .................................................................................................................................. .1.4 L (1.5 U.S. Qt.)
Specifications .....................................................................................................Astec 85W140 Synthetic Gear Lube
CABLE PLOW SHAKER BOX AND PIVOTS
Grease Fittings .................................................................................................Use only Lithium Base Grease (Blue)
BACKHOE PIVOTS
Grease Fittings .................................................................................................Use only Lithium Base Grease (Blue)
BACKFILL BLADE PIVOTS
Grease Fittings .................................................................................................Use only Lithium Base Grease (Blue)
AU125990 C11A
66
LUBRICATION/MAINTENANCE
GREASE POINTS MAINTENANCE CHART
NUMBER of POINTS
FREQUENCY in HOURS
Backfill Blade Angle Cylinder
SERVICE POINTS
2
10
Backfill Blade Lift Cylinder
2
10
Front Axle Steering Pivots (Note 1)
4
500
Rear Axle Steering Pivots (Note 1)
4
500
Front of Drive Shaft
2
500
Rear of Drive Shaft
2
500
P75 Cable Plow Shaker Box Bearings
4
10
P75 Cable Plow Boom Pivot
1
10
P75 Cable Plow Swing Cylinder
2
10
P75 Cable Plow Boom Cylinder
2
10
P85 Cable Plow Shaker Box Bearings
5
10
P85 Cable Plow Boom Pivot
1
10
P85 Cable Plow Upper Arm Pivots
2
10
P85 Cable Plow Swing Pivots
2
10
P85 Cable Plow Blade Pivot
1
10
P85 Cable Plow Swing Cylinders
4
10
P85 Cable Plow Boom Cylinder
2
10
D100 Backhoe Stabilizer Pivots (Note 2)
2
10
D100 Backhoe Lower Swing Pivot
1
10
D100 Backhoe Upper Swing Pivot
1
10
D100 Backhoe Dipper Pivot
1
10
D100 Backhoe Boom Pivot
1
10
D100 Backhoe Dipper Cylinder
2
10
D100 Backhoe Boom Cylinder
2
10
D100 Backhoe Bucket Cylinder
2
10
D125/HD125 Backhoe Bucket Pivot & Linkage
8
10
D125/HD125 Backhoe Swing Pivots
2
10
D125/HD125 Backhoe Boom Pivots
2
10
D125/HD125 Backhoe Dipper Pivots
2
10
D125/HD125 Backhoe Stabilizer Legs
2
10
D125/HD125 Backhoe Bucket Cylinder
2
10
D125/HD125 Backhoe Boom Cylinder
2
10
D125/HD125 Backhoe Dipper Cylinder
2
10
Auger Drive Bearing (Note 2)
2
100
Trencher Rock Channel Boom Idler Bearings (Note 3)
1-3
50
Trencher End Roller / Sprocket Bearings
1-3
50
Trencher Planetary Drive Support Bearing
1
50
Trencher Boom Pivot
1
100
Trencher Lift Cylinder
1
100
NOTE 1:Top and bottom, each side.
NOTE 2:One each side.
NOTE 3:Every 10 hours in dry, dusty conditions.
67
AU125990 C11A
LUBRICATION/MAINTENANCE
LUBRICATION/MAINTENANCE CHART
FREQUENCY IN HOURS
L
U
B
R
I
C
A
E
SERVICE POINTS
D
R
A
I
N
W
A
T
E
R
Air Filter Dust Valve (Note 6)
C
H
E
C
K
C
L
E
A
N
50
50
Air Filter Main (Primary) Element (Note 2 & 11)
1000
Air Filter Safety (Secondary) Element (Note 14)
!
Coolant Radiator Fluid (Note 12)
50
Coolant Reservoir Fluid (Note 5)
10
2000
Coolant Mixture Concentration (Note 9)
1000
Coolant System Hoses and Connections (Note 7)
300
Crankcase Vent Tube (Note 5)
!
10
Diesel Fuel (Note 8)
500
Engine Oil (Note 5 & 20)
10
10
250
Engine Oil Filter (Note 20)
250
Engine Drive Belt (Note 17)
250
Engine Drive Belt Tension
1000
Engine Hoses (Note 7)
300
!
Fire Extinguisher (Note 19)
50
300
Front & Rear Axle Planetary (Note 15 & 16)
250
1000
Front & Rear Axle Center Bowl & Transmission (Note 15 & 16)
250
Front & Rear Axle Breathers (Note 13)
1000
300
Fuel Filter, Primary & In-Line (Note 8)
50
500
Hydraulic Charge Filter (Note 4 & 8)
500
Hydraulic Return Filter (Note 3 & 8)
500
Hydraulic Reservoir Oil (Note 5 & 10)
10
Hydraulic Reservoir Breather (Note 10)
1000
1000
Hydra-Borer Oil
50
Parking Brake (Note 5)
10
ROPS System (Note 8)
500
Seat Belt Mounting Bolts (Note 8)
500
Tire Pressure and Condition
50
Trencher Drive Planetary (Note 10)
50
1000
Trencher Chain Wear Pad (Note 5)
10
!
Trencher Sprocket Nuts & Bolts (Note 18)
30
Trencher Digging Chain Tension (Note 5)
10
Trencher Chain Tooth Mounting Bolts (Note 5)
10
Wheel Nut Torque (Note 1)
!
! - As Required
AU125990 C11A
C
H
A
N
G
E
68
LUBRICATION/MAINTENANCE
NOTE 1: Check everyday when new or after wheel change until torque stabilizes.
NOTE 2: Replace the air filter element if the air filter restriction warning lamp illuminates.
NOTE 3: Replace the return filter if the return filter restriction warning lamp illuminates.
NOTE 4: Replace the charge filter if the charge filter restriction warning lamp illuminates.
NOTE 5: Every 10 hours of operation or once each day, whichever occurs first.
NOTE 6: Air Cleaner dust valve should be checked each day in very dry, abrasive soil conditions.
NOTE 7: Every 300 hours of operation or once each year, whichever occurs first.
NOTE 8: Every 500 hours of operation or once each year, whichever occurs first.
NOTE 9: Every 1000 hours of operation or once each year (prior to winter season), whichever occurs first.
NOTE 10:Every 1000 hours of operation or once each year, whichever occurs first.
NOTE 11:Every 1000 hours of operation or once each year, whichever occurs first.
NOTE 12:Every 2000 hours of operation or once every two years (prior to winter season), whichever occurs first,
or if coolant becomes dirty or rust colored.
NOTE 13:Every 300 hours of operation or once each month, whichever occurs first.
NOTE 14:After main element has been changed 3 times, or if air filter restriction warning lamp illuminates after
the main element has been changed.
NOTE 15:After first 100 hours then every 250 hours of operation or once each month, whichever occurs first.
NOTE 16:After first 200 hours then every 1000 hours of operation or once each year, whichever occurs first.
NOTE 17:Replace if cut, cracked, loose cords, grease, oil, or slippage is found.
NOTE 18:After first 10 hours then every 30 hours of operation or once each week, whichever occurs first.
NOTE 19:Check every 50 hours of operation or once each month, and replace chemical every 6 months.
Have a fire equipment technician inspect the fire extinguisher once each year.
NOTE 20:Every 250 hours of operation or once each month, whichever occurs first.
69
AU125990 C11A
LUBRICATION/MAINTENANCE
ACCESS DOORS AND COVERS
3
1
RT600_32
1. RIGHT SIDE ENGINE ACCESS COVER
2
2. BATTERY COVER
AU125990 C11A
RT600_31
3. LEFT SIDE ENGINE ACCESS COVER
5
RT600_11B
4. NOSE SECTION - RADIATOR ACCESS
70
RT600_28
LUBRICATION/MAINTENANCE
GREASE FITTINGS LOCATIONS
IMPORTANT: Use hand grease gun only. Actuate the hand pump until you see new grease at the seals. Add grease
slowly to prevent damage to the seals. Use only Lithium Base Grease.
Grease Fittings - 10 Hours of Operation
P85 Cable Plow Shaker Box
1
1
P85 Cable Plow Pivots
6
1
1
4
2
5
3
4 3
B910864
B910864
1. UPPER ARM ...........................................2 FITTINGS
2. SWING PIVOT ........................................2 FITTINGS
3. SWING CYLINDERS ................................4 FITTINGS
4. BOOM PIVOTS .........................................1 FITTING
5. BOOM CYLINDER ...................................2 FITTINGS
6. BLADE PIVOT...........................................1 FITTING
1. SHAKER BOX BEARINGS .........................5 FITTINGS
P75 Cable Plow Shaker Box
P75 Cable Plow Pivots
1
RB97J018
1. SHAKER BOX BEARINGS .........................4 FITTINGS
3
1
2
RB97J018
1. SWING CYLINDERS ................................2 FITTINGS
2. BOOM PIVOT ...........................................1 FITTING
3. BOOM CYLINDER ...................................2 FITTINGS
71
AU125990 C11A
LUBRICATION/MAINTENANCE
D125 Backhoe Pivots
HD125 Backhoe Pivots
3
2
1
1
1
1
7
8 7
3
2
4
4
5
5
6
1
B910865
1
8 7
7
6
B910865
1. BUCKET PIVOT AND LINKAGE .................8 FITTINGS
2. BUCKET CYLINDER.................................2 FITTINGS
3. BOOM CYLINDER ...................................2 FITTINGS
4. SWING PIVOTS ......................................2 FITTINGS
5. STABILIZER LEGS...................................2 FITTINGS
6. BOOM PIVOT .........................................2 FITTINGS
7. DIPPER CYLINDER..................................2 FITTINGS
8. DIPPER PIVOT .......................................2 FITTINGS
1. BUCKET PIVOT AND LINKAGE ................. 8 FITTINGS
2. BUCKET CYLINDER................................. 2 FITTINGS
3. BOOM CYLINDER ................................... 2 FITTINGS
4. SWING PIVOTS ...................................... 2 FITTINGS
5. STABILIZER LEGS................................... 2 FITTINGS
6. BOOM PIVOT ......................................... 2 FITTINGS
7. DIPPER CYLINDER ................................. 2 FITTINGS
8. DIPPER PIVOT .......................................2 FITTINGS
D100 Backhoe Pivots
Backfill Blade
6
7
8
5
4
3
1
11
10
9
AU100242
1. ANGLE CYLINDER ...................................2 FITTINGS
2
RB97F070
1. STABILIZER PIVOT .....................(2) ONE EACH SIDE
2. LOWER SWING PIVOT ........................................ (1)
3. UPPER SWING PIVOT ......................................... (1)
4. DIPPER CYLINDER, CLOSED END ........................ (1)
5. BOOM CYLINDER, CLOSED END .......................... (1)
6. DIPPER PIVOT ................................................... (1)
7. DIPPER CYLINDER, ROD END.............................. (1)
8. BUCKET CYLINDER, CLOSED END........................ (1)
9. BUCKET CYLINDER, ROD END............................. (1)
10. BOOM CYLINDER, ROD END ............................... (1)
11. BOOM PIVOT ..................................................... (1)
AU100242
2. LIFT CYLINDER ...................................... 2 FITTINGS
AU125990 C11A
72
LUBRICATION/MAINTENANCE
Grease Fittings - 50 Hours of Operation
WARNING: Be sure all personnel are clear of the chain
when performing this operation.
NOTE: Trencher support, boom idler, and end roller/
sprocket bearings should be greased every 10
hours in very dry, abrasive soil conditions.
4. Stop the chain and actuate the hand pump 1 to 2
strokes in each housing.
5. Rotate the chain as before.
6. Repeat this procedure until you see new grease at the
shaft seals.
IMPORTANT: Add grease slowly to prevent damage to
the seals.
Grease Fittings - 100 Hours of Operation
A21909
Trencher Rock Boom Idler Bearings ............... 1-3 Fittings
1
2
A21897
1. Direct Drive Trencher Boom Pivot ...................1 Fitting
2. Direct Drive Trencher Lift Cylinder Rod End .....1 Fitting
B865312
Trencher End Roller / Sprocket Bearings......... 1-3 Fittings
1
2
A19591
1. Heavy Duty Trencher Boom Pivot....................1 Fitting
2. Heavy Duty Trencher Lift Cylinder Rod End......1 Fitting
IMPORTANT: Use hand grease gun only.
A19596
Trencher Planetary Drive Support Bearing .......... 1 Fitting
1. Actuate the hand pump 5 times.
IMPORTANT: Use hand grease gun only.
2. Remove grease gun.
1. Actuate the hand pump 1 to 2 strokes in each
housing.
3. Raise and lower the boom 3 or 4 times and add
grease again.
2. Remove grease gun.
4. Repeat this procedure until you see new grease at the
seals.
3. From the machine operator’s platform, slowly rotate
the chain until the end roller has made 4 to 10
revolutions.
IMPORTANT: Add grease slowly to prevent damage to
the seals.
73
AU125990 C11A
LUBRICATION/MAINTENANCE
GREASE FITTINGS - 500 HOURS
Front of Drive Shaft
A19592
Auger Drive Bearing ...........................1 Fitting Each Side
Front Axle Steering Pivots
RT600_36
Front of Drive Shaft......................................... 2 Fittings
Rear of Drive Shaft
RT600_34
Front Axle Steering Pivots (top and bottom each side)
...................................................................... 4 Fittings
RT600_35
Rear of Drive Shaft.......................................... 2 Fittings
Rear Axle Steering Pivots
RT600_33
Rear Axle Steering Pivots (top and bottom each side)
...................................................................... 4 Fittings
AU125990 C11A
74
LUBRICATION/MAINTENANCE
ENGINE LUBRICATION
Engine Oil Selection
Astec Engine Oil is recommended for use in your engine.
Astec Engine Oil will lubricate your engine correctly under
all operating conditions.
If Astec Multi-Viscosity is not available, use only oil
meeting API engine oil service category CH-4 or CI-4.
See the chart for recommended viscosity at ambient air
temperature ranges.
NOTE: DO NOT put Performance Additive products in the
engine crankcase. The oil change intervals given in this
manual are according to tests with Astec lubricants.
RB97F100-2
40°C
104°F
30°C
86°F
20°C
68°F
10°C
50°F
0°C
32°F
-10°C
14°F
-20°C
-4°F
-30°C
-22°F
-40°C
-40°F
SAE 10W-30
122°F
SAE 5W-30
50°C
SAE 0W-40
SAE 10W-40
SAE 15W-40
Oil Viscosity/Temperature Ranges Recommendation
OILVISCTEMP
75
AU125990 C11A
LUBRICATION/MAINTENANCE
Engine Oil Level Check
Engine Oil and Oil Filter Change
Check the oil level every 10 hours of operation or each
day, whichever occurs first.
Change the engine oil and engine oil filter every 250
hours or operation.
WARNING: Never drain oil or remove oil filter
while engine is running.
If possible, change the oil when the oil is warm.
Park the machine on a level surface when you drain the
engine crankcase.
1
3
RT600_37
1. DIPSTICK
Make sure the engine is not running and the machine is
parked on a level surface when you check the oil level.
NOTE: If the engine has been running, wait 2 or 3
minutes before you check the oil level.
RT600_39
3. OIL DRAIN PLUG
1. Remove the engine service access panel. Remove the
dipstick (1) and wipe with a clean cloth.
1. Remove the drain plug (3) and drain the oil. The
engine crankcase capacity with filter change is
approximately 11 litres (11.6 U.S. Quarts) of oil.
2. Push the dipstick completely in and remove again.
3. The oil level must be between the FULL and LOW
marks on the dipstick.
IMPORTANT: Never start engine when the oil is drained.
4
2
4. ENGINE OIL FILTER
2. ENGINE OIL FILL
RT6600_40
2. Remove (counterclockwise) and discard the oil filter
(4). Access is from under machine.
RT600_38
4. If the oil level is below the LOW mark, add oil to the
oil filler tube (2). Raise the oil level to the FULL mark.
Do not raise the oil level above the FULL mark.
3. Clean the gasket surface on the filter head with a
clean cloth.
5. Install the oil filler cap, if removed
4. Apply a thin layer of clean grease or oil to the
gasket of the new oil filter.
6. Install the dipstick. Install the engine access cover.
IMPORTANT: DO NOT use a oil filter strap wrench to
NOTE: See Engine Lubrication in this manual for the
install the new oil filter. An oil filter strap wrench can
cause a leak if the filter is dented.
engine oil specifications.
AU125990 C11A
76
LUBRICATION/MAINTENANCE
Air Filter Service Indicator
5. Install the new filter. Use your hands to tighten the
filter 1/2 turn after the filter gasket makes contact
with the filter head.
6. Install the oil drain plug (3).
2
7. Remove the filler cap (2).
8. Put 11 litres (11.6 U.S. Quarts) of new engine oil
into the engine, and install the filler cap (2).
9. Start the engine. Run the engine at idle for
approximately 2 minutes. Check for oil leaks.
10. Stop the engine and remove the key.
RT600_8D
11. Wait 2 or 3 minutes and check the oil level.
You must replace the air cleaner if the air filter restriction
warning lamp illuminates while the engine is running, or
either after 1000 hours of operation or each year,
whichever occurs first.
12. Remove the dipstick (1) and wipe with a clean cloth.
13. Push the dipstick completely in and remove again.
14. The oil level must be between the FULL and LOW
marks on the dipstick.
Main (Primary) Element
15. If the oil level is below the LOW mark, add oil to raise
the oil to the FULL mark. Do not fill the crankcase
above the FULL mark.
Replace the main (primary) element when the restriction
warning lamp illuminates.
16. Install the oil filler cap (2), if removed.
3
17. Install the dipstick (1).
AIR CLEANING SYSTEM
The shelf life of a new air cleaner element is five years; do
not install a new element that is more than five years old.
The date of manufacture is on the end cap of the
element.
Do not remove the elements from the machine to check
for restriction; always follow the recommended service
instructions in this section.
4
Each time you service the air cleaner system, make sure
all hose connections and flanges are air tight. Replace all
damaged parts.
RT600_42
1. Pull the retaining clip (3) on the filter housing cover to
unlock, turn counterclockwise and remove the filter
end cap (4) from the housing. Use a clean damp cloth
to clean the inside of the end cap.
Dust Valve
Check and clean the dust valve (1) every 50 hours of
operation. Make sure there is no obstruction inside the
valve.
5
1
RT600_43
2. Remove the main (primary) element (5).
RT600_41
77
AU125990 C11A
LUBRICATION/MAINTENANCE
3. Use a clean damp cloth to clean the inside of the filter
body.
4. Install a new safety (secondary) element (6). Make
sure the element is fully seated and has full gasket
contact with the body.
NOTE: The date of manufacture is on the end of the
element. DO NOT install an element that is more than five
years old.
5. Install the main (primary) element and end cover.
NOTE: Apply pressure by hand at the outer rim of the
filter, not the flexible center. NEVER use the service cover
to push the filter into place! Using the cover to push the
filter in could cause damage to the housing.
4. Use a lamp to inspect the new element for damage. If
the element is damaged, replace the element.
5. Write the date and the engine hours on the end of the
element.
ENGINE COOLING SYSTEM
6. Install the main (primary) element. Make sure the
element is fully seated and has full gasket contact
with the body.
Hot coolant can spray out if radiator cap is
removed. To remove radiator cap:
Wear face protection.
7. Install the end cover. Rotate the end cover clockwise
so that the dust valve is at 8:00 o’clock. Push the clip
in to lock.
Let system cool, turn to first notch, then wait until
all pressure is released.
8. Start the engine and check the air filter restriction
indicator lamp. If the lamp still illuminates, replace
the secondary (inner) element.
Scalding can result from fast removal of radiator
cap.
WARNING: Check and service engine cooling
Safety (Secondary) Element
system according to maintenance instructions.
Replace the safety (secondary) element when one of the
following occurs:
A mixture of 50% Ethylene Glycol and 50% water is used
in this machine. This mixture is used if the lowest ambient
temperature is above -37°C (-34°F). If the ambient
t e m p e ra t u r e i s l o w e r, a d j u s t t h e m i x t u r e . I t i s
recommended that a Ethylene Glycol and water mixture
be used in your machine all year.
A. After the main (primary) element has been
replaced three times.
B. When the Air Filter Restriction warning lamp
illuminates with the engine running after the main
(primary) element has been replaced.
NOTE: Your unit was factory filled with a 50% mixture of
water and Ethylene Glycol in the cooling system. Ethylene
Propylene can be used in this cooling system, but must
not be mixed with Ethylene Glycol. If Ethylene Propylene
will be used in this cooling system, the Ethylene Glycol
must be completely drained from the system first.
NOTE: DO NOT clean either the main (primary) or safety
(secondary) elements.
1. Remove the end cover and remove the main
(primary) element.
2. Remove the safety
Discard the element.
(secondary)
element
(1).
NOTE: After you fill the cooling system, mix the Ethylene
Glycol and water completely by running the engine at
operating temperature for approximately five minutes.
This procedure must be done when the machine is in
temperatures below 0°C (32°F).
3. Use a clean damp cloth and clean the inside of the
filter body.
6
RT600_44
AU125990 C11A
78
LUBRICATION/MAINTENANCE
Coolant Level
NOTE: If the radiator coolant level is low and the coolant
reservoir level is at the FULL mark, check for air leaks in
the hose between the radiator and coolant reservoir.
1
Coolant System Hoses
Inspect the coolant system hose clamps and hose
connections every 300 hours, or yearly, for evidence of
leakage and correct as needed.
Coolant Concentration Check
Check the concentration of the coolant mixture (50%
Ethylene Glycol and 50% water) every 1000 hours, or
yearly, prior to the winter season.
RT600_45
1. COOLANT RECOVERY BOTTLE
Cleaning the Cooling System
Check the coolant reservoir (1) fluid level every 10 hours
of operation, when the coolant is cold, and the engine is
stopped. Do not remove the radiator cap during this
check. The coolant level must be between the FULL and
ADD marks on the reservoir. Add coolant as required to
the coolant reservoir only.
Drain and clean the cooling system every 2000 hours of
operation or once every two years, whichever occurs first.
Clean the cooling system if the coolant becomes dirty or
rust colored.
WARNING: Liquid cooling systems build up
NOTE: After filling the cooling system, mix the Ethylene
pressure as the engine gets hot. Before removing
the radiator cap, stop the engine and let the
system cool. Remove the radiator cap only after
the coolant is cold.
Glycol and water completely by running the engine at
operating temperature for approximately five (5) minutes.
This procedure must be done when the machine is in
temperatures below 0°C (32°F).
DO NOT remove the radiator cap if the coolant is hot.
Allow system to cool before removing radiator cap.
Radiator
NOTE: The radiator drain valve is located behind the
radiator, and can be accessed from below the machine.
1
1
2
1. RADIATOR DRAIN VALVE AND TUBE
RT600_47
RT600_49
1. Remove the radiator cap.
Check the radiator coolant level every 50 hours of
operation when the coolant is cold and the engine is
stopped. The radiator cap is located behind the removable
nose panel (1). Remove the access cover by removing
two bolts (2) on each side. Open the engine vent petcock.
Add coolant as required to the radiator. The coolant level
must be up to the radiator cap opening.
2. Place a container under the drain tube attached to the
drain valve.
3. Open the radiator (1) drain valve. The engine and
radiator coolant capacity is 17.2 litres (18 U.S.
quarts).
79
AU125990 C11A
LUBRICATION/MAINTENANCE
DIESEL FUEL SYSTEM
4. When all fluid has been drained, close the radiator
drain valve.
NOTE: Before disposing of fluids and lubricants, check
with local environmental/recycling centers or your Astec
dealer for proper disposal information. DO NOT put oil or
fluids into the ground or into containers that can leak.
WARNING: Use only ULTRA LOW SULFUR
5. Add a cooling system cleaning solution to the
cooling system. Follow the directions included with
the cleaning solution.
cause a fire or an explosion. Do not fill the fuel
tank or service the fuel system near an open
flame, welding, burning cigars, cigarettes, etc.
6. Drain the cleaning solution and flush with clean
water.
WARNING: Never refuel the machine when the
Diesel (ULSD) fuel in this machine.
WARNING: Engine fuel is flammable and can
engine is hot or running. Never smoke while
refueling.
7. Close the radiator drain valve.
8. Wear face protection and use compressed air or a
water spray to clean the outside of the radiator and
hydraulic oil cooler.
WARNING: Always wear face protection when
using compressed air.
AU118616
Diesel Fuel
Use Ultra Low Sulfur Diesel fuel (ULSD) in the engine of
this machine. The use of other fuels can cause the loss of
engine power and high fuel consumption.
9. Fill the cooling system with coolant until the fluid
level is up to the top of the radiator opening.
NOTE: See Fluids
specifications.
in
this
manual
for
The diesel fuel used in this machine must meet the
Specification D975 of the American Society for Testing
and Materials International. See your diesel fuel
distributor.
coolant
10. Fill the coolant reservoir with coolant up to the
FULL mark.
The D975 standard defines two ULSD standards, Grade
No. 2-D S15 (regular ULSD) and Grade No. 1-D S15 (a
h i g h e r v o l a t i l i ty U L S D fu e l w i t h a l o w e r g e l l i n g
temperature than regular ULSD).
11. Install the radiator cap and hood nose. Install the
coolant reservoir cap.
12. Start and run the engine at 1/2 throttle for
approximately 5 minutes.
In very cold temperatures, a mixture of Grade No. 1-D
S15 and Grade No. 2-D S15 Ultra Low Sulfur Diesel fuels
is temporarily permitted. See the following note.
13.Stop the engine and remove key.
14. Wait approximately 30 minutes and check the fluid
level in the coolant reservoir. If the fluid level is
low, add coolant.
NOTE: See
your fuel distributor for winter fuel
requirements in your area. If the temperature of the fuel
lowers below the cloud point (wax appearance point),
wax crystals in the fuel will cause the engine to lose
power or not start.
15. Install the access panel.
Fuel Storage
If you keep fuel in storage for a period of time, you can
get foreign material or water in the fuel storage tank.
Many engine problems are caused by water in the fuel.
Keep the fuel storage tank outside and keep the fuel as
cool as possible. Remove water from the storage
container at regular periods of time.
AU125990 C11A
80
LUBRICATION/MAINTENANCE
FUEL GAUGE
Water and Sediment
Check the fuel filter for water and sediment every 50
hours of operation and drain the water from the fuel tank
every 500 hours.
NOTE: Before disposing of fluids and lubricants, check
with local environmental/recycling centers or your Astec
dealer for proper disposal information. DO NOT put oil or
fluids into the ground or into containers that can leak.
3
RT600_8
FUEL LEVEL GAUGE - The fuel level gauge shows the
amount of fuel in the tank. The fuel tank capacity is 75.7
litres (20 U.S. gallons).
4
Filling the Fuel Tank
5
1
2
RT600_56
1. Remove the right side engine access panel.
2. Loosen the fuel filter drain plug (2) two or three turns
and drain any water and sediment from the fuel filter
canister (4).
NOTE: If the fuel filter canister has any water or
sediment, go to step 3 and drain any water or sediment
from the fuel tank.
1. FUEL TANK FILL CAP
RT600_55
Fill the fuel tank of the machine at the end of each day to
prevent condensation in the fuel tank.
When adding fuel to the machine, remove the fuel cap (1)
SLOWLY to reduce the air pressure build up.
6
Fuel Conditioner
A fuel conditioner may be used to stabilize the fuel and
prevent water condensation. Astec Diesel Fuel
Conditioner is available from your dealer. Follow the
instructions on the container.
RT600_46
3. Remove the fuel tank drain plug (6) located beneath
the tank to drain water from the tank. Use a proper
container. Install the drain plug when clean fuel
appears.
The Fuel Conditioner will:
1. clean the fuel injectors, valves and manifold for
increased service life,
4. Tighten the fuel filter drain plug (2) securely.
2. disperse insoluble gummy deposits that can form in
the fuel system,
After draining water from the fuel filter, the filter must be
primed by bleeding all air from the fuel system. See
Removing Air From Fuel System in this manual.
3. separate moisture from the fuel,
4. stabilize the fuel in storage.
81
AU125990 C11A
LUBRICATION/MAINTENANCE
Fuel Filter
Cleaning the Crankcase Vent Tube
Replace both the in-line filter (5) and the primary filter (4)
every 500 hours of operation or if you have loss of engine
power.
If you operate the machine in dusty conditions, clean the
crankcase vent tube daily.
1. Remove the left side engine access panel.
2. Clean the fuel filter assembly (4) and surrounding
area with cleaning solvent.
3. Loosen fuel filter drain plug (2) and drain fuel into a
suitable container.
2
4. Firmly grasp the filter element (4) and rotate it
counterclockwise 1/4 turn. Remove the filter element.
1
5. Inspect filter mounting base for cleanliness. Clean as
required.
RT600_56
IMPORTANT: Do not use a filter wrench to tighten the
1. Remove the crankcase vent tube (1) by loosening
clamp (2) and hose clamp screw. Clean the vent
tube and hose.
6. Install a new filter element by pushing up firmly into
the mounting base, then turning clockwise until it
locks in place. Be sure the element is firmly seated in
the base.
2. Install the vent tube and hose clamp screw. Tighten
hose clamp cap screw to 40Nm (30 lb ft) torque.
filter. You can cause a leak if the filter is dented with the
wrench.
7. Replace the in-line filter (5) by loosening the clamps.
8. Bleed the fuel system by pressing down on the
primer button (3) located on top of the filter
assembly until resistance is felt.
9. Install the left engine panel.
10. Start the engine and check for leaks at the filter.
Removing Air From Fuel System
NOTE: Air must be removed from the fuel system when
any of the following situations occur:
A. The engine is run until the fuel tank is empty.
B. The fuel filter is replaced.
C. The fuel system is serviced.
To remove air from the fuel system do the following:
1. Fill the fuel tank.
2. Operate the hand primer pump (3) located on top of
the filter assembly until resistance is felt.
3. Start the engine and check for fuel leaks around the
filter.
AU125990 C11A
82
LUBRICATION/MAINTENANCE
HYDRAULIC OIL SYSTEM
2. Place a container that will hold a minimum of 76 litres
(20 U.S. gallons) under the hydraulic reservoir.
Hydraulic Reservoir Fluid Level
Check the hydraulic reservoir oil level every 10 hours of
operation or one time each day, whichever occurs first.
1. Park the machine on a level surface and put all
attachments in the TRANSPORT position.
3
2. Stop the engine, apply the park brake, and remove
the key.
RT600_46
3. HYDRAULIC RESERVOIR DRAIN PLUG
3. Remove the hydraulic reservoir drain plug (3) located
beneath the tank and drain the reservoir. The
reservoir capacity is approximately 76 litres (20 U.S.
gallons). The complete system is approximately 98
litres (26 U.S. gallons).
2
1
4. Install the drain plug (3).
NOTE: It is recommended that you change the return
filter when you change the hydraulic fluid. See Hydraulic
Return Filter.
5. See Hydraulic Return Filter in this manual and do
steps 1 through 6.
1. OIL LEVEL SIGHT GAUGE
2. FILL CAP/BREATHER
NOTE: It is recommended that you change the charge
filter when you change the hydraulic fluid. See Hydraulic
Charge Filter.
RT600_54
3. Check the oil level in the sight gauge (1). The oil
level must be between the FULL and ADD marks on
the sight gauge. If the oil level is below the ADD
mark, add oil to raise the oil level up to the FULL
mark.
6. See Hydraulic Charge Filter in this manual and do
steps 1 through 6.
7. Fill the reservoir with hydraulic fluid.
NOTE: See Lubricant Specifications in this manual for the
hydraulic fluid specifications.
4. If you must add oil to the hydraulic reservoir, remove
the fill cap/breather (2) from the fill tube, add oil,
then reinstall the fill cap.
8. Clean the fill cap/breather with solvent. Install the fill
cap/breather (2).
Hydraulic Fluid Change
9. Start the engine. Run the engine at idle for
approximately two (2) minutes.
Change the hydraulic fluid and clean the breather every
1000 hours of operation or each year, whichever occurs
first.
NOTE: You must be seated in the operator’s seat to start
NOTE: Before disposing of fluids and lubricants, check
10. Stop the engine and remove the key.
the engine.
with local environmental/recycling centers or your Astec
dealer for proper disposal information. DO NOT put oil or
fluids into the ground or into containers that can leak.
11. Check for leaks.
12. Check the hydraulic fluid level.
Make sure the engine is not running and the machine is
parked on a level surface with the parking brake applied.
If possible, drain the reservoir when the hydraulic fluid is
warm.
1. Remove the fill cap/breather (2) from the fill tube.
83
AU125990 C11A
LUBRICATION/MAINTENANCE
Hydraulic Return Filter
7. Start the engine and run the engine at idle for
approximately 1 minute.
8. Stop the engine and remove the key. Check for leaks.
9. Check the hydraulic reservoir fluid level.
Hydraulic Charge Circuit Filter
1
Change the charge circuit filter every 500 hours of
operation or if the charge circuit filter restriction warning
lamp (1) illuminates.
RT600_8D
1. RETURN FILTER RESTRICTION WARNING LAMP
Change the return line filter every 500 hours of operation
or if the return filter restriction warning lamp (1)
illuminates.
1
NOTE: It is recommended that you change the hydraulic
return filter when you change the hydraulic fluid. See
Hydraulic Fluid Change in this manual.
1. CHARGE CIRCUIT FILTER RESTRICTION WARNING LAMP
NOTE: It is recommended that you change the hydraulic
charge circuit filter when you change the hydraulic fluid.
See Hydraulic Fluid Change in this manual.
2
2. HYDRAULIC RETURN FILTER
RT600_57
The hydraulic return filter is accessible from underneath
the rear of the machine. To change the hydraulic return
filter follow these steps:
2
1. Use a vacuum pump to create a vacuum in the
hydraulic reservoir to reduce loss of fluid.
2. HYDRAULIC CHARGE FILTER
RT600_58
The hydraulic charge filter is accessible from underneath
the right side of the machine behind the hydraulic tank.
To change the hydraulic charge circuit filter follow these
steps:
2. Turn the hydraulic return filter (2) counterclockwise
and remove the filter. Discard the filter.
3. Apply a thin layer of clean grease or oil to the o-ring
of the new filter.
1. Use a vacuum pump to create a vacuum in the
hydraulic reservoir to reduce loss of fluid.
IMPORTANT: DO NOT use a filter strap wrench to
tighten the filter. A strap wrench can cause a leak if the
filter is dented.
2. Turn the hydraulic charge circuit filter (2)
counterclockwise and remove the filter. Discard the
filter.
4. Install the new filter. Use your hands to tighten
filter 1/2 turn after the filter makes contact with the
filter head.
3. Apply a thin layer of clean grease or oil to the o-ring
of the new filter.
IMPORTANT: DO NOT use a filter strap wrench to
tighten the filter. A strap wrench can cause a leak if the
filter is dented.
5. Remove the vacuum pump from the reservoir.
6. Check the hydraulic reservoir oil level.
AU125990 C11A
RT600_8D
84
LUBRICATION/MAINTENANCE
4. Install the new filter. Use your hands to tighten
filter 1/2 turn after the filter makes contact with the
filter head.
2
5. Remove the vacuum pump from the reservoir.
4
4
6. Check the hydraulic reservoir oil level.
7. Start the engine and run the engine at idle for
approximately 1 minute.
8. Stop the engine and remove the key. Check for leaks.
3
9. Check the hydraulic reservoir fluid level.
AXLES AND TRANSMISSION
RT600_61
2. CENTER BOWL OIL LEVEL PLUG
3. CENTER BOWL OIL DRAIN PLUGS
4. CENTER BOWL OIL BREATHER PLUGS
Axle Planetary and Center Bowl Oil Level
Check the oil level of each axle planetary and center bowl
after the first 100 hours and then every 250 hours of
operation or once each month, whichever occurs first.
The transmission gearbox oil is shared with the axle
center bowl oil. The various chambers of the axle are
joined together, and it is the axle center bowl oil level plug
which defines the overall oil level.
Park the machine on a level surface when you check the
oil.
7. Remove the oil level plug (2) from one of the center
bowls accessible from either the front or rear.
1. Move the machine to put a planetary oil level plug (1)
in the 3 o’clock position to check the oil level. Apply
the parking brake and stop the engine.
8. The oil level must be level with the bottom of the plug
hole.
9. Add oil as required.
NOTE: See Lubricants in this manual for the axle (center
bowl and planetary) oil specifications.
10. Install the oil level plug.
11. Check the oil level of the other axle center bowl.
Axle Planetary and Center Bowl
Oil Change
1
1. AXLE PLANETARY OIL LEVEL AND DRAIN PLUG
Change the oil for each axle planetary and center bowl
after the first 200 hours and then after every 1,000 hours
of operation or once each year, whichever occurs first.
RT600_26-300
If possible, change the oil when the oil is warm.
2. Remove the oil level plug (1).
3. Check the oil level. The oil must be level with the
bottom of the hole for the plug.
4. If the oil level is below the bottom of the hole for
the plug, add oil.
1
NOTE: See Lubricants in this manual for the axle (center
bowl and planetary) oil specifications.
5. Install the plug (1).
6. Repeat steps 1 through 5 for the other planetaries.
RT600_26-600
1. Rotate one of the wheel planetaries until the oil level
plug (1) is at the bottom.
85
AU125990 C11A
LUBRICATION/MAINTENANCE
2. Place a container of the appropriate size under the
planetary. The planetary capacity is approximately 0.6
litres (.65 U.S. quart). Remove the plug and drain the
planetary.
1. Clean the area around the breathers with cleaning
solvent.
2. Remove the breather.
3. Clean the breather with cleaning solvent.
4. Wear face protection and use compressed air to dry
the breathers, then reinstall the breathers.
1
WARNING: Always wear face protection when
using compressed air.
TRENCHER DRIVE PLANETARY
Oil Level Check
RT600_26-300
3. Move the machine slightly to put the wheel planetary
oil level plug (1) in the 3 o’clock position and fill the
planetary with oil. The oil must be level with the
bottom of the hole for the plug.
NOTE: See Lubricants in this manual for the axle (center
bowl and planetary) oil specifications.
1
4. Install the oil level plug (3).
5. Repeat for the other planetaries.
6. Place a container of the appropriate size under one of
the center bowls. The center bowl capacity is
approximately 3.8 litres (4 U.S. quarts). Remove the
oil level plug (2) and the drain plugs (3) and drain the
center bowl.
1. OIL LEVEL PLUG
B4050291
7. Install the axle center bowl drain plugs (3).
The transmission gearbox oil is shared with the axle
center bowl oil. The various chambers of the axle are
joined together, and it is the axle center bowl oil level plug
which defines the overall oil level.
8. Put new oil in the differential. The oil level must be
level with the bottom of the oil level plug (2).
NOTE: See Lubricants in this manual for the axle (center
bowl and planetary) oil specifications.
Oil takes time to distribute, so wait a few minutes and
then add more oil. Continue until the oil level stops going
down.
9. Install the center bowl oil level plug (2).
AU115196
10. Repeat for the other axle center bowl.
Check the oil level every 50 hours of operation.
Axle Breather
1. Clean the area around the oil level plug (1) with
cleaning solvent.
Clean the breathers (4) for each axle after the first 300
hours and then every 300 hours of operation or monthly,
whichever occurs first.
AU125990 C11A
2. Rotate the planetary until the oil level and oil drain
plugs are horizontal to the ground (one at 3 o’clock
and the other at 9 o’clock).
86
LUBRICATION/MAINTENANCE
3. Remove the oil level plug (1).
4. The oil level is correct when the oil level is up to the
bottom of the oil level plug hole.
5. Add oil as required.
NOTE: See Fluids and Lubricants in this manual for oil
specifications.
6. Install the oil level plug.
Trencher Drive Planetary Oil Change
Change the oil every 1000 hours of operation or once a
year, whichever occurs first.
If possible, change oil when the oil is warm.
NOTE: It can be helpful to raise and block the left side of
the machine when draining the oil. Make sure parking
brake is set and block right side wheels before raising
machine.
1
2
1. OIL LEVEL PLUG
2. OIL DRAIN PLUG
B4050391
1. Clean the area around the oil level plug with cleaning
solvent.
2. Rotate the planetary until the oil level and oil level
plug is vertical and at the bottom, with the oil drain
plug vertical and at the top.
3. The planetary capacity is approximately 1.4 litres (1.5
U.S. quarts).
4. Remove the oil level plug (1) and the drain plug (2)
and drain the chain drive planetary.
5. Install the drain plug.
6. Rotate the planetary as shown in Step 2 of Oil Level
Check.
7. Fill the chain drive planetary with oil until the oil is
even with the bottom of the oil level plug hole.
8. Install the oil level plug.
87
AU125990 C11A
LUBRICATION/MAINTENANCE
NOTES
AU125990 C11A
88
ADJUSTMENT/MAINTENANCE
ENGINE COOLING FAN DRIVE BELT
Replacing Engine Drive Belt
1. Release tension on the drive belt (1) by loosening the
alternator bracket pivot bolt (2) and the alternator
adjustment bolt (3).
WARNING: Shut off engine and remove ignition
key before performing maintenance or repair
work.
2. Move the alternator (4) toward the engine to loosen
the drive belt enough for removal.
3. Remove the drive belt from pulleys and discard it.
Rotating belts. Contact with
rotating belts can cause serious injury or death.
Always stop the engine and remove the ignition
key before working in this area.
WARNING:
4. Install a new drive belt, making sure drive belt is
correctly seated in all pulley grooves.
5. Apply tension to the drive belt (1) by moving the
alternator (4) away from the engine.
6. Tighten the alternator adjustment bolt (3).
7. Check the drive belt tension. If the drive belt tension
is correct, tighten the alternator bracket pivot bolt
(2).
3
8. Start the engine and check the drive belt alignment.
4
2
TRENCHER DIGGING CHAIN
TENSION
1
Checking Tension
Check the tension of the digging chain every 10 hours of
operation or each day, whichever occurs first.
RT600_ENGINE
Belt Condition
1. Start the engine. Trench approximately 3 m (10 feet),
stop trencher chain and lift boom out of trench.
Check the drive belt (1) condition every 250 hours of
operation or as needed.
2. Raise the boom to the horizontal position.
Replace the drive belt if you see any of the following:
cuts, cracks, loose cords, grease, oil or twisting.
3. Stop the engine and remove the key.
Sprocket Boom
Tension Adjustment
Check the drive belt tension every 1000 hours of
operation.
2
1. Push the drive belt with your thumb in the area
shown (1) to check the tension. The deflection should
be between 7 to 9 mm (0.28 to 0.35 inch) under load
of 10 kg (22 lbs).
A
1
2. If the deflection is less than 7 mm (0.28 inch) or more
than 9 mm (0.35 inch), adjust drive belt tension.
B865089
3. Loosen the alternator bracket pivot bolt (2) on the
engine.
Measure the distance between the chain roller (1) and the
inner diameter of the boom idler sprocket (2).
4. Loosen the alternator adjustment bolt (3).
A. If the distance (A) is 32 to 51 mm (1-1/4 to 2
inches) the chain tension is correct.
5. Pull the alternator (4) away from the engine to
increase drive belt tension or push the alternator
toward the engine to decrease drive belt tension.
Tighten the alternator adjustment bolt (3).
B. If the chain tension is too tight or too loose, see
Decreasing Chain Tension or Increasing Chain
Tension in this manual.
6. Check the drive belt tension. If the tension is correct,
tighten the alternator bracket pivot bolt (2).
89
AU125990 C11A
ADJUSTMENT/MAINTENANCE
Rock Boom
3. When the chain tension is correct tighten the plug.
NOTE: Check the chain tension after you have dug a
trench approximately 3 m (10 feet) in length.
Rock Boom
2
2
1
1
2
2
A19593
Measure the distance between the chain (1) and the
bottom of the lower wear strip (2).
A. If the distance is 51 to 76 mm (2 to 3 inches) the
chain tension is correct.
1. PLUG
2. SIX BOLTS
B0339A88
1. Clean the area around the plug (1) with cleaning
solvent.
B. If the chain tension is too tight or too loose, see
Decreasing Chain Tension or Increasing Chain
Tension in this manual.
2. Loosen the six bolts (2) shown above.
NOTE: The chain tension will have a significant affect on
3. Slowly loosen the plug (1) counterclockwise 2 or 3
revolutions to let grease flow from around the plug.
DO NOT remove the plug.
machine productivity. Set chain tension as loose as
possible.
WARNING: Do not remove the grease fitting
Decreasing Chain Tension
from the boom before the pressure has been
released. Personal injury can result. Always
decrease the pressure by loosening the plug on
the opposite side of the boom.
Sprocket Boom
4. When the chain tension is correct tighten the plug
(1).
5. Tighten the six bolts (2) to a torque of 230 to 258 Nm
(170 to 190 lb ft).
NOTE: Check the chain tension after you have dug a
trench approximately 3 m (10 feet) in length.
1
NOTE: Never replace the tension release plug with a
standard pipe plug. Replace with the original equipment
plug which has a grease relief groove.
B865054
1. Clean the area around the plug (1) with cleaning
solvent.
2. Slowly loosen the plug (counterclockwise) 2 or 3
revolutions to let grease flow from around the plug.
DO NOT remove the plug.
WARNING: Do not remove the grease fitting
from the boom before the pressure has been
released. Personal injury can result. Always
decrease the pressure by loosening the plug on
the opposite side of the boom.
AU125990 C11A
90
ADJUSTMENT/MAINTENANCE
Increasing Chain Tension
6. Tighten the six bolts to a torque of 230 to 258 Nm
(170 to 190 lb ft).
Sprocket Boom
NOTE: Check the chain tension after you have dug a
trench approximately 3 m (10 feet) in length.
CHAIN DRIVE SPROCKET
Torque Specifications
Direct Drive Trencher
1
1
B865054
1. CAP AND GREASE FITTING
1. Clean the area around the grease fitting (1) with
cleaning solvent.
2. Remove the cap from the grease fitting (rotate
counterclockwise).
3. Use a grease gun to put grease into the boom end
until the chain tension is correct.
B4050391
1. SPROCKET NUTS AND BOLTS
4. Install the cap for the grease fitting.
NOTE: Check the chain tension after you have dug a
trench approximately 3 m (10 feet) in length.
Tighten the nuts and bolts (1) after the first 10 hours of
operation and again after 30 hours of operation.
Rock Boom
Torque the 8 sprocket bolts and nuts to 160 to 190 Nm
(120 to 140 lb ft).
NOTE: Torque specifications are for clean dry threads.
2
TRENCHER CHAIN WEAR PADS
2
1
2
1
4
2
1. CAP AND GREASE FITTING
2. SIX BOLTS
B88123J
3
1. Clean the area around the cap and grease fitting (1)
with cleaning solvent.
2. Remove the cap from the grease fitting (rotate
counterclockwise).
1. WEAR PAD
2. BLOCK
B865021
3. MOUNTING PLATE
4. MOUNTING NUTS AND BOLTS
Check the wear pads every 10 hours of operation or each
day, whichever occurs first.
3. Loosen the six bolts (2) shown above.
4. Use a grease gun to put grease into the boom end
until the chain tension is correct.
If the chain has worn the wear pad through to the
mounting bracket, replace the wear pad.
5. Install the cap for the grease fitting.
1. Install a block (2) between the chain and the boom.
2. Loosen the nuts (4) and remove the bolts.
3. Remove the wear pad (1) and plate (3).
4. Remove the wear pad (1) from the plate (3).
91
AU125990 C11A
ADJUSTMENT/MAINTENANCE
Seat Belt
5. Install a new wear pad to the mounting plate.
6. Install the wear pad (1) and plate (3).
7. Install the bolts and tighten the nuts (4).
8. Remove the wood block (2).
The seat belt is an important part of your ROPS. You must
wear the seat belt at all times when you operate the
machine.
NOTE: When the trencher is equipped with two boom
Before you operate this machine always make sure that
the ROPS and operators seat belts are correctly installed.
idlers, the trencher will have three wear pads. When the
boom is equipped with one boom idler, the trencher will
have two wear pads.
Inspection and Care of Seat Belt
1. Check the seat belts for damage. Replace all parts
that are damaged.
TOOTH MOUNTING BOLTS
2. Make sure the mounting bolts for the seat belts are
tight.
3. Keep the seat belts clean. Wash the seat belts only
with soap and water.
DO NOT put the seat belts in bleach or dye. This
procedure will weaken the seat belt material.
Maintenance and Inspection of the ROPS
Do the following items every 500 hours of operation or
when the ROPS has been in an accident (for example,
hitting an overhead object, the machine rolling over, etc.).
A19593
Check the mounting bolts of all chain teeth every 10
hours of operation or each day, whichever occurs first. In
difficult soil conditions, check mounting bolts more
frequently.
IMPORTANT: If the ROPS part is damaged, you must
replace the ROPS before you operate the machine.
1. Check the torque of the ROPS mounting bolts. If
necessary, tighten the bolts to the correct torque. See
Torque Specifications in this manual.
ROLL-OVER PROTECTION
STRUCTURE
2. Check the operator’s seat and the mounting parts for
the seat belt. Tighten the bolts to the correct torque.
See Operators Seat Torque Specifications in this
manual. Replace parts that have wear or damage.
Yo u r m a c h i n e h a s a R O L L- O V E R P R O T E C T I V E
STRUCTURE (ROPS). A ROPS certification label is
fastened to the structure with the following information:
ROPS Serial Number, maximum gross machine weight,
machine model number, and ISO number.
3. Check for cracks, rust or holes in the ROPS and ROPS
parts. Age, weather and accidents will cause damage
to the ROPS and ROPS parts. If you have any doubt
about the ROPS system, see your dealer.
ROPS Canopy Label
Damage to the ROPS
1
If the machine has rolled over or the ROPS has been in
some other type of accident (such as hitting an overhead
object during transport), you MUST replace the damaged
ROPS component parts to get as much protection as you
had originally.
After an accident, check the following for damage:
1. ROPS or ROPS canopy.
2. Lower ROPS frame.
3. Operator’s seat.
1. CERTIFICATION LABEL
AU125990 C11A
4. Seat belt mounting and seat belt.
RT600_6
92
ADJUSTMENT/MAINTENANCE
Before you operate the machine replace all ROPS
components that are damaged.
Torque Specifications
See your dealer for replaceable components.
ROPS Structure
NOTE: Torque Specifications are for clean, dry threads.
IMPORTANT: Do not try to weld or straighten the ROPS.
WARNING: Do not modify ROPS in any manner.
Unauthorized modifications such as welding,
drilling, cutting or adding attachments can
weaken the structure and reduce your protection.
Replace ROPS if subjected to roll-over or damage.
Do not attempt to repair.
1
1
WARNING: If you try to operate this machine
without a ROPS and the machine rolls over, you
can be injured or killed. Remove the ROPS only
for service or replacement. Do not operate this
machine with the ROPS removed.
ROPS MOUNTING LEFT SIDE
RT600_64
Adding
additional
weight
(attachments, etc). to the machine can cause
injury or death. Do not exceed the gross weight
printed on the ROPS label.
WARNING:
WARNING: Improper ROPS inspection or
maintenance can cause injury or death. Do the
recommended ROPS inspection shown in this
manual. If you must replace the ROPS, ROPS
parts, or ROPS mounting hardware, use only the
replacement parts shown in the Astec parts
catalog for this machine.
1
1
ROPS MOUNTING RIGHT SIDE
RT600_65
4 bolts (2 each side)............. 260-293 Nm (190-215 lb ft)
WARNING: You are protected by the ROPS
Operators Seat and Seat Belt
system on this machine. The seat belt is an
important part of that ROPS system. Before you
operate this machine, always fasten the seat belt.
If the machine rolls over and you DO NOT have
the seat belt fastened, you can be crushed by the
ROPS or the machine.
2
1
2
1
VIEW FROM REAR OF OPERATOR’S SEAT
RT600_66
1. Seat belt mounting bolts (2)....47-61 Nm (35-45 lb ft)
2. Seat mounting bolts (4) ..........27-34 Nm (20-25 lb ft)
93
AU125990 C11A
ADJUSTMENT/MAINTENANCE
HYDRAULIC CONNECTIONS
Hydraulic Bulkhead Plate
1
Backhoe Removal
4
IMPORTANT: You can cause damage to the hydraulic
system of the machine if you do not make the following
hydraulic connections after you remove the backhoe from
the machine.
7
3
1. Disconnect the two backhoe hoses (1) at the right
side of the machine below the engine access panel.
5
1
2
6
8
RT600_62
1.
2.
3.
4.
5.
TRENCHER DRIVE MOTOR (CAP IF NO TRENCHER)
TRENCHER DRAIN - SMALL PORT (CAP IF NO TRENCHER)
TRENCHER LIFT (CAP IF NO TRENCHER)
PLOW
SPECIAL FITTING H673212 HYDRAULIC LOOP IF NO PLOW
INSTALLED
6. PLOW TANK RETURN (CAP IF NO PLOW)
7. AUXILIARY VALVE
8. SPECIAL FITTING H673212 HYDRAULIC LOOP IF NO AUXILIARY
VALVE INSTALLED
1
1. TWO BACKHOE HOSES
RT600_63
2. Install special fitting H673212 (2) hydraulic loop on
the two bulkhead fittings to close the loop when the
backhoe hoses are disconnected from the machine.
Install special fitting H673212 (5) hydraulic loop when the
plow is not installed.
IMPORTANT: The hydraulic system will be damaged if
the special fitting (5) is not installed after removing the
plow from the machine.
2
Install special fitting H673212 (8) hydraulic loop when the
auxiliary valve is not installed.
IMPORTANT: The hydraulic system will be damaged if
the special fitting (8) is not installed after removing the
auxiliary valve from the machine.
RT600_67
AU125990 C11A
94
ADJUSTMENT/MAINTENANCE
FIRE EXTINGUISHER
MAINTENANCE
A fire extinguisher of the type shown is available from a
local distributor for mounting on the machine.
153L95
This dry chemical fire extinguisher has a 5 pound capacity
and is approved for Class A, B and C type fires. The
operating temperature is from -54 to 49°C (-65 to 120°F).
Inspection and Care
EVERY MONTH: It is recommended that you inspect the
fire extinguisher once each month for damage and to
insure that the gauge is working correctly.
EVERY 6 MONTHS: Have the dry chemical removed and
refilled by a fire equipment technician every 6 months.
ONCE EACH YEAR: Have the fire equipment technician
inspect the fire extinguisher once each year.
IMPORTANT: DO NOT mount the Fire Extinguisher on
any part of the ROPS structure, unless the mounting is a
part of the original design of the ROPS. DO NOT make
any modifications to the ROPS structure.
95
AU125990 C11A
ADJUSTMENT/MAINTENANCE
NOTES
AU125990 C11A
96
ELECTRICAL
BATTERY
WARNING: Before you service a battery,
always wear face protection, protective gloves
and protective clothing. Battery acid or battery
explosion can cause serious injuries.
1
1
WARNING: Battery acid causes severe burns.
Batteries contain sulfuric acid. Avoid contact with
skin, eyes or clothing. Antidote - EXTERNAL: flush
with water. INTERNAL: drink large quantities of
water or milk. DO NOT induce vomiting. Seek
medical attention immediately. BATTERIES
PRODUCE EXPLOSIVE GASES. Keep sparks,
flame, lit cigars and cigarettes away. Ventilate
when charging or using in enclosed area. Always
wear eye protection when working near batteries.
Wash hands after handling. KEEP OUT OF REACH
OF CHILDREN.
1
2
1
RT600_071
The battery is located in the operator’s area on the left of
the machine.
1. Remove 4 bolts (1).
WARNING: When the battery electrolyte is
2. Remove the battery cover (2).
frozen, the battery can explode if, (1) you try to
charge the battery, or (2) you try to jump start
and run the engine. To prevent the battery
electrolyte from freezing, try to keep the battery
at full charge. If you do not follow these
instructions, you or others in the area can be
injured.
Battery Connections
1
or flame can cause
hydrogen gas in a battery to explode. To prevent
an explosion, do the following:
1. When you disconnect the battery cables,
always disconnect the negative (-) battery cable
first.
2. When you connect the battery cables, always
connect the negative (-) cable last.
3. Do not short circuit the battery posts with
metal items.
4. Do not weld, grind, or smoke near a battery.
3
WARNING: Sparks
4
2
RT600_070
1. BATTERY HOLD-DOWN
2. BATTERY
Battery Service
3. NEGATIVE TERMINAL (-)
4. POSITIVE TERMINAL (+)
NOTE: The electrical system in this machine is 12 volts.
Battery Fluid
Before you service components in the electrical system,
always disconnect the negative (-) battery cable.
The maintenance free battery NEVER needs to have water
added.
Before you use an electric welder, disconnect the
alternator wires, instrument cluster, and battery.
Battery Vents
Keep the battery vents clean. Make sure the vent is not
restricted.
Do not run the engine with the battery disconnected or
the alternator wires disconnected.
Do not use a steam cleaner or cleaning solvent to clean
the alternator.
97
AU125990 C11A
ELECTRICAL
Cleaning the Batteries
Check the battery regularly for dirt, corrosion and
damage. Dirt, mixed with electrolyte or moisture on the
top of the battery, can cause a discharged condition in the
battery. Use one of the following methods to clean the
battery.
1. Use Astec Battery Saver, Astec part number REN280.
Follow the instructions on the container. This cleaner
does not need water.
2. Use baking soda or ammonia and flush the outside of
the battery with water. If you do not have Astec
Battery Saver, use other special cleaners to prevent
corrosion on the battery terminals.
AU125990 C11A
98
SPECIFICATIONS
SPECIFICATIONS
BOOM IDENTIFICATION
SPROCKET BOOM - 50,000/65,000/75,000 lb - Planetary Drive
Boom
Length
in Inches
Boom Part
Number
Stations
50K/65K/
75K
Maximum
Dig Depth
in Inches
Maximum
Dig Width
in Inches
59.1
135212A1A
36
48
12
72.9
135213A1B
41
60
12
186.7
135214A1B
46
72
10
ROCK BOOM - 50,000/65,000/75,000/110,000 lb - Planetary Drive
Boom
Length
in Inches
Boom Part
Number
Stations
50K/65K/
75K
Maximum
Dig Depth
in Inches
Maximum
Dig Width
in Inches
56.7
108698A1
36
48
12
70.5
112356A1
41
60
12
SPROCKET BOOM - 50,000/65,000/75,000 lb - Direct Drive
Boom
Length
in Inches
Boom Part
Number
Stations
50K/65K/
75K
Maximum
Dig Depth
in Inches
45.1
135203A1A
29
48
16
58.9
135204A1B
34
60
12
Maximum
Dig Width
in Inches
ROCK BOOM - 50,000/65,000/75,000 lb - Direct Drive
Boom
Length
in Inches
Boom Part
Number
Stations
50K/65K/
75K
Maximum
Dig Depth
in Inches
Maximum
Dig Width
in Inches
43.0
123859A1
29
48
12
56.9
123860A1
34
60
12
A. Use 135202A2 Boom End Sprocket
B. Use H830637 Boom End Sprocket
RT600_BOOMS
99
AU125990 C11A
SPECIFICATIONS
ENGINE DATA
Make and Model .....................................................................................................................Cummins B3.3 Tier 4i
Cooling System ................................................................................................................................. Liquid Cooled
Type of Fuel ..............................................................................................Ultra Low Sulfur Diesel, Indirect Injection
Number of Cylinders ..................................................................................................................4 Cylinder, 4 Stroke
Horsepower (SAE Net) ...................................................................................... 42 kW (56 hp) at 2,600 rpm (r/min)
Horsepower (Gross).......................................................................................... 49 kW (65 hp) at 2,600 rpm (r/min)
Firing Order ............................................................................................................................................... 1-2-4-3
Bore ..........................................................................................................................................95 mm (3.74 inch)
Stroke ..................................................................................................................................... 115 mm (4.53 inch)
Displacement .......................................................................................................................3.3 liters (199 cu inch)
Compression ratio .......................................................................................................................................... 21:1
Engine Speed
Low Idle .......................................................................................................................... 900 ±50 rpm (r/min)
Full Throttle, no load ..................................................................................................... 2,850 ±50 rpm (r/min)
TRAVEL SPEEDS
Forward and Reverse (Measured with 31 x 15.5 - 15 Tires)
Number of Gears ........................................................................................................................................... 4
Work Gear (First and Second Gears) .....................................................................0 to 2.9 km/h (0 to 1.78 mph)
Transport Gear (Third and Fourth Gears)........................................................... 0 to 10.14 km/h (0 to 6.30 mph)
ELECTRICAL SYSTEM
System Voltage ...............................................................................................................12 Volts, Negative Ground
Battery ................................................................................................................................................1 @ 12 Volt
Alternator ..................................................................................................................................... 12 Volt, 60 Amp
Starter........................................................................................................................................... 12 Volt, 2.2 kW
OPERATING WEIGHTS
NOTE: Operating weights measured with 31 x 15.5 - 15 tires, full fuel, 70 kg (175 pound) operator, ROPS, and
standard equipment.
Basic machine without attachments .......................................................................................... 2,494 kg (5,500 lbs)
Add for Attachments
Cable plow without blade ............................................................................................................ 805 kg (1,775
Reel carrier with 19 weights ........................................................................................................ 855 kg (1,884
Weight bracket with 19 weights................................................................................................... 691 kg (1,524
Backfill blade.................................................................................................................................227 kg (275
Hydra-Borer ....................................................................................................................................75 kg (162
Trencher attachment (See Note).................................................................................................. 885 kg (1,950
D100 Backhoe without bucket ..................................................................................................... 658 kg (1,450
D125 Backhoe without bucket ..................................................................................................... 728 kg (1,600
13 inch (344 mm) backhoe bucket..................................................................................................... 36 kg (80
18 inch (457 mm) backhoe bucket..................................................................................................... 40 kg (89
24 inch (610 mm) backhoe bucket....................................................................................................54 kg (120
12 inch (305 mm) bellhole bucket...................................................................................................... 36 kg (80
18 inch (457 mm) bellhole bucket.....................................................................................................45 kg (100
NOTE: With 4 foot Rock Boom, 333 kN (75,000 pound) chain, cupped teeth, 6 inch cut.
AU125990 C11A
100
lbs)
lbs)
lbs)
lbs)
lbs)
lbs)
lbs)
lbs)
lbs)
lbs)
lbs)
lbs)
lbs)
SPECIFICATIONS
BASIC MACHINE DIMENSIONS
RT600_BASIC_DIMS
A. Wheel base....................................................................................................................... 1,498 mm (59.0 inch)
B. Tread................................................................................................................................ 1,367 mm (55.0 inch)
C. Overall height to top of ROPS............................................................................................. 2,438 mm (96.0 inch)
D. Overall width at tires ......................................................................................................... 1,702 mm (67.0 inch)
E. Minimum ground clearance, no backfill blade..........................................................................305 mm (12.0 inch)
Minimum ground clearance, with backfill blade .........................................................................188 mm (7.4 inch)
F. Angle of Departure........................................................................................................................................25°
G. Angle of Approach, no backfill blade ..............................................................................................................25°
H. Turning Radius ....................................................................................... 2 Wheel Steering: 4,648 mm (183 inch)
.............................................................................................................4 Wheel Steering: 2,946 mm (116 inch)
101
AU125990 C11A
SPECIFICATIONS
BACKFILL BLADE
164L93
A. Blade width........................................................................................................................... 1,829 mm (72 in)
B. Blade height.......................................................................................................................... 363 mm (14.3 in)
C. Depth of cut...............................................................................................................................229 mm (9 in)
D. Distance from centerline of axle to blade................................................................................. 1,143 mm (45 in)
Blade angle in each direction............................................................................................................35 degrees
E. Blade tilt in each direction ................................................................................................................. 8 Degrees
Blade maximum offset (outside of tire to edge of blade) (not shown)........................................ 265 mm (10.4 in)
F. Blade lift clearance ................................................................................................................ 366 mm (14.4 in)
AU125990 C11A
102
SPECIFICATIONS
TRENCHER
163L93
A. Length from center line of rear axle to end of trencher in TRANSPORT position (4 ft boom)........ 2,108 mm (83 in)
B. Boom angle up from horizontal (direct/planetary) ............................................................................... 55 degree
C. Boom angle down from horizontal (direct/planetary) ........................................................................... 60 degree
D. Angle of departure (direct/planetary) ............................................................................................ 25-33 degree
Width of auger ......................................................................................................................889 mm (35 inch)
Maximum trench widths
Direct drive ............................................................... 16 inches at 48 inch depth, 12 inches at 60 inch depth
Planetary drive .......................................................... 12 inches at 48 inch depth, 12 inches at 60 inch depth
Trench depths
Direct drive ......................................................................................................................... 48 and 60 inch
Planetary drive .................................................................................................................... 48 and 60 inch
Quad ............................................................................................................................................. 48 inch
103
AU125990 C11A
SPECIFICATIONS
CABLE PLOW
A
F
E
D
C
B
H
G
G
H
B910937
A. Overall height in TRANSPORT position ............................................................................... 2,540 mm (100 inch)
B. Overall length from axle centerline to end of 10:1 cable chute - blade in ground ................... 2,845 mm (112 inch)
C. Cable depth maximum (average soil conditions) ......................................................................762 mm (30 inch)
D. Length from centerline of rear axle to rear of skid shoes - TRANSPORT position......................2,057 mm (81 inch)
E. Angle of departure with 30 inch blade and 10:1 cable chute ................................................................ 26 degree
F. Angle of departure without blade....................................................................................................... 27 degree
G. Maximum blade offset from the centerline of the machine - right or left ....................................813 mm (32 inch)
H. Blade steering angle ......................................................................................................................... 30 degree
Minimum turning radius (at plow blade ...................................................................................460 mm (18 inch)
AU125990 C11A
104
SPECIFICATIONS
REEL CARRIER
166L93
A. Maximum cable reel diameter without backfill blade ..............................................................1,524 mm (60 inch)
with backfill blade ...............................................................1,219 mm (48 inch)
B. Angle of approach with 1,524 mm (60 inch) spool (w/o backfill blade) ................................................. 23 degree
C. Angle of approach with 1,219 mm (48 inch) spool (w/o backfill blade) ................................................. 27 degree
D. Centerline of reel - maximum height (hydraulic lift only)..................................................... 1,511 mm (59.5 inch)
E. Minimum pickup height .......................................................................................................305 mm (12.0 inch)
F. Distance from centerline of axle to front of 1,524 mm (60 inch) reel at transport height ........ 2,591 mm (102 inch)
G. Distance from centerline of axle to end of lift arms - with arms completely lowered.............. 1,913 mm (75.3 inch)
H. Maximum cable reel width................................................................................................ 1,070 mm (42.1 inch)
I. Overall width of reel carrier arms.........................................................................................1,346 mm (53 inch)
Maximum cable reel lift capacity ............................................................................................. 454 kg (1000 lbs)
105
AU125990 C11A
SPECIFICATIONS
D100 BACKHOE
Operating Data and Dimensions
167L93
NOTE: Specifications taken with 31 x 15.5 - 15 tires, 610 mm (24 inch) trenching bucket, full fuel, 79 kg (179 pound)
operator, rear mounted trencher with 4 foot rock boom, 333 kN (75,000 pound) chain and cupped teeth.
A. Reach from centerline of front axle of machine ................................................................ 3,508 mm (138.1 inch)
B. Digging reach from swing pivot ...................................................................................... 2,639 mm (103.9 inch)
C. Digging depth, maximum ................................................................................................. 1,674 mm (65.9 inch)
D. Digging depth, 0.6 m (2 foot) flat bottom trench ............................................................... 1,641 mm (64.6 inch)
E. Digging depth, 2.4 m (8 foot) flat bottom trench ..................................................................937 mm (36.9 inch)
F. Loading height ................................................................................................................ 1,844 mm (72.6 inch)
G. Loading reach ....................................................................................................................810 mm (31.9 inch)
H. Overall operating height, maximum ................................................................................ 3,214 mm (126.5 inch)
Bucket rotation............................................................................................................................... 132 degree
Swing arc....................................................................................................................................... 176 degree
Stabilizer spread, OPERATING position .............................................................................. 2,316 mm (91.2 inch)
Stabilizer spread, TRANSPORT position ............................................................................. 1,637 mm (64.4 inch)
Transport height.............................................................................................................. 2,349 mm (92.5 inch)
Overall length with cable plow and reel carrier in TRANSPORT position - no reel ................ 5,565 mm (219.1 inch)
Overall length with backhoe and trencher (4 foot rock boom) in TRANSPORT position ........ 6,253 mm (246.2 inch)
I. Height boom pivot to ground............................................................................................... 907 mm (35.7 inch)
J. Distance swing pivot to boom pivot........................................................................................140 mm (5.5 inch)
AU125990 C11A
106
SPECIFICATIONS
D125 BACKHOE
Operating Data and Dimensions
167L93
NOTE: Specifications taken with 31 x 15.5 - 15 tires, 610 mm (24 inch) trenching bucket, full fuel, 79 kg (179 pound)
operator, rear mounted trencher with 4 foot rock boom, 333 kN (75,000 pound) chain and cupped teeth.
A. Reach from centerline of front axle of machine ................................................................... 4,293 mm (169 inch)
B. Digging reach from swing pivot ...................................................................................... 3,444 mm (135.6 inch)
C. Digging depth, maximum ................................................................................................. 2,218 mm (87.3 inch)
D. Digging depth, 0.6 m (2 foot) flat bottom trench ............................................................... 2,154 mm (84.8 inch)
E. Digging depth, 2.4 m (8 foot) flat bottom trench ............................................................... 2,027 mm (79.8 inch)
F. Loading height ................................................................................................................ 2,240 mm (88.2 inch)
G. Loading reach ................................................................................................................. 1,547 mm (60.9 inch)
H. Overall operating height, maximum ................................................................................ 4,221 mm (166.2 inch)
Bucket rotation............................................................................................................................... 174 degree
Swing arc....................................................................................................................................... 175 degree
Stabilizer spread, OPERATING position .................................................................................2,286 mm (90 inch)
Stabilizer spread, TRANSPORT position ............................................................................. 1,633 mm (64.3 inch)
Transport height ...............................................................................................................2,845 mm (112 inch)
Overall length with cable plow and reel carrier in TRANSPORT position - no reel ................ 5,565 mm (219.1 inch)
Overall length with backhoe and trencher (4 foot rock boom) in TRANSPORT position ........ 6,154 mm (242.3 inch)
I. Height boom pivot to ground...............................................................................................891 mm (35.1 inch)
J. Distance swing pivot to boom pivot229 mm (9 inch)
107
AU125990 C11A
SPECIFICATIONS
HD125 BACKHOE
Operating Data and Dimensions
167L93
NOTE: Specifications taken with 31 x 15.5 - 15 tires, 610 mm (24 inch) trenching bucket, full fuel, 79 kg (179 pound)
operator, rear mounted trencher with 4 foot rock boom, 333 kN (75,000 pound) chain and cupped teeth.
A. Reach from centerline of front axle of machine ................................................................... 4,293 mm (169 inch)
B. Digging reach from swing pivot ...................................................................................... 3,444 mm (135.6 inch)
C. Digging depth, maximum ................................................................................................. 2,218 mm (87.3 inch)
D. Digging depth, 0.6 m (2 foot) flat bottom trench ............................................................... 2,154 mm (84.8 inch)
E. Digging depth, 2.4 m (8 foot) flat bottom trench ............................................................... 2,027 mm (79.8 inch)
F. Loading height ................................................................................................................ 2,240 mm (88.2 inch)
G. Loading reach ................................................................................................................. 1,547 mm (60.9 inch)
H. Overall operating height, maximum ................................................................................ 4,221 mm (166.2 inch)
Bucket rotation............................................................................................................................... 174 degree
Swing arc....................................................................................................................................... 175 degree
Stabilizer spread, OPERATING position .................................................................................2,286 mm (90 inch)
Stabilizer spread, TRANSPORT position ............................................................................. 1,633 mm (64.3 inch)
Transport height............................................................................................................... 2,845 mm (112 inch)
Overall length with cable plow and reel carrier in TRANSPORT position - no reel ................ 5,565 mm (219.1 inch)
Overall length with backhoe and trencher (4 foot rock boom) in TRANSPORT position ........ 6,154 mm (242.3 inch)
I. Height boom pivot to ground...............................................................................................891 mm (35.1 inch)
J. Distance swing pivot to boom pivot.......................................................................................... 229 mm (9 inch)
AU125990 C11A
108
SPECIFICATIONS
BACKHOE BUCKETS
D100 Regular Buckets
Bucket Width
SAE
Heaped Capacity
Struck Capacity
3
3
Weight
(mm)
Inch
(m )
Cu Feet
(m )
Cu Feet
(kg)
Pounds
330
13
0.032
1.13
0.039
1.38
36
80
457
18
0.046
1.62
0.059
2.08
40
89
610
24
0.078
2.75
0.099
3.50
54
120
D100 Bell Hole Buckets
Bucket Width
(mm)
SAE
Heaped Capacity
Struck Capacity
Inch
(m3)
Cu Feet
(m3)
Cu Feet
Weight
(kg)
Pounds
305
12
0.028
1.00
0.035
1.25
36
80
457
18
0.039
1.38
0.050
1.75
45
100
D125 and HD125 Regular Buckets
Bucket Width
SAE
Heaped Capacity
Struck Capacity
Weight
(mm)
Inch
Cu Feet
(m3)
Cu Feet
(kg)
330
13
0.032
1.13
0.039
1.38
45
98
457
18
0.046
1.62
0.059
2.08
53
116
610
24
0.065
2.29
0.086
3.05
63
138
(m
3)
109
Pounds
AU125990 C11A
SPECIFICATIONS
BOLT TORQUES
(Nm)
Pound-Feet
Wheel Nuts ............................................................................................................300 ....................... 225
Trencher Split Sprocket Mounting Bolts ......................................................... 160 to 190 ............. 120 to 140
Front and Rear Axle Mounting Bolts .............................................................. 583 to 719 ............. 430 to 530
Ground Drive Motor Mounting Bolts .................................................................. 68 to 81 .................50 to 60
Ground Drive Pump Mounting Bolts .................................................................. 68 to 81 .................50 to 60
Engine Mounting Bracket Bolts ....................................................................... 94 to 106 .................69 to 78
Engine Rubber Mount Bolts .............................................................................. 68 to 81 .................50 to 60
Transmission Mounting Bolts ............................................................................ 68 to 81 .................50 to 60
Backhoe Mounting Bolts..........................................................................1,356 to 1,627 ....... 1,000 to 1,200
Trencher Boom Mounting Bolts
3/4 Inch NC x 6-1/2 Inch ....................................................................... 340 to 420 ............. 250 to 310
1 Inch NC x 2 Inch ..............................................................................870 to 1,015 ............. 610 to 750
Trencher Sprocket Chain Adjustment Bolts .................................................... 230 to 258 ............. 170 to 190
Digging Teeth
Standard Teeth Mounting Bolts
203 to 244 ............. 150 to 180
203 to 244 ............. 150 to 180
Digging Teeth - Rock Frost Teeth Mounting Bolts
Cable Plow Mounting Bolts ........................................................................... 583 to 719 ............. 430 to 530
Reel Carrier Weight Bracket Mounting Bolts ..............................................1,355 to 1,625 ....... 1,000 to 1,200
ROPS.......................................................................................................... 260 to 293 ............. 190 to 215
Seat ............................................................................................................... 27 to 34 .................20 to 25
Seat Belt......................................................................................................... 47 to 61 .................35 to 45
AU125990 C11A
110
INDEX
A
Creep .......................................................................21
Engine .....................................................................20
Ground Drive Foot Pedal .........................................21
Ground Drive Hand Creep .......................................21
Parking Brake ....................................................22, 25
Rear Attachment Speed ..........................................23
Rear Attachments ....................................................23
Rear Wheel Positioner (Rear Steer) ........................23
Seat .........................................................................22
Seat Belt ..................................................................22
Speed Select Rocker Switch .............................21, 31
Transmission Select Rocker Switch ..................21, 31
Transmission Speed ..........................................21, 31
Trencher Speed .......................................................23
Coolant Reservoir ........................................................79
Cooling System
Cleaning of ..............................................................79
Coolant Level ...........................................................79
Engine .....................................................................78
Radiator and Reservoir ............................................79
Creep Control ...............................................................21
Creep Control Operation ..............................................31
Access Covers .............................................................70
After Delivery Check ...........................................2, IX, XI
Air Cleaner System ......................................................77
Air Filter Restriction ......................................................19
Axle Serial Number Location .........................................3
Axles ............................................................................85
Oil Change ...............................................................85
Oil Level Check ........................................................85
B
Backfill Blade Joystick
Controls ...................................................................23
Backfill Blade Lever
Controls ...................................................................23
Backfill Blade Pivots .....................................................66
Backhoe
Before Operating .....................................................50
Filling the Bucket .....................................................51
Lifting with ..........................................................48, 52
Backhoe Pivots ............................................................66
Backhoe Serial Number Location ..................................3
Battery ..........................................................................97
Battery, Booster ...........................................................28
Belt, Engine Drive ........................................................89
Bolt Torques ...............................................................110
Boom Position When Digging ......................................58
Boom Types .................................................................57
Breather, Hydraulic ......................................................83
D
Diesel Fuel System ......................................................80
Dimensions
Backfill Blade .........................................................102
Basic Machine .......................................................101
Cable Plow ............................................................104
D100 Backhoe .......................................................106
D125 Backhoe .......................................................107
HD125 Backhoe ....................................................108
Reel Carrier ...........................................................105
Trencher ................................................................103
Dipstick, Engine Oil ......................................................76
Doors and Covers ........................................................70
Drive Belt, Engine ........................................................89
Dust Valve, Air Cleaner ................................................77
C
Cable Plow
Controls ...................................................................24
Cable Plow Serial Number Location ..............................3
Capacity
Axles ........................................................................66
Cable Plow Shaker Box ...........................................66
Cooling System ........................................................66
Engine Crankcase ...................................................66
Fuel Tank .................................................................66
Hydra-Borer .............................................................66
Hydraulic Reservoir .................................................66
Transmission ...........................................................66
Trencher Drive Planetary .........................................66
CE ...............................................................................XV
Chain ............................................................................58
Chain, Digging
Boom Identification ..................................................99
CHECK ........................................................................ IX
Cold Weather Operation ..............................................26
Cold Weather Starting ..................................................28
Controls ........................................................................21
Backfill Blade Joystick .............................................23
Backfill Blade Lever .................................................23
Cable Plow ...............................................................24
Cable Plow Speed ...................................................23
E
Engine
Controls ...................................................................20
Drive Belt .................................................................89
Lubrication System ..................................................75
Oil selection .............................................................75
Oil Viscosity .............................................................75
Operation of .............................................................25
Specifications ........................................................100
Engine Controls - Throttle ............................................28
Engine Controls - Throttle Lock ...................................28
Engine Hand Throttle ...................................................21
Engine Hourmeter ........................................................20
Engine Operation .........................................................25
Engine Serial Number Location .....................................3
Engine Speed ..............................................................27
Engine, Coolant Heater ................................................28
Engine, Starting ...........................................................27
A1
AU125990 C11A
INDEX
F
M
Filter
Engine Oil ................................................................ 76
Fuel ......................................................................... 82
Hydraulic Charge .................................................... 84
Fire Extinguisher .......................................................... 95
Fluids and Lubricants .................................................. 66
Foot Pedal Control - Operation .................................... 30
Fuel Filter Replacement .............................................. 82
Fuel Level .................................................................... 20
Fuel System
Diesel Specifications ............................................... 80
Water and Sediment ............................................... 81
Machine Model Number ................................................ 3
Machine Operation ...................................................... 29
Machine Storage ........................................................... II
Main (Primary) Element ............................................... 77
Maintenance Chart ...................................................... 68
Moving a Disabled Machine ........................................ 33
N
Neutral Indicator Lamp ................................................ 19
O
Oil Change
Axles ....................................................................... 85
Engine ..................................................................... 76
Hydraulic ................................................................. 83
Trencher Drive Planetary ........................................ 87
Oil Dipstick, Engine ..................................................... 76
Oil Level
Axles ....................................................................... 85
Engine ..................................................................... 76
Hydraulic ........................................................... 82, 83
Trencher Drive Planetary ........................................ 86
Oil Specifications ......................................................... 66
One Call System ........................................................... 8
Operating Instructions
Hydra-Borer ............................................................. 53
Operating Parking Brake ............................................. 25
Operating Weights ..................................................... 100
Operating, Cold Weather ............................................. 26
Operating, Hot Weather .............................................. 26
Operation, Ignition Switch ........................................... 27
Operation, Key Switch ................................................. 27
Operators Manual Location ........................................... 1
Orientation of Machine .................................................. 2
G
Gauge
Fuel Level ................................................................ 20
Hydraulic Oil Temperature ...................................... 20
Voltmeter ................................................................. 19
Water Temperature ................................................. 20
Grease Fittings - 10 Hours .......................................... 71
Grease Fittings - 100 Hours ........................................ 73
Grease Fittings - 50 Hours .......................................... 73
Grease Fittings - 500 Hours ........................................ 74
Grease Points Chart .................................................... 67
Ground Drive Controls ................................................. 20
H
Hand Creep Control ..................................................... 21
Hand Creep Control Operation .................................... 31
Hand Rails ................................................................... 32
Hand Throttle ............................................................... 21
HD125 Backhoe Model and Serial Number ................... 3
Heater, Engine Coolant ............................................... 28
Hot Weather Operation ................................................ 26
Hourmeter, Engine ...................................................... 20
Hydra-Borer Operation ................................................ 53
Hydraulic Connections ................................................. 94
Hydraulic Oil Temperature ........................................... 20
Hydraulic Reservoir ..................................................... 83
Hydraulic System ......................................................... 83
P
Parking Brake .................................................. 19, 22, 25
Parking Brake Check ................................................... 30
Parking Brake, Operation ............................................ 25
Parking the Machine .................................................... 29
Pedal, Ground Drive .................................................... 21
Personal Safety ............................................................. 7
Preparing the Machine for Storage ............................... II
Product Identificaiton Number Location ........................ 3
I
Ignition Switch Operation ............................................. 25
Ignition Switch, Operation ............................................ 27
Inspection, Walk-Around ............................................. 25
Instrument Panel ......................................................... 19
R
Radiator ....................................................................... 79
Radiator Cap ............................................................... 79
Rear Wheel Position Indicator ..................................... 23
Removing Machine from Storage .................................. II
Reservoir, Hydraulic .................................................... 83
ROPS
Maintenance and Inspection ................................... 92
Torque Specifications ...................................... 93, 110
ROPS Serial Number Location ...................................... 3
K
Key Switch Operation ............................................ 25, 27
L
Lubrication System, Engine ......................................... 75
Lubrication/Maintenance Chart .................................... 68
AU125990 C11A
A2
INDEX
Run-In Maintenance Schedule .....................................26
Run-In Period ...............................................................26
Torque Specifications - Steel Hydraulic Fittings ........... V
Torque Specifications, Bolts ......................................110
Trailer, Transporting .....................................................32
Trailer, Unloading .........................................................33
Transmission ..........................................................21, 31
Transporting Machine on Trailer ..................................32
Travel Speeds ............................................................100
Trencher
Before Operating .....................................................60
Chain Drive Sprocket ...............................................91
Chain Wear Pads ....................................................91
Digging Chain Adjustment .......................................89
Operation of .............................................................56
Trencher Chain ............................................................58
Trencher Chain Teeth ..................................................58
Trencher Control ..........................................................24
Trencher Drive Planetary .............................................86
Trencher Serial Number Location ..................................3
S
Safety
Before Operations ......................................................8
Before You Service ..................................................65
Burn Prevention .......................................................11
Cast Ductile Iron ......................................................10
Decals ......................................................................13
Failure in Operation ...................................................9
Fire Extinguisher ......................................................12
Fire or Explosion Prevention ....................................12
Hazardous Chemicals ..............................................11
Machine Operation ....................................................9
Maintenance ............................................................10
Parking the Machine ................................................10
Personal Safety .........................................................7
Pressurized Hydraulic Fluid and Grease .................11
Read Operators Manual ..........................................12
ROPS .......................................................................11
Safety Message .........................................................7
Utility ..........................................................................8
Wheel and Tire Safety .............................................10
Safety (Secondary) Element ........................................78
Safety Decal Definitions .................................................7
Seat Belt
Two Inch ..................................................................22
Seat Controls ...............................................................22
Seat Interlock System ..................................................30
Specification, Oil ..........................................................66
Specifications .............................................................100
Specifications, Diesel Fuel ...........................................80
Starting - Cold Weather ...............................................28
Starting, Engine ...........................................................27
Steps ............................................................................32
Stopping the Engine .....................................................29
Storage Preparation for Machine ...................................II
Storage Removal of Machine .........................................II
U
Unloading Machine from Trailer ...................................33
Utility Color Codes .........................................................8
Utility Safety ...................................................................8
V
Viscosity, Engine Oil ....................................................75
Voltmeter ......................................................................19
W
Wait To Start ................................................................19
Walk-Around Inspection ...............................................25
Warning Lamp
Air Filter Restriction ...........................................19, 77
Engine Oil Pressure .................................................19
Hydraulic Charge Filter ............................................19
Hydraulic Return Filter .............................................19
Neutral Indicator ......................................................19
Parking Brake ..........................................................19
Wait To Start ............................................................19
Water Temperature ......................................................20
Weights, Operating ....................................................100
T
Tachometer ............................................................19, 20
Teeth ............................................................................58
Testing the Parking Brake ............................................30
Throttle Lock Operation ...............................................28
Throttle Operation ........................................................28
Tires .............................................................................66
Adding Air ................................................................63
Tire or Rim Service ..................................................63
Tire Pressure ...........................................................64
Tire Sizes .................................................................64
Tire Tread Direction .................................................64
Wheel Nut Torque ....................................................64
Torque Specifications - Decimal Hardware ...................III
Torque Specifications - Mertic Hardware ..................... IV
A3
AU125990 C11A
INDEX
AU125990 C11A
A4
APPENDIX
TABLE OF CONTENTS
MACHINE STORAGE . . . . . . . . . . . . .
TORQUE SPECIFICATIONS . . . . . . .
AFTER DELIVERY CHECK. . . . . . . . . .
CE DECLARATION OF CONFORMITY
I
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
. II
. III
. IX
XV
AU125990 C11A
APPENDIX
MACHINE STORAGE
Storage Preparation
Removal from Storage
If the machine is stored for more than 30 days, it is
recommended that the machine be parked inside a
building. If a building is not available, park the machine in
a dry area on planks and cover the machine with a
waterproof covering.
DO NOT start the engine until all of the following steps
have been completed.
1. Remove all protective coverings.
2. Change the fuel filter.
3. Fill the fuel tank with new diesel fuel.
The following storage preparations are good for long term
storage up to one year. After that, the engine should be
started, warmed up, and retreated for an extended
storage period.
4. Remove air from the fuel system.
5. Tighten the engine coolant drain valve. Put coolant in
the engine cooling system and secure the filler cap.
1. Wash the machine.
6. Check the hydraulic oil level.
2. Lubricate all grease fittings.
7. Check the transmission oil level.
3. Paint any areas where the paint has been damaged.
8. Lubricate the machine at all grease fittings.
4. Change the engine oil and oil filters.
9. Remove the Rust and Corrosion Preventative from the
hydraulic cylinder rods and control valve spools.
5. Drain the fuel tank.
6. Put approximately 8 litres (2 U.S. Gallons) of diesel
flushing oil in the fuel tank. Run the engine until the
exhaust smoke is blue-white.
10. Check tires for correct air pressure.
11. Install the alternator drive belt.
12. Ensure the battery is fully charged and then install the
battery.
7. Drain the flushing oil from the fuel tank.
8. Put 15 ml (one tablespoon) of Shell Oil Company VPI
Crystals in the fuel tank.
13. Remove the Do Not Operate tag.
14. Start the engine. It is important that you use the
correct procedure. See Starting the Engine in this
manual for starting the engine.
9. Move all hydraulic controls to release any pressure in
the hydraulic system.
10. Place all controls in the neutral or off position.
15. On the first day of operation after storage, check
overall machine for leaks and check all gauges for
correct operation.
11. Drain the cooling system. Leave the drain valve open.
Do not tighten the radiator filler cap.
12. Put a Do Not Operate tag on the key switch.
13. Loosen the alternator drive belt and remove. Put a
tag on the steering wheel alerting that the belt is
removed.
14. Replace the primary element for the air filter.
15. Cover all exposed hydraulic cylinder rods and control
valve spools with Rust and Corrosion Preventive.
16. Charge the battery. Remove the battery from the
machine and put the battery on a wooden pallet in a
cool dry area. If possible, keep the battery in a
building where the temperature is above freezing, 0°C
(32°F).
NOTE: Check the battery periodically for the correct
electrolyte level. Test the electrolyte with a hydrometer.
When the hydrometer reading is near 1.215 charge the
battery.
AU125990 C11A
II
APPENDIX
TORQUE SPECIFICATIONS - DECIMAL HARDWARE
Use the torques in this chart when special torques are not
given. These torques apply to fasteners with both UNC
and UNF threads as received from suppliers dry, or when
lubricated with engine oil. Not applicable if special
graphites, Molydisulfide greases, or other extreme
pressure lubricants are used.
Grade 8 Bolts, Nuts, and Studs
Size
Grade 5 Bolts, Nuts, and Studs
Size
Newton
meters
Newton
meters
PoundInches
1/4 inch
15 to 16
130 to 145
5/16 inch
30 to 34
268 to 301
3/8 inch
54 to 60
474 to 534
PoundFeet
PoundInches
1/4 inch
10 to 12
91 to 103
7/16 inch
86 to 97
63 to 71
5/16 inch
21 to 24
188 to 212
1/2 inch
132 to 149
96 to 110
3/8 inch
38 to 43
336 to 378
9/16 inch
191 to 213
140 to 155
PoundFeet
5/8 inch
260 to 293
190 to 215
3/4 inch
480 to 515
340 to 380
7/16 inch
61 to 69
45 to 51
7/8 inch
745 to 835
550 to 615
1/2 inch
94 to 104
68 to 76
1.0 inch
1120 to 1280
825 to 925
9/16 inch
132 to 149
98 to 110
1-1/8 inch
1585 to 1785
1170 to 1315
5/8 inch
183 to 210
138 to 155
1-1/4 inch
2215 to 2235
1650 to 1855
3/4 inch
325 to 370
242 to 270
1-3/8 inch
2930 to 3295
2160 to 2430
7/8 inch
530 to 595
390 to 435
1-1/2 inch
3895 to 4375
2870 to 3225
1.0 inch
790 to 890
585 to 655
1-1/8 inch
980 to 1100
725 to 805
1-1/4 inch
1385 to 1555
1020 to 1145
1-3/8 inch
1810 to 2030
1335 to 1495
1-1/2 inch
2400 to 2700
1770 to 1990
NOTE: Use thick nuts with Grade 8 bolts.
III
AU125990 C11A
APPENDIX
TORQUE SPECIFICATIONS - METRIC HARDWARE
Use the following torques when specifications are not
given.
Grade 10.9 Bolts, Nuts, and Studs
These values apply to fasteners with both coarse and fine
threads as received from supplier, plated or unplated, or
when lubricated with engine oil. These values do not
apply if graphite or Molydisulfide grease or oil is used.
Use of a click type torque wrench, or better is required.
10.9
Size
Grade 8.8 Bolts, Nuts, and Studs
Newton
meters
M4
5 to 6
44 to 49
M5
8 to 9
71 to 79
M6
14 to 15
120 to 136
M8
33 to 37
293 to 329
PoundFeet
8.8
Size
Newton
meters
PoundInches
PoundInches
M10
65 to 74
48 to 54
M12
114 to 128
85 to 94
M4
3 to 4
31 to 35
M14
183 to 205
136 to 153
M5
5 to 6
49 to 55
M16
285 to 320
208 to 235
M6
10 to 11
84 to 94
M20
555 to 620
406 to 460
M8
23 to 26
229 to 277
M24
955 to 1075
705 to 790
M10
46 to 51
408 to 460
M30
1900 to 2140
1400 to 1580
M36
3315 to 3730
2445 to 2750
PoundFeet
M12
80 to 90
59 to 66
M14
128 to 145
94 to 106
M16
200 to 220
149 to 161
M20
400 to 450
293 to 330
M24
690 to 780
510 to 575
M30
1375 to 1545
1010 to 1140
M36
2400 to 2700
1770 to 1990
AU125990 C11A
Grade 12.9 Bolts, Nuts, and Studs
12.9
Usually the torque values specified for grade 10.9
fasteners can be used satisfactorily on grade 12.9
fasteners.
IV
APPENDIX
TORQUE SPECIFICATIONS - STEEL HYDRAULIC FITTINGS
37 Degree Flare Fitting
Nom. SAE
Dash Size
Tube OD/Hose ID
Thread Size
Newton meters
Pound-Inches
-2
5/16 - 24
8 to 9
72 to 84
-3
3/8 - 24
11 to 12
96 to 108
-4
6.4 mm (1/4 inch)
7/16 - 20
14 to 16
120 to 144
-5
7.9 mm (5/16 inch)
1/2 - 20
18 to 21
156 to 192
-6
9.5 mm (3/8 inch)
9/16 - 18
27 to 33
240 to 300
-8
12.7 mm (1/2 inch)
3/4 - 16
46 to 56
408 to 504
-10
15.9 mm (5/8 inch)
7/8 - 14
77 to 85
684 to 756
Pound-Feet
-12
19.0 mm (3/4 inch)
1-1/16 - 12
107 to 119
79 to 88
-14
22.2 mm (7/8 inch)
1-3/16 - 12
127 to 140
94 to 103
-16
25.4 mm (1.0 inch)
1-5/16 - 12
131 to 156
97 to 117
-20
31.8 mm (1-1/4 inch)
1-5/8 - 12
197 to 223
145 to 165
-24
38.1 mm (1-1/2 inch)
1-7/8 - 12
312 to 338
230 to 250
Straight Threads with O-ring
Nom. SAE
Dash Size
Tube OD/Hose ID
Thread Size
Newton meters
Pound-Inches
-2
5/16 - 24
8 to 9
72 to 84
-3
3/8 - 24
11 to 12
96 to 108
-4
6.4 mm (1/4 inch)
7/16-20
20 to 25
180 to 228
-5
7.9 mm (5/16 inch)
1/2-20
27 to 33
240 to 300
-6
9.5 mm (3/8 inch)
9/16-18
43 to 54
384 to 480
-8
12.7 mm (1/2 inch)
3/4-16
73 to 90
648 to 804
Pound-Feet
-10
15.9 mm (5/8 inch)
7/8-14
100 to 124
74 to 92
-12
19.0 mm (3/4 inch)
1-1/16-12
138 to 173
102 to 128
-14
22.2 mm (7/8 inch)
1-3/16-12
173 to 216
128 to 160
-16
25.4 mm (1.0 inch)
1-5/16-12
203 to 253
150 to 187
-20
31.8 mm (1-1/4 inch)
1-5/8-12
308 to 357
227 to 264
-24
38.1 mm (1-1/2 inch)
1-7/8-12
492 to 542
363 to 400
V
AU125990 C11A
APPENDIX
Split Flange Mounting Bolts
Size
Newton meters
Pound-Inches
5/16-18
20 to 27
180 to 240
3/8-16
27 to 34
240 to 300
7/16-14
47 to 61
420 to 540
Pound-Feet
1/2-13
74 to 88
55 to 65
5/8-11
190 to 203
140 to 150
O-Ring Boss End
Fitting or Lock Nut
O-Ring Face Seal End
Nom. SAE
Dash Size
Tube OD
Thread Size
Newton
meters
-4
6.4 mm
(1/4 inch)
9/16-18
23 to 26
204 to 228
-6
9.5 mm
(3/8 inch)
11/16-16
34 to 40
-8
12.7 mm
(1/2 inch)
13/16-16
52 to 57
15.9 mm
(5/8 inch)
1-14
-12
19.0 mm
(3/4 inch)
1-3/16-12
117 to 128
-16
25.4 mm
(1.0 inch)
1-7/16-12
-20
31.8 mm
(1-1/4 inch)
-24
38.1 mm
(1-1/2 inch)
-10
AU125990 C11A
Thread Size
Newton
meters
300 to 348
9/16-18
48 to 54
432 to 480
456 to 504
3/4-16
70 to 78
612 to 684
PoundInches
PoundInches
Pound-Feet
81 to 90
720 to 792
7/8-14
102 to 114
75 to 84
86 to 94
1-1/16-12
142 to 160
105 to 117
152 to 174
112 to 128
1-5/16-12
237 to 254
175 to 187
1-11/16-12
179 to 201
132 to 148
2-12
213 to 235
157 to 173
Pound-Feet
VI
APPENDIX
Pipe fittings
Nom. SAE
Dash Size
Thread Size
TFFT (Turns For Finger Tight)
-2
1/8 - 27
2.0 - 3.0
-3
1/8 - 27
2.0 - 3.0
-4
1/8 - 27
2.0 - 3.0
-5
1/8 - 27
2.0 - 3.0
-6
1/4 - 18
1.5 - 3.0
-8
3/8 - 18
2.0 - 3.0
-10
1/2 - 14
2.0 - 3.0
-12
3/4 - 14
2.0 - 3.0
-14
3/4 - 14
2.0 - 3.0
-16
1 - 11 1/2
1.5 - 2.5
-20
1 1/4 - 11 1/2
1.5 - 2.5
-24
1 1/2 - 11 1/2
1.5 - 2.5
-32
2 - 11 1/2
1.5 - 2.5
NOTE: Apply sealant/lubricant to male pipe threads.
The first two threads should be left uncovered to
avoid system contamination. Screw pipe fitting into
female pipe port to the finger tight position. Wrench
tighten fitting to the appropriate turns from finger
tight (TFFT) shown in table above, making sure the
tube end of an elbow or tee fitting is aligned to
receive incoming tube or hose fitting.
VII
AU125990 C11A
APPENDIX
NOTES
AU125990 C11A
VIII
APPENDIX
AFTER DELIVERY CHECK
After First 100 Hours of Operation of New Machine
Date of Check________________Hourmeter Reading__________________________________________ hours
MACHINE: Product Identification Number ________________________________________________________
OWNER: Name ______________________________________________________________________________
Address ______________________________________________________________________________
DEALER:Name ______________________________________________________________________________
Address ______________________________________________________________________________
AXLES
[ ]
Check axle oil levels.
[ ]
Check operation of parking/emergency brake.
LUBRICATION
[ ]
Lubricate all pivot points.
BRAKES
SAFETY
ELECTRICAL SYSTEM
[ ]
Check battery fluid level.
[ ]
Check operation of starter, alternator, instruments,
and warning lamps.
Check condition of safety decals and information decals.
[ ]
Check the torque of ROPS, seat and seat belt mounting bolts.
[ ]
Make sure the Operators Manual and Safety Manual
are in the manual storage box.
[ ]
Check air pressure.
[ ]
Check torque of wheel nuts.
[ ]
Check oil level of transmission.
TIRES
ENGINE
[ ]
[ ]
Check engine speed at idle and at full throttle.
TRANSMISSION
FUEL SYSTEM
[ ]
Drain water and sediment from the fuel system.
BOLT TORQUE
HYDRAULIC SYSTEM
[ ]
Change the hydraulic filters.
[ ]
Check the reservoir fluid level.
[ ]
See Bolt Torque in this manual and check the torque
of the bolts shown.
DEALER: Make sure the new owner/operator understands all the safety and information decals, the service
information, and the service procedures in this operator’s manual.
Technician (signature) ___________________________________________ Date________________________
Dealer (signature) ______________________________________________ Date________________________
Owner (signature) _____________________________________________ Date________________________
Dealer Copy
IX
AU125990 C11A
APPENDIX
NOTES
AU125990 C11A
X
APPENDIX
AFTER DELIVERY CHECK
After First 100 Hours of Operation of New Machine
Date of Check________________Hourmeter Reading__________________________________________ hours
MACHINE: Product Identification Number ________________________________________________________
OWNER: Name ______________________________________________________________________________
Address ______________________________________________________________________________
DEALER:Name ______________________________________________________________________________
Address ______________________________________________________________________________
AXLES
[ ]
Check axle oil levels.
[ ]
Check operation of parking/emergency brake.
LUBRICATION
[ ]
Lubricate all pivot points.
BRAKES
SAFETY
ELECTRICAL SYSTEM
[ ]
Check battery fluid level.
[ ]
Check operation of starter, alternator, instruments,
and warning lamps.
Check condition of safety decals and information decals.
[ ]
Check the torque of ROPS, seat and seat belt mounting bolts.
[ ]
Make sure the Operators Manual and Safety Manual
are in the manual storage box.
[ ]
Check air pressure.
[ ]
Check torque of wheel nuts.
[ ]
Check oil level of transmission.
TIRES
ENGINE
[ ]
[ ]
Check engine speed at idle and at full throttle.
TRANSMISSION
FUEL SYSTEM
[ ]
Drain water and sediment from the fuel system.
BOLT TORQUE
HYDRAULIC SYSTEM
[ ]
Change the hydraulic filters.
[ ]
Check the reservoir fluid level.
[ ]
See Bolt Torque in this manual and check the torque
of the bolts shown.
DEALER: Make sure the new owner/operator understands all the safety and information decals, the service
information, and the service procedures in this operator’s manual.
Technician (signature) ___________________________________________ Date________________________
Dealer (signature) ______________________________________________ Date________________________
Owner (signature) _____________________________________________ Date________________________
Customer Copy
XI
AU125990 C11A
APPENDIX
NOTES
AU125990 C11A
XII
APPENDIX
ASTEC TECHNICAL MANUALS
Manuals are available from your dealer for the operation, service, and repair of your machine. For prompt convenient
service, contact your dealer for assistance in obtaining the manuals for your machine.
Your dealer can expedite your order for operator’s manuals, parts catalogs, and maintenance records.
Always give the machine name, model, and PIN (Product Identification Number) or SN (Serial Number) for your
machine so your dealer can provide the correct manuals for your machine.
XIII
AU125990 C11A
APPENDIX
NOTES
CALIFORNIA
Proposition 65 Warning
Diesel engine exhaust and some of its constituents are known to the
State of California to cause cancer, birth defects, and other reproductive
harm.
