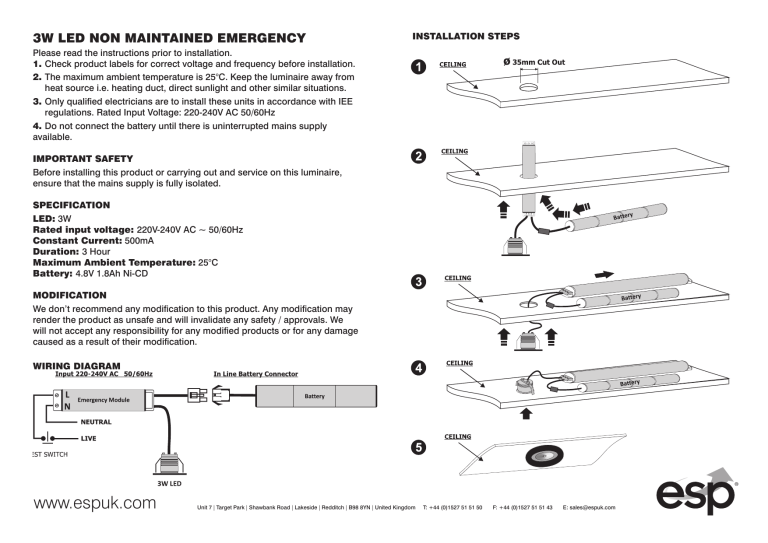

3W LED NON MAINTAINED EMERGENCY
INSTALLATION STEPS
Please read the instructions prior to installation.
1. Check product labels for correct voltage and frequency before installation.
2. The maximum ambient temperature is 25°C. Keep the luminaire away from
heat source i.e. heating duct, direct sunlight and other similar situations.
3. Only qualified electricians are to install these units in accordance with IEE
regulations. Rated Input Voltage: 220-240V AC 50/60Hz
4. Do not connect the battery until there is uninterrupted mains supply
available.
IMPORTANT SAFETY
Before installing this product or carrying out and service on this luminaire,
ensure that the mains supply is fully isolated.
SPECIFICATION
LED: 3W
Rated input voltage: 220V-240V AC ~ 50/60Hz
Constant Current: 500mA
Duration: 3 Hour
Maximum Ambient Temperature: 25°C
Battery: 4.8V 1.8Ah Ni-CD
MODIFICATION
We don’t recommend any modification to this product. Any modification may
render the product as unsafe and will invalidate any safety / approvals. We
will not accept any responsibility for any modified products or for any damage
caused as a result of their modification.
WIRING DIAGRAM
www.espuk.com
Unit 7 | Target Park | Shawbank Road | Lakeside | Redditch | B98 8YN | United Kingdom
T: +44 (0)1527 51 51 50
F: +44 (0)1527 51 51 43
E: [email protected]
