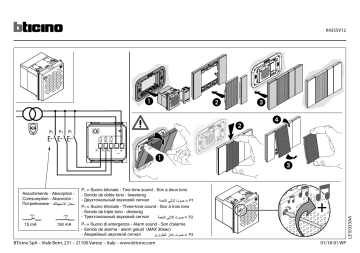

K4355V12
P2
P1
P1
Assorbimento - Absorption Comsumption - Absorción Потребление -
15 mA
150 mA
P2 P3
- +
~
P1 = Suono bitonale - Two-tone sound - Son à deux tons
- Sonido de doble tono - tweetonig
- Двухтональный звуковой сигнал
P2 = Suono tritonale - Three-tone sound - Son à trois tons
- Sonido de triple tono - drietonig
- Трехтональный звуковой сигнал
LE10333AA
P3
P3 = Suono di emergenza - Alarm sound - Son d'alarme
- Sonido de alarma - alarm geluid (MAX 30sec)
- Аварийный звуковой сигнал
BTicino SpA – Viale Borri, 231 – 21100 Varese – Italy – www.bticino.com
01/18-01 WP
