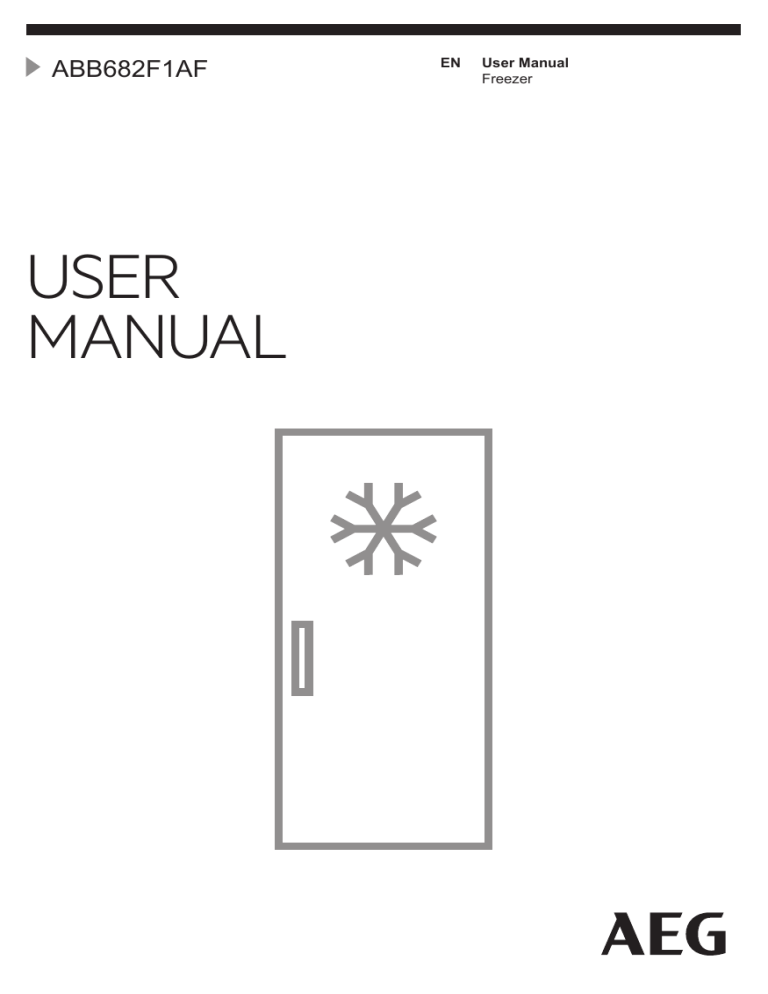

ABB682F1AF
USER
MANUAL
EN
User Manual
Freezer
2
www.aeg.com
CONTENTS
1. SAFETY INFORMATION............................................................................................. 2
2. SAFETY INSTRUCTIONS.............................................................................................4
3. INSTALLATION............................................................................................................6
4. CONTROL PANEL....................................................................................................... 8
5. DAILY USE.................................................................................................................... 9
6. HINTS AND TIPS........................................................................................................10
7. CARE AND CLEANING.............................................................................................12
8. TROUBLESHOOTING............................................................................................... 13
9. NOISES....................................................................................................................... 16
10. TECHNICAL DATA..................................................................................................17
11. INFORMATION FOR TEST INSTITUTES............................................................... 17
FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you
impeccable performance for many years, with innovative technologies that help
make life simpler – features you might not find on ordinary appliances. Please
spend a few minutes reading to get the very best from it.
Visit our website for:
Get usage advice, brochures, trouble shooter, service and repair information:
www.aeg.com/support
Register your product for better service:
www.registeraeg.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.aeg.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
1.
SAFETY INFORMATION
Before the installation and use of the appliance,
carefully read the supplied instructions. The
manufacturer is not responsible for any injuries or
damage that are the result of incorrect installation or
ENGLISH
3
usage. Always keep the instructions in a safe and
accessible location for future reference.
1.1 Children and vulnerable people safety
•
•
•
•
•
•
•
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
Children aged from 3 to 8 years are allowed to load
and unload the appliance provided that they have
been properly instructed.
This appliance may be used by persons with very
extensive and complex disabilities provided that they
have been properly instructed.
Children of less than 3 years of age should be kept
away from the appliance unless continuously
supervised.
Do not let children play with the appliance.
Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
Keep all packaging away from children and dispose of
it appropriately.
1.2 General Safety
•
•
This appliance is intended to be used in household
and similar applications such as:
– Farm houses; staff kitchen areas in shops, offices
and other working environments;
– By clients in hotels, motels, bed and breakfast and
other residential type environments.
To avoid contamination of food respect the following
instructions:
– do not open the door for long periods;
– clean regularly surfaces that can come in contact
with food and accessible drainage systems;
4
www.aeg.com
•
•
•
•
•
•
•
•
•
WARNING: Keep ventilation openings, in the
appliance enclosure or in the built-in structure, clear of
obstruction.
WARNING: Do not use mechanical devices or other
means to accelerate the defrosting process, other
than those recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: Do not use electrical appliances inside the
food storage compartments of the appliance, unless
they are of the type recommended by the
manufacturer.
Do not use water spray and steam to clean the
appliance.
Clean the appliance with a moist soft cloth. Only use
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
When the appliance is empty for long period, switch it
off, defrost, clean, dry and leave the door open to
prevent mould from developing within the appliance.
Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Do not use the appliance before
installing it in the built-in structure
due to safety manner.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Make sure the air can circulate around
the appliance.
• At first installation or after reversing
the door wait at least 4 hours before
connecting the appliance to the
power supply. This is to allow the oil
to flow back in the compressor.
• Before carrying out any operations on
the appliance (e.g. reversing the
door), remove the plug from the
power socket.
• Do not install the appliance close to
radiators or cookers, ovens or hobs.
• Do not expose the appliance to the
rain.
• Do not install the appliance where
there is direct sunlight.
ENGLISH
• Do not install this appliance in areas
that are too humid or too cold.
• When you move the appliance, lift it
by the front edge to avoid scratching
the floor.
2.2 Electrical connection
WARNING!
Risk of fire and electric
shock.
WARNING!
When positioning the
appliance, ensure the supply
cord is not trapped or
damaged.
WARNING!
Do not use multi-plug
adapters and extension
cables.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Make sure not to cause damage to
the electrical components (e.g. mains
plug, mains cable, compressor).
Contact the Authorised Service
Centre or an electrician to change the
electrical components.
• The mains cable must stay below the
level of the mains plug.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
2.3 Use
WARNING!
Risk of injury, burns, electric
shock or fire.
The appliance contains flammable
gas, isobutane (R600a), a natural gas with
5
a high level of environmental
compatibility. Be careful not to cause
damage to the refrigerant circuit
containing isobutane.
• Do not change the specification of
this appliance.
• Do not put electrical appliances (e.g.
ice cream makers) in the appliance
unless they are stated applicable by
the manufacturer.
• If damage occurs to the refrigerant
circuit, make sure that there are no
flames and sources of ignition in the
room. Ventilate the room.
• Do not let hot items to touch the
plastic parts of the appliance.
• Do not put soft drinks in the freezer
compartment. This will create
pressure on the drink container.
• Do not store flammable gas and
liquid in the appliance.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Do not touch the compressor or the
condenser. They are hot.
• Do not remove or touch items from
the freezer compartment if your hands
are wet or damp.
• Do not freeze again food that has
been thawed.
• Follow the storage instructions on the
packaging of frozen food.
• Wrap the food in any food contact
material before putting it in the
freezer compartment.
2.4 Care and cleaning
WARNING!
Risk of injury or damage to
the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• This appliance contains hydrocarbons
in the cooling unit. Only a qualified
person must do the maintenance and
the recharging of the unit.
• Regularly examine the drain of the
appliance and if necessary, clean it. If
the drain is blocked, defrosted water
collects in the bottom of the
appliance.
6
www.aeg.com
2.6 Disposal
2.5 Service
• To repair the appliance contact the
Authorised Service Centre. Use
original spare parts only.
• Please note that self-repair or nonprofessional repair can have safety
consequences and might void the
guarantee.
• The following spare parts will be
available for 7 years after the model
has been discontinued: thermostats,
temperature sensors, printed circuit
boards, light sources, door handles,
door hinges, trays and baskets. Please
note that some of these spare parts
are only available to professional
repairers, and that not all spare parts
are relevant for all models.
• Door gaskets will be available for 10
years after the model has been
discontinued.
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children
and pets to be closed inside of the
appliance.
• The refrigerant circuit and the
insulation materials of this appliance
are ozone-friendly.
• The insulation foam contains
flammable gas. Contact your
municipal authority for information on
how to discard the appliance
correctly.
• Do not cause damage to the part of
the cooling unit that is near the heat
exchanger.
3. INSTALLATION
WARNING!
Refer to Safety chapters.
WARNING!
Fix the appliance in
accordance with installation
instruction document to
avoid a risk of instability of
the appliance.
WARNING!
Refer to installation
instruction document to
install your appliance.
D3
D1
3.1 Dimensions
H2
6
1,
11
D2
3°
H1
W1
W3
W2
ENGLISH
Overall dimensions1)
H1
mm
819
W1
mm
596
D1
mm
547
1) the height, width and depth of the appliance
without the handle and feet
Space required in use1)
H2
mm
820
W2
mm
596
D2
mm
550
1) the height, width and depth of the appliance
including the handle, plus the space necessary for
free circulation of the cooling air
Overall space required in use1)
H2
mm
820
W3
mm
777
D3
mm
1120
1) the height, width and depth of the appliance
including the handle, plus the space necessary for
free circulation of the cooling air, plus the space
necessary to allow door opening to the minimum
angle permitting removal of all internal equipment
If you have any doubts
regarding where to install
the appliance, please turn to
the vendor, to our customer
service or to the nearest
Authorised Service Centre.
It must be possible to
disconnect the appliance
from the mains power
supply. The plug must
therefore be easily
accessible after installation.
3.4 Electrical Connection
CAUTION!
Any electrical work required
to install this appliance
should be carried out by a
qualified electrician or
competent person.
WARNING!
This appliance must be
earthed.
The manufacturer declines
any liability should these
safety measures not be
observed.
The wires in the mains lead are coloured
in accordance with the following code:
A
B
3.2 Location
To ensure appliance's best functionality,
you should not install the appliance in
the nearby of the heat source (oven,
stoves, radiators, cookers or hobs) or in a
place with direct sunlight. Make sure that
air can circulate freely around the back of
the cabinet.
C
D
E
3.3 Positioning
This appliance should be installed in a
dry, well ventilated indoor position.
This appliance is intended to be used at
ambient temperature ranging from 10°C
to 43°C.
7
• A - green and yellow: Earth
• C - brown: Live
• D - blue: Neutral
As the colours of the wires in the mains
lead of this appliance may not
8
www.aeg.com
correspond with the coloured markings
identifying the terminals in your plug,
proceed as follows:
1. Connect the wire coloured green and
yellow to the terminal marked either
with the letter “E“ or by the earth
WARNING!
A cut off plug inserted into a
13 amp socket is a serious
safety (shock) hazard. Ensure
that it is disposed of safely.
3.5 Ventilation requirements
symbol
or coloured green and
yellow.
2. Connect the wire coloured blue to
the terminal either marked with the
letter “N“ or coloured black.
3. Connect the wire coloured brown to
the terminal either marked with the
“L“ or coloured red.
4. Check that no cut, or stray strands of
wire is present and the cord clamp
(E) is secure over the outer sheath.
Make sure the electricity supply
voltage is the same as that indicated
on the appliance rating plate.
5. Switch on the appliance.
The appliance is supplied with a 13 amp
fuse (B). In the event of having to change
the fuse in the plug supplied, a 13 amp
ASTA approved (BS 1362) fuse must be
used.
CAUTION!
Refer to the installation
instructions for the
installation.
3.6 Door reversibility
Please refer to the separate document
with instructions on installation and door
reversal.
CAUTION!
At every stage of reversing
the door protect the floor
from scratching with a
durable material.
4. CONTROL PANEL
1
2
3
4
5
1 Power indicator light
2 Temperature regulator and On/Off
switch
3 Frostmatic light
4 Frostmatic switch and alarm reset
switch
5 Alarm light
4.1 Switching on
3. Push the Frostmatic switch and the
acoustic alarm will turn off. The Alarm
light will blink until the internal
temperature has reached a level
required for the safe conservation of
frozen food.
1. Insert the plug into the wall socket.
2. Turn the Temperature regulator
clockwise to a medium setting.
If the temperature inside the appliance is
too high, the Alarm light will blink and
the acoustic alarm will turn on.
ENGLISH
4.2 Switching off
To switch on the function:
1. Turn the Temperature regulator to
the "O" position.
The Power indicator light will switch off.
2. Remove the plug from the wall
socket.
1. Press the Frostmatic button for 2-3
seconds to activate the Frostmatic
function. The Frostmatic light will
switch on.
2. Place the food in the freezing
compartment and keep the
Frostmatic function switched on for
further 24 hours. Refer to "Freezing
fresh food" section.
4.3 Temperature regulation
The temperature is regulated
automatically. However, you can set a
temperature inside the appliance
yourself.
Choose the setting keeping in mind that
the temperature inside the appliance
depends on:
• room temperature,
• frequency of opening the door,
• quantity of food stored,
• appliance location.
A medium setting is generally the most
suitable one.
To operate the appliance:
1. Turn the temperature regulator
clockwise to obtain a lower
temperature inside the appliance.
2. Turn the temperature regulator
counterclockwise to obtain a higher
temperature inside the appliance.
4.4 Frostmatic function
The Frostmatic is used to perform prefreezing and fast freezing in sequence of
Freezer compartment. This function
accelerates the freezing of fresh food
and, at the same time, protects
foodstuffs already stored from
undesirable warming.
This function stops
automatically after 52 hours.
It is possible to deactivate
the function at any time by
pressing the Frostmatic
switch for 2-3 seconds.
4.5 High temperature alarm
When there is a temperature increase in
the freezer compartment (e.g. due to a
power failure) the Alarm light is blinking
and sound is on.
The sound can be switched off at any
time by pressing the Alarm reset switch.
When normal conditions are restored the
Alarm light stops blinking and the sound
turns off automatically.
4.6 Door open alarm
An acoustic alarm sounds when the door
is left open for around 80 seconds.
After closing the door, the acoustic alarm
stops.
In any case, press the Alarm reset switch
to deactivate the acoustic alarm.
To freeze fresh food activate
the Frostmatic function at
least 24 hours before placing
the food to complete prefreezing.
5. DAILY USE
5.1 Freezing fresh food
The freezer compartment is suitable for
freezing fresh food and storing frozen
and deep-frozen food for a long time.
9
To freeze fresh food activate the
Frostmatic function at least 24 hours
before placing the food to be frozen in
the freezer compartment.
10
www.aeg.com
Store the fresh food evenly distributed in
the first compartment or drawer from the
top.
Keep the food no closer than 15 mm
from the door.
CAUTION!
In the event of accidental
defrosting, for example due
to a power failure, if the
power has been off for
longer than the value shown
on rating plate under "rising
time", the defrosted food
must be consumed quickly
or cooked immediately then
cooled and then re-frozen.
Refer to "High temperature
alarm".
The maximum amount of food that can
be frozen without adding other fresh
food during 24 hours is specified on the
rating plate (a label located inside the
appliance).
When the freezing process is complete,
the appliance automatically returns to
the previous temperature setting (see
"Frostmatic Function").
5.2 Storage of frozen food
When activating an appliance for the first
time or after a period out of use, before
putting the products in the compartment
let the appliance run at least 3 hours with
the Frostmatic function switched on.
The freezer drawers ensure that it is
quick and easy to find the food package
you want. If large quantities of food are
to be stored, remove all drawers, except
for the bottom drawer which needs to be
in place to provide good air circulation.
5.3 Thawing
Deep-frozen or frozen food, prior to
being consumed, can be thawed in the
refrigerator or inside a plastic bag under
cold water.
This operation depends on the time
available and on the type of food. Small
pieces may even be cooked still frozen.
6. HINTS AND TIPS
6.1 Hints for energy saving
• The internal configuration of the
appliance is the one that ensures the
most efficient use of energy.
• Do not open the door frequently or
leave it open longer than necessary.
• The colder the temperature setting,
the higher the energy consumption.
• Ensure a good ventilation. Do not
cover the ventilation grilles or holes.
6.2 Hints for freezing
• Activate Frostmatic function at least
24 hours before placing the food
inside the freezer compartment.
• Before freezing wrap and seal fresh
food in: aluminium foil, plastic film or
bags, airtight containers with lid.
• For more efficient freezing and
thawing divide food into small
portions.
• It is recommended to put labels and
dates on all your frozen food. This will
help to identify foods and to know
•
•
•
•
•
when they should be used before
their deterioration.
The food should be fresh when being
frozen to preserve good quality.
Especially fruits and vegetables
should be frozen after the harvest to
preserve all of their nutrients.
Do not freeze bottles or cans with
liquids, in particular drinks containing
carbon dioxide - they may explode
during freezing.
Do not put hot food in the freezer
compartment. Cool it down at room
temperature before placing it inside
the compartment.
To avoid increase in temperature of
already frozen food, do not place
fresh unfrozen food directly next to it.
Place food at room temperature in
the part of the freezer compartment
where there is no frozen food.
Do not eat ice cubes, water ices or ice
lollies immediately after taking them
out of the freezer. Risk of frostbites.
ENGLISH
• Do not re-freeze defrosted food. If
the food has defrosted, cook it, cool it
down and then freeze it.
6.3 Hints for storage of frozen
food
• The medium temperature setting
ensures good preservation of frozen
food products.
Higher temperature setting inside the
appliance may lead to shorter shelf
life.
• The whole freezer compartment is
suitable for storage of frozen food
products.
• Leave enough space around the food
to allow air to circulate freely.
• For adequate storage refer to food
packaging label to see the shelf life of
food.
• It is important to wrap the food in
such a way that prevents water,
humidity or condensation from
getting inside.
6.4 Shopping tips
After grocery shopping:
• Ensure that the packaging is not
damaged - the food could be
deteriorated. If the package is swollen
or wet, it might have not been stored
in the optimal conditions and
defrosting may have already started.
• To limit the defrosting process buy
frozen goods at the end of your
grocery shopping and transport them
in a thermal and insulated cool bag.
• Place the frozen foods immediately in
the freezer after coming back from
the shop.
• If food has defrosted even partially,
do not re-freeze it. Consume it as
soon as possible.
• Respect the expiry date and the
storage information on the package.
6.5 Shelf life
Type of food
Shelf life (months)
Bread
3
Fruits (except citrus)
6 - 12
Vegetables
8 - 10
Leftovers without meat
1-2
Dairy food:
Butter
Soft cheese (e.g. mozzarella)
Hard cheese (e.g. parmesan, cheddar)
6-9
3-4
6
Seafood:
Fatty fish (e.g. salmon, mackerel)
Lean fish (e.g. cod, flounder)
Shrimps
Shucked clams and mussels
Cooked fish
Meat:
11
2-3
4-6
12
3-4
1-2
12
www.aeg.com
Type of food
Shelf life (months)
Poultry
Beef
Pork
Lamb
Sausage
Ham
Leftovers with meat
9 - 12
6 - 12
4-6
6-9
1-2
1-2
2-3
7. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
7.1 Cleaning the interior
Before using the appliance for the first
time, the interior and all internal
accessories should be washed with
lukewarm water and some neutral soap
to remove the typical smell of a brandnew product, then dried thoroughly.
CAUTION!
Do not use detergents,
abrasive powders, chlorine
or oil-based cleaners as they
will damage the finish.
CAUTION!
The accessories and parts of
the appliance are not
suitable for washing in a
dishwasher.
7.2 Periodic cleaning
The equipment has to be cleaned
regularly:
1. Clean the inside and accessories with
lukewarm water and some neutral
soap.
2. Regularly check the door seals and
wipe them clean to ensure they are
clean and free from debris.
3. Rinse and dry thoroughly.
7.3 Defrosting of the freezer
CAUTION!
Never use sharp metal tools
to scrape off frost from the
evaporator as you could
damage it.
Do not use a mechanical
device or any artificial means
to speed up the thawing
process other than those
recommended by the
manufacturer.
About 12 hours prior to
defrosting set a lower
temperature in order to
build up sufficient chill
reserve in case of any
interruption in operation.
A certain amount of frost will always form
on the freezer shelves and around the
top compartment.
Defrost the freezer when the frost layer
reaches a thickness of about 3-5 mm.
1. Switch off the appliance or pull out
electrical plug from the wall socket.
2. Remove any stored food and put it in
a cool place.
CAUTION!
A temperature rise of the
frozen food packs during
defrosting may shorten
their safe storage life.
Do not touch frozen
goods with wet hands.
Hands can freeze to the
goods.
ENGLISH
3. Leave the door open. Protect the
floor from the defrosting water e.g.
with a cloth or a flat vessel.
4. In order to speed up the defrosting
process, place a pot of warm water in
the freezer compartment. In addition,
remove pieces of ice that break away
before defrosting is complete.
5. When defrosting is complete, dry the
interior thoroughly.
6. Switch on the appliance and close
the door.
7. Set the temperature regulator to
obtain the maximum coldness and
run the appliance for at least 3 hours
using this setting.
Only after this time put the food back
into the freezer compartment.
7.4 Cleaning the air channels
2. Clean the ventilation grid.
3. Carefully pull the air deflector out (C),
checking that there is no water left
from the defrosting.
4. Clean the lower part of the appliance
with a vacuum cleaner.
7.5 Period of non-operation
When the appliance is not in use for long
period, take the following precautions:
1. Disconnect the appliance from
electricity supply.
2. Remove all food.
3. Defrost the appliance.
4. Clean the appliance and all
accessories.
5. Leave the door open to prevent
unpleasant smells.
1. Remove the plinth (A), then the
ventilation grid (B).
C
B
13
A
8. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
8.1 What to do if...
Problem
Possible cause
Solution
The appliance does not operate.
The appliance is switched
off.
Switch on the appliance.
The mains plug is not connected to the mains socket
correctly.
Connect the mains plug to
the mains socket correctly.
14
www.aeg.com
Problem
Possible cause
Solution
There is no voltage in the
mains socket.
Connect a different electrical
appliance to the mains socket. Contact a qualified electrician.
The appliance is noisy.
The appliance is not suppor- Check if the appliance
ted properly.
stands stable.
Acoustic or visual alarm is
on.
The cabinet has been recently switched on.
Refer to "Door Open Alarm"
or "High Temperature
Alarm".
The temperature in the appliance is too high.
Refer to "Door Open Alarm"
or "High Temperature
Alarm".
The door is left open.
Close the door.
The compressor operates
continually.
Temperature is set incorrect- Refer to "Control Panel"
ly.
chapter.
Many food products were
put in at the same time.
Wait a few hours and then
check the temperature
again.
The room temperature is too Refer to "Installation" chaphigh.
ter.
Food products placed in the Allow food products to cool
appliance were too warm.
to room temperature before
storing.
The door is not closed correctly.
Refer to "Closing the door"
section.
The Frostmatic function is
switched on.
Refer to "Frostmatic function" section.
The compressor does not
start immediately after
pressing the "Frostmatic",
or after changing the temperature.
The compressor starts after a This is normal, no error has
period of time.
occurred.
Door is misaligned or interferes with ventilation grill.
The appliance is not levelled.
Refer to installation instructions.
Door does not open easily.
You attempted to re-open
the door immediately after
closing.
Wait a few seconds between
closing and re-opening of
the door.
There is too much frost and
ice.
The door is not closed correctly.
Refer to "Closing the door"
section.
ENGLISH
Problem
15
Possible cause
Solution
The gasket is deformed or
dirty.
Refer to "Closing the door"
section.
Food products are not wrap- Wrap the food products betped properly.
ter.
Temperature is set incorrect- Refer to "Control Panel"
ly.
chapter.
Appliance is fully loaded and Set a higher temperature.
is set to the lowest tempera- Refer to "Control Panel"
ture.
chapter.
Temperature set in the appliance is too low and the
ambient temperature is too
high.
Set a higher temperature.
Refer to "Control Panel"
chapter.
Water flows on the floor.
The melting water outlet is
Attach the melting water
not connected to the evapo- outlet to the evaporative
rative tray above the comtray.
pressor.
Temperature cannot be set.
The "Frostmatic function" is
switched on.
Switch off "Frostmatic function" manually, or wait until
the function deactivates automatically to set the temperature. Refer to "Frostmatic function" section.
The temperature in the appliance is too low/too high.
The temperature is not set
correctly.
Set a higher/lower temperature.
The door is not closed correctly.
Refer to "Closing the door"
section.
The food products' tempera- Let the food products temture is too high.
perature decrease to room
temperature before storage.
Many food products are
stored at the same time.
Store less food products at
the same time.
The thickness of the frost is
greater than 4-5 mm.
Defrost the appliance.
The door has been opened
often.
Open the door only if necessary.
The Frostmatic function is
switched on.
Refer to "Frostmatic function" section.
16
www.aeg.com
Problem
Possible cause
Solution
There is no cold air circulation in the appliance.
Make sure that there is cold
air circulation in the appliance. Refer to "Hints and
Tips" chapter.
Power indicator light flashes. An error has occurred in
measuring the temperature.
If the advice does not lead
to the desired result, call the
nearest Authorized Service
Centre.
Contact a qualified electrician or the nearest Authorized Service Centre.
2. If necessary, adjust the door. Refer to
installation instructions.
3. If necessary, replace the defective
door gaskets. Contact the Authorised
Service Centre.
8.2 Closing the door
1. Clean the door gaskets.
9. NOISES
SSSRRR!
BRRR!
CLICK!
HISSS!
BLUBB!
ENGLISH
17
10. TECHNICAL DATA
The technical information is situated in
the rating plate on the internal side of
the appliance and on the energy label.
The QR code on the energy label
supplied with the appliance
provides a web link to the information
related to the performance of the
appliance in the EU EPREL database.
Keep the energy label for reference
together with the user manual and all
other documents provided with this
appliance.
It is also possible to find the same
information in EPREL using the link
https://eprel.ec.europa.eu and the
model name and product number that
you find on the rating plate of the
appliance.
11. INFORMATION FOR TEST INSTITUTES
Installation and preparation of the
appliance for any EcoDesign verification
shall be compliant with EN 62552.
Ventilation requirements, recess
dimensions and minimum rear clearances
shall be as stated in this User Manual at
Chapter 3. Please contact the
manufacturer for any other further
information, including loading plans.
12. ENVIRONMENTAL CONCERNS
Recycle materials with the symbol .
Put the packaging in relevant containers
to recycle it. Help protect the
environment and human health by
recycling waste of electrical and
electronic appliances. Do not dispose of
*
appliances marked with the symbol
with the household waste. Return the
product to your local recycling facility or
contact your municipal office.
18
www.aeg.com
ENGLISH
19
211625474-A-042020
www.aeg.com/shop
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
