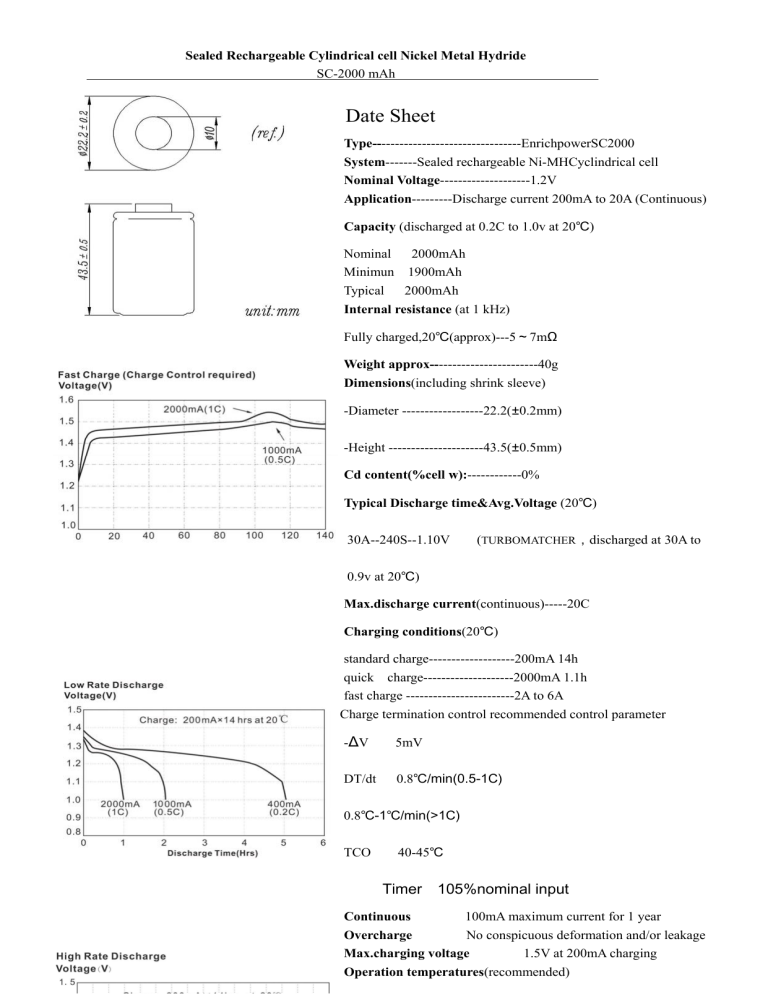

Sealed Rechargeable Cylindrical cell Nickel Metal Hydride
SC-2000 mAh
Date Sheet
Type---------------------------------EnrichpowerSC2000
System-------Sealed rechargeable Ni-MHCyclindrical cell
Nominal Voltage--------------------1.2V
Application---------Discharge current 200mA to 20A (Continuous)
Capacity (discharged at 0.2C to 1.0v at 20℃)
Nominal 2000mAh
Minimun 1900mAh
Typical 2000mAh
Internal resistance (at 1 kHz)
Fully charged,20℃(approx)---5~7mΩ
Weight approx------------------------40g
Dimensions(including shrink sleeve)
-Diameter ------------------22.2(±0.2mm)
-Height ---------------------43.5(±0.5mm)
Cd content(%cell w):------------0%
Typical Discharge time&Avg.Voltage (20℃)
30A--240S--1.10V
(TURBOMATCHER,discharged at 30A to
0.9v at 20℃)
Max.discharge current(continuous)-----20C
Charging conditions(20℃)
standard charge-------------------200mA 14h
quick charge--------------------2000mA 1.1h
fast charge ------------------------2A to 6A
Charge termination control recommended control parameter
-ΔV
5mV
DT/dt
0.8℃/min(0.5-1C)
0.8℃-1℃/min(>1C)
TCO
40-45℃
Timer 105%nominal input
Continuous
100mA maximum current for 1 year
Overcharge
No conspicuous deformation and/or leakage
Max.charging voltage
1.5V at 200mA charging
Operation temperatures(recommended)
Storage----------------- -20℃ up to +35℃
Discharge-------------- -20℃ up to +50℃
standard charge---------- 0℃ up to +40℃
quickcharge,fastcharge--10℃upto+40℃
permanent charge-----+10℃ up to +45℃
Life expectancy(20℃)-------------->500 cycles
