1

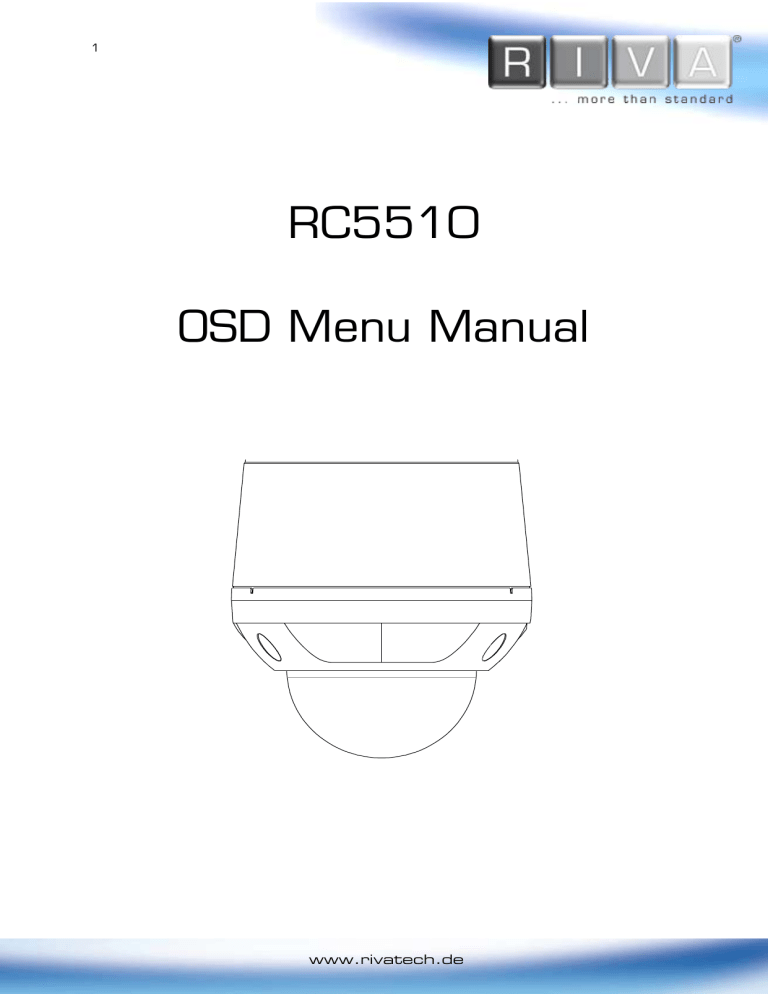

RC5510
OSD Menu Manual
www.rivatech.de
2
Table of Contents
1. Menu and Setting .......................................................................5
1.1. OSD Menu Table ............................................................................ 5
1.2. How to Call OSD Menu ................................................................... 6
1.3. How to Operate the OSD Menu ........................................................ 7
2. Dome Setup ..............................................................................8
2.1. DOME SET – CAMERA ID ................................................................ 8
2.2. DOME SET – HOME POS ................................................................. 8
2.3. DOME SET – MANUAL SPEED .......................................................... 9
2.4. DOME SET – AUTO FLIP .................................................................. 9
2.5. DOME SET – ZOOM SPEED .............................................................. 9
2.6. DOME SET – ALARM ...................................................................... 9
2.7. DOME SET - LANGUAGE .................................................................. 9
2.8. DOME SET - [NEXT PAGE]................................................................ 9
2.8.1 DOME SET - [NEXT PAGE] - SYSTEM LOCK .................................... 9
2.8.2. DOME SET - [NEXT PAGE] - [PASSWORD] .................................. 10
2.8.3. DOME SET - [NEXT PAGE] - [OSD DISPLAY]................................. 11
2.8.4. DOME SET - [NEXT PAGE] - [SYSTEM STATUS] ............................ 11
2.8.5. DOME SET - [NEXT PAGE] - [INITIALIZATION] ............................... 12
2.9. DOME SET - [NEXT PAGE] - SAVE AND EXIT...................................... 13
2.10. DOME SET - [NEXT PAGE] - EXIT ................................................... 13
3. CAMERA SET ..........................................................................14
3.1. CAMERA SET - FLICKERLESS ......................................................... 14
3.2. CAMERA SET - MIRROR ................................................................ 14
3.3. CAMERA SET - APERTURE ............................................................ 14
3.4. CAMERA SET - D ZOOM ............................................................... 14
3.5. CAMERA SET - WB MODE ............................................................ 15
3.6. CAMERA SET - PIC FLIP ............................................................... 15
www.rivatech.de
3
3.7. CAMERA SET - BLC (Back Light Compensation) ................................. 15
3.8. CAMERA SET - D/N MODE ........................................................... 15
3.9. CAMERA SET – EXIT ..................................................................... 15
3.10. CAMERA SET – NEXT PAGE – SENS UP ......................................... 16
3.11. CAMERA SET – NEXT PAGE – AGC MODE ...................................... 16
3.12. CAMERA SET – NEXT PAGE – SSNR.............................................. 16
3.13. CAMERA SET – NEXT PAGE – COLOR ............................................ 16
3.14. CAMERA SET – NEXT PAGE – DIS MODE ....................................... 16
3.15. CAMERA SET – [PREVIOUS PAGE]................................................. 16
4. PRESET SET ............................................................................17
4.1. PRESET - PRESET NO. .................................................................. 17
4.2. PRESET - PRESET ID ..................................................................... 17
4.3. PRESET - PAN: XXX.X TILT: XX.X ................................................... 17
4.4. PRESET - SAVE ............................................................................ 17
4.5. PRESET - EXIT ............................................................................. 17
5. AUTO SCAN SET ......................................................................18
5.2. AUTO SCAN - END ANGLE ............................................................. 18
5.3. AUTO SCAN - DIRECTION .............................................................. 18
5.4. AUTO SCAN - ENDLESS ................................................................ 18
5.5. AUTO SCAN - SPEED .................................................................... 18
5.6. AUTO SCAN - DWELL TIME ........................................................... 19
5.7. AUTO SCAN - SAVE AND EXIT ........................................................ 19
5.8. AUTO SCAN - EXIT ....................................................................... 19
6. TOUR SET ...............................................................................20
6.1. TOUR SET - TOUR NO. .................................................................. 20
6.2. TOUR SET - TOUR TITLE ................................................................ 20
6.3. TOUR SET - TOUR STEP ................................................................ 20
6.4. TOUR SET - PRESET NO. ............................................................... 20
6.5. TOUR SET - DWELL TIME .............................................................. 20
6.6. TOUR SET - SPEED ....................................................................... 21
6.7. TOUR SET - SAVE......................................................................... 21
www.rivatech.de
4
6.8. TOUR SET - EXIT .......................................................................... 21
7. TOUR SET ...............................................................................22
7.1. PRIVACY SET - PRIVACY NO. ......................................................... 22
7.2. PRIVACY SET - DISPLAY................................................................ 22
7.3. PRIVACY SET - ACTION (MOVE / ADJUST) ....................................... 22
7.4. PRIVACY SET - SAVE .................................................................... 23
7.5. PRIVACY SET - EXIT ...................................................................... 23
8. PATTERN SET ..........................................................................23
8.1. PATTERN SET - PATT NO. ............................................................. 23
8.2. PATTERN SET - PATT TITLE ........................................................... 23
8.3. PATTERN SET - DATA FILL ............................................................ 23
8.4. PATTERN SET - SAVE ................................................................... 24
8.5. PATTERN SET - EXIT ..................................................................... 24
9. ALARM SET ............................................................................24
9.1. ALARM SET - ALARM NO. ............................................................. 24
9.2. ALARM SET - ALARM INPUT ......................................................... 24
9.3. ALARM SET - ALARM ACT ............................................................ 24
9.4. ALARM SET - SAVE ...................................................................... 24
9.5. ALARM SET - EXIT ....................................................................... 25
10. SECTOR SET ..........................................................................25
10.1. SECTOR SET - SECTOR NO........................................................... 25
10.2. SECTOR SET - SECTOR ID ............................................................ 25
10.3. SECTOR SET - SECTOR START ...................................................... 26
10.4. SECTOR SET - SECTOR END ......................................................... 26
10.5. SECTOR SET - SAVE ................................................................... 26
10.6. SECTOR SET - EXIT ..................................................................... 26
11. EXIT .....................................................................................26
REVISION HISTORY .......................................................................26
www.rivatech.de
5
1. Menu and Setting
1.1. OSD Menu Table
MAIN MENU
DOME SETUP
CAMERA SET
PRESET
AUTO SCAN
TOUR
PRAVACY
PATTERN
ALARM
SECTOR
EXIT
CAMERA SET
FLICKER : OFF/ON
MIRROR : OFF/ON
APERTURE : 16
D ZOOM : OFF/ON
WB MODE : ATW MODE
PIC FLIP : OFF
BLC
: OFF [BLC]
D/N MODE
:
AUTO
MODE AUTO SCAN SET
START
ANGLE : xxx.x yy.y
[NEXT PAGE]
END
EXIT ANGLE : xxx.x yy.y
DIRECTION : CW
ENDLESS : OFF
SPEED
: 10 °/S
DWELL TIME : 03
SAVE AND EXIT
EXIT
TOUR SET
TOUR NO. : 01
TOUR TITLE : TOUR01□□□□□□
TOUR STEP : 01
PRESET NO : 001
DWELL TIME : 03
SPEED
: 250°/S
SAVE AND EXIT
EXIT
ALARM SET
ALARM NO. : 01
ALARM INPUT : NO
ALARM ACT : 001
SAVE
EXIT
DOME SET
CAMERA ID
: CAM1□□□□□□□□□□□□
HOME POSITION : OFF
MANUAL SPEED : 100°/S
AUTO FLIP
: OFF
ZOOM SPEED : FAST
ALARM
: DISABLE
LANGUAGE
: ENGLISH
[NEXT PAGE]
SAVE AND EXIT
EXIT
CAMERA SET
SENSE UP
: X2
AGC MODE : MIDDLE
SSNR MODE : MIDDLE
COLOR
: 050
DIS MODE : OFF
[PREVIOUS PAGE]
PRIVACY
SET
PRIVACY NO. : 01
DISPLAY
: OFF
ACTION
: MOVE
SAVE
EXIT
PATTERN SET
PATT NO. : 01
PATT TITLE PATTERN01□□□
DATA FILL : 000%
SAVE
EXIT
PRESET SET
PRESET NO : 001
PRESET ID : PRESET01□□□□□□□□□
PAN:xxx.x TILT:yy.y
SAVE
EXIT
SECTOR SET
SECTOR NO : 01
SECTOR ID : SECTOR01□□□
SECTOR START: xxx.x yy.y
SECTOR END : xxx.x yyy,y
SAVE
EXIT
www.rivatech.de
DOME SET
SYSTEM LOCK
: OFF
[PASS WORD]
[OSD DISPLAY]
[SYSTEM STATUS]
[INITIALIZATION]
[PREVIOUS PAGE]
[SYSTEM STATUS]
PROTOCOL
: PELCO D,P
BAUD RATE
: 2400BPS
FIRMWARE VER .: 1.00a
UPGRADED DATE : 15.04.11
CAMERA MODULE : SCM2120
[PREVIOUS PAGE]
OSD DISPLAY
CAMERA ID: OFF/ON
PRESET ID: OFF/ON
SECTOR ID: OFF ON
COORDINATE:ON/OFF
[PREVIOUS PAGE]
[INITIALIZATION]
[TOUR CLEAR]
[PRESET CLEAR]
[SECTOR CLEAR]
[PRIVACY CLEAR]
[PATTERN CLEAR]
[LOAD OPTIMIZED DEFAULT
[REVIOUS PAGE]
6
1.2. How to Call OSD Menu
1. Click the PTZ button on the main view page of RC5510.
2. Press the arrow on the bottom of the PTZ Control box to expand the menu.
3. Click the Menu Off button to change the setting as Menu On.
4. Then, you can see the MAIN MENU is displayed on the VIEW as below.
1
2
2
3
www.rivatech.de
7
1.3. How to Operate the OSD Menu
MAIN MENU
DOME SETUP
CAMERA SET
PRESET
AUTO SCAN
TOUR
PRIVICY
PATTERN
ALARM
SECTOR
EXIT
1. Select a menu item using the Up () or Down () button on the PTZ Control
box.
2. To see the sub menus, click the Right () button on the desired menu.
3. Use the Up () or Down () button to go to the desired option for setting, and
finish the setting by using the Left () or Right () button.
4. To save the setting, select SAVE or SAVE AND EXIT and click the Right ()
button.
5. To exit the OSD menu, go to MAIN MENU, select EXIT, and then press the
Right () button.
www.rivatech.de
8
2. Dome Setup
To enter the Dome Setup menu, select right direction when the cursor is on the Dome
Setup menu.
DOME SET
CAMERA ID
HOME POS
MANUAL SPEED
AUTO FLIP
ZOOM SPEED
ALARM
LANGUAGE
[NEXT PAGE]
SAVE AND EXIT
EXIT
: CAM1
: OFF
: 100°/S
: OFF
: FAST
: DISABLE
: ENGLISH
2.1. DOME SET – CAMERA ID
To set the camera name, select DOEM SET > CMERA ID and select a title of up to 16
characters using left or right direction keys or joystick.
Press ZOOM TELE button to move to the next character from left to right direction
and
ZOOM WIDE button to move to the next character from right to left direction.
2.2. DOME SET – HOME POS
HOME POS has the ability for implementing that a user has registered functions
(PRESET / TOUR / PATTER / SCAN) if it lasts the situation without handle of camera.
You can set up the time [15~90sec] with operating for PAN LEFT/RIGHT of Joystick,
in case of using the function of HOME POSITION.
If it does not work until it reaches the time that has been set up, the function set-up
works.
If you press the key for FOCUS FAR for the time set-up, it will display ■ mark on the
menu. In that situation you can exchange the function for [PRESET/TOUR/PATTERN]
you want by operating the key for PAN LEFT/RIGHT of Joystick.
www.rivatech.de
9
2.3. DOME SET – MANUAL SPEED
The manual speed of Pan/Tilt is selectable from 100°/sec up to 150°/sec.
The default setting is 100°/sec.
2.4. DOME SET – AUTO FLIP
Auto Flip enables the dome to automatically do a 180° turn when the tilt bottom point
is reached. The default setting is OFF.
2.5. DOME SET – ZOOM SPEED
Zoom speeds are selectable as FAST or SLOW mode. The default setting is FAST.
2.6. DOME SET – ALARM
You must enable the alarms for them to operate. The default setting is DISABLED.
2.7. DOME SET - LANGUAGE
Multiple languages are selectable (English, German, Dutch, Danish, French).
The default setting is ENGLISH.
2.8. DOME SET - [NEXT PAGE]
DOME SET
SYSTEM LOCK: : OFF
[PASS WORD]
[OSD DISPLAY]
[SYSTEM STATUS]
[INITIALIZATION]
[PREVIOUS PAGE]
2.8.1 DOME SET - [NEXT PAGE] - SYSTEM LOCK
www.rivatech.de
10
All stored dome settings can be password protected to prevent unauthorized changes.
In order to enter [PASS WORD] page, the system lock status must firstly be set as ON.
The default setting is OFF.
2.8.2. DOME SET - [NEXT PAGE] - [PASSWORD]
To enter this page to set a password, move joystick or pan key in the right direction.
The password must be set by preset number from 001 to 255 (Default 99).
ENTER PASSWORD
BY ENTERING PRESET CODE
PASSWORD ***
CONFIRM ***
Enter any number from 001~255 on the password blank area and again for
confirmation on blank area. Then “CONFIRMED” is displayed on the monitor and the
menu will go back to the previous page automatically.
ENTER PASSWORD
BY ENTERING PRESET CODE
PASSWORD ***
CONFIRM ***CONFIRMED
<CONFIRMED>
ENTER PASSWORD
BY ENTERING PRESET CODE
PASSWORD ***
CONFIRM ***NOT CORRECT
<CANCELLED>
If you press an incorrect number between PASSWORD and CONFIRM, “NOT CORRECT”
is displayed on the monitor.
* When a password has been set, the operator must enter the correct password in
order to enter OSD MAIN MENU, or to change any of the domes configuration data.
* If you set a password you must ensure that it does not get lost. If this happens the
dome must be returned for workshop repair.
www.rivatech.de
11
2.8.3. DOME SET - [NEXT PAGE] - [OSD DISPLAY]
The camera ID setting defines whether the camera OSD display is displayed or
switched off.
OSD DISPLAY
CAMERA ID
: OFF
PRESET ID
: OFF
SECTOR ID
: OFF
COORDINATE
: ON
[PREVIOUS PAGE]
2.8.4. DOME SET - [NEXT PAGE] - [SYSTEM STATUS]
This page shows the information of this camera.
SYSTEM STATUS
PROTOCOL
: PELCO D, P
BAUD RATE
: 2400 BPS
FIRMWARE VER.
: X.XX
UPGRADED DATE
:
DD.MM.YY
CAMERA MODULE
:
XXXXXXXX
[PREVIOUS PAGE]
-
Protocol and baud rate are shown according to the dip switch setting
(Refer to page 36, 37)
-
Firmware version and upgraded date will be changed if the dome has been
upgraded.
-
The camera module type is stated as follows.
www.rivatech.de
12
2.8.5. DOME SET - [NEXT PAGE] - [INITIALIZATION]
To clear the current settings select the item that you wish to reset back to factory
defaults.
INITIALIZATION
[TOUR CLEAR]
[PRESET CLEAR]
[SECTOR CLEAR]
[PRIVACY CLEAR]
[PATTERN CLEAR]
[LOAD OPTIMIZED DEFAULT]
[PREVIOUS PAGE]
-
To clear the memorized data, move the joystick or pan right key until the
cursor is on the required item.
TOUR CLEAR
TOUR CLEAR
ARE YOU SURE? YES NO
Press FOCUS NEAR button when the cursor is at YES in order to clear memorized
data. Then each item such as tour, preset, and sector will flicker for about 2~3
seconds. After this process, the menu is returned to the previous page.
*
Use the above method for [PRESET CLEAR], [SECTOR CLEAR], [PRIVACY CLEAR],
[PATTERN CLEAR], [TOUR CLEAR].
www.rivatech.de
13
LOAD
DEFAULT
OPTIMIZED
ALL DATA INITIALIZING
ARE YOU SURE? YES NO
-
-
To clear all data and return to factory defaults, move the joystick right or press
the pan
right key to when the cursor is at [LOAD OPTIMIZED DEFAULT] to enter the
next page.
Move the joystick or the pan right keys so that the cursor is over YES, then
press the
FOCUS NEAR button.
“ALL DATA INITIALIZING” is then displayed for about 5~7 seconds and then the menu
is returned to the previous page automatically.
2.9. DOME SET - [NEXT PAGE] - SAVE AND EXIT
To save the memorized data and escape from this page, move the joystick right or
press the pan right key when cursor is at SAVE AND EXIT.
2.10. DOME SET - [NEXT PAGE] - EXIT
In order to escape from this page, move the joystick right or press the pan right key
when the cursor is at EXIT.
www.rivatech.de
14
3. CAMERA SET
CAMERA SET
FLICKER
MIRROR
APERTURE
D ZOOM
WB MODE
MODE
PIC FLIP : OFF
BLC
D/N MODE
[NEXT PAGE]
EXIT
CAMERA SET
: OFF
: OFF
: 10
: OFF
:
AWB
: OFF [BLC]
: AUTO
SENS UP
: X2
AGC MODE : MIDDLE
SSNR MODE : MIDDLE
COLOR
: 050
DIS MODE
: OFF
[PREVIOUS PAGE]
3.1. CAMERA SET - FLICKERLESS
The flicker less feature has options of 50Hz and 60Hz.
The default setting is OFF (NTSC: 60Hz / PAL: 50Hz). The flicker less mode only
needs to be set when there is a mismatch between the power frequency and camera
sync rate.
The default setting is OFF.
3.2. CAMERA SET - MIRROR
This feature literally swaps the image left and right as if looking into a mirror.
The default setting is OFF.
3.3. CAMERA SET - APERTURE
Aperture correction enhances the picture details and sharpness by increasing the gain
of the camera. Increase the value to sharpen the image, decrease to soften it. The
default setting is 10. (the aperture level is from 01 ~ 15)
3.4. CAMERA SET - D ZOOM
If enabled digital zoom is applied when the zoom lens has reached its maximum optical
zoom in capability. The default setting is OFF.
www.rivatech.de
15
3.5. CAMERA SET - WB MODE
White balance functions ha 4 modes and may need to be changed depending on the
situation.
●
AWB Mode – 3,200°K to 6, 000°K (Default)
●
Indoor – up to 3,200°K
●
Outdoor – up to 5,800°K
●
ATW Mode - 2,000°K to 10, 000°K
3.6. CAMERA SET - PIC FLIP
The picture flip feature switches the top and bottom of the image.
The default setting is OFF.
3.7. CAMERA SET - BLC (Back Light Compensation)
In case of BLC, you can select the [BLC/[HLC]/[SSDR] function.
If you prefer to make BLC function exchange into [BLC]/[HLC]/[SSDR], you've got to
press
key for <FOCUS FAR> in situation operated into [ON].
So you can get a new menu for setting up MODE or Option like below.

BLC : That's the function for treat exposure In case of lack of exposure of
section that you

watch that there is a source of lights within the section looked.

HLC : It's used to recognize subject exactly when lack of exposure by strong
source of lights

SSDR :That's the function for treat into the right exposure state controlling both
of bright and dark section.
3.8. CAMERA SET - D/N MODE
The dome camera can operate in day /night mode and will switch depending on
lighting conditions. Alternatively it can be forced into color only mode.
The default setting is AUTO MODE.
3.9. CAMERA SET – EXIT
In order to escape this page, move the joystick right or press the pan right key when
the cursor is at EXIT.
www.rivatech.de
16
3.10. CAMERA SET – NEXT PAGE – SENS UP
Sens increases the CCD sensitivity by electrically extending the camera’s exposure
time.
3.11. CAMERA SET – NEXT PAGE – AGC MODE
AGC(Auto Gain Control)is a function that automatically controls image signal level on
electronic circuit and keeps the level consistent by amplifying the image signal level in a
low light environment to prevent a saturation image. You can optimize image
performance in variable light environments by operating Auto Gain Control function.
The default setting is MIDDLE.
3.12. CAMERA SET – NEXT PAGE – SSNR
This function reduces the background noise in a low luminance environment.
The default setting is MIDDLE.
3.13. CAMERA SET – NEXT PAGE – COLOR
Color control is available. Color value ranges from 0 to 100
When the value gets higher the color tone is stronger.
When the value gets lower the video get closer to black and white.
The default setting is 50.
3.14. CAMERA SET – NEXT PAGE – DIS MODE
DIS function compensates the vibration of camera.
The default setting is OFF.
3.15. CAMERA SET – [PREVIOUS PAGE]
To move previous page, move the joystick right or press the pan right key.
www.rivatech.de
17
4. PRESET SET
To enter PRESET SET, move joystick to the right direction.
PRESET SET
PRESET NO :001
PRESET ID :PRESET001------PAN :XXX.XX TILT : XXX.XX
SAVE
EXIT
4.1. PRESET - PRESET NO.
Up to 165 preset positions are available. Use the joystick or pan left/right keys to
select the number.
4.2. PRESET - PRESET ID
To create preset titles use the joystick or pan left/right keys to navigate the menu.
The ZOOM TELE button moves to the next character from left to right and ZOOM
WIDE button moves to the next character from right to left (Space displays when □
appears).
4.3. PRESET - PAN: XXX.X TILT: XX.X
Press FOCUS FAR button in order to set preset position then, use the joystick or pan
left/right keys to the position where memorized preset number is needed. Then press
FOCUS FAR button again after setting a preset location.
4.4. PRESET - SAVE
Move the joystick right or press the pan right key when the cursor is at SAVE and then
the cursor will be located on Preset ID for the continuous preset No. setting.
4.5. PRESET - EXIT
To escape this page, move the joystick right or press the pan right button.
www.rivatech.de
18
5. AUTO SCAN SET
AUTO SCAN SET
START ANGLE
END ANGLE
DIRECTION
ENDLESS
SPEED
DWELL TIME
SAVE AND EXIT
EXIT
: xxx.x.yy.y
: xxx.x.yy.y
: CW
: OFF
: 10°/S
: 03
5.1. AUTO SCAN - START ANGLE
To set the start position, press FOCUS FAR button then move the dome to the
required start position. Press FOCUS FAR button again is to escape.
5.2. AUTO SCAN - END ANGLE
To set the end position, press FOCUS FAR button then move the dome to the
required end position. Press FOCUS FAR button again is to escape.
5.3. AUTO SCAN - DIRECTION
Auto Scan directions are available as CW or CCW.
●
CW: Clock wise direction (Default)
●
CCW: Count Clock Wise Direction
5.4. AUTO SCAN - ENDLESS
Auto Scan can be set to endless rotation by enabling the endless option.
The default setting is OFF.
5.5. AUTO SCAN - SPEED
Auto scan speed can be programmed from 05°/S up to 35°/S. The default setting is
10°/S.
www.rivatech.de
19
5.6. AUTO SCAN - DWELL TIME
The dwell time at the start and end points can be programmed from 1 second to 30
seconds. The default setting is 03 seconds.
5.7. AUTO SCAN - SAVE AND EXIT
To save the memorized data and escape this page, move the joystick right or press
the pan
right key when the cursor is at SAVE AND EXIT.
5.8. AUTO SCAN - EXIT
To escape this page, move the joystick right or press the pan right key.
www.rivatech.de
20
6. TOUR SET
8 Programmable tours can be set and each tour can have up to 64 preset steps.
TOUR SET
TOUR NO
TOUR TITLE
TOUR STEP
PRESET NO.
DWELL TIME
SPEED
SAVE
EXIT
:
:
:
:
:
: 01
TOUR01
01
01
03
200º/S
6.1. TOUR SET - TOUR NO.
Up to 8 group tours can be programmed.
6.2. TOUR SET - TOUR TITLE
To set a tour title, use the joystick left/right or pan left/right keys.
Each title can have up to 16 characters.
Press ZOOM TELE button to move the next character from left to the right and
ZOOM WIDE button to move the next character from right to left (Space displays when
□ appears) The tour title is not displayed on the monitor and is only for the reference
of user.
6.3. TOUR SET - TOUR STEP
Each tour group consists of up to 60 preset steps with different dwell time and speed.
It is possible to match any preset # for any tour step.
6.4. TOUR SET - PRESET NO.
For each tour step it is possible to select any preset number up to 64.
The default setting is BLK.
6.5. TOUR SET - DWELL TIME
Dwell time can be programmed from 1-99 seconds. The default setting is 03 seconds.
www.rivatech.de
21
6.6. TOUR SET - SPEED
Each tour step can be set with a different speed up to 200°/S and it is selectable
from 10°/S.
The default setting is 200°/S.
6.7. TOUR SET - SAVE
To save the memorized data and escape this page, move the joystick right or press
the pan
right key when cursor is at SAVE .
6.8. TOUR SET - EXIT
To escape this page, move the joystick right or press the pan right key.
www.rivatech.de
22
7. TOUR SET
4 Privacy masking zones can be set.
PRIVACY SET
PRIVACY NO
DISPLAY
ACTION
SAVE
EXIT
: 01
: OFF
: MOVE
7.1. PRIVACY SET - PRIVACY NO.
Up to 4 privacy masking zones can be set.
7.2. PRIVACY SET - DISPLAY
Move the joystick right or left or press pan right/left to set ON in order to show the
selectable block in the center of the monitor. This block appears as a translucent
square with blue color when set ON. The default setting is OFF.
7.3. PRIVACY SET - ACTION (MOVE / ADJUST)
To set the blocking area, press FOCUS FAR button when MOVE MODE is displayed.
Then use the joystick or pan keys to the user defined area in order to set the blocking
area. Then press FOCUS FAR button again to escape from MOVE MODE.
To adjust the size of the blocking area, move the joystick or use the pan keys when the
cursor is on ACTION. After it has changed to ADJUST MODE, press FOCUS FAR
button in order to adjust the size of the blocking area. The size of the blocking area
can be adjusted by using joystick up/down or left right – or the pan and tilt keys. After
adjusting the size of the blocking area, press FOCUS FAR button to escape the
ADJUST mode.
●
ADJUST : You can change the masking size by using the joystick or pan
keys
●
MOVE : You can move the masking area by using the joystick or pan keys
(Default)
www.rivatech.de
23
7.4. PRIVACY SET - SAVE
After setting the privacy masking zone, to save the data, move the joystick right or pan
right key when the cursor is on SAVE. After saving the data, the cursor moves to
PRIVACY NO.2 automatically to prepare for the next privacy masking zone.
7.5. PRIVACY SET - EXIT
To escape this page, move the joystick right.
8. PATTERN SET
8 programmable patterns are available, each with a programmable title.
PATTERN SET
PATT NO : 01
PATT TITLE: PATTERN01□□□□□□□
DATA FILL : 0%
SAVE
EXIT
8.1. PATTERN SET - PATT NO.
Up to 8 programmable user-defined patterns are available.
8.2. PATTERN SET - PATT TITLE
To set PATTERN TITLE move Joystick left/right or use the pan keys.
Press ZOOM TELE button moves to the next character from the left / right and
ZOOM WIDE button moves to the next character from the right / left (The space is
displayed when □ appears)
The pattern title is not displayed on the monitor, but only for the reference of the user.
8.3. PATTERN SET - DATA FILL
To memorize a pattern, press FOCUS FAR button in order to start the process.
The progress is shown as % filled. Press FOCUS FAR button again in order to escape.
www.rivatech.de
24
8.4. PATTERN SET - SAVE
To save the memorized pattern data, move the joystick right or press the pan right key
when the cursor is on SAVE. Then the cursor moves to the PATT NO.02 in order to
prepare for the next pattern.
8.5. PATTERN SET - EXIT
To escape this page, move the joystick right or press the pan right key.
9. ALARM SET
4 Alarm inputs are available and each input can activate presets, group tours or
patterns.
ALARM SET
ALARM NO
ALARM INPUT
ALARM ACT
SAVE
EXIT
: 01
: OFF
: 001
9.1. ALARM SET - ALARM NO.
Up to 4 alarms are selectable by using joystick right or pressing the pan right key
when the cursor is on ALARM NO.
9.2. ALARM SET - ALARM INPUT
Alarm inputs can be programmed as NC (Normally Close) or NO (Normally Open)
The default setting is OFF.
9.3. ALARM SET - ALARM ACT
Active alarms can trigger modes such as presets, Group tours 1-8, and Patterns 1-8.
Use the joystick or pan keys to select any preset number, group tour no. or pattern no.
9.4. ALARM SET - SAVE
www.rivatech.de
25
After setting up the alarm features, to save the data move the joystick right or press
the pan right key when the cursor is on SAVE. After saving the data, the cursor moves
to Alarm NO.2 automatically to prepare for the next alarm.
9.5. ALARM SET - EXIT
To escape this page, move the joystick right or press the pan right key.
* Before activating Alarms, you must set ALARM ENABLE at DOME SET –
ALARM – ENABLE
(Refer to page 28.)
10. SECTOR SET
Up to 8 programmable sectors are available, each with a 16 character title.
This feature allows the various areas of the domes 360° rotation to be given logical
titles.
When the dome is moved the relevant title for each area is displayed as the dome
passes through the area.
SECTOR SET
Start Position
SECTOR NO : 01
SECTOR ID: SECTOR01□□□□□□□□
SECTOR START: XXX.X.XX.X
SECTOR END : XXX.X.XX.X
SAVE
EXIT
End Position
10.1. SECTOR SET - SECTOR NO.
Up to 8 programmable sectors are available.
10.2. SECTOR SET - SECTOR ID
To set a SECTOR ID, use the joystick or pan left/right keys.
Press ZOOM TELE button to move to the next character from left to right and ZOOM
WIDE button to move to the next character from right to left (Space displays when □
appears)
www.rivatech.de
26
10.3. SECTOR SET - SECTOR START
To set a SECTOR START position, press FOCUS FAR button then move the joystick or
pan
keys to set the position. Press FOCUS FAR button again to escape.
10.4. SECTOR SET - SECTOR END
To set a SECTOR END position, press FOCUS FAR button then move the joystick or
pan keys to set the position. To press FOCUS FAR button again to escape.
10.5. SECTOR SET - SAVE
After setting the SECTOR positions, to save the data move the joystick right or press
the pan right key when the cursor is on SAVE. After saving the data, the cursor moves
to SECTOR NO.2 automatically to prepare for the next SECTOR.
10.6. SECTOR SET - EXIT
To escape this page, move the joystick right or press the pan right key.
11. EXIT
To escape OSD Main Menu, move joystick to the right or left direction then this
camera is Ready to operate.
REVISION HISTORY
MANUAL#
01A.00
DATE (M/D/Y)
04/05/2012
COMMENTS
Created
www.rivatech.de
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
