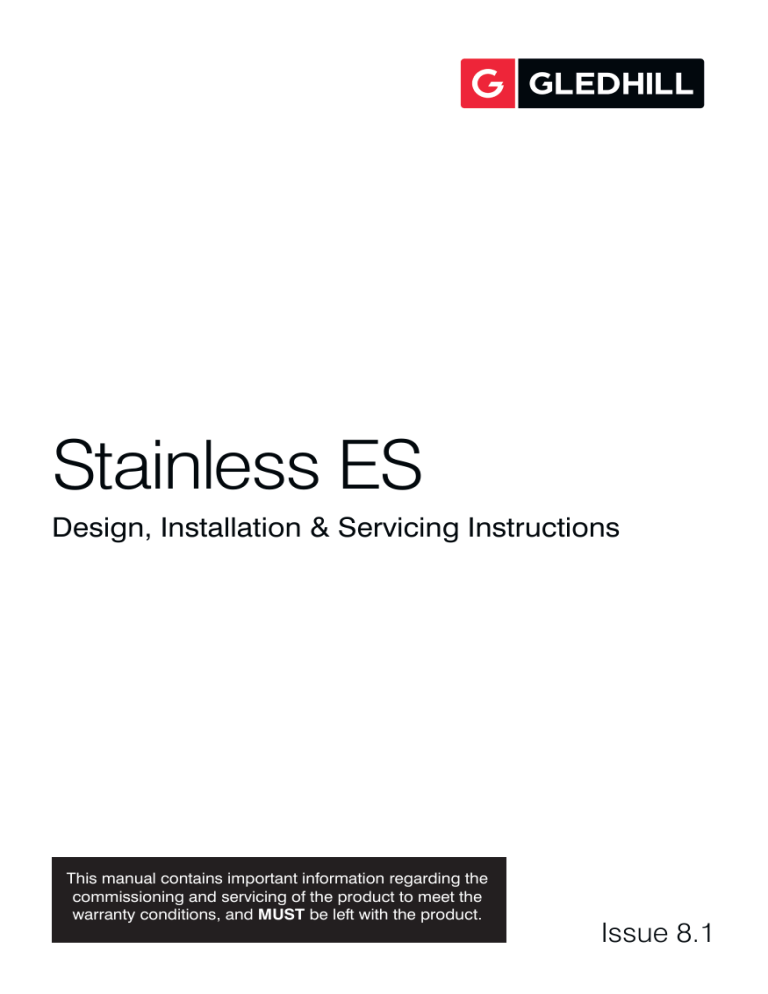

Stainless ES
Design, Installation & Servicing Instructions
This manual contains important information regarding the
commissioning and servicing of the product to meet the
warranty conditions, and MUST be left with the product.
Issue 8.1
GLEDHILL STAINLESS ES
ISSUE 8.1: SEPTEMBER 2019
These instructions should be read in conjunction with the installation/servicing instructions issued
by the manufacturer of the heat source being used.
Gledhill Stainless ES is covered by Section G3 of the Building Regulations (England and Wales)
Technical Standard P3 (Scotland) and Building Regulation P5 (Northern Ireland). Compliance
can be achieved via a Competent Person Self Certification Scheme or notificaton of installation
to the Local Authority Building Control Department.
It must be installed by a competent person as defined by the relevant regulations. Manufacturers
notes must NOT be taken as over-riding statutory obligations.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for their
safety. Children should be supervised at all times to ensure they do not play with the appliance.
Please note: that we do not therefore accept any responsibility for matters of design selection
or specification, for the effectiveness of an installation or system containing one of our products
unless specifically requested to do so in writing.
Benchmark places responsibilities on both manufacturers and installers. The purpose is to ensure that
customers are provided with the correct equipment for their needs, that it is installed, commissioned
and serviced in accordance with the manufacturers instructions by competent persons and that it
meets the requirements of the appropriate Building Regulations. The Benchmark Checklist can be
used to demonstrate compliance with Building Regulations and should be provided to the customer
for future reference.
Installers are required to carry out installation, commissioning and servicing work in accordance
with the Benchmark Code of Practice which is available from the Heating and Hot Water Industry
Council who manage and promote the Scheme. Visit www.centralheating.co.uk for more information.
For further information on the HWA Charter Statement, please refer to the HWA website hotwater.
org.uk.
Page 2
Manufacturer: Gledhill Building Products Ltd
Maximum inlet pressure to
Pressure reducing valve12 bar
Operating pressure (PRV setting)
3 bar
Expansion vessel charge pressure
3 bar
Expansion relief valve setting
4.5 bar
Opening pressure of P & T Relief Valve
6 bar
Opening temperature of P & T Relief Valve
95°C
Energy cut-out thermostat setting82°C
Max. working pressure - Primary heat exchanger (Indirect models)
3 bar
Immersion heater rating 3kW, 240V AC
All cylinders are manufactured in accordance with the requirements of BS EN 12897.
The tundish must be positioned so that it is visible to the occupant and is away from electrical
devices.
Components supplied with Stainless ES:
• Cold water inlet PRV combination valve/expansion relief
• Pressure and temperature relief valve
• Dual thermostat (Control thermostat and Energy cut-out thermostat)
• Energy cut-out motorised valve (indirects only)
• Tundish
• 3kW Immersion heater including control and cut out thermostats
• Expansion vessel/mounting bracket
• Technical/user product literature
In any situation where the volume of heated pipework (eg. secondary circulation pipes or manifold
pipework for multiple units) exceeds 10 litres, then an additional expansion vessel must be fitted
to accommodate the extra expansion volume.
The Environment
This product has been manufactured using many recyclable materials, including the approved
HCFC/CFC free polyurethane foam insulation. At the end of its useful life, it should be disposed
of at a Local Authority Recycling Centre, to maximise the products full environmental benefits.
Page 3
Technical Data
Annual Consumption
(kWh/annum)
Thermostat
Temperature Setting
kWh/24h
%
kWh
°C
Heat Loss
Energy Efficiency %
Energy Efficiency Class
Load Profile
Product Stock Code
Watts
Direct
SESINPDR090
L
C
36
0.87
37%
2737
62
SESINPDR120
L
C
43
1.03
37%
2755
62
SESINPDR150
M
C
52
1.24
36%
1410
62
SESINPDR170
M
C
57
1.37
36%
1417
62
SESINPDR200
L
C
65
1.56
37%
2773
62
SESINPDR250
L
C
79
1.89
37%
2763
62
SESINPIN090
n/a
B
36
0.87
n/a
n/a
n/a
SESINPIN120
n/a
B
43
1.03
n/a
n/a
n/a
SESINPIN150
n/a
B
52
1.24
n/a
n/a
n/a
SESINPIN170
n/a
B
57
1.37
n/a
n/a
n/a
SESINPIN200
n/a
C
65
1.56
n/a
n/a
n/a
SESINPIN250
n/a
C
79
1.89
n/a
n/a
n/a
SESINPIN300
n/a
C
92
2.20
n/a
n/a
n/a
Indirect
Technical Data
Page 4
Sound Power Level
Capacity (Total Volume)
Pressure Regulator 3 bar inlet
group c/w balance cold supply,
expansion vessel connection and
expansion valve set at 4.5 bar
Expansion Vessel size.
Pre-charged to 3 bar
Overall Height
Overall Diameter
Weight Empty
Weight Full
kW Rating of Primary Coil
Pressure Loss Across
Primary Heater Coil
db
Litres
bar
Litres
mm
mm
KG
KG
kW
bar
15
93
3
12
706
530
15
108
n/a
n/a
15
118
3
12
832
530
19
137
n/a
n/a
15
149
3
19
1012
530
22
171
n/a
n/a
15
169
3
19
1131
530
24
193
n/a
n/a
15
198
3
25
1305
530
27
225
n/a
n/a
15
248
3
25
1603
530
33
281
n/a
n/a
n/a
93
3
12
706
530
17
110
13.4
0.15
n/a
118
3
12
832
530
20
138
14.6
0.16
n/a
149
3
19
1012
530
23
172
14.0
0.14
n/a
169
3
19
1131
530
26
195
16.2
0.19
n/a
198
3
25
1305
530
29
227
16.0
0.18
n/a
248
3
25
1603
530
35
283
16.7
0.21
n/a
295
3
35
1895
530
41
336
18.3
0.23
Page 5
Technical Data
1
Stainless ES Direct
Basic Appliance
2
6
3
5
4
1. Hot water draw off (22mm)
2. Temperature & pressure relief valve
95°/6 bar
3. Immersion heater 1¾” BSP 3kW
(normally on-peak)
4. Cold feed (22mm)
5. Immersion heater 1¾” BSP 3kW
(normally off-peak)
6. Secondary return (22mm) (200 and 250
litre models only)
Part G3 loose components supplied in a
separate box
A. Combination inlet group incorporating:
• pressure reducing valve
• strainer
• check valve
• balance cold take off point (22mm)
• expansion relief valve (15mm)
• expansion vessel hose connection
point
B. Potable expansion vessel and wall
bracket
C. Tundish
Both the direct and indirect cylinders are supplied with plain pipe connections
suitable for use with compression fittings.
No drain valve is supplied with the product, however the draining of the unit can
be achieved via the cold feed connection. For insitu cylinder draining, we would
recommend a drain is fitted close to the cold feed inlet to enable maintenance work.
Technical Data
Page 6
1
Stainless ES Indirect
Basic Appliance
2
8
5
4
6
7
3
1. Hot water draw off (22mm)
2. Temperature & pressure relief valve
95°/6 bar
3. Cold feed (22mm)
4. Immersion heater 1¾” BSP 3kW
5. Control stat pocket (22mm)
6. Primary flow (22mm)
7. Primary return (22mm)
8. Secondary return (22mm) (200, 250 and
300 litre models only)
Part G3 loose components supplied in a
separate box
A. Combination inlet group incorporating:
• pressure reducing valve
• strainer
• check valve
• balance cold take off point (22mm)
• expansion relief valve (15mm)
• expansion vessel hose connection
point
B. Potable expansion vessel and wall
bracket
C. Tundish
D. Cylinder control thermostat
E. 2 Port valve (22mm)
Both the direct and indirect cylinders are supplied with plain pipe connections
suitable for use with compression fittings.
No drain valve is supplied with the product, however the draining of the unit can
be achieved via the cold feed connection. For insitu cylinder draining, we would
recommend a drain is fitted close to the cold feed inlet to enable maintenance work.
Page 7
Technical Data
General Design Considerations
The cupboard footprint needs to be at least 650mm square. The base chosen for the cylinder
should be level and capable of supporting the weight of the unit when full of water as shown in General
Data. The discharge pipework for the safety valves must have a minimum fall of 1 : 200 from the unit
to a safe discharge point. All exposed pipework and fittings on the cylinder should be insulated, and
the unit should NOT be installed in a location where the contents could freeze.
In new systems, pipes should be insulated to comply with building regs, the maximum permissible
heat loss is indicated in the table below, and labelled accordingly as follows:
i. Primary circulation pipes for domestic hot water circuits should be insulated through their
length, subject only to practical constraints imposed by the need to penetrate joists and other
structural elements.
ii. All pipes connected to hot water storage vessels, including the vent pipe, should be insulated
for at least 1 metre from their points of connection to the cylinder (or they should be insulated
up to the point where they become concealed).
In replacement systems, whenever a boiler or hot water storage vessel is replaced in an existing
system, any pipes that are exposed as part of the work or are otherwise accessible should
be insulated as recommended for new systems, or to some lesser standard where practical
constraints dictate.
The pipe connecting the boiler flow to the appliance must not be less than 22mm copper or
equivalent.
Insulation of pipework
Pipe outside diameter
Maximum heat loss
15mm
7.89W/m
22mm
9.12W/m
28mm
10.07W/m
35mm
11.08W/m
Further guidance on converting heat loss limits to insulation thickness for specific thermal
conductivities is available in TIMSA “HVAC guidance for achieving compliance with Part L of
the Building Regulations”.
Installation
Page 8
Mains Water Supply
Existing properties with a 15mm supply will be satisfactory, provided the local mains pressure is good,
but should be confined to single bathroom properties. For new properties where simultaneous demand
is required to more than one bathroom or a bathroom and one or more en-suites, the communication
and service pipe into the dwelling should be a minimum of 22mm (usually in the form of a 25mm
MDPE supply).
The optimum performance is achieved if the inlet pressure is 3 bar dynamic. However, the Stainless ES
will function with lower inlet pressures, but this will reduce the performance. For optimum performance,
30L per minute incoming mains flow should be present, however the Stainless ES will work at lower
flow rates, although performance will be affected.
Normally the Stainless ES provides well in excess of 40 litres/min in most conditions. Flow rates for
ALL mains pressure systems are subject to district pressures and system dynamic loss. Particularly
on larger properties with more than one bathroom, the pipe sizes should be calculated in accordance
with BS EN 806-3:2006 and BS 8558:2011.
Pipe Layout
In all mains pressure installations it is important to remember that the incoming cold supply must be
shared between all terminal fittings. It is important that a 22mm supply is brought to the appliance
and a 22mm take-off is continued at least to the bath. If there are two baths, 28mm pipework
should be considered. One metre of smaller diameter pipework, or flow restrictors, should be
provided on the final connection to all outlets so as to balance the water available. In any event
the distribution pipework should generally be in accordance with BS EN806-1 to 5.
Plastic Pipework
This appliance is suitable for use with plastic pipework as long as the material is recommended for the
purpose by the manufacturer and is installed fully in accordance with their recommendations.
Secondary Hot Water Circulation
Some models are fitted with a secondary return tapping as standard. If fitted, an extra expansion
vessel may be necessary. A non-return valve MUST be FITTED near the return connection. No
valve or terminal fitting should be installed between the non return valve and the cylinder. (See
schematic arrangement on page 13.) All pipes kept hot by the secondary circulation should
be insulated.
Page 9
Installation
Typical Discharge Pipe Arrangement
15 mm
discharge
pipe
Expansion
relief valve
600 mm max.
P&T
Relief
Valve
Dotted line showing
alternative route with
single tundish being used
300 mm
min.
Discharge below
fixed grating
22 mm metal pipe with continuous
fall up to 9m equivalent length (D2).
NOTES:
Fixed Grating
The discharge will consist of scalding
waterand steam. Asphalt, roofing felt
and non-metallic rainwater goods may
be damaged by such discharges.
It is not acceptable to discharge straight
into a soil pipe.
Trapped gully
Pressure & Temperature/expansion Relief Valve Pipework
The relief valve should be installed to discharge in accordance with G3 of the Approved Document
of the Building Regulations and should be piped to where it is visible, but will not cause danger
to persons or damage to materials.
The following information is taken from Approved Document G3 of the Building Regulations and
is provided to assist with the design and installation of the discharge pipework. However, the
information is not exhaustive and reference should always be made to Approved Document G3
of the Building Regulations. The final decision regarding any arrangements rests with Building
Control and it is recommended that their advice is sought if you have any concerns regarding
this aspect of the installation.
The two safety valves will only discharge water under fault conditions. When operating normally
water will not be discharged.
The tundish should be vertical, located in the same space as the unvented hot water storage
system and be fitted as close as possible and within 600mm of the safety device e.g. the
temperature relief valve.
Installation
Page 10
The discharge pipe (D2) from the tundish should terminate in a safe place where there is no risk
to persons in the vicinity of the discharge, be of metal and:
a) Be at least one pipe size larger than the nominal outlet size of the safety device unless its
total equivalent hydraulic resistance exceeds that of a straight pipe 9m long i.e. discharge
pipes between 9m and 18m equivalent resistance length should be at least two sizes larger
than the nominal outlet size of the safety device, between 18 and 27m at least 3 sizes larger,
and so on. Bends must be taken into account in calculating the flow resistance. Refer to
the table and the worked example.
An alternative approach for sizing discharge pipes would be to follow BS EN 806-2:2005
Specification for design installation, testing and maintenance of services supplying water for
domestic use within buildings and their curtilages.
Worked Example
The example below is for G1/2 temperature relief valve with a discharge pipe (D2) having
4 elbows and length of 7m from the tundish to the point of discharge.
From the table below:
• Maximum resistance allowed for a straight length of 22mm copper discharge pipe (D2)
from a G1/2 temperature relief valve is: 9m subtract the resistance for 4 x 22mm elbows
at 0.8m each = 3.2m.
• Therefore the maximum permitted length equates to: 5.8m.
• 5.8m is less than the actual length of 7m therefore calculate the next largest size.
• Maximum resistance allowed for a straight length of 28mm pipe (D2) from a G1/2
temperature relief valve equates to: 14m.
• As the actual length is 7m, a 28mm (D2) copper pipe will be satisfactory.
Sizing of copper discharge pipe ‘D2’ for a temperature relief valve
with a G1/2 outlet size (as supplied)
Size of discharge pipework
Maximum length of straight
pipe (no bends or elbows)
Deduct the figure below
from the maximum length
for each bend or elbow in
the discharge pipe
22mm
Up to 9m
0.8m
28mm
Up to 18m
1m
35mm
Up to 27m
1.4m
Page 11
Installation
b) Have a vertical section of pipe at least 300mm long, below the tundish before any elbows or
bends in the pipe work.
c) Be installed with a continuous fall.
d) It is preferable for the discharge to be visible at both the tundish and the final point of discharge
but where this is not possible or practically difficult there should be clear visibility at one or
other of these locations. Examples of acceptable discharge arrangements are:
1. Ideally below the fixed grating and above the water seal in a trapped gulley.
2. Downward discharges at a low level; i.e. up to 100mm above external surfaces such as car
parks, hard standings, grassed areas etc are acceptable providing that where children play
or otherwise come into contact with discharges, a wire cage or similar guard is positioned
to prevent contact whilst maintaining visibility.
3. Discharges at a high level; e.g. into metal hopper and metal down pipe with the end of the
discharge pipe clearly visible (tundish visible or not) or onto a roof capable of withstanding
high temperature discharges of water and 3m from any plastic guttering systems that
would collect such discharges.
4. Where a single pipe serves a number of discharges, such as in blocks of flats, the number
served should be limited to not more than 6 systems so that any installation can be traced
reasonably easily. The single common discharge pipe should be at least one pipe size
larger than the largest individual discharge pipe to be connected. If unvented hot water
storage systems are installed where discharges from safety devices may not be apparent
i.e. in dwellings occupied by blind, infirm or disabled people, consideration should be
given to the installation of an electronically operated device to warn when discharge takes
place.
Installation
Page 12
Hot Outlet
Secondary
Return Circuit
P&T Relief Valve
Pump
Tundish (15mm/22mm)
Non Return
Valve
Expansion Vessel
To Drain
Balanced
Cold
Outlets
Immersion Heater
Stop
Tap
Boiler
Flow
2 Port Valve
3
ERV (15mm)
Boiler
Return
2
NRV
(22mm)
PRV
(22mm)
1
Kitchen
Cold
Tap
Combination
Valve
Line
Strainer
Combination Inlet Group
Combines elements 1, 2 and 3 below.
1. Pressure Reducing Valve - This must be fixed near the cylinder. The cold water supply to
any mixer taps/showers must be taken from the cold water tapping of this valve to ensure
balanced hot and cold pressures. This valve is factory set to ensure the correct operating
pressure for the Stainless ES.
2. Non Return Valve - This is integral with the pressure reducing valve to prevent backflow of
hot water towards cold water draw off points.
3. Cold Water Expansion Relief Valve - This safety device is preset at the factory and will relieve
excess cold water pressure resulting from a fault condition.
There must be no valve on the pipe work between the expansion cylinders and the unvented
cylinder which could prevent the expansion of the water contained in the unvented cylinder
reaching the expansion cylinders.
Page 13
Installation
Pressure & Temperature Relief Valve
This safety device is also pre-set at the factory and relieves before the temperature reaches
100°C. It is also a Pressure Relief Valve, and is pre-set to 6 bar.
Immersion Heaters
The immersion heaters fitted to our units are 3kW 240V ~AC. Check that the mains supply
conforms to this, and all external wiring conforms to the most recent revision of the IEE wiring
regulations. An Incoloy element is used on this product for standard domestic use and water
conditions, use our Titanium elements in all other circumstances, part number SH002.
The immersion heater is fitted into the hot water cylinder using an O-ring. After the unit is filled
with water check for leaks to determine if the O-ring has sealed and tighten carefully using the
appropriate tool. To prevent damage to the O-ring do not use excessive force to tighten the
immersion heater.
Nut
Cup washer
Earth cable
Plain washer
Spring washer
Nut
Assembly and fitment
for earth cable to stud
Immersion Heater Wiring
Thermostat Type WTS fitted in the immersions, and are supplied set in position 4.5
at 61°C ± 3°C.
Installation
Page 14
The immersion heater is supplied with a thermostat which has been tested for operation in the
cylinder and complies with the European directives for Electromagnetic compatibility and radio
interference. It is Rated at 20 Amp 250V ~AC.
The immersion thermostat has two terminals L and N. These should be connected as shown
in the diagram. It has been our experience that crimp terminals make better connections. The
immersion heater must be fully earthed (earth post) and connected via a double pole isolator
switch.
Danger of electrocution: before making any adjustments to the thermostat isolate the immersion
heater from the mains electricity supply at the fuse spur unit.
The immersion heater thermostats incorporate a manual reset safety/overheat cut out thermostat.
Should this operate, investigate the cause for the operation cut out before pressing the red
reset button labelled safety. If there is no apparent fault adjust the control setting down slightly
to prevent nuisance tripping.
The direct cylinder is intended to be heated from an off peak supply using the lowest immersion
heater(s) and boosted via the upper immersion heater from an on peak supply. Suitable controllers
are available to control this operation effectively.
Page 15
Installation
L
N
L
E
N
L
3
Br
Br
3
OFF
4
Br
Br
A
Or
7
HTG
B
Bl
Bl
G/Y
V4043A
TWO PORT
ZONE VALVE
Bl G/Y Gr
Br
Br
6
*Br
HW
VALVE
Br
B
HTG
VALVE
5
4
ON
G/Y
8
G/Y
Br
1
Gr
9
Bl
2
A
11
Or
Bl G/Y Or Gr
B
B Br
DHW
V4043A
TWO PORT
ZONE VALVE
Or
Br
4
4 core cable
10
B
3
B
12
Br
Br
C
1
Br
*Br
Bl
N
G/Y
E
3 core flex
C
Green
Grey
Gr
G
Yellow
White
Green / Yellow
Wh
G/Y
Orange
Y
Or
GAS BOILER
Bl G/Y
ISSUE No : 5
Br
APPROVED
B
07-12-10
Bl G/Y
DATE
Br
Note: Do not attempt
the electrical work unless
you are competent to carry
out to the above standard
flex please ensure you
use brown sleeving at
both terminating ends
to identify core potential.
The electrical installation must
comply with IEE requirements.
For electrical installation
* Blue core used
refer to BS7671
from standard 3 core
2
Brown
Black
Br
B
DRN.
1
Red
Blue
R
Bl
WIRE COLOUR LEGEND
N. Fursman
Boiler
Pump
L
Provide extra core
from terminal 12 to
L-P connection on
the boiler (shown
dotted) and remove
the boiler pump link
if the boiler has an
independant
pump output.
G/Y
Typical schematic wiring diagram for an unvented installation
G/Y
2
2
G/Y
Bl
1
Bl
1
ON
Br
Br
Br
Mains Supply
Fed Via Double
Pole Isolator
230 VAC ~ 5 Amps
5 Amps
N
Danfoss
WB12
Wiring
Centre
Bl
ELECTRONICS
OFF
Control Stat
Dual Aqau Stat
Overheat Stat
L
Room Thermostat
N
CH
Boiler Permanent Live
Boiler Neutral
Boiler Earth
E
HW
SL_B
Boiler Switch Live Demand
Boiler Controlled Pump
L_P
Central Heating Control
(S-PLAN) WIRING DIAGRAM WITH TWO 2 PORT VALVES AND BOILER CONTROLLED PUMP OVERRUN OPTION
N_P
Page 16
E_P
Installation
L
N
N
L
E
N
L
3
Br
Br
3
OFF
4
Br
Br
B
A
Gr
B
A
Br
Or
11
Or
Br
Bl G/Y Or Gr
B
4 core cable
10
B
4
DHW
G/Y
9
Bl
3
HTG
Bl
8
G/Y
Br
2
V4043A
TWO PORT
ZONE VALVE
Or
7
Bl
G/Y
1
V4073A
MID POSITION
ZONE VALVE
Bl G/Y Gr
Wh
Br
HW
VALVE
6
*Br
HTG
VALVE
Wh
5
4
ON
B
12
Br
B
Typical schematic wiring diagram for an unvented installation
G/Y
2
2
G/Y
Bl
1
Bl
1
ON
Br
Br
Br
Mains Supply
Fed Via Double
Pole Isolator
230 VAC ~ 5 Amps
5 Amps
Bl
ELECTRONICS
OFF
Gr
13
B
G/Y
2
C
Bl
G/Y
E
Green
Grey
Gr
G
Yellow
White
Green / Yellow
Wh
G/Y
Orange
Y
Or
GAS BOILER
Note: Do not attempt
the electrical work unless
you are competent to carry
out to the above standard
flex please ensure you
use brown sleeving at
both terminating ends
to identify core potential.
The electrical installation must
comply with IEE requirements.
For electrical installation
* Blue core used
refer to BS7671
from standard 3 core
*Br
1
Brown
Black
Br
B
APPROVED
ISSUE No : 4
07-12-10
Bl G/Y
DATE
Br
DRN.
Boiler
Pump
L
B
2
Red
Blue
R
Bl
WIRE COLOUR LEGEND
N. Fursman
Br
N
4 core cable
R (Supplied with stat)
1
Provide extra core
from terminal 12 to
L-P connection on
the boiler (shown
dotted) and remove
the boiler pump link
if the boiler has an
independant
pump output.
Br
C
Control Stat
Dual Cylinder Stat
L
Overheat Stat
N
Spade
connectors
required
for earth
connections
Boiler Permanent Live
Boiler Neutral
Boiler Earth
B
E
Room Thermostat
SL_B
CH
Boiler Switch Live Demand
Boiler Controlled Pump
Br
L_P
HW
Bl G/Y
N_P
Central Heating Control
(Y-PLAN) WIRING DIAGRAM WITH 3 PORT VALVE/2 PORT SAFETY VALVE AND BOILER CONTROLLED PUMP OVERRUN OPTION
E_P
Page 17
Installation
Connections can come loose in transit, and all should be checked after first fill of the unit.
The control thermostat of the immersion heaters for direct heating of our cylinders are set at
62°C. The control thermostat for indirect heat exchanger heat up of our cylinders are usually set
at between 60°C - 65°C. During commissioning the actual temperature that the cylinder reaches
when the thermostat(s) operate should be tested and adjusted so that it achieves a minimum
of 60°C. This temperature needs to be achieved on a regular basis in order to comply with the
Legionella pasteurisation requirements.
Check the pressure on the air side of the expansion vessel = 3 bar. This must be done when
the water in the cylinder is free to expand in atmospheric pressure or the cylinder and relevant
pipe work is empty.
Check that all the drain cocks are closed, and open all the cold and hot water taps and other
terminal fittings. Allow the system to fill with water, and to run until there is no air left in the system.
Close the taps and inspect the system closely for leaks.
Manually open the Relief Valves one by one and check that water is discharged and run freely
through the tundish and out at the discharge point. The pipework should accept full bore
discharge without overflowing at the tundish, and the valve should seat satisfactorily.
In line with good plumbing practice, use with excessive flux should be avoided. When soldering
above the cylinder, ensure flux/solder does not contaminate the cylinder below, since this can
cause corrosion. Flushing should be performed as per BS EN 806:4 2010 section 6.2.
Allow the cylinder to heat to normal working temperature, then thoroughly flush the domestic
hot and cold water pipework through each tap.
NOTE: If this appliance is to be installed in other than a single domestic dwelling ie. in an
apartment block or student flats etc., the hot and cold water system will need to be disinfected
in accordance with BS EB 806:4 2010 section 6.3 and the Water Regulations.
Because the Stainless ES appliance is stainless steel, the use of chlorine as the disinfection agent
can cause damage unless the appliance is adequately flushed and refilled with the mains water
immediately on completion of the disinfection procedure. Damage caused through a failure to do
this adequately will not be covered by the warranty. For the reasons mentioned, we recommend
the use of a non chlorine based disinfectant such as Fernox LP Sterox as manufactured by
Cookson Electronics when carrying out disinfection of systems incorporating these appliances.
Remove the filter from the combination inlet group clean and replace. Refill the system and open
all hot taps until there is no air in the pipe work. ENSURE CYLINDER IS DRAINED PRIOR TO
CHECKING OR REMOVING FILTER FROM THE COMBINATION INLET GROUP.
Please note a drain valve is not supplied with the cylinder.
Commissioning
Page 18
IMPORTANT - DRAIN DOWN PROCEDURE
1 Switch off both the boiler and the immersion heater
2 Open the nearest hot tap and run all hot water until cold, then close it
3 Close the incoming cold main at the stop tap
4 Hold open the pressure and temperature relief valve until water stops
discharging into the tundish and keep it open
5 Open the cold taps starting from the highest point and working down to the lowest
tap, leaving them open
6 When the cold taps have stopped draining, open the hot taps starting from the highest
and working down to the lowest tap
7 Open the drain cock and ensure the pressure and temperature relief valve is held
open until the cylinder is empty
Allow the cylinder to heat to normal working temperature with whatever heat source is to be
used, and check again for leaks. The pressure relief valve or the P&T valve should not operate
during the heating cycle. If the P&T valve operates before the pressure relief valve due to high
pressure, check that the inlet control group is fitted correctly, and that no valves are fitted between
the cylinder and the expansion vessel
The boiler/heating systems should be filled and commissioned in accordance with good practice
following the guidance in BS 7593:2006/the boiler manufacturers instructions. This includes adequately
flushing the system to remove any debris that may have been introduced during installation/maintenance.
Scale
In hard water areas it is recommended that an in-line scale inhibitor is fitted. Reducing the
temperature of the stored water will reduce the rate at which scale forms. If the recovery rate
is badly affected, this is an indication that scaling may have occurred. In this event, follow the
procedures as recommended by a reputable Water Treatment Company.
NOTE
At the time of commissioning, complete all relevant sections of the Benchmark Checklist located
on the inside back pages of this document. This must be completed during commissioning and
left with the product to meet the Warranty conditions.
Page 19
Commissioning
Your Stainless ES unvented cylinder is automatic in normal use, but requires routine maintenance
which is normally carried out at least annually along with the boiler service. The maintenance
must be carried out by a suitably competent tradesperson who is qualified to work on unvented
cylinders. The checks/work needed are listed in the maintenance part of these Instructions.
The control thermostat of the immersion heaters for direct heating of our cylinders are set at
62°C. The control thermostat for indirect heat exchanger heat up of our cylinders are usually set
at between 60°C - 65°C. During commissioning the actual temperature that the cylinder reaches
when the thermostat(s) operate should be tested and adjusted so that it achieves a minimum
of 60°C. This temperature needs to be achieved on a regular basis in order to comply with the
Legionella pasteurisation requirements.
When initially opening the taps, a small surge in flow may be experienced, which disappears
as the pressure in the system stabilises. This is quite normal with these types of systems and
does not indicate a fault.
In some areas the water will initially appear cloudy, but will quickly clear when left to stand. This
is nothing to be concerned about and is due to aeration of the water.
WARNING - If water is seen flowing through the tundish, this indicates a fault condition which
needs action.
If the discharge is hot and continuous, turn the boiler and/or the immersion heaters off, but do
not turn off the cold water to the appliance until the discharge is cold.
Note: The discharge may stop by itself as the discharge cools.
If the discharge is cold and intermittent, no immediate action is needed but this indicates a
problem with the expansion vessel.
However, in both cases you must call the registered installer / a suitably qualified,
competent tradesperson, advise them that you have an unvented cylinder and request
a maintenance visit.
DO NOT, at any time, tamper in any way with the safety valves or overheat thermostats/wiring.
NOTE
At the time of commissioning, complete all relevant sections of the Benchmark Checklist located
on the inside back pages of this document. This must be completed during commissioning and
left with the product to meet the Warranty conditions.
User Instructions
Page 20
The Registered Installer is responsible for the safe installation and operation of the system.
The installer must also make his customer aware that periodic maintenance of the equipment
is essential for safety.
Maintenance periods will vary for many reasons. Gledhill Building Products Ltd recommend a
maximum of 12 months to coincide with boiler maintenance. Experience of local water conditions
may indicate that more frequent maintenance is desirable, eg, when water is particularly
hard, scale-forming or where the water supply contains a high proportion of solids, eg, sand.
Maintenance must include, but not limited to, the following:
1.
Turn the mains water off, remove and clean the strainer element in in the Pressure Reducing
Valve.
2. Manually check the operation of the temperature relief valve.
3. Manually check the operation of the expansion relief valve.
4. Check discharge pipes from temperature and expansion relief valves are free from obstruction
and blockage and are not passing any water.
5. Check that water pressure downstream of combination valve is 3 bar in static condition.
6. Check operation of motorised valve.
7. Check the pressure on the air side of the expansion vessel. This must be done when the
volume in the cylinders is cold.
8. Re-fill the system and ensure that all relief valves have re-seated.
9. Check and advise the householder not to place any clothing or other combustible materials
against or on top of this appliance.
10. On completion of the work, fill in the Benchmark Service Record towards the back of this
manual.
IMPORTANT NOTE
When draining down the appliance for any reason, the instructions provided in
the Commissioning Section (Page 19) MUST be followed to prevent potential
damage to the cylinder.
After servicing, complete the relevant Service Interval Record section of the Benchmark Checklist
located on the inside back pages of this document.
Page 21
Servicing and Maintenance
General
No water at the tap. Check that the mains water supply is turned ON. Check the line strainer
is not blocked. Check that the combination valve has been fitted so that water is flowing in the
correct direction.
If the water at the tap is cold, ensure that the boiler has been switched ON and is working
correctly. Check that there are no air locks in the primary system. ISOLATE THE UNIT AT THE
MAINS ELECTRIC SUPPLY AND THEN CHECK THE FOLLOWING:
i. The cylinder thermostat
ii. The thermal cut-out, which can be re-set by pushing the red button
iii. The motorised valve
iv. The boiler thermostat
v. The boiler thermostat cut-out (if fitted)
ANY ENERGY CUT-OUT MUST NEVER BE BY-PASSED UNDER ANY CIRCUMSTANCES.
If the units are not getting hot and the heat source is electrical, ensure that the immersion heaters
are isolated from the mains before re-setting the energy cut-out. If the immersion heater(s) need
replacing this should be done with the units supplied from Gledhill Building Products Limited.
Same day despatch by Gledhill Spares to approved installers can be arranged by telephoning
01253 474412.
Discharge From Relief Valves
If cold water is discharging from the expansion relief valve into the tundish check the pressure
on the expansion vessel when cold and recharge if necessary.
If the fault continues and the problem cannot be stopped by operating the control a few times
then either the Pressure Reducing Valve or the Relief Valve may be at fault. If the cold water
pressure is too high, this would suggest that the Pressure Reducing Valve is at fault and the
Gledhill approved replacement should be fitted. If the pressure is correct then the Relief Valve
will require replacing with a Gledhill approved component.
See Commissioning for drain down procedure.
If there is an overheat fault and very hot water is being discharged, turn off the heat source, but
not the water supply.
When the supply is cool, check thermostats and energy cut-outs in the boiler and immersion
heaters and replace the faulty component with a unit supplied by Gledhill and check that it works
correctly before returning the system to full operation.
Fault Finding
Page 22
SPARE PARTS LIST
Description
Quantity
Stock Code No.
1
3kW immersion element
1
SH014
2
Pressure and temperature relief valve 6 bar 95°C
1
SG033
3
Inlet group set at 3 bar c/w expansion relief valve
set at 4.5 bar
1
SG031
4
12 litre expansion vessel
1
XG224
5
19 litre expansion vessel
1
XG225
6
25 litre expansion vessel
1
XG226
7
35 litre expansion vessel
1
XG227
8
22mm 2 port valve (indirects only)
1
XG089
9
Control and overheat limit thermostat
1
XG219
10
15mm x 22mm tundish
1
XG173
Page 23
Spare Parts
Gledhill Building Products guarantees the Stainless ES cylinder and components
against material defect or manufacturing fault for a period of two years from the
date of purchase. The two year warranty on the stainless steel inner cylinder will
be extended to twenty five years in domestic properties on the registration of the
cylinder.
The above product guarantees are valid provided:
• It has been installed by a competent installer in accordance with the instructions detailed
in our installation manual and all relevant Codes of Practice and Regulations in force at
the time of installation.
• No factory fitted parts have been removed for unauthorised repair or replacement and the
product has not been modified - other than by Gledhill.
• Any replacement parts used should be authorised, approved Gledhill spare parts.
• The cylinder has only been used for the storage of potable water supplied form the public
mains (-max 200mg/litre chloride).
• It has not been subject to wrong or improper use, left uncared for, or subjected to scale or
frost damage.
• The unit has been serviced annually by a competent, licenced engineer in accordance
with the requirement set out in the manual.
• The Benchmark TM Commissioning Checklist Service Record included in our manual has
been completed and updated after each annual service.
• Any disinfection has been carried out strictly in accordance with BS6700.
• For heavy use installation where constant usage / reheat is required titanium immersion
heaters should be fitted.
• The registration for the unit is completed within 30 days of purchase by the
owner. Evidence of purchase and date of supply must be submitted upon making
a claim.
Guidance in the event of a problem
If you have a problem in the first year, please contact the plumber who fitted the unit. After the
first year, you should contact the plumber who carries out the annual servicing for you.
Action in the event of component failure within warranty period
Failed components should be returned via the local authorised supplier. A nominal charge of
£30 will be made which is refunded in full by Gledhill on receipt of the original part and proof
of purchase.
Warranty
Page 24
Action in the event of inner vessel cylinder failure within warranty period
Since the full diagnosis of cause of failure is usually only possible with a laboratory test
environment where a product can be fully assessed and tested, we will require the return of
a cylinder which develops a leak for inspection. Providing our expert examination confirms
a manufacturing fault or defect, credit will then be raised against the cost of the original
cylinder.
Please note that a copy of the completed annual service record and commissioning checklist
should be submitted with any claim.
As a HWA Charter Member we endeavour to provide consumers quality assurance,
product satisfaction, and confidence in Gledhill, that we will deliver a service beyond
just supplying the product.
Page 25
Warranty
Gledhill (Building Products) Ltd
AMD. APRIL 2018
CONDITIONS OF SALE & GUARANTEE TERMS
1.
Gledhill (Building Products) Ltd (“We” or “Gledhills”) only do business upon the Conditions which appear below
and no other. Unless we so agree in writing these Conditions shall apply in full to any supply of goods by us to the
exclusion of any Conditions or terms sought to be imposed by any purchaser. These Conditions of Sale and Warranty
Terms override those which are contained on the Invoice Forms and all Sales are now subject to these Conditions of
Sale and Warranty terms only.
2.
PRICE
Once an order or call off has been accepted the price will be held for three months but if delivery is extended
beyond that period at the customer’s request, then we reserve the right to amend the price when necessary.
The company reviews its pricing annually to adjust for changes in our cost base. We reserve the right to alter prices
at any time for severe movements in raw materials (mainly copper and steel). If there is to be a change we will give
customers at least four weeks notice but anything delivered after that date will be at the revised price. An order
may not be cancelled or varied after acceptance without the written consent of the company. Such cancellation or
variation shall be subject to such reasonable charges as may be appropriate.
3.
SPECIFICATION
The goods are supplied in accordance with the Specifications (if any) submitted to the Purchaser and any additions
and alterations shall be the subject of an extra charge. Any goods not so specified shall be in accordance with
our printed literature or the literature of any of our component suppliers (subject to any modifications made since
publication). If we adopt any changes in construction or design of the goods, or in the specification printed in our
literature, the Purchaser shall accept the goods so changed in fulfilment of the order.
4.
PAYMENT
The buyer shall make payment in full within thirty days from the end of the month in which the invoice is dated. If
we receive payment in full on or before the due date we will allow an appropriate settlement discount except where
we have quoted a special net price. If payment is not received in full on or before the due date we shall be entitled
in addition to the invoice price to:
(i)
payment of a sum equal to any increase in the copper price supplement applicable to the particular goods sold
between the date of receipt of order and the date of receipt of payment in full; and
(ii) interest on any part of the invoice price unpaid after the due date at the rate of 3% per annum over the base
rate for the time being of HSBC Bank plc.
5.
TIME
We give estimates of delivery dates in good faith and time of delivery is not nor shall be made of the essence of any
contract nor shall we be liable for any loss or damage occasioned by delay in delivery.
6.
DELIVERY
Standard delivery is free of charge on normal lead times to mainland UK. We reserve the right to make delivery of
goods contained in one order by more than one consignment and at different times. Where a period is agreed for
delivery and such period is not extended by our Agreement, the Purchaser shall take delivery within that period. If
the Purchaser fails to take delivery, we shall be entitled at the Purchaser’s risk and expense to store the goods at the
Purchaser’s premises or elsewhere and to demand payment as if they had been despatched. Off loading at point of
delivery shall be the responsibility of and be undertaken by the Purchaser.
7.
SHORTAGES OR DAMAGE
Goods must be inspected before signature of delivery note and any damage, shortage or discrepancy noted on the
delivery note and the goods returned on the same vehicle. The buyer must also give us immediate written notice of
the damage, shortage or discrepancy so that we may prompt investigation.
8.
RETURN OF GOODS
Goods may not be returned to the Company except by prior written permission of an authorised officer of the
Company and such return shall be subject to payment by the Purchaser of handling and re-stocking charges,
transport and all other costs incurred by the Company.
9.
COMPANY LIABILITY AND GUARANTEE
9.1. Subject to the terms of these Conditions of Sale and Guarantee Terms Gledhills provide Guarantees in respect
of specific products as set out in this clause.
9.2. Each Guarantee is strictly conditional upon the following:9.2.1. Complaints must be given to us immediately, before any action is taken, as responsibility cannot be accepted
if repairs or renewals are attempted on site without our written approval.
9.2.2. The unit has been installed in accordance with our installation and service instructions and all relevant codes
of practice and regulations in force at the time of installation.
9.2.3. All necessary inlet controls and safety valves have been fitted correctly.
9.2.4. The unit has only been used for the storage of potable water supplied from the public mains. The water quality
shall be in accordance with European Council Directive 98/83 EC, or revised version at the date of installation,
and is not fed with water from a private supply. Particular:
Chloride content:
Max. 200 mg/l
Sulphate content:
Max. 200 mg/l
Combination chloride/sulphate:
Max. 300 mg/l (in total)
9.2.5 Where appropriate the unit has been regularly maintained as detailed in the installation and service instructions
9.2.6. Defects caused by corrosion or scale deposits are not covered by any Guarantee.
9.2.7. Where we agree to rectify any defect we reserve the right to undertake the work on our own premises.
9.2.8. We will not accept any labour charges associated with replacing the unit or parts for any of the following
products listed.
9.2.9. If the newly fitted water heater is not in regular use then it must be flushed through with fresh water for at least
15 minutes. Open at least one hot water tap once per week, during a period of at least 4 weeks.
9.3. Guarantees are provided in respect of specified goods supplied by Gledhills as follows:(a) Domestic and Commercial Open Vented Cylinders and Tanks.
The storage vessel is guaranteed for ten years and if it proves to be defective either in materials or workmanship,
we reserve the right to either repair or supply replacement at our option with the closest substitute in the case
of any obsolete product to any address in England, Wales and Scotland (excluding all Scottish Islands).
(b) Domestic Mains Fed Products [Primary Stores]
The storage vessel is guaranteed for five years and if it or any integral pipework as part of the storage vessel
assembly proves to be defective either in materials or workmanship, we reserve the right to either repair or
supply replacement at our option with the closest substitute in the case of any obsolete product to any address
in England, Wales and Scotland (excluding all Scottish Islands).
(c) Unvented Cylinders
Gledhill guarantee the components including controls, valves and electrical parts for two years from the date
of purchase. IT SHOULD BE NOTED THAT THE FACTORY FITTED TEMPERATURE AND PRESSURE RELIEF VALVE
MUST NOT BE REMOVED OR ALTERED IN ANY WAY OR THE GUARANTEE WILL NOT BE VALID. GLEDHILL WILL
NOT BE RESPONSIBLE FOR ANY CONSEQUENTIAL LOSS OR DAMAGE HOWEVER IT IS CAUSED.
Terms and Conditions
Page 26
The guarantee for the stainless steel vessel is
for twenty five years against material defect or
manufacturing faults if the original unit is returned to
us AND PROVIDED THAT:
(i) It has not been modified, other than by Gledhill.
(ii) It has not been subjected to wrong or improper
use or left uncared for.
(iii) It has only been used for the storage of potable
water supplied from the public mains, max
200mg/litre chloride.
(iv) It has not been subjected to frost damage.
(v) The benchmark service record is completed after
each annual service.
(vi) The unit has been serviced annually.
(vii) Any disinfection has been carried out strictly in
accordance with BS6700.
If the stainless steel vessel proves to be defective
either in materials or workmanship we reserve the
right to either repair or supply replacement at our
option with the closest substitute in the case of any
obsolete product to any address in England, Wales and
Scotland (excluding all Scottish Islands).
ACTION IN THE EVENT OF FAILURE
We will require the return of a cylinder which develops
a leak for inspection. If our examination confirms a
failure then an appropriate level of credit against the
cost of the original cylinder will be issued in line with
the terms of our warranty.
Please note:
- Installation must have been carried out by a
licensed specialized company (heating contractor
or plumber) following the version of installation
instructions in force.
- Gledhill or its representative was given the
opportunity to check complaints on site
immediately after any defect occurred.
- Confirmation exists that the system was
commissioned properly and that the system
was checked and maintenance was performed
annually by a specialised company licensed for
this purpose.
(d) Components of our products other than
Storage Vessels and Integral Pipework.
We will either extend to the purchaser the same terms
of warranty as we are given by the manufacturer of the
component or if the manufacturer does not give any
warranty, replace free of charge any component which
becomes defective within two years after the date of the
delivery by us and is returned to us at the purchaser’s
expense but we shall not meet the cost of removal or
shipping or return of the component or any other cost
charges or damages incurred by the purchaser.
9.4.
9.4.1. In respect of goods supplied by us and in respect of
any installation work carried out by or on our behalf,
our entire liability and the purchaser’s sole remedies
(subject to the Guarantees) shall be as follows:(a) We accept liability for death or personal injury to
the extent that it results from our negligence or
that of our employees
(b) Subject to the other provisions of this clause 9
we accept liability for direct physical damage
to tangible property to the extent that such
damage is caused by our negligence or that of our
employees, agents or subcontractors.
(c) Our total liability to the purchaser over and above
any liability to replace under the Guarantees
(whether in contract or in tort including
negligence) in respect of any one cause of loss or
damage claimed to result from any breach of our
obligations hereunder, shall be limited to actual
money damages which shall not exceed £20,000
provided that such monetary limit shall not apply
to any liability on the part of ourselves referred to
in paragraph (a) above
(d) Except as provided in paragraph (a) above but
otherwise not withstanding any provision herein
contained in no event shall we be liable for the
following loss or damage howsoever caused and
even if foreseeable by us or in our contemplation:(i) economic loss which shall include loss
of profits, business revenue, goodwill or
anticipated savings
(ii) damages in respect of special indirect or consequential loss or damage (other than death, personal
injury and damage to tangible property)
(iii) any claim made against the purchaser by any other party (save as expressly provided in paragraph (b)
above)
(e) Except in respect of our liability referred to in paragraph (a) above no claim may be made or action brought
(whether in contract or in tort including negligence) by the purchaser in respect of any goods supplied by
us more than one year after the date of the invoice for the relevant goods.
(f) Without prejudice to any other term we shall not be liable for any water damage caused directly or
indirectly as a result of any leak or other defect in the goods. We cannot control the conditions of use of
the goods or the time or manner or location in which they will be installed and the purchaser agrees to be
fully responsible for testing and checking all works which include the goods at all relevant times (up to,
including and after commissioning) and for taking all necessary steps to identify any leaks and prevent any
damage being caused thereby.
(g) Nothing in these Conditions shall confer on the purchaser any rights or remedies to which the purchaser
would not otherwise be legally entitled
10. LOSS OR INJURY
Notwithstanding any other provision contained herein the purchaser’s hereby agree to fully indemnify us against
any damages losses costs claims or expenses incurred by us in respect of any claim brought against us by any third
party for:(a) any loss injury or damage wholly or partly caused by any goods supplied by us or their use.
(b) any loss injury or damage wholly or partly caused by the defective installation or substandard workmanship or
materials used in the installation of any goods supplied by us.
(c) any loss injury or damage in any way connected with the performance of this contract.
(d) any loss resulting from any failure by the purchaser to comply with its obligations under these terms as to
install and/or check works correctly.
PROVIDED that this paragraph will not require the purchaser to indemnify us against any liability for our own acts of
negligence or those of our employees agents or sub-contractors
FURTHER in the case of goods supplied by us which are re-sold and installed by a third party by the purchaser it will
be the sole responsibility of the purchaser to test the goods immediately after their installation to ensure that inter
alia they are correctly installed and in proper working order free from leaks and are not likely to cause any loss injury
or damage to any person or property.
11. VARIATION OF WARRANTY AND EXCLUSION
Should our warranty and exclusion be unacceptable we are prepared to negotiate for variation in their terms but
only on the basis of an increase in the price to allow for any additional liability or risk which may result from the
variation. Purchasers are advised to insure against any risk or liability which they may incur and which is not covered
by our warranty.
12. ADVICE
Any advice or assistance given by the Company is provided without charge and is in good faith without undertaking,
representation or warranty, and we will not accept any liability, whether consequential or compensatory, for advice
or assistance given.
13. RISK AND RETENTION OF TITLE
(a) goods supplied by us shall be at the Purchaser’s risk immediately upon delivery to the Purchaser or into
custody on the Purchaser’s behalf or to the Purchaser’s Order. The Purchaser shall effect adequate insurance
of the goods against all risks to the full invoice value of the goods, such insurance to be effective from the time
of delivery until property in the goods shall pass to the Purchaser as hereinafter provided.
(b) property in the goods supplied hereunder will pass to the Purchaser when full payment has been made by the
Purchaser to us for :(i) the goods of the subject of this contract.
(ii) all other goods the subject to of any other contract between the Purchaser and us which, at the time of
payment of the full price of the goods sold under this contract, have been delivered to the Purchaser but
not paid for in full.
(c) until property in the goods supplied hereunder passes to the Purchaser in accordance with paragraph (2)
above.
(i) the Purchaser shall hold the goods in a fiduciary capacity for us and shall store the same separately from
any other goods in the Purchaser’s possession and in a manner which enables them to be identified as our
goods.
(ii) the Purchaser shall immediately return the goods to us should our authorised representative so request.
All the necessary incidents associated with a fiduciary relationship shall apply.
(d) the Purchaser’s right to possess the goods shall cease forthwith upon the happening of any of the following
events, namely :(i) if the Purchaser fails to make payment in full for the goods within the time stipulated in clause 4 hereof.
(ii) if the Purchaser, not being a company, commits any act of bankruptcy, makes a proposal to his or her
creditors for a compromise or does anything which would entitle a petition for a Bankruptcy Order to be
presented.
(iii) if the Purchaser, being a company, does anything or fails to do anything which would entitle an
administrator or an administrative receiver or a receiver to take possession of any assets or which would
entitle any person to present a petition for winding up or to apply for an administration order.
(e) the Purchaser hereby grants to us an irrevocable licence to enter at any time any vehicle or premises owned
or occupied by the Purchaser or in the possession of the Purchaser for the purposes of repossessing and
recovering any such goods the property in which has remained in us under paragraph (2) above. We shall not
be responsible for and the Purchaser will indemnify us against liability in respect of damage caused to any
vehicle or premises in such repossession and removal being damaged which it was not reasonably practicable
to avoid.
(f)
notwithstanding paragraph (3) hereof and subject to paragraph (7) hereof, the Purchaser shall be permitted
to sell the goods to third parties in the normal course of business. In this respect the Purchaser shall act in the
capacity of our commission agent and the proceeds of such sale :(i) shall be held in trust for us in a manner which enables such proceeds to be identified as such, and:
(ii) shall not be mixed with other monies nor paid into an overdrawn bank account.
We, as principal, shall remunerate the Purchaser as commission agent a commission depending upon the
surplus which the Purchaser can obtain over and above the sum, stipulated in this contract of supply which
will satisfy us.
(g) in the event that the Purchaser shall sell any of the goods pursuant to clause (6) hereof, the Purchaser shall
forthwith inform us in writing of such sale and of the identity and address of the third party to whom the goods
Page 27
have been sold.
if, before property in the goods passes to the
Purchaser under paragraph (2) above the goods are or
become affixed to any land or building owned by the
Purchaser it is hereby agreed and declared that such
affixation shall not have the effect of passing property
in the goods to the Purchaser. Furthermore if, before
property in the goods shall pass to the Purchaser
under paragraph (2) hereof, the goods are or become
affixed to any land or building (whether or not owned
by the Purchaser), the Purchaser shall:(i) ensure that the goods are capable of being removed
without material injury to such land or building.
(ii) take all necessary steps to prevent title to the
goods from passing to the landlord of such land or
building.
(iii) forthwith inform us in writing of such affixation and
of the address of the land or building concerned.
The Purchaser warrants to repair and make good
any damage caused by the affixation of the goods
to or their removal from any land or building and to
indemnify us against all loss damage or liability we
may incur or sustain as a result of affixation or removal.
(i) in the event that, before property in the goods
has passed to the Purchaser under paragraph (2)
hereof, the goods or any of them are lost, stolen,
damaged or destroyed :(ii) the Purchaser shall forthwith inform us in writing
of the fact and circumstances of such loss, theft,
damage or destruction.
(iii) the Purchaser shall assign to us the benefit of any
insurance claim in respect of the goods so lost,
stolen, damaged or destroyed.
14. NON-PAYMENT
If the Purchaser shall fail to make full payment for the goods
supplied hereunder within the time stipulated in clause 4
hereof or be in default of payment for any other reason then,
without prejudice to any of our other rights hereunder, we
shall be entitled to stop all deliveries of goods and materials
to the Purchaser, including deliveries or further deliveries of
goods under this contract. In addition we shall be entitled to
terminate all outstanding orders.
15. VALUE ADDED TAX
All prices quoted are exclusive of Value Added Tax which
will be charged at the rate ruling at the date of despatch of
invoice.
16. TRADE SALES ONLY
We are only prepared to deal with those who are not
consumers within the terms of the Unfair Contract Terms
Act 1977, the Sale of Goods Act 1979 and the Supply of
Goods and Services Act 1982. Accordingly any person who
purchases from us shall be deemed to have represented that
he is not a consumer by so purchasing.
17. JURISDICTION
The agreement is subject to English law for products
delivered in England and Scottish law for products delivered
in Scotland and any dispute hereunder shall be settled in
accordance therewith dependent upon the location.
18. PRODUCT DEVELOPMENT
Gledhill have a policy of continuous product development
and may introduce product modifications from time to time.
(h)
Terms and Conditions
Benchmark Checklist
Page 28
Where is the pressure reducing valve situated (if fitted)?
UNVENTED SYSTEMS ONLY
All appropriate pipes have been insulated up to 1 metre or the point where they become concealed
What is the hot water temperature at the nearest outlet?
Is the cylinder solar (or other renewable) compatible?
Yes
Yes
No
Yes
°C
Other
I/min
Time and temperature controls have been fitted in compliance with Part L of the Building Regulations?
Type of control system (if applicable)
°C
What is the maximum hot water flow rate at set thermostat temperature (measured at high flow outlet)?
No
No
No
bar
Open
What is the hot water thermostat set temperature?
S Plan
Yes
If yes, has a water scale reducer been fitted?
Y Plan
Yes
Is the installation in a hard water area (above 200ppm)?
What type of scale reducer has been fitted?
Yes
Sealed
Has a strainer been cleaned of installation debris (if fitted)?
What is the incoming static cold water pressure at the inlet to the system?
ALL SYSTEMS
What is the maximum primary flow temperature?
Is the primary circuit a sealed or open vented system?
ALL SYSTEMS PRIMARY SETTINGS (indirect heating only)
Building Regulations Notification Number (if applicable)
To be completed by the customer on receipt of a Building Regulations Compliance Certificate*:
Commissioning date:
Telephone number:
Company address:
Registered Operative ID Number
Company name:
Telephone number:
Commissioned by (PRINT NAME):
Cylinder Serial Number
Cylinder Make and Model
Address:
Customer name:
Failure to install and commission this equipment to the manufacturer’s instructions may invalidate the warranty but does not affect statutory rights.
This Commissioning Checklist is to be completed in full by the competent person who commissioned the storage system as a means of
demonstrating compliance with the appropriate Building Regulations and then handed to the customer to keep for future reference.
MAINS PRESSURE HOT WATER STORAGE SYSTEM COMMISSIONING CHECKLIST
°C
Page 29
Benchmark Checklist
No
No
No
Yes
Yes
Yes
Are
sourcescomplies
fitted withwith
a cut
device? Building Regulations
The all
hotenergy
water system
theout
appropriate
Has
the expansion
vessel
or internal
air space been
The system
has been
installed
and commissioned
in checked?
accordance with the manufacturer’s instructions
Yes
The manufacturer’s
literature,
including Benchmark Checklist and Service Record, has been explained and left with the customer
What
store temperature
is achievable?
Yes
The system controls have been demonstrated to and understood by the customer
© Heating and Hotwater Industry Council (HHIC)
*All installations in England and Wales must be notified to Local Authority Building Control (LABC) either directly or through a
Competent Persons Scheme. A Building Regulations Compliance Certificate will then be issued to the customer.
www.centralheating.co.uk
°C
°C
°C
°C
www.centralheating.co.uk
While this Checklist can be used for any installation covered by its description, only appliances manufactured by Scheme Members will
be covered by the rules and requirements of the Benchmark Scheme.
© Heating and Hotwater Industry Council (HHIC)
*All installations in England and Wales must be notified to Local Authority Building Control (LABC) either directly or through a
Competent Persons Scheme. A Building Regulations Compliance Certificate will then be issued to the customer.
(To confirm satisfactory demonstration and receipt of manufacturer’s literature)
Customer’s Signature
Commissioning Engineer’s Signature
Yes
Yes
The system has been installed and commissioned in accordance with the manufacturer’s instructions
The manufacturer’s literature, including Benchmark Checklist and Service Record, has been explained and left with the customer
Yes
Customer’s
Signature
ALL
INSTALLATIONS
(To
confirm
satisfactory
demonstration
receipt ofBuilding
manufacturer’s
literature)
The hot water system complies
with theand
appropriate
Regulations
What
is the maximum
hot water
temperature?
Commissioning
Engineer’s
Signature
Yes
The systemSTORES
controls have
been demonstrated to and understood by the customer
THERMAL
ONLY
No
Yes
Yes
No
bar
No
No
Yes
°CYes
The
and discharge pipework have been connected and terminated to Part G of the Building Regulations
ALL tundish
INSTALLATIONS
Whataiscombined
the maximum
hot water
temperature?
Has
temperature
and
pressure relief valve and expansion valve been fitted and discharge tested?
What is
store
is achievable?
What
the temperature
pressure reducing
valve setting?
Yes
Yes
THERMAL
Where
is theSTORES
pressureONLY
reducing valve situated (if fitted)?
Yes
Has the expansion vessel or internal air space been checked?
UNVENTED SYSTEMS ONLY
Yes
Yes
Areappropriate
all energy sources
fitted
withinsulated
a cut out up
device?
All
pipes have
been
to 1 metre or the point where they become concealed
The tundish
andwater
discharge
pipework
been connected
What
is the hot
temperature
at have
the nearest
outlet? and terminated to Part G of the Building Regulations
Has
combined
temperature
and pressure
relief valve and expansion valve been fitted and discharge tested?
Is
thea cylinder
solar
(or other renewable)
compatible?
Benchmark Service Record
Page 30
Signature
SERVICE 06
Signature
SERVICE 05
Company name:
Telephone No:
Comments:
Company name:
Telephone No:
Comments:
Engineer name:
Comments:
Comments:
Engineer name:
Telephone No:
Telephone No:
Date:
Company name:
Company name:
Engineer name:
SERVICE 04
Engineer name:
SERVICE 03
Comments:
Signature
Telephone No:
Comments:
Signature
Company name:
SERVICE 02
Engineer name:
Telephone No:
Date:
Date:
Company name:
Engineer name:
SERVICE 01
Date:
Date:
Date:
Before completing the appropriate Service Record below, please ensure you have carried out the service as described in the manufacturer’s instructions.
Service Provider
It is recommended that your hot water system is serviced regularly and that the appropriate Service Record is completed.
SERVICE RECORD
Page 31
Benchmark Service Record
SERVICE 08
SERVICE 07
SERVICE 10
SERVICE 09
Company name:
Telephone No:
Comments:
Signature
Company name:
Telephone No:
Comments:
Signature
Engineer name:
Signature
Signature
Engineer name:
Comments:
Telephone No:
Telephone No:
Comments:
Company name:
Company name:
Date:
Signature
Signature
Engineer name:
Comments:
Comments:
Date:
Telephone No:
Telephone No:
Engineer name:
Company name:
Company name:
Engineer name:
SERVICE 06
Date:
SERVICE 05
Engineer name:
Signature
Signature
Date:
Date:
Date:
TO REGISTER
CALL: 08000 420 430
VISIT: WWW.GLEDHILL.NET/UNIT-REGISTRATION
FOR TECHNICAL SUPPORT:
01253 474584
FOR ANNUAL SERVICE AND MAINTENANCE:
0800 3800 129
FOR SPARE PARTS:
01253 474412
OR
WWW.GLEDHILL-SPARES.NET
Gledhill Building Products Limited
Sycamore Estate,
Squires Gate,
Blackpool FY4 3RL
T: 01253 474550
[email protected]
WWW.GLEDHILL.NET
Due to a programme of continuous improvement Gledhill Building Products
reserve the right to modify products without prior notice. It is advisable to check
the product technical detail by using the latest design and installation manuals
available from our technical support team or on our website.It is an offence
to copy or adapt this document without consent of the owner.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
