Perfect Lift Window Treatment QGPO680640, QGLG200640, HDQGAL530720, QFCR200640, HDQGPO534720, QGLG564720, QFCR650640, QFLG530720, QFWT354720, QFCR464720 User manual

Perfect Lift Window Treatment QGPO680640, QGLG200640, HDQGAL530720, QFCR200640, HDQGPO534720, QGLG564720, QFCR650640, QFLG530720, QFWT354720, QFCR464720 User manual

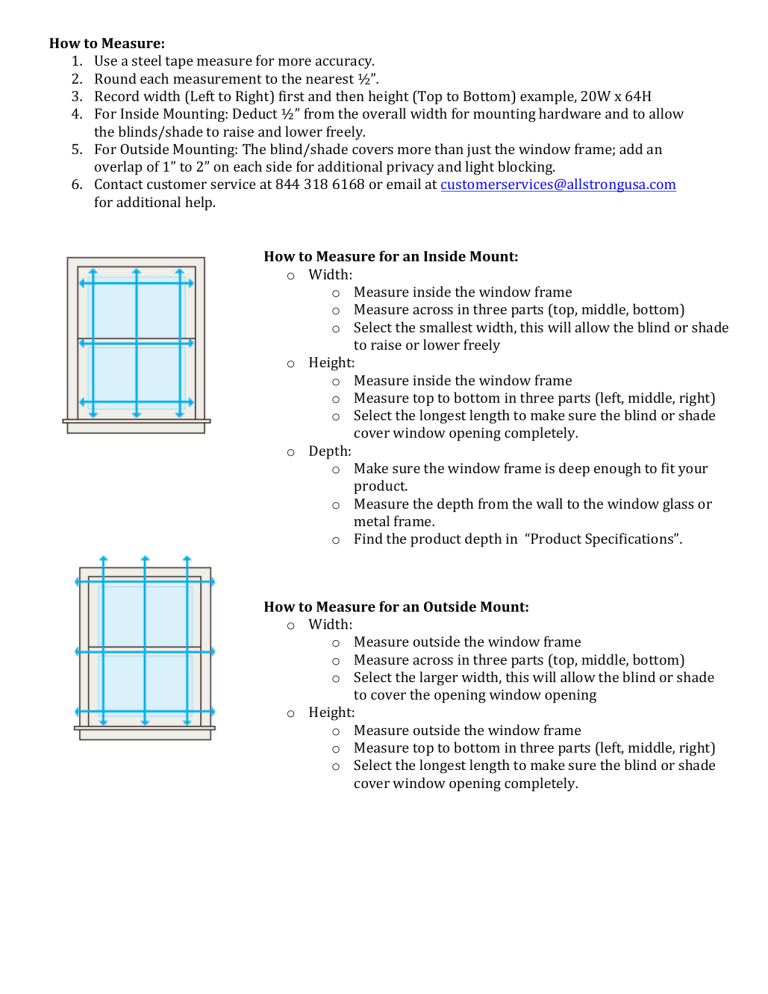

How to Measure: 1. Use a steel tape measure for more accuracy. 2. Round each measurement to the nearest ½”. 3. Record width (Left to Right) first and then height (Top to Bottom) example, 20W x 64H 4. For Inside Mounting: Deduct ½” from the overall width for mounting hardware and to allow the blinds/shade to raise and lower freely. 5. For Outside Mounting: The blind/shade covers more than just the window frame; add an overlap of 1” to 2” on each side for additional privacy and light blocking. 6. Contact customer service at 844 318 6168 or email at [email protected] for additional help. How to Measure for an Inside Mount: o Width: o Measure inside the window frame o Measure across in three parts (top, middle, bottom) o Select the smallest width, this will allow the blind or shade to raise or lower freely o Height: o Measure inside the window frame o Measure top to bottom in three parts (left, middle, right) o Select the longest length to make sure the blind or shade cover window opening completely. o Depth: o Make sure the window frame is deep enough to fit your product. o Measure the depth from the wall to the window glass or metal frame. o Find the product depth in “Product Specifications”. How to Measure for an Outside Mount: o Width: o Measure outside the window frame o Measure across in three parts (top, middle, bottom) o Select the larger width, this will allow the blind or shade to cover the opening window opening o Height: o Measure outside the window frame o Measure top to bottom in three parts (left, middle, right) o Select the longest length to make sure the blind or shade cover window opening completely.
