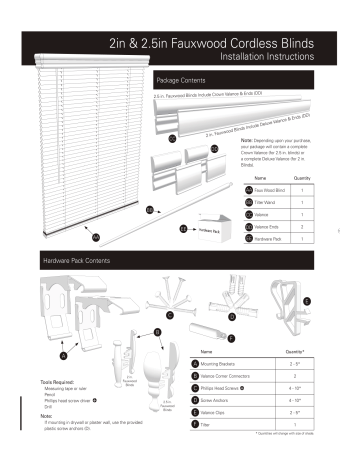

2In & 2.5in Fauxwood Cordless Blinds
Installation Instructions
LA
|
Package Contents
-
|
И
2 5 in. Fauxwood Blinds Include Crown Valance & Ends (DD)
|
е|
Note: Depending upon your purchase,
your package will contain a complete
Crown Valance (for 2.5 in. blinds) or
a complete Deluxe Valance (for 2 in.
Blinds).
Te
Name Quantity
)
@ Faux Wood Blind 1
Tilter Wand :
ZZ
-
|
|
WT H + . de x7 ; НН > J A т | | м - FRR 1
HH A + N 32 L _ | a
| \ \ \ ) О =
\ \ \ \ Л \ —
\ \ ( | >
\ О | | X
| Г | 2!) , Name Quantity
| | — | |
_ | | © | | | | |
L— || »
> |
N |=! ОЙ A) Mounting Brackets 2-5*
| “ | | N \ — 7
| | ain \ ER O Valance Corner Connectors 2
Tools Required: | Fauxwood -_— =
__) Blinds o x
Measuring tape or ruler © Phillips Head Screws © 4-10
Pencil “щи
Phillips head screw driver © - 2 5iin. (© Screw Anchors 4 - 10*
Drill ( Fauxwood
tu Blind
Not ee ne @ Valance Clips 2-5*
ote:
If mounting in drywall or plaster wall, use the provided (5) Tilter
plastic screw anchors (D).
* Quantities will change with size of shade.
Inside or Ceiling Mount Installation Instructions
Step 1 - Inside Mount - Install Mounting Brackets
Pencil mark the mounting screw holes
then pre-drill holes for mounting screws.
With mounting brackets (A) level and flush
with the window frame or ceiling, use the
provided Mounting Screws (C) and screw
through the top of the Mounting Brackets
(A) and tighten.
Note: If mounting to a drywall or plaster
wall, use the provided plastic screw
anchors (D).
Note: It is important to position the
mounting brackets where they will not
interfere with the function of the internal
parts of the headrail assembly.
Step 2 - Inside Mount - Attach Valance Clips And Hang Shade
Before hanging shade (AA), attach
the valance clips (E) by pressing them
downward onto the headrail assembly. You
will not be able to attach the clips once
the shade is installed, so they must be
attached prior to hanging the shade. See
fig. (a).
Insert the top front groove of the headrall
assembly into the upper holding clip of the
mounting brackets.
Rotate the headrail assembly until the back
of the headrail snaps and locks into the
mounting brackets (a).
Inside or Ceiling Mount Installation Instructions (continued)
Step 3 - Inside Mount - Attach the Tilter and Control Wand
Insert the Tilter (F) into the tilt control
mechanism in the headrail assembly by
aligning and pushing into the unit until it
clicks and locks into place.
Place the hook at top of Tilter Control
Wand (BB) through the hang hole in the
Tilter (F).
Step 4 - Inside Mount - Attach Valance (Optional)
Align the groove on the back of the Valance
(CC) with the Valance Clips (E) and push
back on valance (CC) until it snaps onto the
Valance Clips (E).
Outside Mount Installation Instructions
Step 1 - Outside Mount - Install Mounting Brackets
Pencil mark the mounting screw holes
then pre-drill holes for mounting screws.
With mounting brackets (A) level and flush
with the window frame or ceiling, use the
provided Mounting Screws (C) and screw
through the back of the Mounting Brackets
(A) and tighten.
Note: If mounting to a drywall or plaster
wall, use the provided plastic screw
anchors (D).
Note: It is important to position the
mounting brackets where they will not
interfere with the function of the internal
parts of the headrail assembly.
Step 2 - Outside Mount - Hang Shade
Lift blind (AA) into position and insert the
top front groove of the headrail assembly
into the upper holding clip of the mounting
brackets (A).
Rotate the headrail assembly until the
back of the headrail snaps and locks into
the mounting brackets (A).
Outside Mount Installation Instructions (continued)
Step 3 - Outside Mount - Attach the Tilter and Control Wand
Insert the Tilter (F) into the tilt control
mechanism in the headrail assembly by
aligning and pushing into the unit until it
clicks and locks into place.
Place the hook at top of Tilter Control
Wand (BB) through the hang hole in the
Tilter (F).
Step 4 - Outside Mount - Assemble & Install Valance (Optional)
Optional:
Insert the left and right side Valance
Corner Connectors (B) into the groove
located on the backside of the Valance
(СС). (Па. ЗА)
Attach both Valance Ends (DD) to each
Valance Corner Connector (B). (fig. 3B)
Attach the Valance Clips (E) to the headrail
assembly by pressing them downward
until they click into place. (fig. 3C)
Raise the assembled valance into position
and align the groove on the back of the
valance with the valance clips. Push back
on valance (BB) until it snaps onto the
valance clips (E). (fig. 3D)
Operation
|
|
44444244424
В
Rotate the tilter control wand clockwise or To lower the blind (AA) pull down from the To raise the blind (AA) push up from the bottom
counterclockwise to open or close the blind bottom to the desired position and release. to the desired position and release.
slats.
Cleaning
Periodic Vacuuming with proper attachments suggested. Spot clean with mild detergent free soap, testing first in an inconspicuous area.
One-Year Limited Warranty
What is covered under this warranty:
Entire product against manufacturing defects (i.e., a flaw in the product design,
materials or workmanship that causes the product to no longer function (properly).
What is NOT covered under this warranty:
* Normal wear and tear
Failure due to:
* abuse ® exposure to salt air ® improper installation ® accident ® extraordinary use * misuse * alterations
® improper operation ® improper cleaning ® misapplication ® damage from pets/insects ® improper handling
Any shade that has with the passing of time:
* loss of color intensity ® yellowing or cracking of plastic parts
Costs that are associated with:
e shipping ® product removal ® transportation to and from the retailer ® product remeasure
e incidental or consequential damages ® product reinstallation
Note: In the event there are multiple shades in the same room, only the defective shade will be replaced.
THIS SHALL BEYOUR SOLE REMEDY UNDER THIS WARRANTY:
If this product is found to have manufacturing defect in materials or workmanship, we will (at our discretion) do one of the following:
* repair the product * replace the product e refund the cost of the product
Note: Colors vary from lot to lot and may not match previous purchases exactly.
Discontinued items or color selections will be replaced with the closest equivalent current product.
To obtain warranty service:
If you suspect this product has a manufacturing defect in materials or workmanship:
1. Locate the sales receipt or your proof of purchase.
Your Rights under State Law:
This limited warranty gives you specific legal rights, and you may have other rights, which vary from state to state. Some states do not allow
limitations on how long a warranty lasts, so the above limitations may not apply to you. No representative or unauthorized employee has the
authority to increase or alter the obligation of this warranty. This limited warranty supersedes any previous versions.
