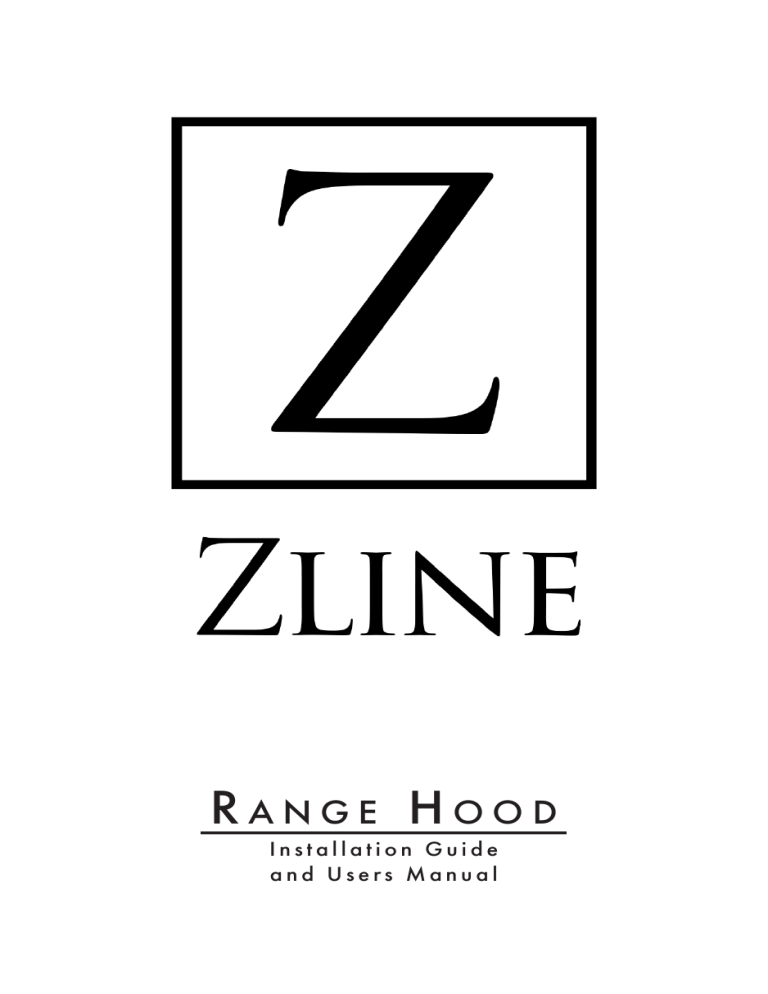

Range Hood
Installation Guide
and Users Manual
WARRANTY AND DISCLAIMER
CONTENTS
Warranty
Three Year Parts Warranty:
For three years from the date of original purchase, we will provide free of
charge, non-consumable replacement parts for the components that failed due to
IMPORTANT SAFETY INSTRUCTIONS
1
manufacturing defects. Subject to the conditions and limitations set forth below at its
WALL RANGE HOOD INSTALLATION
4
of improper workmanship or material. Repaired parts or replacement products will be
option, either repair or replace any part of its products that prove defective by reason
provided by www.therange-hoodstore.com on an exchange basis and will be either
CROWN MOLDING INSTALLATION9
new or refurbished to be functionally equivalent to new. The consumer is responsible
DESIGNER WALL RANGE HOOD INSTALLATION
10
limited to: light bulbs, metal, aluminum and charcoal filters.
ISLAND RANGE HOOD INSTALLATION
15
This warranty is extended to the original purchaser for products purchased for
for shipping costs. Consumable parts not covered by this warranty include but are not
Who is Covered:
ordinary home use in the continental USA.
UNDER CABINET INSTALLATION18
This Warranty Will be Void When:
RANGE HOOD INSERT INSTALLATION
and natural disaster, insufficient or excessive electrical supply. Abnormal mechanical
21
Product damaged through negligence, improper installation, accident, abuse, misuse,
or environmental conditions or any unauthorized disassembly repair, modifications
REMOTE BLOWER INSTALLATION24
or failure to follow the installation instructions or when product is used commercially
HOW TO CHANGE PARTS27
with equipment of other manufacturers. Repaired or modified by anyone other than
TROUBLE SHOOTING AND FAQ’S
the original identification information has been altered, obliterated or removed, has
39
Proper Venting Regulations
Please verify with your local, city and state regulations on the proper venting
method for your hood. Many agencies have CFM rating specifications for
your hood as well. You may have to purchase additional items on your own to
vent the hood in accordance with your local city and state specifications.
Our ZLINE dual motor range hoods come with an 8” metal transition piece
without a backdraft damper and a piece of 4’ metal ducting.
Our ZLINE single motor units come with a plastic 6” plastic transition piece
with a backdraft damper and a 4’ long piece of flexible ducting.
or other than its intended purpose or damaged because of improper connection
authorized agents This limited warranty does not apply to any product on which
not been handled or packaged correctly, has been sold as second-hand or resold
contrary to the US regulations.
What is Not Covered:
Consumable parts such as light bulbs, metal and charcoal filters. The natural wear
of finish, and wear due to improper maintenance, use of corro-sive and abrasive
cleaning products, pads and cleaning products. Chips, dents or cracks due to abuse,
misuse, freight damage (not reported), or improper installation. Damage of product
caused by accident, fire, flood or act of God, we are not liable for and is not covered
by warranty, any loss of properties or any cost associated with removing, servicing,
installing or determining the source of problems with our products.
Warranty and Disclaimer
Important Safety Instructions
to the purchaser and does not extend to subsequent owners of this product, any
Read all instructions before installing and operating this
appliance.
applicable implied warranties, including the warranty of merchantability are limited in
The installation instructions in this manual is intended for qualified installers, service
duration to a period of express warranty as provided herein beginning with the date
technicians or persons with similar qualified background. Installation and electrical
of original purchase at retail and no warranties, whether express or implied shall be
wiring must be done by qualified pro-fessionals and in accordance with all
applied to this product. All shipping charges for returns are the responsibility of the
applicable codes and standards, including first-rated construction.
purchaser.”
DO NOT attempt to install this appliance yourself. Injury could result from installing
This warranty is valid in the United States. It is non-transferable and applies only
Disclaimer
the unit due to lack of appropriate electrical and technical background.
Range hood may have very sharp edges; please wear protective gloves if it is
Carefully inspect all items for damages before accepting delivery. Customer
necessary to remove any parts for installing, cleaning or servicing.
should note any damages on the freight bill or express receipt. Request the name
Activating any switch ON before completing installation may cause ignition or an
and signature of the carrier’s agent and keep a copy to support your claim. Upon
explosion.
acceptance of items, owner assumes responsibility for its safe arrival. Report
Due to the size and weight of this range hood, two people installation is
damages to the carrier and file a claim immediately. Failure to do so may result in
recommended.
the denial of your claim. The carrier will furnish you with necessary forms for filing a
claim.
To reduce the risk of fire, electric shock, or injury to persons:
Damages caused during transit are not covered under our warranty. Please contact
For general ventilating use only. DO NOT use to exhaust hazardous or explosive
us to file an insurance claim.
materials and vapors.
Please inspect contents of package(s) carefully upon receiving them! We must be
The combustion air flow needed for safe operation of fuel-burning equipment may
notified of any damages and/or missing parts within (5) days upon your receipt of
be affected by this unit’s operation. Follow the heating equipment manufacturer’s
package(s). Claims will not be accepted after (5) days. NOTE: Items were thoroughly
guideline and safety standards such as those published by the National Fire
tested and carefully packed in our facility before shipping.
Protection Association (NFPA), and the American Society of Heating, Refrigeration
Products must be returned in good working condition with ALL original parts and
and Air Conditioning Engineers (ASHRAE), and the local code authorities.
documentation packed in all original cartons, fillers and shipping cartons. A
Before servicing or cleaning unit, switch power OFF at service panel and lock service
restocking fee of 15% will be charged for all approved returns. Exchanges or returns
panel to prevent power from being switched ON accidentally.
may not be accepted if any packaging is missing. Make certain to inspect the hood
Ducted fans MUST ALWAYS be vented to the outdoors.
for damages and defects before installation. Appearance flaws of the hood found
Use only metal ductwork, and this unit MUST be grounded.
after installation and not affecting the hood’s perfor-mance is not covered under our
Sufficient air is needed for proper combustion and exhausting of gases through the
warranty for returns or exchanges. Service visits not covered under warranty will
duct to prevent back drafting.
carry a service charge.
When cutting or drilling into a wall or ceiling, be careful not to damage electrical
Before Installation: Return for exchange or refund.
wiring or other hidden utilities.
After Installation: No exchange or refund.
1
Important Safety Instructions
Important Safety Instructions
All electrical wiring must be properly installed, insulated and grounded.
Use an extinguisher ONLY if:
Old duct work should be cleaned or replaced, if necessary, to avoid the possibility of
You know you have a Class A, B, C extinguisher and you already know how to
a grease fire.
operate it.
Check all joints on duct work to insure proper connection, all joints should be
The fire is small and contained in the area where it is started.
properly taped.
The fire department is being called.
Use this unit only in the manner intended by the manufacturer. If you have any
You can fight the fire with your back to an exit.
questions, contact the vendor.
Keep all fans, baffle, spaces, filter, grease tunnel, oil container and grease-laden
To reduce the risk of injury to persons in the even of gas leaks:
surfaces clean. Grease should not be allowed to accumulate on fan, baffle, spaces,
Extinguish any open flame.
filter, grease tunnel or oil container.
DO NOT turn on the lights or any type of appliance.
Clean grease-laden surfaces frequently. To reduce the risk of fire and to disperse air
Open all doors and windows to disperse the gas. If you still smell gas, call the gas
properly, make sure to vent air outside. DO NOT vent exhaust into spaces between
company and fire department.
walls, crawl spaces, ceilings, attics or garages.
Always turn range hood ON when cooking at high heat or when cooking flaming
Your safety and the safety of others is very important. We have provided many
foods.
important safety messages in this manual and on your appliance. Always
Use high settings on cooking range only when necessary.
read and obey all safety messages. All safety messages will tell you what the
Never leave surface units unattended at high settings. Boil overs cause smoking and
potential hazard is, tell you how to reduce the chance of injury, and tell you what
greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
can happen if the instructions are not followed.
Clean ventilating fan frequently.
Always use appropriate cookware and utensils size.
This is the safety alert symbol. This symbol alerts you to potential
Always use cookware appropriate for the size of the surface element.
WARNING
To reduce the risk of injury to persons in the event of a stove top
grease fire:
hazards that can hurt you and others. All safety messages will follow
the safety alert symbol.
Smother flames with a close fitting lid, cookie sheet or metal tray, then turn OFF the
burner. Never pick up a flaming pan—you may be burned.
Keep flammable or cobustible material away from flames. If the flames do not go out
immediately, evacuate and call the fire department.
DO NOT use water, including wet dishcloths or towels—a violent steam explosion
will result.
2
3
Wall Range Hood Installation
Wall Range Hood Installation
Please unpack your range hood when it is delivered and inspect to ensure all parts
are included.
Parts Supplied
1. Main Hood with All Lights and Button
5. Flexible Duct (for 6” or 8”)
Banks Pre-Installed
6. Packet of Screws and Anchors
2. Adjustable Stainless Steel Chimney Cover 7. Top Mounting Bracket
3. Transition Piece (for 6” or 8”)
8. Grease Cup
4. Baffle Filters
E
B
F
A
A
D
C
B
C
D
E
F
6
*Note: Wall range hoods with single motors will come with a square to 6˝ round
transition piece and will include a back draft damper. The ducting with these range
hoods is 6˝. Dual motor wall hoods will come with a square to 8˝ round transition
piece without a back draft damper. The ducting with these range hoods is 8˝.
*Use rigid ducting wherever possible. Try and minimize the use of elbows. More
elbows and lon-ger runs create higher static pressure. The hood comes with a
grounded three prong plug that can either be direct wired or plugged into a 20 amp
4
Installation Tutorial Video
circuit.
5
Wall Range Hood Installation
Wall Range Hood Installation
The recommended height to install your hood is 30˝ minimum and 36˝ maximum
Step 5
above the cooktop.
Install the transition piece securing it with the screws provided. Figure 4
For Outdoor (304 Series) hood installation, the unit must be installed at a minimum of
Step 6
36˝ above the grill.
Make your electrical and ducting connections. Try and minimize the use of elbows.
Step 1
More elbows and longer runs create higher static pressure. The hood comes with a
Find the center of the wall where you are installing the hood. Make sure there is
grounded three prong plug that can either be direct wire or plugged into a 20 amp
sufficient bracing to hold the weight of the hood. Mark your center line and measure
circuit. Figure 5
out from the center to find your two mounting points. Make sure your mounting points
are level when you mark them. It is recommended to install the hood directly into
Step 7
wood supports. Figure 1
Connect the ducting to the transition piece using a ring to hold it into place. Attach the
ducting to the range hood. Figure 6
Step 2
Mark the mounting points and install the two mounting screws provided leaving the
heads out ¼˝ to mount the hood. Figure 1
Step 3
Mount the main body of the hood to the two screws and screw into place. Figure 2
Step 4
Mount the top chimney mounting bracket centering it above the hood. Figure 3
D
C
Figure 4
Figure 2
Figure 5
6
Figure 1
Figure 3
Figure 6
7
Wall Range Hood Installation
Crown Molding Installtion
Before installing baffle filters, make sure that you insert the grease cup under the
If using a crown molding, follow instructions before attaching ducting and chimney
motor blower.
sections.
Step 8
Step 1
Install the two part chimneys on top of the hood. Slide the inside section up until the
Attach crown molding bracket to ceiling using hardware provided.
vertical vent slots are visible, attach top portion to mounting bracket with screws.
Secure lower chimney portion to the hood with screws provided.
Step 2
Figure 7
Attach ducting and electrical connections.
Step 9
Step 3
Install plastic drip cup by sliding into brackets located at the bottom of the motor.
Attach chimney sections to the range hood, then connect to crown molding bracket.
Install baffle channel and baffle filters. Not all models include baffle channels.
Step 4
Figure 8
Slide crown molding onto crown bracket and secure into place.
Figure 7
Figure 8
8
Installation Tutorial Video
9
Designer Wall Range Hood Installation
Designer Wall Range Hood Installation
Please unpack your range hood when it is delivered and inspect to ensure all parts
are included.
Parts Supplied
1. Main Hood with All Lights and Button
6. Packet of Screws and Anchors
Banks Pre-Installed
7. Top Mounting Bracket
2. Chimney
8. Crown Molding Bracket
3. Transition Piece (for 6” or 8”)
9. Crown Molding
4. Baffle Filters
10. Grease Cup
5. Flexible Duct (for 6” or 8”)
E
B
F
A
B
C
D
E
F
6
A
D
C
*Note: Wall range hoods with single motors will come with a square to 6˝ round
transition piece and will include a back draft damper. The ducting with these range
hoods is 6˝. Dual motor wall hoods will come with a square to 8˝ round transition
piece without a back draft damper. The ducting with these range hoods is 8˝.
*Use rigid ducting wherever possible. Try and minimize the use of elbows. More
elbows and lon-ger runs create higher static pressure. The hood comes with a
grounded three prong plug that can either be direct wired or plugged into a 20 amp
10
Installation Tutorial Video
circuit.
11
Designer Wall Range Hood Installation
Designer Wall Range Hood Installation
The recommended height to install your hood is 30˝ minimum and 36˝ maximum
Step 5
above the cooktop.
Make your electrical and ducting connections. Try and minimize the use of elbows.
For Outdoor (304 Series) hood installation, the unit must be installed at a minimum of
More elbows and lon-ger runs create higher static pressure. The hood comes with a
36˝ above the grill.
grounded three prong plug that can either be direct wire or plugged into a 20amp.
circuit. Figure 4
Step 1
Find the center of the wall where you are installing the hood. Make sure there is
Step 6
sufficient bracing to hold the weight of the hood. Mark your center line and measure
Install the transition piece securing it with screws provided. Figure 5
out from the center to find your two mounting points. Make sure your mounting points
are level when you mark them. It is recommended to install the hood directly into
Step 7
wood supports. Figure 1
Connect the ducting to the transition piece using ring to hold into place. Figure 6
Step 2
Mark the mounting points and install the two mounting screws provided leaving the
heads out ¼˝ to mount the hood. Figure 1
Step 3
Mount the main body of the hood to the two screws and screw into place. Figure 2
Step 4
Mount the crown molding bracket centering it above the hood. Figure 3
D
C
Figure 4
Figure 2
Figure 5
12
Figure 1
Figure 6
13
Designer Wall Range Hood Installation
Island Hood Installation
Step 8
Find the center of the wall where you are installing the hood. Make sure there is
sufficient bracing to hold the weight of the hood. Mark your center line and measure
out from the center to find your two mounting points. Make sure your mounting points
are level when you mark them. It is recommended to install the hood directly into
wood supports. Figure 7
Step 9
Mark the mounting points and install the two mounting screws provided leaving the
heads out ¼˝ to mount the hood. Figure 8
Step 10
Mount the main body of the hood to the two screws and screw into place. Figure 9
Figure 7
14
Figure 8
Figure 9
Installation Tutorial Video
15
Designer Wall Range Hood Installation
Island Hood Installation
The recommended height to install your hood is 30˝ minimum and 36˝ maximum
Step 6
above the cooktop.
Slide chimney pieces over the angle iron on the hood. Pull the electrical plug to the
For Outdoor (304 Series) hood installation, the unit must be installed at a minimum of
top of the chimney sections. Figure 4
36˝ above the grill.
Step 7
Step 1
Lift the hood to attach the angle iron to the ceiling bracket. Use screws provided to
Locate the center above the stove where the hood is to be installed. Ensure that
attach.
the bracket will be secured to solid wood backing. Attach mounting bracket to the
Figure 1
ceiling.
Step 8
Make your electrical and ducting connections. Use rigit duct wherever possible. Try
Step 2
and minimize the use of elbows. More elbows and longer runs create higher static
Attach the transition piece and ducting to top of the
pressure. The hood comes with a grounded three prong plug that can either be direcly
hood. Figure 1 and 2
wired or plugged into a 20 amp circuit.
Figure 2
Step 3
Step 9
Attach the four long angle iron pieces to the hood’s
Slide top chimney piece up over the mounting bracket on the ceiling and secure it in
motor housing. Figure 3
place with the provided screws. Figure 5
Step 4
Step 10
Determine desired height and attach the four short
Install stainless steel baffle filters. Before installing baffle filters, make sure that you
angle iron pieces to the long angle iron pieces that
insert the grease cup under the motor blower.
are attached to the hood. Figure 3
Step 5
Install the duct
work in the
center of the
ceiling bracket.
16
Figure 3
Figure 4
Figure 5
17
Under cabinet Installation
Under cabinet Installation
Preparation
Decide the location of the venting pipe from the hood to the outside.
Check hood for clearance.
A straight, short vent run will alllow the hood to perform more efficiently.
Try to avoid as many transitions, elbows, and long runs as possible. This may reduce
the performance of the hood.
For installing under the cabinet with recessed bottom, attach 4-inch wide wood filler
strips (not provided) on each side.
Puncture the knockout holes (for mounting under the cabinet) on the hood.
Step 1
Measure distance between stove
top and the bottom of the range
hood. A distance of 30” to 36” is
recommended.
Step 2
Attach mounting brackets to the
back of the hood.
Step 3
Mark the leveling point of the
hood. Position two mounting
screws on teh wall, leaving ¹/₈”
space away from the wall. Make
sure that you are mounting the
hood to a secure backing to hold
the weight of the hood.
Step 4
Tighten ducting (provided) with
the hose clamp provided. Use
silver or duct tape wherever
18
Installation Tutorial Video
needed.
19
Under cabinet Installation
Step 5
Under-Cab Rear Ducting Conversion
If you need to convert your under cabinet range hood to rear ducting please follow
the instructions below. Please note that converting the
Draw electrical wires through cabinet access opening, center the hood beneath the
undercab to rear ducting is a modification of the standard
cabinet.
hood and part of the installation process. It is recomended
Step 6
that the hood is inspected before this procedure. If you are
uncomfortable doing this process on your own, you can
Align hood-mounting
have our team professionally do it for a $50 fee* prior
brackets to the screws on
to shipping.
the wall and hook hood
into place. Tighten screws
to secure hood to the wall.
Step 7
Step 1
First remove the screws from the stainless steel panel. The
small screws attach the panel to the range hood while the
larger screws attach the panel to the motor.
Connect ducting.
Step 2
Remove the panel from the hood
Step 3
Remove the blower/motor from the range hood. Be careful
not to pull and disconnect the attached wiring.
Step 4
Rotate the blower/motor so that the opening is facing out
the rear of the range hood.
Step 5
Replace the panel so that the opening aligns with the
opening of the blower/motor.
Step 6
Attach the panel to the range hood then attach the
blower/motor to the panel using the larger screws.
20
21
Range Hood Insert Installation
Range Hood Insert Installation
When installing a range hood insert, it is
recommended to install the unit at a minimum of 30˝
Figure 1
from the cooktop.
For outdoor range hood inserts it is recommended to
install the unit at a minimum of 36˝ from the grill top.
Step 1
Figure 1
Unpack contents of the hood. Attach transition piece
and ducting to the otp of the range hood insert.
Figure 1 and 2
Step 2
Figure 2
Using L brackets and screws provided, attach L
brackets to each side of the insert.
Step 3
Lift the range hood insert into cabinet or custom
hood structure. Figure 3
Step 4
Figure 3
Follow instructions for wall hood mount to mount
the range hood.
Due to some installation differences with custom
hoods the L brackets may not work. Before
installing insert please determine if the insert will
work for your installation needs. You may predrill holes into the insert unit to accommodate for
Figure 4
custom hood installations.
Note: Electrical cord is 26’ in length.
Make certain to connect the electrical cord to
the hood and plug the blower motor in to test the
22
Installation Tutorial Video
unit.
23
REMOTE BLOWER INSTALLATION
REMOTE BLOWER INSTALLATION
When installing your new remote blower type range hood, follow the instructions for
Step 5
the type of hood you are installing. If you are installing a wall, Island, under cabinet
Run electrical cord (provided) back to the
or insert hood then you will follow those instructions. This portion of the manual will
range hood (up to 26’).
explain how to install the remote blower for your range hood.
Step 1
Step 6
Install a regular outlet with a 20 amp
Run duct work into the area that you will intall the remote from your range hood.
circuit.
Step 2
Step 7
Fasten ducting to the range hood using a hose clamp and silver/duct tape.
The hood comes with a grounded 3 prong
Step 3
Use the least amount of elbows as possible.
Step 4
grounded plug.
Step 8
Run duct work to the outside of the house
and add a back draft damper outside.
Mount the remote blower to studs only.
NOTE: The remote blower must be kept inside the home, attic or crawl space etc.
Never try to install a remote blower outside of the home.
24
25
REMOTE BLOWER INSTALLATION
How to Change Parts
How to Change Out the Button Panel
1. Remove baffle/aluminum filters.
2. Locate back of button panel.
3. Remove screws from each side of the button panel.
4. Disconnect button panel from cord connecting to circuit board.
Note: Never work on or clean the range hood while power is ON. Always unplug
the unit or swtich the electrical breaker to the off position.
Installation
Tutorial
Video
The Remote Blower is designed for our Remote Range Hoods. This unit is installed
remotely in the interior of your home. This provides venting, but with reduced noise.
T85 Remote Blower—Single Motor
Switch
(This Blower must be used with Remote Blower Hood)
Airflow 280 / 400 / 580 / 900 (CFM)
Noise Level: 1.2 / 2.6 / 4.2 / 6.5 (Sones)
Dimensions: 26.14 x 14.6 x 13
T95 Remote Blower—Dual Motor
110-120V
60Hz
wh
bk
(This Blower must be used with Remote Blower Hood)
Airflow 280 / 460 / 670 / 1200 (CFM)
wh
Noise Level: 1.2 / 2.8 / 5.0 / 7.0 (Sones)
Dimensions: 26.14 x 14.6 x 13
26
Transformer
2x12V
max 20W
16 hF/250V C
wh br bk rd bu
or ye
M~
27
How to Change Parts
How to Change Parts
How to Replace the Circuit Board:
Replacing the Light Bulbs in Your Range Hood:
1. Turn the power off at the breaker and unplug the Range Hood.
Use 20 watt MR11 Halogen Bulb or a 2.5 watt LED Bulb for replacement.
2. Remove all screws from the top of the circuit board cover.
3. Take a picture of the wiring layout (this will help you put the circuit board back
together properly).
4. Remove the wiring connected to the circuit board.
5. Remove the screws from the circuit board.
6. Replace the wiring and screws to reassemble the new circuit board per the
diagram below.
Note: Never work on or clean the range hood while power is ON. Always unplug
1. Remove baffles.
the unit or swtich the electrical breaker to the off position.
2. Gently press light casting out until it falls out of the socket, disconnect the plug
wires.
3. Press both sides of teh mounting clip to remove the light bulb (be certain not to
touch the bulb).
4. Pull light from the receptacle plug.
6. Press mounting clip back into position.
7. Reconnect light plug connection.
8. Press light assembly into the socket.
Note: Never work on or clean the range hood while power is ON. Always unplug
the unit or swtich the electrical breaker to the off position.
Installation Tutorial Video
28
29
How to Change Parts
How to Change Parts
Professional Series Baffle Filter Change:
Baffle Filter:
Covering Models 696 / 697 / 697 Island / KECOM / KECOM Island / 695 ,
The Baffle Filter is equipped with a spring loaded handle. To remove from the hood,
698, and 721 Inserts
pull back toward the wall and down. The Baffle Filter can also be opened for easy
Professional series hoods are equipped with 2 removable dishwasher safe baffle
cleaning. To open, unscrew the cylindrical handle and separate the layers to clean.
channels (one for series 695 and 698 inserts) that the baffle filters sit into. To install
the channel, place inside the hood and slide into place with the edge of the hood
fitting in between the channel and the installation pieces installed on the back of the
channel.
To install filters, first install the remov-able baffle channel. Next, take the filter and
put one end into the permanent baf-fle channel. Push back into place and pull down
sliding the bottom of the filter in.
Note: Never work on or clean the range hood while power is ON. Always unplug
the unit or swtich the electrical breaker to the off position.
Aluminum Filter:
To remove the filter, pull the spring loaded handle back toward the wall and down.
Installation
Tutorial
Video
30
31
How to Change Parts
How to Change Parts
Change/Replace Capacitor:
Replace or Change Charcoal Filters:
1. Remove screws from the circuit board cover.
It is recommended to direct vent the hood whenever possible.
2. Remove screws from compacitor.
If your situation does not allow for a direct vent install, carbon filters are available to
3. Remove both wired connections from the capacitor.
recirculate the air through your hood.
4. Connect new capacitor with wire connectors.
5. Replace screws in cover.
6. Repeat operation if dual motor.
Note: Some units have more than one motor. If you have a unit with dual motors,
there will be two capacitors.
Note: Never work on or clean the range hood while power is ON. Always unplug
the unit or swtich the electrical breaker to the off position.
Filter Support Screws
1. Remove the stainless steel or aluminum filters from the bottom of the hood.
2. Locate the existing raised support screws on each side of the internal motor(s).
3. For each motor side, position the filter over its support screw and rotate to lock into
place.
Installation
Tutorial
Video
Note: Replacement is recommended after 130 hours of cooking or 6 months of
operation. Replace more often if your cooking habits generate more grease.
Note: Never work on or clean the range hood while power is ON. Always unplug
the unit or swtich the electrical breaker to the off position.
Installation Tutorial Video
32
33
How to Change Parts
How to Change Parts
How to Clean, Install, or Replace the Grease Cup:
Replace or Change Transformer:
A removable grease cup is provided to catch any excess greatse at the bottom of the
1. Remove the screws from the transformer.
motor. Remove it every 2 to 3 months, wash it, then re-install it.
2. Remove the two connections to the lights.
Note: Never work on or clean the range hood while power is ON. Always unplug
3. Remove the two wired connections from the circuit board (you must remove the
the unit or swtich the electrical breaker to the off position.
circuit board cover).
4. Install the new connections from your new transformer (be certain the correct wires
are connected).
5. Reinstall the cover for the circuit board with screws.
6. Replace all screws in the transformer.
7. Reconnect the lights to the transformer.
Note: On Units with three or more lights, there will be dual transformers.
Note: Never work on or clean the range hood while power is ON. Always unplug
the unit or swtich the electrical breaker to the off position.
Installation Tutorial Video
Installation Tutorial Video
34
35
How to Change Parts
How to Change Parts
Dual Motor Electrical Diagram:
Single Motor Electrical Diagram:
Switch
Switch
110-120V
60Hz
110-120V
60Hz
wh
bk
wh
Transformer
2x12V
max 20W
wh
bk
16 hF/250V C
wh br bk rd bu
or ye
M~
wh
Transformer
2x12V
max 20W
16 hF/250V C
wh br bk rd bu
or ye
M~
2x170W
16 F/250V C
or ye
M~
36
37
How to Change Parts
Button Control Panel Operation:
Trouble Shooting and FAQs
No Power
1. Check electrical connections.
2. Check that all connections to the cicuit board are secure.
3. If problem still exists, the circuit board needs to be replaced.
What size hood should I choose for CFM purposes?
1. You must determine the output of the cooktop burners of your range; this is
Button functions
measured in British Thermal Units (BTU’s).
Power: Power ON/OFF the range hood and activate power-off delay
2. You should provide 100 CFM of airflow per linear foot of range. To determine
timer.
this, divide the BTU rating of your range by 100. This will give you the rating of the
Light: Turns ON/OFF and dim lights.
Cubic Feet per Minute (CFM’s) rating needed of your range hood. For example: If
Blower Speed Indicator: Shows current blower (motor) speed (1-4).
your range is 35,000 BTUs, your range hood should have a rating of 350 CFM’s or
Low Speed-Light frying/boiling
greater.
Medium Speed-Frying/wok cooking/heavy boiling
3. To determine the size of the range hood for satisfactory capture, it is recommended
High-Grilling, intensive frying and wok cooking
to go at least one size larger than your range, about 3˝ to 6˝ wider. At minimum, it
Controls
should be the same size of your range. The range hood width should cover 100% of
Adjusting the blower (motor) speed:
the back burners and 50% of the front burners.
Press power button once to turn on the system.
4. The height of your range hood should be between 30˝ to 36˝ above your
Press the speed buttons for the desired speed. Speed may be increased and
cooktop. Example: 60,000 BTU’s = 600CFM’s
decreased.
The blower speed indicator shows the blower (motor) speed level next to How loud is the range hood?
the speed button selected will increase the speed of the blower (motor) from
A sone is measure of loudness, the higher the sone rating, the louder the sound of the
1 to 4 (quietest to strongest).
hood. The sound of one sone is comparable to that of a quiet refrigerator. Keep in
Adjusting the timer function:
Turn the hood on at any speed, press the power-off delay button to enter
mind that other factors such as the size of the blowers can affect the loudness of the
range hood. The higher the CFM, the louder the sone rating will be.
timer mode, a 3 flashes in the display, power-off delay digital timer will
begin countdown. After approximately 3 minutes when it reaches zero, the
Can my hood be ductless?
blower (motor) will shut down.
Ideally, it is better to duct your range hood to the outside, but if this is not possible,
Adjusting the light:
ductless is a great alternative. Many of our range hoods do have the capability to
Press light button once to turn on the lights, and once again to turn off the
be converted to ductless. Ductless is when the air circulates through the carbon filter
lights.
removing odors, grease, smoke etc. The clean air is re-circulated back into your home
through carbon/charcoal filters. These filters are not reusable and will need to be
changed out once every six months, de-pending on cooking style and frequency.
38
39
Trouble Shooting and FAQs
Trouble Shooting and FAQs
What type of stainless steel are our hoods made of?
What is the best way to duct my range hood?
Our indoor stainless steel hoods are made with a 430 stainless steel. Our outdoor
To maximize your range hood’s performance, match your duct size to the original
hoods are made of 304 stainless steel, this type is stronger and more resistant to rust
size of the fan’s ducting. Use the shortest amount of ducting as possible and keep the
and corrosion.
ducting as straight as possible. Do not exceed 40 feet of ducting. For every elbow
deduct five feet from the total.
Do I need a chimney extension or a shortening kit when I
purchase my hood?
Do I have to exhaust the range hood to the outdoors?
Your hood will come with a default chimney that has a telescoping chimney to allow
Yes. If installing a range hood that has ductwork connected to it (any hoods that do
for an ad-justable mounting height for a ceiling of up to 9 to 9.5 feet. An extension
NOT recirculate the air back into the room), to properly exhaust the air, be sure to
is needed for a ceiling from 10´ to 12´ tall. A short chimney is recommended for a
duct the air out side. DO NOT vent exhaust air back into the spaces within the walls,
ceiling height of 8ft, however mea-sure to be certain. All extensions and short kits will
ceilings, attics, crawl spaces, or garages. A buildup of humidity and grease could
come with brackets that go specifically with that chimney.
cause damage and/or a fire risk to your home.
How many amps?
My hood is operating but the air is moving slower than normal.
For dual motors it is up to 6amps. For single motors it is 3 amps.
Check the filter for buildup and clean or replace it if needed. If the difficulty still
persists, check for obstructions in the ductwork. A common obstructioin is buildup in
What type of motor is in the range hoods?
the roof or wall cap, such as: bird nests or other debris.
Our hoods have a squirrel cage motor.
My hood is making a rattling noise.
Is the width of my range hoods description, the actual size?
This is probably attributed to one of the following:
No, the actual size of the range hood will be slightly less than the generic description
1. The motor is loose—Turn off the power and remove the filter and check that all
of the range hood. For instance: a 30˝ range hood will most likely be 29-7/8˝. Refer
screws are secure and tight around the motor.
to your partic-ular model for the exact width.
2. The duct work connection is loose—Turn off the power to the unit and check that
the ductwork connection to the pipe is tight. Add duct tape if necessary.
How do I clean my grease filter and how often?
Your grease filter should be washed with hot water and detergent once per month or
What is make-up air?
placed in a dishwasher for cleaning. Make certain the filter is completely dry before
When the range hood ventilates the air out of the room, the air vented must be
reinstalling. Re-place the grease filter if it becomes damaged or too dry to clean.
replaced, this is called make-up air. We do not currently provide a make-up air unit.
NOTE: Always consult any applicable building codes in your area in regards to
Can I clean my charcoal, odor filter?
minimum and maximum air flow rates. Certain states may require additional items
No, charcoal odor filters cannot be washed and must be discarded and replaced,
such as make-up air for larger CFM range hoods (typically over 300 CFM).
when they become noticeably dirty, have stopped filtering the odors, or at least once
per year.
40
41
Trouble Shooting and FAQs
How do I order replacement parts?
Replacement parts can be ordered by contacting our customer service department.
All hoods have a three year warranty on parts. Have your model number or order
number available when calling customer service.
My range hood will not operate.
1. Check that there is power to the range hood. The most common issue is that the
circuit breaker is off or the fuse has blown.
2. Make sure the speed has been selected at the range hood controls.
3. Turn off the power to the range hood and check that all wires are properly
connected. Refer to your specific model’s installation instructions for proper wiring.
Thank you for joining the ZLINE family
42
43
Z
Zl ne
Kitchen and Bath
Two Locations:
916 Delaware Avenue
Marysville, Ohio 43040
350 Parr Circle
Reno, NV 89512
www.zlinekitchen.com
1-614-777-5004
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
