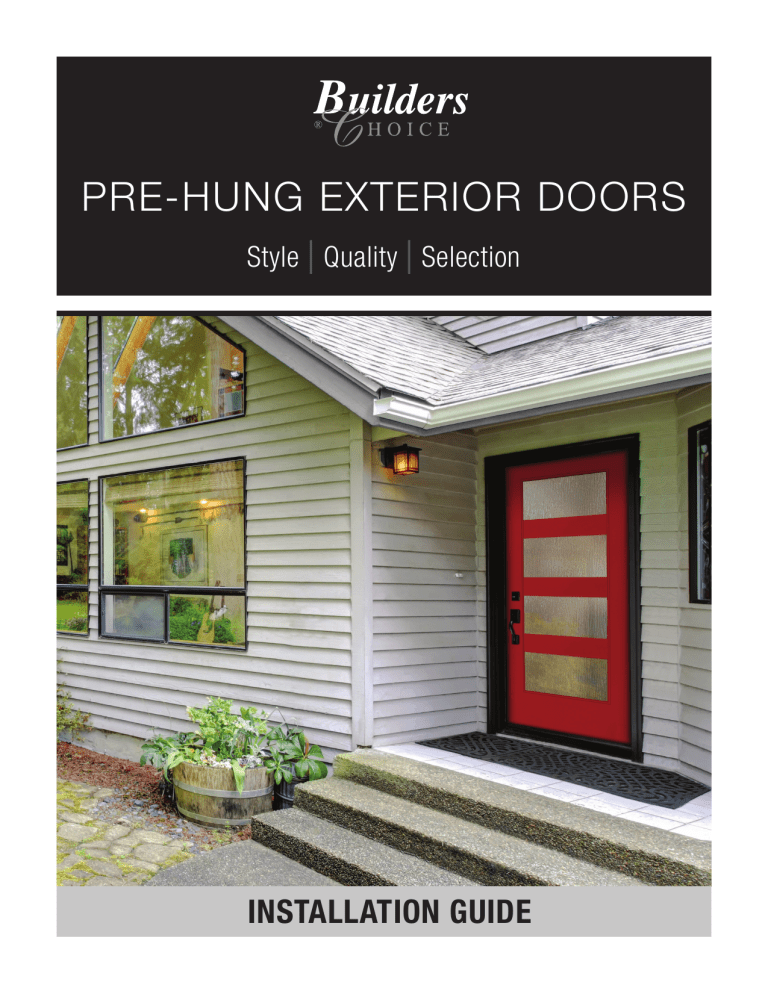

PRE-HUNG EXTERIOR DOORS
Style | Quality | Selection
INSTALLATION GUIDE
PRE-HUNG EXTERIOR DOOR INSTALLATION
Builder, Subcontractor or Supplier:
Please forward these instructions to the homeowner. The application performance standards for these products may be governed by
the International Residential Code, International Building Code and other state and jurisdictional requirements.
Installation Instructions for Pre-hung Door Systems
REQUIRED TOOLS & MATERIALS:
These installation instructions are designed to assist door installers who have an
understanding of carpentry principles, and know how to properly and safely use power
tools. The purpose of these instructions is to illustrate how to install a Builders Choice
door system using methods and materials that help eliminate water related leaks. If the
directions are closely followed, the door system will have a long useful life with good
resistance to rain related water intrusion problems.
• 2-Foot & 6-Foot Levels
• Hammer
• Putty Knives (firm & flexible)
• Framing Square
• Caulking Gun
• Sturdy Ladder
• Shims
• Tape Measure
• High Quality Elastomeric
or Polyurethane Sealant
• Optional Sill Pan
• Screw Gun/Drill -1/8 inch Drill Bit
• Razor Knife
•#2 & #3 Phillips Bit
• Stapler
• Insulating Material
• Eye Protection
• Water Resistive Barrier
• Flashing Material
•#8 x 2-1/2 inch Exterior Grade Screws
These methods are tried-and-true. They are used widely by builders and remodelers who
are serious about managing and keeping water outside the home. If you remain unclear,
please seek more professional assistance with the installation.
Different parts of the country have different code requirements, which may not be
covered in these instructions. The installer is responsible for insuring the installation
complies with local codes.
If disturbing existing paint, take proper precautions if lead paint is suspected
(commonly used before 1979). For information regarding lead paint regulations, refer to
www.epa.gov/lead. For products being removed, always ensure that these products are
properly disposed of or recycled in accordance with local jurisdictional requirements.
Read all instructions before starting.
Builders Choice Recommended Best Practices | Use Water Resistive Barrier and Flexible Flashing:
We recommend the use of a Water Resistive Barrier (WRB) applied to the exterior sheathing (OSB or other) and the use of an adhesive
or flexible flashing product to seal around the opening. The WRB should be cut in the opening (follow manufacturer’s guidelines)
with the head of the flap taped up, to be sealed later in Step 11. The flashing should be applied in an overlapping manner as shown,
always working from the bottom up (follow manufacturer’s guidelines). Use a sill pan: We recommend you first “dry fit” the sill pan
in the opening, following the instructions furnished with the sill pan. Place the right and left sill pan ends tight against the sides of the
opening. Check the center section for proper length and if necessary, cut with a hack saw or tin snips. Be sure to allow 2 inches of
overlap at the joints.
Never install door frame in
direct contact with concrete.
NOTE: Use only the PVC
cement provided in the sill
pan kit to glue the pieces
together. The sill pan must
be sealed to the sub-floor
using an elastomeric or
polyurethane sealant, but
DO NOT apply sealant to the
bottom of the sill when using
a sill pan.
WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance know to the state of California to cause cancer.
Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information, go to www.P65warnings.ca.gov
2
STEP 1: Check Door Unit
Check width and height.
Measure size of frame (width and height), not brickmould.
Remove cleats and packaging, but keep door fastened closed with transport clip.
DO NOT remove the transport clip until instructed to do so later in Step 7.
STEP 2: Check & Prepare Opening
Is the opening the correct size for the door unit? Check it against the door frame size
now, before installation. The opening should be frame height plus 1/2 inch,
and frame width plus 1/2 inch to 3/4 inch. Fix any problems now.
Are the framing and walls plumb? Use a 6-foot level and check both sides of the
opening, both ways (front to back and right to left). Fix any problems now.
Is the sub floor level and solid? Provide a flat, level, clean weight bearing surface
so the sill pan or sill can be properly caulked and sealed to the opening.
Scrape sand or fill as required.
NOTE: If additional floor covering clearance is required, attach the shim board to the
sub floor. Be sure to caulk well under the shim board.
Is the opening square? Check all corners with a framing square.
Double check by comparing diagonal measurements. Fix any problems now.
Check to be sure the framing walls around the opening are in the same plane.
Do this by performing a “string test” for plumb.
String Test for Plumb:
Attach a string diagonally across the opening from the outside, as shown. The string(s)
should gently touch in the center, if not the opening is “out of plumb” by twice that
distance and needs to be corrected. Flip the string over itself to check both planes.
Fix any problems now. NOTE: An “out of plumb” condition is one of the most common
reasons door units leak air and water.
STEP 3: Caulk the Sub Floor
On the sub floor at opening, place 3 very large beads of sealant.
Run beads full width of the opening.
Use only elastomeric or polyurethane sealant.
Use an entire tube when caulking along the sub floor.
WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance know to the state of California to cause cancer.
Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information, go to www.P65warnings.ca.gov
3
STEP 3A: Installation with a Sill Pan
Place the right and left sill pan ends onto the caulk beads and tightly against
the side of the opening.
Then, liberally coat the overlapped areas and the recessed areas of the pieces
with the PVC cement provided. Place center section(s) in position and hold pieces
together long enough to ensure a good bond.
For added protection, spread a bead of caulk along the glue joints and to prevent
air infiltration, run a bead of caulk along the lower interior edge of the sill pan.
Additional caulking could affect the performance of the sill pan.
DO NOT caulk the bottom of the sill when using a sill pan.
STEP 3B: Installation without a Sill Pan
Lay the door unit on edge or face so that the bottom surface of the sill can be caulked.
Place very large beads of caulk across the full width of the sill. Additionally, place
beads of caulk along the junction of the sill and the jamb and on the bottom
surface of the jambs and brickmould.
NOTE: If a sill extender is used, place a large bead of caulk at the junction of the
extender and the sill approach.
IMPORTANT! Apply sealant to the back side of brickmould around the entire
perimeter of the door unit. A 1/2 – 5/8 inch bead of elastomeric or polyurethane
caulk is essential.
STEP 4: Place Unit in Opening & Temporarily Fasten
Lift the unit up. With top edge tilted away from opening, center the unit and place sill
down onto sill pan or caulk beads and tilt into opening.
For all door unit configurations, note the hinge locations and mark those locations
on the jamb faces near the door surfaces. Pre-drill 1/8 inch diameter holes at these
locations for screw placement. A counter sink bit will help to conceal the screw heads.
Install screws in the center pre-drilled hole locations on both jambs to temporarily
secure the unit in the place. DO NOT drive screws completely in at this time.
Use #8 x 2-1/2 inch or 3 inch exterior grade screws.
IMPORTANT! For composite jambs, additional support is required between the
hinge locations with the addition of shims and screw placement for a total
of 5 screws (supported by shims) per jamb leg.
DO NOT fasten through the Brickmould.
WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance know to the state of California to cause cancer.
Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information, go to www.P65warnings.ca.gov
4
STEP 4 (continued): Plumb Hinge Side Jamb
Work from side of the door that is weather-stripped.
Sidelite Unit
Use a 6-foot level and plumb the hinge side jamb both ways
(right to left and inside to outside).
Place screws through the hinge side jamb into the studs, at each remaining hinge
location, as shown in the diagrams. Use #8 X 2-1/2 inch or 3 inch exterior grade screws.
IMPORTANT! For Composite jambs, additional support is required.
Mirror the hinge jamb leg with shim and screw placement for a total of
5 screws (supported by shims). 6'8" doors will have a total of 5 screws (supported by
shims) per jamb leg, 8'0" doors will have a total of 7 screws (supported by shims)
per jamb leg.
Single Unit
DO NOT drive the screws completely in at this time.
For Single or Double Doors, place screws at each hinge location, so shims can be
placed behind hinges above screws. The screws will keep the shims from falling down
while adjustments are being made.
For Sidelite units, fasten the jamb on the hinge side of the door.
For Double Door and Patio Units, fasten the fixed or passive side of the unit first.
Double Unit
STEP 5: Shim at Hinge Locations & Secure Hinge Jamb
Leave door fastened and closed with transport clip.
Shim above screws, behind each hinge location, between the opening and the jamb.
Use a 6-foot level and re-check hinge jamb to ensure it is plumb and straight.
Finish driving screws tight in the middle first then top and bottom last.
STEP 6: Adjust Rest of Frame & Fasten
From the weatherstrip side of the door, check weatherstrip margins and contact.
Make frame adjustments so the weatherstrip contacts the door surface equally
at the top, middle and bottom, an even 3/8 inch to 1/2 inch when fully closed.
Secure the lock side jamb with #8 X 2-1/2 or 3 inch screws through the pre-drilled
holes at the top and bottom. DO NOT drive screws tight at this time.
IMPORTANT! For Composite jambs, additional support is required.
Mirror the hinge jamb leg with shim and screw placement for a total of
5 screws (supported by shims). 6'8" doors will have a total of 5 screws (supported by
shims) per jamb leg, 8'0" doors will have a total of 7 screws (supported by shims)
per jamb leg.
From the swing side of the door, shim above the screw locations and make
adjustments so the margins between the door and frame are even top to bottom.
NOTE: For Double Doors, make adjustments that effect the alignment, margins
and weatherstrip contact between the doors. Also follow the Astragal Site Package
Instructions for details on properly setting the slide bolt hole locations. Re-check
everywhere for plumb and square, and an even weatherstrip contact.
Finish driving all screws tight.
WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance know to the state of California to cause cancer.
Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information, go to www.P65warnings.ca.gov
5
STEP 7: Remove Door Plug & Open Door
Remove the door plug. Open and close door to check for smooth operation.
With the door open at the top hinge, drill 1/8 inch diameter pilot holes in the screw
hole locations closest to the weatherstrip (if no screws previously installed). If screws
are previously installed, remove 3/4 inch screws and install #10 x 2-1/2 inch screws.
For middle and bottom hinges, proceed to install one (1) #10 x 2-1/2" screw in the
bottom hole, closest to the weatherstrip. Make sure all installed screws go through
the hinge, into the stud, to anchor the door frame and prevent sagging.
For Sidelite and Patio Units that are hinged at the center:
With the door open, check to determine if the 2-1/2 inch long hinge screws were
pre-installed in the hinges. If not, drill 1/8 inch diameter pilot holes and install the long
hinge screws in the hole locations closest to the weatherstrip.
Close the door and carefully shim between the jamb and the opening behind the strike
plate area.
Then open the door and drill 1/8 inch diameter pilot holes and install the #8 X 2-1/2 inch
screws (provided) through the strike plate holes to secure the lock side jamb
and provide security.
STEP 8: Adjust Sill
Your door unit may have an adjustable threshold cap. When properly adjusted, it
should be snug and slightly difficult to pull a dollar bill out from under the door
when it is fully closed. The dollar bill should be able to be removed without tearing.
This check should be performed at each adjustment screw location.
After adjusting the threshold cap, ensure that the weatherstrip is flush with
the top of the threshold cap. Trim as necessary.
STEP 9: Install Corner Seal Pads* (Inswing Units Only)
Apply sealant (polyurethane or elastomeric) at the joint where the threshold
cap meets the door jambs.
Remove the self-stick paper from the corner seal pads and apply to the door jamb,
with the bottom lined up evenly with the top of the threshold cap. When the pad is
correctly installed, the tab is on top and the narrow part is on the bottom.
The bottom of the pad is the same width of the threshold cap to help
with alignment during installation.
*Doors shipped with pre-finished frames may have corner seal pads factory applied.
WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance know to the state of California to cause cancer.
Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information, go to www.P65warnings.ca.gov
6
STEP 10: Additional Frame Anchoring
If sill is prepared for anchoring screws, place appropriate screws
through the sill into the sub floor where needed (primarily on outswing sills).
We recommend that you provide additional frame anchoring as shown here.
Certain states or jurisdictions, notably Florida and the coast of Texas, have specific
installation requirements and may require installation in strict accordance with the
product approval for a specific product. You should always check with the local
authority having jurisdiction for any specific installation requirements that may apply.
Doors with Sidelites:
Shim above mull post or jambs separating doors and sidelites.
Screw through the frame into the header, adjacent to the shims.
Door with Sidelites
Double Doors:
Place temporary shims above the center of the head frame, where doors meet.
Pre-drill and insert a screw through frame into header, then remove
the temporary shims.
Patio Doors:
Shim above the mull post(s), pre-drill and insert a screw
through the frame into the header, at either side of the post.
Double Doors
Patio Doors
STEP 11: Weatherproof, Finish & Maintain
Provide and maintain a properly installed cap or head flashing to protect top of
surfaces from water intrusion and damage. Tape and properly seal the top flap
of the water resistive barrier (WRB) over the head flashing.
Caulk around entire “weather” side of unit, sealing along the brickmould to the
flashing material or siding and seal all joints between the jambs and moldings.
Seal the joints between the exterior hardware trim and the door face to prevent
air and water infiltration.
Place and set galvanized finish nails through the brickmould around the perimeter.
Use exterior grade screws if you are installing a storm door to the brickmould.
Countersink all fasteners and cover with exterior grade putty.
Add insulation material to the cavity between the opening and the unit to reduce
air infiltration and heat transfer.
All Builders Choice doors must be finished within several days of the installation
date for continued warranty coverage. For Fiberglass doors the finishing
requirement is within 6-months of installation.
Paint according to Builders Choice Finishing instructions. DO NOT paint or stain
the weatherstrip, it is “friction-fit” and easily removed for painting or staining.
All 6 sides of the doors must be finished.
For out-swing doors the sides, top and
bottom must be inspected and maintained
as regularly as all other surfaces.
All bare wood surfaces such as the door
frame exposed to weather should be
primed and painted or stained and top
coated within two weeks of exposure for
best performance.
Maintain or replace sealants and finishes as
soon as any deterioration is evident.
For semi-gloss or glossy paint or clear coats,
do this when the surface becomes dull or
rough. More severe climates
and exposures will require more
frequent maintenance.
WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance know to the state of California to cause cancer.
Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information, go to www.P65warnings.ca.gov
7
FINISHING INSTRUCTIONS
Please use the below finishing instructions for doors which are not factory finished.
Work only when temperatures are between 50° and 90°F
and with humidity less than 85%. DO NOT finish in direct sunlight.
Steel and Smooth Fiberglass Doors:
To paint Doors: Clean first with mild detergent and water or
use a TSP (tri-sodium phosphate) solution. Rinse well and allow
to dry completely. Mask off hardware, glass and remove
weatherstripping before painting. Use high-quality acrylic latex
house paint, following manufacturer’s directions for application.
Use exterior grade finishes for outside surfaces. Paint edges and
exposed ends of door.
To Paint Doors:
Clean first with mild detergent and water or use a TSP
(tri-sodium phosphate) solution. Rinse well and allow to dry
completely. Prime with an alkyd- or acrylic-based primer.
Allow primer to dry completely, then paint with acrylic latex
house paint, following paint manufacturer’s application
instructions. Use a primer and paint that are compatible.
Use exterior grade finishes for outside surfaces.
Paint edges and exposed ends of door.
To Paint Door Lite Frames:
Remove any excess glass glazing sealant by first spraying with
a window cleaner or water. Use a single edge razor blade to
score the glazing along the edge of the frame. Holding the razor
blade at a 45 degree angle, scrape glazing from glass.
Wipe remaining residue off with window cleaner or mineral
spirits. Clean frame with a mild detergent and water, or use
a TSP solution. Rinse well and allow to dry completely.
Mask off glass. Prime door lite frames with an alkyd- or
acrylic-based primer. Allow primer to dry before applying finish
paint coats. Use high-quality acrylic latex house paint, following
manufacturer’s application instructions. Use exterior grade
finishes for outside surfaces.
WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance know to the state of California to cause cancer.
Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information, go to www.P65warnings.ca.gov
8
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
