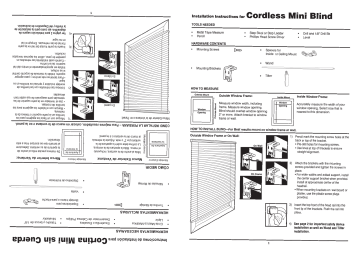

Installation Instructions for Co r diess M I ni Bli nd
TOOLS NEEDED
* Metal Tape Measure * Step Stool or Step Ladder * Drill and 1/8” Drill Bit
* Pencil * Phillips Head Screw Driver * Level
HARDWARE CONTENTS
* Mounting Screws pum ® Spacers for
Inside or Ceiling Mount ==
e Wand
* Mounting Brackets
e Tilter
HOW TO MEASURE
Á. -QuisideMount_, Outside Window Frame: Inside Mount Inside Window Frame:
= Measure window width, including Opening Accurately measure the width of your
3 frame. Measure window opening. window opening. Select size that is
Window 3 Blind should overlap window openin nearest to this dimension
Opening 3 p p 9 `
£ 2" or more. Attach bracket to window
| © frame or wall.
HOW TO INSTALL BLIND—For Best results mount on window frame or wall.
1) Pencil mark the mounting screw holes at the
back or top of the bracket.
* Pre-drill holes for mounting screws.
* Use level at top of brackets to ensure
straight alignment.
Outside Window Frame or On Wall:
On Wall
Attach the brackets with the mounting
screws provided and tighten the screws in
place.
* For wider widths and added support, install
the center support bracket when provided.
Install at approximate center of the
headrail.
* When mounting brackets on wall board or
plaster, use the plastic screw plugs
provided.
Insert the top front of the head rail into the
front lip of the brackets. Push the rail into
place.
See page 2 for important safety device
installation as well as Wand and Tilter
installation.
HOW TO INSTALL BLIND (Continued)
Inside Window Frame Or On Ceiling: Pencil mark the mounting screw
holes at the back or top of the
When installing inside the window frame, 1 12" depth
bracket.
minimum is required.
: == * Pre-drill holes for mounting
screws.
— On Ceiling
— Attach the brackets with the
— mounting screws provided and
— tighten the screws in place.
e For wider widths and added
support, install the center
support bracket when provided.
Inside Window Install at approximate center of
Frame the headrail.
”»
NO U
Insert the top front of the head rail into
the front lip of the brackets. Push the
rail into place.
Follow important safety device
installation below before operating
your mini blind.
ATTACH THE TILTER AND CONTROL WAND
1. Insert the Tilter into the tilt control
mechanism in the headrail assembly
by aligning and pushing into the unit
until it clicks and locks into place.
2. Place the hook at top of Tilter Control
Wand through the hang hole in
the Tilter.
3. Rotate the tilter control wand
clockwise or counterclockwise to
open or close the blind slats.
OPERATION
To lower the blind pull down from the To raise the blind push up from the
bottom to the desired position and release. bottom to the desired position and release.
2
