or

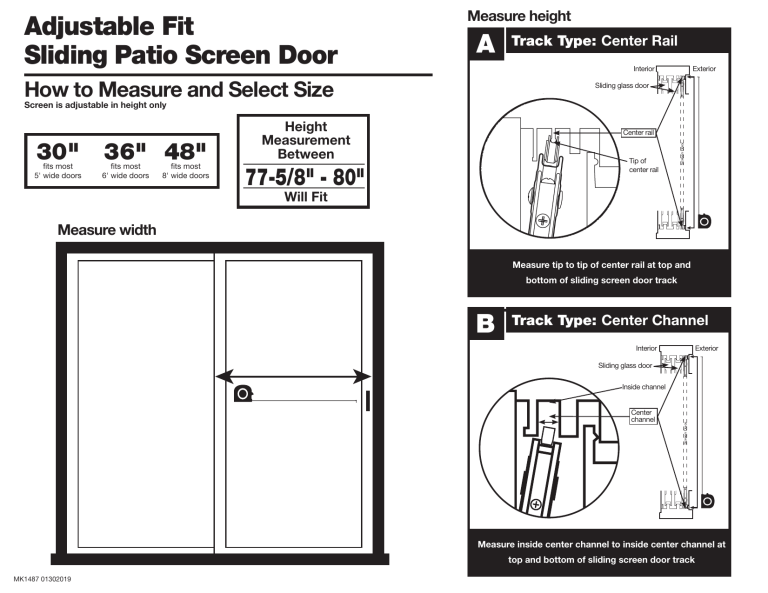

How to Measure and Select Size
Adjustable Height
Screen is adjustable in height only
30"
fits most
5' wide doors
77-5/8" up to 80" Height
Measurement
Between
36" 48"
fits most
6' wide doors
fits most
8' wide doors
77-5/8" - 80"
A
Track Type: Center Rail
Interior
Exterior
Sliding glass door
TYPE A
Center rail
Tip of
center rail
Screen Door
Adjustable Fit
Sliding Patio Screen Door
Measure height
Measure width to ensureWill
proper
fit
Fit
Widths: 30" fits 5 wide
Measure width
36" fits 6 wide
48" fits 8 wide
Measure tip to tip of center rail at top and
bottom of sliding screen door track
Track Type: Center Channel
B
Center Channel
Interior
Exterior
Sliding glass door
Center
channel
Screen Door
Inside channel
Measure inside center channel to inside center channel at
77-1/2" up to 80-1/2"
MK1487 01302019
77-1/2" up to 81"
77-5/8" up to 80"
top and bottom of sliding screen door track
Ce
