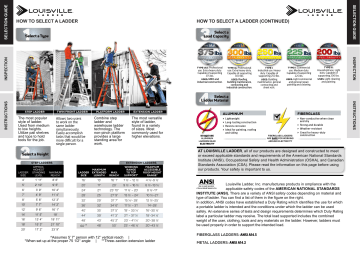

SELECTION GUIDE
HOW TO SELECT A LADDER (CONTINUED)
3
1
Select a
Load Capacity
Select a Type
TYPE
IAA
T Y PE
IA
T Y PE
I
T Y PE
II
TYPE
III
INSPECTION
375 lbs 300lbs 250 lbs 225 lbs 200 lbs
LOAD CAPACITY
LOAD CAPACITY
LOAD CAPACITY
LOAD CAPACITY
includes weight of user
plus materials
includes weight of user
plus materials
includes weight of user
plus materials
includes weight of user
plus materials
includes weight of user
plus materials
TYPE IAA: Professional
TYPE IA: Professional
use. Extra heavy duty.
Capable of supporting
300 lbs.
USES: Roofing,
building maintenance,
contracting and
industrial construction.
Industrial use. Heavy
duty. Capable of
supporting 250 lbs.
USES: Building
maintenance, general
contracting and
sheet rock.
TYPE I:
TYPE II: Commercial
use. Medium duty.
Capable of supporting
225 lbs.
USES: Light commercial
and general repair,
painting and cleaning.
Household use. Light
duty. Capable of
supporting 200 lbs.
USES: Light cleaning
and painting.
use. Extra heavy duty.
Capable of supporting
375 lbs.
USES: MRO and
industrial construction.
CAPACITY
TYPE III:
Select a
Ladder Material
STEP LADDER
TWIN FRONT LADDER
The most popular
style of ladder.
Used from medium
to low heights.
Utilize pail shelves
and tops to hold
tools for the job.
2
Allows two users
to work on the
same ladder
simultaneously.
Easily accomplish
tasks that would be
more difficult for a
single person.
PLATFORM LADDER
EXTENSION LADDER
Combine step
ladder and
warehouse ladder
technology. The
non-pinch platform
provides a large
standing area for
work.
The most versatile
style of ladder,
found in a variety
of sizes. Most
commonly used for
higher elevations.
Select a Height
STEP LADDERS
EXTENSION LADDERS
LADDER
SIZE
APPROX.
HIGHEST
STANDING
LEVEL
MAXIMUM
REACH
4’
1’ 11”
5’
WORKING
RANGE
TO TOP
SUPPORT*
MAXIMUM
ACCESSIBLE
ROOF HEIGHT
RANGE*
LADDER
SIZE
MAXIMUM
EXTENDED
LENGTH
MAX.
REACH
8’ 6”
16’
13’
16’ 1”
7 1/2’ – 12 1/2’
4 1/2’–9 1/2’
2’ 10”
9’ 5”
20’
17’
20’
9 1/2’ – 16 1/2’
6 1/2’–13 1/2’
6’
3’ 9”
10’ 4”
24’
21’
23’ 10”
11 1/2’ – 20’
8 1/2’–17’
7’
4’ 9”
11’ 4”
28’
25’
27’ 9”
13 1/2’ – 24’
10 1/2’–21’
8’
5’ 8”
12’ 3”
32’
29’
31’ 7”
15 1/2’– 28’
12 1/2’–25’
10’
7’ 7”
14’ 2”
36’
32’
34’ 6”
17 1/2’ – 31’
14’–28’
12’
9’ 6”
16’ 1”
40’
35’
37’ 5”
19’ – 33 1/2’
16’–30 1/2’
^
^
14’
11’ 5”
18’
44’
39’
41’ 3”
21’ – 37 1/2’
18’–34 1/2’
16’
13’ 4”
19’ 11”
48’
43’
45’ 2”
23’ – 41 1/2’
20’–38 1/2’
18’
15’ 3”
21’ 10”
50’
23’ – 46 1/2’
20’–43 1/2’
17’ 2”
23’ 9”
60’ *
48’
20’
^Assumes 5’ 7” person with 12” vertical reach |
*When set up at the proper 75 1/2° angle | **Three–section extension ladder
DO NOT USE
ALUMINUM
LADDERS NEAR
ELECTRICITY
ALUMINUM
FIBERGLASS
>
>
>
>
> Non-conductive when clean
and dry
> Strong and durable
> Weather-resistant
> Great for heavy-duty
construction
Lightweight
Long-lasting construction
Resists corrosion
Ideal for painting, roofing
and siding
FIBERGLASS LADDERS
ARE SAFE FOR WORKING
AROUND ELECTRICITY
AT LOUISVILLE LADDER, all of our products are designed and constructed to meet
or exceed applicable standards and requirements of the American National Standards
Institute (ANSI), Occupational Safety and Health Administration (OSHA), and Canadian
Standards Association (CSA). Please read the information on this page before using
our products. Your safety is important to us.
Louisville Ladder, Inc. manufactures products in ompliance with the
applicable safety codes of the AMERICAN NATIONAL STANDARDS
INSTITUTE (ANSI). There are a variety of ANSl safety codes depending on material and
type of ladder. You can find a list of them in the figure on the right.
In addition, ANSI codes have established a Duty Rating which identifies the use for which
a portable ladder is intended and the conditions under which the ladder can be used
safely. An extensive series of tests and design requirements determines which Duty Rating
label a particular ladder may receive. The total load supported includes the combined
weight of the user, clothing, tools and any materials on the ladder. However, ladders must
be used properly in order to support the intended load.
FIBERGLASS LADDERS: ANSI A14.5
METAL LADDERS: ANSI A14.2
INSTRUCTIONS
4
LOAD
INSPECTION
INSTRUCTIONS
SELECTION GUIDE
HOW TO SELECT A LADDER
SELECTION GUIDE
INSPECTION
OSHA sets minimum national requirements with respect to the use of ladders in business
and industry. However, many states have enacted their own regulations under the
Occupational Safety & Health Act that establish more severe requirements. The more
demanding state codes will supersede OSHA standards within their respective states.
Therefore, users should check with their own state OSHA representatives.
Look for damaged or missing parts
Always check for damage before using any ladder. Do not use a damaged ladder.
Conduct your inspection before you leave for the job site.
1. Begin at the bottom, making sure the feet are not broken or malfunctioning and that
the slip-resistant pads are secure.
2. Inspect the ladder for cracks, bends, and splits on side rails, rungs, and steps.
3. Check all rung/step-to-side rail connections, as well as hardware, fittings, and
accessories. Make sure both rung locks are in working order.
4. Test the rope and pulley for smooth operation. Replace the rope if frayed or partially
cut.
INSPECTION
The OCCUPATIONAL SAFETY & HEALTH ADMINISTRATION (OSHA)
regulates the adequacy of ladders and the work practices followed by
employees using them in five sections: Portable Wood (1910.25), Portable Metal (1910.26),
Fixed Ladders (1910.27), Mobile Ladder Stands and Scaffolds (1910.29) and ladders used in
Construction Industry (1926.1053). These sections specify the standards to which all portable
ladders must be manufactured, care and placement of ladders in the workplace, and the safe
use of ladders on the job.
SELECTION GUIDE
=
LADDER INSPECTION
HOW TO SELECT A LADDER (CONTINUED)
Where applicable, product meets or exceeds
CANADIAN STANDARDS INSTITUTE testing
requirements.
6. All bolts and rivets should be secure. Never use a ladder if any bolts or rivets are
missing or if the joints between the steps (or rungs) and the side rails are not tight.
7. Make sure the ladder (particularly the steps and rungs) is free of foreign materials
such as oil and grease.
8. If you’re using a stepladder, make sure the spreader braces are not bent, are secure
and working properly.
Use a ladder-inspection chart as a guide for evaluating the safety of a ladder.
Remember to inspect the ladder before you travel to the job site, because once
you’re there you’ll be tempted to use the ladder regardless of its condition.
Always mark unsafe ladders by using a damaged-ladder tag (see sample illustration).
Be sure to store damaged ladders away from usable
ladders. Have them repaired as soon as possible.
Destroy unrepairable ladders immediately.
Transporting a ladder
Accidents can happen while transporting the ladder
to the job site. A ladder is long and awkward, and
can cause injuries and property damage during
transport. When possible, two people should carry
an extension ladder. If you carry it yourself, keep
the front end of the ladder slightly higher than the
back end.
Never move or reposition an extension ladder
without completely retracting the fly section.
Failure to do so can cause serious injury or
death.
Secure both ends of a ladder when transporting it on
a vehicle. Use care when placing ladders onto or
removing from ladder racks.
INSTRUCTIONS
INSTRUCTIONS
5. All pivotal connections and the rung-locks should be well-lubricated.
SELECTION GUIDE
1.
2.
3.
4.
5.
6.
7.
8.
9.
Metal ladders conduct electricity. Keep away form electrical circuits.
Consult manufacture for use in chemical or other corrosive environments.
Use a ladder only as outlined in instructions. Ladders are designed for one person
only. DO not overload.
DO not use in high winds or during storms.
DO not use in poor health, if taking drugs or alcoholic beverages, or if physically
handicapped.
Keep shoes clean. Leather soles should not be worn.
Never leave ladder set up and unattended.
Pay close attention to what you are doing.
Use this product at your own risk.
Caution
INSPECTION
INSPECTION
Consider before each use
INSTRUCTIONS- TWIN STEP LADDER (CONTINUED)
SELECTION GUIDE
INSTRUCTIONS- TWIN STEP LADDER
1.
Use help in setting up twin step ladder, if possible.
2.
Make sure ladder id fully open and spreaders locked.
3.
Set all feet on firm level surface. Do not place on unstable, loose, or slippery surfaces. Place
twin step ladders where access is not obstructed. Do not place in front of unlocked doors. Twin
step ladders are not intended to be used on scaffolds.
4.
Secure twin step ladder from movement where possible.
5.
Make sure spreaders are locked and twin front ladders is stable before climbing.
6.
Face twin front ladder when climbing up or down. Maintain a firm grip. Use both hands in
climbing.
7.
Keep body centered between side rails. Do not over reach. Get down and move twin step
ladder as needed.
8.
8. Do not climb, stand or sit above second step from the top. Do not climb stand or sit on
spreader braces, ladder top, or pail shelf.
9.
Do not straddle front and back. Do not climb from one twin step ladder to another.
10. Avoid pushing or pulling of to side of twin step ladder. Do not “walk” or “shift” the ladder on it.
Proper care and storage
1.
Hang twin step ladder on racks at intervals of 6’ for support.
2.
Never store materials on twin step ladder
3.
Never drop or apply an impact load to twin step ladder.
4.
Sevurly support twin step ladder in transit.
5.
Never paint a wooden twin step ladder. Treat with wood preservative.
6.
Protect wood twin step ladder from exposure to the elements but allow good ventilation. Keep
away from heat and moisture.
INSTRUCTIONS
INSTRUCTIONS
Proper set-up and use
