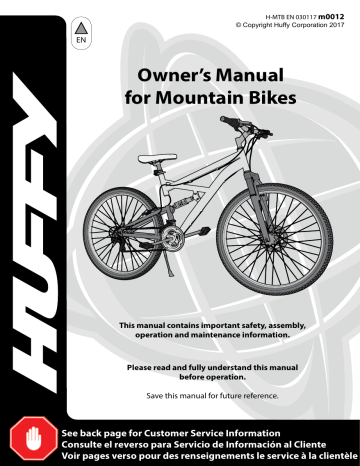

H-MTB EN 030117 m0012
© Copyright Huffy Corporation 2017
EN
Owner’s Manual
for Mountain Bikes
This manual contains important safety, assembly,
operation and maintenance information.
Please read and fully understand this manual
before operation.
Save this manual for future reference.
See back page for Customer Service Information
Consulte el reverso para Servicio de Información al Cliente
Voir pages verso pour des renseignements le service à la clientèle
Owner’s Manual Index
Your Bike
• Owner’s Bicycle Identification Record.............................................................................3
• Fitting the Rider to the Bicycle...........................................................................................3
• Warning and Safety Information.......................................................................................4
• The Owner’s Responsibility - Rules of the Road.........................................................4-5
Bicycle Assembly
• Parts Assembly ......................................................................................................................6-7
• Introduction to Assembly / Tools Needed.....................................................................8
• Accessories................................................................................................................................9
• Handlebar and Stem Installation................................................................................. 10-12
• Front Wheel Installation......................................................................................................13
• Quick Release Axle (as equipped)................................................................................ 14-15
• Testing Stem and Handlebar Tightness.........................................................................16
• Seat Installation.................................................................................................................. 17-18
• Testing Seat Clamp and Post Clamp Tightness...........................................................18
• Pedal Installation and Three-Piece Cranks (on some models)...............................19
• Reflector Brackets Installation...........................................................................................20
• Installing Derailleur Guard (as equipped).....................................................................20
Brake System
• Rim Brake Setup................................................................................................................. 21-24
• Brake Pad Replacement.......................................................................................................24
• Disc Brake Setup (as equipped).................................................................................... 25-26
Shift System
• Shift System Setup............................................................................................................ 27-29
• Rear/ Front Derailleur Adjustments............................................................................ 30-33
Maintenance and Service
• Repair and Service - Torque Table....................................................................................34
• Tires .........................................................................................................................................35
• Lubrication/ Lubrication Table..........................................................................................36
• Inspection of the Bearings.................................................................................................37
• Suspension Frame (on some models)............................................................................37
Warranty..............................................................................................................................38
IMPORTANT!! BEFORE YOUR FIRST RIDE:
• Read entire manual, including all safety warnings.
See Maintenance section to:
• Check Tire Pressure.
• Check Brake Adjustment.
• Check Shift/Derailleur Adjustments.
Owner’s Bicycle Identification Record
NOTE: This information is only available on the bicycle itself. It is not available from Huffy.
Your Bike
Each Huffy bicycle has a Recovery Code
stamped into the frame. The Recovery Code
 can be found on the bottom of the crank
housing as shown.
Write this number below to keep it for future
reference.
If the bicycle is stolen, give this number and
a description of the bicycle to the police.
This will help them find the bicycle.
1
Recovery Code:
Purchase Date:
Model Name:
Fitting the Rider to the Bicycle
To determine the correct size of bicycle for the rider:
• Straddle the assembled bicycle with feet shoulder width
apart and flat on the ground.
• There must be at least 1 inch (2.5 cm) of clearance 
between the highest part of the top tube  and the
crotch of the rider with tires properly inflated.
• The minimum leg-length for the rider is the highest
part of the top tube plus one inch .
1
3
2
IMPORTANT!! Read All Warning And Safety Information
3
Warning and Safety Information
Warning and Safety
Meanings of Warnings:
This symbol is important. See the word “CAUTION” or “WARNING” which follows it.
The word “CAUTION” is before mechanical instructions. If you do not obey these instructions, mechanical damage or failure of a part of the bicycle can occur.
The word “WARNING” is before personal safety instructions. If you do not obey these instructions, injury to the rider or to others can occur.
• CHOKING HAZARD. Small parts. Not for children under 3 years.
• Adult assembly is required.
• Handlebar hand grip or tube end plugs should be replaced if damaged as bare tubes have
been known to cause injury. All products with capped handlebar ends should be checked
regularly to ensure that adequate protection for the ends of the handlebars are in place.
• Replacement forks must have the same rake and tube inner diameter as the original
product.
• Do not add a motor to the product.
• Do not tow or push the product.
• Do not modify the product.
• Replace worn or broken parts immediately.
• If anything does not operate properly, discontinue use.
The Owner’s Responsibility
WARNING: This bicycle is made to be ridden by one rider at a time for general
transportation and recreational use. It is not made to withstand the abuse of stunting and
jumping.
If the bicycle was purchased unassembled, it is the owner’s responsibility to follow all assembly and adjustment instructions exactly as written in this manual, and any “Special Instructions” supplied and to make sure all fasteners and components are securely tightened.
NOTE: Periodically check that all fasteners and components are securely tightened.
If the bicycle was purchased assembled, it is the owner’s responsibility, before riding the
bicycle for the first time, to make sure the bicycle has been assembled and adjusted exactly as written in this manual, and any “Special Instructions” supplied and to make sure all
fasteners and components are securely tightened.
NOTE:
If product is assembled, please proceed to sections:
• Testing Stem, Handlebar
• Seat Clamp tightness.
4
WARNING: Failure of the rider to obey the following “Rules of the Road” can result
in injury to the rider or to others.
• Obey all traffic regulations, signs, and signals.
• Always wear a bicycle helmet that meets safety standards, as well as local safety standards.
• Ride on the correct side of the road, in a single file, and in a straight line.
• If possible, avoid riding at night, dusk, dawn and any other time of poor visibility.
• If you must ride at night or at time of poor visibility:
• Purchase, install, and use a headlight and taillight.
• Headlights are required by all states for nighttime riding and taillights are required in
some states.
• Battery-powered lights or flashing safety lights are also recommended.
• Reflectors: For your own safety, do not ride the bicycle if the reflectors are incorrectly
installed, damaged, or missing. Make sure the front and rear reflectors are vertical. Do not
allow the visibility of the reflectors to be blocked by clothing or other articles. Dirty reflectors do not work well. Clean the reflectors, as necessary, with soap and a damp cloth.
• Make yourself more visible to motorists.
• Wear light-colored or reflective clothing, such as a reflective vest and reflective bands
for your arms and legs.
• Use reflective tape on your helmet.
• Do not let anything cover the reflectors.
• Use extra caution in wet weather:
• Ride slowly on damp surfaces because the tires will slide more easily.
• Allow increased braking distance in wet weather.
• Avoid these hazards to prevent loss of control or damage to your wheels:
• Be aware of drain grates, soft road edges, gravel or sand, pot holes or ruts, wet leaves, or
uneven paving.
• Cross railroad tracks at a right angle to prevent the loss of control.
• Avoid unsafe actions while riding.
• Do not carry any passengers.
• Do not carry any items or attach anything to your bicycle that could hinder your vision,
hearing, or control.
• Do not ride with both hands off the handlebar.
• Do not add a motor to the product.
• Do not tow or push the product.
• Do not modify the product.
• Replace worn or broken parts immediately with original equipment.
• If anything does not operate properly, discontinue use.
Warning and Safety
Rules of the Road
5
6
12 11
18
16
17
9
10
15
39
31
Parts Assembly View
29
23
8
35
24
22
30 27 13
14
26
19
36
20
21
1
2
15
34
6
7
5
28
4
25
33
32
40
41
38
NOTE: All features, components
and accessories are not included
on all models.
17
16
3
37
Parts View
Grips (x2)
Crank & Spindle Set
Crank Bearings
19
20
21
Derailleur Guard
12
Rear Wheel Assembly
Guard Screws (x2)
11
18
Rear Reflector
10
Tube (x2)
Seat Post
9
17
Seat
8
Tire (x2)
Front Reflector
7
16
Axle Nut (x4)
Pedal (Left & Right Set)
Wheel Retainer (x2)
5
6
15
Fork
4
Frame
Front Wheel Assembly
3
Quick Release Lever & Nut
Handlebar
2
14
Handlebar Stem
1
13
Description
No.
Parts Assembly List
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
No.
Water Battle (if equipped)
Bag/Basket (if equipped)
Quick Release Axle (various models)
Disc Brake Caliper (various models)
Disc Brake (various models)
Bell (if equipped)
Shift Mechanism, Rear
Shift Mechanism, Front
Brake Lever - Right (Rear Wheel)
Brake Lever - Left (Front Wheel)
Rear Derailleur
Front Derailleur
Rear Brake
Front Linear Pull Brake (various models)
Spring Shock
Seat Post Hardware
Head Set Bearing
Chain guard
Chain
Kickstand (various)
Description
Parts List
7
Assembly
Introduction to Assembly
This Owner’s Manual is made for several different bicycles:
• Some illustrations may vary slightly from the actual product.
• Follow instructions completely.
• If the bicycle has any parts that are not described in this manual, look for separate “Special
Instructions” that are supplied with the bicycle.
• Models may have different accessory items such as bags, baskets, reflectors, cup holders,
racks, etc.
• All features, components and accessories are not included on all models.
• Use the Index page to locate specific sections of this manual.
• Please read through this entire manual before beginning assembly or maintenance.
• If you are not confident with assembling this unit, refer to a local bike shop.
WARNING: Keep small parts away from children during assembly.
NOTE: All of the directions (right, left, front, rear, etc.) in this manual are as seen by the rider
while seated on the bicycle.
Do not dispose of the carton and packaging until you complete the assembly of the bicycle.
This can prevent accidentally discarding parts of the bicycle.
Tools Needed (not included)
Small Adjustable Wrench
(Jaws must open at least 9/16 inch.)
Open-end Wrenches
Flat-blade Screwdriver
Phillips Screwdriver
Slip-Joint Pliers
8
Metric Allen Wrenches
Accessories (various models)
BAG OR BASKET INSTALLATION:
A
B
Assembly
or Basket
to Handlebar using
• Attach Bag
the two Straps.
• Tighten Straps so Bag/Basket does not move.
NOTE: Do not over tighten. The Straps may break.
B
A
HANDLEBAR BELL INSTALLATION:
1. Remove screws from Bell.
2. Position Bell on handlebar within easy reach,
with hands on the handlebar grips.
3. Install screws and tighten.
NOTE: Bell may attach with 1 or 2 screws.
WATER BOTTLE AND CAGE:
1.
2.
3.
Remove the Water Bottle from the
.
Cage
Locate the Cage Screws
- they
may be packaged with the Water
Bottle Cage or installed in the Bicycle
Frame.
Position the Cage in the desired
location and install the two Cage
Screws through the Cage and into
the Frame Nuts
.
Tighten securely. Do not over
tighten, this can damage the Frame
Nuts.
Insert the Water Bottle into the Cage
as shown.
A
B
A
B
C
4.
5.
C
9
Assembly
Handlebar and Stem Installation
WARNINGS:
• To prevent steering system damage and possible loss of control, the “MIN-IN” (minimum
insertion) mark
on the stem must be below the top of the Fork Locknut
.
• The Front Brake
(if equipped) must be positioned in FRONT of the Fork. Ensure the Fork
is pointing FORWARD before proceeding.
• Do not over tighten the stem bolt. Over tightening the stem bolt can damage the steering
system and cause loss of control.
• If the handlebar clamp in not tight enough, the handlebar can slip in the stem. This can
cause damage to the handlebar or stem, and can cause loss of control.
A
G
B
F
E
G
D
A
C
G
B
NOTE: Remove plastic Cap
needed.
1.
2.
3.
4.
5.
6.
10
C from the end of the Stem D. Loosen Stem Bolt E as
B
A
Insert the Stem into the Fork Locknut
up to the top of the MIN-IN mark
.
Tighten the Stem Bolt
just enough to hold it in position.
If necessary, loosen the Handlebar Clamp Nut
and rotate Handlebar into a comfortable riding position.
Tighten Handlebar Clamp Nut
just enough to hold it in position.
Align the Stem with the front tire and tighten the Stem Bolt
securely (see Testing
Stem, next section)
If necessary, re-adjust Handlebar and tighten Clamp Nut
securely.
E
F
F
E
F
Handlebar and Stem Installation - Threadless Stem:
I
B
G
F
A
B
A
E
B
C
D
NOTE: Ensure there is BETWEEN 1mm
and 6mm gap between Fork Tube and
.
top of Stem
5.
Assembly
CAUTION:
• Threadless Stem
should be
installed with bike sitting on the
ground and both wheels installed.
• Make sure Fork is fully inserted
from the bottom and Front Brake is
pointing FORWARDS.
• Disc Brake models: Disc Brake will
generally be on the LEFT side of
the Fork.
STEP 1:
as needed for
1. Add Spacers
proper Gap
.
2. Insert the Stem
fully onto the
Fork Tube
.
3. Point the Stem towards the front
of the bike and in line with the fork
and wheel.
4. With downward pressure on Stem,
move bicycle fork/wheel back and
forth so there is no looseness in
Headset Bearings
.
H
E
1mm MIN
6mm MAX
C
E
Place Cap F into stem and
tighten screw securely G. Try
A
D
to move Fork back and forth.
There should be no movement in
Headset Bearings
. If needed,
redo above steps.
6. If supplied, insert Rubber Cap
securely.
STEP 2:
7. Tighten the stem bolts
securely. See Torque Table for recommended torque Do not over-tighten.
D
I
H
WARNING: Ensure handlebar and fork turn left to right smoothly and without
friction.
11
Handlebar Installation - various Stem Clamps
ONE BOLT STEM:
Assembly
1.
2.
B
If necessary, loosen the Handlebar Clamp
Bolt(s)
and rotate Handlebar
into a
comfortable riding position.
Tighten Handlebar Clamp Bolts(s)
securely.
A
A
B
A
See Torque Table for recommended torque.
TWO BOLT STEM:
1.
2.
If necessary, loosen the Handlebar Clamp
Bolt(s)
and rotate Handlebar
into a
comfortable riding position.
Tighten Handlebar Clamp Bolts(s)
securely.
A
B
A
B
A
See Torque Table for recommended torque.
FOUR BOLT STEM:
1.
2.
If necessary, loosen the Handlebar Clamp
Bolt(s)
and rotate Handlebar
into a
comfortable riding position.
Tighten Handlebar Clamp Bolts(s)
securely.
A
A
B
B
A
NOTE: On four bolt stems, tighten Bolts
evenly in a cross-pattern as shown. Do not over
tighten. See Torque Table for recommended
torque.
A
3
1
2
4
WARNING: If the handlebar clamp in not tight enough, the handlebar can slip in the
stem. This can cause damage to the handlebar or stem, and can cause loss of control.
12
Installing the Front Wheel
B
A
B
C
Install the Front Wheel:
3. Set the Front Wheel into the front
fork with Brakes pointing forward.
4. Install wheel retainers
making
sure the tabs are in the Fork
Retainer Holes
.
5. Attach the front wheel with the
Axle Nuts
. - See Torque
Table for recommended
torque.
C
A
A
Assembly
Loosen the Front Brakes:
1. Squeeze the two Brake arms
together
.
2. Lift out the Brake Cable Guide
from the Guide Bracket
.
D
E
E
F
NOTE: For Quick Release Axle, see
next section.
F
WARNING: Do not use Nuts
without serrations to attach the front
wheel.
NOTE: Ensure wheel spins freely without
contacting fork or fender.
F
D
B
WARNING: Failure to obey these
steps can allow the front wheel to loosen
while riding. This can cause injury to the
rider or to others.
RE-ATTACH FRONT BRAKE CABLE:
1. Squeeze the two Brake arms
together
.
2. Insert the Brake Cable Guide
into
the cutout in the Guide Bracket
.
3. Make sure the Brake Cable Guide
is seated securely in the Guide
Bracket
cutout.
C
A
A
A
B
C
B
C
WARNING:
Check Front Brake Adjustment Before
Riding! See Brakes Section
C
B
13
Assembly
Quick Release Axle Guide (various models)
WARNING:
Check QR axle and secure before every ride.
If you hear any unusual noise from the wheels when riding - check the QR axle system.
Do not ride with improperly adjusted or worn QR axle, this can result in serious injury.
If you have any problems with the QR axle system, contact the bicycle manufacturer or a
local bicycle shop.
• This product is not intended for use in stunt riding, ramp jumping, acrobatics, or similar
activities.
• Understand all operating procedures before riding.
• Replace worn or broken parts immediately.
•
•
•
•
If you have any difficulties adjusting or maintaining the QR Axle system, refer to a local
bicycle repair shop. The bicycle technicians are trained to work on QR Axle systems and
components.
STEP 1:
STEP 2:
C
B
E
B
D
A
C
A
• Move the QR Lever
to the OPEN posi- • Pushing down on fork to ensure wheel
axle is fully seated in Fork Dropouts,
tion and loosen QR Nut
(turn coun(turn clock-wise) hand
ter-clock-wise) enough so the wheel axle tighten QR Nut
tight.
fits into the Fork Dropouts
.
• Position QR Lever pointing UP or BACK
• Ensure the serrated Washers
sit inand partially close.
side Fork Recess
on both sides.
• Adjust QR Nut and push QR Lever
closed with palm of hand.
A
B
C
D
E
14
B
A
STEP 3:
A
• Ensure QR Lever is tight and fully
closed.
• Ensure wheel is centered in fork and
held securely.
Wheel shown with QR Lever
Closed position.
CLOSED
OPEN
A
A in
Assembly
Quick Release Axle Guide - continued
A
Closed
Open
B
B
WARNING:
• Ensure the Quick-Release (QR) is properly tightened before each ride (refer to
QR use instructions in this manual).
• Ensure QR Lever
does not come in contact with Disc Brake
or Spokes
before each ride.
• DO NOT RIDE WITH THE QR IN THE OPEN POSITION.
A
B
15
Testing Stem and Handlebar Tightness
Assembly
TO TEST THE TIGHTNESS OF THE STEM:
• Straddle the front wheel between your legs.
• Try to turn the front wheel by turning the handlebar.
• If the handlebar and stem turn without turning the front
wheel, realign the stem with the wheel and tighten the
stem bolt(s) tighter than before (about 1/2 revolution
only at a time).
• Do this test again, until the handlebar and stem do not
turn without turning the front wheel.
TO TEST THE TIGHTNESS OF THE HANDLEBAR CLAMP:
• Hold the bicycle stationary and try to move the ends of
the handlebar up and down.
force.
CAUTION: Do not exceed 100 lbs (45 kg) downward
• If the handlebar moves, loosen the bolt(s) of the
handlebar clamp.
• Put the handlebar in the correct position and tighten the bolt(s) of the handlebar
clamp tighter than before.
• If the handlebar clamp has more than one bolt, tighten the bolts equally.
• Do this test again, until the handlebar does not move in the handlebar clamp.
16
Seat Installation
WARNING: To prevent the Seat coming loose and possible loss of control, the
“MIN-IN” (minimum insertion) mark
on the Seat Post must be below the top of the Seat
Tube
.
A
C
SEAT AND SEAT POST SETUP:
1. If needed, loosen Nuts on Seat
Clamp
and rotate Seat into riding position.
2. Ensure the Seat Post
is fully
through the TOP Seat Clamp
.
3. Tighten the Seat Clamp so the Seat
does not move on the seat post.
4. If the Seat Clamp has a Nut on each
side, tighten both nuts equally.
5. Point the Seat forward and put the
Seat Post
into the Seat Tube
and proceed to next step.
A
B
D
D
E
D
E
C
Assembly
B
C
E
B
fig A
TIGHTEN THE QUICK RELEASE LEVER:
NOTE: The words “open” and “close” are on opposite sides of the quick release lever.
CAUTION: Operate the Quick Release Lever
by hand only. Do not use a hammer or any other tool to
tighten the quick release lever.
F
1.
F
Move the Quick Release Lever
to the “open” position so the word “open” is pointing away from the Seat
Post Clamp
.
fig B
E
H
C
G
G
WARNING: You must use strong force to move
F
the quick release lever to the “close” position. If you can
easily move the lever to the “close” position, the clamping
force is too light. If the clamping force of the Quick Release
Lever is too light, the seat post can loosen while riding.
This can cause injury to the rider or to others.
2.
3.
4.
5.
Open and close the Quick Release Lever with one hand while you turn the Adjusting Nut
with the other hand.
Tighten or loosen the adjusting nut by hand, so that you first feel resistance to the quick
release lever when it perpendicular to the bicycle frame.
Push the Quick Release Lever to the “close” position.
When in the “close” position, make sure the Quick Release Lever lays against the Seat
17
H
Seat Installation - continued
G
Assembly
6.
Post Clamp
.
The tightening torque of the Quick Release Lever should be tight enough so that the
seat does not move during normal operation.
Seat Bolt Mount (various models)
I
Some models have a Bolt
,
Washer
and Nut
instead
of a Quick Release Lever.
• If needed, loosen the nut
enough to insert the Seat
Post
.
• Point the seat forward and
insert Seat Post to the Minimum Insertion marks
.
• Tighten Nut securely so it
supports the rider without
moving.
J
K
E
B
B
I
C
E
K
J
fig C
Testing Seat Clamp and Post Clamp Tightness
To test the tightness of the seat clamp and the post clamp:
• Try to turn the seat side-to-side and to move the front of the seat up and down.
• If the seat moves in the Seat Clamp:
• Loosen the Seat Clamp Nut.
• Put the seat in the correct position and tighten the Seat Clamp tighter than before.
• Do this test again, until the seat does not move in the Seat Clamp.
• If the Seat Post moves in the Seat Tube Clamp:
• Loosen the Seat Clamp Lever.
• Put the Seat Post in the correct position and tighten the Seat Clamp Nut tighter than
before.
• If necessary, tighten or loosen Hand Nut so that Quick Release tightens securely.
• Do this test again, until the Seat Post does not move in the Seat Tube Clamp.
18
CAUTION: There is a RIGHT pedal marked R
and a LEFT pedal marked L.
L
NOTE: A Pedal Wrench is preferred for attaching Pedals. A thin open-end
wrench can also be used.
Assembly
Pedal Installation
• The pedal marked R has right-hand threads.
Tighten it in a clockwise direction.
• The pedal marked L has left-hand threads. Tighten
it in a counterclockwise direction (anti-clockwise).
• Turn the right pedal marked R into the right side of
the crank arm, and the left pedal marked L into the
left side of the crank arm.
Tighten the pedals:
• Make sure the threads of each pedal are fully into
the crank arm.
NOTE: See Torque Chart for recommended torque.
WARNING: Ensure pedals are secure in crank
arms so they will not loosen. Periodically check tightness.
R
Three-Piece Cranks (various models)
Maintenance: Both Crank Arms
were tightened to the spindle
at the factory. After
riding the bicycle the first few times, make sure the crank arms have not loosened. If either
crank arm has loosened during this “break-in” period, re-tighten or have it tightened by a
bicycle service shop.
A
B
B
Frequently check the tightness of the
crank arms. If loose, tighten or have
them tightened by a bicycle service
shop.
A
WARNING: If you ride the bicycle
with a loose crank arm, the crank arm
may fall off. The spindle may also damage the crank arm.
NOTE: See Torque Table for recommended torque.
19
Reflector Installation (as equipped)
Reflector Installation:
1. Position FRONT Reflector
so it
points straight forward.
2. Tighten Clamp Screw.
3. Position Seat Post Reflector (if
equipped)
so it points straight
backwards.
4. Tighten Clamp Screw.
B
Assembly
A
A
B
NOTE: Do not over-tighten. This will
damage the Clamp.
Dual Rear Reflectors (various models):
A
The Rear Reflectors
may
be pre-installed on the bike
chain stays. Make sure they are
secure, not bent and are pointing
straight backwards.
1
2
B
A
NOTE: Reflectors
either
attach with Screws
or are
SNAP on (see images).
A
B
3
1 BRACKET MOUNT: Attach
Bracket to Chain Stay securely
using Screws
.
2 SCREW MOUNT: Attach
Reflector to Bracket securely
using Screws
.
3 SNAP MOUNT: Slide Reflector DOWN onto Bracket until it SNAPS into place.
B
B
B
Installing Derailleur Guard (on some models)
1.
2.
3.
4.
A
C
D
A
B
A
Remove Screws
from Frame Tabs
.
Install Guard
using two Screws
.
Make sure the Guard does not contact the
Derailleur
.
Tighten Screws
securely.
A
B
D
C
20
Linear Pull Brake System Adjustment - Before Starting
• Inflate Tires to recommended
pressure on Tire side wall.
• Make sure Tire is centered in
Fork.
• If Needed, Re-attach Front
Brake Cable:
• Squeeze the two Brake
arms together
.
• Insert the Brake
Cable Guide
into the cutout
in the Guide
Bracket
.
• Make sure the
Brake Cable
Guide
is
seated securely
in the Guide
Bracket
cutout.
A
B
Brake System
IF EQUIPPED: The Following Sections Describe Final Brake System Adjustments Required Before Riding.
B
C
C
A
A
B
C
B
C
Final Brake Adjustment Before Riding
Check tightness of the cantilever mounting Bolt
(fig A):
• Make sure each cantilever mounting Bolt is tightened securely.
A
Center brake shoes on rim:
1. Turn the Adjustment Screw
on
the cantilever arm to move the arm
in or out so each Brake Shoe
is
the same distance from the rim.
2. Squeeze the brake lever two times.
3. Do this step again, until both brake
shoes are the same distance from
the rim.
fig A
B
C
C
A
B
21
Linear Pull Brake System - Adjustment continued
Brake System
NOTE: The front and rear break adjustments are the same.
WARNING: You must adjust the
fig B
front and rear brakes before you ride the
bicycle.
Step 1: Put the brake shoes
rect position (fig B):
1.
2.
3.
4.
5.
C
B
B in the cor-
A
Loosen the Screw
of each Brake
Shoe
.
Adjust each Brake Shoe so it is flat
against the rim and aligned with the
curve of the rim.
Make sure each Brake Shoe does not
rub the tire.
If the surface of the Brake Shoe has
arrows, make sure the arrows point
toward the rear of the bicycle.
Hold each Brake Shoe in position and tighten the Screw.
B
D
A
Step 2: Test the tightness of each Brake Shoe:
1.
2.
3.
Try to move each Brake Shoe out of position.
If a Brake Shoe moves, do Step 1 again, but tighten the nut tighter than before.
Do this test again, until each Brake Shoe does not move.
Step 3. Stretching the cable (fig B):
1. Hold both Brake Shoes against the rim.
2. Loosen the cable clamp Screw
.
3. Pull the Cable
tight and tighten the Screw.
C
D
WARNING: Do not over tighten the cable clamp Screw. Over tightening the cable
clamp Screw may cut the cable and cause injury to the rider or to others.
4.
5.
6.
22
Squeeze each brake lever firmly 20 times.
Hold both Brake Shoes against the rim and loosen the cable clamp Screw.
Pull the Cable tight and tighten the cable clamp Screw.
Linear Pull Brake System Adjustment - continued
1.
2.
3.
4.
5.
A
E
Brake System
PUT THE BRAKE SHOES THE CORRECT
DISTANCE FROM THE RIM:
G
If desired, adjust Brake Levers
to a
comfortable distance from the grip using the Adjustment Screw
. Turning
the screw IN brings it closer to the grip.
Make sure brake line Sheaths
,
are
seated correctly.
Position each Brake Shoe 1/16 inch away
from the rim:
Turn the caliper brake adjusting Screws
in or out to make the adjustment.
If the brake shoes cannot be positioned
the correct distance
C
from the rim, hold
both Brake Shoes
against the rim and
loosen the cable
clamp Screw
Squeeze the Brake
1/16” 1/16”
Arms
together
(1.5mm)
fig C
and pull or loosen
the cable wire
slightly.
Tighten the cable clamp Screw.
H
AB
F
D
D
G
H
E
6.
7.
F
B
WARNING: Do not over tighten the cable clamp. Over tightening the cable
clamp may cut the cable and cause injury to the rider or to others.
8.
Repeat these steps until the brake shoes are 1/16 inch from the rim and the Brake
Lever
does not go all the way to the grip when squeezed (fig C).
G
WARNING: Do not move the brake shoes away from a wheel rim that is not true
(straight). This can cause the caliper brake to be less effective and unsafe. To allow safe
adjustment of the caliper brake, have a bicycle service shop true the wheel.
continued >>
23
Linear Pull Brake System - continued
Brake System
Test the tightness of the cable clamp (fig C):
1.
2.
3.
G
1.
2.
with strong pressure
Squeeze each Brake Lever
If the brake lever touches the grip, adjust the brakes again.
Squeeze each Brake Levers
with firm pressure.
Make sure the cable does not move in the Cable Clamp
.
If the cable moves in the cable clamp, adjust the brakes again but tighten the cable
clamp tighter than before.
4. Do this test again, until the cable does not move in the cable clamp.
Test the travel of each brake lever:
E
G
WARNING: After you adjust the brakes again, if either brake lever touches the grip
or does not work well, have a bicycle service shop repair or adjust the brakes.
Linear Pull Brake Pad Replacement
1.
2.
3.
4.
If necessary, loosen brake
cable Adjustment Bolt
.
Loosen and remove brake
pad Bolt/Screws
.
Remove old Brake Shoe
.
Install new Brake Shoe, making sure it is pointing forward
and lined up evenly with the
Wheel Rim
.
Tighten brake pad Bolt/
Screw and Adjustment Bolt
according to Torque Chart.
A
A
B
C
C
D
5.
B
D
WARNING: Replace Brake Pad with same model and type as original.
24
Disc Brake System Adjustment: (various models)
fig A
F
G
C
E
Brake System
NOTE: See Torque Table for recommended torques.
B
A
D
BRAKE ADJUSTMENT (see fig-A):
.
1. Loosen the Cable Clamp Bolt
2. Push the Brake Arm
toward the Adjusting Barrel
(this applies the brake).
3. While holding the Brake Arm, pull the slack out of the Cable End
(through the Cable
Clamp) and tighten the Cable Clamp Bolt
.
A
B
C
D
A
WARNING: Do not over tighten the Cable Clamp. Over tightening the Cable Clamp
may cut the Cable and cause injury to the rider or to others.
4.
5.
Pull and release the brake lever several times to set the Brake Cable.
Spin the wheel. It should spin freely. If the Disc cannot spin freely in the Caliper, the
Cable might be too tight. Loosen the Cable Clamp Bolt and allow the brake arm to move
away from the adjusting barrel – repeat steps 1 through 4 until the wheel spins freely.
NOTE: An initial gap of 0.3mm (0.01 inch) is recommended.
6. A properly adjusted Caliper is set such that, the pads contact the Disc at approximately
1/3 lever travel and stops the disc at approximately 2/3 lever travel.
7. Minor adjustment can be made by turning the Adjusting Barrel on the brake lever or the
continued >>
25
Disc Brake System - continued
Brake System
C
Adjusting Barrel
on the Caliper. Turn the Adjusting Barrel OUT to tighten the brakes
or IN to loosen the brakes.
NOTE: Make sure the Adjusting Barrel threads are fully engaged. Check adjustment again.
8.
If you cannot reduce the gap by turning the Adjusting Barrel, the brake pads might be
worn out and need to be replaced.
PAD REPLACEMENT:
1. Remove the Caliper Mounting Bolts
.
2. Remove the Caliper assembly
.
3. Remove the Brake Pads from the Caliper.
4. Install the new Pads using same type and size.
5. Install the Caliper assembly
to the mounts on the fork (front), or frame (rear) (front
shown).
6. Tighten the caliper Mounting Bolts
securely. See Torque Table for recommended
torque.
7. Route the Cable
through the lower Adjusting Barrel
and Cable Clamp
.
• Ensure Cable Housing
is fully inside Adjusting Barrel
.
8. Pull the Cable through the Cable Clamp, and tighten the Clamp
Bolt.
F
E
E
F
D
G
C
C
A
A
NOTE: Brake adjustment involves loosening the Cable Clamp Bolt. During installation, it only
needs to be tightened enough to make sure the Cable End doesn’t pull back through the
Camp.
9.
Adjust the Brake (as described above).
BRAKE SYSTEM MAINTENANCE:
• Check brake operation and adjustment before each ride.
• Keep the brake system free of dirt, mud, oil, and other foreign substances that will inhibit
proper operation.
• Frequently check:
• All components for damage.
• The pads - for wear.
• The lever - for smooth operation.
• The cable - ensure there are no frayed ends, cuts, or kinks that inhibit operation. Add
cable lube if the cable is dry.
• All bolts and fasteners - ensure the bolts are tightened, replace any that are damaged.
26
PARTS OF THE SHIFT SYSTEM:
• Left-hand Shifter
operates the Front
Derailleur
• Right-hand Shift Lever
operates
the Rear Derailleur
• Front Sprocket Set
• Rear Sprocket Set
A
A
B
C
C
D
E
F
B
Shift System
Shift System
E
F
D
WARNING:
• Never shift a derailleur onto the largest or the smallest sprocket if the derailleur is not
shifting smoothly. The derailleur may be out of adjustment and the chain could jam,
causing loss of control and injury.
• Never move the shifter while pedaling backward, nor pedal backwards immediately
after having moved the shifter. This could jam the chain and cause damage to the
bicycle and/or loss of control and injury.
OPERATE THE SHIFT SYSTEM AS FOLLOWS:
1.
2.
3.
4.
5.
6.
C
The rider turns the Rear Shift Control
around the handlebar (for twist shift models) or
moves the shift lever (thumb shift models) to an index position
When the rear shift control moves into each position with a “click” sound, the shift is
complete
The rider turns the Front Shift Control
around the handlebar (for twist shift models) or
moves the shift lever to an index position (thumb shift models)
Each shift control pulls a cable wire that is attached to the derailleur.
The derailleur moves and guides the chain from one sprocket to another.
If there is some chain noise after the shift, turn the rear shift control a small amount to
“trim” the rear derailleur.
27
A
Shift System
Shift System - continued
CAUTION: Do not force the shift levers. Shift only when pedaling forward and without
strong force. Do not backpedal. Backpedaling can cause the chain to come off the sprockets.
Backpedaling and shifting while not pedaling can damage the sprockets and stretch the
cable wire.
There is no “correct gear” in which to ride the bicycle. The “correct gear” is the one that is
comfortable to you.
To select a gear or sprocket combination while riding:
1. While pedaling, shift the chain onto different front and rear sprocket combinations.
2. You will feel a difference in the rhythm and ease of pedaling.
3. Shift the chain to the gear that allows you to pedal at a rhythm and effort that is
comfortable to you.
4. When riding uphill or against the wind, you may wish to keep the chain on the smallest
and shift the chain on the rear sprocket cluster
.
front sprocket
A
B
THESE ARE THE LOWER GEAR COMBINATIONS:
B
A
C
fig 02
• They allow you to pedal easier and at a faster rhythm, but with less distance traveled per
pedal revolution.
• For the best performance in this case, do not use the smallest rear sprocket
.
• When riding downhill or with the wind, you may wish to keep the chain on the largest
front sprocket
and shift the chain on the rear sprocket cluster.
C
D
28
Shift System - continued
E
Shift System
THESE ARE THE HIGHER GEAR COMBINATIONS:
D
fig 03
• They allow you to pedal harder and at a slower rhythm, but with more distance traveled
per pedal revolution.
• For the best performance in this case, do not use the largest rear sprocket
.
E
THESE ARE THE MIDDLE RANGE GEAR COMBINATIONS:
F
fig 04
• These overlap some of the higher and some of the lower gear combinations.
• On bicycles with three front sprockets, you may wish to keep the chain on the middle front
sprocket
and shift the chain on the rear sprocket cluster.
F
29
Shift System
Rear Derailleur Adjustments
The rear derailleur has two adjusting screws. The “low” adjusting screw, sometimes marked
L, limits how far the rear derailleur and chain can move toward the wheel. The “high” adjusting screw, sometimes marked H, limits how far the rear derailleur and chain can move
away from the wheel.
3
1
2
3
4
5
2
1
6
A
B
fig 05
Put the “high” adjusting screw in the correct position as follows:
C
B
• Shift the chain onto the smallest rear sprocket. Loosen Nut
of the cable clamp.
• Turn the lever Barrel Adjuster
and rear Derailleur Adjustor
all the way IN (fig 5).
• Turn the “high” adjusting Screw
so the Jockey Roller
is in line with the outside
(fig 6)
edge of the smallest rear Sprocket
• Remove the slack from the cable wire and tighten the Nut of the cable clamp.
A
G
E
D
E
D
F
G
H
C
30
fig 6
continued >>
Rear Derailleur Adjustments - continued
Put the “low” adjusting Screw in the correct position as follows:
• Shift the chain onto the largest rear Sprocket
.
• Loosen Nut of the cable clamp.
• Turn the “low” adjusting Screw
so the Jockey Roller is exactly below the largest
rear sprocket.
• Tighten the Nut of the cable clamp.
H
Adjust the Index Shift System:
• Shift the chain onto the smallest rear
sprocket.
• Without turning the crank, turn the Right
Shift Control
one “click” rearward.
• Slowly turn the crank forward.
• The chain should move from the smallest rear sprocket to the next larger rear
sprocket.
• Turn the Adjusting Barrel
OUT as
needed so the chain moves exactly on to
the second rear sprocket and does not
rub, jump, or delay.
A
Shift System
F
1
2
3
4
5
6
B
When adjusted properly, the shift system will
operate smoothly with no chain rubbing.
B
A
fig 7
Note: If you have trouble, take the bike to a
bike shop.
31
Front Derailleur Adjustments
Shift System
These instructions describe most adjustments that the shift system may need. If you can
not adjust the shift system using these instructions, have a bicycle service shop do the
adjustments that are needed.
The Handlebar Twist Grips
(View 1) control the Shift
System. The Left Grip
shifts
the chain on the front sprockets
(View 2). The Right Grip
shifts the chain on the Rear
Sprocket (View 3).
1
The front derailleur (View 2) has
two adjusting screws. The “low”
adjusting screw, sometimes
marked “L”, limits how far the
front derailleur and chain can
move toward the frame. The
“high” adjusting screw, sometimes marked “H”, limits how far
the front derailleur and chain
can move away from the frame.
A
A
B
3
1
2
3
4
5
2
2
1
6
B
C
L
D
F
Put the “low” adjusting screw
L in the correct position as
follows:
• Shift the chain onto the
third largest rear sprocket
and the smallest front
sprocket.
• Turn the lever Barrel Adjuster
all the way IN.
• Loosen Nut
of the cable
clamp.
• Turn the “low” adjusting
screw L so the left inside
edge of the chain cage
and the chain
just do
not touch.
• Remove the slack from the cable wire and tighten Nut
H
C
D
E
F
32
3
D securely.
E
Put the “high” adjusting screw H in the correct position as follows:
• Shift the chain onto the largest front sprocket and the smallest rear sprocket.
• Turn the “high” adjusting screw H so the right inside edge of the chain cage and the
chain just do not touch.
NOTE: If the shift lever does not move easily:
• If the shift cable seems to stick, lubricate it.
• Do not lubricate the shift control.
• If the shift cable is sharply bent, rusted or has broken strands, replace it.
Shift System
Front Derailleur Adjustments - continued
Perform the “Rear Derailleur Adjustments” if:
• The chain will not shift onto all the rear sprockets.
• The chain comes off the rear sprockets.
• The chain makes noise while on the smallest or largest rear sprocket.
• The rear derailleur rubs the spoke protector.
33
Repair and Service
Maintenance
WARNING:
• Inspect the product frequently. Failure to inspect the product and to make repairs or
adjustments, as necessary, can result in injury to the rider or to others. Make sure all
parts are correctly assembled and adjusted as written in this manual and any “Special
Instructions”.
• Immediately replace any damaged, missing, or badly worn parts with original
equipment.
• Make sure all fasteners are correctly tightened as written in this manual and any
“Special Instructions”. Parts that are not tight enough can be lost or operate poorly.
Over tightened parts can be damaged. Make sure any replacement fasteners are the
correct size and type.
NOTE: Have a bicycle service shop make any repairs or adjustments for which you do not
have the correct tools or if the instructions in this manual or any “Special Instructions” are
not sufficient for you.
34
Maintenance:
• Frequently check the tire inflation pressure because all tires lose air slowly over time. For
extended storage, keep the weight of the off the tires.
• Do not use unregulated air hoses to inflate the tire/tubes. An unregulated hose can suddenly over inflate tires and cause them to burst.
• Replace worn tires.
WARNING
: Do not ride or sit on the unit if a tire is under inflated. This can damage the tire, inner tube and rim.
Maintenance
Tires
Inflating the Tires:
• Use a hand or a foot pump to inflate the tires.
• Service station meter-regulated air hoses are also acceptable.
• The maximum inflation pressure is shown on the tire sidewall.
• If two inflation pressures are on the tire sidewall, use the higher pressure for on-road riding
and the lower pressure for off-road riding.
• The lower pressure will provide better tire traction and a more comfortable ride.
Before adding air to any tire, make sure the edge of the tire (the bead) is the same distance
from the rim, all around the rim, on both sides of the tire. If the tire does not appear to be
seated correctly, release air from the inner tube until you can push the bead of the tire into
the rim where necessary. Add air slowly and stop frequently to check the tire seating and the
pressure, until you reach the correct inflation pressure.
35
Lubrication
Maintenance
WARNING:
• Do not over lubricate. If oil gets on the wheel rims or the brake shoes, it will reduce
brake performance and a longer distance to stop the bicycle will be necessary. Injury to
the rider or to others can occur.
• The chain can throw excess oil onto the wheel rim. Wipe excess oil off the chain.
• Keep all oil off the surfaces of the pedals where your feet rest.
• Using soap and hot water, wash all oil off the wheel rims, the brake shoes, the pedals,
and the tires.
• Rinse with clean water and dry completely before you ride.
• Using a light machine oil (20W), lubricate the bicycle according to the following table:
Lubrication Table (as equipped)
What
36
When
How
Pedals
every six months
Put four drops of oil where the axles go into the
pedals.
Chain
every six months
Put one drop of oil on each roller of the chain.
Wipe all excess oil off the chain.
Derailleurs
every six months
Put one drop of oil on each pivot point of the
derailleurs.
Brake Levers
every six months
Put one drop of oil on the pivot point of each
brake lever.
Wheel Brakes
every six months
Put one drop of oil on the pivot point of each
cantilever brake.
Brake and cable
every six months
Put four drops of oil into both ends of each cable.
Allow oil to soak back along the cable wire.
Rear Sprocket
Cluster
every six months
Lay the bicycle on its left side. Slowly turn the
rear wheel clockwise. Put four drops of oil in the
crack between the rear sprockets (which are
stationary) and the freewheel body (which is
turning clockwise).
Shock Fork
every six months
Lift up the rubber fork boot and dab a small
amount of grease on the fork leg just above the
plastic bushing.
Maintenance
Frequently check the bearings of the bicycle. Have a bicycle service shop lubricate the
bearings once a year or any time they do not pass the following tests:
Head Tube Bearings
The fork should turn freely and smoothly at all times. With the front wheel off the ground,
you should not be able to move the fork up, down, or side-to-side in the head tube.
Crank Bearings
The crank should turn freely and smoothly at all times and the front sprockets should not
be loose on the crank. You should not be able to move the pedal end of the crank from
side-to-side.
Maintenance
Inspection of the Bearings
Wheel Bearings
Lift each end of the bicycle off the ground and slowly spin the raised wheel by hand. The
bearings are correctly adjusted if:
• The wheel spins freely and easily.
• The weight of the spoke reflector, when you put it toward the front or rear of the
bicycle, causes the wheel to spin back and forth several times.
• There is no side-to-side movement at the wheel rim when you push it to the side with
light force.
Suspension Frame (various models)
Adjustment: The bicycle may have an adjustable shock-absorbing suspension. You
can change the suspension, as you prefer,
for a softer or a firmer ride.
A
C
WARNING: Make sure there are at
least two threads showing
above the
Adjusting Nut
so the shock does not
come loose.
C
A
To change the suspension:
• For a softer ride, turn the Adjusting Nut
clockwise so the Suspension Spring
is compressed less.
• For a firmer ride, turn the Adjusting Nut
is compressed more.
A
B
B
B
A counter clockwise so the Suspension Spring
37
Limited Warranty
Warranty
General:
• Part or model specifications are subject to
change without notice.
• This Limited Warranty is the only warranty
for the product. There are no other express
warranties.
• The only uses for this product are described
in this manual.
• Warranty registration is not required.
• The Limited Warranty extends only to the
original consumer and is not transferable to
anyone else.
What does this Limited Warranty cover?
This Limited Warranty covers all parts of the
product except those indicated below as not
warranted.
What must you do to keep the Limited
Warranty in effect?
This Limited Warranty is effective only if:
• Product is completely and correctly
assembled.
• Product is used under normal conditions
for its intended purpose (see the following
section for excluded activities).
• Product receives all necessary maintenance
and adjustments.
• Product is used for general transportation
and recreational use only.
What is not covered by this Limited
Warranty?
This product is designed for recreational use only.
This Limited Warranty does not cover normal
wear and tear, normal maintenance items, or any
damage, failure, or loss that is caused by improper
assembly, maintenance, adjustment, storage, or
use of the product.
This Limited Warranty will be void if the
product is ever:
38
• Used in any competitive sport
• Used for stunt riding, jumping, aerobatics or
similar activity
• Modified in any way
• Modified with the addition of a motor
• Ridden by more than one person at a time
• Rented, sold, or given away
• Used in a manner contrary to the instructions
and warnings in this Owner’s Manual
Huffy will not be liable for incidental or
consequential loss or damage due directly or
indirectly from use of this product. Some States do
not allow the exclusion or limitation of incidental
or consequential damages, so the above limitation
may not apply to you.
What will Huffy do?
Huffy will replace, without charge to you, any part,
or component found to be defective by Huffy.
How do you get service?
Contact the Customer Service Department.
• See included list for Customer Contact
information or visit www.huffybikes.com/
contact.
What rights do you have?
This warranty gives you specific legal rights. You
may also have other rights which vary from State
to State.
For how long does this Limited Warranty
last?
• Steel Frame and Fork: Lifetime
• Aluminum Frame: 10 years
• Shock Fork/Aluminum Fork: 1 year
• Electronics: 90 days
• All other components: 6 months
All warranties are from date of original purchase.
WARNING:
ALWAYS WEAR YOUR HELMET
WHEN RIDING THIS PRODUCT!
•
•
•
•
•
Helmet should sit level on your head and low on your forehead
Adjust the strap sliders below the ear on both sides.
Buckle the chin strap. Adjust strap until it is snug.
No more than two fingers should fit between the strap and your chin.
A proper fitting helmet should be comfortable and not rock forward/backward or side to side.
• Always read the user manual that comes with your helmet to make sure it
is fitted and attached properly to the wearer’s head according to the fitting
instructions described in the user manual.
Check
www.Huffybikes.com/contact
for the current contact information
[ In the US ]
PLEASE - BEFORE RETURNING TO STORE,
CONTACT HUFFY CUSTOMER SERVICE. WE
ARE GLAD TO ASSIST YOU WITH ANY PARTS
OR ASSEMBLY PROBLEMS YOU MIGHT
HAVE!
For Fast Customer Service, go to:
http://www.huffybikes.com/contact
To Order Parts (US only), go to:
http://www.huffybikes.com/parts
OR TEL: 1 800 872 2453 (US only)
For email, go to http://www.huffybikes.com/contact
[ CANADA ]
[ MÉXICO ]
VEUILLEZ NOTER : AVANT DE
ANTES DE DEVOLVER EL
RETOURNER AU MAGASIN,
PRODUCTO A LA TIENDA,
COMMUNIQUEZ AVEC LE SERVICE
COMUNÍQUESE CON SERVICIO
À LA CLIENTÈLE DE HUFFY. NOUS
AL CLIENTE DE HUFFY. NOS
VOUS AIDERONS VOLONTIERS AVEC
COMPLACE AYUDARLO CON
TOUT PROBLÈME CONCERNANT LES CUALQUIER PARTE O PROBLEMA
PIÈCES OU LE MONTAGE!
DE ENSAMBLADO QUE PUDIERA
TENER.
Pour un Service à la clientèle rapide, allez sur le
site :
Para obtener Servicio al cliente rápido, visite:
To Order Parts (CANADA only), go to:
http://www.huffybikes.com/parts
OU appelez le 1 800 872 2453
(CANADA only)
http://www.huffybikes.com/
O LLAME AL TEL: 01800 1483 391
(Mexico only)
Para comunicarse por correo electrónico:
[email protected]
Pour communiquer par courriel
[email protected]
Check http://www.huffybikes.com/home/globalcontact
for the current contact information
http://www.huffybikes.com/home/globalcontact
para obtener la información de contacto actual
Vérifier http://www.huffybikes.com/home/globalcontact
pour les informations de contact actuelles
H-Tri_STOP-Global_022217_i0388
http://www.huffybikes.com/contact
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
