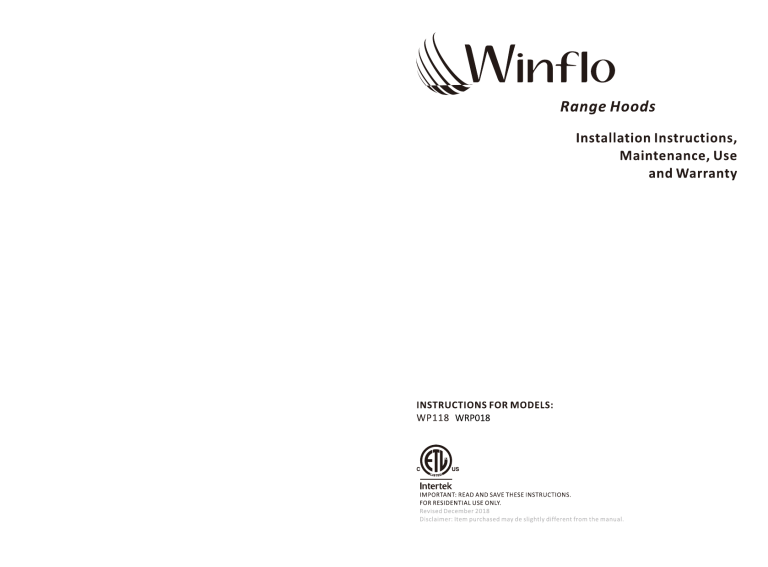

inflo
Range Hoods
Installation Instructions,
Maintenance, Use
and Warranty
INSTRUCTIONS FOR MODELS:
WP118 WRP018
Intertek
IMPORTANT: READ AND SAVE THESE INSTRUCTIONS.
FOR RESIDENTIAL USE ONLY.
| IMPORTANT SAFETY INSTRUCTIONS |
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, READ
THE FOLLOWING:
>
>
Use this unit only in the manner intended by the manufacturer. If you have questions, please
contact the manufacturer.
Before servicing or cleaning the unit, switch the power off and turn power off at the electrical
panel and lock the service panel. This will prevent the power from accidentally turning on. If
the service panel does not lock, secure a warning label, such as a tag, to the service panel.
Installation work and electrical wiring must be done by a qualified professional(s) in
accordance with all applicable codes, standards, and fire-rated constructions.
Do not operate any fans with a damaged cord or plug. Discard the fan or return to an
authorized service facility for further examination and/or repair.
To prevent back draft, sufficient air is needed for proper combustion. Gas from the fuel
burning equipment needs to exhaust through the flue (chimney). Follow the heating
equipment manufacturer’s guideline and safety standards such as those published by the
National Fire Protection Association (NFPA), the American Society for Heating, Refrigeration
and Air Conditioning Engineers (ASHRAE), and the local code authorities.
When cutting, or drilling into walls or ceilings; be aware of electrical wires, piping, and other
utilities.
Ducted fans must always be vented outdoors.
CAUTION: For general ventilation use only. Do not use to exhaust hazardous or
explosive materials and vapors.
CAUTION: To reduce the risk of fire and to properly exhaust air, be sure to duct air
outside — DO NOT vent exhaust air into attics, crawl spaces, garages, or within walls and
ceilings.
WARNING: TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE, READ THE FOLLOWING:
>
>
Never leave surface units unattended at high settings. Boil-over can cause smoke and grease
to spill over that may ignite. Heat oils slowly on low or medium settings.
Always turn range hood ON when cooking at high heat or when cooking food with high
flames.
Clean ventilation fans frequently. Grease should not be allowed to accumulate on fan or
filter.
Use proper pan size. Always use cookware appropriate for the size of the surface element.
WARNING: TO REDUCE THE RISK OF INJURY, IN THE EVENT OF A RANGE TOP GREASE FIRE,
READ THE FOLLOWING:
> SMOTHER FLAMES with a close-fitting lid, cookie sheet or metal tray, then turn off the
burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately.
EVACUATE AND CALL THE FIRE DEPARMENT .
> NEVER PICK UP A FLAMING PAN — you may be burned.
> DO NOT USE WATER, including wet dishcloths or towels — a violent steam explosion will
result.
> Use an extinguisher ONLY if:
-You know you have a class ABC extinguisher, and you know how to operate it.
-The fire is small and contained in the area where it started.
-The fire department is being called.
-You can fight the fire with your back to an exit.
Based on “Kitchen Fire Safety Tips” published by NFPA
WARNING: To reduce the risk of fire or electrical shock, do not use this fan with any solid-state
speed control device.
| LOCATION REQUIREMENTS |
IMPORTANT: Observe all governing codes and ordinances. Have a qualified technician install the
range hood. lt is the installer's responsibility to comply with installation clearances specified on
the model/serial rating plate. Canopy hood's location should be away from strong draft areas,
such as windows, doors, and strong heating vents. Cabinet opening dimensions that are shown
must be used. Given dimensions provide minimum clearance.
| ELECTRICAL REQUIREMENTS |
Observe all governing codes and ordinances. Ensure that the electrical installation is adequate
and in conformance with the National Electrical Codes, ANSI/NFPA 70 (latest edition), or CSA
Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition), all local
codes, and ordinances. If codes permit and a separate ground wire is used, it is recommended
that a qualified electrician determine that the ground path is adequate.
A copy of the above code standards can be obtained from:
1 Batterymarch Park
Quincy, MA 02169-7471
CSA International
8501 East Pleasant Valley Road
Cleveland, OH 44131-5575
> A 120 volt, 60 Hz., AC only, 2.5-amp, fused electrical circuit is required.
» If the house has aluminum wiring, follow the procedure below:
© Connect a section of solid copper wire to the pigtail leads.
O Connect the aluminum wiring to the copper wire using special connectors and/or tools
designed and UL listed for joining copper to aluminum. Follow the manufacturer’s
recommended procedure for the electrical connector. Aluminum/copper connection
must conform to local codes and industry accepted wiring practice.
> Wire sizes and connections must conform to the rating of the appliance as specified on the
model/serial rating plate. The model/serial plate is located behind the filter on the rear wall
of the range hood.
> Wire sizes must conform to the requirements of the National Electrical Code, ANSI/NFPA 70
(latest edition), or CSA Standards C22. 1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-
M91 (latest edition) and all local codes and ordinances.
[ VENTILATION REQUIREMENTS |
General requirements
> Range hoods must be ventilated to the outdoors, except for non-vented (recirculating)
installations.
Do not ventilate the range hood into an attic or other enclosed areas.
Do not use 4” (10.2 cm) laundry-type wall caps.
The length of the range hood and the number of elbows should be kept to a minimum
to provide maximum performance.
Y Y Y
For the most efficient and quiet operation
Use no more than three 90-degree elbow.
Make sure there is a minimum of 24” (61 cm) of straight duct between the elbows if
more than one elbow is used.
Do not install two elbows together.
Use clamps and tape to seal all joints in the vent system.
The vent system must have a damper. If the roof or wall cap has a damper, do not use
the damper supplied with the range hood.
Use caulking to seal exterior walls or roof openings around the cap.
The size of the vents should be uniform.
Y Y VVV VY
Cold Weather Installations
An additional back draft damper should be installed to minimize backward cold air flow. A
thermal break should be installed to minimize conduction of outside temperatures as part
of the vent system. The damper should be on the cold air side of the thermal break. The
break should be as close as possible to where the vent system enters the heated portion of
the house.
Makeup Air
Local building codes may require the use of makeup air systems, when using ventilation
systems greater than specified CFM of air movement. The specified CFM varies from state
to state. Consult your HVAC professional for specific requirements in your area.
Venting Method
To vent through a wall, a 90-degree elbow is needed. If exhaust ducting with a diameter of
less than 5.91” (150 mm) or if flat ducting is used, the noise level of the range hood could
increase and extraction will be less efficient.
Rear Discharge
A 90-degree elbow may be installed immediately above the hood.
Calculating Vent System Length
To calculate the length of the system you need, add the equivalent feet (meters) for all vent
pieces used in the system.
4
[INSTALLATION DIMENSION RECOMMENDATIONS
Prior to installation
> Unpack range hood and ensure all listed parts are in the box.
> lItis recommended for any external vent system to be installed before hood is installed.
> Make sure there is proper clearance within the ceiling or walls for the exhaust vent.
> Determine which venting method to use: roof or wall.
> It is recommended that a professional installer perform the range hood installation.
Exhibit A Roof venting Wall venting
A
и \ \
B B —1
IN TEN
a a | A
\ \
\ \
\ \
\ \
A. Roof cap A. Wall cap
B.6"(15.2cm) B.6"(15.2cm)
round vent round vent
INSTALLATION INSTRUCTIONS for Wall Mount
Range Hood
Parts supplied
=" Io mmo
Range Hood
Power Cord (attached to range hood)
6”,or7”, or 8” round vent air flap depending on model. (attached to range hood on top
of unit)
Stainless Steel Baffle Filters (Preinstalled to the bottom of the range hood)
Duct bracket: 1 bracket w/2 screws attached
(1) 6”,or7”,or 8” round flexible duct exhaust hose, depending on model
(1) Chimney Duct (Located inside top of range hood, slides upwards)
(1) Grease collection tray
(1) Mounting bracket for hanging range hood
(1) Wooden crown molding
35.39" 12.63"
>
—— .
"E
FT — €
35.39"
14.56,
14.29" — a
~
>
00
с?
o
©
LO
N
Parts not supplied
>
>
>
>
Fasteners for range hood mounting bracket (I) (every installation will vary based on
walls and support system)
Duct tape
Preinstalled ventilation system and ductwork
Preinstalled outside duct cap or weatherproofing
Installing the range hood
This installation is for mounting the product to a wall. Ensure your wall has the proper
support to hold the range hood weight. These instructions are general guidelines, please
consult your installation specialist regarding the best type of mounting hardware and
support system based on your wall construction. This wall mounted range hoods, due to
the weight, should be installed and supported by studs behind the wall (hardware not
included). In the event studs are not in alignment with the wall mount mounting plate
holes, a wooden cross support system may need to be retrofitted to your existing studs.
All homes are different, and installations will vary.
1.
2.
Begin installation by removing any tape on the air flow flappers (C).
Remove any protective film from range hood and ducting. When handling the ducting
please wear protective gloves to avoid sharp edges.
If your model has an electronic touch sensor control panel, your model may have a
protective plastic film covering the control panel, please remove.
Install the grease tray (H) by inserting under the range hood. The bottom of the range
hood has two slots where the grease tray slides into.
5. Find the center of the wall where you are installing the hood. Mark your center line to
the ceiling and measure out from the center to find your mounting points.
CEILING
1. CENTER LINE
|
|
|
|
a # =
a i Mi
=. CHIMANEYŸ 1. MOUNTING
TE TA ESCALAS
. Secure the range hood mounting bracket (1) into wall studs or a wooden cross support
system with the two mounting clips on the bracket facing upward towards the ceiling.
lt is recommended that a professional installer be used for installation. These two
mounting clips, on the bracket (1) will hold the range hood once mounted. In order to
support the weight of the range hood use at least four wood screws (not included) into
the studs or wooden cross support system.
. On the back of the range hood there are two rectangular openings, line up and place
these openings over the two clips on the range hood mounting bracket (I) to install the
range hood to wall. This will require two people.
Two
rectangular
openings on
back of range
hood
8. Assemble ventilation to outside ducting. Install (1) round flexible duct exhaust hose (F)
to round vent air flap (C) (attached to range hood on top of unit) and secure with duct
tape. Vent to outside of your dwelling.
9. Power the hood by connecting the three-pronged plug (B) to a nearby electrical outlet.
10. From the center line drawn in step 5, center the duct mounting bracket (E) at the top of
the ceiling and insert (2) #10 X 3/4 (K) tapping screws into the horizontal holes and
attach to the wall. See below.
11. Pull up the chimney duct (G) from top of range hood up to the duct mounting bracket
(E) attached to the wall from step 10.
12. Remove screws from duct bracket (E). Insert mounting bracket inside of the duct and
align the holes. Replace the screws entering side of the duct. This mounting bracket is
for support of the duct.
\ Mounting bracket goes inside the
N —
«M
[Fe i
>
13. Slide the wooden crown molding onto the bottom of the range hood. The molding
is pre-grooved to the shape of the range hood. No fasteners are required.
12.63"
25.00"-38.77"
OPERATING INSTRUCTIONS
Note: There are different operating instructions based on the control panel for
your model. Please choose the operating instruction for your unit.
Powering on/off and Settings:
Power/Standby
Lamp Fan Low Fan Med Fan High
> Lamp: Press the lamp display one time to activate the light, press the lamp display again
to deactivate it.
> Power/Standby: When the range hood is in the “original” state, touch this button. It will
enter the standby mode. The glass will illuminate.
> Fan Operation:
о In standby mode, press any of the fan buttons to operate at low, medium or high.
> Timer:
o When the fans are operating, touch the power/standby button one time. This will
turn on the timer mode and the range hood will automatically turn off in one
minute. Within the last 3 seconds of the range hood turning off, the touch sensor
control will make three beeps.
o To turn off the range hood immediately touch the power/standby button twice.
10
| CARE and MAINTENANCE |
Cleaning
Exterior Surfaces
To avoid damage to the exterior surface, do not use steel wool or soap filled
scouring pads. Always wipe dry to avoid water marks.
Cleaning Method
Use liquid mild-detergent soap and water, do not use hard abrasive cleaners.
Wipe with damp soft cloth or non-abrasive sponge, then rinse with clean water and
wipe dry.
Do’s:
e Clean your range hood using a non-abrasive cloth or sponge and liquid detergent.
e Always wipe in the direction of the grain pattern.
e After cleaning rinse with water.
e Make sure range hood is dry after cleaning.
Don'ts:
e Do not use steel wool or like products as this will cause scratching and iron
residue that could lead to rusting and corrosion.
e Donotwipe against the grain pattern as this will impact the original finish.
e Do not use chlorine bleach.
Grease/Baffle Filter
e |f your model has a grease tray, please remove, drain, and clean periodically.
11
[LIMITED WARRANTY |
This warranty extends to the original purchaser only. This warranty is not transferable, between
homes or owners and is only applicable to residential use. Winslyn Industries, LLC provides a 3-
year limited parts warranty for all range hoods. Under this warranty, you (the customer), is
entitled to replacement parts at no cost to repair and restore functionality if any part of the
product were to fail. No labor is provided. Certain consumables that are not covered under this
warranty include Lights (halogen and LEDs), Carbon Filters, Mesh or Baffle Filters, Ducting. These
parts are guaranteed to last one year beginning from the date of purchase. If they fail
prematurely or are defective within 1 year of purchase, we will replace them at no charge. If a
main unit or complete replacement needs to be sent, Winslyn Industries, LLC will require that the
customer pay for shipping. Shipping for parts are free under the warranty period. We will provide
replacement parts at no charge under normal use and service. We provide you with complete
instructions on how to maintain and care for this product. We will not be responsible for due to
lack of maintenance or proper use. The original sales receipt, order number, and/or proof of
purchase must be presented at the time of the warranty claim, without exception. As noted in
the instructions we recommend the use of a professional installer. Winslyn Industries, LLC will
not be held responsible for any damage or product failure due to improper installation, misuse,
or failure to use a licensed professional. This warranty only extends for household product use,
this warranty will be void for commercial use of this product. This warranty will not be applicable
if product is purchased from an unauthorized seller. By purchasing this product, buyer agrees that
we are not liable for incidental, consequential, or special damages associated with the return,
replacement, installation or use of your product. This includes freight costs, labor, travel time, lost
profit, home damages and other contingent liabilities and costs (including, without limitation,
costs associated with experts, investigations, analyses, attorneys and other professionals and
services). Our warranty is a comprehensive and explicit limit of liability, and all items outside of it
are not addressable by or the responsibility of Winslyn Industries, LLC. Certain states have
variances regarding implied warranties and in those situations, we remain fully compliant. We
make no implication that products comply with any or all local building or plumbing codes. It is
the consumer’s responsibility to determine local building code. Please write or contact us at:
Winslyn Industries, LLC
1232 Hardt Circle
Bartlett, Illinois 60103 Winpro® Sinks Winflo9 Range Hoods
Email: [email protected] Winette® Bathroom Vanities
12
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
