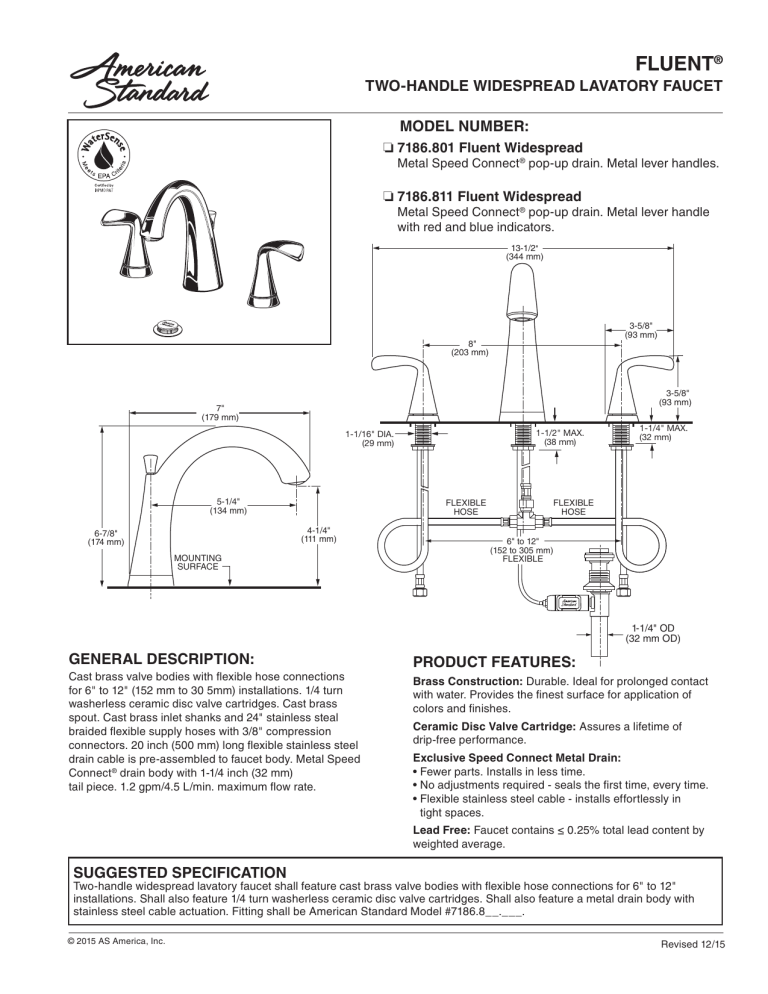

FLUENT®
TWO-HANDLE WIDESPREAD LAVATORY FAUCET
MODEL NUMBER:
❏ 7186.801 Fluent Widespread
Metal Speed Connect ® pop-up drain. Metal lever handles.
❏ 7186.811 Fluent Widespread
Metal Speed Connect ® pop-up drain. Metal lever handle
with red and blue indicators.
13-1/2"
(344 mm)
3-5/8"
(93 mm)
8"
(203 mm)
3-5/8"
(93 mm)
7"
(179 mm)
1-1/2" MAX.
(38 mm)
1-1/16" DIA.
(29 mm)
5-1/4"
(134 mm)
FLEXIBLE
HOSE
4-1/4"
(111 mm)
6-7/8"
(174 mm)
MOUNTING
SURFACE
1-1/4" MAX.
(32 mm)
FLEXIBLE
HOSE
6" to 12"
(152 to 305 mm)
FLEXIBLE
1-1/4" OD
(32 mm OD)
GENERAL DESCRIPTION:
Cast brass valve bodies with flexible hose connections
for 6" to 12" (152 mm to 30 5mm) installations. 1/4 turn
washerless ceramic disc valve cartridges. Cast brass
spout. Cast brass inlet shanks and 24" stainless steal
braided flexible supply hoses with 3/8" compression
connectors. 20 inch (500 mm) long flexible stainless steel
drain cable is pre-assembled to faucet body. Metal Speed
Connect ® drain body with 1-1/4 inch (32 mm)
tail piece. 1.2 gpm/4.5 L/min. maximum flow rate.
PRODUCT FEATURES:
Brass Construction: Durable. Ideal for prolonged contact
with water. Provides the finest surface for application of
colors and finishes.
Ceramic Disc Valve Cartridge: Assures a lifetime of
drip-free performance.
Exclusive Speed Connect Metal Drain:
• Fewer parts. Installs in less time.
• No adjustments required - seals the first time, every time.
• Flexible stainless steel cable - installs effortlessly in
tight spaces.
Lead Free: Faucet contains ≤ 0.25% total lead content by
weighted average.
SUGGESTED SPECIFICATION
Two-handle widespread lavatory faucet shall feature cast brass valve bodies with flexible hose connections for 6" to 12"
installations. Shall also feature 1/4 turn washerless ceramic disc valve cartridges. Shall also feature a metal drain body with
stainless steel cable actuation. Fitting shall be American Standard Model #7186.8__.___.
© 2015 AS America, Inc.
Revised 12/15
FLUENT®
TWO-HANDLE WIDESPREAD LAVATORY FAUCET
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
1.2
GALLONS PER MINUTE
ANSI A117.1
ASME A112.18.1
NSF 61/Section 9 and Annex G
CSA B125.1
FLOW RATE*
1.4
1.0
0.8
0.6
0.4
0.2
0.0
0
20
40
60
80
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
Finish Options
Product
Number
Description
7186.801
Fluent™ Widespread with metal Speed Connect ® pop-up
drain. Metal lever handles.
7186.811
Fluent™ Widespread with metal Speed Connect pop-up
drain. Metal lever handles with red & blue indicators
Polished
Chrome
Oil Rubbed
Bronze
PVD
Satin Nickel
002
224
295
Meets the American Disabilities Act Guidelines and ANSI A117.1
Requirements for the physically challenged.
© 2015 AS America, Inc.
Revised 12/15
