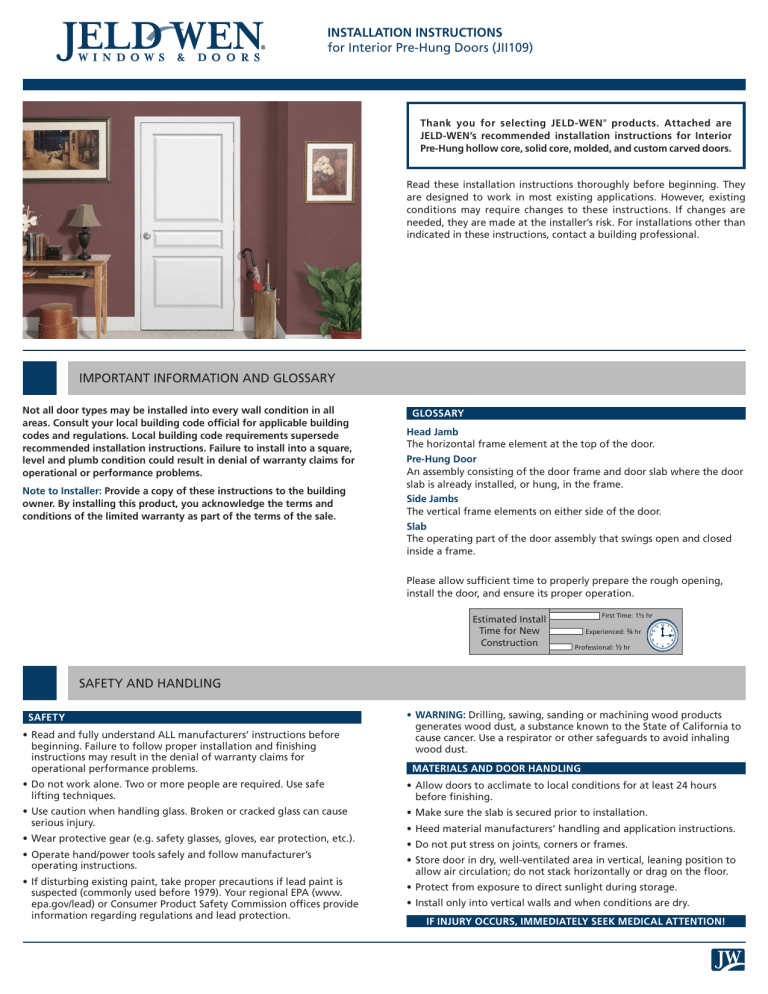

INSTALLATION INSTRUCTIONS
for Interior Pre-Hung Doors (JII109)
Thank you for selecting JELD-WEN ® products. Attached are
JELD-WEN’s recommended installation instructions for Interior
Pre-Hung hollow core, solid core, molded, and custom carved doors.
Read these installation instructions thoroughly before beginning. They
are designed to work in most existing applications. However, existing
conditions may require changes to these instructions. If changes are
needed, they are made at the installer’s risk. For installations other than
indicated in these instructions, contact a building professional.
IMPORTANT INFORMATION AND GLOSSARY
Not all door types may be installed into every wall condition in all
areas. Consult your local building code official for applicable building
codes and regulations. Local building code requirements supersede
recommended installation instructions. Failure to install into a square,
level and plumb condition could result in denial of warranty claims for
operational or performance problems.
Note to Installer: Provide a copy of these instructions to the building
owner. By installing this product, you acknowledge the terms and
conditions of the limited warranty as part of the terms of the sale.
GLOSSARY
Head Jamb
The horizontal frame element at the top of the door.
Pre-Hung Door
An assembly consisting of the door frame and door slab where the door
slab is already installed, or hung, in the frame.
Side Jambs
The vertical frame elements on either side of the door.
Slab
The operating part of the door assembly that swings open and closed
inside a frame.
Please allow sufficient time to properly prepare the rough opening,
install the door, and ensure its proper operation.
Estimated Install
Time for New
Construction
First Time: 1½ hr
Experienced: ¾ hr
11
10
9
12 1
Professional: ½ hr
7
2
3
4
8
6
5
SAFETY AND HANDLING
SAFETY
• Read and fully understand ALL manufacturers’ instructions before
beginning. Failure to follow proper installation and finishing
instructions may result in the denial of warranty claims for
operational performance problems.
• WARNING: Drilling, sawing, sanding or machining wood products
generates wood dust, a substance known to the State of California to
cause cancer. Use a respirator or other safeguards to avoid inhaling
wood dust.
MATERIALS AND DOOR HANDLING
• Do not work alone. Two or more people are required. Use safe
lifting techniques.
• Allow doors to acclimate to local conditions for at least 24 hours
before finishing.
• Use caution when handling glass. Broken or cracked glass can cause
serious injury.
• Make sure the slab is secured prior to installation.
• Wear protective gear (e.g. safety glasses, gloves, ear protection, etc.).
• Operate hand/power tools safely and follow manufacturer’s
operating instructions.
• If disturbing existing paint, take proper precautions if lead paint is
suspected (commonly used before 1979). Your regional EPA (www.
epa.gov/lead) or Consumer Product Safety Commission offices provide
information regarding regulations and lead protection.
• Heed material manufacturers’ handling and application instructions.
• Do not put stress on joints, corners or frames.
• Store door in dry, well-ventilated area in vertical, leaning position to
allow air circulation; do not stack horizontally or drag on the floor.
• Protect from exposure to direct sunlight during storage.
• Install only into vertical walls and when conditions are dry.
IF INJURY OCCURS, IMMEDIATELY SEEK MEDICAL ATTENTION!
INSTALLATION INSTRUCTIONS
for Interior Pre-Hung Doors (JII109)
MATERIALS AND TOOLS
PROVIDED MATERIALS
NEEDED TOOLS
• Two color matched #9 x 2 1/2" screws (for securing the top two hinges
into framing). Applies only to solid core, custom carved and stile and
rail doors.
NEEDED MATERIALS
Note! Follow all material manufacturers’ instructions for proper use
and compatibility.
• Hammer
• Tape measure
• Utility knife
• Level (4 ft. minimum
recommended)
• Circular saw or jigsaw (for
trimming jambs if necessary)
• Nail punch
• Screwdrivers
• 10d Finish nails
• 4d Finish nails
• Shims
• Wood putty
• Sandpaper
• Finishing materials
• 100% polyurethane sealant (for two piece frames)
1
REMOVE PACKAGING AND INSPECT DOOR
REMOVE PACKAGING
Remove shipping materials such as corner covers, shipping blocks
or pads.
Note! Be sure to remove the shipping clips or screws through the
header into the slab from the door before beginning the installation.
INSPECT DOOR
• Correct product (size, color, grid pattern, handing, glazing, energyefficiency requirements, etc.).
• Correct Handing. To determine door swing (left or right), face the
door from the side where hinges cannot be seen. Right handed doors
open to the right, while left handed doors open to the left.
If any of the above conditions represent a concern, do not install the
door. Contact your dealer or distributor for recommendations.
• Cosmetic damage.
• Product squareness (diagonal measurements must be within
1/4" difference).
2
INSPECT ROUGH OPENING
• Verify the width
and height of the
door frame are each
1/2" smaller than
the rough opening
width/height.
• Verify the rough
opening is square.
The (A) and (B)
measurements
should be the same.
Maximum allowable
deviation from
square is 1/4".
• Verify the rough opening is level and plumb (C) and (D). The
maximum allowable deviation is 1/8".
Verify Square, Level, and Plumb
• The rough opening sill must not be crowned or sagged (D).
• The exterior face of the rough opening must be in a single plane (E)
with less than 1/8" twist from corner to corner.
• Minimum double studs should be used at all rough openings.
A
C
B
D
E
• The header must be supported by trimmer studs.
Do not install the door unless the rough opening meets the above
conditions. Professional assistance may be necessary to correct problems
before installation.
IMPORTANT! The door should be finished either before installation or
immediately after (whichever is more convenient). Note! If removing
the slab from the frame for finishing, remove hinges from the jamb
only, do not remove hinges from the slab.
FOR RETROFIT INSTALLATIONS
For retrofit installations remove the old door and contact your local
waste management entities for proper disposal or recycling of products
being removed.
2
INSTALLATION INSTRUCTIONS
for Interior Pre-Hung Doors (JII109)
3
INSTALL DOOR
Warning! To avoid injury, use at least two people to install. Adequately
support the door until completely fastened.
Pre-hung doors will be either a one or two piece jamb system. One
piece jamb doors come without trim applied. Two-piece jamb doors
come in two sections. The inside and outside trim are already applied
to the main frame. The frame section with the pre-hung door is nailed
in place, then the other frame section with the outside trim slides in
from the other side and fits closely to the wall. The two sections are
assembled with a tongue and groove joint which is covered by the
door stop.
One piece jamb systems skip step 1 and begin with step 2.
1. If installing a two
Two-Piece Jamb System
piece jamb system,
separate the trim
assembly from the
Trim
frame section. The
assembly
trim assembly may
Door
be taped or tacked
to hold it in place
during shipping.
Remove
Frame components
nails
can be lightly primed
Door
frame
or stained prior to
installation, but
wait until after
installation before
applying finish coats.
Door
2. Pre-hung door
stop
frames extend
below the slab to
allow for different
floor heights.
The jambs can be
trimmed as needed
before beginning
installation,
Jamb
however make sure
to leave adequate
space to allow air
to pass under the
door according to
Allowed for
ventilation codes.
trimming
3. Remove any
packaging or nails
that hold the
door closed.
4. Position the door
unit into the
opening and level
the hinge side of
the jamb. Use shims
fastened through
the jamb and stop
with 10d finish nails
Shim
approximately 2"
from the top and 2"
from the bottom of
the jamb to level and
temporarily secure
in place.
5. Level the latch side of the jamb in the same manner as the hinge
jamb. Ensure the jamb is not twisted and that the spacing between
the jamb and door is uniform on all sides. Adjust the latch side of the
jamb as necessary.
6. Shim the top of the jamb in the center of the opening and fasten
with a 10d finish nail.
7. Re-check for square, level and even spacing around the door. Nail
securely in place through the stop, jamb, shims and into the studs
every 12" – 16". Set nails with a nail punch.
8. Position trim or slide
trim assembly (two
piece jamb) into place
in the frame. Carefully
nail the trim on both
sides of the door every
12" to 16" using 4d
finishing nails.
9. After installation,
replace the center
screw (as shown) in
the top two hinges
(through the leaves
toward the jamb) with
the provided
#9 x 2 1/2" screws.
Jamb
Replace with
longer screw
COMPLETE
INSTALLATION
1. Install lockset hardware per supplied instructions.
2. Fill any nail/screw holes and sand smooth.
3. If installing a two piece jamb system, run a bead of 100%
polyurethane sealant in all joints and tool until smooth.
4. Finish all six sides of the door slab as well as the frame (if not already
done). Note! If removing the slab from the frame for finishing,
remove hinges from the jamb only, do not remove hinges from
the slab.
5. Protect recently installed units from damage from plaster, paint, etc.
by covering the unit with plastic.
Please visit jeld-wen.com for warranty
and care and maintenance information.
