ANZZI FT068-0029, FT523BL-0029, FT014-0029, FT506-0029, FT002-0029, FT218-0029, FT009-0029, FT521BL-0029, FT007-0029, FT507-0029 Operating instructions

ANZZI FT068-0029, FT523BL-0029, FT014-0029, FT506-0029, FT002-0029, FT218-0029, FT009-0029, FT521BL-0029, FT007-0029, FT507-0029 Operating instructions
 ИИ

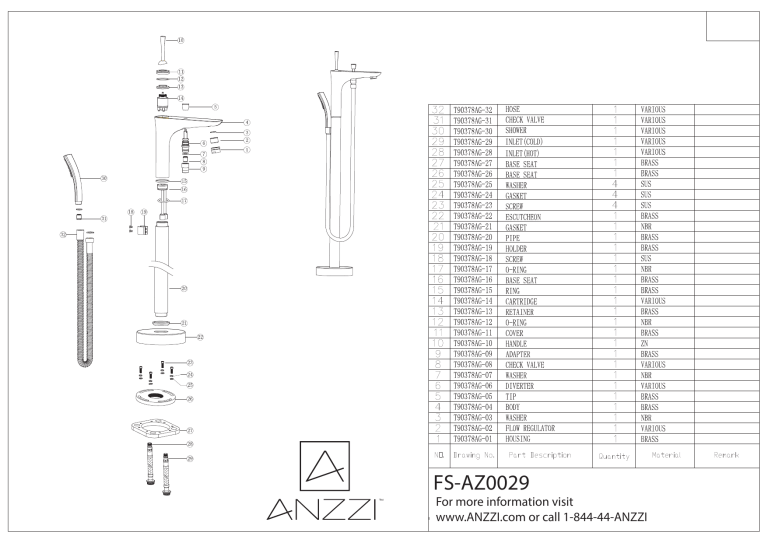

57 | T90378AG-32 | HOSE | VARIOUS
51 | T90378AG-31 | CHECK VALVE | VARIOUS
30 | T90378AG-30 | SHOWER | VARIOUS
3 | T90378AG-29 | INLET (COLD) 1 VARIOUS
/ © | T90378AG-28 | INLET (HOT) | VARIOUS
2 / T90378AG-27 BASE SEAT | BRASS
2 T90378AG-26 | BASE SEAT 1 BRASS
/5 | T90378AG-25 WASHER 4 SUS
? T90378AG-24 = GASKET 4 SUS
7 5 | T90378AG-23 | SCREW 4 SUS
2 T90378AG-22 ESCUTCHEON | BRASS
/ | T90378AG-21 | GASKET | NBR
2/10 | T90378AG-20 | PIPE | BRASS
19 1 T90378AG-19 | HOLDER 1 BRASS
16 90378AG-18 = SCREW 1 SUS
| / | T90378AG-17 | O-RING | NBR
|© | T90378AG-16 | BASE SEAT | BRASS
15 | T90378AG-15 | RING | BRASS
| 4 T90378AG-14 = CARTRIDGE | VARTOUS
| 5 | T90378AG-13 | RETAINER | BRASS
1 | T90378AG-12 | O-RING | NBR
17 T90378AG-11 | COVER | BRASS
10 | T90378AG-10 | HANDLE | IN
© T90378AG-09 ADAPTER | BRASS
= | T90378AG-08 | CHECK VALVE | VARIOUS
/ | T90378AG-07 | WASHER | NBR
© T90378AG-06 | DIVERTER | VARIOUS
5 | T90378AG-05 | TIP | BRASS
“ T90378AG-04 | BODY | BRASS
5 T90378AG-03 | WASHER | NBR
/ T90378AG-02 | FLOW REGULATOR | VARIOUS
1 T90378AG-01 | HOUSING | BRASS
NU, | Drawing No, Part Description Material Remark
Quantity
FS-AZ0029
For more information visit
www.ANZZl.com or call 1-844-44-ANZZI
1039
Ва [40,917]
933
[37.8]
[36.74”]
~~
34
[1,34]
| | 2150 UNIT:
| E | [5,91] mm [inch]
118
0 1/2-14NPT
| 93
[3.667]
