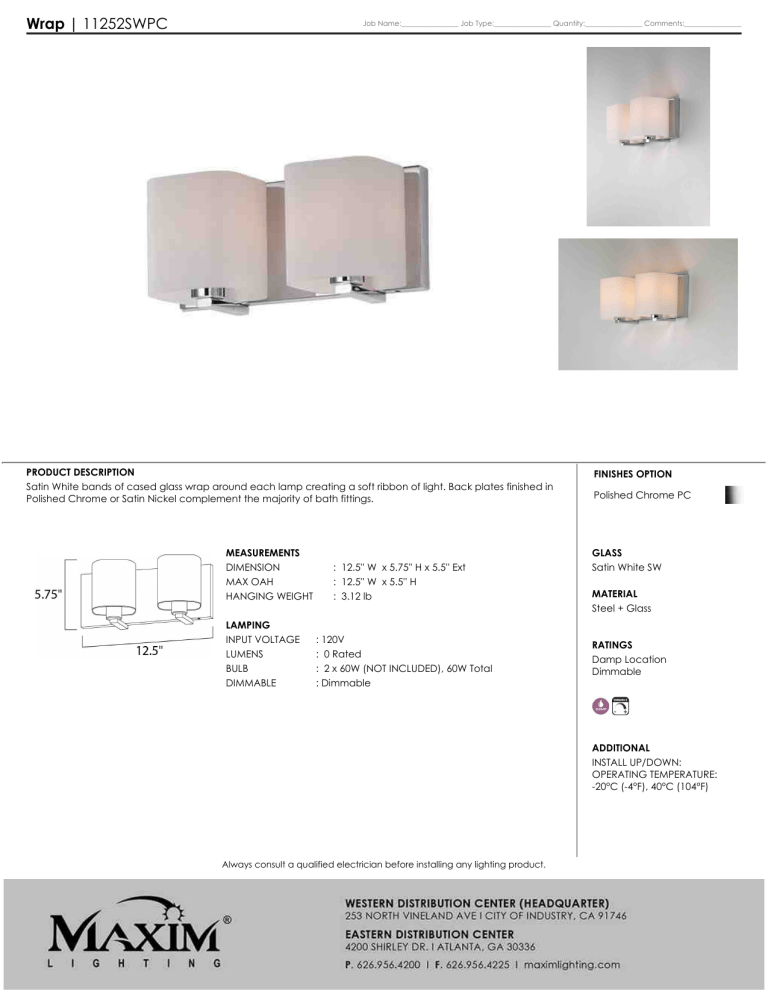

Wrap | 11252SWPC
Job Name:________________ Job Type:________________ Quantity:________________ Comments:________________
PRODUCT DESCRIPTION
Satin White bands of cased glass wrap around each lamp creating a soft ribbon of light. Back plates finished in
Polished Chrome or Satin Nickel complement the majority of bath fittings.
MEASUREMENTS
DIMENSION
MAX OAH
HANGING WEIGHT
LAMPING
INPUT VOLTAGE
LUMENS
BULB
DIMMABLE
: 12.5'' W x 5.75'' H x 5.5'' Ext
: 12.5'' W x 5.5'' H
: 3.12 lb
: 120V
: 0 Rated
: 2 x 60W (NOT INCLUDED), 60W Total
: Dimmable
FINISHES OPTION
Polished Chrome PC
GLASS
Satin White SW
MATERIAL
Steel + Glass
RATINGS
Damp Location
Dimmable
ADDITIONAL
INSTALL UP/DOWN:
OPERATING TEMPERATURE:
-20°C (-4°F), 40°C (104°F)
Always consult a qualified electrician before installing any lighting product.
