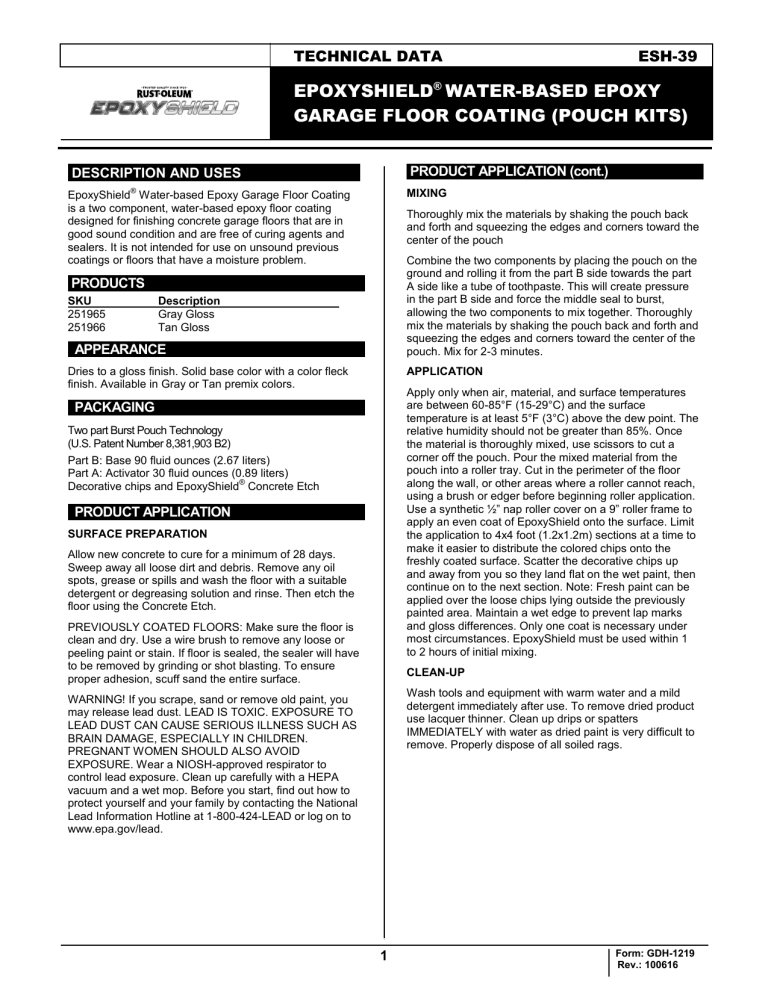

TECHNICAL DATA
ESH-39
EPOXYSHIELD® WATER-BASED EPOXY
GARAGE FLOOR COATING (POUCH KITS)
.DESCRIPTION AND USES
.PRODUCT APPLICATION (cont.)
.
®
MIXING
EpoxyShield Water-based Epoxy Garage Floor Coating
is a two component, water-based epoxy floor coating
designed for finishing concrete garage floors that are in
good sound condition and are free of curing agents and
sealers. It is not intended for use on unsound previous
coatings or floors that have a moisture problem.
PRODUCTS
SKU
251965
251966
Thoroughly mix the materials by shaking the pouch back
and forth and squeezing the edges and corners toward the
center of the pouch
Combine the two components by placing the pouch on the
ground and rolling it from the part B side towards the part
A side like a tube of toothpaste. This will create pressure
in the part B side and force the middle seal to burst,
allowing the two components to mix together. Thoroughly
mix the materials by shaking the pouch back and forth and
squeezing the edges and corners toward the center of the
pouch. Mix for 2-3 minutes.
.
Description
Gray Gloss
Tan Gloss
APPEARANCE
.
Dries to a gloss finish. Solid base color with a color fleck
finish. Available in Gray or Tan premix colors.
PACKAGING
APPLICATION
Apply only when air, material, and surface temperatures
are between 60-85°F (15-29°C) and the surface
temperature is at least 5°F (3°C) above the dew point. The
relative humidity should not be greater than 85%. Once
the material is thoroughly mixed, use scissors to cut a
corner off the pouch. Pour the mixed material from the
pouch into a roller tray. Cut in the perimeter of the floor
along the wall, or other areas where a roller cannot reach,
using a brush or edger before beginning roller application.
Use a synthetic ½” nap roller cover on a 9” roller frame to
apply an even coat of EpoxyShield onto the surface. Limit
the application to 4x4 foot (1.2x1.2m) sections at a time to
make it easier to distribute the colored chips onto the
freshly coated surface. Scatter the decorative chips up
and away from you so they land flat on the wet paint, then
continue on to the next section. Note: Fresh paint can be
applied over the loose chips lying outside the previously
painted area. Maintain a wet edge to prevent lap marks
and gloss differences. Only one coat is necessary under
most circumstances. EpoxyShield must be used within 1
to 2 hours of initial mixing.
.
Two part Burst Pouch Technology
(U.S. Patent Number 8,381,903 B2)
Part B: Base 90 fluid ounces (2.67 liters)
Part A: Activator 30 fluid ounces (0.89 liters)
Decorative chips and EpoxyShield® Concrete Etch
PRODUCT APPLICATION
.
.
SURFACE PREPARATION
Allow new concrete to cure for a minimum of 28 days.
Sweep away all loose dirt and debris. Remove any oil
spots, grease or spills and wash the floor with a suitable
detergent or degreasing solution and rinse. Then etch the
floor using the Concrete Etch.
PREVIOUSLY COATED FLOORS: Make sure the floor is
clean and dry. Use a wire brush to remove any loose or
peeling paint or stain. If floor is sealed, the sealer will have
to be removed by grinding or shot blasting. To ensure
proper adhesion, scuff sand the entire surface.
CLEAN-UP
Wash tools and equipment with warm water and a mild
detergent immediately after use. To remove dried product
use lacquer thinner. Clean up drips or spatters
IMMEDIATELY with water as dried paint is very difficult to
remove. Properly dispose of all soiled rags.
WARNING! If you scrape, sand or remove old paint, you
may release lead dust. LEAD IS TOXIC. EXPOSURE TO
LEAD DUST CAN CAUSE SERIOUS ILLNESS SUCH AS
BRAIN DAMAGE, ESPECIALLY IN CHILDREN.
PREGNANT WOMEN SHOULD ALSO AVOID
EXPOSURE. Wear a NIOSH-approved respirator to
control lead exposure. Clean up carefully with a HEPA
vacuum and a wet mop. Before you start, find out how to
protect yourself and your family by contacting the National
Lead Information Hotline at 1-800-424-LEAD or log on to
www.epa.gov/lead.
1
Form: GDH-1219
Rev.: 100616
TECHNICAL DATA
ESH-39
EPOXYSHIELD® WATER-BASED EPOXY
GARAGE FLOOR COATING (POUCH KITS)
If temperature is 60-70°F (16-21°C)
Allow product to stand after mixing
Start brushing (trimming edges):
30 minutes after mixing
Start rolling:
45 minutes after mixing
Use all mixed product within (pot life):
2 hours after mixing
Best time to paint is mid-afternoon (after 1 PM) to ensure best curing conditions and maximum pot life.
If temperature is 71-80°F (22-27°C)
Allow product to stand after mixing
Start brushing (trimming edges):
10 minutes after mixing
Start rolling:
15 minutes after mixing
Use all mixed product within (pot life):
1.5 hours after mixing
Best time to paint is early morning (before 9 AM) to ensure best curing conditions and maximum pot life.
If temperature is 81-85°F (27-29°C)
Start brushing (trimming edges):
Immediately after mixing
Start rolling:
5-15 minutes after mixing
Use all mixed product within (pot life):
1 hour after mixing
Best time to paint is early morning (before 9 AM) to ensure best curing conditions and maximum pot life.
2
Form: GDH-1219
Rev.: 100616
TECHNICAL DATA
EPOXYSHIELD® WATER-BASED EPOXY GARAGE FLOOR COATING
.PHYSICAL PROPERTIES
.
WATER-BASED EPOXY GARAGE FLOOR COATING
Resin Type
Amine cured Epoxy
Pigment Type
Varies with color
Solvents
Weight*
Solids*
Ethylene Glycol Monopropyl Ether, Water
Per Gallon
10.50-10.60 lbs.
Per Liter
1.25-1.27 kg
By Weight
62.6-63.3%
By Volume
52.6-52.8%
Volatile Organic Compounds*
<50 g/l (0.42 lbs./gal.)
Mixing Ratio
3:1 Base to Activator by volume
Recommended Dry Film
Thickness (DFT) per Coat
3.0-3.5 mils
(75-87.5µ)
Wet Film to Achieve DFT (Unthinned
material)
6.0-7.0 mils
(150-175µ)
Theoretical Coverage at
1 mil DFT (25µ)
844-847 sq.ft./gal.
(20.7-20.8 m2/l)
Practical Coverage at Recommended DFT
(assume 15% material loss)
Approximately 250 sq.ft./kit.
(6.2 m2/l)
Induction Period
Varies with temperature – See chart in directions
Pot Life @ 70-80ºF (21-27ºC) and
50% Relative Humidity
Varies with temperature – See chart in directions
Dry Times at 70-80°F
(21-27ºC) and 50%
Relative Humidity
Foot Traffic
Vehicle Traffic
Shelf Life
24 hours
3 days
5 years
Flash Point
>200°F (93°C) activated material
Safety Information
For additional information, see SDS
Calculated values may vary slightly from the actual manufactured material.
*Activated material.
The technical data and suggestions for use contained herein are correct to the best of our knowledge, and offered in good faith. The
statements of this literature do not constitute a warranty, express, or implied, as to the performance of these products. As conditions and use
of our materials are beyond our control, we can guarantee these products only to conform to our standards of quality, and our liability, if any,
will be limited to replacement of defective materials. All technical information is subject to change without notice.
Rust-Oleum Corporation
11 Hawthorn Parkway
Vernon Hills, Illinois 60061
An RPM Company
Phone: 877•385•8155
www.rustoleum.com
Form: GDH-1219
Rev.: 100616
