MSI GRID-2321 Stainless Steel Sink Grid - Fits Single Bowl Sink 23-1/4x21 Use and Care Manual

Internet #207158546
Model #SINBWL-2321
Internet #300086855
Model #SBK-2321

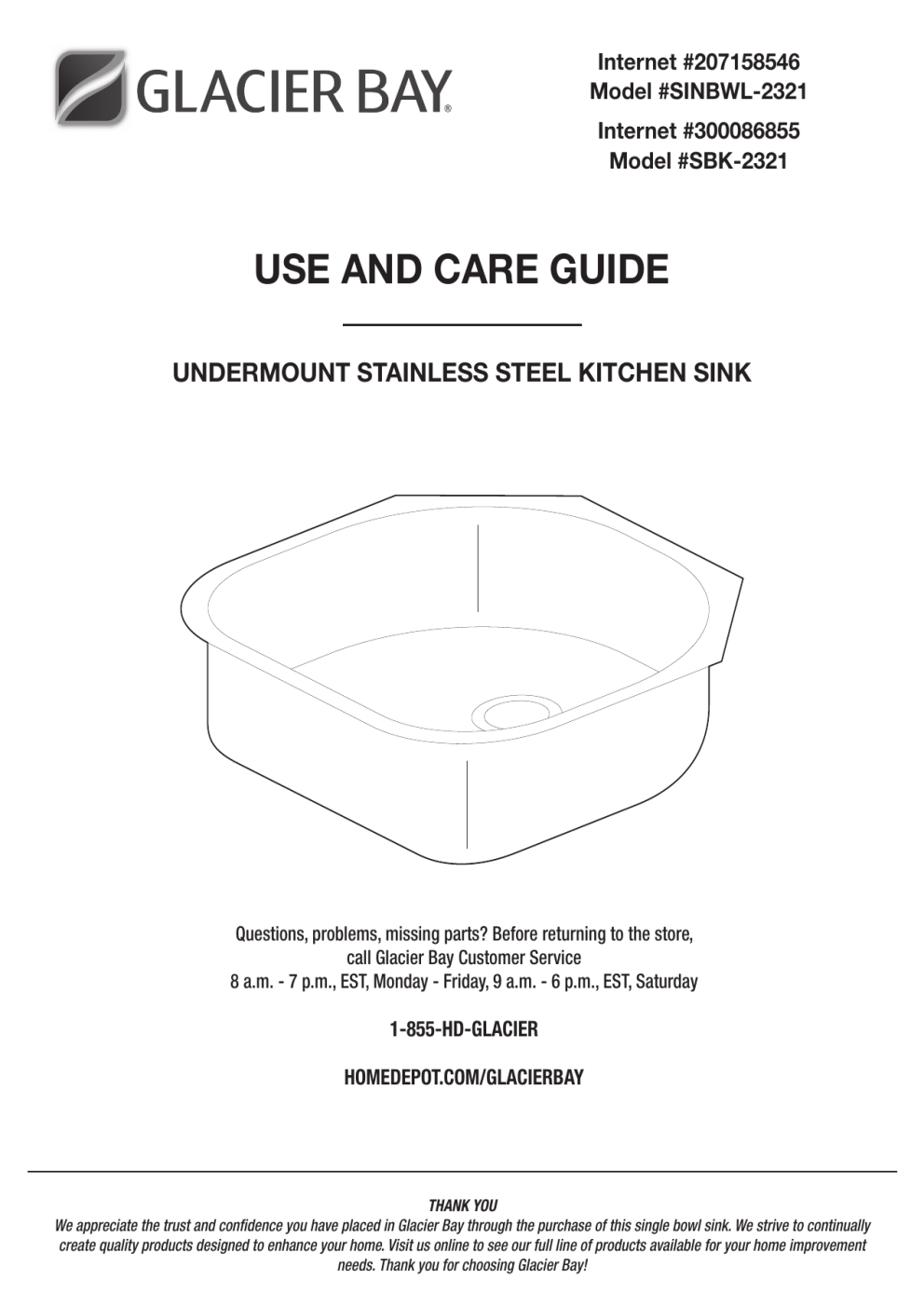

USE AND CARE GUIDE
UNDERMOUNT STAINLESS STEEL KITCHEN SINK
Questions, problems, missing parts? Before returning to the store,
call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER
HOMEDEPOT.COM/GLACIERBAY
THANK YOU
We appreciate the trust and confidence you have placed in Glacier Bay through the purchase of this single bowl sink. We strive to continually
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement
needs. Thank you for choosing Glacier Bay!
Table of Contents
Table of Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Safety Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Pre-Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Planning Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Hardware Included. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Pre-Installation (continued). . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Package Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5/6
Care & Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safety Information
WARNING: Risk of personal injury. Metal surfaces are
sharp and can cause severe cuts. Use gloves and handle
sink edges carefully.
NOTICE: Specialized tools may be required to install the sink in
countertop surfaces other than wood or wood composites.
NOTICE: Allow the sealant to cure following the sealant
manufacturer’s instructions.
Warranty
LIMITED LIFETIME WARRANTY
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our limited lifetime warranty.
Glacier Bay products are warranted to the original consumer purchaser to be free of defects in materials or workmanship. We will replace
FREE OF CHARGE any product or parts that proves defective. Simply, return the product / part to any of The Home Depot retail locations or
call 1-855-HD-GLACIER to receive the replacement item. Proof of purchase (original sales receipt) from the original consumer purchaser
must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental/inconsequential damages and failures due to misuse, abuse or normal wear and tear. This warranty
excludes all industrial, commercial and business usage, whose purchasers are hereby extended a five year limited warranty from the date
of purchase, with all other terms of this warranty applying except the duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations may
not apply to you. This warranty gives you specific legal rights and you may also have other rights that vary from state to state and province
to province.
Contact the Customer Service Team at 1-855-HD-GLACIER or visit www.HOMEDEPOT.com/GLACIERBAY.
2
Pre-Installation
PLANNING INSTALLATION
*27"
□□ Before installation verify that the cabinet width is at least *27".
□□ Compare all parts with the Hardware Included and
Package Contents lists in this manual.
□□ Check the surface of the sink for any flaws or damage, including
dents, bends, bumps, or scuff marks. If any damage is noticed or
parts are missing, do not proceed with the installation.
NOTE: This sink is an undermount (below the counter) installation.
TOOLS REQUIRED
Measuring
tape
Safety
goggles
Phillips
screwdriver
Saber saw
or Jig saw
Silicone
sealant
Wrenches
Electric
drill
Hacksaw
Pencil
11 mm
drill bit
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
Assembled
AA
Part
Description
BB
CC
Quantity
AA
Clip
8
BB
Plastic Cap
8
CC
Screw
8
3
HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Pre-Installation (continued)
PACKAGE CONTENTS
Use this
line
for FL US
H MO UN
T CU T.
B
A
C
D
Part
Description
Quantity
A
Sink
1
B
Template
1
C
Strainer
1
D
Grid
Optional Accessories
1
NOTE: Model #SINBWL-2321 includes A, B, and C. Model #SBK-2321 kit includes A, B, C, and D.
Model #GRID-2321 is for the separate purchase of D only. Model #SINKSTRAINER for purchase of C only.
4
Installation
1
2
Preparing the countertop
□□ Place the template (B) on the countertop. Ensure the
template (B) is centered on the counter so that it is parallel
to the counter edge and that the installation hole will not
interfere with the structure of the cabinet.
□□ Drill a pilot hole to insert the blade of your jigsaw.
□□ Cut the countertop opening. Use the appropriate
cutting tool for the surface you are cutting
and cut along the inside of the template line.
□□ Tape the template (B) to the countertop to keep it in place
while tracing the perforated line on the template (B) with a
pencil. Once traced, your line will be left on the surface.
Cutou
3
t for U
Use this
line for
nder M
FLUSH
MOUNT
Cutting the installation hole
CUT.
ount In
stallatio
n
Drilling holes for the clips
□□ On the underside of the counter, mark the location of the
holes for the clips (AA). These holes should be equally
spaced around the perimeter of the cutout.
□□ Using an electric drill with a 11 mm drill bit, drill each hole
so that it is 11 mm in diameter and 14 mm deep.
□□ Insert the plastic caps (BB) from each of the clips (AA) into
each of the installation holes.
5
HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Installation (continued)
4
Installing the sink
□□ Insert the screws (CC) attached to the clips (AA) loosely in the
plastic caps (BB) in the holes that you drilled in the underside
of the counter.
BB
□□ Place a small bead of silicone sealant (not included)
around the upper lip of the sink (A).
A
□□ Carefully place the sink (A) into its location under the
counter, with the lip of the sink being supported by the
clips (AA).
□□ Tighten the screws (CC) evenly, ensuring the sink
(A) remains in place.
AA
CC
□□ Wipe away any excess silicone and, for best results, allow the
bond to rest undisturbed for 8 hours or overnight.
□□ If using grid, place in sink.
6
Care and Cleaning
□□ Daily, regular cleaning to remove dirt and prevent staining is recommended. Use liquid dish detergent, water, and a
soft household sponge.
□□ Mild, non-abrasive cleaners can be used with a nylon scrub pad. To ensure a uniform appearance in a stainless steel
sink surface, rinse with water and wipe down the sink with a soft, dry cloth. Drying the sink will prevent water spots
caused by lime in the water.
□□ Remove stubborn stains from lime or calcium deposits by pouring a little warm vinegar or vinegar-based cleaner into
the sink and allow it to sit for a few minutes. Rinse with clean water and dry.
□□ Scratches are inevitable during your usage over time. Use a nylon pad with an iron-free abrasive polishing
compound. Follow the original polish lines to blend out the scratch in a small area. Be careful not to overdo as
aggressive scrubbing will result in a bright spot.
□□ DO NOT use strong abrasive cleaners, metal scrub pads, or steel wool. These will scratch the surface.
□□ DO NOT leave rubber mats or sponges inside the sink. Water trapped below could lead to stains.
□□ DO NOT let food with a high salt content sit inside the sink for prolonged periods of time.
□□ DO NOT allow chlorine bleach to sit inside a stainless steel sink for more than 1 hour.
□□ DO NOT allow drain cleaners to come into contact with the sink surface.
□□ DO NOT pour paint in your sink. The chemicals in acrylic paint will react with sinks if allowed to sit over 24 hours and
will produce permanent marks. For latex based paints, remove any residue immediately using a paint remover.
□□ Consult the paint remover recommendations before using on the sink. For all sinks, we also recommend nail polish
remover, rubbing alcohol, or an acetone based paint remover to eliminate paint residue.
□□ Rust spots – Stainless steel does not rust. Rust stains are the result of iron particles introduced by water, cookware,
and steel wool pads that react with water to create rust. Metal cleaners will remove rust spots.
□□ Food stains – Depending on the severity of the stain, use a bleach and water solution or pour the bleach onto a cloth
and cover the stain. Allow the bleach to sit for at least 1/2 hour and then clean with dish detergent and water.
7
HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Questions, problems, missing parts? Before returning to the store,
call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER
HOMEDEPOT.COM/GLACIERBAY
Retain this manual for future use.
