K SHI
QUIC

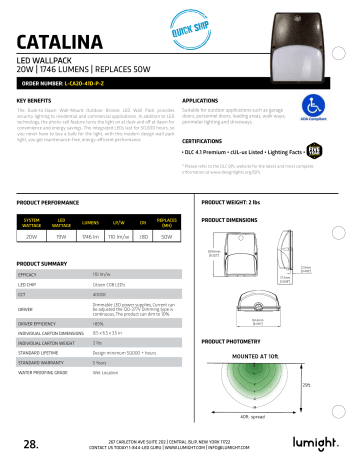

CATALINA
P
LED WALLPACK
20W | 1746 LUMENS | REPLACES 50W
ORDER NUMBER: L-CA20-41D-P-Z
KEY BENEFITS
APPLICATIONS
The Dusk-to-Dawn Wall-Mount Outdoor Bronze LED Wall Pack provides
security lighting to residential and commercial applications. In addition to LED
technology, the photo-cell feature turns the light on at dusk and off at dawn for
convenience and energy savings. The integrated LEDs last for 50,000 hours, so
you never have to buy a bulb for the light, with this modern design wall pack
light, you get maintenance-free, energy-efficient performance
Suitable for outdoor applications such as garage
doors, personnel doors, loading areas, walk ways,
perimeter lighting and driveways.
CERTIFICATIONS
• DLC 4.1 Premium • cUL-us Listed • Lighting Facts •
* Please refer to the DLC QPL website for the latest and most complete
information at www.designlights.org/QPL
PRODUCT WEIGHT: 2 lbs
PRODUCT PERFORMANCE
SYSTEM
WATTAGE
LED
WATTAGE
LUMENS
LP/W
CRI
REPLACES
(MH)
20W
19W
1746 lm
110 lm/w
≥80
50W
PRODUCT DIMENSIONS
209.6mm
[8.252”]
PRODUCT SUMMARY
EFFICACY
110 lm/w
LED CHIP
Citizen COB LED’s
CCT
4000K
DRIVER
Dimmable LED power supplies, Current can
be adjusted the 120-277V Dimming type is
continuous, The product can dim to 10%
DRIVER EFFICIENCY
>85%
INDIVIDUAL CARTON DIMENSIONS
8.5 x 6.5 x 3.5 in
INDIVIDUAL CARTON WEIGHT
2 lbs
STANDARD LIFETIME
Design minimum 50,000 + hours
STANDARD WARRANTY
5 Years
WATER PROOFING GRADE
Wet Location
12.5mm
[0.492”]
77.2mm
[3.039”]
161.4mm
[6.355”]
PRODUCT PHOTOMETRY
5
2
1
.5
.25
28.
267 CARLETON AVE SUITE 202 | CENTRAL ISLIP, NEW YORK 11722
CONTACT US TODAY! 1-844-LED GURU | WWW.LUMIGHT.COM | INFO[email protected]
