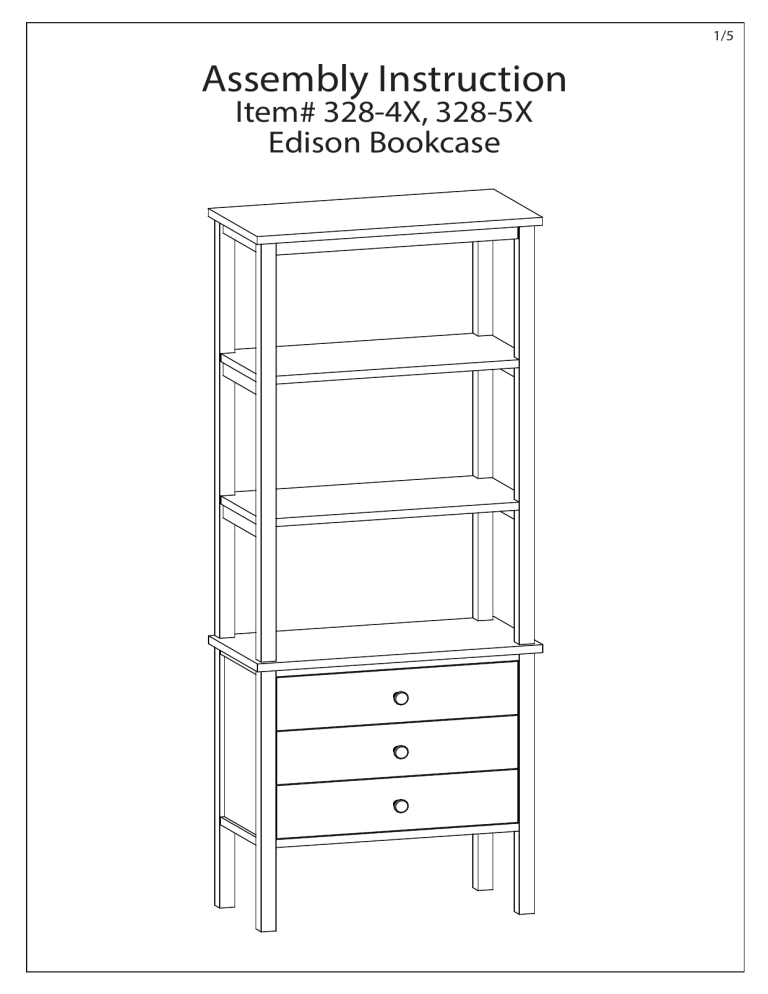

Assembly Instruction
Item# 328-4X, 328-5X
Edison Bookcase
2/5
Part List
Top Unit
B
Side Panel
2 pcs.
A
Top Panel
1 pc.
C
Shelves
2 pcs.
Bottom Unit
D
Bottom Panel
1 pc.
E
Left Panel
1 pc.
H
Bottom Frame
1 pc.
I
Drawer Front
3 pcs.
K
Drawer Right
3 pcs.
L
Drawer Back
3 pcs.
F
Right Panel
1 pc.
G
Back Panel
1 pc.
J
Drawer Left
3 pcs.
M
Drawer Plate
3 pcs.
Hardware
x 24
RF10052
Screw JCB M6 x 30
x 24
x3
RF10019
Screw F6 x 1”
x1
RF40103
Allen Key
RF40240
Knob
Anti-Tip
x2
RF10080
Screw P6 x 5/8”
x2
RF10103
Screw P6 x 1 1/4”
x2
RF40214
Metal Plate
3/5
Top Unit
x 12
RF10052
B
A
B
C
C
Diagram 1.
Step 1:
Assembly top unit by Attach Top Panel (A), Side Panels (B) and Shelves (C) together
by using screw (RF10052) as per diagram 1.
x4
B
RF10052
A
C
B
C
D
Diagram 2.
Step 2:
Then, attach Bottom Panel (D) into the top unit by using screw (RF10052) as per diagram 2.
4/5
x4
RF10052
E
Diagram 3.
H
Step 3:
Attach Bottom Left Panel (E) and Bottom Frame (H) into the unit by using
screw (RF10052) as per diagram 3.
x4
RF10052
E
G
Diagram 4.
F
Step 4:
Insert the Back Panel (G) into groove on panels, Then attach Bottom Right Panel (F)
by using screw (RF10052) as per diagram 4.
5/5
x8
RF10019
J
Drawer
L
M
I
K
x1
Diagram 5.
RF40240
Step 5:
Assembly the Drawers by attach the Front (I), Left (J), Right (K), Back (L) and plate (M)
together by using screw(RF10019). Then attach Knob (RF40240) into the Drawer Front (I)
as per Diag.5.
RF10080
RF10103
Wall
RF40214
Anti-Tip
Attach the metal plate (RF40214)
into the back of top bookcase
by using screw P6 x 5/8” (RF10080).
Then attach the other side into
the wall, by using screw
P6 x 1 1/4” (RF10103)
as per Diagram 7.
Diagram 6.
Step 6:
Put each drawer into the position
as per Diag.6.
Diagram 7.
