Item #1000023137, 1000023141,
1000023174, 1000023189,
1000023199, 1000023207
Model #5025

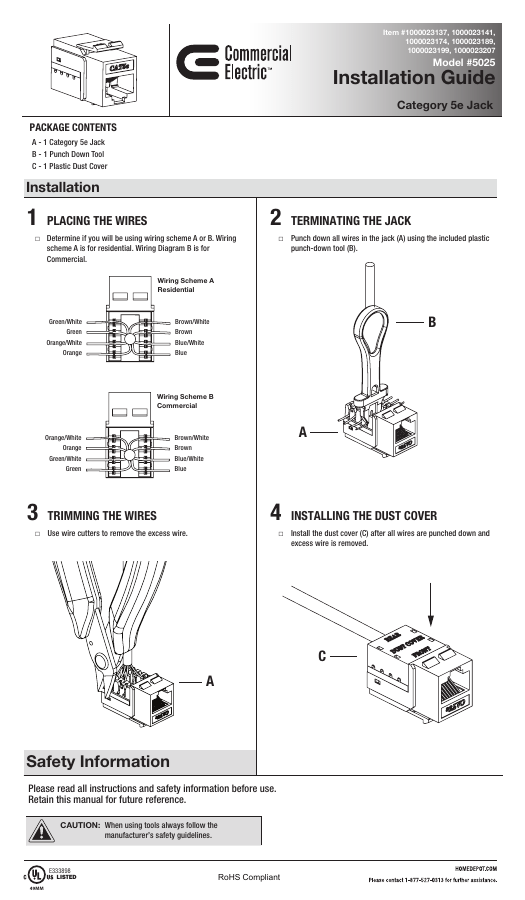

Installation Guide
Category 5e Jack
PACKAGE CONTENTS
A - 1 Category 5e Jack
B - 1 Punch Down Tool
C - 1 Plastic Dust Cover
Installation
1
2
PLACING THE WIRES
□ Determine if you will be using wiring scheme A or B. Wiring
TERMINATING THE JACK
□ Punch down all wires in the jack (A) using the included plastic
punch-down tool (B).
scheme A is for residential. Wiring Diagram B is for
Commercial.
Wiring Scheme A
Residential
B
Brown/White
Green/White
Brown
Green
Blue/White
Blue
Orange/White
Orange
Wiring Scheme B
Commercial
Orange/White
Orange
Green/White
Green
3
A
Brown/White
Brown
Blue/White
Blue
4
TRIMMING THE WIRES
□ Use wire cutters to remove the excess wire.
INSTALLING THE DUST COVER
□ Install the dust cover (C) after all wires are punched down and
excess wire is removed.
C
A
Safety Information
Please read all instructions and safety information before use.
Retain this manual for future reference.
CAUTION: When using tools always follow the
manufacturer’s safety guidelines.
E333898
LISTED
49MM
RoHS Compliant
