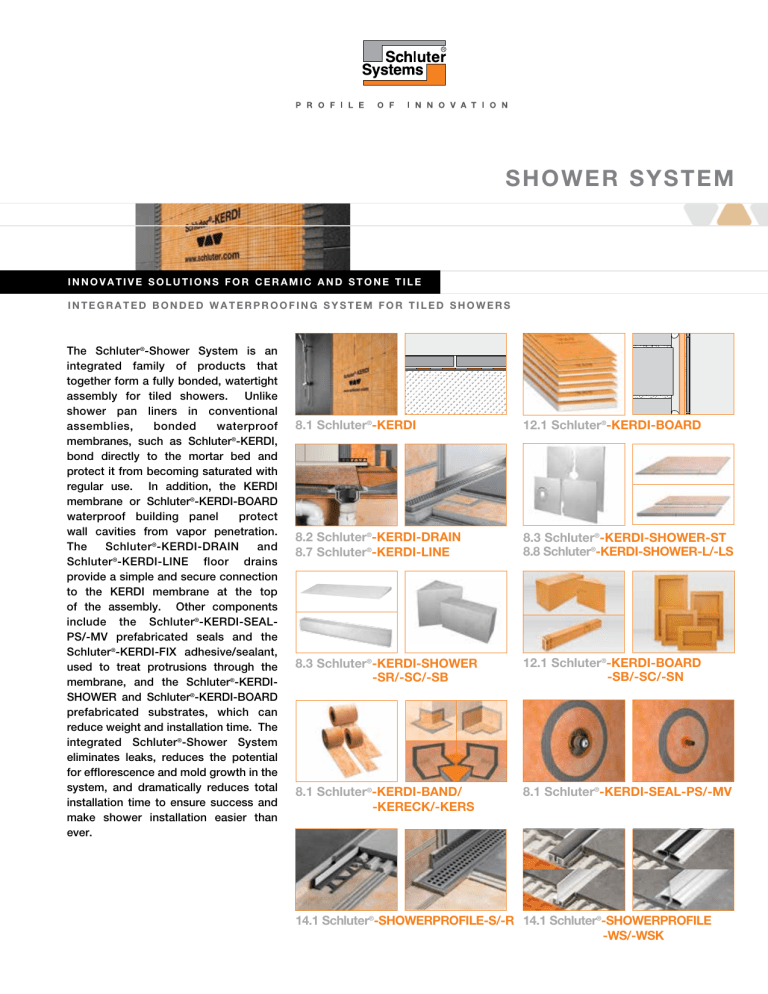

SHOWER SYSTEM

I N N O V A T I V E S O L U T I O N S F O R C E R A M I C A N D S T O N E T I L E

I N T E G R A T E D B O N D E D W A T E R P R O O F I N G S Y S T E M F O R T I L E D S H O W E R S

The Schluter ® -Shower System is an integrated family of products that together form a fully bonded, watertight assembly for tiled showers. Unlike shower pan liners in conventional assemblies, bonded waterproof 8.1 Schluter ®

-KERDI

membranes, such as Schluter ® -KERDI, bond directly to the mortar bed and protect it from becoming saturated with regular use. In addition, the KERDI membrane or Schluter ® -KERDI-BOARD waterproof building panel protect wall cavities from vapor penetration.

The Schluter ® -KERDI-DRAIN and

Schluter ® -KERDI-LINE floor drains

8.2 Schluter ®

-KERDI-DRAIN

8.7 Schluter ®

-KERDI-LINE

provide a simple and secure connection to the KERDI membrane at the top of the assembly. Other components include the Schluter ® -KERDI-SEAL-

PS/-MV prefabricated seals and the

Schluter ® -KERDI-FIX adhesive/sealant, used to treat protrusions through the membrane, and the Schluter ® -KERDI-

SHOWER and Schluter ® -KERDI-BOARD prefabricated substrates, which can reduce weight and installation time. The integrated Schluter ® -Shower System eliminates leaks, reduces the potential for efflorescence and mold growth in the system, and dramatically reduces total installation time to ensure success and make shower installation easier than ever.

8.3 Schluter

-SR/-SC/-SB

8.1 Schluter

-KERDI-SHOWER

-KERDI-BAND/

-KERECK/-KERS

12.1 Schluter ®

-KERDI-BOARD

8.3 Schluter ®

-KERDI-SHOWER-ST

8.8 Schluter ®

-KERDI-SHOWER-L/-LS

12.1 Schluter ®

-KERDI-BOARD

-SB/-SC/-SN

8.1 Schluter ®

-KERDI-SEAL-PS/-MV

14.1 Schluter ®

-SHOWERPROFILE-S/-R

14.1 Schluter ®

-SHOWERPROFILE

-WS/-WSK

SHOWER SYSTEM

Prefabricated Shower Substrates

8.3 Schluter ®

-KERDI-SHOWER

-ST/-SB

8.3 Schluter ® -KERDI-SHOWER-ST/-SC/-SB and KERDI-LINE-L/-LS

Property

Density

Compressive Strength 1

Linear Expansion

Maximum Service Temperature

Method

ASTM D3575

ASTM D3575 & D1621

ASTM D696

Value

2.75 lb/ft 3 (44 Kg/m 3 )

48 psi (331 kPa)

3.5 x 10 -5 /°F

175 °F (79 °C)

1 Compressive strength measured at 10% deflection of foam

8.3 Schluter

-KERDI-SHOWER-SR

Property

Density

Linear Expansion

Maximum Service Temperature

Method

ASTM D3575

ASTM D696

Value

4.0 lb/ft 3 (64 Kg/m 3 )

3.5 x 10 -5 /°F

175 °F (79 °C)

8.3 Schluter ®

-KERDI-SHOWER

-SC/-SR

8.8 Schluter ®

-KERDI-SHOWER-L/-LS

12.1 Schluter ®

-KERDI-BOARD

-SB/-SC

x 60" (81 x 152 cm) , and 72" x 72" (183 x 183 cm) sizes. KERDI-SHOWER-SC is a prefabricated curb that can be used in conjunction with any shower base. Curb dimensions are 48" x 6" x 4-1/2" (122 x

15 x 11.5 cm) . KERDI-SHOWER-SR is a ramp designed to facilitate the construction of access ramps for tiled showers. Ramp dimensions are 48" x 15-7/8" x 1-1/2" (122 x 40 x 3.8 cm) . The KERDI-SHOWER-SB shower bench is available in triangular and rectangular configurations in the following sizes (width x depth x height). The triangular bench is 16" x 16" x 20" (41 x 41 x 51 cm).

The rectangular benches are 32" x 11-1/2" x 20" (81 x 29 x 51 cm) , 42" x 11-1/2" x 20"

(107 x 29 x 51 cm) , 48" x 11-1/2" x 20" (122 x 29 x 51 cm) , 32" x 16" x 20" (81 x 41 x 51 cm) and 48" x 16" x 20" (122 x 41 x 51 cm).

Curb dimensions are 38" x 6" x 4-1/2" (97 x 15 x 11.5 cm) and 48" x 6" x 4-1/2" (122 x 15 x 11.5 cm).

12.1 Schluter ® -KERDI-BOARD-SN is a prefabricated shower niche made of

KERDI-BOARD that can be installed in both

KERDI and KERDI-BOARD wall assemblies.

The shower niche features a 1/2" (12.5 mm) -thick by 2" (50 mm) -wide integrated bonding flange and is available in 12" x 6"

(30 x 15 cm) , 12" x 12" (30 x 30 cm) , 12" x 20" (30 x 51 cm) , and 12" x 28" (30 x

71 cm) sizes.

Material Properties and

Areas of Application

12.1 Schluter

-KERDI-BOARD-SN

Application and Function

8.8 Schluter ® -KERDI-SHOWER-L/-LS are prefabricated expanded polystyrene sloped trays with integrated KERDI waterproofing specifically designed to accept the KERDI-LINE linear drain. The trays are available for wall (-LS) or center

(-L) drain placement and are available in 39" x 39" (100 x 100 cm) and 55" x 55" (140 x

140 cm) sizes.

Schluter ® prefabricated shower substrates provide an alternative to shower bases constructed of mortar and other shower elements constructed of framing and solid backing. The shower tray, curb, ramp, bench, and niche are especially useful in large-scale, repetitive jobs, such as hotels, apartments, and condominiums for the significant time savings that can be realized.

8.3 Schluter ® -KERDI-SHOWER-ST/-

SC/-SR/-SB are prefabricated substrates, made of expanded polystyrene foam, for use in conjunction with the KERDI waterproofing membrane. The KERDI-SHOWER-ST sloped shower tray is specifically designed to accept the KERDI-DRAIN and is available in 48" x 48" (122 x 122 cm) , 32"

12.1 Schluter ® -KERDI-BOARD-SB/-SC are prefabricated substrates, made of

Schluter ® -KERDI-BOARD, which integrate with the Schluter ® -Shower System. The substrates are waterproof and ready for tile, leaving only sealing of joints and corners to complete waterproofing. The KERDI-

BOARD-SB shower bench is available in triangular and rectangular configurations in the followings sizes (width x depth x height).

The triangular benches are 16" x 16" x 20"

(41 x 41 x 51 cm) and 24" x 24" x 20" (61 x 61 x 51 cm) . Rectangular benches are

38" x 16" x 20" (97 x 41 x 51 cm) and 48" x 11-1/2" x 20" (122 x 29 x 51 cm) . The

KERDI-BOARD-SC shower curb can be used in conjunction with any shower base.

S H O W E R - S T / - S C / - S R / - S B / - L / - L S prefabricated substrates are manufactured using lightweight expanded polystyrene.

The products require no special disposal and can be recycled. No CFCs or HCFCs are present in either the products or in the manufacturing process. The polystyrene foam tray and curbs have a density of 2.75 lb/ft 3 (44 kg/m 3 ) and the shower ramp,

4.0 lbs/ft 3 , all with a 48 psi (331 kPa) compressive strength at 10% deformation.

It is serviceable in temperatures up to 175°F

(79 °C) . The expanded polystyrene used to manufacture KERDI-SHOWER-ST/-

SC/-SR is treated with a flame retarding agent. Expanded polystyrene should not be exposed to hydrocarbons, esters, amines, and aldehydes. All will deteriorate foam.

Exposure to ultraviolet rays (sunlight) for long periods of time will result in partial degradation (dusting) at the surface.

KERDI-BOARD-SB/-SC prefabricated substrates are manufactured using KERDI-

BOARD, made from extruded polystyrene foam, with a cement-free reinforcement layer laminated to both sides with an anchoring fleece webbing. The surface features printed gridlines consisting of 3/8"

SHOWER SYSTEM x 3/8" (10 x 10 mm) squares for precise cutting. KERDI-BOARD is waterproof and vapor-retardant and can withstand all chemical stresses that typically occur in conjunction with ceramic tile coverings.

KERDI-BOARD will not warp, rot, or decay.

It is serviceable in temperatures up to 158°F

(70 °C).

Waterproofing Membrane

8.1 Schluter

Since traditional shower pan liners are placed below the mortar setting bed in conventional assemblies, moisture is allowed to saturate the mortar bed. This can increase the risk of leakage, cause efflorescence, and foster mold growth.

Bonded waterproof membranes, such as

KERDI, are set on top of the mortar bed and protect it from becoming saturated, thus eliminating the problems associated with traditional systems.

Application and Function

8.1 Schluter ®

-KERDI

-KERDI is a pliable, sheetapplied, bonded waterproof membrane and vapor retarder with limited crack-bridging capabilities. It is made of soft polyethylene, which is covered on both sides with a special fleece webbing to anchor the membrane in the thin-set mortar. Tiles can be installed directly on the KERDI membrane using the thin-bed method. Other trowel-applied covering materials, such as plaster, can also be used. Schluter ® -KERDI-DS is a bonded waterproof membrane and vapor retarder with very low water vapor permeance for use in continuous use steam rooms and similar applications.

Various KERDI waterproofing accessories are available. Preformed, seamless corners include the following. KERDI-KERECK-F are used to seal 90° inside and outside corners. KERDI-KERS-B are used to seal

135° corners at triangular shower benches and neo-angle shower curbs. KERDI-KERS are used to seal floor/wall/shower base connections in curbless shower applications where the KERDI-LINE linear drain is installed adjacent to the wall. KERDI-SEAL-

PS/-MV are prefabricated sections of KERDI with overmolded rubber gaskets that are used to seal pipe protrusions through the

KERDI waterproofing membrane (e.g., at showerheads and tub spouts) and protect moisture-sensitive backing panels at the mixing valve. Use KERDI-BAND, in widths of 5" (12.5 cm) , 7-1/4" (18.5 cm) , or 10"

(25 cm) , to seal butt joints or corner joints.

KERDI-FLEX, in 5" (12.5 cm) or 10" (25 cm) widths, is used to seal expansion joints or flexible edge joints.

Material Properties and

Areas of Application

KERDI features a modified polyethylene

(PEVA) core with non-woven polyproplyene on both sides. KERDI-DS features a highdensity polyethylene (HPDE) core with non-woven polyproplyene on both sides.

KERDI is 8-mil thick and has a water vapor permeance of 0.90 perms, when tested according to ASTM E96, using Procedure E at 90% relative humidity. KERDI-DS is 20-mil thick and features additives to produce a water vapor permeance of 0.18 perms.

KERDI and KERDI-DS are waterproof and resistant to most chemicals commonly encountered in tiled environments. They are resistant to aging and will not rot.

KERDI and KERDI-DS are highly resistant to saline solutions, acid and alkaline solutions, many organic solvents, alcohols, and oils.

Information regarding their resistance to specific substances can be provided if concentration, temperature, and duration of exposure are known. For acid-resistant coverings, use an epoxy adhesive to set and grout the tile.

KERDI and KERDI-DS are used on wall and floor surfaces where protection against the penetration of moisture or other harmful substances is necessary. KERDI is suitable for showers, intermittent use steam showers, tub surrounds, and areas surrounding swimming pools. Industrial applications include the food industry, breweries, and dairies. KERDI-DS is suitable for use in continuous use steam rooms and other applications with similar vapor management requirements.

documents, please contact Schluter ® -

Systems at 800-472-4588 (USA) or

800- 667-8746 (Canada) or by e-mail at [email protected]. Links to the documents can also be accessed at www.schluter.

com.

KERDI and KERDI-DS have been evaluated according to the "Standard

Method for the Testing and Evaluation of Volatile Organic Chemical Emissions from Indoor Sources Using Environmental

Chambers, Version 1.1" for California

Specification 01350 and found to comply with the VOC requirements. California

Specification 01350 is referenced by various green building standards and rating systems.

Waterproof Building Panel

The KERDI-BOARD waterproof building panel simplifies shower installation by combining the tile backing and waterproofing installation into a single step. KERDI-

BOARD gives tile setters more control over their projects by providing them with the means to simply and easily create ideal substrates for tile. Unsuitable substrates can be remedied and new substrates can be created while keeping the requirements of the tile covering in mind.

Application and Function

12.1 Schluter

-KERDI-BOARD

-KERDI-BOARD is a multifunctional tile substrate and building panel, which can also be used for creating bonded waterproofing assemblies with tile coverings. It consists of an extruded polystyrene foam panel, with a special reinforcement material on both sides and fleece webbing for effective anchoring in thin-set mortar.

KERDI and KERDI-DS meet the American

National Standard for Load Bearing,

Bonded, Waterproof Membranes for

Thin- Set Ceramic Tile and Dimension

Stone Installations (ANSI A118.10). The membranes are listed by c UPC

and evaluated by ICC-ES (Report Nos. ESR-

2467 and PMG-1204). For copies of these

With the available panel thicknesses of

3/16", 3/8", 1/2", 5/8", 3/4", 1", 1-1/2", and 2" (5, 9, 12.5, 15, 19, 25, 38, and

50 mm) , KERDI-BOARD covers a broad range of application areas for creating flat, level, plumb, square, and dimensionally stable substrates for the installation of ceramic and natural stone tiles. With

SHOWER SYSTEM suitable preparation of the abutting seams and joint areas, the panel may be used for bonded waterproofing assemblies.

KERDI-BOARD is suitable for: creating tile substrates on masonry walls, wood or metal framing, and other finished wall surfaces; creating straight or curved partition walls; creating straight or curved bathtub and shower surrounds; concealing pipes and columns; as well as creating bathtub platforms, vanities, storage shelves, countertops, and various other bathroom structures.

The boards are simply cut to size with a utility knife. The gridlines, which are printed on the surface, are helpful for neat and quick cuts and installation. KERDI-BOARD can be fully adhered in wall areas or spotbonded with thin-set mortar. If necessary, the material may be secured with additional wall anchors. In the case of stud framing,

KERDI-BOARD is attached with screws and washers from the matching hardware system. Tiles can be installed directly over

KERDI-BOARD using the thin-set method.

L-shaped and U-shaped KERDI-BOARD panels are available for creating pipe and column coverings, and grooved panels are available for creating curved elements.

Schluter

® -Systems also offers profiles and attachment hardware for wall connections and finishing edges, as well as matching wall anchors and screws.

Material Properties and

Areas of Application

KERDI-BOARD is made from extruded polystyrene foam, with a cement-free reinforcement layer laminated to both sides and an anchoring fleece webbing. The surface of the board has gridlines consisting of 3/8" x 3/8" (10 x 10 mm) squares printed on one side.

KERDI-BOARD is waterproof and vapor retardant and can withstand all chemical stresses that typically occur in conjunction with ceramic tile coverings. KERDI-BOARD may be used in bonded waterproofing assemblies where required. KERDI-BOARD is completely flat and will not warp, even with one-sided exposure to temperature and moisture fluctuations. It will not rot or decay. KERDI-BOARD can be used in a multitude of different application areas. In special cases, the suitability of the material

12.1 Schluter

-KERDI-BOARD

Property

Water vapor permeance

Thermal resistance (R-value)

Service temperature range

Flame spread/smoke developed

Thermal barrier evaluation

Method

ASTM E96 1

ASTM C518

ASTM E84

NFPA 286

Value

0.36 perms - 1/2" (12.5 mm)

R 9.1 – 2" (50 mm)

R 2.2 – 1/2" (12.5 mm)

R 0.9 – 3/16" (5 mm)

-58 ° F to 158 ° F (-50 ° C to 70 ° C)

Pass 2

Pass 2,3

Using the desiccant method at 100°F (38°C) and 90% RH

2 Per International Building Code Requirements

3 Porcelain tile used as thermal barrier over 1/2" (12.5 mm) -thick KERDI-BOARD on wood framing must be verified based on the anticipated chemical and mechanical stresses. The information provided below is intended as general guidelines.

Structures on which KERDI-BOARD is to be installed must be stable and meet any other project-specific requirements.

Select a suitable material thickness if using

KERDI-BOARD for the construction of freestanding partition walls, shelving, or similar structures, and use reinforcement profiles as necessary. Arrange supports made of KERDI-BOARD at regular intervals consistent with conventional building practices. Select the material thickness and installation method depending on the evenness of the substrate. KERDI-BOARD can be spot-bonded to walls to correct substrate variations or fully embedded in thin-set mortar where walls are sufficiently even and plumb.

Maintenance

Storage

KERDI-BOARD should be stored flat.

In case of outdoor storage, protect the material from direct sunlight and weather exposure.

Shower Drains

8.2 Schluter

8.7 Schluter

-KERDI-DRAIN

-KERDI-LINE

Conventional two-stage drains are designed to connect to shower pan liners below the mortar bed and do not allow a secure, watertight connection to bonded waterproof membranes at the top of the drain assembly. KERDI-DRAIN and KERDI-

LINE are designed specifically to ensure a simple and secure connection to bonded waterproof membranes, such as KERDI, at the top of the assembly rather than below it, thereby reducing the risk of leakage, efflorescence, and mold growth.

Application and Function

8.2 Schluter ® -KERDI-DRAIN is a floor drain specifically designed to allow connections to KERDI or other loadbearing, bonded waterproof membranes.

The membrane is adhered to the large integrated bonding flange to form a waterproof connection at the top of the drain assembly. KERDI-DRAIN consists of a drain casing and fully adjustable grate assembly or covering support to which tile is applied.

The grate assembly accommodates a wide range of tile thicknesses and allows lateral and tilt adjustment as well. The covering support is placed flush with the top of the bonding flange and can therefore accommodate any thickness tile covering.

The standard KERDI-DRAIN is attached directly to the waste line. The drain casing is available in ABS, PVC, or stainless steel. The plastic drain casings feature a fleece-covered bonding flange. They are available with standard 2" (50 mm) and 3"

(75 mm) outlets and attached to the pipe using an appropriate solvent cement. The stainless steel drain casings are available with standard 2" (50 mm) or 3" (75 mm) no-hub outlets or 2" (50 mm) threaded outlet. The no-hub outlets are attached to the pipe using an appropriate mechanical

(e.g., flexible or no-hub) coupling. The threaded outlets are attached to the pipe using thread sealing compound or tape.

The simple connection to standard drain

12.1 Schluter

-KERDI-BOARD

Property

Water vapor permeance

Thermal resistance (R-value)

Service temperature range

Flame spread/smoke developed

Thermal barrier evaluation

Method

ASTM E96 1

ASTM C518

ASTM E84

NFPA 286

Value

0.36 perms - 1/2" (12.5 mm)

R 9.1 – 2" (50 mm)

R 2.2 – 1/2" (12.5 mm)

R 0.9 – 3/16" (5 mm)

-58 ° F to 158 ° F (-50 ° C to 70 ° C)

Pass 2

Pass 2,3

SHOWER SYSTEM outlets makes KERDI-DRAIN suitable for new construction and renovation.

The KERDI-DRAIN adaptor kit is designed to convert clamping ring drains by equipping them with an integrated bonding flange. The adaptor kit includes a stainless steel adaptor ring with an over-molded rubber gasket and a variety of perforated hole patterns that align with most common clamping ring shower drains. The adaptor ring replaces the clamping ring and is attached to the drain body using the clamping ring bolts. This connection is made watertight via the rubber gasket and KERDI-FIX adhesive/sealant. The integrated bonding flange slides into the adaptor ring, with the over-molded rubber gasket ensuring a watertight seal. Commercial KERDI-DRAIN adaptor kits feature a 7-1/2" (191 mm) diameter adaptor ring and are available with a stainless steel bonding flange or an

ABS bonding flange. The ABS bonding flange is available in two sizes (standard or extended length) to accommodate different tile assembly thicknesses. The residential

KERDI-DRAIN adaptor kit features a 5-1/4"

(133 mm) diameter adaptor ring and an ABS bonding flange. The KERDI-DRAIN adaptor kit is particularly useful in renovations where the clamping ring drains are difficult to replace with the standard KERDI-DRAIN

(e.g., when they are set in concrete slabs).

The grate assembly consists of a height adjustment collar, lateral adjustment ring, and drain grate or covering support. The grates are installed in conjunction with a height adjustment collar and lateral adjustment ring, which are made of ABS or stainless steel, to allow for simple and convenient adjustment when setting the tile. Drain grates are available in stainless steel with a chrome, polished or oil-rubbed bronze finish and in anodized aluminum with a brushed copper, brushed brass, or brushed nickel finish. The polished stainless steel grates are available in 4" (100 mm)

-square, 6" (150 mm) -square and -round versions. All other grates are available in the

4" (100 mm) -square version only. Please note that grate assemblies included with the plastic KERDI-DRAIN featuring 3" (75 mm) outlets and the residential adaptor kits only allow vertical and tilt adjustment (no lateral adjustment). The covering support is a 4" (100 mm) -square stainless steel plate with KERDI laminated on the surface to allow for bonding of ceramic or stone tile, which creates a virtually invisible drainage line.

8.7 Schluter

-KERDI-LINE is a low profile linear floor drain specifically designed for bonded waterproofing assemblies. KERDI-

LINE can be installed adjacent to walls or at intermediate locations. The floor can be sloped on a single plane to KERDI-

LINE, which enables the use of largeformat tiles and creates interesting design opportunities.

KERDI-LINE consists of a formed stainless steel channel body and grate assembly or covering support to which tile is applied.

The channel body features a standard

2" (50 mm) no-hub outlet and is attached to the pipe using an appropriate mechanical

(e.g., flexible or no-hub) coupling. The simple connection to standard drain outlets makes KERDI-LINE suitable for new construction and renovation. KERDI-

LINE is available with both center and off-set outlets. The off-set outlet is located

8" (20.3 cm) from the edge of the channel body and provides flexibility when obstacles

(e.g., floor joists) are encountered during installation. The grate assembly can be seamlessly adjusted to the thickness of the ceramic tile or stone covering from 1/8" to

1" (3 mm to 25 mm) . The covering support is placed flush with the top of the channel body and can therefore accommodate any thickness tile covering.

KERDI-LINE includes a corresponding polystyrene foam channel support. The perimeter of the channel body consists of a bonding flange laminated with a collar made of KERDI. It ensures a simple and secure connection to the bonded waterproofing assembly, both in the floor area and on adjacent walls.

The grate assembly consists of a brushed stainless steel frame and two design grate options. Option A is a closed-design grate, available in stainless steel with a brushed or chrome finish.

Option B is a stainless steel grate with square perforations, with brushed or chrome finish.

Note: Remove the protective foil from the chrome drain grate after installation.

Option B is also available with a locking mechanism (3/4" - 19 mm frame only) for applications where tamper resistance is desired or required (e.g., healthcare and education facilities, etc.). The covering support D is a stainless steel plate with

KERDI waterproofing membrane laminated on the surface to allow for bonding of ceramic or stone tile, which creates a virtually invisible drainage line. KERDI-LINE is available in channel lengths from 20" to 72" (50 cm to 180 cm) in 4" (10 cm) increments. Please note that the bonding flange extends approximately 1" (2.5 cm) beyond the channel on all sides.

Schluter

® -KERDI-LINE-FC is a stainless steel cover plate for use with KERDI-LINE to create a seamless look in applications where multiple drains are installed end-toend. KERDI-LINE-FC features a brushed finish, and is designed for use with either the solid or perforated grates with brushed stainless steel frame.

14.1 Schluter ® -SHOWERPROFILE-

S/-R system profiles represent an elegant solution for finishing the area between the floor and the first course of wall tile in a way that eliminates cutting wedges of tile and ensures a consistent elevation of the first course of wall tile in KERDI-LINE applications. SHOWERPROFILE-S consists of a trapezoid-perforated anchoring leg with a groove, which accepts a tapered brushed stainless steel profile that matches the slope of the KERDI-SHOWER-L shower tray. The profile is adjusted to cover the exposed wall area and forms the visible surface.

SHOWERPROFILE-R consists of a brushed stainless steel profile and corresponding channel. The profile is adjusted to fit the space between the KERDI-LINE and the wall tile and forms the visible surface in applications where the KERDI-LINE is placed adjacent to a wall.

Material Properties and

Areas of Application

KERDI-DRAIN drain casings are formed using ABS, PVC, or stainless steel 304

(1.4301 = V2A). Plastic drain casings feature a polypropylene fleece webbing. The KERDI-

DRAIN adaptor kits feature adaptor rings made of stainless steel 304 (1.4301 = V2A) with thermoplastic rubber gaskets and adaptor flanges made of stainless steel 304

(1.4301 = V2A) or ABS. Drain grates are available in stainless steel 304 (1.4301 =

V2A) and anodized aluminum. The covering support is stainless steel 304 (1.4301 = V2A) with KERDI laminated on the surface.

The KERDI-LINE channel body is formed using stainless steel 316 L (1.4404 =V4A) and features a bonding flange with a KERDI collar laminated on the surface. KERDI is a bonded waterproof membrane made of soft polyethylene, which is covered on both sides with a special fleece webbing to anchor the membrane in the thin-set mortar. The frame and grates are made of stainless steel

316 L (1.4404 =V4A). The channel support is made of pressure-resistant, expanded polystyrene (EPS).

KERDI-DRAIN and KERDI-LINE are suitable for use in residential and commercial

SHOWER SYSTEM applications, including areas subject to foot and wheelchair traffic, such as showers and wet rooms in homes, hotels, schools, healthcare facilities, etc.

Stainless steel can sustain high mechanical stresses and is particularly suitable for applications requiring resistance against chemicals and acids. However, even stainless steel is not resistant to all chemical stresses, and may be affected by hydrochloric acid, hydrofluoric acid or certain chlorine, chloride, and brine concentrations, which may be present in detergents or swimming pools. In special cases, the suitability of the selected floor drainage system must be verified based on the anticipated chemical, mechanical, and/or other stresses.

Anodized aluminum retains a uniform appearance during normal use. The surface, however, is susceptible to scratching and sheen when treated with a chrome-polishing agent. Do not use abrasive or alkaline cleaning agents.

Shower Profiles

14.2 Schluter ®

-WS/-WSC/-WSL

wear and may be damaged by grout or setting material. Therefore, these materials must be removed immediately.

Various configurations of KERDI-DRAIN and

KERDI-LINE are listed by UPC

, CSA, ICC-ES

PMG and NSF. Relevant industry standard

14.2 Schluter

Application and Function

14.2 Schluter ®

-WSK/-WSC/-WSL

-SHOWERPROFILE-WS/guidelines for floor drains with integrated bonding flange include method B422 in the Tile Council of North America's (TCNA)

Handbook for Ceramic Tile Installation and

WSK system profiles, together with the

Schluter ® -SHOWERPROFILE-WSL/-WSC inserts, form a splashguard at the entrance of curbless showers.

Method 326DR in the Terrazzo, Tile and

Marble Association of Canada (TTMAC)

Specification Guide 09300 Tile Installation

Manual.

The KERDI-LINE-FC is roll-formed using stainless steel 316 L (1.4404 = V4A).

The SHOWERPROFILE-S anchoring leg is made of recycled, rigid PVC. The

SHOWERPROFILE-S/-R profiles are made of stainless steel 316 L (1.4404 = V4A) with

KERDI laminated on the backside.

Schluter ® -SHOWERPROFILE-WS is an anodized aluminum support profile that is set in conjunction with the tile using thin-set mortar. It has a 3/4" (19 mm) surface and a height of 5/16"

–wide visible

(8 mm) . Where thicker tiles are used, simply fill the space below the profile with thin-set mortar.

Schluter ® -SHOWERPROFILE-WSK is an anodized aluminum support profile that is adhered to the tile surface. It has a 2-1/16"

(52 mm) –wide visible surface and a height

Maintenance of 5/16" (8 mm) .

The support profiles are combined with

SHOWERPROFILE-S/-R require no special maintenance and are resistant to mold and fungi. The drain grates may be removed to clean the drain housing and the drain pipes.

Clean the grates and profiles using common household cleaning agents. Stainless steel exposed to the environment or aggressive substances should be cleaned periodically using a mild household cleaner. Regular cleaning maintains the neat appearance of stainless steel and reduces the risk of corrosion. All cleaning agents must be free of hydrochloric acid, hydrofluoric acid, and chlorides. Stainless steel surfaces develop a a semi-circular insert made of semi-rigid

PVC. The insert creates an inconspicuous transition from the shower area to the adjoining space and a 5/8" (16 mm) –wide visible surface. The insert protrudes 3/64"

(1.2 mm) above the profile surface. The

SHOWERPROFILE-WSC insert complies with the Americans with Disabilities Act

(ADA).

Material Properties and Areas of Application

The SHOWERPROFILE-WS/-WSK support profiles feature an anodized aluminum layer that retains uniform appearance during normal use. The surface, however, is susceptible to scratching and wear and may be damaged by grout or setting material.

Cementitious materials, in conjunction with moisture, become alkaline. Since aluminum is sensitive to alkaline substances, exposure to the alkali (depending on the concentration and duration of exposure) may result in corrosion (aluminum hydroxide formation).

Therefore, it is important to remove mortar or grout residue immediately from visible surfaces. In addition, ensure the profile is solidly embedded in the setting material and that all cavities are filled to prevent the collection of alkaline water.

The SHOWERPROFILE-WSL insert is made of highly flexible polyurethane.

The SHOWERPROFILE -WSC insert is made of semi-rigid PVC.

The inserts can withstand chemical stresses typically encountered in tiled environments.

Maintenance the SHOWERPROFILE-WSC insert.

Schluter ® -SHOWERPROFILE-WSL is an upright insert made of transparent polyurethane. The insert is collapsible when stepped on or rolled over with a wheelchair.

The insert protrudes 1-5/32" (29 mm) above the profile surface. The SHOWERPROFILE-

WSL insert does not comply with the

Americans with Disabilities Act (ADA), since it exceeds the allowable height of a vertical transition despite being collapsible. Please check with local code officials for acceptance on projects where ADA guidelines must be observed before installation.

Schluter ® -SHOWERPROFILE-WSC is

SHOWERPROFILE-WS/-WSK support profiles require no special maintenance or care and are resistant to mold and fungi. In the case of anodized aluminum, do not use abrasive cleaning agents. The

SHOWERPROFILE-WSC/ -WSL inserts are specifically treated to resist the growth of fungi and bacteria and require no special maintenance or care.

SHOWER SYSTEM

Adhesive/Sealant

Schluter ® -KERDI-FIX Technical Data

8.3 Schluter ®

-KERDI-FIX

Any protrusions through the KERDI membrane can be treated with KERDI-

FIX, or equivalent sealant, to ensure a fully waterproof assembly.

Application and Function

8.3 Schluter ® -KERDI-FIX is a singlecomponent, waterproof sealing and bonding compound with a silane-modified polymer base, which can be used in various applications. In conjunction with KERDI,

KERDI-FIX can be used to waterproof pipe and valve protrusions in the Schluter ® -

Shower System. KERDI-FIX is used to bond the KERDI membrane to the stainless steel KERDI-DRAIN bonding flange.

KERDI-FIX can also be used to bond KERDI to building elements such as bathtubs, window elements and door frames.

Material Properties and

Areas of Application

KERDI-FIX is odorless, weather- and

UV-resistant. The product is elastomeric, free of solvents, and provides a strong bond to most materials, including wood, stone, concrete, metal, glass, and many synthetic materials. KERDI-FIX can be painted over with most alkyd resins or dispersion paint types. The suitability of the material must be verified based on the anticipated chemical, mechanical, and/or other stresses. KERDI-

FIX is not recommended in or around swimming pool applications.

KERDI-FIX has been evaluated according to the "Standard Method for the Testing and Evaluation of Volatile Organic Chemical

Emissions from Indoor Sources Using

Environmental Chambers, Version 1.1" for

California Specification 01350 and found to comply with the VOC requirements.

California Specification 01350 is referenced by various green building standards and rating systems.

Color

Basic raw material

Specific weight

Solvent content

Isocyanate content

Dry materials content

VOC emissions

Shear strength beech wood/beech wood

Shear strength aluminum/aluminum

Elongation at failure

Skinning

Curing

Permissible total movement

Processing temperatures

Temperature stability

Moisture resistance

Frost ability

Cartridge volume

Estimated coverage

5" (12.7 cm) connection to fixed building elements

1/4" (6 mm) bead

Maintenance

Storage

Unopened packages of KERDI-FIX can be stored in a cool location that is above freezing temperatures for up to 18 months.

Once the cartridge has been opened, the material has a limited shelf life.

System Installation

For complete installation guidelines and warranty criteria for shower applications, please contact Schluter ® -Systems at 800-

472-4588 (USA) or 800-667-8746 (Canada) to receive a copy of the Schluter ® -Shower

System Installation Handbook and a step-by-step installation video. To download a PDF version of the Handbook or to view the installation video online, please visit www.schluter.com.

Grey or bright white

Silyl-modified polymer (SMP)

Approx. 93.6 lb/ft 3 (1.5 g/ml)

Approx. 100%

0.0 mg/m 3

Approx. 435 psi (3 N/mm 2 )

Approx. 290 psi (2 N/mm 2 )

Approx. 200%

About 10 minutes

1/8" (3 mm) per 24 hours

About 20%

Don’t install at temperatures below 40 ºF (5 ºC)

-40 ºF (-40 ºC) to 212 ºF (100 ºC) , temporarily

356 ºF (180 ºC) [max. 30 minutes]

Very good

Not sensitive to frost

9.81 oz (290 ml)

12' 10" (3.9 m) per cartridge

30' 1" (9.2 m) per cartridge

SHOWER SYSTEM

Product Item Numbers

8.3 Schluter ® -KERDI-SHOWER-ST Prefabricated EPS shower tray

Item No.

ST-97

ST-122/183

ST 122

ST-81/152

ST-81/152 BR

ST-183

Width

38" – 97 cm

48 " – 122 cm

48" – 122 cm

32" – 81 cm

72" – 1 83 cm

Length

38" – 97 cm

72" – 183 cm

48" – 122 cm

60" – 152 cm

72" – 183 cm

Perimeter Height

1-1/8" 2.9 cm

1-3/8" 3.5 cm

1-1/4 " - 3.2 cm

1-3/4" - 4.4 cm

1-1/2" - 3.8 cm

Drain Placement

Center

Off-center*

Center

*Off-center drain at 10” (25 cm) from end of tray

8.8 Schluter ® -KERDI-SHOWER-LS Shower tray - wall drain placement

Item No.

KSL 1000 S

KSL 1400 S

Width

39" - 100 cm

55" - 140 cm

Length

39" - 100 cm

55" - 140 cm

End Height

1-21/32" - 42 mm

2" - 50 mm

8.8 Schluter

-KERDI-SHOWER-L Shower tray - center drain placement

Item No.

KSL 1000

KSL 1400

Width

39" - 100 cm

55" - 140 cm

Length

39" - 100 cm

55" - 140 cm

End Height

1-1/4" – 32 mm

1-13/32" – 36 mm

8.3 Schluter ® -KERDI-SHOWER-SB Prefabricated EPS bench

Item No.

SB 41

SB 2981

SB 29107

SB 29122

SB 4181

SB 41122

Width

16" – 41 cm

32" – 81 cm

42" – 107 cm

48" – 122 cm

32" – 81 cm

48" – 122 cm

Depth

16" – 41 cm

11-1/2" – 29 cm

16" – 41 cm

Height

20" – 51 cm

Shape

Triangular

Rectangular

8.3 Schluter ® -KERDI-SHOWER-SR Prefabricated EPS ramp

Item No.

SR 122

Width

48" – 122 cm

Length

15-7/8" – 40 cm

Height

1-1/2" – 3.8 cm

8.3 Schluter ® -KERDI-SHOWER-SC Prefabricated EPS curb

Item No.

SC 122

Width

4-1/2" – 11.5 cm

Length

48" – 122 cm

Height

6" – 15 cm

12.1 Schluter

-KERDI-BOARD-SC Prefabricated curb

Item No.

KBSC 115 150 970

KBSC 115 150 1220

Width

4-1/2" – 11.5 cm

Length

38" – 97 cm

48" – 122 cm

Height

6" - 15 cm

6 " - 15 cm

12.1 Schluter

-KERDI-BOARD-SB Prefabricated bench

Item No.

KBSB 410 TA

KBSB 610 TA

KBSB 290 970 RA

KBSB 410 1220 RA

Width

16" – 41 cm

24" – 61 cm

38" – 97 cm

48" – 122 cm

Length

16" – 41 cm

24" – 61 cm

11-1/2" – 29 cm

16" – 41 cm

Height

20" - 51 cm

Shape

Triangular

Rectangular

SHOWER SYSTEM

8.1 Schluter ® -KERDI Waterproofing membrane

Item No.

KERDI 200/5M

KERDI 200/7M

KERDI 200/10M

KERDI 200/20M

KERDI 200

Width

3' 3" – 1 m

Length

16' 5" – 5 m

23' – 7 m

33' – 10 m

65' 7" – 20 m

98' 5" – 30 m

Area

54 ft 2 – 5 m 2

75 ft 2 – 7 m 2

108 ft 2 – 10 m 2

215 ft 2 – 20 m 2

323 ft 2 – 30 m 2

Thickness

8 mil

8.1 Schluter ® -KERDI-DS Waterproofing membrane

Item No.

KERDI-DS

Width

3' 3" – 1 m

Length

98' 5" – 30 m

Area

323 ft 2 – 30 m 2

Thickness

20 mil

12.1 Schluter

-KERDI-BOARD Waterproof building panel

Item No.

KB 12 1220 812

KB 5 1220 1625

KB 9 1220 1625

KB 12 1220 1625

KB 5 1220 2440

KB 9 1220 2440

KB 12 1220 2440

KB 15 1220 2440

KB 19 625 2440

KB 25 625 2440

KB 38 625 2440

KB 50 625 2440

KB 15 1220 3050

Width

48" – 122 cm

24-1/2" – 62.5 cm

48" – 122 cm

Length

32" – 81 cm

64" – 162.5 cm

96" – 244 cm

120" – 305 cm

Thickness

1/2" – 12.5 mm

3/16" – 5 mm

3/8" – 9 mm

1/2" – 12.5 mm

3/16" – 5 mm

3/8" – 9 mm

1/2" – 12.5 mm

5/8" – 15 mm

3/4" – 1 9 mm

1" – 25 mm

1-1/2" – 38 mm

2" – 50 mm

5/8" – 15 mm

12.1 Schluter ® -KERDI-BOARD-SN Shower niche

Item No.

KB 12 SN 305 152 A

KB 12 SN 305 305 A

KB 12 SN 305 508 A1

KB 12 SN 305 711 A1

Size

12" x 6" – 305 x 152 mm

12" x 12" – 305 x 305 mm

12" x 20" – 305 x 508 mm

12" x 28" – 305 x 711 mm

Depth

3-1/2" – 89 mm

Shelf

8.1 Schluter ® -KERDI-BAND Waterproofing strip

Item No.

KEBA 100/125/5M

KEBA 100/125/10M

KEBA 100/185/5M

KEBA 100/250/5M

KEBA 100/125

KEBA 100/185

KEBA 100/250

Width

5" – 12.5 cm

7-1/4" – 18.5 cm

10" – 25 cm

5" – 12.5 cm

7-1/4" – 18.5 cm

10" – 25 cm

Length

16' 5" – 5 m

33' – 10 m

16' 5" – 5 m

98' 5" – 30 m

Thickness

4 mil

8.1 Schluter ® -KERDI-FLEX Waterproofing strip for use above movement joints

Item No.

FLEX 125/5M

FLEX 250/5M

FLEX 125/30

FLEX 250/30

Width

5" – 12.5 cm

10" – 25 cm

5" – 12.5 cm

10" – 25 cm

Length

16' 5" – 5 m

98' 5" – 30 m

Thickness

12 mil

8.1 Schluter

-KERDI-KERECK-F Preformed corner

Item No.

KERECK/FI 2

KERECK/FI 10

KERECK/FA 2

KERECK/FA 10

Thickness

4 mil

Packaging

2 inside corners

10 inside corners

2 outside corners

10 outside corners

SHOWER SYSTEM

8.1 Schluter ® -KERDI-KERS-B Preformed corner

Item No.

KERECK 135 FI 2

KERECK 135 FI 10

KERSB 135 K LR

KERSB 135 K 5LR

KERSB 135 K

Thickness

4 mil

Description

Inside corner, 135°

Bench corners

Bench/ neo-angle corner kit

Packaging

2 units

10 units

1 right and 1 left

5 right and 5 left

1 right and 1 left bench corner, and

2 135° inside corners

8.1 Schluter ® -KERDI-KERS Preformed corner

KERS 20L

KERS 28L

KERS 20R

KERS 28R

Item No.

Thickness

4 mil

Packaging

Left inside corner – 3/4" (20 mm)

Left inside corner – 1-3/32" (28 mm)

Right inside corner – 3/4" (20 mm)

Right inside corner – 1-3/32" (28 mm)

8.1 Schluter ® -KERDI-SEAL-PS Pipe seal with over-molded rubber gasket

Item No.

KMS185/12

KMS185/20

KMS10185/12

KMS10185/20

Pipe nipple opening diam.

1/2" – 12.5 cm

3/4" – 20 cm

1/2" – 12.5 cm

3/4" – 20 cm

Thickness

4 mil

Packaging

1 unit

10 units

8.1 Schluter ® -KERDI-SEAL-MV Mixing valve seal with over-molded rubber gasket

Item No.

KMSMV235/114

KMSMV10235/114

Mixing valve opening diam.

4-1/2" – 114 cm

Thickness

4 mil

Packaging

1 unit

10 units

8.1 Schluter ® -KERDI-KM Pipe seal

Item No.

KM5117/22

Dimensions

7" x 7" – 17 x 17 cm

Thickness

4 mil

Packaging

5 units

Hole diameter, ø = 7/8" - 22 mm

14.2 Schluter

-SHOWERPROFILE-WS Support profile

Item No.

SPWS 19 AE/100

SPWS 19 AE

Height

5/16" - 8 mm

Length

39" - 1 m

8' 2-1/2" - 2.5 m

14.2 Schluter ® -SHOWERPROFILE-WSK Support profile - retrofit

Item No.

SPWSK 52 AE/100

SPWSK 52 AE

Height

5/16" - 8 mm

Length

39" - 1 m

8' 2-1/2" - 2.5 m

14.2 Schluter ® -SHOWERPROFILE-WSC Semi-circular lip insert

Item No.

SPWSC 16 GS/100

SPWSC 16 GS

Height

5/16" - 8 mm

Length

39" - 1 m

8' 2-1/2" - 2.5 m

14.2 Schluter ® -SHOWERPROFILE-WSL Straight lip insert

Item No.

SPWSL 30 T/100

SPWSL 30 T

Height

5/16" - 8 mm

Length

39" - 1 m

8' 2-1/2" - 2.5 m

14.2 Schluter ® -SHOWERPROFILE-WSK-EK End cap

EK/SPWSK 52 AE

Item No.

Height

5/16" - 8 mm

SHOWER SYSTEM

Schluter ® -KERDI-TROWEL Trowel

Item No.

TRL-KER6

TRL-KER

Notch Size

1/8" x 1/8" - 3 x 3 mm

Packaging

6 units

1 unit

8.3 Schluter ® -KERDI-FIX Adhesive/sealant

Item No.

KERDIFIX / color*

KERDIFIX 100 G

Description

Cartridge - 9.81 oz — 290 ml

Tube - 3.38 oz — 100 ml

* Color Codes

Bright white

Grey

To complete the item number, add the color code (e.g., KERDIFIX/ BW ).

8.2 Schluter ® -KERDI-DRAIN

4" Grate Options

Tileable Covering Support Anodized Aluminum Stainless Steel

(ECS)

Patent pending

6" Grate Options

Stainless Steel

Brushed nickel

(ATGB)

Brushed copper

(AKGB)

Brushed brass

(AMGB)

Oil-rubbed bronze

(EOB)

Stainless steel (E)

Stainless Steel Cover for Cleanout Applications

Chrome

(EP)

Flange Options

ABS - 2" or 3" Outlet

(6E) (6RE)

PVC - 2" or 3" Outlet Stainless Steel - 2" or 3"

No-hub Outlet

(6CE) (6RCE)

Stainless Steel - 2"

Threaded Outlet

Listings and certifications can be referenced on page 22.

SHOWER SYSTEM

DRAIN KITS - ABS or PVC FLANGE - 2" OR 3" OUTLET

Schluter ® -KERDI-DRAIN - Components - ABS or PVC Flange

1 Includes

KERDI-DRAIN

Description

Drain with integrated bonding flange and grate assembly

2 3 4

KERDI-KERECK-F

3 KERDI-SEAL-PS

KERDI-SEAL-MV

Preformed waterproofing corners

Pipe seal (3/4" - 20 mm )

Mixing valve seal

2" Drain Outlet

ABS flange PVC flange

4" (100 mm) Square Grate

Tileable covering support (ECS)*

Stainless steel (E)

KD2/ABS/ECS 1

KD2/ABS/E 1

KD2/PVC/ECS 1

KD2/PVC/E 1

Chrome (EP) KD2/ABS/EP 1 KD2/PVC/EP 1

Oil-rubbed bronze stainless steel (EOB)

Brushed brass anod. alu. (AMGB)

Brushed copper anod. alu. (AKGB)

Brushed nickel anod. alu. (ATGB)

KD2/ABS/EOB

KD2/ABS/AMGB 1 KD2/PVC/AMGB 1

KD2/ABS/AKGB 1 KD2/PVC/AKGB 1

KD2/ABS/ATGB 1 KD2/PVC/ATGB 1

6" (150 mm) Square or Round Grate

Square grate stainless steel (6E)

Round grate stainless steel (6RE)

KD2/ABS/6E 1

KD2/ABS/6RE 1

KD2/PVC/EOB

KD2/PVC/6E 1

KD2/PVC/6RE 1

1 Listed by UPC

* Patent pending

, CSA, ICC-ES PMG, and NSF

3" Drain Outlet

ABS flange

6" (150 mm) Square or Round Grate

Square grate stainless steel (6E)

Round grate stainless steel (6RE)

KD3/ABS/6E 1

KD3/ABS/6RE 1

Flange Measurements

ABS or PVC

2" (50 mm) drain outlet

11-13/16" - 300 mm

4-17/32" - 115.2 mm

2-45/64" - 68.6 mm

2-3/8" - 60.5 mm

3-15/16" - 100 mm

1-39/64" - 40.6 mm

7/8" - 22.5 mm

Quantity

4 inside and

2 outside

PVC flange

KD3/PVC/6E 1

KD3/PVC/6RE 1

3" (75 mm) drain outlet

11-13/16" - 300 mm

4-17/32" - 115.2 mm

3-15/16" - 100 mm

3-1/2" - 88.8 mm

3-15/16" - 100 mm

2" - 50.8 mm

1-1/2" - 38.1 mm

SHOWER SYSTEM

DRAIN KITS - STAINLESS STEEL FLANGE - 2" OR 3" NO-HUB OUTLET

Schluter ® -KERDI-DRAIN - Components - Stainless Steel Flange

1 Includes Description

2 3 4 5

1 KERDI-DRAIN

KERDI-KERECK-F

KERDI-SEAL-PS

KERDI-SEAL-MV

KERDI-FIX

Drain with integrated bonding flange and grate assembly

Preformed waterproofing corners

Pipe seal (3/4" - 20 mm )

Mixing valve seal

Sealing and bonding compound (66 ml)

2" No-hub Outlet 3" No-hub Outlet

Stainless steel flange

4" (100 mm) Square Grate

Tileable covering support (ECS)*

Stainless steel (E)

Chrome (EP)

Oil-rubbed bronze stainless steel (EOB)

Brushed brass anod. alu. (AMGB)

Brushed copper anod. alu. (AKGB)

Brushed nickel anod. alu. (ATGB)

6" (150 mm) Square or Round Grate

Square grate stainless steel (6E)

Round grate stainless steel (6RE)

1 Listed by UPC

* Patent pending

, CSA, ICC-ES PMG, and NSF

Flange Measurements

Stainless steel

KD2/E/ECS 1

KD2/E/E 1

KD2/E/EP 1

KD2/E/EOB

KD2/E/AMGB 1

KD2/E/AKGB 1

KD2/E/ATGB 1

KD2/E/6E 1

KD2/E/6RE 1

6" (150 mm) Square or Round Grate

Square grate stainless steel (6E)

Round grate stainless steel (6RE)

2" (50 mm) no-hub outlet

9-27/32" - 250 mm

4-1/2" - 115.4 mm

2-13/32" - 61.3 mm

2-13/32" - 60.6 mm

3-11/32" - 85 mm

53/64" - 21 mm

Quantity

4 inside and 2 outside

Stainless steel flange

KD3/E/6E 1

KD3/E/6RE 1

3" (75 mm) no-hub outlet

9-27/32" - 250 mm

4-1/2" - 114 mm

3-7/16" - 87.4 mm

3-5/16" - 84.2 mm

3-7/16" - 87.4 mm

1-5/32" - 29.4 mm

GRATE & FLANGE KITS (sold separately)

Grate Kit - Components

1a 1b

Flange Kit - Components

Patent pending

2 3 4

Includes Description

Grate Assembly a) For stainless steel and aluminum grates b) For tileable covering support

KERDI-KERECK-F Preformed waterproofing corners

KERDI-SEAL-PS

KERDI-SEAL-MV

Pipe seal (3/4" - 20 mm )

Mixing valve seal

Quantity

4 inside and

2 outside

Grate Kits

Finish Item No.

4" (100 mm) Square Grate

Tileable covering support (ECS)*

Stainless steel (E)

Chrome (EP)

Oil-rubbed bronze stainless steel (EOB)

Brushed brass anod. alu. (AMGB)

Brushed copper anod. alu. (AKGB)

KD2/ECS/GR

KD2/E/GR

KD2/EP/GR

KD2/EOB/GR

KD2/AMGB/GR

KD2/AKGB/GR

Brushed nickel anod. alu. (ATGB)

Stainless steel (E) with stainless steel height adjustment collar and lateral adjustment ring

6" (150 mm) Square or Round Grate

Square grate stainless steel (6E)

KD2/ATGB/GR

KD2/E/E/GR

Round grate stainless steel (6RE)

6" (150 mm) Square or Round Cover

Square cover stainless steel (6CE)

KD2/6E/GR

KD2/6RE/GR

Round cover stainless steel (6RCE)

KD-GR6C-E

KD-GR6RC-E

Note: 6" square and round covers do not include the seals and corners.

Includes

Drain with integrated bonding flange

Quantity

Flange Kits

Material

2" (50 mm) Drain Outlet

ABS

PVC

Stainless Steel with no-hub outlet

Stainless Steel with threaded outlet

3" (75 mm) Drain Outlet

ABS

PVC

Stainless Steel with no-hub outlet

Item No.

KD2/ABS/FL

KD2/PVC/FL

KD2/E/FL

KD2/ETH/FL

KD3/ABS/FL

KD3/PVC/FL

KD3/E/FL i

Please note that flanges with 3" outlets are intended for use with 6" grates as these combinations have listings and certifications while flanges with 3" outlet combined with

4" grates do not. Please refer to the Product Listings and

Certifications Table on page 22.

DRAIN ADAPTOR KIT FOR USE WITH

RESIDENTIAL

CLAMPING RING DRAINS - ABS

Schluter ® -KERDI-DRAIN with residential adaptor ring and ABS flange

1 Includes Description

KERDI-DRAIN

2 Adaptor ring *

KERDI-KERECK-F

3 4 5

KERDI-SEAL-PS

KERDI-SEAL-MV

KERDI-FIX

* D Schluter-Systems L.P., U.S. patent No. D593,641, other patents pending

Residential Adaptor Kits - ABS Flange

ABS bonding flange

4" (100 mm) Square Grate

Stainless steel (E) KDAR/ABS/E

Chrome (EP)

Oil-rubbed bronze stainless steel (EOB)

Brushed brass anod. alu. (AMGB)

Brushed copper anod. alu. (AKGB)

Brushed nickel anod. alu. (ATGB)

KDAR/ABS/EP

KDAR/ABS/EOB

KDAR/ABS/AMGB

KDAR/ABS/AKGB

KDAR/ABS/ATGB

Drain with integrated bonding flange and grate assembly

For residential clamping ring drains

Preformed waterproofing corners

Pipe seal (3/4" - 20 mm )

Mixing valve seal

Sealing and bonding compound (66 ml)

Quantity

4 inside and 2 outside

Flange and adaptor ring measurements - Residential

ABS

11-13/16" - 300 mm

2-13/32" - 60.7 mm

2.73" - 69.3 mm

5-1/4" - 133.4 mm

2-29/32" - 74 mm

1-1/64" - 25.9 mm

2-1/16" - 52.6 mm

SHOWER SYSTEM

DRAIN ADAPTOR KIT FOR USE WITH

COMMERCIAL

CLAMPING RING DRAINS - ABS

Schluter ® -KERDI-DRAIN with commercial adaptor ring and ABS flange

1 Includes Description

KERDI-DRAIN

Drain with integrated bonding flange and grate assembly

Adaptor ring * For commercial clamping ring drains

KERDI-FIX

* D Schluter-Systems L.P., U.S. patent No. D593,641, other patents pending

Sealing and bonding compound (66 ml)

C

ommercial Adaptor Kits - ABS Flange

Standard ABS bonding flange

4" (100 mm) Square Grate

Tileable covering support (ECS)* KDA/ABS/ECS

Stainless steel (E)

Chrome (EP)

Oil-rubbed bronze stainless steel (EOB)

Brushed brass anod. alu. (AMGB)

Extended ABS bonding flange

KDA/ABS/E

KDA/ABS/EP

KDA/ABS/EOB

KDA/ABSL/ECS

KDA/ABSL/E

KDA/ABSL/EP

KDA/ABSL/EOB

KDA/ABS/AMGB KDA/ABSL/AMGB

KDA/ABS/AKGB KDA/ABSL/AKGB

KDA/ABS/ATGB KDA/ABSL/ATGB

Brushed copper anod. alu. (AKGB)

Brushed nickel anod. alu. (ATGB)

6" (150 mm) Square or Round Grate

Square grate stainless steel (6E)

Round grate stainless steel (6RE)

* Patent pending

KDA/ABS/6E

KDA/ABS/6RE

KDA/ABSL/6E

KDA/ABSL/6RE

Flange and adaptor ring measurements - Commercial

ABS

Standard

11-13/16" - 300 mm

4-13/32" - 111.8 mm

4-11/16" - 118.9 mm

7-1/2" - 191 mm

5-7/64" - 130 mm

1-9/16" - 39.7 mm

2-9/64" - 54.3 mm

Quantity

Extended

11-13/16" - 300 mm

4-13/32" - 111.8 mm

4-11/16" - 118.9 mm

7-1/2" - 191 mm

5-7/64" - 130 mm

3-1/16" - 77.8 mm

3-41/64" - 92.4 mm

SHOWER SYSTEM

DRAIN ADAPTOR KIT FOR USE WITH

COMMERCIAL

CLAMPING RING DRAINS - STAINLESS STEEL

Schluter ® -KERDI-DRAIN with commercial adaptor ring and stainless steel flange

1 Includes Description Quantity

KERDI-DRAIN

Drain with integrated bonding flange and grate assembly

Adaptor ring * For commercial clamping ring drains 1

3 KERDI-FIX Sealing and bonding compound (66 ml)

* D Schluter-Systems L.P., U.S. patent No. D593,641, other patents pending

C

ommercial Adaptor Kits - Stainless Steel Flange

Stainless steel bonding flange

4" (100 mm) Square Grate

Tileable covering support (ECS)* KDA/E/ECS

Stainless steel (E)

Chrome (EP)

Oil-rubbed bronze stainless steel (EOB)

Brushed brass anod. alu. (AMGB)

Brushed copper anod. alu. (AKGB)

Brushed nickel anod. alu. (ATGB)

6" (150 mm) Square or Round Grate

Square grate stainless steel (6E)

Round grate stainless steel (6RE)

* Patent pending

KDA/E/E

KDA/E/EP

KDA/E/EOB

KDA/E/AMGB

KDA/E/AKGB

KDA/E/ATGB

KDA/E/6E

KDA/E/6RE

Flange and adaptor ring measurements - Commercial

Stainless steel

9-27/32" - 250 mm

4-9/16" - 115.7 mm

4-11/16" - 118.7 mm

7-1/2" - 191 mm

5-7/64" - 130 mm

1-9/16" - 39.7 mm

2-3/16" - 56.5 mm

SHOWER SYSTEM

8" - 20.3 cm

= L

Note: There are multiple selections to be made for this product. Start by selecting the appropriate flange length then proceed to grate selection accordingly, keeping in mind there are two frame heights with two grate options (A or B), and a frameless option (D).

8.7 Schluter

-KERDI-LINE Bonding flange - stainless steel - center outlet

L = in. - cm

19-11/16" - 50

23-5/8" - 60

27-9/16" - 70

31-1/2" - 80

35-7/16" - 90

39-3/8" - 100

43-5/16" - 110

47-1/4" - 120

51-3/16" - 130

55-1/8" - 140

59-1/16" - 150

62-15/16" - 160

66-7/8" - 170

70-13/16" - 180

21-11/16" - 55

25-5/8" - 65

29-9/16" - 75

33-1/2" - 85

37-7/16" - 95

41-3/8" - 105

45-5/16" - 115

49-1/4" - 125

53-3/16" - 135

57-1/8" - 145

61-1/16" - 155

64-15/16" - 165

68-7/8" - 175

72-13/16" - 185

Item No.

KLV 60 E 50

KLV 60 E 60

KLV 60 E 70

KLV 60 E 80

KLV 60 E 90

KLV 60 E 100

KLV 60 E 110

KLV 60 E 120

KLV 60 E 130

KLV 60 E 140

KLV 60 E 150

KLV 60 E 160

KLV 60 E 170

KLV 60 E 180

8.7 Schluter

-KERDI-LINE

Bonding flange - stainless steel - off-set outlet

L = in. - cm

27-9/16" - 70

31-1/2" - 80

35-7/16" - 90

39-3/8" - 100

43-5/16" - 110

47-1/4" - 120

29-9/16" - 75

33-1/2" - 85

37-7/16" - 95

41-3/8" - 105

45-5/16" - 115

49-1/4" - 125

Item No.

KLVO 60 E 70

KLVO 60 E 80

KLVO 60 E 90

KLVO 60 E 100

KLVO 60 E 110

KLVO 60 E 120

Note : Please see page 22 for listings and certifications.

SHOWER SYSTEM

Closed (A)

3/8" -

10 mm

1-27/32" -

47 mm

2-29/32" - 74 mm

= H

3/8" -

10 mm

2-1/8" - 54 mm

Perforated (B)

2-29/32" - 74 mm

= H

8.7 Schluter ® -KERDI-LINE Grate assemblies - Brushed stainless steel

Length = in. - cm

Closed (A)

Item No.

Perforated (B)

Item No.

Frameless Tileable (D) - Patent pending

Center outlet Off-set outlet

2" - 50 mm

Closed (A)

3/8" -

10 mm

1-27/32" -

47 mm

2-29/32" - 74 mm

= H

3/4" - 19 mm frame height for 1/8" to 9/16" -

3 mm to 15 mm thick coverings

19-11/16" - 50

23-5/8" - 60

27-9/16" - 70

31-1/2" - 80

35-7/16" - 90

39-3/8" - 100

43-5/16" - 110

47-1/4" - 120

51-3/16" - 130

55-1/8" - 140

59-1/16" - 150

62-15/16" - 160

66-7/8" - 170

70-13/16" - 180

KLAR 19 EB 50

KLAR 19 EB 60

KLAR 19 EB 70

KLAR 19 EB 80

KLAR 19 EB 90

KLAR 19 EB 100

KLAR 19 EB 110

KLAR 19 EB 120

KLAR 19 EB 130

KLAR 19 EB 140

KLAR 19 EB 150

KLAR 19 EB 160

KLAR 19 EB 170

KLAR 19 EB 180

KLB 19 EB 50

KLB 19 EB 60

KLB 19 EB 70

KLB 19 EB 80

KLB 19 EB 90

KLB 19 EB 100

KLB 19 EB 110

KLB 19 EB 120

KLB 19 EB 130

KLB 19 EB 140

KLB 19 EB 150

KLB 19 EB 160

KLB 19 EB 170

KLB 19 EB 180

KLDRE 50

KLDRE 60

KLDRE 70

KLDRE 80

KLDRE 90

KLDRE 100

KLDRE 110

KLDRE 120

KLDRE 130

KLDRE 140

KLDRE 150

KLDRE 160

KLDRE 170

KLDRE 180

KLDRO E 70

KLDRO E 80

KLDRO E 90

KLDRO E 100

KLDRO E 110

KLDRO E 120

Note: The perforated grate (B) is also available with a locking mechanism to prevent removal of the grate, for more information contact customer service at

1-800-472-4588 (US) or

1-800-667-8746 (CANADA).

Frameless Tileable (D) Patent pending

1-1/8" - 30 mm frame height for 1/2" to 1" -

13 mm to 25 mm thick coverings

19-11/16" - 50

23-5/8" - 60

27-9/16" - 70

31-1/2" - 80

35-7/16" - 90

39-3/8" - 100

43-5/16" - 110

47-1/4" - 120

KLAR 30 EB 50

KLAR 30 EB 60

KLAR 30 EB 70

KLAR 30 EB 80

KLAR 30 EB 90

KLAR 30 EB 100

KLAR 30 EB 110

KLAR 30 EB 120

KLB 30 EB 50

KLB 30 EB 60

KLB 30 EB 70

KLB 30 EB 80

KLB 30 EB 90

KLB 30 EB 100

KLB 30 EB 110

KLB 30 EB 120

8.7 Schluter ® -KERDI-LINE Grate assemblies - Chrome

Item No.

Length = in. - cm

19-11/16 - 50

23-5/8 - 60

27-9/16 - 70

31-1/2 - 80

35-7/16 - 90

39-3/8 - 100

43-5/16 - 110

47-1/4 - 120

Closed (A)

KLAR 19 EP 50

KLAR 19 EP 60

KLAR 19 EP 70

KLAR 19 EP 80

KLAR 19 EP 90

KLAR 19 EP 100

KLAR 19 EP 110

KLAR 19 EP 120

Perforated (B)

KLB 19 EP 50

KLB 19 EP 60

KLB 19 EP 70

KLB 19 EP 80

KLB 19 EP 90

KLB 19 EP 100

KLB 19 EP 110

KLB 19 EP 120

3/8" -

10 mm

2-1/8" - 54 mm

Perforated (B)

2-29/32" - 74 mm

= H

14.1 Schluter ® -SHOWERPROFILE-SA Two-part tapered edging profile

Item No.

H = in. - mm H1 = in. - mm H2 = in. - mm

L = 47-1/4" - 1.2 m

SPSA 50 EB/120

L = 63" - 1.6 m

SPSA 50 EB/160

L = 78-3/4" - 2 m

SPSA 50 EB/200

3/16 - 5

1/4 - 6

1-3/16 - 30

1-1/2 - 38

1-13/16 - 46

H = 3/16" (5 mm) or

3/8" (10 mm)

3/8"

(10 mm)

H = 3/16" (5 mm) or

3/8" (10 mm)

3/8"

(10 mm)

14.1 Schluter

(12.5 mm)

Item No.

-SHOWERPROFILE-SB

H = in. - mm H1 = in. - mm

Two-part tapered edging profile

L = 47-1/4" - 1.2 m

H2 = in. - mm

SPSB 100 EB/120

H = 1/2"

(12.5 mm)

SPSB 125 EB/120

3/8 - 10

1/2 - 12.5

3/8 - 10

1-11/32 - 34

L = 63" - 1.6 m

SPSB 100 EB/160

SPSB 125 EB/160

L = 78-3/4" - 2 m

SPSB 100 EB/200

SPSB 125 EB/200

3/8 - 10

1/2 - 12.5

3/8 - 10

1/2 - 12.5

3/8 - 10

1-21/32 - 42

2 - 50

Note: Other sizes available. Contact Customer Service for price and availability.

= H

= L

25/32" (20 mm)

= H

14.1 Schluter ® -SHOWERPROFILE-R Two-part wall transition profile

Item No.

Height

L = 39" - 1 m

SPRA 23 EB/100

SPRA 33 EB/100

29/32" - 1-3/8" (23 - 35 mm)

1-5/16" - 1-25/32" (33 - 45 mm)

L = 55" - 1.4 m

SPRA 23 EB/140

SPRA 33 EB/140

29/32" - 1-3/8" (23 - 35 mm)

1-5/16" - 1-25/32" (33 - 45 mm)

7/8" (22mm) /

1-1/4" (32 mm)

H = variable

Note: When the SHOWERPROFILE-S/-R is not used with the Schluter ® -Shower System the profile is covered under the Schluter ® -Systems Wall and Countertop

Profiles 5-Year Limited Warranty.

14.1 Schluter

-KERDI-LINE-FC Cover plate

Item No.

V / KLEB 35

V / KLEP 35

Width

1-3/8" - 35 mm

Finish

Brushed stainless steel

Chrome

35 mm - 1-3/8''

5 6

Schluter

-KERDI-SHOWER-KIT

Includes

KERDI-SHOWER-ST

KERDI-SHOWER-SC

KERDI 5 M

KERDI 10 M

KERDI 12 M

KERDI 20 M

KERDI-BAND

KERDI-DRAIN

KERDI-KERECK-F

KERDI-SEAL-PS

KERDI-SEAL-MV

Description

Shower Tray

Shower Curb 48" x 6" x 4-1/2"

Waterproofing membrane 3' 3" x 16' 5" = 54 ft 2

Waterproofing membrane 3' 3" x 33' = 108 ft 2

Waterproofing membrane 3' 3" x 39' 4" = 128 ft 2

Waterproofing membrane 3' 3" x 65' 7" = 215 ft 2

Waterproofing strip 5" x 33'

Drain, with integrated bonding flange with 2" (50 mm) outlet

Preformed waterproofing corners

Pipe seal (3/4" - 20 mm )

Mixing valve seal

72" 183 cm

48" 122 cm

Quantity

48" x 48" 72" x 72" 32" x 60" 38" x 38" 48" x 72"

1 1 1 1 1

1 2 2 1 2

1 1

2 1 1 2

1 1 1 1

4 inside and 2 outside

48" x 48" (122 x 122 cm) Kit

Item No.

Drain

Material

KK 122 ABS E

KK 122 ABS EP

KK 122 PVC E

KK 122 PVC EP

ABS

PVC

Grate finish

Stainless steel

Chrome

Stainless steel

Chrome

60" 152 cm

32" x 60" (81 x 152 cm) Kit

Item No.

Drain

Material

KK 81152 ABS E

KK 81152 ABS EP

KK 81152 PVC E

KK 81152 PVC EP

ABS

PVC

Grate finish

Stainless steel

Chrome

Stainless steel

Chrome

72" x 72" (183 x 183 cm) Kit

Item No.

Drain

Material

KK 183 ABS E

KK 183 ABS EP

KK 183 PVC E

KK 183 PVC EP

ABS

PVC

Grate finish

Stainless steel

Chrome

Stainless steel

Chrome

60” 152 cm

Note: Tray features off-center drain placement:

10" (25.4 cm) o.c. from end of tray.

32" x 60" (81 x 152 cm) Kit with off-center drain placement

Item No.

Drain

Material

Grate finish

KKB 81152 ABS E

KKB 81152 ABS EP

KKB 81152 PVC E

KKB 81152 PVC EP

ABS

PVC

Stainless steel

Chrome

Stainless steel

Chrome

SHOWER SYSTEM

97 cm - 38"

183 cm - 72"

38" x 38" (97 x 97 cm) Kit

Item No.

KK 97 ABS E

KK 97 ABS EP

KK 97 PVC E

KK 97 PVC EP

Drain

Material

ABS

PVC

Grate finish

Stainless steel

Chrome

Stainless steel

Chrome

48" x 72" (122 x 183 cm) Kit

Item No.

KK 122183 ABS E

KK 122183 ABS EP

KK 122183 PVC E

KK 122183 PVC EP

Drain

Material

ABS

PVC

Grate finish

Stainless steel

Chrome

Stainless steel

Chrome

Schluter ® -KERDI-SHOWER-KIT

WITHOUT THE DRAIN

Includes Description

KERDI-SHOWER-ST Shower tray

KERDI-SHOWER-SC Shower curb 48" x 6" x 4-1/2"

KERDI 5 M

KERDI 10 M

KERDI 12 M

KERDI 20 M

KERDI-BAND

Waterproofing membrane 3' 3" x 16' 5" =

Waterproofing membrane 3' 3" x 33' =

Waterproofing membrane 3' 3" x 39' 4" =

Waterproofing membrane 3' 3" x 65' 7"=

Waterproofing strip 5" x 33'

54 ft

108 ft 2

128 ft

215 ft 2

Quantity

48" x 48" 72" x 72" 32" x 60" 38" x 38" 48" x 72"

2 1 1 2

Item No.

KK122

KK183

KK81152

KKB81152

KK97

KK122183

Tray size

48" x 48"

72" x 72"

32" x 60"

32" x 60" off-center drain

38" x 38"

48" x 72"

Product Listings and Certifications Table

Schluter ® -KERDI-DRAIN

Bonding Flange 2" (50 mm) Outlet

ABS / PVC

Stainless steel

Bonding Flange 3" (75 mm) Outlet

ABS / PVC

Stainless steel

Schluter ® -KERDI-LINE

Grate - 4" (100 mm)

EOB AMGB AKGB

ATGB

ECS*

Grate - 6" (150 mm)

6RE

Bonding Flange

Center outlet - 20" - 48" (50 cm - 120 cm)

Center outlet - 52" - 72" (130 cm - 180 cm)

Off-set outlet - 28" - 48" (70 cm - 120 cm)

Grate

6CE

Grate - 6" (150 mm)

6RE 6CE

6RCE

Various configurations of KERDI-DRAIN and KERDI-LINE are listed by UPC

® , CSA, ICC-ES PMG, and NSF as shown in the table above.

1 - Listed by UPC ® , CSA, NSF, and ICC-ES PMG

2 - Listed by CSA

* Patent pending

For copies of these documents, please contact Schluter ® -Systems at 800-472-4588 (USA) or 800-667-8746 (Canada) or by email at [email protected]. Links to the documents can also be accessed at www.schluter.com.

SHOWER SYSTEM

Schluter ® -KERDI-TUBKIT

Item No.

KKB7

Includes

KERDI 7M

KERDI-BAND

KERDI-SEAL-PS

KERDI-SEAL-MV

KERDI-FIX

Description

Waterproofing membrane 3' 3" x 23' = 75 ft 2

Waterproofing strip 5" x 16' 5"

Pipe seal 3/4"

Mixing valve seal 4-1/2"

Sealing and bonding compound, bright white

Quantity

Schluter

-Shower System 10-Year Limited Warranty

COVERAGE AND CONDITIONS: Subject to the conditions and limitations as stated hereinafter, Schluter-Systems* warrants that the

Schluter ® -Shower System (the “Products”)** will meet all composition and performance criteria for a period of ten (10) years from the date of purchase only when the Products are used and installed in accordance with the terms and conditions of the Schluter ® -Shower System Installation Handbook and industry standard guidelines that are not in conflict with the Handbook in effect at the time of installation. Further, efflorescence is considered to be a natural occurrence with cementitious materials and is therefore not considered to be a defective condition and is not covered by this warranty. It is the responsibility of the owner/ builder/installer to ensure the suitability of all building materials and all associated building materials for the owner’s intended use. It is recommended that the owner consult with an experienced and professional installer.

RESOLUTION: If the Products fail to meet this warranty, then the owner’s exclusive remedy and the sole obligation of Schluter-Systems, at its election, shall be to a) reinstall or replace the failed portion of the tile assembly or b) pay an amount not to exceed the original square foot cost of the installation of the tile assembly verified to be defective. Tile assembly is defined to include all Schluter ® -KERDI products, non-reusable tile surfaces, and the appropriate setting and grouting materials. Further, due to conditions beyond the control of Schluter-Systems (e.g., color and shade availability, discontinuation, normal wear and tear), Schluter-Systems cannot guarantee or warrant an exact match to the specific tile, stone, or other covering materials used in the installation. In such events, substantially similar materials may be substituted.

DISCLAIMER: THERE ARE NO WARRANTIES BEYOND THIS EXPRESSED WARRANTY AS STATED ABOVE. ALL OTHER WARRANTIES,

REPRESENTATIONS OR CONDITIONS, EXPRESSED OR IMPLIED, ARE DISCLAIMED AND EXCLUDED, INCLUDING WARRANTIES, REPRESENTATIONS

OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARISING BY STATUTE OR OTHERWISE BY LAW OR

FROM A COURSE OF DEALING OR USAGE OF TRADE. SCHLUTER-SYSTEMS EXCLUDES AND IN NO EVENT SHALL HAVE ANY LIABILITY FOR

LOST PROFITS OR ANY OTHER INDIRECT, SPECIAL, INCIDENTAL, PUNITIVE, EXEMPLARY, OR CONSEQUENTIAL DAMAGES, ARISING OUT OF

OR OTHERWISE CONNECTED TO FAILURE OF THE PRODUCTS, NOR MISUSE OF THE PRODUCTS OR FAILURE TO PROPERLY MAINTAIN THE

SHOWER OR BATHTUB SURROUND. REGARDLESS OF ANY STRICT LIABILITY, ACTIVE OR PASSIVE NEGLIGENCE OF SCHLUTER-SYSTEMS, AND

REGARDLESS OF THE LEGAL THEORY (CONTRACT OR TORT OR EXTRA-CONTRACTUAL OR OTHER), NOR FROM ACTS OF WAR, TERRORISM,

FAULTY AND NEGLIGENT PENETRATION OF THE SYSTEM, FIRES, EXPLOSIONS, ACTS OF GOD, INTENTIONAL ACTS OF DESTRUCTION OR

ANY LOSSES DUE TO STRUCTURAL FAILURE OR OTHER CAUSES UNRELATED TO THE PRODUCTS OR DELAYS, OR ANY OTHER INCIDENTAL

OR CONSEQUENTIAL DAMAGES. THIS WARRANTY IS GIVEN IN LIEU OF ANY OTHER WARRANTY EXPRESSED OR IMPLIED. THE REMEDIES

CONTAINED HEREIN ARE THE ONLY REMEDIES AVAILABLE FOR BREACH OF THIS WARRANTY. THIS LIMITED WARRANTY GIVES YOU SPECIFIC

LEGAL RIGHTS; SOME STATES AND PROVINCES DO NOT ALLOW DISCLAIMERS OR OTHER RESTRICTIONS OF IMPLIED WARRANTIES, SO SOME

OF THE ABOVE DISCLAIMERS MAY NOT APPLY TO YOU. IF THE PRODUCTS ARE USED IN CONJUNCTION WITH OTHER SCHLUTER PRODUCTS,

A DIFFERENT SCHLUTER WARRANTY MAY APPLY. PLEASE SEE https://www.schluter.com/schluter-us/en_US/warranty FOR MORE INFORMATION.

FOR THE MOST CURRENT INFORMATION AND MATERIALS REGARDING SCHLUTER SYSTEMS WARRANTIES AND PROGRAMS, PLEASE VISIT https://www.schluter.com/DOWNLOADFILES.

TRANSFERABILITY: This Limited Warranty extends ONLY to the original end user (defined as original intended owner and user of the property/unit in which the installation is incorporated - herein referred to as “Owner”) and is not transferable or assignable, unless approved in writing by the Technical

Director or an Officer of Schluter-Systems or otherwise prohibited by specific state or provincial law.

MODIFICATIONS TO WARRANTY: No changes or modification of any terms or conditions of this warranty are allowed unless authorized by written agreement and signed by the Technical Director or an Officer of Schluter-Systems.

EFFECTIVE DATE: This warranty shall supersede and replace any and all prior oral or written warranties, agreements, or other such representations made by or on behalf of Schluter-Systems relative to the Products or the application of the Products and shall apply to any installation occurring on or after

January 1, 2013.

CLAIMS ON THIS LIMITED WARRANTY: To make a claim under this Limited Warranty, the Owner must provide Schluter-Systems with written notice within 30 days of any alleged defect in the Products covered by this Limited Warranty, together with date and proof of purchase of the Products, proof of the costs of the original installation and name and address of all installers, failing which this Limited Warranty shall be of no legal effect. Schluter-Systems reserves the right at its election and as a condition of this Limited Warranty to inspect the alleged failed and defective condition.

All U.S. Claims shall be sent to: All Canadian Claims shall be sent to:

Schluter Systems L.P.

Attn: Warranty Claims Dept.

194 Pleasant Ridge Road

Plattsburgh, NY 12901-5841

Schluter Systems (Canada), Inc.

Attn: Warranty Claims Dept.

21100 chemin Ste-Marie

Ste-Anne-de-Bellevue, QC H9X 3Y8

*For the purpose of this warranty Schluter Systems, L.P.

shall provide the warranty for all products for end users located in the United States, and

Schluter Systems (Canada) Inc.

shall provide the warranty for all products for end users located in Canada. This warranty is limited to sales of the

Products made in and intended for use in the United States and Canada.

**Schluter ® -Shower System (the “Products”): The Products are defined to include all Schluter ® -KERDI products referred to in the Handbook and used in the integrated Schluter ® -Shower System.

Schluter Systems L.P.

•

194 Pleasant Ridge Road, Plattsburgh, NY 12901-5841

•

Tel.: 800-472-4588

•

Fax: 800-477-9783

Schluter Systems (Canada) Inc.

•

21100 chemin Ste-Marie, Ste-Anne-de-Bellevue, QC H9X 3Y8

•

Tel.: 800-667-8746

•

Fax: 877-667-2410

www.schluter.com

This technical data sheet is subject to change without notice. Please visit www.schluter.com for the latest version.

Hello! I am an AI chatbot specifically trained to assist you with the Schluter ST-81/152 User guide. I have thoroughly reviewed the document and can help you locate the exact information you need or explain the content in clear and simple terms. Whether you’re looking for guidance on specific features, troubleshooting steps, or general usage, feel free to ask your questions. The more details you provide about your concerns or needs, the more accurately and effectively I can assist you!

Assistant typing

Assistant is out of keyboard. Please, try again later.

SHOWER SYSTEM

-KERDI

-KERDI-DRAIN

-KERDI-LINE

-SR/-SC/-SB

-KERDI-SHOWER

-KERDI-BAND/

-KERECK/-KERS

-KERDI-BOARD

-KERDI-SHOWER-ST

-KERDI-SHOWER-L/-LS

-KERDI-BOARD

-SB/-SC/-SN

-KERDI-SEAL-PS/-MV

-SHOWERPROFILE-S/-R

-SHOWERPROFILE

-WS/-WSK

Prefabricated Shower Substrates

-KERDI-SHOWER

-ST/-SB

-KERDI-SHOWER

-SC/-SR

-KERDI-SHOWER-L/-LS

-KERDI-BOARD

-SB/-SC

-KERDI-BOARD-SN

Waterproofing Membrane

-KERDI

Waterproof Building Panel

-KERDI-BOARD

Storage

Shower Drains

-KERDI-DRAIN

-KERDI-LINE

Shower Profiles

-WS/-WSC/-WSL

-WSK/-WSC/-WSL

Adhesive/Sealant

-KERDI-FIX

Storage

Product Item Numbers

* Color Codes

DRAIN KITS - ABS or PVC FLANGE - 2" OR 3" OUTLET

Flange Measurements

ABS or PVC

DRAIN KITS - STAINLESS STEEL FLANGE - 2" OR 3" NO-HUB OUTLET

Flange Measurements

Stainless steel

GRATE & FLANGE KITS (sold separately)

DRAIN ADAPTOR KIT FOR USE WITH

CLAMPING RING DRAINS - ABS

Flange and adaptor ring measurements - Residential

ABS

DRAIN ADAPTOR KIT FOR USE WITH

CLAMPING RING DRAINS - ABS

C

Flange and adaptor ring measurements - Commercial

ABS

DRAIN ADAPTOR KIT FOR USE WITH

CLAMPING RING DRAINS - STAINLESS STEEL

C

Flange and adaptor ring measurements - Commercial

Stainless steel

Product Listings and Certifications Table

Schluter

-Shower System 10-Year Limited Warranty

www.schluter.com

Related

Schluter KD2FLKPVC Kerdi-Drain 2 in. PVC Flange Replacement Part List

Schluter SES2D6EB Shelf-E Brushed Stainless Steel Curve Pentagon Corner Shelf Use and Care Manual

Schluter Systems SES2D10MGS Shelf Pentagon Corner Wave Matte Black Manual

Schluter Systems KSK12201830PVC Kerdi-Shower-Kit Styrene Shower Base 72-in W x 48-in L Use and Care Guide

Schluter Systems KSK12201830PVC Kerdi-Shower-Kit Styrene Shower Base 72-in W x 48-in L Manual

Schluter Systems SES2D7EB Shelf Pentagon Corner Pure Brushed Stainless Steel Manual

Schluter Systems KSK9651525SPVCE Kerdi-Shower-Kit Stainless Steel Styrene Shower Base 60-in W x 38-in L Use and Care Guide

Jones Stephens C60023 4 in. Threaded Plastic Cleanout Specification

Shower System KERDI-SHOWER T, KERDI-SHOWER TS, KERDI-SHOWER TT, KERDI-SHOWER LT, KERDI-SHOWER LTS, KERDI-SHOWER SR, KERDI-BOARD SB, KERDI-BOARD SC, KERDI-BOARD SN, KERDI product detail

Shower System KERDI-SHOWER T, KERDI-SHOWER TS, KERDI-SHOWER TT, KERDI-SHOWER SR

Everbilt EVB60SC 60 in. XPS Waterproof Curb for Showers Installation guide

Waterproof Curb Installation Guide | AI Chat & PDF
