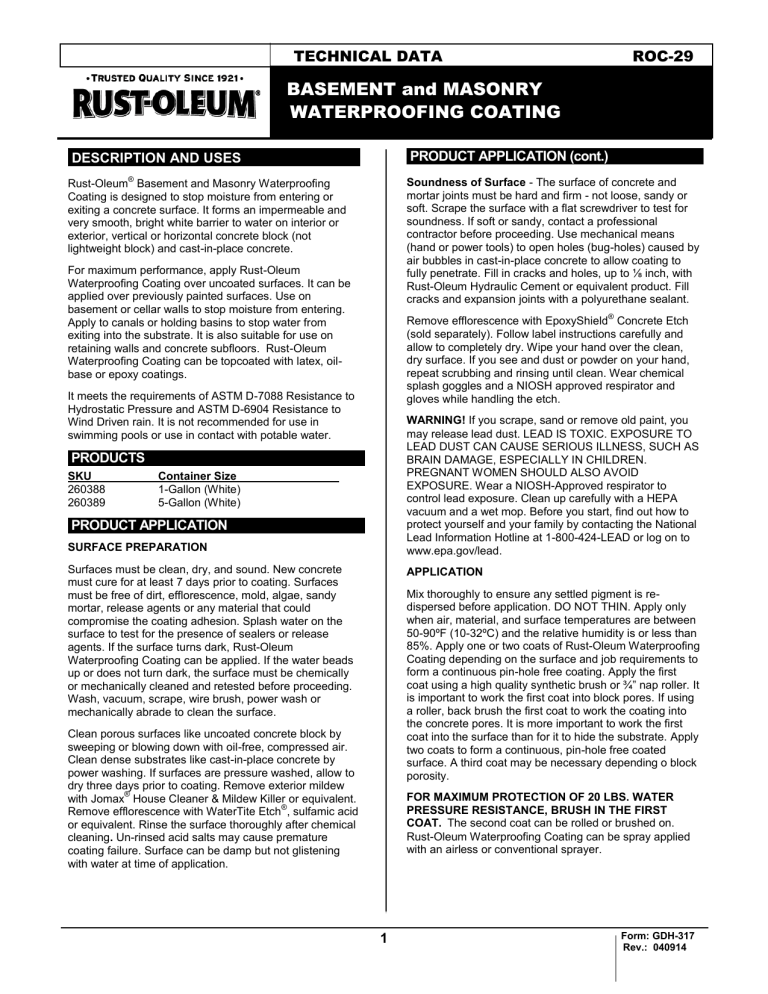

Rust-Oleum 260388 User guide

Rust-Oleum 260388 User guide
TECHNICAL DATA
ROC-29
BASEMENT and MASONRY
WATERPROOFING COATING
.DESCRIPTION AND USES
PRODUCT APPLICATION (cont.)
.
®
Soundness of Surface - The surface of concrete and
mortar joints must be hard and firm - not loose, sandy or
soft. Scrape the surface with a flat screwdriver to test for
soundness. If soft or sandy, contact a professional
contractor before proceeding. Use mechanical means
(hand or power tools) to open holes (bug-holes) caused by
air bubbles in cast-in-place concrete to allow coating to
fully penetrate. Fill in cracks and holes, up to ⅛ inch, with
Rust-Oleum Hydraulic Cement or equivalent product. Fill
cracks and expansion joints with a polyurethane sealant.
Rust-Oleum Basement and Masonry Waterproofing
Coating is designed to stop moisture from entering or
exiting a concrete surface. It forms an impermeable and
very smooth, bright white barrier to water on interior or
exterior, vertical or horizontal concrete block (not
lightweight block) and cast-in-place concrete.
For maximum performance, apply Rust-Oleum
Waterproofing Coating over uncoated surfaces. It can be
applied over previously painted surfaces. Use on
basement or cellar walls to stop moisture from entering.
Apply to canals or holding basins to stop water from
exiting into the substrate. It is also suitable for use on
retaining walls and concrete subfloors. Rust-Oleum
Waterproofing Coating can be topcoated with latex, oilbase or epoxy coatings.
®
Remove efflorescence with EpoxyShield Concrete Etch
(sold separately). Follow label instructions carefully and
allow to completely dry. Wipe your hand over the clean,
dry surface. If you see and dust or powder on your hand,
repeat scrubbing and rinsing until clean. Wear chemical
splash goggles and a NIOSH approved respirator and
gloves while handling the etch.
It meets the requirements of ASTM D-7088 Resistance to
Hydrostatic Pressure and ASTM D-6904 Resistance to
Wind Driven rain. It is not recommended for use in
swimming pools or use in contact with potable water.
.PRODUCTS
SKU
260388
260389
WARNING! If you scrape, sand or remove old paint, you
may release lead dust. LEAD IS TOXIC. EXPOSURE TO
LEAD DUST CAN CAUSE SERIOUS ILLNESS, SUCH AS
BRAIN DAMAGE, ESPECIALLY IN CHILDREN.
PREGNANT WOMEN SHOULD ALSO AVOID
EXPOSURE. Wear a NIOSH-Approved respirator to
control lead exposure. Clean up carefully with a HEPA
vacuum and a wet mop. Before you start, find out how to
protect yourself and your family by contacting the National
Lead Information Hotline at 1-800-424-LEAD or log on to
www.epa.gov/lead.
.
Container Size
1-Gallon (White)
5-Gallon (White)
.PRODUCT APPLICATION
.
.
SURFACE PREPARATION
Surfaces must be clean, dry, and sound. New concrete
must cure for at least 7 days prior to coating. Surfaces
must be free of dirt, efflorescence, mold, algae, sandy
mortar, release agents or any material that could
compromise the coating adhesion. Splash water on the
surface to test for the presence of sealers or release
agents. If the surface turns dark, Rust-Oleum
Waterproofing Coating can be applied. If the water beads
up or does not turn dark, the surface must be chemically
or mechanically cleaned and retested before proceeding.
Wash, vacuum, scrape, wire brush, power wash or
mechanically abrade to clean the surface.
APPLICATION
Mix thoroughly to ensure any settled pigment is redispersed before application. DO NOT THIN. Apply only
when air, material, and surface temperatures are between
50-90ºF (10-32ºC) and the relative humidity is or less than
85%. Apply one or two coats of Rust-Oleum Waterproofing
Coating depending on the surface and job requirements to
form a continuous pin-hole free coating. Apply the first
coat using a high quality synthetic brush or ¾” nap roller. It
is important to work the first coat into block pores. If using
a roller, back brush the first coat to work the coating into
the concrete pores. It is more important to work the first
coat into the surface than for it to hide the substrate. Apply
two coats to form a continuous, pin-hole free coated
surface. A third coat may be necessary depending o block
porosity.
Clean porous surfaces like uncoated concrete block by
sweeping or blowing down with oil-free, compressed air.
Clean dense substrates like cast-in-place concrete by
power washing. If surfaces are pressure washed, allow to
dry three days prior to coating. Remove exterior mildew
®
with Jomax House Cleaner & Mildew Killer or equivalent.
®
Remove efflorescence with WaterTite Etch , sulfamic acid
or equivalent. Rinse the surface thoroughly after chemical
cleaning. Un-rinsed acid salts may cause premature
coating failure. Surface can be damp but not glistening
with water at time of application.
FOR MAXIMUM PROTECTION OF 20 LBS. WATER
PRESSURE RESISTANCE, BRUSH IN THE FIRST
COAT. The second coat can be rolled or brushed on.
Rust-Oleum Waterproofing Coating can be spray applied
with an airless or conventional sprayer.
1
Form: GDH-317
Rev.: 040914
TECHNICAL DATA
BASEMENT and MASONRY WATERPROOFING PAINT
.PRODUCT APPLICATION (cont.)
.
.
.
COLOR/TINTING
Rust-Oleum Basement and Masonry Paint produces a
bright white finish which can be tinted to medium colors
using up to 2.0 ounces of universal colorant per gallon.
The first coat should not be tinted when used for
waterproofing.
DRY & RECOAT
Dry and recoat times are based on 70°F and 50% relative
humidity. Lower temperatures and higher humidity will
increase dry time. Basement and Masonry Paint will dry to
the touch in 2 hours. Allow the first coat to dry 2-3 hours
before recoating or topcoating. Apply the second coat only
after the first coat has completely dried. If used outside,
protect from rain for 8 hours after application.
CLEAN UP
Clean hands and tools with soapy water. Drips and runs
should be removed immediately. Once dry, drips and runs
can be removed by sanding or stripping.
LIMITATIONS
Rust-Oleum Basement and Masonry Waterproofing Paint
is not an elastomeric coating. It will not expand and
contract with movement in the substrate and will not
protect against moisture penetration through cracks in
mortar, expansion joints or junctures between dissimilar
materials. Rust-Oleum Basement and Masonry
Waterproofing Paint may be used as a primer under
flooring materials (carpet, tile, wood, etc.) but the
waterproofing guarantee does not apply. Tinting may
affect the hydrostatic water pressure resistance. It is NOT
recommended for use in swimming pools or use in contact
with potable water. Do not use on glazed or non-porous
surfaces.
2
Form: GDH-317
Rev.: 040914
TECHNICAL DATA
BASEMENT and MASONRY WATERPROOFING PAINT
.PHYSICAL PROPERTIES
.
BASMENT and MASONRY WATERPROOFING COATING
Resin Type
Styrene Acrylic Copolymer
Pigment Type
Titanium Dioxide, Wollastonite
Solvents
Weight
Solids
Glycol Ethers, Water
Per Gallon
11.2 lbs.
Per Liter
1.34 kg
By Weight
67.2%
By Volume
55.7%
Volatile Organic Compounds
<100 g/l
(0.83 lbs./gal.)
Recommended Dry Film
Thickness (DFT) per Coat
3.0-5.0 mils (75-125µ) per coat
Wet Film to Achieve DFT
(Unthinned material)
6.0-10.0 mils (150-250µ) per coat
Theoretical Coverage at
1 mil DFT (25µ)
893 sq.ft./gal.
2
(22.0 m /l)
Practical Coverage at
Recommended DFT (assume 15%
material loss)
Dry Times at 70°F
(21ºC) and 50%
Relative Humidity
150-250 sq.ft./gal.
2
(3.7-6.2 m /l)
Coverage may change depending on porosity and application method
Touch
2 hours
Recoat
2-3 hours
Full Cure
7 days
Shelf Life
2 years
Flash Point
>200ºF (93ºC)
Safety Information
For additional information, see MSDS
The technical data and suggestions for use contained herein are correct to the best of our knowledge, and offered in good faith. The
statements of this literature do not constitute a warranty, express, or implied, as to the performance of these products. As conditions and use
of our materials are beyond our control, we can guarantee these products only to conform to our standards of quality, and our liability, if any,
will be limited to replacement of defective materials. All technical information is subject to change without notice.
Rust-Oleum Corporation
11 Hawthorn Parkway
Vernon Hills, Illinois 60061
An RPM Company
Phone: 877•385•8155
www.rustoleum.com
Form: GDH-317
Rev.: 040914
