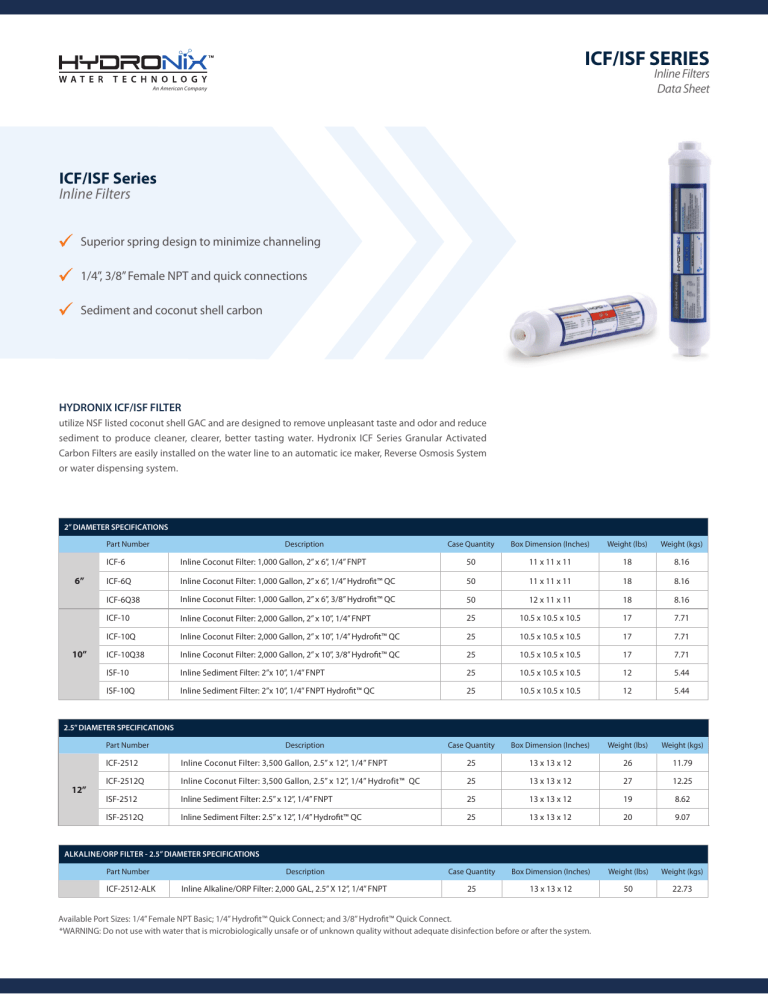

ICF/ISF SERIES
Inline Filters
Data Sheet
An American Company
ICF/ISF Series
Inline Filters
Superior spring design to minimize channeling
1/4”, 3/8” Female NPT and quick connections
Sediment and coconut shell carbon
HYDRONIX ICF/ISF FILTER
utilize NSF listed coconut shell GAC and are designed to remove unpleasant taste and odor and reduce
sediment to produce cleaner, clearer, better tasting water. Hydronix ICF Series Granular Activated
Carbon Filters are easily installed on the water line to an automatic ice maker, Reverse Osmosis System
or water dispensing system.
2” DIAMETER SPECIFICATIONS
Part Number
6”
10”
Case Quantity
Box Dimension (Inches)
Weight (lbs)
Weight (kgs)
ICF-6
Inline Coconut Filter: 1,000 Gallon, 2” x 6”, 1/4” FNPT
Description
50
11 x 11 x 11
18
8.16
ICF-6Q
Inline Coconut Filter: 1,000 Gallon, 2” x 6”, 1/4” Hydrofit™ QC
50
11 x 11 x 11
18
8.16
ICF-6Q38
Inline Coconut Filter: 1,000 Gallon, 2” x 6”, 3/8” Hydrofit™ QC
50
12 x 11 x 11
18
8.16
ICF-10
Inline Coconut Filter: 2,000 Gallon, 2” x 10”, 1/4” FNPT
25
10.5 x 10.5 x 10.5
17
7.71
ICF-10Q
Inline Coconut Filter: 2,000 Gallon, 2” x 10”, 1/4” Hydrofit™ QC
25
10.5 x 10.5 x 10.5
17
7.71
ICF-10Q38
Inline Coconut Filter: 2,000 Gallon, 2” x 10”, 3/8” Hydrofit™ QC
25
10.5 x 10.5 x 10.5
17
7.71
ISF-10
Inline Sediment Filter: 2”x 10”, 1/4” FNPT
25
10.5 x 10.5 x 10.5
12
5.44
ISF-10Q
Inline Sediment Filter: 2”x 10”, 1/4” FNPT Hydrofit™ QC
25
10.5 x 10.5 x 10.5
12
5.44
Case Quantity
Box Dimension (Inches)
Weight (lbs)
Weight (kgs)
25
13 x 13 x 12
26
11.79
2.5” DIAMETER SPECIFICATIONS
Part Number
ICF-2512
12”
Description
Inline Coconut Filter: 3,500 Gallon, 2.5” x 12”, 1/4” FNPT
ICF-2512Q
Inline Coconut Filter: 3,500 Gallon, 2.5” x 12”, 1/4” Hydrofit™ QC
25
13 x 13 x 12
27
12.25
ISF-2512
Inline Sediment Filter: 2.5” x 12”, 1/4” FNPT
25
13 x 13 x 12
19
8.62
ISF-2512Q
Inline Sediment Filter: 2.5” x 12”, 1/4” Hydrofit™ QC
25
13 x 13 x 12
20
9.07
Case Quantity
Box Dimension (Inches)
Weight (lbs)
Weight (kgs)
25
13 x 13 x 12
50
22.73
ALKALINE/ORP FILTER - 2.5” DIAMETER SPECIFICATIONS
Part Number
ICF-2512-ALK
Description
Inline Alkaline/ORP Filter: 2,000 GAL, 2.5” X 12”, 1/4” FNPT
Available Port Sizes: 1/4” Female NPT Basic; 1/4” Hydrofit™ Quick Connect; and 3/8” Hydrofit™ Quick Connect.
*WARNING: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.
ICF/ISF SERIES
Inline Filters
Data Sheet
ICF-10
ISF-10
Chlorine Taste & Odor Reduction
Dirt & Sand Reduction
Coconut Shell Carbon
Service Life:
Applications vary
Service Life
1 yr or 2000 gal (7570 L)
Maximum Flow:
.50 GPM (1.9 GPM)
Maximum Flow
.50 GPM (1.9 LPM)
Maximum Pressure:
125 PSI (8.6 BAR)
Maximum Pressure
125 PSI (8.6 BAR)
Maximum Temp:
100°F (38°C)
Maximum Temperature
100°F (38°C)
Minimum Temp:
35°F (2°C)
Minimum Temperature
35°F (2°C)
Micron Rating:
5M
Materials of Construction
Materials of Construction
Shell:
Media:
Inner Pads:
Shell:
Media:
Polypropylene
Coconut Shell Carbon
Polypropylene
Available Port Sizes
•
•
1/4” Female NPT Basic
3/8” Female NPT Basic
Polypropylene
Polypropylene
Applications
•
•
1/4” Quick Connect
3/8” Quick Connect
•
•
•
Ice makers
Reverse osmosis systems
Water Coolers
•
•
Coffee makers
Refrigerators
WARNING: Do not use with water that is microbiologically unsafe or of
unknown quality without adequate disinfection before or after the system.
Distributed by:
JUST ADD WATER TM
An American Company
P.O. Box 2235 Chino Hills, CA 91709 | USA
[email protected] • www.HydronixWater.com
LIT-ICF&ISF-DS 08/20/18
