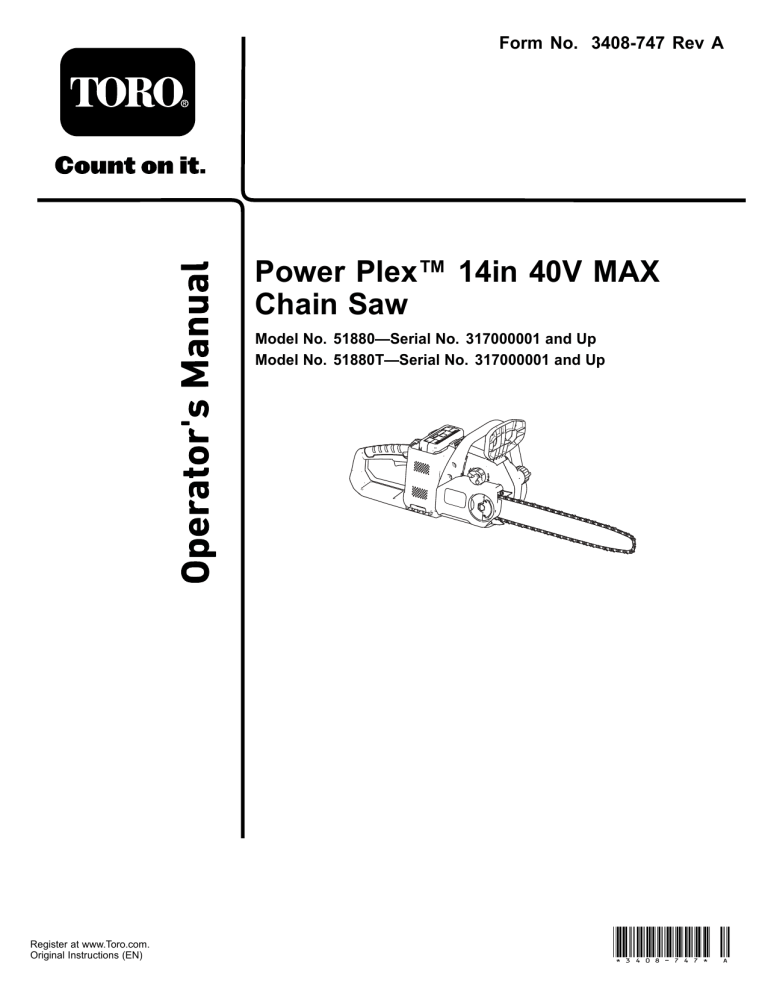

Form No. 3408-747 Rev A
Power Plex™ 14in 40V MAX
Chain Saw
Model No. 51880—Serial No. 317000001 and Up
Model No. 51880T—Serial No. 317000001 and Up
Register at www.Toro.com.
Original Instructions (EN)
*3408-747* A
Safety
If you have questions or
problems, call toll free
1-855-340-7689 before
returning this product.
When using electric power tools, basic safety precautions
should always be followed to reduce the risk of fire, electric
shock, and personal injury, including the following:
WARNING
WARNING
Failure to follow all warnings and instructions may
result in electric shock, fire and/or serious injury.
CALIFORNIA
Proposition 65 Warning
This product contains a chemical or chemicals
known to the State of California to cause cancer,
birth defects, or reproductive harm.
Read all safety warnings and all instructions.
Save all warnings and instructions for future reference.
The term “power tool” in all the warnings refers to your corded power
tool or battery-operated (cordless) power tool.
1. Work area safety
A. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
Introduction
This chain saw is designed for cutting tree branches, logs,
and wooden beams of a diameter no longer than the cutting
length of the guide bar. It is to be used only to cut wood in
an outdoor domestic application by adults. It is designed
primarily to use battery pack Model 88540 (provided with
Model 51880) or Model 88541.
B.
Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gasses, or dust. Power tools
create sparks, which may ignite the dust or fumes.
C.
Keep children and bystanders away while
operating a power tool. Distractions can cause you
to lose control.
2. Personal safety
Read this information carefully to learn how to operate and
maintain your product properly and to avoid injury and
product damage. You are responsible for operating the
product properly and safely.
A. Stay alert, watch what you are doing, and use
common sense when operating a power tool.
Do not use a power tool while you are tired
or under the influence of drugs, alcohol, or
medication. A moment of inattention while operating
power tools could result in serious personal injury.
Register your product at www.Toro.com to ensure that Toro
can notify you in the case of a safety or warranty product
recall.
B.
Use personal protective equipment. Always
wear eye protection. Protective equipment such as a
dust mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions reduces personal
injuries.
C.
Prevent unintentional starting. Ensure that
the switch is in the OFF position before you
connect the tool to a power source and/or
battery pack, pick it up, or carry it. Carrying
power tools with your finger on the switch or energizing
power tools that have the switch on invites accidents.
D.
Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to the power tool may result in personal injury.
Model 51880T does not include a battery pack or a
charger.
E. Do not overreach. Keep proper footing and
balance at all times. This enables better control of the
power tool in unexpected situations.
F.
© 2017—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
2
Dress properly. Do not wear loose clothing or
jewelry. Keep your hair, clothing, and gloves
away from moving parts. Loose clothes, jewelry, or
long hair can get caught in moving parts.
Contact us at www.Toro.com.
Printed in China
All Rights Reserved
G.
4. Chain Saw Safety
If devices are provided for the dust extraction
and collection, ensure that these are
connected and properly used. Using these devices
can reduce dust-related hazards.
A. Hold the power tool by insulated gripping
surfaces only, because the saw chain may
contact hidden wiring or its own cord. Saw
chains contacting a live wire may make exposed metal parts
of the power tool live and could give you an electric shock.
H. Keep your hands and feet away from the
cutting area.
3. Power tool use and care
B.
Wear safety glasses, hearing protection, and
protective equipment for your head, hands,
legs, and feet. Wearing adequate protective clothing
reduces personal injury by flying debris or accidental contact
with the saw chain.
A. Do not force the power tool. Use the correct
power tool for your application. The correct power
tool will do the job better and safer at the rate for which
it was designed.
B.
Do not use the power tool if the switch does
not turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and must be
repaired.
C.
Cutting trees can be hazardous and requires
expertise. Do not use the chain saw to fell large trees
that have a diameter greater than the length of the guide
bar.
C.
Disconnect the plug from the power source
and/or the battery pack from the power tool
before adjusting it, changing accessories on
it, or storing it. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
D.
Do not operate a chain saw in a tree. Operating
a chain saw while up in a tree may result in personal injury.
D.
E. Always keep proper footing and operate the
chain saw only when standing on a fixed,
secure, and level surface. Slippery or unstable
surfaces such as ladders may cause a loss of balance or
control of the chain saw.
Store idle power tools out of the reach of
children, and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool. Power tools are dangerous in
the hands of untrained users.
E. Store idle appliances indoors. When not in use,
appliances should be stored indoors in a dry and high or
locked-up place, out of the reach of children.
F.
G.
Maintain power tools. Check for
misalignment or binding of moving
parts, broken parts, and any other condition
that may affect the operation of the power
tools. If damaged, have the power tool
repaired before use. Many accidents are caused by
poorly maintained power tools.
When cutting a limb that is under tension, be
alert for spring back. When the tension in the wood
fiber is released, the spring loaded limb may strike you
and/or throw the chain saw out of control.
G.
Use extreme caution when cutting brush and
saplings. The slender material may catch the saw chain
and be whipped toward you or pull you off balance.
H. Carry the chain saw by the front handle with
the chain saw switched off and away from
your body. When transporting or storing the
chain saw, always use the guide bar cover.
Proper handling of the chain saw reduces the likelihood of
accidental contact with the moving saw chain.
Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
I. Follow the instructions for lubricating,
chain tensioning, and changing accessories.
Improperly tensioned or lubricated chain may either break
or increase the chance for kickback.
H. Use the power tool, accessories, tool bits, etc.
in accordance with these instructions and in
the manner intended for the particular type of
power tool, taking into account the working
conditions and the work to be performed.
Using the power tool for operations different from those
intended could result in a hazardous situation.
J.
Keep handles dry, clean, and free from oil and
grease. Greasy, oily handles are slippery, causing loss
of control.
K. Avoid kickback. Kickback may occur when the nose
or tip of the guide bar touches an object, or when the wood
pinches the saw chain while you are cutting. Tip contact
may cause a sudden reverse reaction, kicking the guide bar
up and back toward you; pinching the saw chain along
the top of the guide bar may push the guide bar rapidly
back toward you. Either of these reactions may cause you
to lose control of the saw, which could result in a serious
personal injury. You can avoid kickback by taking proper
precautions as given below:
I. Keep guards in place and in working order.
J.
F.
Use only replacement guide bars and chains
specified by the manufacturer. Incorrect
replacement guide bars and chains may cause chain
breakage and/or kickback.
K. Follow the manufacturer’s sharpening and
maintenance instructions for the saw chain.
Decreasing the depth gauge height can lead to increased
kickback.
• Use both hands whenever you operate
the chain saw. Maintain a firm grip, with
3
thumbs and fingers encircling the chain
saw handles, with both hands on the saw,
and with your body and arm in position
that allows you to resist kickback forces.
You can control kickback forces if proper precautions
are taken. Do not let go of the chain saw!
• Do not overreach and do not cut above
shoulder height. This helps prevent unintended
tip contact and enables better control of the chain saw
in unexpected situations.
5. Service
Have your power tool serviced by a qualified repair
person using only identical replacement parts. This
ensures that the safety of the power tool is maintained.
6. Battery Safety
A. Do not charge the power tool in rain or in wet locations.
B.
Do not use a battery-operated power tool in the rain.
C.
Use only the following type and size of battery(ies): Toro
battery Model 88540 or 88541 and battery charger
Model 88542.
D.
Remove or disconnect the battery before servicing, cleaning,
or removing material from the power tool.
E. Do not dispose of the battery in a fire; the cell may
explode. Check with local codes for possible special disposal
instructions.
F.
Do not open or mutilate the battery. Released electrolyte
is corrosive and may cause damage to the eyes or skin. It
may be toxic if swallowed.
G.
Do not open or mutilate the battery. Released electrolyte is
flammable and can cause damage if exposed to fire.
H. Exercise care in handling batteries to prevent shorting the
battery with conducting materials such as rings, bracelets,
and keys. The battery or conductor may overheat and cause
burns.
I. The ideal charging temperature is 0°C to 50°C (32°F
to 122°F). Charging outside of this temperature range
increases the charging time.
SAVE THESE INSTRUCTIONS
4
Safety and Instructional Decals
Safety decals and instructions are easily visible to the operator and are located near any area of potential
danger. Replace any decal that is damaged or missing.
decal136-2469
136-2469
decal136-2473
decal136-2470
136-2473
136-2470
decal136-2475
136-2475
1. Read the Operator’s Manual; wear hearing and eye
protection; do not contact objects with the guide bar tip; tip
contact can cause serious injury; always use 2 hands when
operating the chain saw.
decal136-2471
136-2471
Model 88540
decal136-2476
136-2476
5
1. The battery pack is
charging.
3. The battery pack is too
warm.
2. The battery pack is fully
charged.
4. Replace the battery pack.
decal136-2533
136-2533
1. Warning—read the Operator’s Manual; keep away from
moving parts; keep all guards and covers in place; wear
eye protection; do not operate in wet conditions.
decal136-2534
136-2534
1. The battery does not
come out of the box fully
charged.
4. Stop—follow these
instructions before first
use.
2. Place the battery in the
battery charger.
5. Read the Operator’s
Manual.
3. Wait until the battery is
fully charged before the
first use.
6
Setup
Filling the Chain Saw with Bar
and Chain Oil
Important: Use only bar and chain oil.
1. Place the chain saw on a level surface.
2. Clean the area around the oil cap (Figure 1).
g192110
Figure 1
1. Oil cap
g194202
Figure 2
2. Oil window
3. Remove the cap and pour oil into the chain saw until
the oil fills the window (Figure 1).
Do not fill the chain saw higher than the bottom of
the fill neck.
4. Clean up any spilled oil and replace the oil cap.
Mounting the Battery Charger
(Optional)
If desired, mount the battery charger securely on a wall using
the wall-mount key holes on the back of the charger.
Mount it indoors (such as a garage or other dry place), near a
power outlet, and out of the reach of children.
Refer to Figure 2 for assistance in mounting the charger.
Note: Slide and twist the charger over the appropriately
positioned hardware to secure the charger in place (hardware
not included).
7
Product Overview
Operation
Important: The battery pack does not come fully
charged; refer to Charging the Battery Pack (page 14).
Before Using the Chain Saw
Before using the chain saw, do the following:
• Clean and check the chain components for excessive wear
or damage and replace them as needed; refer to Servicing
the Guide Bar, Chain, and Drive Sprocket (page 17) and
Sharpening the Chain (page 18).
g192115
Figure 3
Left Side of Chain Saw
• Check the oil level; refer to Checking the Oil Level and
1. Chain
6. Battery pack
Adding Bar and Chain Oil (page 16).
2. Guide bar
7. Trigger lock
3. Oil window
8. Trigger (on rear handle)
4. Oil cap
9. Guide bar cover
• Check the chain brake; refer to Checking the Chain Brake
(page 16).
5. Front handle
Starting the Chain Saw
1. Make sure that the vents on the chain saw (Figure 5
and Figure 6) are free from dust and debris.
g192114
Figure 4
Right Side of Chain Saw
1. Chain brake
3. Wing nut
2. Chain tensioning knob
g197204
Figure 5
1. Vent
g197205
Figure 6
1. Vent (inside the battery
cavity)
2. Vent
2. Set the chain saw down on a level surface.
8
Shutting Off the Chain Saw
3. Align the tongue of the battery pack with the battery
cavity in the chain saw (Figure 7).
To shut off the chain saw, release the trigger.
Whenever you are not using the saw or are transporting the
saw to or from the work area, move the chain brake to the
STOP position (Figure 8).
Cutting with the Chain Saw
WARNING
Operating a chain saw improperly can cause serious
person injury or death.
Read and follow all operating instructions carefully
to help avoid possible personal injury.
g192108
Figure 7
4. Push the battery pack into the battery cavity until the
battery pack locks into place.
5. Ensure that the chain brake is in the OPERATING
position (Figure 8).
WARNING
Kickback can cause serious or fatal injury to you.
Always ensure that the chain brake system is
working properly before you operate the chain saw.
Avoid touching objects to be cut with the tip of the
chain saw.
There are 2 types of kickback:
• A fast upward motion of the chain saw that results when
the chain at the nose or top of the bar contacts an object
• A fast backward motion of the chain saw that results
when the chain at the nose or top of the bar is pinched by
the object being cut
g192111
Figure 8
1. Chain brake (OPERATING
position)
Figure 10 shows the area of the bar to avoid contacting an
object to prevent kickback.
2. Chain brake (STOP
position)
6. With 1 hand on the front handle and the other on the
rear handle, press the trigger lock, then squeeze the
trigger (Figure 9).
g026070
Figure 10
1. Grip the chain saw with 2 hands, with your left hand
on the front handle and your right hand on the rear
handle as shown in Figure 11.
g192113
Figure 9
1. Front handle
3. Trigger lock
2. Chain brake
4. Trigger
Note: Keeping your left arm straight with your elbow
locked helps reduce kickback.
9
Pruning a Tree
WARNING
Cutting higher limbs from a tree off the ground
can put you in an unstable position that could
be unsafe for you while handling a chain saw,
resulting in possible serious injury or death to you
or bystanders.
When cutting limbs from a standing tree, use the
following practices:
• Use a well-secured ladder to reach the higher
areas.
• Climb into a stable position on a ladder without
the chain saw and hoist the chain saw with a
rope.
• Do not climb on limbs or branches with a chain
saw.
• Do not overreach, and cut with both hands on
the chain saw.
• Ensure that all bystanders are away from the
area where branches may fall.
g204033
Figure 11
2. Stand to the left side of the chain saw and not in line
with the chain, and position yourself for balanced,
stable footing while sawing.
3. Stand on solid, even ground in front of the wood to
be cut.
4. While cutting, have the wood near the chain saw head,
at the exposed near end of the guide bar.
You can use the bucking teeth (Figure 12) to add
pressure but it works best with a sharp-toothed chain.
1. Grip the chain saw as shown in Figure 11.
2. While cutting small branches, apply light pressure to
the branch to be cut.
3. While cutting larger branches, make a shallow undercut
and then complete the cut from the topside of the
branch.
g200720
A. Cut from the underside of the limb about 15 cm
(6 inches) from the trunk. Cut a third of the way
through the limb.
Figure 12
1. Bucking teeth
B.
5. Press the chain saw lightly against the wood, allowing
the weight of the chain saw to drive the cutting.
Cut 5.0 to 10.0 cm (2 to 4 inches) farther out on
the limb and from above. Cut the limb until it falls.
C.
6. Keep steady pressure on the chain saw throughout the
cut, and release pressure only near the end of the cut.
Cut about a third of the diameter of the limb stub
from underneath as close to the trunk as possible.
D.
Cut the limb stub from above so that it meets the
previous cut as close to the trunk as possible.
Felling a Tree
WARNING
Cutting standing trees requires expertise and poses
hazards.
• Before attempting to cut a big tree, practice
cutting a few branches, limbs, or small logs to
familiarize yourself with the chain saw.
• Do not use this chain saw to fell large trees with
a diameter larger than the length of the guide
bar.
10
Note: Making this cut prevents the chain saw from
being pinched while making the next cut.
The proper operator stance for felling a tree is shown in
Figure 13.
g194823
Figure 15
1. First cut
2. Second cut
3. Back cut
5. Make a second cut to form a notch, starting the cut
at least 5 cm (2 inches) above and away from the first
cut (Figure 15).
g195831
Figure 13
6. Make the back cut from the opposite side of the notch
and about 5 cm (2 inches) higher than the bottom of
the notch as shown in Figure 15.
1. Determine the direction that the tree will fall. Consider
the wind direction, if there are heavier limbs on 1 side
of the tree, and the natural tilt of the tree, if any.
Important: Important: Stop the third cut 2.5 to
5.0 cm (1 to 2 inches) from the notch to form a
hinge between the cuts (Figure 15), which keeps
the tree from falling in the wrong direction or
twisting as it falls.
2. Determine a clear, safe retreat path away from the
danger area; refer to Figure 14.
Note: As the back cut nears the hinge (Figure 15), the
tree should begin to fall.
7. When the tree begins to fall, remove the chain saw,
shut it off, put it down, and retreat along the path you
determined in step 2.
Important: If the tree begins to fall in an
undesired direction, immediately stop the cut,
shut off the chain saw, put the chain saw down,
and use a wedge to open the cut and push the tree
in the desired direction.
g024800
Figure 14
1. Retreat path
3. Danger area
2. 45 degree angle
3. Grip the chain saw as shown in (Figure 11).
4. Make the first cut a third of the way through the tree
diameter on the side where you want the tree to fall
(Figure 15).
11
Limbing a Fallen Tree
1. Grip the chain saw as shown in Figure 11.
2. Cut off the smaller limbs from the tree that are not
supporting its weight off the ground.
g194825
Figure 17
3. Cut the larger limbs that are support of the weight of
the tree from the bottom upward so that the limbs do
not pinch the saw blade (Figure 18).
g194824
Figure 16
g194822
Figure 18
12
Bucking a Log
• If you are cutting branches from a fallen tree or cutting
a log into lengths, support the log off the ground
(preferably on a sawbuck); refer to Figure 19.
g194820
Figure 19
• If the log is supported on an end, cut from the top. If the
chain saw binds in the cut, do not attempt to free it by
running the motor. Shut off the saw, then use a wedge to
pry open the cut and release the saw.
• If the log is supported on both ends, start from the top
and cut about a third of the way through the log (Figure
19A). Make a second cut from the underside to meet the
first cut (Figure 19B and Figure 19C). This keeps the log
from pinching the saw.
g194819
Figure 20
• If the log is supported along its entire length, cut all the
• If the log is on a hill, always stand on the uphill side of
way through the log from the top.
the log (Figure 21).
• If the log is supported on both ends but not in the middle,
cut a third of the diameter from the top, then either cut
from the bottom or roll the log over to meet the first cut
(Figure 20).
g024807
Figure 21
1. Direction of slope
13
Removing the Battery Pack
1. Place the chain saw on a flat surface.
2. Press down on the latch and remove the battery pack
from the cavity.
g192748
Figure 23
1. Battery pack cavity
g192109
2. Battery pack terminals
Figure 22
1. Latch
4. Battery-charge-indicator
button
5. LED indicators (current
charge)
3. Battery pack venting areas
Charging the Battery Pack
3. Make sure that the vents on the battery charger are
clear of any dust and debris.
Important: Read all safety precautions.
4. Slide the battery pack into the charger until it is fully
seated (Figure 24).
Important: For best results, charge your battery pack
in a location where the temperature is more than 0°C
(32°F) but less than 50°C (122°F). To reduce the risk
of serious personal injury, do not store it outside or in
vehicles. Charging time increases if you do not charge
it within this range.
Note: At any time, press the battery-charge-indicator button
on the battery pack to display the current charge (LED
indicators).
1. Make sure that the vents on the battery pack are clear
of any dust and debris.
2. Line up the cavity in the battery pack (Figure 23) with
the tongue on the charger.
g194423
Figure 24
1. Charger venting areas
3. Right indicator light
2. Left indicator light
5. To remove the battery pack, slide the battery backward
out of the charger.
6. Refer to the following table to interpret the LED
indicators on the battery charger.
14
Left Light
Right Light
Indicates:
Off
Red
Charger is on; no battery
pack inserted
Red
Red
Battery pack is charging
Green
Red
Battery pack is charged
Orange
Red
Battery pack is too warm
Red Blinking
Red
Replace the battery pack
Installing the Battery Pack
1. Set the chain saw down on a level surface.
2. Align the tongue of the battery pack with the battery
cavity in the chain saw (Figure 25).
g192108
Figure 25
3. Push the battery pack into the battery cavity until the
battery pack locks into place.
15
Maintenance
Recommended Maintenance Schedule(s)
Maintenance Service
Interval
Before each use or daily
Maintenance Procedure
•
•
•
•
Check the oil level and add bar and chain oil if necessary.
Check the chain brake.
Check the chain tension and adjust it if necessary.
Check the chain for sharpness; contact an Authorized Service Dealer to have the
chain sharpened or replaced.
After each battery drain
cycle
• Adjust the chain tension.
Yearly or before storage
• Service the guide bar, chain, and drive sprocket.
• Check the chain for sharpness; contact an Authorized Service Dealer to have the
chain sharpened or replaced.
Checking the Chain Brake
Checking the Oil Level and
Adding Bar and Chain Oil
Service Interval: Before each use or daily
1. Place the chain saw on a flat surface and remove the
battery pack; refer to Removing the Battery Pack (page
14).
Service Interval: Before each use or daily
1. Place the chain saw on a flat surface and remove the
battery pack; refer to Removing the Battery Pack (page
14).
2. Engage the chain brake by moving the chain brake
forward to the STOP position (Figure 27).
2. Check the oil level in the window. If you cannot see oil
in the window, add bar and chain oil to the chain saw
(Figure 26).
g192111
Figure 27
g192110
1. Chain brake (OPERATING
position)
Figure 26
1. Oil cap
2. Chain brake (STOP
position)
2. Window
3. Grip the chain with a gloved hand and attempt to pull
it around the guide bar; the chain should not move
around the guide bar. If it does, take the chain saw to
an Authorized Service Dealer for repair.
3. Clean the area around the oil cap (Figure 26).
4. Remove the cap and pour oil into the chain saw until
the oil fills the window (Figure 26).
4. Disengage the chain brake by moving the chain brake
rearward to the OPERATING position (Figure 27).
Note: Do not fill the chain saw higher than the
bottom of the fill neck.
5. Grip the chain with a gloved hand and attempt to pull
it around the guide bar; the chain should move around
the guide bar. If it does not, take the chain saw to an
Authorized Service Dealer for repair.
5. Clean up any spilled oil and replace the oil cap.
16
Adjusting the Chain Tension
6. Check the chain tension; if the chain is loose, repeat
this procedure.
Service Interval: Before each use or daily
After each battery drain cycle
Servicing the Guide Bar,
Chain, and Drive Sprocket
Ensure that the chain is properly tensioned. A loose chain will
shorten the life of the drive sprocket and the guide bar and
may break the chain. An overtightened chain will overheat
the guide bar and chain, causing rapid wear and possible
motor burnout. Also, check the chain tension after a few
cuts. A new chain usually stretches and requires adjustment
after its first use.
Service Interval: Yearly or before storage
DANGER
Contact with the chain saw teeth can cause serious
injury.
The chain tension is correct when you are able to use a gloved
hand to pull the chain smoothly around the guide bar. The
chain should remain in contact with the bottom edge of the
guide bar.
• Remove the battery pack before adjusting or
maintaining the chain saw.
• Always wear gloves when adjusting or
maintaining the chain saw.
DANGER
Contact with the chain saw teeth can cause serious
injury.
1. Place the chain saw on a flat surface and remove the
battery pack; refer to Removing the Battery Pack (page
14).
• Remove the battery pack before adjusting or
maintaining the chain saw.
2. Remove the wing nut that secures the cover (Figure 29).
• Always wear gloves when adjusting or
maintaining the chain saw.
1. Place the chain saw on a level surface and remove the
battery pack; refer to Removing the Battery Pack (page
14).
2. Loosen, but do not remove the wing nut on the cover
(Figure 27).
g196534
3. Hold up the tip of the guide bar (Figure 28).
Figure 29
1. Chain tensioning knob
3. Wing nut
2. Cover
3. Loosen the chain by turning the chain-tightening screw
counterclockwise (Figure 29).
4. Separate the chain from the guide bar and set them
aside.
5. Remove the clip, spacer, and drive sprocket from the
chain saw (Figure 30).
g192117
Figure 28
4. Adjust the chain.
• To tighten the chain, turn the chain tensioning
knob clockwise.
• To loosen the chain, turn the chain tensioning
knob counterclockwise
Adjust the chain until the chain touches the bottom
edge of the guide bar, then tighten the knob an
additional 1/8 to 1/4 turn.
5. Tighten the wing nut until it is snug (Figure 29).
17
g192116
Figure 30
1. Oil passage
3. Spacer
2. Clip
4. Drive sprocket
6. Inspect the drive sprocket; if it is excessively worn or
damaged, replace it.
7. Check the oil passage (Figure 30) for debris and clean
the area if necessary.
8. Install the drive sprocket, spacer, and clip.
9. Clean the guide bar and chain; use a wire or a small
flat-head screwdriver to remove dirt and debris from
the groove along the edge of the guide bar, starting
from the sprocket on the front end and moving
rearward.
g192112
Figure 31
If the guide bar or grooves are damaged or the sprocket
on the front end does not rotate freely, replace the
guide bar; if the chain is excessively worn or damaged,
replace it.
11. Feed the chain around the guide bar and align the chain
teeth into the groove of the bar.
12. Position the open loop of the chain (not on the guide
bar) around the drive sprocket on the chain saw and
install the guide bar and attached chain onto the chain
saw as shown in Figure 31.
10. Place the chain around the drive sprocket on the front
end of the guide bar, with the cutting edge of the
chain teeth on the top of the bar facing forward
as shown in the diagram on the side of the chain saw
(Figure 31C).
Important: Ensure that the chain adjusting stud
is inserted into the hole indicated by the arrow
in Figure 31C. You may need to rotate the chain
tensioning knob to fit the stud into the hole in the
guide bar.
13. Install the cover and the wing nut, but do not fully
tighten the wing nut (Figure 31D).
14. Adjust the chain tension; refer to Adjusting the Chain
Tension (page 17).
Sharpening the Chain
Service Interval: Before each use or daily
Yearly or before storage
The chain needs sharpening or replacement when you must
force it onto the wood or it produces smaller chips than when
it was new.
18
Storage
Contact an Authorized Service Dealer to have the chain
sharpened or replaced.
Important: Store the tool, battery pack, and battery
charger only in temperatures between -20°C (-4°F) and
70°C (158°F).
Preparing the Battery Pack for
Recycling
Important: Unplug the charger if stored below -20°C
(-4°F) or above 70°C (158°F).
Important: Upon removal, cover the terminals of the
battery pack with heavy-duty adhesive tape. Do not
attempt to destroy or disassemble the battery pack or
remove any of its components. Recycle or properly
dispose of lithium-ion battery packs at a battery
recycling facility.
Important: If you are storing the tool for a prolonged
period of time, remove the battery pack. When you are
ready to use the tool again, charge the battery pack until
the left indicator light turns green on the charger or all 4
LED indicators turn blue on the battery.
• Clean all foreign material from the product.
Service
• Store the tool, battery pack, and battery charger in a
Should the chain saw need service, take the product to your
Authorized Service Dealer.
well-ventilated place that is inaccessible to children.
• Keep the tool, battery pack, and battery charger away
from corrosive agents such as garden chemicals and
de-icing salts.
• Store the tool, battery pack, and battery charger in a
clean, dry area.
19
Troubleshooting
Problem
The motor does not run or runs
intermittently.
Possible Cause
Corrective Action
1. The chain brake is engaged.
1. Disengage the chain brake by moving
the chain brake rearward.
2. The battery pack is low on charge.
3. The battery pack is not fully seated.
2. Charge the battery pack.
3. Ensure that the battery pack is inserted
all the way into the housing.
4. Allow the battery pack to cool.
5. Release the trigger, then press the
trigger switch.
6. Remove the cover and clean out any
debris.
4. The battery pack is too hot.
5. The battery pack has exceeded high
amperage limits.
6. There is debris under the cover.
The motor runs, but the chain does not
rotate.
1. The chain is not properly seated on the
drive sprocket.
1. Install the chain and ensure that the
links are properly seated in the drive
sprocket.
The chain brake does not engage.
1. There is a chain brake malfunction.
1. Immediately take the chain saw to a
local service location.
The chain saw does not properly cut.
1. The chain is not tensioned correctly.
1. Set the proper tension on the chain.
2. The chain is dull.
3. The chain is installed backward.
4. The chain is dry.
2. Replace the chain.
3. Install the chain correctly.
4. Check the oil level.
1. The oil port is plugged.
1. Clean out debris from the oil port.
2. The oil groove in the guide bar is
plugged.
2. Clean out debris in the bar.
The battery pack loses charge quickly.
1. The battery pack is over or under the
appropriate temperature range.
1. Move the battery pack to a place
where it is dry and the temperature is
between 0°C (32°F) and 50°C (122°F).
The battery charger is not working.
1. The battery charger is over or under
the appropriate temperature range.
1. Unplug the battery charger and move
it to a place where it is dry and the
temperature is between 0°C (32°F)
and 50°C (122°F).
2. The outlet that the battery charger is
plugged into does not have power.
2. Contact your licensed electrician to
repair the outlet.
1. There is moisture on the leads of the
battery pack.
1. Allow the battery pack to dry or wipe it
dry.
2. The battery pack is not fully installed
into the chain saw.
2. Remove and then replace the battery
pack into the chain saw making sure
that it is fully installed and latched.
The battery pack shows only 3 LED
indicators after only a few seconds of
using a fully charged battery.
1. This is a normal occurrence.
1. Shut off the tool and press
battery-charge-indicator button or
the remove the battery from the tool to
display the actual battery charge.
All 4 LED indicators are blinking on
the battery pack after you press the
battery-charge-indicator button on the
battery pack and the current charge
displays (when the battery pack is not in
use).
1. The battery pack is over or under the
appropriate temperature range.
1. Move the battery pack to a place
where it is dry and the temperature is
between 0°C (32°F) and 50°C (122°F).
All 4 LED indicators are blinking on the
battery pack after releasing the trigger
(when the battery pack is in use).
1. The battery pack is over or under the
appropriate temperature range.
1. Move the battery pack to a place
where it is dry and the temperature is
between 0°C (32°F) and 50°C (122°F).
The chain oil is not lubricating properly.
The chain saw does not run or run
continuously.
20
Problem
Possible Cause
Corrective Action
2 LED indicators are blinking on
the battery pack after you press the
battery-charge-indicator button on the
battery pack and the current charge
displays (when the battery pack is not in
use).
1. There is a difference in voltage
between cells in the battery pack.
1. Place the battery on the charger until
it is fully charged.
2 LED indicators are blinking on the
battery pack after releasing the trigger
(when the battery pack is in use).
1. There is a difference in voltage
between cells in the battery pack.
1. Place the battery on the charger until
it is fully charged.
It is difficult to remove the battery pack
from the chain saw.
1. There is corrosion in the battery
terminals and/or the terminals on the
chain saw.
1. Apply dielectric grease to the battery
terminals; do not use any other type
of lubricant as it can damage the
terminals.
21
Notes:
Notes:
The Toro Promise - Electric Products
A Three-Year1 Full Warranty for Residential Use for the United States and Canada
The Toro Company and its affiliate, Toro Warranty Company, pursuant to an agreement between them, jointly warrant this product for three years
against defects in material or workmanship when used for normal residential purposes.*
1
Does not include the battery. 1 Year Battery Warranty for Residential Use.
If you think your Toro Product contains a defect in materials or workmanship, if you have questions or problems, and before returning this product call
toll free:
Trimmers:
Chainsaw:
Blowers:
1-800-237-2654 (US)
1-855-340–7689 (US and Canada)
1-888-367-6631 (US)
1-800-808-2963 (US)
1-888-430-1687 (Canada)
1-800-808-3072 (Canada)
1-800-248-3258 (Canada)
Snowthrowers:
To receive a replacement or repair, at our option, return the complete unit to the seller. United States and Canada customers may return their product,
with proof of purchase, to any Authorized Service Dealer. United States customers may also return their product, with proof of purchase, postage
prepaid, to the Toro Service Center, 5500 SE Delaware, Ankeny, IA 50021.
This warranty covers product defects only. Neither The Toro Company nor Toro Warranty Company is liable for indirect, incidental, or
consequential damages in connection with the use of the Toro Products covered by this warranty, including any cost or expense of
providing substitute equipment or service during reasonable periods of malfunction or non-use pending completion of repairs under this
warranty. Some states do not allow exclusions of incidental or consequential damages, so the above exclusions may not apply to you. This
warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Countries Other than the United States and Canada
This warranty is not valid in Mexico. Customers who have purchased Toro products exported from the United States or Canada should contact their Toro
Distributor (Dealer) to obtain guarantee policies for your country, province, or state. If for any reason you are dissatisfied with your Distributor’s service
or have difficulty obtaining guarantee information, contact the Toro importer. If all other remedies fail, you may contact us at Toro Warranty Company.
Australian Consumer Law
Australian customers will find details relating to the Australian Consumer Law either inside the box or at your local Toro Dealer.
* Residential use means use of the product on the same lot as your home.
Part Number 374-0262 Rev. G
374-0262 Rev G
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
