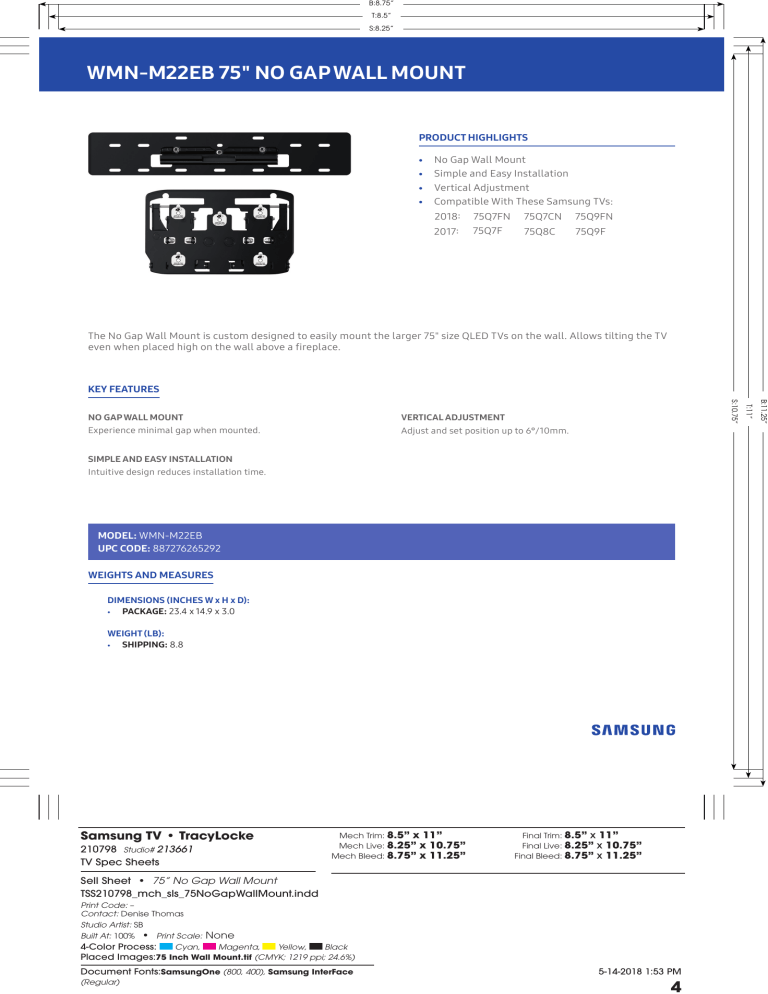

WMN-M22EB 75" NO GAP WALL MOUNT
PRODUCT HIGHLIGHTS
•
•
•
•
No Gap Wall Mount
Simple and Easy Installation
Vertical Adjustment
Compatible With These Samsung TVs:
2018:
75Q7FN
75Q7CN
75Q9FN
2017:
75Q7F
75Q8C
75Q9F
The No Gap Wall Mount is custom designed to easily mount the larger 75" size QLED TVs on the wall. Allows tilting the TV
even when placed high on the wall above a fireplace.
KEY FEATURES
Experience minimal gap when mounted.
Adjust and set position up to 6°/10mm.
SIMPLE AND EASY INSTALLATION
Intuitive design reduces installation time.
MODEL: WMN-M22EB
UPC CODE: 887276265292
WEIGHTS AND MEASURES
DIMENSIONS (INCHES W x H x D):
•
PACKAGE: 23.4 x 14.9 x 3.0
WEIGHT (LB):
SHIPPING: 8.8
•
Samsung TV • TracyLocke
210798 Studio# 213661
TV Spec Sheets
Mech Trim: 8.5” x 11”
Mech Live: 8.25” x 10.75”
Mech Bleed: 8.75” x 11.25”
Final Trim: 8.5” x 11”
Final Live: 8.25” x 10.75”
Final Bleed: 8.75” x 11.25”
Sell Sheet • 75” No Gap Wall Mount
TSS210798_mch_sls_75NoGapWallMount.indd
Print Code: –
Contact: Denise Thomas
Studio Artist: SB
Built At: 100% • Print Scale: None
4-Color Process:
Cyan,
Magenta,
Yellow,
Black
Placed Images:75 Inch Wall Mount.tif (CMYK; 1219 ppi; 24.6%)
Document Fonts:SamsungOne (800, 400), Samsung InterFace
(Regular)
5-14-2018 1:53 PM
4
B:11.25”
VERTICAL ADJUSTMENT
T:11”
S:10.75”
NO GAP WALL MOUNT
