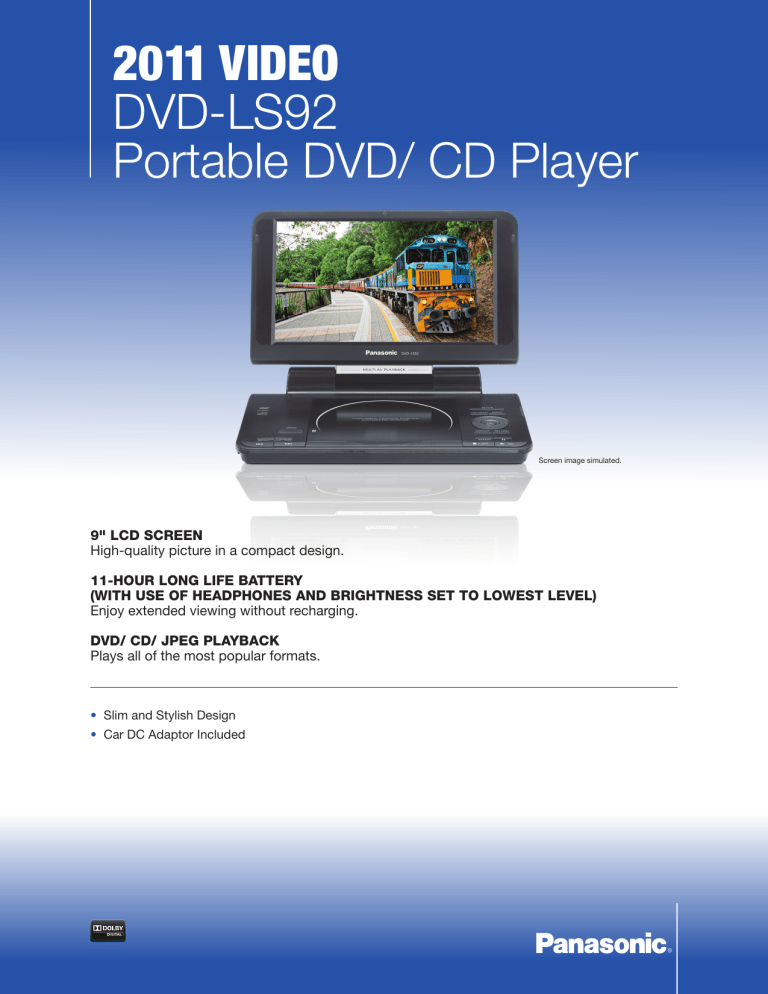

Panasonic DVD-LS92 Specification

Panasonic DVD-LS92 Specification
2011 VIDEO
DVD-LS92
Portable DVD/ CD Player
Screen image simulated.
9" LCD Screen
High-quality picture in a compact design.
11-Hour Long Life Battery
(with use of headphones and brightness set to lowest level)
Enjoy extended viewing without recharging.
DVD/ CD/ JPEG Playback
Plays all of the most popular formats.
• S
lim and Stylish Design
• Car DC Adaptor Included
2011 VIDEO
DVD-LS92 Portable DVD/ CD Player
Preliminary
Subject
to change as of
February 8, 2011.
Playable Discs
DVD
DVD-Video
•
DVD-R*1/DVD-R DL*1/DVD-RW*1
DVD-Video
•
MP3*2
• (DVD-R/-R DL)
JPEG
• (DVD-R/-R DL)
+R*1/ +R DL*1/ +RW*1
Video
•
CD, CD-R/-RW*3
CD-DA
•
Video CD
•
SVCD
•
MP3*2
•
JPEG
•
Audio System
Dolby® Digital
Decode (2 ch)
High Quality Picture
LCD Monitor (Widescreen)
9” QVGA
Video D/A Converter
108MHz/ 14bit
High Quality Sound
Built-in Speaker
2 ch
Dialog Enhancer
•
Easy to Use
Playback Times*4
approx. 11H (with battery pack)
Rechargeable Battery
•
Car DC Adaptor
•
LCD Selector
• (Normal/ Full/ OFF)
Picture Adjustment on LCD
• (Bright/ Color/ Contrast/ Tint)
Terminal
AV Out
•
Headphone Out
• (2)
Others
Video System
NTSC / PAL
Audio S/N
100dB
Dynamic Range
80dB
Power Supply
Power Consumption (using included AC adaptor) (Approx.)
AC 100-240V, 50/60Hz
Normal Use
14W
Standby
0.4W
Main Unit
Dimensions (W x H x D excluding the projecting parts)
9 - 9/ 16 x 1 - 13/ 16 x 6 - 27/ 32 inch
(242.6 x 46 x 173.5 mm)
(Approx.)
Weight (including battery)
39.15 oz (1110g)
Dimensions, Weights
*1 Discs recorded and finalized on recording devices.
*2 For contents recorded disc media from CDs for your personal use.
*3 Playability may vary depending on the contents, discs and quality of the recording.
Specifications are subject to change without notice. Weight and dimensions are approximate.
02/11
