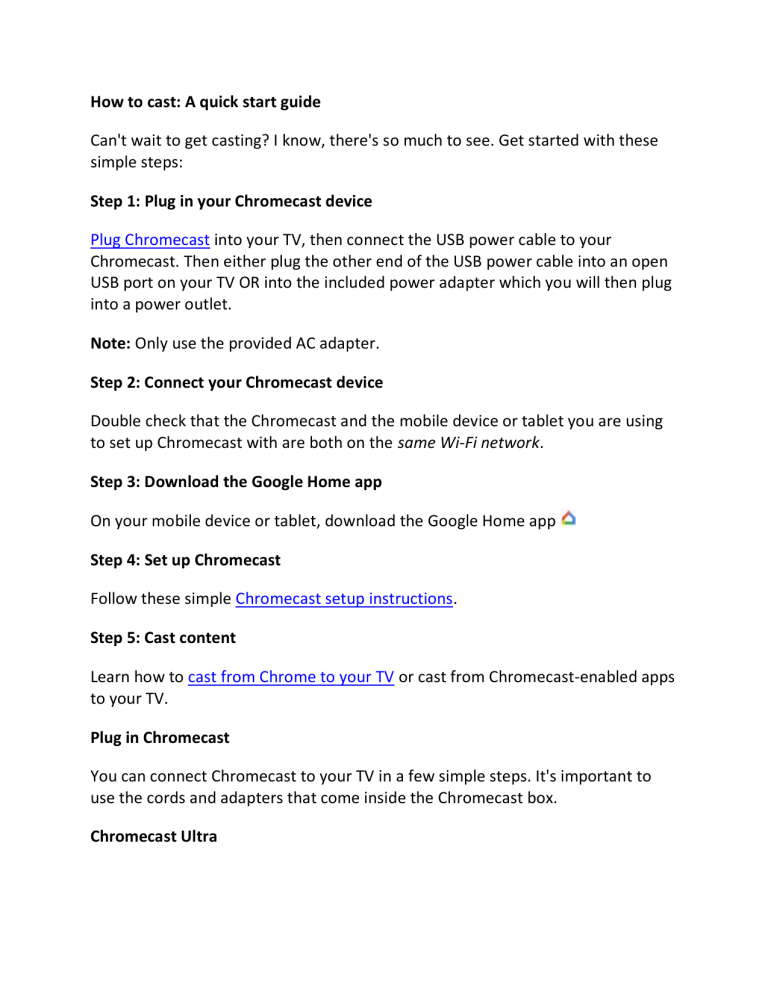

How to cast: A quick start guide
Can't wait to get casting? I know, there's so much to see. Get started with these
simple steps:
Step 1: Plug in your Chromecast device
Plug Chromecast into your TV, then connect the USB power cable to your
Chromecast. Then either plug the other end of the USB power cable into an open
USB port on your TV OR into the included power adapter which you will then plug
into a power outlet.
Note: Only use the provided AC adapter.
Step 2: Connect your Chromecast device
Double check that the Chromecast and the mobile device or tablet you are using
to set up Chromecast with are both on the same Wi-Fi network.
Step 3: Download the Google Home app
On your mobile device or tablet, download the Google Home app
Step 4: Set up Chromecast
Follow these simple Chromecast setup instructions.
Step 5: Cast content
Learn how to cast from Chrome to your TV or cast from Chromecast-enabled apps
to your TV.
Plug in Chromecast
You can connect Chromecast to your TV in a few simple steps. It's important to
use the cords and adapters that come inside the Chromecast box.
Chromecast Ultra
1: Plug one end of the power supply into your Chromecast Ultra and the other
end of the cable into an open outlet. You can also connect your Chromecast Ultra
to an Ethernet network through the port on the power supply.
2: Plug your Chromecast Ultra into any open HDMI input on your TV.
Important: Chromecast Ultra won't work with any other USB cable, or any USB
cable plugged into a TV. You must use the power supply included in the
Chromecast Ultra box.
Once your Chromecast Ultra is plugged in, you should see the Chromecast home
screen. If you do not see the Chromecast home screen on your TV after setting up
Chromecast, use the Input or Source button on your TV’s remote control to
change the input until you see the Chromecast home screen.
Set up your Chromecast device
The Google Home app will walk you through the steps to set up your Chromecast
device. This includes Chromecast and Chromecast Ultra.
If you've already set up your Chromecast on a mobile device, you don't need to
set it up again on a different mobile device if all devices are on the same Wi-Fi
network.
ANDROID
What you need to get started






A Chromecast device.
Latest version of the Google Home app .
Latest version of Google app (Android only. Download it here).
A Google account.
A display device with an HDMI input, for example, a high-definition
television (HDTV)
A mobile device or tablet.





The compatible mobile device or tablet must support a 5GHz connection to
set up Chromecast on a 5GHz connection. Note: A WPA2-Enterprise
network is not supported.
Meet the minimum Operating System (OS) requirements to run the Google
Home app .
An internet connection.
Access to a secure wireless network. Make sure you have the wireless
network password handy.
Availability and performance of certain features, services and applications
are device- and network-dependent and may not be available in all areas;
subscription(s) may be required, and additional terms, conditions and/or
charges may apply.
Set up Chromecast or Chromecast Ultra
1. Plug in Chromecast.
2. Install the Google Home app by navigating to g.co/home/setup on your
Chromecast-supported Android device.
1. Or click to download the Google Home app for Android.
3. Make sure to connect your mobile device/tablet to the same Wi-Fi network
that you intend to use to set up your Chromecast device.
4. Open the Google Home app by tapping the app icon on your Android
device.
5. Follow the steps.
1. If you don’t see the steps to set up your Chromecast:
1. On the Google Home app's home screen, tap Add
device
Set up new devices.
2. Follow the remaining steps.
6. Set up is successful. You're all done!
IPHONE & IPAD
What you need to get started

A Chromecast device
Set up










Latest version of the Google Home app
A Google account.
A display device with an HDMI input, for example, a high-definition
television (HDTV)
Access to an available power outlet and a secure wireless network.
Meet the minimum Operating System (OS) requirements to run the Google
Home app
An internet connection.
Access to a secure wireless network (make sure you have the wireless
network password handy)
For Chromecast (1st generation), connection to a Wi-Fi 802.11 b/g/n 2.4G
network. For Chromecast, connection to a Wi-Fi 802.11 b/g/n/ac 2.4/5G
network. For Chromecast Ultra, connection to a Wi-Fi 802.11 b/g/n/ac 5G
network.
A compatible phone or tablet
Availability and performance of certain features, services and applications
are device- and network-dependent and may not be available in all areas;
subscription(s) may be required, and additional terms, conditions and/or
charges may apply.
Set up Chromecast or Chromecast Ultra
1. Plug in Chromecast.
2. Install the Google Home app by navigating to g.co/home/setup on your
Chromecast supported iOS device.
1. Or click to download the Google Home app for iOS.
3. Make sure to connect your mobile device/tablet to the same Wi-Fi network
that you intend to use to set up your Chromecast device.
4. Open the Google Home app .
5. Follow the steps.
1. If you don’t see the steps to set up your Chromecast:
1. On the Google Home app's home screen, tap Add
device
Set up new devices.
2. Follow the remaining steps.
6. Set up is successful. You're all done!
Set up
