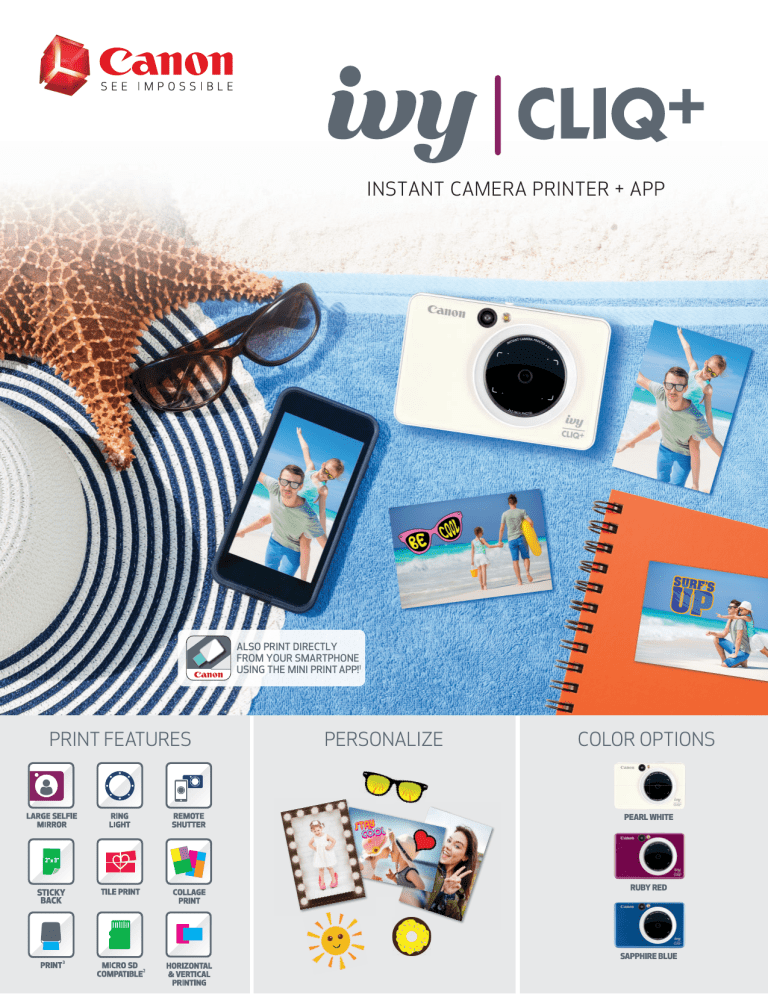

INSTANT CAMERA PRINTER + APP
ALSO PRINT DIRECTLY
FROM YOUR SMARTPHONE
USING THE MINI PRINT APP!1
PRINT FEATURES
PERSONALIZE
COLOR OPTIONS
PEARL WHITE
RUBY RED
SAPPHIRE BLUE
3
2
INSTANT CAMERA PRINTER + APP
TECHNICAL SPECIFICATION
PRINT
GENERAL (CONT.)
Print Technology
ZINK™ - “Zero Ink”
Reset Button
Print Speed3
50 Seconds or less
Size & Weight
4.8" (L) x 3.2" (W) x 0.8" (H) / 0.4 lbs.
Print Resolution
314 x 600 dpi
Warranty4
1-Year Limited Warranty
Borderless Printing
Yes
STORAGE & MEMORY
Automatic Paper Sensor
Yes
Built-in Storage Memory
None
Supported Media Type
ZINK™ Photo Paper
Memory Card Compatible2
Yes, MicroSD Memory Card (Up to 256 GB)
Maximum Paper Sizes
2.0" x 3.0"
Mass Storage Mode2
Yes, via included Micro USB 2.0 Cable
Paper Capacity
Up to 10 Sheets of ZINK™ Photo Paper & 1 SMART SHEET™
ZINK™ PHOTO PAPER INFORMATION
CAMERA
Camera Resolution
Photo Paper Information
8 MP
Yes
2" x 3" Photo Paper Size
Sticker Back
Smudge-Free
Water & Tear Resistant
Photo Format
JPEG
Video Capable
No
Camera Aspect/Print Size
2" x 3," 2" x 2"
Flash
Yes
BATTERY & POWER INFORMATION
8 LED Ring Light
Yes (8 LED / 4 LED)
Battery Type
Built-in Rechargeable Lithium-Polymer (700 mAh)
Focus
Auto
Battery Life
Approx. 25 photos
Zoom
Fixed
Battery Charge Time
ISO
Auto (Range: 100 - 1600)
Full Charge in Approx. 120 Minutes
(Measured at 5V/1A Charging Speed)
White Balance
Auto
USB Port
Micro USB for Charging & Data
Exposure Adjustment
Auto
Auto Power Off
Yes (10 Min / 5 Min / 3 Min)
Self Timer1
Yes (10 / 5 / 3 Seconds), via Mini Print app
WHAT’S IN THE BOX
Viewfinder
Yes
Box Contents
Remote Shutter1
Yes, via Mini Print app
Selfie Mirror
Yes - Large 2" Circular Selfie Mirror
Tripod Mount
No
Reprint Button
Yes
Photo Paper Storage Environment Temperature: 34 - 77°F (1 - 25°C)
Humidity: 40 - 55% Relative Humidity
AVAILABLE COLORS
CONNECTIVITY
Bluetooth1
Bluetooth® 4.0
Printer Connection1
Bluetooth - via the Canon Mini Print App
Wi-Fi® Capable
No
ZV-123-Pearl White
Canon IVY CLIQ+
Instant Camera Printer+ App - Pearl White
3879C002
ZV-123-Sapphire Blue
Canon IVY CLIQ+
Instant Camera Printer+ App - Sapphire Blue
3879C003
ZV-123-Ruby Red
Canon IVY CLIQ+
Instant Camera Printer+ App - Ruby Red
3879C004
COMPATIBLE OPERATING SYSTEMS & APP
Compatible OS1
iOS®: 9.0 or later, Android™: 4.4 or later
Mobile App1
Canon Mini Print app
App Features1
Over 200 Stickers, Over 30 Frames & Filters, Add Text & Drawing,
Color Adjustment, AR Live, Filters & Face Distort, Tile Print, Collage
Print, Remote Shutter, Selfie Timer
Photo Selection (Local/Cloud)1
Local / On Device, Facebook, Instagram, Google Drive, Dropbox, iCloud
(iOS Devices Only)
GENERAL
Control Panel
Canon IVY CLIQ+ Instant Camera Printer
ZINK™ Photo Paper Pack (10 Sheets & 1 SMART SHEET)
Micro USB Charging & Data Cable (USB A to Micro)
Wrist Strap
Quick Start Guide & Warranty Sheet
Power Button, Shutter Button, Reprint Button, Aspect Ratio Button
(2 x 3, 2 x 2), Flash Side Switch (Auto / On / Fill Light)
Display Type
LED Light System
Bottom LED (Charging): Red: Charging, Green: Charging Complete
Top Power LED (Status): Color Flashing Loop: Printing Photo, White: Power
On / Standby, White Flashing: Processing SMARTSHEET,™ Preparing
to Print / Firmware Updating, Red: Device too high of temperature, Red
Flashing: Cover Opened / Printing Error / No Paper/ Paper Jam, RedWhite Flashing: Low Battery, Blue-White: Device is Booting, Blue Flashing:
SMARTSHEET™ Error, Cyan: Device too low of temperature, Cyan Flashing:
Printer Head Cooling, Magenta: Mass Storage Mode, Magenta Flashing:
MicroSD Error
Aspect Ratio LED: Yes
Speaker Status (Customizable)
Power On / Off, Camera Focus Lock, Camera Shutter, Reprint Failed,
Insert / Eject SD Card, SD Card Error
Recommended Operating
Environment
Temperature: 59 - 90°F (15 - 32°C)
Humidity: 40 - 55% Relative Humidty
Certification
Battery Charging (BC) Systems - California
Energy Commision (CEC) Compliant
CONSUMABLES INFO
Compatible ZINK™ Photo Paper
ZP-2030-50
ZP-2030-20
ZINK™ Photo Paper Pack (50 Sheets)
ZINK™ Photo Paper Pack (20 Sheets)
3215C001
3214C001
specifications are subject to change without notice.
all viewscreen and printer output images are simulated.
1 Requires mobile device to be connected to the Canon IVY Mini Photo Printer via Bluetooth® and the Canon Mini Print
App, available for free on the App Store and at Google Play. Compatible with mobile devices running iOS 9.0 or later,
and Android devices running Android 4.4 or later.
2 Mass Storage Mode is available when using a supported microSD card that is installed and formatted and while using
the included USB 2.0 cable and a compatible desktop operating system. Compatible desktop operating systems include
Windows 10, 8.1, 8 or 7 and Mac OS X v10.10 - Mac OS 10.14. MicroSD card not included.
3 Depending on operating temperature.
4 Warranty programs are subject to certain conditions and restrictions. For customers in the United States, visit
www.usa.canon.com/support for more details, for customers in Canada, visit www.canon.ca/support for
more details.
TM
©2019 Canon U.S.A., Inc. Canon is a registered trademark of Canon Inc. in the United States and may be a registered trademark, or trademark, in other countries. IVY CLIQ+ is a trademark of Canon U.S.A., Inc. in the United States. SMART SHEET, the ZINK Technology and ZINK Trademarks
are owned by ZINK Holdings LLC, used under license. Apple, the Apple logo, iPad, iPad Air, iPad Pro, and iPhone are trademarks of Apple Inc., registered in the United States and other countries.. App Store is a service mark of Apple Inc. iOS is a trademark or registered trademark of Cisco
in the United States and other countries and is used under license. Android, Google Play and the Google Play logo are trademarks of Google LLC. Bluetooth is a registered trademark of Bluetooth SIG. Wi-Fi is a registered trademark of the Wi-Fi Alliance. All other third-party product names,
brand names and logos are trademarks of their respective owners.
0216W279
