 LIDEC

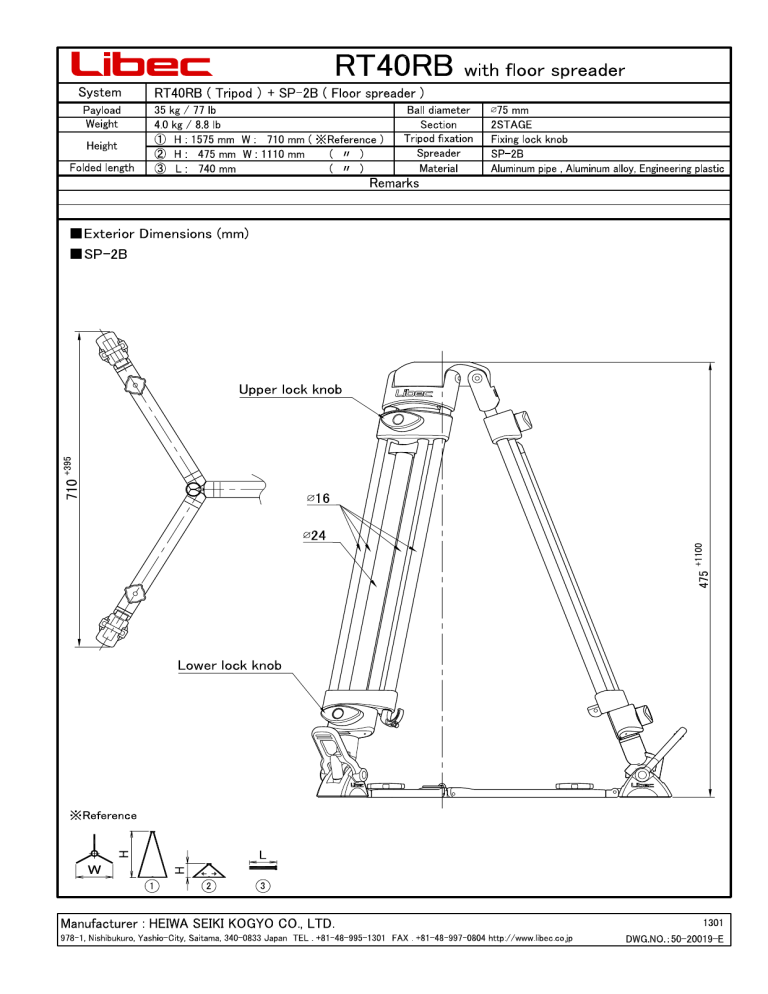

RT40 RB with floor spreader
System RT40RB ( Tripod ) + SP-2B ( Floor spreader )
Payload 35 kg / 77 Ib Ball diameter | 275 mm
Weight 4.0 kg / 8.8 Ib Section 2STAGE
| (M) H:1575mm W: 710 mm ( XReference ) | Tripod fixation | Fixing lock knob
Height
@ H: 475 mm W: 1110 mm Cm) Spreader SP-2B
Folded length © L: 740 mm GADEA Material Aluminum pipe , Aluminum alloy, Engineering plastic
Remarks
710 +395
IM Exterior Dimensions (mm)
E SP-2B
Upper lock knob
978-1, Nishibukuro, Yashio—City, Saitama, 340-0833 Japan TEL . +81-48-995-1301 FAX . +81-48-997-0804 http://www.libec.co jp
224 _
lo
=
|
Lower lock knob
¿a
= 7
7
| Y
X Reference
A + Л Е.
_w | TAN ===
D (2) (3)
Manufacturer : HEIWA SEIKI KOGYO CO, LTD. 1301
DWG.NO.:50-20019-E
