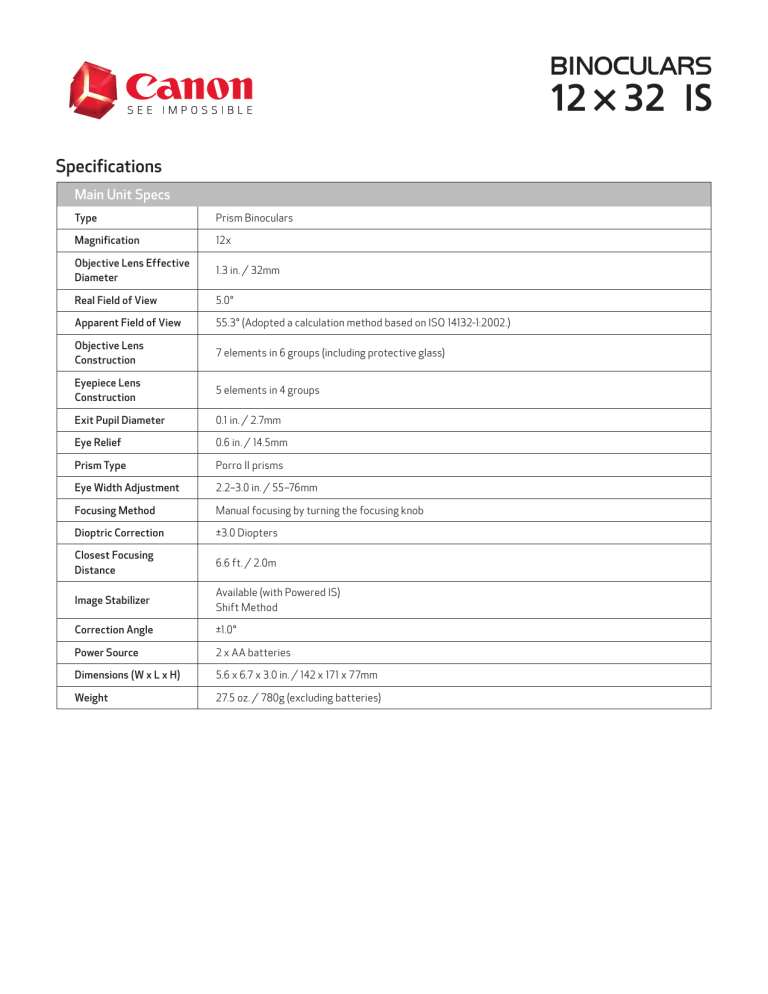

Canon 1373C002 Specification

Canon 1373C002 Specification
Specifications
Main Unit Specs
Type
Prism Binoculars
Magnification
12x
Objective Lens Effective
Diameter
1.3 in. / 32mm
Real Field of View
5.0°
Apparent Field of View
55.3° (Adopted a calculation method based on ISO 14132-1:2002.)
Objective Lens
Construction
7 elements in 6 groups (including protective glass)
Eyepiece Lens
Construction
5 elements in 4 groups
Exit Pupil Diameter
0.1 in. / 2.7mm
Eye Relief
0.6 in. / 14.5mm
Prism Type
Porro II prisms
Eye Width Adjustment
2.2–3.0 in. / 55–76mm
Focusing Method
Manual focusing by turning the focusing knob
Dioptric Correction
±3.0 Diopters
Closest Focusing
Distance
6.6 ft. / 2.0m
Image Stabilizer
Available (with Powered IS)
Shift Method
Correction Angle
±1.0°
Power Source
2 x AA batteries
Dimensions (W x L x H)
5.6 x 6.7 x 3.0 in. / 142 x 171 x 77mm
Weight
27.5 oz. / 780g (excluding batteries)
