Panasonic DMC-GX85KK Specification

Panasonic DMC-GX85KK Specification
DMC-GX85KS_SpecSheet
1 of 10
http://shop.panasonic.com/cameras-and-camcorders/cameras/lumix-inter...

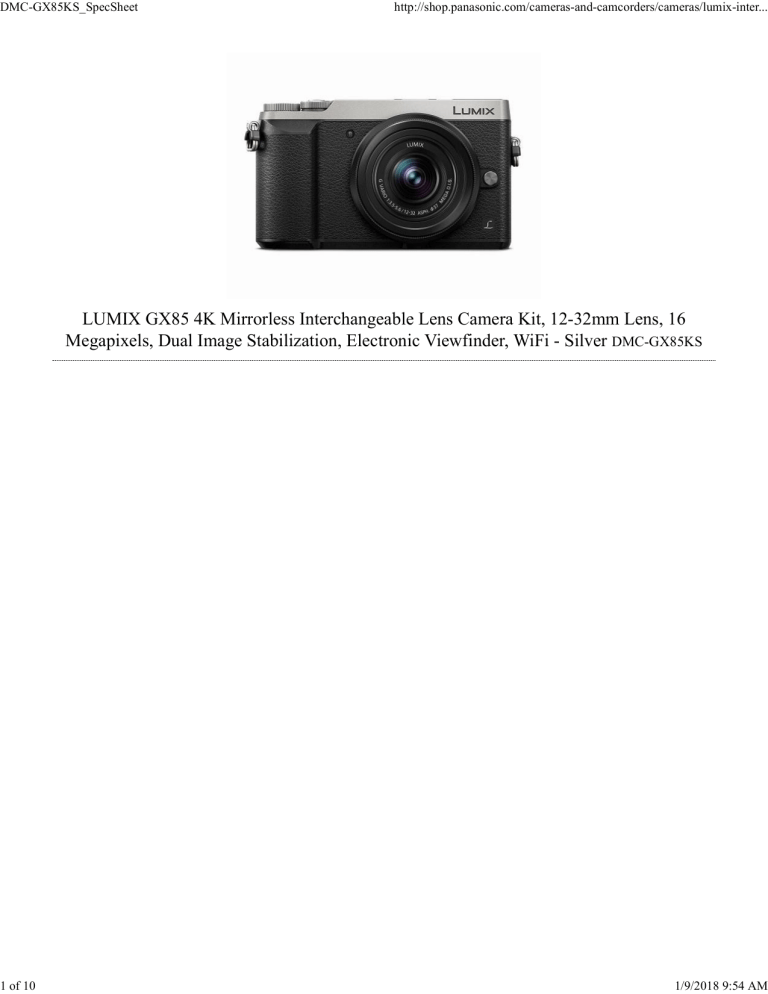

LUMIX GX85 4K Mirrorless Interchangeable Lens Camera Kit, 12-32mm Lens, 16
Megapixels, Dual Image Stabilization, Electronic Viewfinder, WiFi - Silver DMC-GX85KS
1/9/2018 9:54 AM
DMC-GX85KS_SpecSheet
2 of 10
MORE DETAILS
http://shop.panasonic.com/cameras-and-camcorders/cameras/lumix-inter...
Image Stabilization System Image Sensor Shift Type (5-axis)
TIME LAPSE SHOT Yes
STOP MOTION ANIMATION Yes
SILENT MODE Yes
NOTE * About motion picture recording / 4K Photo recording
- Use a card with SD Speed Class with "Class 4" or higher when recording motion pictures.
- Use a card with SD Speed Class with "UHS-I UHS Speed Class 3 (U3)" when recording motion pictures
with [MP4] in [4K] or [4K PHOTO].
(SD speed class is the speed standard regarding continuous writing.)
- Recording stops when the continuous recording time exceeds 29 minutes and 59 seconds or the file size
exceeds 4GB with [MP4] in [FHD] [HD] [VGA].
- MP4 motion pictures with [MP4] in [4K]:
- When using an SDHC memory card: You can continue recording without interruption even if the file size
exceeds 4 GB, but the motion picture file will be divided and recorded/played back separately.
- When using an SDXC memory card: You can record a motion picture in a single file.
- When the ambient temperature is high or continuous recording is performed, the camera may stop the
recording to protect itself. Wait until the camera cools down.
** For [4K] video output, use an HDMI cable that has the HDMI logo on it, and that is described as"4K
compatible".
TYPE
Type Digital Single Lens Mirrorless camera
Recording media SD Memory Card, SDHC Memory Card, SDXC Memory Card
Recording media (Compatible with UHS-I UHS Speed Class 3 standard SDHC / SDXC Memory Cards)
Image sensor size 17.3 x 13.0 mm (in 4:3 aspect ratio)
Lens mount Micro Four Thirds mount
IMAGE SENSOR
Type Live MOS Sensor
Total pixels 16.84 Megapixels
Camera effective pixels 16.00 Megapixels
Color filter Primary color filter
Dust reduction system Supersonic wave filter
RECORDING SYSTEM
Aspect ratio 4:3, 3:2, 16:9, 1:1
Image quality RAW, RAW+Fine, RAW+Standard, Fine, Standard
1/9/2018 9:54 AM
DMC-GX85KS_SpecSheet
3 of 10
http://shop.panasonic.com/cameras-and-camcorders/cameras/lumix-inter...
Image quality MPO+Fine / MPO+Standard (with 3D lens in Micro Four Thirds system standard)
Color Space sRGB, AdobeRGB
Continuous recordable time (Motion picture) AVCHD [FHD/60i]: Approx. 100 min (rear monitor), 90 min
(LVF) with H-FS12032
Continuous recordable time (Motion picture) MP4 [4K/30p]: Approx. 80 min (rear monitor), 70 min (LVF)
with H-FS12032
Actual recordable time (Motion picture) AVCHD [FHD/60i]: Approx. 50 min (rear monitor), 45 min (LVF)
with H-FS12032
Actual recordable time (Motion picture) MP4 [4K/30p]: Approx. 40 min (rear monitor), 35 min (LVF) with
H-FS12032
Recording file format
Still image JPEG (DCF, Exif 2.3), RAW, MPO (When attaching 3D lens in Micro Four Thirds system
standard)
Motion picture AVCHD (Audio format: Dolby Digital 2ch), MP4 (Audio format: AAC 2ch)
File size(Pixels)
Still Image [4:3] 4592x3448(L) / 3232x2424(M) / 2272x1704(S) / 1824x1368 (When attaching 3D lens in Micro
Four Third system standard)
Still Image [3:2] 4592x3064(L) / 3232x2160(M) / 2272x1520(S) / 1824x1216 (When attaching 3D lens in Micro
Four Third system standard)
Still Image [16:9] 4592x2584(L) / 3840x2160(M) / 1920x1080(S) / 1824x1024 (When attaching 3D lens in
Micro Four Third system standard)
Still Image [1:1] 3424x3424(L) / 2416x2416(M) / 1712x1712(S) / 1712x1712 (When attaching 3D lens in Micro
Four Third system standard)
Motion picture*
MP4 N/A
AVCHD N/A
MP4* [4K] 3840x2160: 4K/30p 100Mbps, 4K/24p 100Mbps
MP4* [Full HD] 1920x1080: FHD/60p 28Mbps, FHD/60p 28Mbps
MP4* [HD] 1280x720: HD/30p 10Mbps
MP4* [VGA] 640x480: VGA/30p 4Mbps
AVCHD* [Full HD] 1920x1080 FHD/60p: 28Mbps, 60p recording
AVCHD* [Full HD] 1920x1080 FHD/60i: 17Mbps, 60i recording
AVCHD* [Full HD] 1920x1080 FHD/30p: 24Mbps, 60i recording (sensor output is 30fps)
AVCHD* [Full HD] 1920x1080 FHD/24p: 24Mbps, 24p recording
WiFi FUNCTION
WiFi IEEE 802.11b/g/n, 2412 MHz - 2462 MHz (1-11 ch), Wi-Fi / WPA / WPA2, Infrastructure mode
NFC No
QR Code Connection Yes
Password-less connection Yes (ON / OFF selectable)
1/9/2018 9:54 AM
DMC-GX85KS_SpecSheet
4 of 10
VIEWFINDER
http://shop.panasonic.com/cameras-and-camcorders/cameras/lumix-inter...
Type LCD Live View Finder (2,764,800 dots equivalent)
Field of view Approx. 100%
Magnification Approx. 1.39x / 0.7x (35mm camera equivalent) with 50 mm lens at infinity; -1.0 m-1
Eye point Approx. 17.5 mm from eyepiece lens
Diopter adjustment -4.0 - +3.0 (dpt)
Eye sensor Yes
Eye sensor adjustment High / Low
FOCUS
Type Contrast AF system
DFD technology Yes
Post Focus Yes
Focus mode AFS (Single) / AFF (Flexible) / AFC (Continuous) / MF
AF mode Face/Eye Detection / Tracking / 49-Area / Custom Multi / 1-Area / Pinpoint
AF mode (Full area touch is available)
AF detective range EV -4 - 18 (ISO100 equivalent)
Starlight AF Yes
AF assist lamp Yes
AF lock Yes (AF/AE LOCK button)
Others One Shot AF, Shutter AF, Half Press Release, Quick AF, Continuous AF (during motion picture
recording), Eye Sensor AF, AF+MF, MF Assist, Touch MF Assist, Focus Peaking, Touch AF/AE Function,
Touch Pad AF, Touch Shutter
EXPOSURE CONTROL
Light metering system 1728-zone multi-pattern sensing system
Light metering mode Multiple / Center Weighted / Spot
Metering range EV 0 - 18 (F2.0 lens, ISO100 equivalent)
Exposure mode Program AE, Aperture Priority AE, Shutter Priority AE, Manual
ISO sensitivity (Standard Output Sensitivity) Auto / Intelligent ISO / 100 (Extended) / 200 / 400 / 800 / 1600 /
3200 / 6400 / 12800 / 25600 (Changeable to 1/3 EV step)
ISO sensitivity (Standard Output Sensitivity) (Up to ISO6400 in motion picture recording) (ISO Auto in M
mode)
Exposure compensation 1/3 EV step ±5EV (±3EV for motion picture)
AE lock Yes (AF/AE LOCK button)
AE bracket N/A
WHITE BALANCE
1/9/2018 9:54 AM
DMC-GX85KS_SpecSheet
5 of 10
http://shop.panasonic.com/cameras-and-camcorders/cameras/lumix-inter...
White balance Auto / Daylight / Cloudy / Shade / incandescent / Flash / White Set 1, 2, 3, 4 / Color
temperature setting
White balance adjustment Blue/Amber bias, Magenta/Green bias
Color temperature setting 2500-10000K in 100K
White balance bracket N/A
SHUTTER
Type Focal-plane shutter
Shutter speed Still image: Still image: Time (Max. 2 minutes), 1/4,000 - 60
Shutter speed Motion picture: 1/16,000 - 1/25
Shutter speed Electronic shutter: 1/16,000 - 1
Self timer 10sec, 3 images / 2sec / 10sec
SCENE GUIDE
Still image N/A
Motion picture N/A
BRACKET
AE bracket 3, 5, 7 frames in 1/3, 2/3 or 1 EV Step, Max. ±3 EV, single/burst
Aperture Bracket 3, 5 or all positions in 1 EV step
Focus Bracket 1 to 999 frames, focus steps can be set in 5 levels
White balance bracket 3 exposures in blue/amber axis or in magenta/green axis
PANORAMA SHOT
Panorama shot Yes (Standard / Wide)
BURST SHOOTING
Burst speed [Mechanical shutter] AFS: H: 8 frames/sec, M: 6 frames/sec (with Live View), L: 2 frames/sec
(with Live View)
Burst speed [Mechanical shutter] AFC: H: 6 frames/sec, M: 6 frames/sec (with Live View), L: 2 frames/sec
(with Live View)
Burst speed [Electronic shutter] SH: 40 frames/sec
Burst speed [Electronic shutter] AFS: H: 10 frames/sec, M: 6 frames/sec (with Live View), L: 2 frames/sec
(with Live View)
Burst speed [Electronic shutter] AFC: H: 6 frames/sec, M: 6 frames/sec (with Live View), L: 2 frames/sec
(with Live View)
Number of recordable images More than 13 images (when there are RAW files with the particular speed)
Number of recordable images More than 100 images (when there are no RAW files)
Number of recordable images (depending on memory card type, aspect, picture size and compression)
4K PHOTO MODE
1/9/2018 9:54 AM
DMC-GX85KS_SpecSheet
6 of 10
http://shop.panasonic.com/cameras-and-camcorders/cameras/lumix-inter...
4K Photo mode* 4K Burst: 30 frames/sec
4K Photo mode* 4K Burst (S/S): 30 frames/sec
4K Photo mode* 4K Pre-Burst: 30 frames/sec, approx. 2 seconds
4K Photo mode* (depending on memory card size and battery power)
Exif information Yes
Selectable aspect ratio Yes (4:3 / 3:2 / 16:9 / 1:1 are selectable)
Exposure mode Program AE/ Aperture-Priority / Sutter-Priority / Manual Exposure
Marking function Yes (in 4K Burst (S/S) mode)
Loop rec function Yes (in 4K Burst (S/S) mode)
FLASH
Flash type TTL Built-in-Flash, GN6.0 equivalent (ISO200 ?m) / GN4.2 equivalent (ISO100 ?m), Built-in
Pop-up (Reference?
Flash Mode Auto*, Auto/Red-eye Reduction*, Forced On, Forced On/Red-eye Reduction, Slow Sync., Slow
Sync./Red-eye Reduction, Forced Off * For iA, iA+ only.
Synchronization speed Less than 1/160 second
Flash output adjustment 1/3EV step ±3EV
Flash synchronization 1st. Curtain Sync, 2nd Curtain Sync.
Synchronization for flash dimming and exposure compensation Yes
REAR MONITOR
Type TFT LCD monitor with static touch control
Monitor size Tilt 3.0-inch / 3:2 aspect / Wide viewing angle
Pixels Approx. 1,040k dots
Filed of view Approx. 100%
Monitor adjustment Brightness, Contrast, Saturation, Red-Green, Blue-Yellow
LIVE VIEW
Digital zoom 2x, 4x
Extra Tele Conversion Still image: Max. 2x
Extra Tele Conversion Motion picture: 2.4x (FHD), 3.6x (HD), 4.8x (VGA)
Other functions Level Gauge, Real-time Histogram, Guide Lines (3 patterns), Highlight display (Still image /
motion picture), Zebra pattern (Still image / motion picture)
DIRECTION DETECTION FUNCTION
Direction Detection Function Yes
SELF SHOT
Self Shot Mode N/A
Shutter N/A
Effect N/A
1/9/2018 9:54 AM
DMC-GX85KS_SpecSheet
7 of 10
http://shop.panasonic.com/cameras-and-camcorders/cameras/lumix-inter...
FUNCTION BUTTON
Fn1, Fn2, Fn3, Fn4, Fn5, Fn6 N/A
Fn1, Fn2, Fn3, Fn4, Fn5, Fn6, Fn7, Fn8, Fn9 4K Photo Mode / Wi-Fi / Q.MENU / LVF/Monitor Switch /
AF/AE LOCK / AF-ON / Preview / One Push AE / Touch AE / Level Gauge / Focus Area Set / Zoom Control
/ Cursor Button Lock / Dial Operation Switch / Photo Style / Filter Select / Aspect Ratio / Picture Size /
Quality / Metering Mode / Bracket / Focus Mode / Highlight Shadow / i. Dynamic / i. Resolution / Post Focus
/ HDR / Shutter Type / Flash Mode / Flash Adjust. / Ex. Tele Conv. / Digital Zoom / Stabilizer / Snap Movie /
Motion Pic. Set / Picture Mode / Silent Mode / Peaking / Histogram / Guide Line / Zebra Pattern /
Monochrome Live View / Rec Area / Step Zoom / Zoom Speed / Touch Screen / Sensitivity / White Balance /
AF Mode/MF / Drive Mode / Restore to Default
PHOTO STYLE
Still image and motion picture Standard / Vivid / Natural / Monochrome / L. Monochrome / Scenery /
Portrait / Custom
CREATIVE CONTROL
Still image Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic
Monochrome / Rough Monochrome / Silky Monochrome / Impressive Art / High Dynamic / Cross Process /
Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Soft Focus / Fantasy / Star Filter / One Point Color /
Sunshine
Motion picture Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic
Monochrome / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass /
Miniature Effect / Fantasy / One Point Color
CREATIVE VIDEO MODE
Exposure mode Program AE / Aperture-Priority / Sutter-Priority / Manual Exposure
MOTION PICTURE FUNCTION
Flicker reduction [1/50] / [1/60] / [1/100] / [1/120] / OFF
PLAYBACK
Playback function 30-thumbnail display, 12-thumbnail display, Calendar display, Zoomed playback (Max.
16x), Slideshow (All / Picture Only / Video Only / 4K PHOTO / Post Focus / 3D / Category Selection /
Favorite, duration & effect is selectable), Playback Mode (Normal / Picture Only / Video Only / 4K PHOTO /
Post Focus / 3D Play / Category / Favorite), Location Logging, RAW Processing, Light Composition, Clear
Retouch, Title Edit, Text Stamp, Video Divide, Time Lapse Video, Stop Motion Video, Resize, Cropping,
Rotate, Rotation Display, Favorite, DPOF Print Set, Protect, Face Recognition Edit, Picture Sort, Creating
Still Pictures from a Motion Picture
IMAGE PROTECTION / ERASE
Protection Single / Multi
Erase Single / Multi / All / Except Favorite
PRINT
Direct Print PictBridge compatible
INTERFACE
1/9/2018 9:54 AM
DMC-GX85KS_SpecSheet
8 of 10
http://shop.panasonic.com/cameras-and-camcorders/cameras/lumix-inter...
USB USB 2.0 High Speed Multi
HDMI N/A
HDMI** microHDMI TypeD / VIERA Link
HDMI** Video: Auto / 4K / 1080p / 1080i / 720p / 480p
HDMI** Audio: Stereo
Audio video output No
Microphone Stereo, Wind-cut: OFF / Standard / High
Speaker Monaural
LANGUAGE
OSD language Japanese, English, German, French, Italian, Spanish, Portuguese, Chinese (Traditional)
GENERAL
POWER
Battery Li-ion Battery Pack (7.2V, 1025mAh, 7.4Wh) (Included)
Battery AC Adaptor (Input: 110 - 240V AC) (Included, connect with USB cable)
Battery life (CIPA standard) Approx. 290 images (rear monitor), 270 images (LVF) with H-FS12032
DIMENSIONS / WEIGHT
Dimensions (W x H x D) 122 x 70.6 x 43.9 mm / 4.80 x 2.78 x 1.73 inch (excluding protrusions)
Weight Approx. 426g / 0.94 lb (SD card, Battery, Body)
Weight Approx. 383g / 0.84 lb (Body only)
Weight Approx. 493g / 1.09 lb (SD card, Battery, H-FS12032 lens included)
OPERATING ENVIRONMENT
Operating temperature 0? to 40? (32°F to 104°F)
Operating humidity 10%RH to 80?RH
STANDARD ACCESSORIES
Software ? The software to edit and playback images on computer is not bundled with DMC-GX85. To do
this, PHOTOfunSTUDIO is available for download at Panasonic website using computer connected to the
Internet.
http://panasonic.jp/support/global/cs/soft/download/d_pfs99pe.html (For Windows)
? The software to process RAW file on computer is not bundled with DMC-GX85. To do this, SILKYPIX
Developer Studio is available for download at Ichikawa Soft Laboratory's website using computer connected
to the Internet.
http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)
Standard accessories DMC-GX85 Kit
Standard accessories Hot Shoe Cover, Battery Pack, AC Adaptor, USB Connection Cable, Shoulder Strap,
Body Cap
Standard accessories ? The DMC-GX85 Operating Instructions for advanced features is available for
downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the
Internet.
1/9/2018 9:54 AM
DMC-GX85KS_SpecSheet
9 of 10
http://shop.panasonic.com/cameras-and-camcorders/cameras/lumix-inter...
INTERCHANGEABLE LENS-1
Lens Name N/A
Lens Construction N/A
Nano Surface Coating N/A
Mount N/A
Optical Image Stabilizer N/A
Focal Length N/A
Aperture Type N/A
Aperture range N/A
Aperture N/A
Maximum Aperture N/A
Minimum Aperture N/A
Closest Focusing Distance N/A
Maximum magnification N/A
Diagonal Angle of View N/A
General
Filter Size N/A
Max. Diameter N/A
Overall Length N/A
Weight [g] N/A
Weight [oz] N/A
Others N/A
INTERCHANGEABLE LENS-2
1/9/2018 9:54 AM
DMC-GX85KS_SpecSheet
10 of 10
http://shop.panasonic.com/cameras-and-camcorders/cameras/lumix-inter...
Lens Name N/A
Lens Construction N/A
Nano Surface Coating N/A
Mount N/A
Optical Image Stabilizer N/A
Focal Length N/A
Aperture Type N/A
Aperture range N/A
Aperture N/A
Maximum Aperture N/A
Minimum Aperture N/A
Closest Focusing Distance N/A
Maximum magnification N/A
Diagonal Angle of View N/A
General
Filter Size N/A
Max. Diameter N/A
Overall Length N/A
Weight [g] N/A
Weight [oz] N/A
Others N/A
UPC885170285323
1/9/2018 9:54 AM
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
