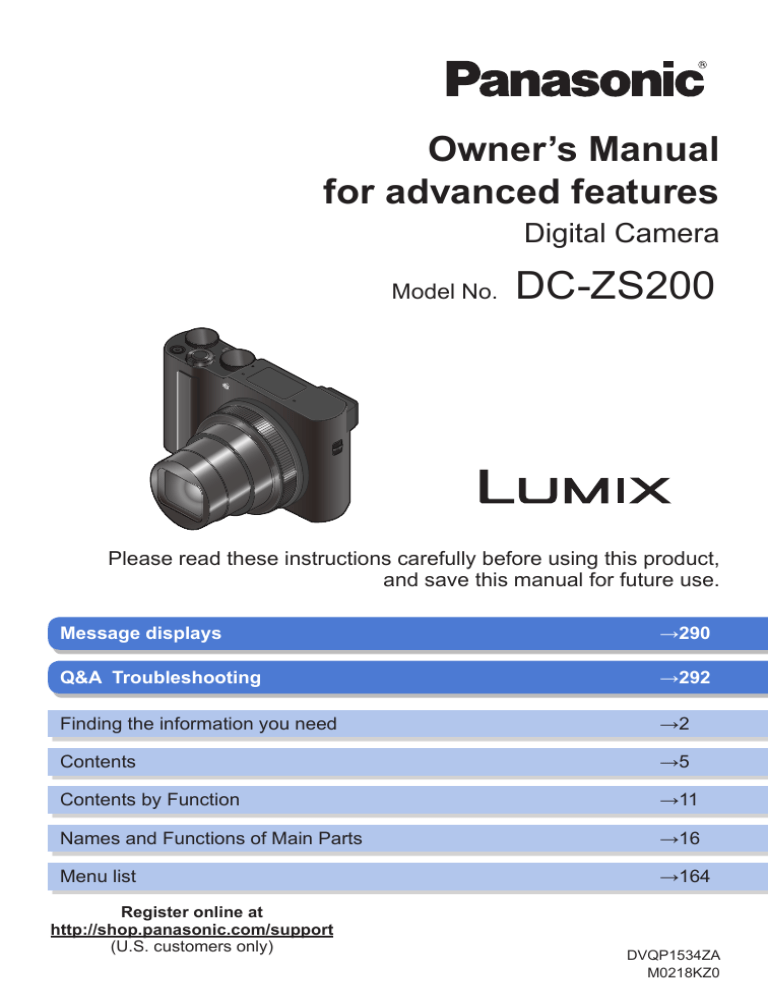

Owner’s Manual
for advanced features
Digital Camera
Model No.
DC-ZS200
Please read these instructions carefully before using this product,
and save this manual for future use.
Message displays
→290
Q&A Troubleshooting
→292
Finding the information you need
→2
Contents
→5
Contents by Function
→11
Names and Functions of Main Parts
→16
Menu list
→164
Register online at
http://shop.panasonic.com/support
(U.S. customers only)
DVQP1534ZA
M0218KZ0
Finding the information you need
In this “Owner’s Manual for advanced features”, you can find the information you need
from the following pages.
By clicking a page number, you can jump to the linked page and quickly find the
information.
Search from “Contents”
5-
Search from the list of function
names
11 -
“Contents by Function”
Search from “Names and
Functions of Main Parts”
16 -
Search from “List of monitor/
viewfinder displays”
284 -
Search from the list of
on-screen messages
290 -
Search from the menu list
164 -
Search from “Q&A
Troubleshooting”
292 -
“Message displays”
For details on how to use this manual,
see the next page.
2
How to use this manual
Recording mode icons
Recording mode:
In Recording modes that show icons in black, you can select and execute indicated
menus and functions.
(Custom Mode) has different functions depending on the recording mode that is
registered.
••Click a cross reference in the text to jump to the corresponding page.
Click this icon to jump to “Finding the information you need”.
Click this icon to jump to “Contents”.
Click this icon to jump to “Menu list”.
Click this icon to return to the previously displayed page.
3
How to use this manual
■■About the symbols in the text
Indicates that the menu can be set by pressing [MENU/SET] button.
Indicates that the Wi-Fi setting can be made by pressing [Wi-Fi] button.
Tips for skillful use and points for recording.
(→00) Indicates the reference page. Click to go to the corresponding page.
Steps for setting a menu item are described as follows:
Example: To change the [Quality] setting to [ ] in the [Rec] menu
→
[Rec] → [Quality] → [ ]
••This Owner’s Manual express the up, down, left, and right of the cursor
.
button as
••Ring, dial and lever operations are illustrated as below.
Turn the control ring
Rotate the rear dial
Rotate the zoom lever
4
Contents
■■Finding the information you need...... 2
■■How to use this manual....................... 3
■■Contents by Function........................ 11
Before Use
■■Before use.......................................... 13
■■Standard Accessories....................... 15
■■Names and Functions
of Main Parts...................................... 16
Preparations
■■Attaching the Hand Strap.................. 18
■■Charging battery................................ 19
■■About the Card................................... 26
■■Inserting and removing the card
■■Setting the clock................................ 29
Inserting the battery....................................20
Charging the battery...................................21
(optional)............................................. 25
Formatting the card (initialization)..............27
Estimated recording capacity
(number of pictures/recording time)............27
Basics
■■Holding the camera............................ 31
■■Buttons/Ring/Dials/Levers
Used for Recording............................ 32
[LVF] button
(Recording pictures using the viewfinder)....32
Zoom Lever (Use Zoom)............................33
Shutter button (Taking pictures)..................34
Motion picture button
(Recording motion pictures).......................35
Mode dial (Select the recording mode).......35
Control ring / Rear dial................................36
Cursor button / [MENU/SET] button
(Selecting/setting items).............................37
[DISP.] button
(Switching the display information).............37
■■Touch screen (Touch operations).... 40
Focusing on the subject at the touched
position (Touch AF, Touch Shutter).............41
Matching the brightness to the touched
position ([Touch AE])...................................42
5
■■Setting the menu................................ 43
■■Calling frequently-used
menus instantly
(Quick Menu)...................................... 45
Change the Quick Menu to your
preferred item.............................................46
■■Assigning frequently
used functions to the buttons
(Function buttons)............................. 47
Using the function buttons during
recording.....................................................48
Using the function buttons during
playback.....................................................49
■■Changing the settings assigned to
the control ring/rear dial.................... 50
■■Entering Text...................................... 51
Contents
Recording mode
■■Taking pictures with
automatic settings
(Intelligent Auto Mode)...................... 52
[Intelligent Auto] menu................................54
Setting coloring...........................................55
Setting brightness (exposure)/
blurriness of the background
(Defocus control function)...........................56
■■Taking pictures after
automatically setting the
aperture value and shutter speed
(Program AE Mode)........................... 57
■■Taking pictures by setting the
aperture value and shutter speed.... 58
Taking pictures by setting the aperture
value (Aperture-Priority AE Mode)..............58
Taking pictures by setting the shutter
speed (Shutter-Priority AE Mode)...............59
Taking pictures by setting the
aperture value and shutter speed
(Manual Exposure Mode)...........................60
Checking the effects of the aperture value
and shutter speed (Preview Mode).............62
Easily set aperture value / shutter speed
for suitable exposure (One Push AE).........63
■■Recording panorama pictures
(Panorama Shot Mode)...................... 64
6
■■Taking pictures according
to the scene
(Scene Guide Mode).......................... 67
Types of Scene Guide Mode......................68
■■Taking Pictures with
different picture effects
(Creative Control Mode).................... 71
Types of picture effects...............................72
■■Recording motion pictures
by setting the aperture/
shutter speed/ISO sensitivity
(Creative Video Mode)....................... 77
Recording Slow Motion Pictures
([High Speed Video])..................................78
Pan or zoom while recording with the
camera in a fixed position
([4K Live Cropping])....................................79
■■Registering your own
settings and recording
(Custom Mode)................................... 81
Registering your own settings
([Cust.Set Mem.]).......................................81
Recording using registered custom set......82
Contents
Focus, Brightness (Exposure) and Color tone Settings
■■Taking pictures with Auto Focus...... 83
Set the focusing operation to be
performed when the shutter button is
pressed halfway (AFS, AFF, AFC)..............84
Switching [AF Mode]...................................85
Changing the position and size
of the AF area.............................................91
Setting the AF area position
with the touch pad......................................94
Optimizing the focus and brightness
for a touched position.................................95
■■Taking pictures with
Manual Focus..................................... 97
■■Taking pictures by locking
the focus and/or exposure
(AF/AE Lock)...................................... 99
■■Taking pictures with
Exposure Compensation................. 100
■■Setting the ISO Sensitivity.............. 101
■■Adjusting the White Balance.......... 103
■■Taking close-up pictures
(Macro recording).............................. 96
4K Photo and Drive Settings
■■Recording with the 4K
Photo function and selecting
pictures to save................................ 107
Recording with the 4K Photo function......107
Selecting pictures from 4K burst file and
saving....................................................... 110
Notes on the 4K Photo function................ 115
■■Adjusting the focus after recording
([Post Focus]/[Focus Stacking])..... 118
Recording using [Post Focus]................... 118
Select the focus point and save the
picture ([Post Focus])...............................120
Select the focus range to combine
and create a single picture
([Focus Stacking]).....................................121
Notes on the [Post Focus]/
[Focus Stacking].......................................122
7
■■Selecting a Drive Mode.................... 123
Burst function............................................124
Taking pictures with self-timer..................126
■■Taking Pictures While
Adjusting a Setting Automatically
(Bracket Recording)......................... 127
Exposure Bracket.....................................128
Aperture Bracket.......................................129
Focus Bracket...........................................129
■■Taking pictures
automatically at set intervals
[Time Lapse Shot]............................ 130
■■Creating stop motion animation
[Stop Motion Animation]................. 133
Contents
Stabilizer, Zoom and Flash
■■Correcting jitter................................ 136
■■Using Zoom...................................... 138
Zoom types and use.................................138
Using the zoom by performing touch
operations (Touch zoom)..........................141
■■Taking pictures with flash............... 142
Changing Flash Mode..............................143
Setting the 2nd curtain sync.....................146
Adjusting the flash output.........................146
Recording motion pictures
■■Recording Motion Picture/
4K Motion Picture............................ 147
Setting the format, picture size and
recording frame rate.................................149
Adjusting the focus while recording
motion pictures ([Continuous AF])............151
■■Taking still pictures while
a motion picture is being
recorded............................................ 152
■■Recording Snap Movies.................. 153
Playing Back and Editing Pictures
■■Viewing your pictures...................... 156
■■Viewing motion pictures................. 157
Capturing still pictures from
motion pictures.........................................158
■■Switching the Playback Method..... 159
Zooming in and viewing
“Playback Zoom”......................................159
Viewing a list of pictures
“Multi Playback”........................................159
Viewing pictures by their recording date
“Calendar Playback”.................................160
8
■■Viewing group pictures................... 161
■■Deleting pictures.............................. 163
Contents
Using Menu Functions
■■Menu list........................................... 164
[Rec].........................................................165
[Motion Picture].........................................179
[Custom]...................................................181
[Setup]......................................................195
[My Menu].................................................205
[Playback].................................................206
Wi-Fi/Bluetooth
■■What you can do with the
Wi-Fi®/Bluetooth® function.............. 222
■■Wi-Fi/Bluetooth Function................ 223
■■Connecting the camera to a
smartphone...................................... 226
Installing the smartphone/tablet app
“Panasonic Image App”............................226
Connecting the camera to a smartphone
compatible with Bluetooth Low Energy.....227
Connecting the camera to a
smartphone that does not support for
Bluetooth Low Energy..............................230
■■Controlling with a Smartphone....... 234
Turning on/off the camera using a
smartphone...............................................234
Operating the shutter button
of the camera using a smartphone
(remote recording)....................................235
Playing back or saving images stored
on the camera, or uploading them
on social media sites................................239
Transferring recorded images to a
smartphone automatically.........................240
Writing location information of a
smartphone on a recorded image.............242
Synchronizing the camera’s clock
with a smartphone....................................243
Combining motion pictures recorded
with Snap Movie according to your
preference on a smartphone....................243
9
■■Displaying still pictures on a TV..... 245
■■Sending pictures.............................. 246
■■Sending pictures to a
smartphone...................................... 249
■■Wireless printing.............................. 250
■■Sending pictures to AV device........ 251
■■Sending pictures to a PC................ 252
■■Using WEB services........................ 254
When sending images to
WEB service.............................................254
When sending images to
[Cloud Sync. Service]...............................257
About the [LUMIX CLUB]..........................258
■■About Wi-Fi connections................. 261
Connecting via a wireless access point
([Via Network])..........................................261
Connecting directly ([Direct])....................264
Connecting quickly with the
same settings as used previously
([Select a destination from History] /
[Select a destination from Favorite]).........265
■■[Wi-Fi Setup]..................................... 267
Contents
Connecting with other devices
■■Enjoying 4K motion pictures.......... 268
Viewing 4K motion pictures......................268
Storing 4K motion pictures.......................269
■■Viewing on TV screen...................... 270
Recording while monitoring
camera images.........................................272
VIERA Link (HDMI) (HDAVI Control™).....273
■■Storing recorded still pictures
and motion pictures in the
recorder............................................ 279
■■Printing............................................. 280
Printing with date and text........................282
■■Storing recorded still pictures
and motion pictures on your PC.... 274
Downloading software..............................275
Copying still pictures and motion
pictures.....................................................277
Others
■■Optional accessories....................... 283
■■Message displays............................ 290
■■Q&A
■■List of monitor/viewfinder
■■Usage cautions and notes.............. 301
AC adaptor (optional) /
DC coupler (optional)................................283
displays............................................. 284
10
Troubleshooting............................... 292
Contents by Function
Recording
Recording
Recording mode............................................35
[Preview]........................................................62
Panorama Shot Mode....................................64
Macro recording.............................................96
Bracket recording........................................127
[Time Lapse Shot]........................................130
[Stop Motion Animation]...............................133
[Silent Mode]................................................175
[Multi Exp.]...................................................178
4K Photo
[4K PHOTO]................................................107
[Post Focus] recording................................. 118
Focus (AF/MF)
Auto Focus....................................................83
AF Mode........................................................85
Adjusting the AF area position.......................91
Manual Focus................................................97
AF/AE Lock....................................................99
Drive
Picture Quality and Color Tone
White Balance.............................................103
[Picture Size]...............................................166
[Quality].......................................................166
[Photo Style]................................................167
[Filter Settings].............................................169
[Color Space]...............................................170
[Highlight Shadow].......................................172
[i.Dynamic]...................................................173
[i.Resolution]................................................173
[Long Shtr NR].............................................174
[Diffraction Compensation]..........................175
[HDR]...........................................................177
Flash
[Flash Mode]................................................143
2nd curtain synchro.....................................146
[Flash Adjust.]..............................................146
Monitoring
Recording while monitoring camera
images.........................................................272
Drive Mode..................................................123
Burst function...............................................124
[Self Timer]..................................................126
Exposure
[Touch AE].....................................................42
[One Push AE]...............................................63
AF/AE Lock....................................................99
Exposure Compensation.............................100
ISO sensitivity..............................................101
Exposure Bracket........................................128
[Metering Mode]...........................................171
Motion Picture
Motion Picture
Creative Video Mode.....................................77
[High Speed Video]........................................78
[4K Live Cropping].........................................79
[Rec Format]/[Rec Quality]..........................149
Taking still pictures while a motion picture
is being recorded.........................................152
[Snap Movie]................................................153
11
Audio
[Wind Noise Canceller]................................180
Screen settings
[Monochrome Live View].............................187
[Center Marker]............................................188
[Zebra Pattern].............................................189
Contents by Function
Setup/Custom
Basic settings
[Format].........................................................27
[Clock Set].....................................................29
Diopter adjustment........................................32
Quick Menu...................................................45
[Beep]..........................................................197
[Economy]....................................................198
[Reset] (initialization)...................................204
Customization
Function buttons............................................47
Custom Mode................................................81
[Custom] menu............................................181
Playback
Playback
Picture playback..........................................156
Motion picture playback...............................157
Playback Zoom............................................159
Multi Playback.............................................159
Delete..........................................................163
[Auto Review]..............................................186
[Slide Show].................................................207
[Rotate]/[Rotate Disp.].........................219, 221
Edit
[Post Focus].................................................120
[Focus Stacking]..........................................121
[Title Edit].....................................................210
[RAW Processing]........................................ 211
[4K PHOTO Bulk Saving]............................213
[Light Composition]......................................214
[Sequence Composition].............................215
[Clear Retouch]............................................216
[Text Stamp].................................................217
[Resize]........................................................218
[Cropping]....................................................219
Image settings
[Protect].......................................................209
[Rating]........................................................209
Wi-Fi/Bluetooth
Image App
Image App...................................................226
Remote start-up...........................................234
Remote recording........................................235
Auto transfer................................................240
In combination with other devices
Playing back pictures on a TV.....................245
Printing images............................................250
Sending images to an AV device.................251
Sending images to a PC..............................252
Sending images to a WEB service..............254
Using [Cloud Sync. Service]........................257
Connecting with other devices
PC
Transferring images to a PC........................274
PHOTOfunSTUDIO.....................................275
SILKYPIX.....................................................276
TV
Playing back pictures on a TV screen.........270
[VIERA Link]................................................273
12
Recorder
Dubbing.......................................................279
Printer
PictBridge....................................................280
Before Use
Before use
■■Camera handling
Keep the camera away from excessive vibration, force, or pressure.
●●Avoid using the camera under the following conditions, which may damage the lens,
monitor, viewfinder, or camera body.
This may also cause the camera to malfunction or prevent recording.
••Dropping or hitting the camera against a hard surface
••Sitting down with the camera in your pants pocket or forcing it into a full bag
••Adding accessories to the camera strap
••Pushing with excessive force on the lens or monitor
The camera is not dust resistant, splash resistant, or waterproof.
Avoid using the camera in places with excessive dust or sand, or where water can
come into contact with the camera.
●●Avoid using the camera under the following conditions, which present a risk that sand,
water, or foreign material may enter the camera through the lens or openings around
buttons. Be especially careful because these conditions may damage the camera, and
such damage may not be repairable.
••In extremely dusty or sandy places
••In the rain or by the shore, where the camera may be exposed to water
■■Condensation (When the lens, the monitor, or viewfinder, is fogged up)
●●Condensation may occur when the camera is exposed to sudden changes of
temperature or humidity. Avoid these conditions, which may make the lens, monitor, or
viewfinder dirty, cause mold, or damage the camera.
●●If condensation does occur, turn off the camera and wait about two hours before using
it. Once the camera adjusts to the surrounding temperature, the fogging will clear
naturally.
13
Before Use
Before use
■■Always take a test shot first
Before important events when you will use the camera (at weddings, for example), always
take a test shot to make sure that pictures and sound record correctly.
■■No compensation for missed shots
We cannot compensate for missed shots if technical problems with the camera or card
prevent recording.
■■Carefully observe copyright laws
Unauthorized use of recordings that contain works with copyright for purposes other than
personal use is prohibited under copyright law. Recording of certain material may be
restricted even for the purpose of personal use.
■■Also refer to “Usage cautions and notes” (→301)
■■Before using the camera, make sure all accessories specified in the attached
“Basic Owner’s Manual” are supplied.
For details on the optional accessories, refer to (→283) or “Basic Owner’s Manual”.
14
Before Use
Standard Accessories
Check that all the accessories are supplied before using the camera.
●●The accessories and their shape will differ depending on the country or area where the
camera was purchased.
For details on the accessories, refer to “Basic Owner’s Manual”.
●●Battery Pack is indicated as battery pack or battery in the text.
●●SD Memory Card, SDHC Memory Card and SDXC Memory Card are indicated as card
in the text.
●●Cards are optional.
●●Please dispose of all packaging appropriately.
●●Keep small parts in a safe place out of the reach of children.
■■Optional accessories (→283)
15
Before Use
Names and Functions of Main Parts
1
2
3
8
9
10
7
6
5
4
11
12
16
15
1 Shutter button (→34)
2 Zoom lever (→33, 138, 186)
3 Motion picture button (→35, 147)
4 Rear dial (→36, 50)
5 Camera [ON/OFF] switch (→29)
6 Mode dial (→35)
7
Flash (→31, 142)
8 Viewfinder (→32, 284)
9 Diopter adjustment dial (→32)
10 Eye sensor (→32)
16
14
13
11 Stereo microphone (→31, 180)
Be careful not to cover the microphone
with your finger. Doing so may make
sound difficult to record.
12 Strap eyelet (→18)
13 Control ring (→36, 50)
14 Lens barrel
15 Lens
16 Self-timer indicator (→126) /
AF Assist Lamp (→31, 183)
Before Use
Names and Functions of Main Parts
20
23
21
24
17
18
19
12
28
25
26
22
27
29
35
34
33
32
31
30
12 Strap eyelet (→18)
28 [HDMI] socket (→270)
17 [LVF] button (→32) /
29 [USB/CHARGE] socket (→21, 277, 280)
[Fn4] button (→47)
18 Flash open lever (→142)
19 [AF/AE LOCK] button (→99)
20 Charging lamp (→22) /
WIRELESS connection lamp (→223)
21 [
] ([Post Focus]) button (→118) /
[Fn2] button (→47)
22 [
] (Delete) button (→163) /
[Q.MENU/ ] (Cancel) button (→45) /
[Fn3] button (→47)
23 [
] (4K photo mode) button (→107) /
[Fn1] button (→47)
24 [
] (Playback) button (→156)
25 Cursor button (→37)
[ ] (Exposure compensation) ( )
(→100)
[ ] (White balance) ( ) (→103)
] (Drive Mode) ( ) (→123)
[
[ ] (Focus Mode) ( ) (→83, 96, 97)
26 [MENU/SET] button (→37, 43)
27 [DISP.] button (→37)
17
30 Card/Battery door (→20, 25)
31 Release lever (→20, 25)
32 DC coupler cover (→283)
When using an AC adaptor, ensure that
the Panasonic DC coupler (optional) and
AC adaptor (optional) are used.
33 Tripod mount (→304)
Do not attach this unit to tripods that
have screws with a length of 5.5 mm
(0.22 inch) or more. Doing so may
damage this unit or the unit may not be
secured properly on the tripod.
34 Speaker (→31, 197)
35 Touch screen (→40) / monitor (→284)
Function buttons [Fn5] to [Fn9] are
touch icons.
They can be displayed by touching the
[ ] tab on the recording screen.
Preparations
Attaching the Hand Strap
We recommend attaching the hand strap when using the camera to prevent it from
dropping.
Strap eyelet
18
Preparations
Charging battery
Always use the dedicated AC adaptor (supplied), USB connection cable (supplied), and
battery for this camera.
••Always charge before first use! (battery shipped uncharged)
••Charge the battery while it is in the camera.
Camera status
Turn off
Turn on
Charge
Yes
No
About batteries that you can use with this unit
It has been found that counterfeit battery packs which look very similar to the
genuine products are made available to purchase in some markets. Some of
these battery packs are not adequately protected with internal protection to
meet the requirements of appropriate safety standards. There is a possibility
that these battery packs may lead to fire or explosion. Please be advised that
we are not liable for any accident or failure occurring as a result of use of a
counterfeit battery pack. To ensure that safe products are used we recommend
that a genuine Panasonic battery pack is used.
19
Preparations
Charging battery
Inserting the battery
To charge the battery, insert it into the camera.
1 Slide the release lever to the [OPEN]
position and open the card/battery door
[OPEN] [LOCK]
Release lever
2
Insert the battery all the way
3
Close the card/battery door and then
slide the release lever to the [LOCK]
position
•• Insert the battery all the way firmly and check
that it is locked by lever.
Make sure to insert the battery in the correct
orientation.
Lever
■■To remove battery
Move the lever in the card/battery
compartment in the direction of the arrow.
●●Always use genuine Panasonic batteries.
●●If you use other batteries, we cannot guarantee the quality of this product.
●●To remove the battery, turn the camera off and wait until the LUMIX indicator on the screen goes
off. (Failure to wait may cause the camera to malfunction and may damage the card or recorded
data.)
●●Remove battery from camera after use.
●●The unusable battery should be discarded in accordance with battery recycling laws.
Call the RBRC hotline at 1-800-822-8837 for information.
20
Preparations
Charging battery
Charging the battery
We recommend charging in a location where the ambient temperature is between 10 °C
and 30 °C (50 °F to 86 °F) (same for the battery temperature).
Insert the battery into the camera.
Make sure that the camera is turned off.
The battery can be charged from an outlet or through a PC.
USB connection cable (supplied)
AC adaptor (supplied)
To the electrical outlet
Computer
Getting ready: Turn on the computer.
When charging the camera, connect the USB connection cable (supplied) to the
[USB/CHARGE] socket.
[USB/CHARGE] socket
•• This terminal is located at the bottom when the camera is in an
upright position.
•• Always check the direction of the socket, and hold the plug straight
to insert or remove it. (If the cable is inserted in the wrong direction,
the socket could become deformed and cause faulty operation.)
Also, do not insert into the wrong socket. Doing so may cause
damage to this unit.
21
Preparations
Charging battery
●●If the computer enters sleep mode during charging, charging may be stopped.
●●If a notebook computer that is not connected to an electrical outlet is connected to the camera,
the battery of the notebook computer will be depleted. Do not leave the camera and notebook
connected for a long period of time.
●●Always connect the USB connection cable to the USB connector on your computer. Do not
connect the USB connection cable to the USB connector of the monitor, keyboard, printer, or USB
hub.
Charging lamp indications
Charging lamp (Red)
On: Charging in progress
Off:Charging complete
(After charging stops, disconnect the camera
from the electrical outlet or your computer.)
Flashing:Charging error
(For instructions on correcting the problem,
refer to (→292).)
22
Preparations
Charging battery
Notes on charging time
When using the AC adaptor (supplied)
Charging time
Approx. 190 min.
••The charging time indicated above is the time required for charging in case when the
battery is completely used up. The time required for charging differs depending on
conditions of battery usage. Charging takes longer in cases when temperatures are
either high or low and when the battery has not been used for a long period of time.
••The time required for charging through the computer varies depending on the power
supply capacity of the computer.
●●Do not use any other USB connection cables except the supplied one. Doing so may cause
malfunction of the camera.
●●Do not use any other AC adaptors except the supplied one.
●●Do not use a USB extension cable.
●●The AC adaptor (supplied) and the USB connection cable (supplied) are dedicated accessories of
this camera. Do not use them for other devices.
●●Remove the battery after use. (The battery will be exhausted if left for a long period of time after
being charged.)
●●If there is any trouble related to the electrical outlet (i.e. power failure), charging may not complete
properly. Disconnect the USB connection cable (supplied) and reconnect it to the camera.
Remaining battery
60p
Remaining battery (only when using battery)
(flashes red)
If the battery mark flashes red, recharge or replace a fully charged
battery.
23
Preparations
Charging battery
Estimated number of recordable pictures and operating time
Numbers of recordable still pictures are based on CIPA (Camera & Imaging Products
Association) standards.
When a Panasonic SDHC memory card and the supplied battery are used.
■■Recording still pictures (When using monitor)
Number of recordable pictures
Approx. 370 pictures
Recording time
Approx. 185 min.
■■Recording still pictures (When using viewfinder (LVF))
The values in parentheses apply when [LVF Display Speed] is set to [ECO 30fps].
Number of recordable pictures
Approx. 250 pictures (Approx. 350 pictures)
Recording time
Approx. 125 min.
■■Recording motion pictures (When using monitor)
[Rec Format]
[AVCHD]
[MP4]
[MP4]
[Rec Quality]
[FHD/17M/60i]
[FHD/28M/60p]
[4K/100M/30p]
Approx. 100 min.
Approx. 100 min.
Approx. 90 min.
Approx. 50 min.
Approx. 50 min.
Approx. 45 min.
Available recording time
Actual available recording time*
*The time you can actually record when repeating actions such as turning the camera on/off and
starting/stopping recording.
■■Viewing pictures (When using monitor)
Playback time
Approx. 260 min.
●●The operating times and number of recordable pictures will differ according to the
environment and the operating conditions.
For example, in the following cases, the operating times shorten and the number of recordable
pictures is reduced.
•• In low-temperature environments, such as on ski slopes.
•• When operations such as the flash and zoom are used repeatedly.
●●If available battery power is significantly reduced, battery is reaching end of lifespan. Please
purchase a new battery.
24
Preparations
Inserting and removing the card (optional)
••Make sure that the camera is turned off.
1
Slide the release lever to the
[OPEN] position and open the
card/battery door
[OPEN] [LOCK]
Release lever
2
Insert the card all the way
Do not touch the terminal
••Check the orientation of a card.
••Insert the card all the way firmly until
it clicks.
3
Close the card/battery door
and slide the release lever to
the [LOCK] position
■■To remove card
Press the center of the card.
Press
Pull out
●●Keep the memory card out of reach of children to prevent swallowing.
●●To remove the card, turn the camera off and wait until the LUMIX indicator on the screen goes
off. (Failure to wait may cause the camera to malfunction and may damage the card or recorded
data.)
25
Preparations
About the Card
The following SD standard-based cards can be used.
Type of Card
Capacity
SD Memory Cards
SDHC Memory Cards
SDXC Memory Cards
Notes
512 MB – 2 GB •• This unit is compatible with UHS-Ι UHS Speed Class 3
standard SDHC/SDXC memory cards.
4 GB – 32 GB
•• Operation of the cards listed on the left has been
48 GB – 128 GB confirmed with Panasonic brand card.
■■About motion picture/4K photo recording and speed class ratings
Use a card that meets the following ratings of the SD Speed Class or UHS Speed Class.
••SD Speed Class and UHS Speed Class are the speed standards regarding continuous
writing. Confirm the SD speed by checking the card label or other card related
materials.
[Rec Format]
[Rec Quality]
[AVCHD]
All
[MP4]
[FHD]/[HD]
[MP4]
[4K]/[High Speed Video]
When recording in 4K Photo /
[Post Focus]
Speed class
Label example
Class 4 or higher
UHS Speed Class 3
UHS Speed Class 3
••Latest information:
http://panasonic.jp/support/global/cs/dsc/
(This site is available in English only.)
Access to the card
The access indication displays red when pictures are being recorded on the
card.
●●While the camera is accessing the card (for an operation such as picture writing, reading, deletion,
or formatting), do not turn off the camera or remove the battery, card, AC adaptor (optional) or DC
coupler (optional). Do not subject the camera to vibrations, impact, or static electricity. The card or
the data on the card may be damaged, and this unit may no longer operate normally. If operation
fails due to vibration, impact or static electricity, perform the operation again.
●●If you set the write-protect switch to “LOCK”, you may not be able to write, delete
or format the data or display it by recording date.
●●It is recommended that you copy important pictures to your computer
(as electromagnetic waves, static electricity, or faults may cause data to be
damaged).
26
6
Preparations
About the Card
Formatting the card (initialization)
Format the card before recording a picture with this unit.
Since data cannot be recovered after formatting, make sure to back up necessary
data in advance.
→
[Setup] → [Format]
●●This requires a sufficiently charged battery, or an AC adaptor (optional) and DC coupler (optional).
●●Do not turn off the camera or perform other operations during formatting.
●●Always format cards with this camera. Please reformat the card with this camera if it has already
been formatted with a computer or another device.
Estimated recording capacity (number of pictures/recording time)
The number of pictures you can take and the recording time vary in proportion to card
capacity (and depending on recording conditions and type of card).
Recording picture capacity (still pictures)
When [Aspect Ratio] is set to [3:2] and [Quality] is set to [
]
[Picture Size]
16 GB
32 GB
L (20M)
1450
2910
64 GB
5810
11510
M (10M)
2650
5310
10510
20810
S (5M)
4600
9220
17640
34940
When [Aspect Ratio] is set to [3:2] and [Quality] is set to [
32 GB
128 GB
]
[Picture Size]
16 GB
64 GB
L (20M)
450
920
1840
3650
M (10M)
530
1070
2140
4250
S (5M)
580
1170
2340
4630
●●When the number of recordable pictures exceeds 9,999, “9999+” is displayed.
27
128 GB
Preparations
About the Card
Recording time capacity (motion pictures)
••The recordable time is the total time of all the motion pictures which have been
recorded.
([h], [m] and [s] indicate “hour”, “minute” and “second”.)
When [Rec Format] is [AVCHD]
[Rec Quality]
16 GB
32 GB
64 GB
[FHD/28M/60p]
1h10m
2h30m
5h00m
128 GB
9h55m
[FHD/17M/60i]
2h00m
4h05m
8h15m
16h25m
[FHD/24M/30p]
[FHD/24M/24p]
1h25m
2h55m
5h50m
11h35m
When [Rec Format] is [MP4]
[Rec Quality]
16 GB
32 GB
64 GB
128 GB
[4K/100M/30p]
[4K/100M/24p]
20m00s
41m00s
1h25m
2h45m
[FHD/28M/60p]
1h10m
2h25m
5h00m
9h55m
[FHD/20M/30p]
1h35m
3h15m
6h40m
13h15m
[HD/10M/30p]
3h05m
6h20m
12h45m
25h20m
●●[AVCHD] motion pictures:
Files are split into smaller motion picture files for recording when the file size exceeds 4 GB.
•• Motion pictures with [Rec Quality] setting of [FHD/28M/60p]/[FHD/17M/60i]:
Recording stops when the continuous recording time exceeds 29 minutes and 59 seconds.
●●MP4 motion pictures with a [Rec Quality] size of [FHD] or [HD]:
Files are split into smaller motion picture files for recording and playback when the file size
exceeds 4 GB. (You can continue to record motion pictures without interruption.)
•• Motion pictures with [Rec Quality] setting of [FHD/28M/60p]:
Recording stops when the continuous recording time exceeds 29 minutes and 59 seconds.
●●MP4 motion pictures with a [Rec Quality] size of [4K]:
Recording stops when the continuous recording time exceeds 15 minutes.
When using an SDHC memory card, files are split into smaller motion picture files for recording
and playback if the file size exceeds 4 GB. (You can continue to record motion pictures without
interruption.)
If using an SDXC memory card, you can record a motion picture in a single file even if the size is
greater than 4 GB.
●●The maximum available continuous recording time is displayed on the screen.
28
Preparations
Setting the clock
The clock is not set when the camera is shipped.
1
Set the Camera [ON/OFF] switch to [ON]
2
3
Press [MENU/SET] while the message is displayed
4
5
Press [MENU/SET]
••If the language select screen is not displayed, proceed
to step 4.
Press
to select the language, and press [MENU/SET]
••The [Please set the clock] message appears.
Press
to select the items (year,
month, day, hour, minute), and press
to set
: Home time
: Destination time
Style
Display order
Time display format
■■To set the display order or time display format
Select [Style] and press [MENU/SET] to display the
setting screen for display order and time display format.
6
29
Press [MENU/SET]
Preparations
Setting the clock
7
8
9
When [The clock setting has been completed.] is displayed,
press [MENU/SET]
When [Please set the home area] is displayed, press
[MENU/SET]
Press
to set your home area and
press [MENU/SET]
City or area name
Current time
Difference from GMT (Greenwich Mean Time)
■■Changing time settings
Perform steps 5 and 6 by selecting [Setup] menu → [Clock Set].
••For details about how to set the menu (→43)
30
Basics
Holding the camera
Hold the camera gently with both hands keeping your arms close to your body
while standing with your feet slightly apart.
••To prevent dropping, be sure to attach the supplied strap and fit it to your wrist.
••Do not block the flash, AF Assist Lamp, microphone, or speaker with your fingers
or other objects.
••Make sure that the camera does not move at the moment the shutter button is pressed.
••Make sure your footing is stable and there is no danger of colliding with another person
or object in the vicinity while taking pictures.
AF Assist Lamp
Flash
Microphone
Speaker
Hand strap
■■About the direction detect function
Still pictures recorded with the camera held vertically can be
automatically displayed in portrait orientation during playback.
(Only when [Rotate Disp.] is set to [ON].)
••The direction detect function may not operate correctly if
pictures are taken with the camera pointing up or down.
••Motion pictures, 4K burst files recorded with the 4K Photo
function, and pictures recorded in [Post Focus] cannot be
displayed vertically.
31
Basics
Buttons/Ring/Dials/Levers Used for Recording
[LVF] button (Recording pictures using the viewfinder)
1
Press [LVF] button
Eye Sensor
[LVF] button
You can switch between monitor display and Viewfinder display.
Automatic switching
between viewfinder and
monitor*
Viewfinder display*
Monitor display
*When [Eye Sensor AF] in the [Custom] ([Focus / Release Shutter]) menu is set to [ON], the camera
adjusts the focus automatically as the eye sensor is activated. Even when [Eye Sensor AF] is set
and the camera automatically adjusts the focus, a beep will not sound.
■■Automatic switching between viewfinder and monitor
The eye sensor automatically switches the display to viewfinder when your eye or an
object moves close to the viewfinder. When the eye or object moves away from the
viewfinder, the camera returns to monitor display.
■■About diopter adjustment
Rotate the diopter adjustment dial to adjust until you are able
to clearly see the characters displayed in the viewfinder.
●●If [LVF Display Speed] is set to [ECO 30fps] when the viewfinder is used, the camera can be
operated for a longer period since battery drainage is reduced.
●●The eye sensor may react depending on the shape of your eyeglasses, the way you hold the
camera, or whether the eye sensor is exposed to strong light.
●●During motion picture playback or Slide Show, the eye sensor does not operate.
32
Basics
Buttons/Ring/Dials/Levers Used for Recording
Zoom Lever (Use Zoom)
You can adjust the area of a picture to be taken using the zoom or control ring.
••You can also use the zoom function from the touch panel. (→141)
••For details about zoom types and use, refer to (→138).
1
Zoom lever
Move the zoom lever
1
Control ring
Turn the control ring*
*You can perform zoom operation by assigning
the [Zoom] setting to the control ring. (→50)
T side: Telephoto, Enlarge the subject
W side: Wide-angle, Capture a wider area
Clockwise: Telephoto, Enlarge the subject
Counterclockwise: Wide-angle, Capture a wider
area
●●Do not touch the lens barrel during zooming.
●●Adjust the focus after adjusting the zoom.
●●The camera may make a rattling noise and vibrate when the zoom lever or control ring is
operated. This is not a malfunction.
33
Basics
Buttons/Ring/Dials/Levers Used for Recording
Shutter button (Taking pictures)
1
Press the shutter button halfway (press lightly) to
focus on the subject
Focus display
(When focus is aligned: illuminated
When focus is not aligned: flashing)
Aperture value
Shutter speed
•• The aperture value and shutter speed are displayed. (If the
aperture value and shutter speed are shown in red and flashing,
you do not have the appropriate exposure, unless you are using
the flash.)
2
Press the shutter button fully (push the button all the
way), and take the picture
●●Pictures can be taken only when the image is correctly focused as long as the [Focus/
Release Priority] is set to [FOCUS].
●●When [Monitor Display Speed] or [LVF Display Speed] (or both) is set to [ECO 30fps],
Digital Zoom is not available.
●●Even during menu operation or picture playback, if you press the shutter button halfway, you can
instantly set the camera ready for recording.
■■Focus range
Focus range is displayed when operating the zoom
Focus range
••The focus range is displayed in red when it is not focused
after pressing the shutter button halfway.
The focus range may change gradually depending on the zoom position.
34
Basics
Buttons/Ring/Dials/Levers Used for Recording
Motion picture button (Recording motion pictures)
1
Press the motion picture button to start recording
2
Press the motion picture button again to end recording
•• Immediately release the motion picture button after pressing it.
Mode dial (Select the recording mode)
1
Set to the desired recording mode
•• Rotate the mode dial slowly to select the desired mode.
Intelligent Auto Mode (→52)
Intelligent Auto Plus Mode (→52)
Program AE Mode (→57)
Aperture-Priority AE Mode (→58)
Shutter-Priority AE Mode (→59)
Manual Exposure Mode (→60)
Creative Video Mode (→77)
Custom Mode (→81)
Panorama Shot Mode (→64)
Scene Guide Mode (→67)
Creative Control Mode (→71)
35
Basics
Buttons/Ring/Dials/Levers Used for Recording
Control ring / Rear dial
You can select menu items etc. by rotating the rear dial.
You can use the control ring ( )/rear dial ( ) to change the settings for recording.
Following are the pre-assigned settings.
Mode dial
Control ring*1
Rear dial
—
Step Zoom
Program Shift
Aperture adjustment
Shutter speed adjustment
Aperture adjustment*2
Aperture adjustment*3 /
Shutter speed adjustment*2
Shutter speed adjustment*3
Picture effects change
Aperture adjustment*4 /
Shutter speed adjustment*5
Picture effects change
*1 When Manual Focus is set, the control ring is assigned to focus adjustment.
*2 Press to switch between shutter speed adjustment and aperture adjustment.
*3When [Exposure Mode] is set to [A], [S], or [M], you can change the aperture value and shutter
speed in the same way as when the mode dial is set to [
], [
], or [
].
*4 The operation is possible only when the Scene Guide Mode is set to [Appetizing Food].
*5 The operation is possible only when the Scene Guide Mode is set to [Artistic Nightscape].
The control ring/rear dial can be used to change to your preferred settings. (→50)
36
Basics
Buttons/Ring/Dials/Levers Used for Recording
Cursor button / [MENU/SET] button (Selecting/setting items)
Pressing the cursor button:
Selection of items or setting of values etc., is performed.
Pressing [MENU/SET]:
Confirmation of setting contents, etc., is performed.
[DISP.] button (Switching the display information)
1
Press [DISP.] button to switch the display
During recording
You can switch the viewfinder/monitor display method.
→
[Custom] →
[Monitor / Display] → [LVF/Monitor Disp. Set]
→ [LVF Disp. Set] or [Monitor Disp. Set]
[
] (viewfinder style)
Scales down images slightly so that you can better review the
composition of the images.
[
] (monitor style)
Scales images to fill the entire screen so that you can see their details.
■■[
] Live View Finder style display layout (Example of viewfinder style display)
With information
(Detailed information)
60p
37
With information
With information
(Detailed information)
+
level gauge
60p
With information
+
level gauge
Basics
Buttons/Ring/Dials/Levers Used for Recording
■■[
] Monitor style display layout (Example of monitor style display)
With information
Without information
60p
With information
+
level gauge
Without information
+
level gauge
60p
Turned off
●●With [Fn Button Set] in the [Custom] ([Operation]) menu, you can assign [LVF/Monitor Disp. Style]
to a function button. Each time you press the assigned function button, the display style of the
]/[
]), whichever is currently in use, will change.
monitor or viewfinder ([
■■Using the level gauge
The yellow line indicates the current angle. Correct the angle of the camera so that it
matches the white line.
Tilting up or down
Tilting left or right
•• In this case, it is facing upward.
•• In this case, the right side has
dropped.
••When the camera is tilted very little or not at all, the level gauge will turn green.
●●Even when angle is corrected, there may be an error of about ±1 degree.
●●The level gauge may not be displayed correctly or the direction detect function may not operate
correctly if the pictures are taken with the camera pointing sharply up or down.
38
Basics
Buttons/Ring/Dials/Levers Used for Recording
During playback
With information
Detailed information
display*1
Without information
([Highlight])*2
Without information
1/5
AM10:00 DEC. 1.2018
100-0001
*1 Press
to switch between the following display modes:
–– Detailed information display
–– Histogram display
–– Photo style, Highlight shadow display
–– White balance display
–– Lens information display
*2 This screen is displayed only when [Highlight] in the [Custom] ([Monitor / Display]) menu is set to
[ON].
39
Basics
Touch screen (Touch operations)
Touch
To touch and release the touch screen.
Drag
To touch and slide your finger across the touch screen.
Pinch (spread/pinch)
On the touch screen, spread (pinch out) your 2 fingers to
zoom in, and pinch (pinch in) your 2 fingers to zoom out.
●●Touch the screen with the clean and dry finger.
●●If you use a commercially available monitor protection sheet, please follow the instructions that
accompany the sheet. (Some monitor protection sheets may impair visibility or operability.)
●●The touch screen may not function normally in the following cases.
•• When touched by a gloved hand
•• When the touch screen is wet
40
Basics
Touch screen (Touch operations)
Focusing on the subject at the touched position
(Touch AF, Touch Shutter)
Recording mode:
1
Touch [
2
Touch an icon
]
•• The icon switches every time you touch it.
Focuses on the position you touch.*
[
] (Touch AF)
[
] (Touch shutter)
Focuses on the touched position before recording takes place.*
] (OFF)
Touch AF and Touch Shutter are disabled.
[
*When [Touch AF] in [Touch Settings] of the [Custom] ([Operation]) menu is set to [AF+AE], the
focus and brightness are optimized for the touched position. (→95)
3
(When settings other than OFF are selected)
Touch the subject
For details on changing the position and size of the AF area when
] (Touch AF) is set, refer to (→91).
the [
●●If shooting with the touch shutter fails, the AF area turns red and disappears.
41
Basics
Touch screen (Touch operations)
Matching the brightness to the touched position ([Touch AE])
Recording mode:
When the face of the subject appears dark, you can brighten the screen according to the
brightness of the face.
1 Touch [ ]
2
Touch [
3
Touch the subject you want to optimize the brightness
for
]
•• The setting screen for the brightness optimization position is
displayed.
], which is used exclusively for the
•• [Metering Mode] is set to [
[Touch AE].
•• Touching [Reset] will bring the brightness optimization position
back to the center.
Reset
4
Touch [Set]
■■Canceling the [Touch AE] function
Touch [ ]
●●This function is not available in the following cases:
•• When using the Digital Zoom
•• When recording with [High Speed Video]
•• When recording using [4K Live Cropping]
•• When [Touch AF] in [Touch Settings] of the [Custom] ([Operation]) menu has been set to
[AF+AE]
42
Set
Basics
Setting the menu
Menu settings can be made either by button or touch operation.
1
Press [MENU/SET] to bring up the menu
2
Switch the menu type
Menu type
Press
Press
to select a tab such as [
Press [MENU/SET]
]
With touch screen operations
Touch a tab, such as [ ]
[Rec]
(→165)
You can perform settings for the aspect ratio, number of pixels, 4K
Photo, etc.
[Motion Picture]
(→179)
You can select the recording format and picture quality and other
settings.
[Custom]
(→181)
Operation of the unit, such as displaying of the screen and button
operations, can be set up according to your preferences.
[Setup]
(→195)
You can perform settings that make usage more convenient, such
as the changing the clock settings and beep tone. You can also
perform Wi-Fi/Bluetooth function-related settings.
[My Menu]
(→205)
You can register frequently used menus.
[Playback]
(→206)
You can perform settings for playback and editing pictures.
••Menus to be displayed in each recording mode (→164)
43
Basics
Setting the menu
3
Press
to select the menu item and
press [MENU/SET]
Item
Page
••You can switch to the next page by rotating the rear
dial.
With touch screen operations
Touch the menu item
•• You can switch pages by touching
display.
4
on the right side of the
Press
to select the setting and press
[MENU/SET]
Selected setting
Settings
••The setting methods vary depending on the menu
item.
With touch screen operations
Touch the setting to set
5
Press [Q.MENU/ ] button repeatedly
until the recording or playback screen
reappears
••During recording, the menu screen can also be exited
by pressing the shutter button halfway.
With touch screen operations
Touch [ ]
●●You can display an explanation on the menu by pressing the
[DISP.] button while you select a menu item or setting.
●●The menu items that cannot be set are grayed out. In some
setting conditions, the reason the setting is disabled is
displayed when you press [MENU/SET] if you select a grayedout menu item.
44
Basics
Calling frequently-used menus instantly
(Quick Menu)
You can easily call some of the menu items and set them during recording.
1
Press [Q.MENU/ ] button
2
Rotate the rear dial to select a menu item,
and press or
••The menu item can also be selected by pressing
60p
.
3
Rotate the rear dial to select the setting
4
Press [Q.MENU/ ] button to close the Quick menu
••The setting can also be selected with
60p
.
●●Some items or settings cannot be selected depending on the mode or display style the camera is
in.
45
Basics
Calling frequently-used menus instantly (Quick Menu)
Change the Quick Menu to your preferred item
Up to 15 items can be set to the Quick Menu.
→
[Custom] →
[Operation] → [Q.MENU] → [CUSTOM]
1
After pressing the [Q.MENU/ ] button, press
select [
], and press [MENU/SET]
2
Press
to select the menu item in the top row
and press [MENU/SET]
to
Top row: Items that can be set
Bottom row: Set items
3
4
46
•• Items that are displayed in light gray in the top row have already
been set.
Press
to select the empty space in the bottom row
and press [MENU/SET]
•• You can also set the menu item by dragging it from the top row to
the bottom row.
•• If there is no empty space in the bottom row, you can replace an
existing item with a new select item by selecting the existing item.
•• To cancel the setting, move to the bottom row by pressing and
select an item to cancel, and then press [MENU/SET].
Press [Q.MENU/ ] button
•• It will return to screen of step 1. Press [MENU/SET] to switch to the recording screen.
Basics
Assigning frequently used functions to the buttons
(Function buttons)
You can assign frequently-used functions to particular buttons ([Fn1] - [Fn4]) or icons
displayed on the screen ([Fn5] - [Fn9]).
1
Set the menu
→
[Custom] →
[Operation] → [Fn Button Set]
Settings: [Setting in REC mode] / [Setting in PLAY mode]
2
Press
to select the function button
you want to assign a function to and
press [MENU/SET]
3
Press
to select the function you want to assign and press
[MENU/SET]
••For details on the functions that can be assigned in [Setting in REC mode], refer
to (→48).
••For details on the functions that can be assigned in [Setting in PLAY mode], refer
to (→49).
■■Rapidly assigning functions
The screen displayed in Step 3 can be displayed by holding a function button ([Fn1] to
[Fn4]) for 2 seconds.
●●Certain functions cannot be assigned to some function buttons.
●●The function assigned to the function button may not work in some modes or on some display
screens.
47
Basics
Assigning frequently used functions to the buttons (Function buttons)
Using the function buttons during recording
Press the function button to use the assigned function.
■■Using function buttons with touch operations
Touch [
]
Touch [Fn5], [Fn6], [Fn7], [Fn8] or [Fn9]
■■Functions that can be assigned in [Setting in REC mode]
•• [4K Photo Mode]: [Fn1]*1
•• [Post Focus]: [Fn2]*1
•• [Wi-Fi]: [Fn5]*1
•• [Q.MENU]: [Fn3]*1
•• [Video Record]
•• [LVF/Monitor Switch]: [Fn4]*1
•• [LVF/Monitor Disp. Style]
•• [AF/AE LOCK]
•• [AF-ON]
•• [Preview]
•• [One Push AE]
•• [Touch AE]
•• [Level Gauge]: [Fn6]*1
•• [Focus Area Set]
•• [Operation Lock]
•• [Photo Style]
•• [Filter Effect]
•• [Aspect Ratio]
•• [Picture Size]
•• [Quality]
•• [Sensitivity]
•• [AF Mode]
•• [AFS/AFF/AFC]
•• [Metering Mode]
•• [Bracket]
•• [Highlight Shadow]
•• [i.Dynamic]
•• [i.Resolution]
•• [Min. Shtr Speed]
•• [HDR]
•• [Shutter Type]
•• [Flash Mode]
•• [Flash Adjust.]
•• [i.Zoom]
•• [Digital Zoom]
•• [Stabilizer]
•• [4K Live Cropping]
•• [Snap Movie]: [Fn8]*1
*1Function button settings at the time of purchase.
*2No function is assigned to function buttons.
48
•• [Motion Pic. Set]
•• [Silent Mode]
•• [Peaking]
•• [Histogram]: [Fn7]*1
•• [Guide Line]
•• [Zebra Pattern]
•• [Monochrome Live View]
•• [Constant Preview]
•• [Rec Area]
•• [Zoom lever]
•• [Exposure Comp.]
•• [White Balance]
•• [Focus Mode]
•• [Drive Mode]
•• [Rec / Playback Switch]
•• [Off]*2: [Fn9]*1
Basics
Assigning frequently used functions to the buttons (Function buttons)
●●When [Video Record] is assigned to the function button, you can start and stop recording motion
pictures in the same way as pressing the motion picture button.
●●When [Focus Area Set] is assigned to the function button, you can display the AF area or the MF
Assist position setting screen.
●●When [Operation Lock] is assigned to the function button, you can disable the operations that
were set using [Operation Lock Setting] in the [Custom] ([Operation]) menu. To cancel the lock,
press the function button to which [Operation Lock] is assigned again.
●●When [Rec / Playback Switch] is assigned to the function button, you can switch between
recording mode and playback mode.
●●To restore the default function button settings, select [Restore to Default] in
step 3 (→47).
●●If the screen displays or similar, the displayed operation will be
performed instead of the function assigned to function buttons by
[Fn Button Set].
Using the function buttons during playback
You can directly set an assigned function to a selected image by pressing the function
button during playback.
Example: When [Fn2] is set to [Rating★3]
to select the picture
1 Press
2
Press [Fn2] button, and then set the picture as
[Rating★3]
■■Functions that can be assigned in [Setting in PLAY mode]
••The following functions can be assigned to the button [Fn1], [Fn2] or [Fn4].
•• [Wi-Fi]: [Fn1]*1
•• [LVF/Monitor Switch]: [Fn4]*1
•• [Rec / Playback Switch]
•• [4K PHOTO Play]
•• [Delete Single]
•• [Protect]
•• [Rating★1]
•• [Rating★2]
•• [Rating★3]: [Fn2]*1
•• [Rating★4]
•• [Rating★5]
•• [RAW Processing]
•• [4K PHOTO Bulk Saving]
•• [Off]*2
*1Function button settings at the time of purchase.
*2No function is assigned to function buttons.
●●To restore the default function button settings, select [Restore to Default] in step 3 (→47).
49
Basics
Changing the settings assigned to the control ring/
rear dial
Recording mode:
Changes the settings assigned to the control ring/rear dial.
→
Settings: [
1
Use
[Custom] →
[Operation] → [Ring/Dial Set]
] (control ring) / [
] (rear dial)
to select the setting and press [MENU/SET]
[DEFLT] [Normal]
[Photo Style]
[Zoom]*
[Filter Effect]
[Step Zoom]*
[Aspect Ratio]
[Exposure Comp.]
[Highlight Shadow]
[Sensitivity]
[i.Dynamic]
[White Balance]
[i.Resolution]
[AF Mode]
[Flash Mode]
[Focus Mode]
[Flash Adjust.]
[Drive Mode]
[OFF] [Not Set]*
* Items that can only be set to the control ring
••To return to the default setting, select [Normal].
••If you do not use the control ring, select [Not Set].
••Under [Highlight Shadow], use the control ring and rear dial.
If [Highlight Shadow] is assigned to the control ring (or rear dial), [Highlight
Shadow] will also be assigned to the rear dial (or control ring).
●●The assigned function setting applies to all the recording modes.
However, the assigned function may not operate when combined with certain recording mode.
50
Basics
Entering Text
Follow the steps below when the text entry screen is displayed.
1
2
Use
to select characters
Press [MENU/SET] several times until the
desired character is displayed
••[
]: Enter a blank.
■■To change the character type
••Press [DISP.] button
••Use
to select [
] and press [MENU/SET]
■■To continue entering characters
••Use
to select [ ] and press [MENU/SET]
••Move the zoom lever toward T side
••Rotate the rear dial counterclockwise.
■■To edit text
Use
to select [ ] [ ] and press [MENU/SET]. Then, move the cursor to
the text to edit
•• You can also use the zoom lever or rear dial to reposition the cursor.
Use
Use
3
to select [Delete] and press [MENU/SET]
to select the correct text, and press [MENU/SET]
When you are finished entering text, use
[Set] and press [MENU/SET]
to select
●●A maximum of 30 characters can be entered (maximum of 9 characters when setting names in
[Face Recog.]).
●●A maximum of 15 characters can be entered for [
6 characters when setting names in [Face Recog.]).
51
], [ ], [ ], [ ] and [
] (maximum of
Recording mode
Taking pictures with automatic settings
(Intelligent Auto Mode)
Recording mode:
This mode is recommended for those who want to point and shoot as the camera
optimizes settings to match the subject and recording environment.
1
Set mode dial to [
2
Point the camera at the subject
]
••At the time of purchase, the mode is set to Intelligent
Auto Plus Mode.
60p
••When the camera identifies the optimal scene, the
icon for each scene turns blue for 2 seconds and then
changes to the normal red indication.
(Automatic Scene Detection)
■■Switching between Intelligent Auto Plus Mode and Intelligent Auto Mode
Select [Intelligent Auto Mode] in [Intelligent Auto] menu
Press
to select [
] or [
] and press [MENU/SET]
It is also possible to display the selection screen by touching the Recording
mode icon in recording screen.
6
[ ] allows you to adjust some settings such as the brightness and color tone while
also using [ ] for other settings so that you can record pictures more suited to your
preferences.
(○: Available, –: Not available)
Intelligent Auto Plus Mode
Intelligent Auto Mode
Setting the color tone
○
–
Setting the brightness
(exposure)
○
–
Defocus control
function
Menus that can be set
52
○
–
Many
Few
Recording mode
Taking pictures with automatic settings (Intelligent Auto Mode)
Auto Focus, Face/Eye Detection, and Face Recognition
[AF Mode] is automatically set to [ ]. If you touch the subject, the camera switches to
[ ] and the AF tracking function starts operating.
••You can also switch to [ ] by pressing [MENU/SET], going to the [Rec] menu, then
going to the [AF Mode] menu and selecting [ ] (tracking). Align the AF tracking
area with the subject and press the shutter button halfway to operate the AF tracking
function.
••When [Face Recog.] is set to [ON] and if the camera recognizes a face similar to a
registered face, [R] is displayed on the upper right corner of the [
], [
], and [
]
icons.
Flash
When the flash is open, the camera will automatically be set to [ ], [
] (Auto/Red-Eye
Reduction), [
], or [ ], depending on the type of subject and brightness.
●●When [
] or [
] is displayed, the [Red-Eye Removal] function is activated to automatically
detect red-eye and correct the picture data.
●●When [ ] or [ ] is selected, the shutter speed is reduced.
Automatic Scene Detection
When taking pictures
/
[i-Portrait]
[i-Scenery]
[i-Macro]
[i-Night Portrait]*1
[i-Night Scenery]
[i-Handheld Night Shot]*2
[i-Food]
[i-Baby]*3
[i-Sunset]
When scene does not correspond to any of the above
When recording motion pictures
[i-Portrait]
/
[i-Scenery]
[i-Low Light]
[i-Macro]
When scene does not correspond to any of the above
*1Displayed only when using flash.
*2When [iHandheld Night Shot] is [ON].
*3When children (that are registered in the camera with Face Recognition) under 3 years old are
recognized.
53
Recording mode
Taking pictures with automatic settings (Intelligent Auto Mode)
••When the camera identifies [ ] as the optimal scene and if the camera determines
that jitter is reduced by the use of a tripod or by other means, a shutter speed that
is slower than usual is selected. After pressing the shutter button, do not move the
camera while recording.
••When recording 4K photos or when recording using [Post Focus], Scene Detection
works the same way as when recording motion pictures.
●●Depending on recording conditions, different scene types may be determined for the same
subject.
About Backlight Compensation
Backlight compensation is automatically activated in Intelligent Auto Plus Mode or Intelligent Auto
Mode. Backlight is a condition where a light shines from behind a subject. When there is a backlight,
the subject appears darker and the camera will automatically attempt to correct it by increasing the
brightness of the picture.
[Intelligent Auto] menu
Taking pictures using a handheld camera ([iHandheld Night Shot])
Recording mode:
If a night scene is detected automatically while the unit is being handheld, [iHandheld
Night Shot] can record a still picture with less jitter and less noise without using a tripod
by combining a burst of pictures.
→
/
[Intelligent Auto] → [iHandheld Night Shot]
Settings: [ON] / [OFF]
●●The angle of view becomes narrow slightly.
●●After the shutter button has been pressed, do not move the camera during the burst operation.
●●The flash is fixed to the [ ] (Forced Flash Off) setting.
●●This function will not work for still pictures while motion pictures are being recorded.
●●This function is not available in the following cases:
•• When using [Burst]
•• When recording 4K photos
•• When recording using [Post Focus]
•• When recording using [Bracket]
], [
] or [ ]
•• When [Quality] is set to [
•• When using [Time Lapse Shot]
•• When [Auto Shooting] of [Stop Motion Animation] is set to [ON]
54
Recording mode
Taking pictures with automatic settings (Intelligent Auto Mode)
Combining pictures into a single still picture with rich gradation ([iHDR])
Recording mode:
When there is, for example, strong contrast between the background and the subject,
[iHDR] records multiple still pictures with differing exposures and combines them to
create a single still picture rich in gradation.
[iHDR] is activated when required. When activated, [
] will be displayed on the screen.
→
/
[Intelligent Auto] → [iHDR]
Settings: [ON] / [OFF]
●●The angle of view becomes narrow slightly.
●●After the shutter button has been pressed, do not move the camera during the burst operation.
●●Since a burst of still pictures are combined after they have been recorded, it will be a few
moments before you can record another picture.
●●In the case of composition from a burst, afterimages may appear if the subject was moving.
●●This function will not work for still pictures while motion pictures are being recorded.
●●This function is not available in the following cases:
•• When recording using the flash
•• When using [Burst]
•• When recording 4K photos
•• When recording using [Post Focus]
•• When recording using [Bracket]
], [
] or [ ]
•• When [Quality] is set to [
•• When using [Time Lapse Shot]
•• When [Auto Shooting] of [Stop Motion Animation] is set to [ON]
Setting coloring
Recording mode:
1
2
55
Press
to display the setting screen
Rotate the rear dial to adjust color
•• Press [MENU/SET] to return to the recording screen.
•• The color setting will return to the default level (center point)
when this unit is turned off or the camera is switched to another
Recording mode.
•• With touch screen operations (→56)
Recording mode
Taking pictures with automatic settings (Intelligent Auto Mode)
Setting brightness (exposure)/blurriness of the background
(Defocus control function)
Recording mode:
1
Press
2
Rotate the rear dial to set
to display the setting screen
•• The brightness (exposure) operation screen is displayed. Press [Fn1] to operate the defocus
control, and then press it again to finish the operation.
•• Press [MENU/SET] to return to the recording screen.
When setting the brightness (exposure)
to set the Exposure Bracket. (→128)
•• Press
OFF
When setting the background defocusing
•• Pressing [Q.MENU/ ] button will cancel the setting.
]. The position of the AF area can
•• Auto Focus Mode is set to [
be set by touching the screen. (Its size cannot be changed)
250
■■With touch screen operations
Touch [ ]
Touch the item you want to set
[ ]: Coloring
[ ]: Degree of defocusing
[ ]: Brightness
Drag the slide bar or exposure meter to set
•• Press [MENU/SET] to return to the recording screen.
56
125
60
30
15
4.0
5.6
8.0
Recording mode
Taking pictures after automatically setting the
aperture value and shutter speed (Program AE Mode)
Recording mode:
Take pictures using automatic aperture values and shutter speed settings in accordance
with the brightness of a subject.
1
2
Set mode dial to [ ]
3
While the numeric values are displayed
(approximately 10 seconds), rotate the
rear dial to change the values using
Program Shift
Press the shutter button halfway
60p
••If the aperture value and shutter speed flash red, you do not have the correct
exposure.
250
125
60
30
15
4.0
5.6
8.0
Program Shift indication
Aperture value
Shutter speed
••The operation can also be performed by rotating the control ring.
••To cancel Program Shift, either turn off the camera or rotate the rear dial until the
Program Shift indication turns off.
••Program Shift can easily be canceled by setting a function button to [One Push
AE]. (→47, 63)
About Program Shift
The function for maintaining the same exposure (brightness) while changing the aperture
value and shutter speed combination is called “Program Shift”. You can use “Program
Shift” to take pictures by adjusting the aperture value and shutter speed even in Program
AE Mode.
●●Program Shift cannot be used in the following cases:
•• When recording using the flash
•• When recording 4K photos
•• When recording using [Post Focus]
]
•• When ISO sensitivity is set to [
57
Recording mode
Taking pictures by setting the aperture value and
shutter speed
Recording mode:
••The effect of the aperture value and shutter speed you have set is not applied to the
recording screen. To check the effect on the recording screen, use Preview Mode.
(→62)
••The brightness of the screen may vary from the actual pictures recorded. Check the
brightness of pictures using the playback screen.
••When you adjust the aperture value and shutter speed, an exposure meter is displayed.
If aperture and shutter speed are shown in red, you do not have appropriate exposure.
••If the correct exposure is not achieved when you press the shutter button halfway, the
numeric values of the aperture and shutter speed are displayed in flashing red.
Taking pictures by setting the aperture value
(Aperture-Priority AE Mode)
When you set the aperture value, the camera automatically optimizes the shutter speed
for the brightness of the subject.
1
2
Set mode dial to [
]
Rotate the rear dial to set the aperture value
•• The operation can also be performed by rotating the control ring.
Aperture value
Exposure meter
Aperture values
that can be set*
F3.3 - F8.0
250
Shutter speed set (seconds)
60 - 1/2000
(When the mechanical shutter is used)
1 - 1/16000
(When the electronic shutter is used)
*You may not be able to select some values depending on zoom
position.
58
125
60
30
15
4.0
5.6
8.0
Recording mode
Taking pictures by setting the aperture value and shutter speed
Taking pictures by setting the shutter speed
(Shutter-Priority AE Mode)
When you set the shutter speed, the camera automatically optimizes the aperture value
for the brightness of the subject.
1
2
Set mode dial to [
]
Rotate the rear dial to set the shutter speed
•• The operation can also be performed by rotating the control ring.
Shutter speed
Exposure meter
Shutter speeds that can be set (seconds)
60 - 1/2000
(When the mechanical shutter is used)
1 - 1/16000
(When the electronic shutter is used)
59
15
Aperture value
set
F3.3 - F8.0
8.0
30
5.6
60
4.0
125
250
Recording mode
Taking pictures by setting the aperture value and shutter speed
Taking pictures by setting the aperture value and shutter speed
(Manual Exposure Mode)
Determine the exposure by manually setting the aperture value and the shutter speed.
1
2
Set mode dial to [
]
Turn the control ring to set the aperture value, and turn
the rear dial to set the shutter speed
•• You can switch the setting operation of control ring and rear dial
by pressing .
8
Aperture value
Shutter speed
Manual Exposure Assist
Exposure meter
Aperture values that
can be set*
F3.3 - F8.0
15
30
60
4.0
5.6
8.0
125
Shutter speeds that can be set
(seconds)
T (Time), 60 - 1/2000
(When the mechanical shutter is used)
1 - 1/16000
(When the electronic shutter is used)
*You may not be able to select some values depending on zoom
position.
Optimizing the ISO sensitivity for the aperture value and shutter speed
When the ISO sensitivity is set to [AUTO], the camera sets the ISO sensitivity automatically so that the
exposure will be appropriate for the aperture value and shutter speed.
•• Depending on recording conditions, an appropriate exposure may not be set or the ISO sensitivity
may become higher.
Manual exposure assist (estimate)
Shows pictures with standard brightness (appropriate exposure).
Shows brighter pictures. For the appropriate exposure, either use a faster shutter
speed or increase aperture value.
Shows darker pictures. For the appropriate exposure, either use a slower shutter
speed or reduce aperture value.
60
Recording mode
Taking pictures by setting the aperture value and shutter speed
About [T] (Time) (Approximately up to 120 seconds)
If you set the shutter speed to [T], the shutter stays open when the shutter button is
pressed fully. The shutter closes if you press the shutter button again. Use this function
when you want to keep the shutter open for an extended period, for example, to record
pictures of fireworks or night scenes.
●●When the shutter speed is set to [T] (time), we recommend using a tripod and taking pictures
remotely by connecting the camera to a smartphone via Wi-Fi connection to prevent camera
shake. [B] (Bulb) is also available when connected via Bluetooth. (→235, 237)
●●When you take still pictures with the shutter speed set to T (time), the pictures may have
higher noise levels. If you want to suppress noise, we recommend taking pictures by setting
[Long Shtr NR] to [ON] in the [Rec] menu. (→174)
●●This function is not available in the following cases:
•• When recording using the flash (Only when [Flash Synchro] is set to [2ND])
•• When recording 4K photos
•• When recording using [Post Focus]
•• When recording using [Bracket]
•• When [HDR] is set to [ON]
•• When using the electronic shutter
•• When [Silent Mode] is set to [ON]
•• When using [Time Lapse Shot]
•• When [Auto Shooting] of [Stop Motion Animation] is set to [ON]
61
Recording mode
Taking pictures by setting the aperture value and shutter speed
Checking the effects of the aperture value and shutter speed
(Preview Mode)
Recording mode:
••Checking the effect of the selected aperture value: This enables you to check the
depth of field (focus range) by physically narrowing the lens aperture blades to the
aperture value used for the actual recording.
••Checking the effect of the selected shutter speed: This allows you to check motion
in a scene by displaying the screen at the shutter speed used for the actual recording.
Preparations
•• Assign [Preview] to the function button (→47)
The following step is an example of assigning [Preview] to the [Fn3] button.
1 Press the [Fn3] button to switch the confirmation screen
•• Every time you press the [Fn3] button, the screen switches.
Normal recording screen
Aperture effect preview
screen
Aperture effect: ○
Shutter speed effect: –
Fn3 Shtr Speed Effect On
Shutter speed effect
preview screen
Aperture effect: ○
Shutter speed effect: ○
Fn3 Exit Preview
Depth of field characteristic
Recording
conditions
Aperture value
Small
Large
Focal length
Telephoto
Wide-angle
Distance to a subject
Depth of field
(Focus range)
62
Close
Shallow (narrow)
Example:
To take a picture by
deliberately blurring the
background
Far
Deep (wide)
Example:
To take a picture by adjusting
the focus while including the
background
Recording mode
Taking pictures by setting the aperture value and shutter speed
●●You can take a picture even when Preview Mode is activated.
●●The range in which you can check the effect of a selected shutter speed is between 8 seconds
and 1/16000 seconds.
●●This mode cannot be used with [
] ([4K Pre-Burst]) of 4K Photo.
Easily set aperture value / shutter speed for suitable exposure
(One Push AE)
Recording mode:
When the exposure setting is too bright or too dark, you can use one push AE to achieve
a suitable exposure setting.
How to tell if the exposure is not adequate
Blinks red
•• If the aperture values and shutter speed blink red when the shutter
button is pressed halfway.
•• If the Manual Exposure Assistance (→60) is anything other than
] when in Manual Exposure Mode.
[
Preparations
•• Assign [One Push AE] to the function button (→47)
1
(When exposure is not adequate) Press the function button
Change to appropriate exposure
15
30
60
125
4.0
●●In the following cases, suitable exposure cannot be set.
250
5.6
•• When the subject is extremely dark and it is not possible to achieve adequate exposure by
changing the aperture value or shutter speed
•• When recording using the flash
•• Preview Mode
63
8.0
Recording mode
Recording panorama pictures
(Panorama Shot Mode)
Recording mode:
Consecutive photos taken while the camera is moved are combined to form a panorama.
1
2
3
Set mode dial to [
]
Press the shutter button halfway to focus
Press the shutter button fully and pan the camera in a small
circular motion to the recording direction to start recording
Horizontal/vertical guide line
Recording direction and progress status (approximate)
Taking pictures from left to right
Image size: [STANDARD]
Image size: [WIDE]
•• Pan the camera at a constant speed.
•• You may not be able to take pictures successfully if you move the camera too quickly or too
slowly.
4
64
Press the shutter button fully again to end recording
••You can also end recording if you stop panning the camera while taking pictures.
••Recording can also be ended by moving the camera to the end of the guide.
Recording mode
Recording panorama pictures (Panorama Shot Mode)
■■Changing the recording direction and angle of view (image size) of panorama
pictures
→
[Panorama Shot] → [Direction] / [Picture Size]
[Direction]
Sets the recording direction.
[Picture Size]
Sets the angle of view (image size).
[STANDARD] / [WIDE]
••The number of recording pixels per horizontal line and vertical line of a panorama
picture varies depending on the picture size, recording direction and number of stitched
pictures. The maximum number of recording pixels is as follows:
Image size
[STANDARD]
[WIDE]
Recording direction
Horizontal Resolution
Vertical Resolution
Horizontal
8176 pixels
1920 pixels
Vertical
2560 pixels
7680 pixels
Horizontal
8176 pixels
960 pixels
Vertical
1280 pixels
7680 pixels
Tips
Pan the camera in the recording direction as steadily as possible.
(If the camera shakes too much, it may not be able to take pictures or may end up creating a narrow
(small) panorama picture.)
Pan the camera to a point slightly ahead of the
point that you want to take.
(However, the last frame is not recorded to the
end.)
65
Recording mode
Recording panorama pictures (Panorama Shot Mode)
■■About panorama picture playback
Pressing will start scrolling playback automatically in the
same direction as the recording.
••The following operations can be performed during scrolling
playback.
Start panorama playback / Pause*
Stop
*When the playback is paused, you can scroll forwards and backwards by dragging the screen.
When the scroll bar is touched, the playback position jumps to the touched position.
●●The zoom position is fixed to the W end.
●●The focus, exposure and White Balance are all fixed to optimal values for the first picture.
If the focusing or brightness of pictures recorded as part of a panorama picture after the first
picture are significantly different from those of the first picture, the panorama picture as a whole
(when all pictures are stitched together) may not have consistent focus and brightness.
●●Since several pictures are stitched together to create a panorama picture, some subjects may be
distorted or the joining portions of successively taken pictures that are stitched may be noticeable.
●●Panorama pictures may not be created or pictures may not be recorded properly when taking
pictures of the following subjects or when taking pictures in the following recording conditions:
•• Subjects that have a continuous monotone or pattern (sky, beach, etc.)
•• Moving subjects (person, pet, vehicle, waves, or flowers swaying in the wind, etc.)
•• Subjects whose colors or patterns change quickly (such as an image appearing on a display)
•• Dark locations
•• Locations with a flickering light source (fluorescent lamp, candle light, etc.)
66
Recording mode
Taking pictures according to the scene
(Scene Guide Mode)
Recording mode:
If you select a scene to suit the subject and recording conditions with reference to the
example images, the camera will set optimal exposure, color, and focus, allowing you to
record in a manner appropriate to the scene.
1
2
Set mode dial to [
3
Press [MENU/SET]
Press
]
to select the scene
••The scene can also be selected by dragging an
example image or the slide bar.
It is also possible to display the selection screen by touching the Recording
mode icon in recording screen.
●●Depending on the scene, the recording screen may seem as if frames are missed.
●●To change the scene, select [Scene Switch] in the [Scene Guide] menu, and then press
[MENU/SET]. You can return to step 2.
●●Some of the recording menu items cannot be set in Scene Guide Mode because the camera
automatically adjusts the settings to the optimal values.
●●Although White Balance is fixed to [AWB] for certain types of scenes, you can fine tune the White
Balance or use White Balance bracketing by pressing the cursor button
screen.
67
on the recording
60
Recording mode
Taking pictures according to the scene (Scene Guide Mode)
Types of Scene Guide Mode
Displaying the description of each scene and recording tips
Press [DISP.] button while the scene selection screen is displayed
•• When it is set to the guide display, detailed explanations and tips for each scene are displayed.
Normal display
Guide display
List display
1: [Clear Portrait]
2: [Silky Skin]
●●If a part of the background etc. is a color close to skin color, this part is also smoothed.
●●This mode may not be effective when there is insufficient brightness.
3: [Backlit Softness]
4: [Clear in Backlight]
5: [Relaxing Tone]
6: [Sweet Child’s Face]
●●When you touch the face, a still picture is recorded with the focus and exposure set for the touched
location.
7: [Distinct Scenery]
68
Recording mode
Taking pictures according to the scene (Scene Guide Mode)
8: [Bright Blue Sky]
9: [Romantic Sunset Glow]
10: [Vivid Sunset Glow]
11: [Glistening Water]
●●Star filter used in this mode may cause glistening effects on the objects other than water surface.
12: [Clear Nightscape]
13: [Cool Night Sky]
14: [Warm Glowing Nightscape]
15: [Artistic Nightscape]
16: [Glittering Illuminations]
17: [Handheld Night Shot]
●●After the shutter button has been pressed, do not move the camera during the burst operation.
●●The angle of view becomes narrow slightly.
18: [Clear Night Portrait]
●●Tripod, self-timer recommended.
●●When [Clear Night Portrait] is selected, keep the subject still for about 1 second after taking the
picture.
19: [Soft Image of a Flower]
●●For close-up recording, we recommend that you avoid using the flash.
69
Recording mode
Taking pictures according to the scene (Scene Guide Mode)
20: [Appetizing Food]
●●For close-up recording, we recommend that you avoid using the flash.
21: [Cute Dessert]
●●For close-up recording, we recommend that you avoid using the flash.
22: [Freeze Animal Motion]
●●Default [AF Assist Lamp] setting is [OFF].
23: [Clear Sports Shot]
24: [Monochrome]
70
Recording mode
Taking Pictures with different picture effects
(Creative Control Mode)
Recording mode:
You can select the effects to be applied from sample pictures and preview these effects
on the screen.
1
2
Set mode dial to [
Press
(filters)
]
to select the picture effect
1/8
Preview display
••You can also select the picture effects (filters) by
touching the example images.
3
Press [MENU/SET]
It is also possible to display the selection screen by touching the Recording
mode icon in recording screen.
●●Depending on the picture effect, the recording screen may seem as if frames are missed.
●●[White Balance] will be fixed to [AWB] and ISO sensitivity to [AUTO].
●●The following menu items can be set in the [Creative Control] menu.
•• [Filter Effect]: Allows you to set the picture effect (filter).
•• [Simultaneous Record w/o Filter]:Allows you to set the camera to take
a picture with and without an picture
effect simultaneously. (→170)
71
60
Recording mode
Taking Pictures with different picture effects (Creative Control Mode)
Displaying the description of each picture effect (Filter)
Press [DISP.] button while the picture effect selection screen is displayed
•• When it is set to the guide display, explanations for each picture effect are displayed.
Normal display
Guide display
1/8
List display
1/8
Types of picture effects
Adjusting the picture effects according to your preferences
1
2
Press
to display the setting screen
Rotate the rear dial to adjust the setting conditions of
the picture effects
•• Press [MENU/SET] to return to the recording screen.
72
Recording mode
Taking Pictures with different picture effects (Creative Control Mode)
Picture effect
[Expressive]
[Retro]
[Old Days]
[High Key]
[Low Key]
[Sepia]
[Monochrome]
[Dynamic Monochrome]
[Rough Monochrome]
[Silky Monochrome]
[Impressive Art]
[High Dynamic]
[Cross Process]
Items that can be set
Vividness
Subdued coloring
Gaudy coloring
Coloring
Yellowish coloring
Reddish coloring
Contrast
Low contrast
High contrast
Coloring
Pinkish coloring
Light-bluish coloring
Coloring
Reddish coloring
Bluish coloring
Contrast
Low contrast
High contrast
Coloring
Yellowish coloring
Bluish coloring
Contrast
Low contrast
High contrast
Grainy picture effect
Weak grainy picture effect
Strong grainy picture effect
Degree of defocusing
Slight defocusing
Strong defocusing
Vividness
Black & white
Gaudy coloring
Vividness
Black & white
Gaudy coloring
Coloring
Greenish coloring / Bluish coloring /
Yellowish coloring / Reddish coloring
•• Select the desired color tone by rotating
the rear dial, and press [MENU/SET].
[Toy Effect]
[Toy Pop]
[Bleach Bypass]
[Miniature Effect]
Coloring
Bluish coloring
Orangish coloring
Range in which peripheral brightness is reduced
Small
Large
Contrast
Low contrast
High contrast
Vividness
Subdued coloring
Gaudy coloring
•• For details about [Miniature Effect] (→74)
73
Recording mode
Taking Pictures with different picture effects (Creative Control Mode)
Picture effect
[Soft Focus]
[Fantasy]
[Star Filter]
[One Point Color]
Items that can be set
Degree of defocusing
Slight defocusing
Strong defocusing
Vividness
Subdued coloring
Gaudy coloring
Length of the rays of light
Rays of light is short
Rays of light is long
Number of the rays of light
Smaller
Larger
Angle of the rays of light
Rotate to the left
Rotate to the right
Amount of color retained
Leaves a small amount of
Leaves a large amount of
color
color
•• For details about [One Point Color] (→75)
Coloring
Yellowish coloring / Reddish coloring /
Bluish coloring / Whitish coloring
[Sunshine]
•• Rotate the rear dial to select coloring, and
press [MENU/SET].
•• For details about [Sunshine] (→75)
■■Setting the type of defocus ([Miniature Effect])
After touching [
Press
or
], touch [ ]
to move the focusing area (frame)
•• You can also move the in-focus portion by touching the screen on
the recording screen.
] allows you to set the recording orientation (defocus
•• Touching [
orientation).
Rotate the rear dial to select the size of the focusing area
(frame)
•• On the touch screen, spread (pinch out) your 2 fingers to zoom in,
and pinch (pinch in) your 2 fingers to zoom out.
•• When you press [DISP.] button, the initial setting condition is
restored.
Press [MENU/SET]
74
Recording mode
Taking Pictures with different picture effects (Creative Control Mode)
●●No audio is recorded for motion pictures.
●●When a motion picture is recorded, the finished recording will be approximately 1/10th of the
actual recorded time period. (If you record a motion picture for 10 minutes, the resulting motion
picture recording time will be approximately 1 minute.) The recordable time displayed on the
camera is approx. 10 times of the actual recording time.
●●If you stop recording motion pictures too soon, the camera may continue recording until a certain
time.
■■Selecting the color to be retained ([One Point Color])
After touching [ ], touch [ ]
Select the color to be retained with
[MENU/SET]
and press
•• You can also select it by touch operations.
•• When you press [DISP.] button, the initial setting condition is
restored.
●●The selected color may not be retained for some subjects.
■■Setting the position and size of the light source ([Sunshine])
After touching [ ], touch [ ]
Press
to move the center of the light source to a different position
•• The position of the light source can also be moved by touching the screen.
Rotate the rear dial to adjust the size of the light source
•• On the touch screen, spread (pinch out) your 2 fingers to zoom in, and pinch (pinch in) your
2 fingers to zoom out.
•• When you press [DISP.] button, the initial setting condition is restored.
Press [MENU/SET]
Tips on positioning the center of the light source
You can move the center of the light source to a point outside the image to obtain a more natural
finish.
75
Recording mode
Taking Pictures with different picture effects (Creative Control Mode)
Setting brightness (exposure)/blurriness of the background (Defocus
control function)
1
Press
2
Rotate the rear dial to set
to display the setting screen
•• The brightness (exposure) operation screen is displayed. Press [Fn1] to operate the defocus
control, and then press it again to finish the operation.
•• Press [MENU/SET] to return to the recording screen.
When setting the brightness (exposure)
to set the Exposure Bracket. (→128)
•• Press
OFF
When setting the background defocusing
•• Pressing [Q.MENU/ ] button will cancel the setting.
250
125
60
30
15
4.0
5.6
8.0
■■With touch screen operations
Touch [ ]
Touch the item you want to set
[ ]: Adjusting the picture effect
[ ]: Degree of defocusing
[ ]: Brightness
Drag the slide bar or exposure meter to set
•• Press [MENU/SET] to return to the recording screen.
●●Defocus control operation is not available in [Miniature Effect] (Creative Control Mode).
76
Recording mode
Recording motion pictures by setting the aperture/
shutter speed/ISO sensitivity (Creative Video Mode)
Recording mode:
The operation for changing the aperture value, shutter speed or ISO sensitivity is the
same as the operation for setting the mode dial to [ ], [ ], [ ] or [ ] (except Program
Shift Mode).
1
2
Set mode dial to [
]
Set the menu
→
[Creative Video] → [Exposure Mode]
Settings: [P] / [A] / [S] / [M]
It is also possible to display the selection screen by touching the Recording mode
icon in recording screen.
3
Press the motion picture button (or shutter button) to start
recording
Touch [ ] (Cannot be used during [High Speed Video] recording.)
Touch icon
Zoom
Exposure Compensation
Aperture value
ISO sensitivity
Shutter speed
Drag the slide bar to set
[
]/[
]
Changes the setting slowly
[
]/[
]
Changes the setting quickly
Using touch icons allows silent operation while
recording motion pictures.
4
77
Press the motion picture button (or shutter button) to stop
recording
6
Recording mode
Recording motion pictures by setting the aperture/shutter speed/ISO sensitivity (Creative Video Mode)
●●The ISO sensitivity can be set within the following range.
•• [AUTO], [125] to [6400] ([L.80] to [6400] when [Extended ISO] is set to [ON])
■■Setting the upper limit value of ISO sensitivity when [Sensitivity] is set to [AUTO]
→
[Motion Picture] → [ISO Auto Upper Limit (Video)]
Settings: [AUTO] / [200] / [400] / [800] / [1600] / [3200] / [6400]
Recording Slow Motion Pictures ([High Speed Video])
Slow motion pictures can be recorded by performing recording at a super high speed.
When these recordings are played back, the motion is displayed slowly.
••To record pictures, use a UHS Speed Class 3 card.
1
2
Set mode dial to [
3
4
Press the motion picture button (or shutter button) to start recording
]
Set the menu
→
[Creative Video] → [High Speed Video] → [ON]
•• Recording is done at 120 frames/second with [FHD] in [MP4].
Press the motion picture button (or shutter button) to stop recording
●●When recording, the angle of view becomes narrower.
●●No sound is recorded.
●●Files are split into smaller motion picture files for recording and playback when the file size
exceeds 4 GB. (You can continue to record motion pictures without interruption.)
Recording stops when the continuous recording time exceeds 29 minutes and 59 seconds.
(In terms of playback time, you can record up to approximately 120 minutes.)
●●The settings for the focus and zoom are fixed to the settings specified when recording was started.
●●Flickering or horizontal stripes may appear while recording under fluorescent lighting.
78
Recording mode
Recording motion pictures by setting the aperture/shutter speed/ISO sensitivity (Creative Video Mode)
Pan or zoom while recording with the camera in a fixed
position ([4K Live Cropping])
By cropping your motion picture down from the 4K angle of view to Full High Definition,
you can record a motion picture that pans and zooms in/out while leaving the camera in a
fixed position.
Pan
Zoom in
••Hold the camera firmly in place while recording.
••A motion picture will be recorded at [FHD/20M/30p] under [MP4].
1
2
Set mode dial to [
]
Set the menu
→
[Creative Video] → [4K Live Cropping]
Settings: [40SEC] / [20SEC] / [OFF]
3
Set the crop start frame and press [MENU/SET] to set
Crop start frame
Start
•• When making settings for the first time, a crop start frame of
size 1920×1080 is displayed. (After setting the crop start frame
and end frame, the start frame and end frame that you set
immediately before will be displayed.)
•• The camera will remember the frame position and size even
when the camera is turned off.
Operation
Touch operation
Touch
Pinch out /
Pinch in
79
[DISP.]
[Reset]
[MENU/SET]
[Set]
Size
Reset
Set
Description
Moves the frame
Enlarges/reduces the frame
(The range of settings allowed is from 1920×1080 to
3840×2160.)
Returns the position of the frame to the center and its size
to the default setting
Decides the position and size of the frame
Recording mode
Recording motion pictures by setting the aperture/shutter speed/ISO sensitivity (Creative Video Mode)
4
Repeat step 3, and then set the crop end frame
Crop end frame
•• The setting of [AF Mode] switches to [
Eye Detection cannot be used.)
End
] (Face Detection). (The
Size
Reset
5
Set
Press the motion picture button (or shutter button) to
start recording
Elapsed recording time
Set operating time
•• Immediately release the motion picture button (or shutter button)
after pressing it.
•• When the set operating time has elapsed, recording
automatically ends. To end recording midway, press the motion
picture button (or the shutter button) again.
When you want to zoom in/out, set different angles of view for the cropping start and end
frames. For example, to zoom in, set a larger angle of view for the start frame and a smaller
angle of view for the end frame.
■■Changing the position and size of a crop frame
Press [Fn3] button while the recording screen is displayed, and perform steps 3 and 4.
■■To cancel [4K Live Cropping] recording
Set [OFF] in step 2.
●●The angle of view narrows.
●●[4K Live Cropping] recording cannot be performed when [High Speed Video] is set.
●●Focus is adjusted and fixed in the crop start frame.
●●[Continuous AF] is set to [OFF].
●●[Metering Mode] will be [ ] (Multi Metering).
●●You cannot zoom in/out during [4K Live Cropping] recording.
80
Recording mode
Registering your own settings and recording
(Custom Mode)
Recording mode:
Registering your own settings ([Cust.Set Mem.])
Up to 3 sets of current camera settings can be registered using [Cust.Set Mem.].
([
], [
], [
])
••Initial setting of the Program AE Mode is registered as the custom settings initially.
Preparations
•• Set in advance the recording mode and menu settings so that the camera can be in the state with
the settings to be saved.
→
[Setup] → [Cust.Set Mem.]
→ Custom set where you want to register settings
●●The following menu items are not registered as custom settings.
[Custom] menu
•• [Menu Guide]
•• Data registered with [Face Recog.]
•• The [Profile Setup] setting
81
[Setup] menu
•• All menus
[Playback] menu
•• [Rotate Disp.]
•• [Picture Sort]
Recording mode
Registering your own settings and recording (Custom Mode)
Recording using registered custom set
1
Set mode dial to [ ]
•• The custom set you used last time will be called up.
■■To change a custom set
Set mode dial to [ ]
Press [MENU/SET] to bring up the menu
Press
to select the custom set you want to use, and press [MENU/SET]
•• The settings are switched to those settings you selected for the
custom set.
60p
It is also possible to display the selection screen by touching the Recording mode
icon in recording screen.
■■Changing the registered content
Even if the menu settings are changed temporarily when the mode dial has been set
to [ ], the currently registered settings will remain unchanged. To change the currently
registered settings, overwrite the registered data using [Cust.Set Mem.] on the [Setup]
menu.
82
6
Focus, Brightness (Exposure) and Color tone Settings
Taking pictures with Auto Focus
Recording mode:
1
Press [
2
Press
3
Press the shutter button halfway
] button (
)
to select [AF] and press [MENU/SET]
••Set the focusing action when the shutter button is pressed halfway (→84)
••Switching [AF Mode] (→85)
Focus display
(When focus is aligned: illuminated
When focus is not aligned: flashing)
AF area
(When focus is aligned: green)
••Two “beep” sounds are heard and Auto Focus is activated.
Four “beep” sounds when focus is not aligned.
••When you take a picture in a dark location, [ ] is displayed for the focus display
and it may take longer to adjust focus than usual.
••If the camera detects stars in the night sky after displaying [ ], Starlight AF will
be activated. When focus is achieved, the focus indication [ ] and AF areas in
focus are displayed. (Starlight AF cannot perform detection on the edges of the
screen.)
Subjects/environments which may make focusing difficult:
•• Fast-moving or extremely bright objects, or objects with no color contrast.
•• Taking pictures through glass or near objects emitting light.
•• In the dark, or with significant jitter.
•• When too close to object or when taking pictures of both distant and close objects together in
the same picture.
●●When the lighting is low making it difficult to focus with Auto Focus, set [Monitor Display Speed] or
[LVF Display Speed] to [60fps].
●●Starlight AF will not function when using the monitor with [Monitor Display Speed] set to [ECO
30fps] or when using the viewfinder with [LVF Display Speed] set to [ECO 30fps].
83
Focus, Brightness (Exposure) and Color tone Settings
Taking pictures with Auto Focus
Set the focusing operation to be performed when the shutter
button is pressed halfway (AFS, AFF, AFC)
Recording mode:
→
Settings
[Rec] /
[Motion Picture] → [AFS/AFF/AFC]
The movement of the
subject and the scene
(recommended)
Description
[AFS]
Subject is still
(Scenery, anniversary
photograph, etc.)
“AFS” is an abbreviation of “Auto Focus Single”. Focus
is set automatically when the shutter button is pressed
halfway.
Focus will be fixed while it is pressed halfway.
[AFF]
Movement cannot be
predicted
(Children, pets, etc.)
“AFF” is an abbreviation of “Auto Focus Flexible”. In this
mode, focusing is performed automatically when the shutter
button is pressed halfway.
If the subject moves while the shutter button is pressed
halfway, the focus is corrected to match the movement
automatically.
[AFC]
Subject is moving
(Sport, trains, etc.)
“AFC” is an abbreviation of “Auto Focus Continuous”. In this
mode, while the shutter button is pressed halfway, focusing
is constantly performed to match the movement of the
subject.
When recording using [AFF], [AFC]
●●When the subject is moving, the focusing is performed by predicting the subject position at the time
of recording. (Movement prediction)
●●Focusing may take time if the zoom is suddenly changed from max. Wide to max. Tele, or if you
suddenly move closer to a subject from a greater distance.
●●Press the shutter button halfway again when it is difficult to focus on the subject.
●●While the shutter button pressed halfway, shake may be seen on the screen.
●●[AFF] or [AFC] operates as [AFS] in the following case:
•• Creative Video Mode
] ([4K Burst(S/S)]) of the 4K Photo function.
•• When recording with [
•• When the lighting is low.
●●It is fixed to [AFS] when Panorama Shot Mode is set.
●●[AFF] is not available when recording 4K photos. Continuous AF works during recording.
●●This setting cannot be used when recording using [Post Focus].
84
Focus, Brightness (Exposure) and Color tone Settings
Taking pictures with Auto Focus
Switching [AF Mode]
Recording mode:
This allows the focusing method that suits the positions and number of the subjects to be
selected.
→
[Rec] /
[Motion Picture] → [AF Mode]
Settings:[ ] (Face/Eye Detection) / [ ] (Tracking) / [ ] (49-area-focusing) /
[
] etc. (Custom Multi) / [ ] (1-area-focusing) / [ ] (Pinpoint-focusing)
(→86 - 90)
●●In Intelligent Auto Mode and Intelligent Auto Plus Mode, [
●●The [AF Mode] is fixed to [ ] in the following case:
•• When recording using [4K Live Cropping]
] in the following cases:
•• When using the Digital Zoom
•• [Miniature Effect] (Creative Control Mode)
●●[AF Mode] cannot be set in the following cases:
•• When recording using [Post Focus]
•• When [Pull Focus] in [Snap Movie] is set to [ON]
●●Auto Focus is fixed to [
85
] or [
] can be set.
Focus, Brightness (Exposure) and Color tone Settings
Taking pictures with Auto Focus
Taking front-on pictures of people
(Face/Eye Detection)
The camera automatically detects the faces and eyes of subjects. The camera adjusts
the focus on the eye that is closer to the camera and the exposure using the face (when
[Metering Mode] is set to [ ] (Multi Metering)).
••The camera can detect up to 15 faces. The camera can detect only the eye of face to
be focused on.
••When the camera recognized a face, the AF area and eye
used for focusing are displayed.
Eye used for focusing
Yellow:When the shutter button is pressed halfway and the
subject is focused, the frame turns green.
White:Displayed when more than one face is detected.
Other faces that are the same distance away as
faces within the yellow AF area are also focused.
■■Changing the eye to be in focus
Touch the eye to be used for focusing
•• If you touch [
canceled.
●●Cannot set to [
] or press [MENU/SET], the eye focus setting will be
] (Face/Eye Detection) in the following cases:
•• [Clear Nightscape], [Cool Night Sky], [Warm Glowing Nightscape], [Artistic Nightscape],
[Glittering Illuminations], [Handheld Night Shot], [Appetizing Food], [Cute Dessert] (Scene Guide
Mode)
●●The eye to be in focus cannot be changed when [4K Live Cropping] is set.
●●If conditions prevent the face from being recognized, such as when the movement of the subject is
] (49-area-focusing).
too rapid, the AF Mode setting switches to [
86
Focus, Brightness (Exposure) and Color tone Settings
Taking pictures with Auto Focus
Automatically locking the focus on a moving subject
(tracking)
With cursor button operations
Align the AF Tracking area with the subject and press the
shutter button halfway
AF Tracking area
When the subject is recognized, the AF tracking area turns green.
When you release the shutter button, the AF tracking area turns yellow
and the subject is automatically kept in focus.
•• To release AF Tracking → Press [MENU/SET].
] (→96)
•• Focus range: same as macro recording [
With touch screen operations
Touch the subject
Perform these operations with the touch shutter function released.
The AF Tracking area turns yellow while the subject is locked.
].
•• To release AF Tracking → Touch [
●●If AF Lock fails, a red frame flashes for a while and then turns off.
●●When you set [Metering Mode] to [ ] (Multi Metering), the camera adjusts the exposure using a
locked subject. (→171)
●●Under certain recording conditions, such as when the subject is small or dark, AF Tracking may
not operate correctly. When AF Tracking does not work, focus will be on [
●●This function is not available in the following case:
] (1-area-focusing).
•• When using [Time Lapse Shot]
] performs the operation of [
] (1-area-focusing).
•• [Glistening Water], [Glittering Illuminations], [Soft Image of a Flower], [Monochrome]
(Scene Guide Mode)
•• [Sepia], [Monochrome], [Dynamic Monochrome], [Rough Monochrome], [Silky Monochrome],
[Soft Focus], [Star Filter], [Sunshine] (Creative Control Mode)
•• [Monochrome], [L.Monochrome] ([Photo Style])
●●In the following cases, [
87
Focus, Brightness (Exposure) and Color tone Settings
Taking pictures with Auto Focus
Subject not centered in picture
(49-area-focusing)
Focuses on the subject in the wide range area (up to 49-areafocusing) on the recording screen.
Setting the shape of an AF area
, etc. (Custom Multi)
You can set the preferred shape of an AF area by selecting 49 points in the AF area,
based on the subject.
→
1
2
[Rec] /
Select a Custom Multi icon ([
Use
Current AF area shape
([Vertical
Pattern])
([Central
Pattern])
/
/
(Custom)
88
], etc.), and press
to select the setting item
([Horizontal
Pattern])
3
[Motion Picture] → [AF Mode]
Press
Ideal shape for panning,
etc.
Ideal shape for recording
structures, etc.
Ideal shape for focusing
around the center.
You can set a custom registration shape.
•• The AF area setting screen appears.
Focus, Brightness (Exposure) and Color tone Settings
Taking pictures with Auto Focus
4
Select the AF area
Selected AF area
When selecting [
]/[
]/[
]
Change the shape of an AF area
Operation
Touch
operation
Description
Touch
Moves position
Pinch out /
Pinch in
[DISP.]
Changes the size (3 stages)
Resets the AF area back to
the center.
•• If you press the button
again, the frame size will be
reset to the initial setting.
[Reset]
Press [MENU/SET]
When selecting [
]/[
]/[
]
Change the shape of an AF area
With cursor button operations
Use
to select AF area and press [MENU/SET] to set
(repeat)
•• If you press [MENU/SET] again, the setting will be canceled.
•• To cancel all the settings, press the [DISP.] button.
With touch screen operations
Touch the parts you want to set as AF areas
•• If you touch one of the selected AF areas, the selection of the
area will be canceled.
Press [Fn2] button
■■Registering the set AF area in [
Press on the screen of step 2
Use
] and [
] (Custom)
to select the registration target icon and press [MENU/SET]
●●The settings adjusted in [
camera is turned off.
89
], [
], [
] or [
] will be restored to the default settings when the
Focus, Brightness (Exposure) and Color tone Settings
Taking pictures with Auto Focus
Determined position for focus
(Pinpoint-focusing)
(1-area-focusing) /
(1-area-focusing)
Focuses on AF area in center of picture. (Recommended when focus is difficult to align)
When the subject is not in the center of the composition in [
], you can bring the subject
into the AF area, fix the focus and exposure by pressing the shutter button halfway, move the
camera to the composition you want with the shutter button pressed halfway, and then take the
picture. (Only when [AFS/AFF/AFC] in [Rec] menu is set to [AFS].)
(Pinpoint-focusing)
Enables more precise focusing on a smaller point than [ ] (1-area-focusing). When you
press the shutter button halfway, an enlarged display of the focus position appears.
●●If [
] (Pinpoint-focusing) is selected while recording motion pictures or 4K photos, the setting is
] (1-area-focusing).
changed to [
●●Cannot set to [ ] (Pinpoint-focusing) in the following case:
•• When [AFS/AFF/AFC] in [Rec] menu is set to [AFF] or [AFC]
90
Focus, Brightness (Exposure) and Color tone Settings
Taking pictures with Auto Focus
Changing the position and size of the AF area
Recording mode:
When [ ], [ ], [ ], or [ ] in Auto Focus Mode is selected, you can change the
position and size of the AF area. With [ ], you can set the lock-on position.
••Perform these operations with the touch shutter function released.
••You can also display the AF area setting screen by touching the recording screen.
→
→ [AF]
[Custom] →
[Operation] → [Touch Settings] → [Touch AF]
••You can use the [Custom] ([Focus / Release Shutter]) menu to set the display method
for the AF area according to your preference. (→181)
●●When you set [Metering Mode] to [
] (spot-focusing), the metering target will move along with
the AF area.
●●The position and size of the AF area cannot be changed in the Digital Zoom range.
■■When selecting [
→
]/[
[Rec] /
Select [
], [
]/[
]
[Motion Picture] → [AF Mode]
] or [
] and press
•• The AF area setting screen appears.
To change the AF area
Operation
Touch operation
Touch
—
[DISP.]
* Not available when [
Press [MENU/SET]
Description
To move the position of the AF area.
Pinch out /
Pinch in
Enlarges/reduces the AF area in small steps.*
—
Enlarges/reduces the AF area in large steps.*
[Reset]
Resets the AF area back to the center.
•• If you press the button again, the frame size will be
reset to the initial setting.
] is selected.
•• AF area with the same function as [
] is displayed in the touched position, when the [ ] is
] is touched.
selected. Setting of the AF area is cleared when [MENU/SET] is pressed or [
91
Focus, Brightness (Exposure) and Color tone Settings
Taking pictures with Auto Focus
■■When selecting [
]
You can set the focus position by selecting an AF area group. The AF area, which is
configured with 49 points, is divided into groups consisting of 9 points each (6 points or 4
points for the groups located at the edges of the screen).
→
Select [
[Rec] /
[Motion Picture] → [AF Mode]
] and press
Examples of group
•• The AF area setting screen appears.
Press
to select an AF area group
Press [MENU/SET]
•• Setting of the AF area is cleared when [MENU/SET] is pressed or [
touched.
92
] is
Focus, Brightness (Exposure) and Color tone Settings
Taking pictures with Auto Focus
■■When selecting [
]
You can enlarge the screen to perform more precise settings of the focus position.
••You cannot set the focus position at the edges of the screen.
→
[Rec] /
[Motion Picture] → [AF Mode]
Select [ ] and press
Use
to set the focus position and press
[MENU/SET]
•• The enlarged screen will appear for setting the focus position.
Move [+] to the focus position
Operation
Touch operation
Touch
—
Description
Moves [+].
Pinch out / Pinch in
Enlarges/reduces the screen in small steps.
—
Enlarges/reduces the screen in large steps.
Switches the enlarged display. (windowed/full
screen)
—
[DISP.]
[Reset]
Returns to the screen of step
.
•• The image of a part of the screen can be enlarged or reduced approximately 3 to 6 times. The
image of the entire screen can be enlarged or reduced approximately 3 to 10 times.
•• It is also possible to record a picture by touching [
].
Press [MENU/SET]
93
Focus, Brightness (Exposure) and Color tone Settings
Taking pictures with Auto Focus
Setting the AF area position with the touch pad
Recording mode:
You can move the AF area displayed on the viewfinder by
touching the monitor.
→
[Custom] →
[Operation] → [Touch Settings] → [Touch Pad AF]
[EXACT]
Moves the AF area of the viewfinder by
touching a desired position on the touch
pad.
[OFFSET]
Moves the AF area of the viewfinder
according to the distance you drag the
touch pad.
[OFF]
—
••Press the shutter button halfway to determine the focus position. If you press the
[DISP.] button before determining the focus position, the focus position returns to the
center.
••To cancel the settings for the AF area when the Auto Focus Mode is set to [ ] (Face/
Eye Detection), [ ] (tracking), or [ ] (49-area-focusing), press [MENU/SET].
●●The Touch Shutter function is disabled when using [Touch Pad AF].
●●The [Touch Pad AF] does not function in the following cases:
•• When recording using [4K Live Cropping]
•• When [Pull Focus] in [Snap Movie] is set to [ON]
94
Focus, Brightness (Exposure) and Color tone Settings
Taking pictures with Auto Focus
Optimizing the focus and brightness for a touched position
Recording mode:
→
[Custom] →
→ [AF+AE]
1
[Operation] → [Touch Settings] → [Touch AF]
Touch the subject you want to optimize the brightness
for
•• The AF area setting screen appears. (→91)
•• The brightness optimization position is displayed on the center of
the AF area. The position follows the movement of the AF area.
], which is used exclusively for the
•• [Metering Mode] is set to [
[Touch AE].
2
Reset
Touch [Set]
•• The AF area with the same function as [
] is displayed on the touched position.
] (touch [
] when [
] is set), the setting of [AF+AE] is canceled.
•• If you touch [
When the background has become too bright, etc., the
brightness contrast with the background can be adjusted by
compensating the exposure.
●●When recording with the Touch Shutter, the focus and brightness are optimized for the touched
position before recording takes place.
●●At the edge of the screen, the metering may be affected by the brightness around the touched
location.
●●The [AF+AE] does not function in the following cases:
•• When using the Digital Zoom
•• When recording using [4K Live Cropping]
95
Set
Focus, Brightness (Exposure) and Color tone Settings
Taking close-up pictures
(Macro recording)
Recording mode:
This mode allows you to take close-up pictures of a subject, e.g. when taking pictures of
flowers.
1
Press [
2
Press
[
]
([AF Macro])
] button (
)
to select the item and press [MENU/SET]
You can take pictures of a subject as close as 3 cm (0.098 feet) from the
lens by rotating the zoom lever upmost to Wide.
Use this setting to get close to the subject and then further enlarge when
]
[
([Macro Zoom]) taking the picture. You can take a picture with the Digital Zoom up to 3x
while maintaining the distance to the subject for the extreme Wide position
(3 cm (0.098 feet)).
•• Note that enlarging will decrease picture quality.
•• Zoom range will be displayed in blue (digital zoom range).
●●When recording a subject close to the camera, we recommend taking a picture without using the
flash.
●●A picture may be out of focus when the subject is out of focus range, even if the focus display is lit.
●●When a nearby subject is to be recorded
•• Using a tripod and [Self Timer] (→126) is recommended.
•• The effective focus range (depth of field) is significantly narrowed. Therefore, if the distance
between the camera and the subject is changed after focusing on the subject, it may become
difficult to focus on it again.
•• Resolution may be slightly reduced around the edges of the picture. This is not a malfunction.
●●Cannot set to [Macro Zoom] in the following cases:
•• [Handheld Night Shot] (Scene Guide Mode)
•• Panorama Shot Mode
•• When recording with [High Speed Video]
•• [Impressive Art], [Toy Effect], [Toy Pop], [Miniature Effect] (Creative Control Mode)
•• When [HDR] is set to [ON]
•• When [Multi Exp.] is set
], [
] or [ ]
•• When [Quality] is set to [
96
Focus, Brightness (Exposure) and Color tone Settings
Taking pictures with Manual Focus
Recording mode:
Manual Focus is convenient when you want to lock the focus to take pictures or when it is
difficult to adjust focus using Auto Focus.
1
2
3
Press [
] button (
)
Press
to select [MF] and press
[MENU/SET]
Turn the control ring to adjust focus
Turning the control ring to the right:
Focusing on a nearby subject
Turning the control ring to the left:
Focusing on a distant subject
MF Assist (Enlarged screen)
MF Guide (→190)
Peaking
••Color is added to the portions of the image that are in
focus. (Peaking) (→187)
••The screen changes to the assist screen and an
enlarged display appears. (MF Assist)
You can move the enlarged part by dragging the
screen.
••You can also enlarge the display by pinching out or
touching the screen twice.
97
Focus, Brightness (Exposure) and Color tone Settings
Taking pictures with Manual Focus
Operation
Touch operation
Drag
—
Description
Moves the enlarged area.
Pinch out /
Pinch in
Enlarges/reduces the screen in small steps.
—
Enlarges/reduces the screen in large steps.
Switches the enlarged display. (windowed/full screen)*2
—
[DISP.]
*1
[Reset]
Resets the area to be enlarged back to the center.
*1 Cannot be set when using Intelligent Auto Mode.
*2The image of a part of the screen can be enlarged or reduced approximately 3 to 6 times.
The image of the entire screen can be enlarged or reduced approximately 3 to 10 times.
4
Press the shutter button halfway
••The recording screen will be displayed.
••The same operation can be performed by pressing [MENU/SET].
●●When [Focus Switching for Vert / Hor] in the [Custom] ([Focus / Release Shutter]) menu is set, you
can set a position of the enlarged area of MF Assist for each direction of the camera.
Quickly adjusting the focus using Auto Focus
In Manual Focus, the focus can be set on the subject through Auto Focus.
1
98
Touch [
]
•• Auto Focus is activated at the center of the frame.
•• Auto Focus also works with the following operations.
–– Pressing the [AF/AE LOCK] button to which [AF-ON] is
assigned (→99)
–– Pressing the function button to which [AF-ON] is assigned
(→47)
–– Dragging the monitor and releasing your finger at the position
you want to focus on
•• This function cannot be used when [4K Live Cropping] is set.
Focus, Brightness (Exposure) and Color tone Settings
Taking pictures by locking the focus and/or exposure
(AF/AE Lock)
Recording mode:
You can use the AF/AE Lock function to fix the focus and exposure in advance and
change the composition of the picture when recording. This function is convenient when
you want to focus on the edge of the screen or when your subject is back-lit.
1
2
Point the camera at the subject
Lock the focus and/or exposure while you
press and hold [AF/AE LOCK] button
••When you release [AF/AE LOCK] button, the focus
and/or exposure lock is canceled.
3
While you press and hold [AF/AE LOCK]
button, move the camera to compose the
picture you want to take and fully press
the shutter button
■■Setting the function of [AF/AE LOCK]
→
[AE LOCK]
[AF LOCK]
[AF/AE LOCK]
[AF-ON]
[Custom] →
[Focus / Release Shutter] → [AF/AE Lock]
Locks exposure only.
•• [AEL] is displayed when the correct exposure is achieved.
Locks focus only.
•• [AFL] is displayed when the subject comes into focus.
Locks focus and exposure.
•• [AFL] and [AEL] are displayed when the subject is in focus and the correct
exposure is achieved.
Auto Focus is activated.
●●AE Lock is disabled in Manual Exposure Mode.
●●AF Lock is disabled during Manual Focus.
●●Program Shift can be set even when AE is locked.
99
Focus, Brightness (Exposure) and Color tone Settings
Taking pictures with Exposure Compensation
Recording mode:
Corrects the exposure when there is a backlight or when the subject is too dark or too
bright.
1
Press [
2
Rotate the rear dial to compensate the
exposure
] button (
)
OFF
Exposure Bracket
Exposure Compensation
•• Press
to set the Exposure Bracket. (→128)
Optimum
exposure
Under-exposed
Adjust the
exposure to the [+]
direction
3
Over-exposed
Adjust the
exposure to the [-]
direction
Press [MENU/SET] to set
••You can also press the shutter button halfway to set.
●●In Manual Exposure Mode, you can correct the exposure only when the ISO sensitivity is
set to [AUTO].
(You can select Exposure Compensation when the Quick menu is displayed by pressing
the [Q.MENU/ ] button.)
●●You can set the exposure compensation value in the range between –5 EV and +5 EV.
Settings can be made within a range of –3 EV to +3 EV while recording motion pictures, recording
4K photos, or recording in [Post Focus].
●●Depending on the brightness, this may not be possible in some cases.
●●When the Exposure Compensation value is out of the –3 EV to +3 EV range, the brightness of
the recording screen will no longer change. It is recommended to record by checking the actual
brightness of the recorded image in the Auto Review or playback screen.
●●The set Exposure Compensation value is stored even if the camera is turned off. (When [Exposure
Comp. Reset] is set to [OFF])
100
Focus, Brightness (Exposure) and Color tone Settings
Setting the ISO Sensitivity
Recording mode:
Set ISO sensitivity (sensitivity to lighting).
→
1
[Rec] → [Sensitivity]
Select the ISO sensitivity by rotating the
rear dial
ISO sensitivity
AUTO
(Intelligent ISO)
ISO sensitivity is automatically set in a range up to 3200 (with the
flash on: 4000)*1 depending on the brightness of a subject.
ISO sensitivity is automatically set in a range up to 3200 (with the
flash on: 4000)*1 depending on the movement and brightness of a
subject.
•• The shutter speed is not fixed when the shutter button is pressed
halfway. It is continuously changing to match the movement of the
subject until the shutter button is pressed fully.
[L.80]*2 / [L.100]*2 /
ISO sensitivity is fixed at the selected setting.
from [125] to
[12800] / [H.25600]*2
*1When [ISO Auto Upper Limit (Photo)] is set to [AUTO].
*2 Only when [Extended ISO] is [ON].
2
101
125 20
Press [MENU/SET] to set
••You can also press the shutter button halfway to set.
Focus, Brightness (Exposure) and Color tone Settings
Setting the ISO Sensitivity
Setting guide
ISO sensitivity
Location
(recommended)
[125]
[12800]
Bright
(outdoors)
Dark
Shutter speed
Slow
Fast
Interference
Low
High
Subject blur
High
Low
●●For details on the available flash range used when the ISO sensitivity is set to [AUTO], refer to
(→145).
●●Cannot select [
] in the following cases:
•• Shutter-Priority AE Mode
•• Manual Exposure Mode
●●When [Multi Exp.] is set, the maximum setting is [3200].
●●ISO sensitivity is set to [AUTO] (for motion pictures) while a motion picture is being recorded. You
can use the following ISO sensitivity settings when recording in Creative Video Mode ([Motion
Picture] menu → [Sensitivity]), when recording 4K photos, or when recording using [Post Focus].
•• [AUTO], [125] to [6400] ([L.80] to [6400] when [Extended ISO] is set to [ON])
102
Focus, Brightness (Exposure) and Color tone Settings
Adjusting the White Balance
Recording mode:
This item adjusts to the color of white which is closest to what is seen by the eye in
accordance with the light source.
1
Press [
2
Rotate the rear dial to select the White Balance
] button (
)
Automatic adjustment in accordance with the light source.
•• Under a light source (such as an incandescent light) that produces reddish
pictures:
–– [AWB] gives higher priority to what is seen by the eye and retains the
reddish hue.
–– [AWBc] gives higher priority to the original colors of the subject and
reduces the reddish hue.
When the picture is taken under a bright ambient light, the colors of the
pictures are sometimes adjusted to similar colors as those of the [AWB]
setting.
•• Adjust the colors of the pictures to similar colors when [AWB] or [AWBc] is
set under a light source that does not produce reddish pictures.
[AWB]/
[AWBc]
[
[
]
]
Adjust to the color under a clear sky.
[
]
Adjust to the color in the shade.
[
[
]
]*
[
[
]/[
]/[
[
Adjust to the color under a cloudy sky.
Adjust to the color under incandescent lights.
Adjust to the color that is optimal for taking pictures using the flash.
]/
]
]
Use the White Balance value that was set manually.
Press
Point the camera at a white object such as a piece of paper, ensuring that it is
inside the frame at the center of the screen, and press the shutter button
•• This will set the White Balance and return you to the recording screen.
•• It may not be possible to set the correct White Balance if subjects are too
bright or too dark.
You can set the White Balance using color temperature.
Press
Use
to select the color temperature value and
press [MENU/SET]
•• You can set the color temperature from [2500K] to
[10000K].
*The [AWB] setting is applied while recording motion pictures, recording 4K photos, or
recording in [Post Focus].
103
Focus, Brightness (Exposure) and Color tone Settings
Adjusting the White Balance
3
Press [MENU/SET] to set
••You can also press the shutter button halfway to set.
Under fluorescent lighting, LED lighting fixtures, etc., the optimal White Balance will vary
], [
], [
] or [
].
depending on the lighting type, so use [AWB], [AWBc], [
●●The White Balance may not operate correctly if you take pictures using a flash and the subject is
recorded outside of the effective flash range.
●●In Scene Guide Mode, settings suitable for each scene are made.
●●In Scene Guide Mode, changing the scene or recording mode will return White Balance settings
(including the White Balance fine adjustment setting) back to [AWB].
■■Auto White Balance
When [AWB] (Automatic White Balance) is set, the coloring is adjusted in accordance
with the light source. However, if the scene is too bright or too dark or if other extreme
conditions apply, the pictures may appear reddish or bluish. The White Balance may not
operate correctly if there is a multiple number of light sources. In that case, set the [White
Balance] to settings other than [AWB] or [AWBc] to adjust the coloring.
: [AWB] operational range
10000K
9000K
Blue sky
8000K
7000K
6000K
5000K
4000K
3000K
2000K
Cloudy sky (rain)
Shade
Sunlight
White fluorescent lighting
Incandescent lighting
Sunset/sunrise
Candlelight
K=Kelvin Color Temperature
104
Focus, Brightness (Exposure) and Color tone Settings
Adjusting the White Balance
Performing White Balance fine adjustments
White Balance settings can be individually fine-tuned if colors still do not appear as
anticipated.
1 In step 2 of “Adjusting the White Balance” (→103),
select the White Balance and press
to perform White Balance fine
2 Use
adjustments
3
: A (amber: orangish colors)
: B (blue: bluish colors)
: G (green: greenish colors)
: M (magenta: reddish colors)
•• You can also make fine adjustments by touching the White
Balance graph.
•• Pressing [DISP.] button resets the position back to the center.
Press [MENU/SET] to finalize the setting
•• Press the shutter button halfway to return to the recording screen.
●●When you perform fine adjustments of the White Balance toward the A (amber) or B (blue) side,
the color of the White Balance icon displayed on the screen will change to the fine-tuned color.
●●When you perform fine adjustments of the White Balance toward the G (green) or M (magenta)
side, [+] (green) or [-] (magenta) will be displayed in the White Balance icon on the screen.
105
Focus, Brightness (Exposure) and Color tone Settings
Adjusting the White Balance
Bracket recording using White Balance
Bracket settings are performed based on the fine adjustment values for White Balance,
and three pictures with different coloring are automatically recorded when the shutter
button is pressed once.
1 Perform fine adjustments of the White Balance in
step 2 of “Performing White Balance fine adjustments”
(→105) and rotate the rear dial to perform the Bracket
setting
2
•• You can also set the bracket by touching [
]/[
Press [MENU/SET] to finalize the setting
]/[
]/[
].
BKT
•• Press the shutter button halfway to return to the recording
screen.
●●You can also set the White Balance Bracket in [Bracket] in the [Rec] menu. (→127)
●●This function is not available in the following cases:
•• Panorama Shot Mode
•• [Glistening Water], [Glittering Illuminations], [Handheld Night Shot], [Soft Image of a Flower]
(Scene Guide Mode)
•• When using [Burst]
•• When recording 4K photos
•• When recording using [Post Focus]
•• When taking still pictures while a motion picture is being recorded
], [
] or [ ]
•• When [Quality] is set to [
•• When [Multi Exp.] is set
•• When using [Time Lapse Shot]
•• When [Auto Shooting] of [Stop Motion Animation] is set to [ON]
106
4K Photo and Drive Settings
Recording with the 4K Photo function and selecting
pictures to save
Recording with the 4K Photo function
Recording mode:
You can take burst pictures of approximately 8 million pixels with a burst rate of 30 fps.
You can select and save a frame from the burst file.
••To record pictures, use a UHS Speed Class 3 card.
1
Press [
2
Press
to select the recording method
and press [MENU/SET]
] button
••The same operation can be performed by pressing
the [
] button ( ), using
to select a 4K photo
icon, and pressing .
••The recording method can also be set using
[4K PHOTO] in the [Rec] menu.
[4K Burst]
For capturing the best shot of a fast-moving subject
(e.g., sports, aeroplanes, trains)
Audio recording: None
For capturing unpredictable photo opportunities
(e.g., plants, animals, children)
[4K Burst(S/S)]
Audio recording: Available*
“S/S” is an abbreviation
of “Start/Stop”.
[4K Pre-Burst]
For recording as needed whenever a photo opportunity arises
(e.g. the moment when a ball is thrown)
Audio recording: None
*Audio is not played back when you perform playback with the camera.
107
4K Photo and Drive Settings
Recording with the 4K Photo function and selecting pictures to save
3
Recording with the 4K Photo function
[4K Burst]
Press the shutter button halfway
Press and hold the shutter button fully for as long as you want to
perform recording
•• Recording will start approximately 0.5 seconds after you press
the shutter button fully. Therefore, press the button fully slightly in
advance.
Press and hold
Recording is performed
Press the shutter button fully
•• Recording will start.
Press the shutter button fully again
•• Recording will stop.
[4K Burst(S/S)]
“S/S” is an
abbreviation of
“Start/Stop”.
Start (First)
Stop (Second)
Recording is performed
When you press the [Fn1] button while recording, you can add a
marker. (Up to 40 markers for each recording.) When selecting and
saving pictures from a 4K burst file, you can skip to the positions
where you added markers.
108
4K Photo and Drive Settings
Recording with the 4K Photo function and selecting pictures to save
Press the shutter button fully
•• The camera adjusts the focus continuously when using Auto Focus.
Except when in Manual Exposure Mode, it also adjusts the exposure
continuously.
•• Images may not be displayed as smoothly as when recording with the
normal recording screen.
[4K Pre-Burst]
Approximately 1 second
Recording is performed
In situations where you want to lock focus and exposure, such as
when the subject is not at the center, use [AF/AE LOCK]. (→99)
••Burst pictures are saved as a single 4K burst file in the MP4 format.
••When [Auto Review] is enabled, the picture selection screen will be displayed
automatically. To continue recording, press the shutter button halfway to display
the recording screen.
••For information on how to select and save pictures from 4K burst files, refer to
(→110).
■■To cancel the 4K Photo functions
In step 2, select [
].
••The operation can be canceled by pressing the [
[ ] ([Single]) or [
].
] button (
) and then selecting
Battery drainage and camera temperature
●●If the surrounding temperature is high or 4K photos are recorded continuously, [
] may be
displayed and recording may be stopped halfway through. Wait until the camera cools down.
●●When [ ] ([4K Pre-Burst]) is set, the battery drains faster and the camera temperature rises.
(to protect itself, the camera may switch to [ ] ([4K Burst]))
] ([4K Pre-Burst]) only when recording.
Select [
109
4K Photo and Drive Settings
Recording with the 4K Photo function and selecting pictures to save
Selecting pictures from 4K burst file and saving
1
Select a picture with the [
and press
] on the playback screen,
•• The same operation can be performed by touching [
].
] ([4K Pre-Burst]), proceed to
•• In the case of recording with [
the step 3.
2
Drag the slide bar to perform rough scene selection
3
Drag to select the frame you want to save as a picture
4
Touch [
Slide view screen
•• For information on how to operate the slide view screen, refer to
(→111).
] (or press the [Fn2] button), you can choose a
•• If you touch [
scene in the 4K burst playback screen. (→112)
•• The same operation can be performed using
.
] to save the picture
•• The selected picture will be saved as a new picture in the JPEG format separate from the 4K
burst file.
•• The picture will be saved with recording information (Exif information), including its shutter
speed, aperture and ISO sensitivity information.
If you use [4K PHOTO Bulk Saving] in the [Playback] menu, you can bulk save 5 seconds’
worth of 4K recording. (→213)
110
4K Photo and Drive Settings
Recording with the 4K Photo function and selecting pictures to save
<Slide view screen>
Position of the displayed frame
Operation
—
Press and hold
Touch operation
Touch / Drag
Drag
Selects the frame
•• To switch the slide view, select the frame at either end and
touch [ ] or [ ].
Touch and hold
Continuously scrolls the scene or frame-by-frame backward
or forward.
Pinch out /
Pinch in
Drag
—
Enlarges/reduces the display
Moves the enlarged area (during enlarged display)
Switches a marker to be displayed (→114)
[Fn1]
Switches to marker operation (→113)
[Fn2]
Displays the 4K burst playback screen
—
—
[MENU/SET]
111
Description
Selects the scenes to be displayed
•• Scenes preceding and following the selected frame will be
displayed in slide view.
/
Adds/deletes a marker
In-focus portions are highlighted with color. ([Peaking])
]→[
] ([LOW]) →
•• Switches in order of [
] ([HIGH]).
[
Saves the picture
4K Photo and Drive Settings
Recording with the 4K Photo function and selecting pictures to save
<4K burst playback screen>
During pause
Operation
—
Touch operation
Touch / Drag
Continuous playback / Pause (during continuous playback)
/
Continuous rewind / Pause (during continuous rewind)
/
Fast forward playback / Single-frame forward (while paused)
/
Fast rewind playback / Single-frame rewind (while paused)
Drag
—
Moves the enlarged area (during enlarged display)
Switches to marker operation (→113)
[Fn2]
[MENU/SET]
Enlarges/reduces the display (while paused)
Switches a marker to be displayed (→114)
[Fn1]
—
Description
Selects the scenes to be displayed (while paused)
/
Pinch out /
Pinch in
—
During continuous playback
Displays the slide view screen (while paused)
/
Adds/deletes a marker
In-focus portions are highlighted with color. ([Peaking])
]→[
] ([LOW]) →
•• Switches in order of [
] ([HIGH]).
[
Saves the picture (while paused)
●●You can also zoom in by quickly touching the touch screen twice. (If the display was enlarged, it
returns to the same magnification ratio.)
112
4K Photo and Drive Settings
Recording with the 4K Photo function and selecting pictures to save
■■Selecting and saving pictures on the TV screen
••Set [HDMI Mode (Play)] to [AUTO] or [4K/30p]. When connecting to a TV that does not
support 4K motion picture, select [AUTO].
••If you connect the camera to a TV and display 4K burst files on the TV, they will be
displayed only on the 4K burst playback screen.
••Even if you insert the SD card to a 4K-compatible TV with an SD card slot, you cannot
play back 4K burst files recorded with [Aspect Ratio] set to an option other than [16:9].
(As of February 2018)
Marker
When selecting and saving pictures from a 4K burst file, you can select pictures easily by
skipping between marked positions.
■■Skips to the marked positions
When [
] is touched on the slide view screen or 4K burst playback screen, the marker
operation screen appears and you can skip to the marked positions. Touch [
] to
return to the original operation.
Operation
Touch operation
/
/
Description
Moves to the previous/next marker.
Two types of markers are available.
White marker:This is manually set during recording or
playback.
Green marker:This is automatically set by the camera during
recording. (Auto Marking function)
Manually set marker (white)
Marker set using the Auto Marking function (green)
113
Marker operation screen
4K Photo and Drive Settings
Recording with the 4K Photo function and selecting pictures to save
Auto Marking function
The camera automatically sets markers on scenes in which a face or the movement of a subject is
detected.
(Example: At the scene when a vehicle passes by, a balloon bursts, or a person turns around)
•• Up to 10 markers are displayed for each file.
•• In the following cases, markers may not be set by the Auto Marking function depending on the
recording conditions and the status of subjects.
–– The camera is moving because of panning or jitter
–– The movement of a subject is slow/small, or the subject is small
–– A face is not facing front
■■Switches a marker to be displayed
Touch [
] on the slide view screen, 4K burst playback screen, or marker operation
screen.
[Auto]
Displays a marker on a scene in which a face or the movement of a subject is
detected.
[Face Priority]
Displays a marker with preference given to a scene in which a face is detected.
[Motion Priority]
Displays a marker with preference given to a scene in which the movement of a
subject is detected.
[Off]
Displays manually set markers only.
●●You cannot delete markers set by the Auto Marking function.
●●The markers set by the Auto Marking function may not be displayed correctly if you split the 4K
burst file on a device other than this camera and then play it back on the camera.
●●In the following cases, markers set by the Auto Marking function are not displayed.
•• 4K burst files recorded with [4K Pre-Burst]
114
4K Photo and Drive Settings
Recording with the 4K Photo function and selecting pictures to save
Notes on the 4K Photo function
■■To change the aspect ratio
Selecting [Aspect Ratio] in the [Rec] menu allows you to change the aspect ratio for 4K
photos.
■■To record the subject with reduced blur
You can reduce the blur of the subject by setting a faster shutter speed.
Set mode dial to [ ]
Set the shutter speed by rotating the rear dial
•• Approximate shutter speed for outdoor recording in fine weather conditions: 1/1000 seconds or
faster.
•• If you increase the shutter speed, the ISO sensitivity becomes higher, which may increase the
noise on the screen.
■■Preventing camera shake when you are recording pictures
When you perform [Light Composition] or [Sequence Composition], we recommend
using a tripod and taking pictures remotely by connecting the camera to a smartphone to
prevent camera shake. (→235)
■■Shutter sound for 4K photo recording
••When using [ ] ([4K Burst]) or [ ] ([4K Pre-Burst]), you can change the electronic
shutter sound settings in [Shutter Vol.] and [Shutter Tone]. (→197)
••When recording with [ ] ([4K Burst(S/S)]), you can set the start/stop tone volume in
[Beep Volume].
••You can perform high speed burst recording quietly using the 4K Photo function in
combination with [Silent Mode]. (→175)
■■Scenes not suitable for the 4K Photo function
Recording indoors
When recording under fluorescent lighting or LED lighting fixtures, etc., the colors and
brightness may change or horizontal striping may appear on the screen. The striping may
be reduced by setting a slower shutter speed. (→179)
Fast-moving subjects
Subjects moving fast may appear distorted when recorded.
115
4K Photo and Drive Settings
Recording with the 4K Photo function and selecting pictures to save
■■The camera’s setup for the 4K Photo function
The camera’s setup is automatically optimized for 4K photo recording.
••The following settings are fixed.
[4K] (8M)
[Picture Size]
[4:3]: 3328×2496
[16:9]: 3840×2160
[3:2]: 3504×2336
[1:1]: 2880×2880
[Quality]
[
]
[Shutter Type]
[ESHTR]
[Rec Quality]*
[4K/100M/30p]
[Rec Format]*
[MP4]
[Continuous AF]*
[ON]
*Settings in the [Motion Picture] menu are not applied to 4K burst files recorded with the 4K Photo
function.
••The following limitations apply to the recording functions indicated below.
[
[
] ([4K Burst])/
] ([4K Burst(S/S)])
[
Program Shift
] ([4K Pre-Burst])
Disabled
Exposure compensation
–3 EV to +3 EV
Shutter speed
1/30 to 1/16000
[Min. Shtr Speed]
1/1000 to 1/30
[AFS/AFF/AFC] ([AFF])
[AF Mode] ([
Disabled
])
Disabled
[MF Assist]
White Balance ([
ISO sensitivity
○
])
Disabled
Disabled
[AUTO], [125] to [6400]
([L.80] to [6400] when [Extended ISO] is set to [ON])
Flash
Disabled
Bracket recording
Disabled
••The following menu items are disabled:
[Intelligent Auto]
116
[iHandheld Night Shot], [iHDR]
[Creative Control]
[Simultaneous Record w/o Filter]
[Rec]
[Picture Size], [Quality], [Color Space], [Flash], [Long Shtr NR],
[Shutter Type], [Bracket], [HDR]
[Custom]
[Rec Area], [Face Recog.], [Profile Setup]
[Setup]
] ([4K Pre-Burst])), [Monitor Display Speed],
[Economy] (Only [
[LVF Display Speed]
4K Photo and Drive Settings
Recording with the 4K Photo function and selecting pictures to save
●●Recording stops when the continuous recording time exceeds 15 minutes.
When using an SDHC memory card, files are split into smaller picture files for recording and
playback if the file size exceeds 4 GB. (You can continue to record pictures without interruption.)
If using an SDXC memory card, you can record pictures in a single file even if the size is greater
than 4 GB.
●●When recording, the angle of view becomes narrower.
●●The following changes occur when recording 4K photos:
•• [Destination] in [Travel Date] cannot be recorded.
•• [Simultaneous Record w/o Filter] in [Filter Settings] is not available.
•• It is not possible to use the HDMI output.
●●When recording using the [ ] ([4K Pre-Burst]) function, Step Zoom does not operate.
●●Scene Detection in Intelligent Auto Mode works the same way as when recording motion pictures.
●●The 4K Photo function is disabled when using the following settings:
•• [Clear in Backlight], [Glistening Water], [Artistic Nightscape], [Glittering Illuminations], [Handheld
Night Shot], [Clear Night Portrait], [Soft Image of a Flower] (Scene Guide Mode)
•• [Rough Monochrome], [Silky Monochrome], [Miniature Effect], [Soft Focus], [Star Filter],
[Sunshine] (Creative Control Mode)
•• During motion picture recording
•• When [Multi Exp.] is set
•• When using [Time Lapse Shot]
•• When using [Stop Motion Animation]
●●To select and save pictures from 4K burst files on a PC, use the software “PHOTOfunSTUDIO”.
Please note that it is not possible to edit a 4K burst file as a motion picture.
117
4K Photo and Drive Settings
Adjusting the focus after recording
([Post Focus]/[Focus Stacking])
Recording mode:
You can record 4K burst pictures while changing the focus point and then select a focus
point after recording. This function is best for non-moving subjects.
4K burst recording with
automatic focus shift
Touch the desired focus
point
Finished picture has the
desired focus point
••To record pictures, use a UHS Speed Class 3 card.
••We recommend using a tripod to perform [Focus Stacking].
Recording using [Post Focus]
1
2
3
Press [
] button
Press
to select [ON] and press [MENU/SET]
[Post Focus] icon
•• You can also set it to [ON] by pressing the [
]).
Focus] icon ([
] button (
), using
Determine the composition and press the shutter
button halfway
•• Auto Focus activates and automatically detects the focus point
on the screen.
•• If there is no focus point on the screen, the Focus indicator ( )
blinks and you cannot record.
From halfway pressing the shutter button to completion of recording
•• Do not change the distance to subject or the composition.
118
to select a [Post
4K Photo and Drive Settings
Adjusting the focus after recording ([Post Focus]/[Focus Stacking])
4
Press the shutter button fully to start recording
Recording progress bar
•• The focus point changes automatically while recording. When the
recording progress bar disappears, recording automatically ends.
•• The data will be saved as a single file in the MP4 format.
•• If [Auto Review] is set, a screen will automatically appear that lets
you select the focus point. (→120)
■■Canceling [Post Focus]
Select [OFF] in step 2.
••The operation can be canceled by pressing the [
[ ] ([Single]) or [
].
] button (
) and then selecting
About camera temperature
If the surrounding temperature is high or [Post Focus] recording is performed continuously, [
] may
be displayed and recording may be stopped halfway through. Wait until the camera cools down.
119
4K Photo and Drive Settings
Adjusting the focus after recording ([Post Focus]/[Focus Stacking])
Select the focus point and save the picture ([Post Focus])
1
On the playback screen, select the image with the
[
] icon and press
•• The same operation can be performed by touching [
2
].
Touch the focus point
•• If there are no pictures with the focus on the selected point, a red
frame will be displayed, and pictures cannot be saved.
•• The edge of the screen cannot be selected.
Operation
Touch operation
Touch
Description
Selects focus point
•• No selection can be made while display is enlarged.
Enlarges the display
Reduces the display (when in enlarged display)
[Fn1]
Switches to [Focus Stacking] operation (→121)
[Fn2]
In-focus portions are highlighted with color. ([Peaking])
]→[
] ([LOW])
•• Switches in order of [
] ([HIGH]).
→[
[MENU/SET]
Saves the picture
•• You can make fine adjustments to the focus by dragging the
slide bar during enlarged display. (The same operation can be
.)
performed using
3
120
Touch [
] to save the picture
•• The selected picture will be saved as a new separate file in the JPEG format.
4K Photo and Drive Settings
Adjusting the focus after recording ([Post Focus]/[Focus Stacking])
Select the focus range to combine and create a single picture
([Focus Stacking])
Focus
Near
Distant
1
Touch [
] on screen in step 2 of “Select the focus point and save the picture
([Post Focus])” (→120)
2
Choose a stacking method and touch it
•• The same operation can be performed by pressing the [Fn1] button.
[Auto Merging]
Automatically select photos suitable for stacking and combine them into one
picture.
•• Choose by giving preference to near-focus pictures.
•• Perform the focus stacking and save the picture.
[Range Merging]
Combine the pictures with the selected focus position into one picture.
(When selecting [Range Merging])
3
Touch the focus point
Set/Cancel
•• Select positions at two or more points.
•• Focus points between the selected two positions will be
selected.
•• Positions that cannot be selected, or that would produce an
unnatural result will be grayed out.
•• Touch a position again to deselect it.
•• If you drag the screen you can then continue to select positions.
Operation
Touch operation
Touch
[Fn2]
[DISP.]
[MENU/SET]
121
[Set/Cancel]
Reset
Description
Select the position
Set/Cancel
Set/Clear the position
[All]
Select all positions (Before
selecting position)
[Reset]
Deselect All (After selecting
position)
Combine and save picture
Reset
4K Photo and Drive Settings
Adjusting the focus after recording ([Post Focus]/[Focus Stacking])
4
Touch [
] to combine and save the picture
•• The picture will be saved in JPEG format with recording information (Exif information) from the
nearest position’s picture, including its shutter speed, aperture and ISO sensitivity information.
Notes on the [Post Focus]/[Focus Stacking]
■■The camera’s setup for recording in [Post Focus]
••Since recording is performed in the same picture quality as 4K photos, certain
limitations apply to recording functions and menu settings. For details, refer to “The
camera’s setup for the 4K Photo function” (→116).
••In addition to the limitations of the 4K Photo function, the following limitations apply to
[Post Focus] recording:
–– [AF Mode] and [AFS/AFF/AFC] cannot be set.
–– Manual Focus cannot be used.
–– The following [Custom] menu items cannot be set:
[Shutter AF]
–– Motion pictures cannot be recorded.
–– [Digital Zoom] is not available.
●●During recording, the angle of view will be narrower.
●●The [Post Focus] function is disabled when using the following settings:
•• [Clear in Backlight], [Glistening Water], [Artistic Nightscape], [Glittering Illuminations], [Handheld
Night Shot], [Clear Night Portrait], [Soft Image of a Flower] (Scene Guide Mode)
•• [Rough Monochrome], [Silky Monochrome], [Miniature Effect], [Soft Focus], [Star Filter],
[Sunshine] (Creative Control Mode)
•• When [Multi Exp.] is set
•• When using [Time Lapse Shot]
•• When using [Stop Motion Animation]
●●When selecting the focus and saving pictures, you cannot select and save the picture from a TV
screen even if the camera is connected to a TV through an HDMI micro cable.
●●In the following cases, [Focus Stacking] may produce an unnatural picture:
•• If the subject is in motion
•• If there are large differences in distance to the subject
•• If there is significant blurring (recording with a larger aperture might make the picture less
unnatural)
●●During focus stacking, auto compensation is applied to deviations among pictures due to camera
shake. In such cases, the angle of view will be slightly narrower at the time of focus stacking.
●●Only pictures taken using [Post Focus] on this camera are eligible for [Focus Stacking].
122
4K Photo and Drive Settings
Selecting a Drive Mode
Recording mode:
You can switch the operation to be performed when you press the shutter button.
1
Press [
2
Press
to select the drive mode and
press [MENU/SET]
] button (
)
Drive Mode
[Single]
When the shutter button is pressed,
only one picture is recorded.
[Burst] (→124)
The pictures are recorded in succession
while the shutter button is pressed.
[4K PHOTO]
(→107)
When the shutter button is pressed, a
picture is recorded with the 4K Photo
function.
[Post Focus]
(→118)
When the shutter button is pressed, the
pictures are recorded with [Post Focus].
[Self Timer]
(→126)
When the shutter button is pressed,
recording takes place after the set time
has elapsed.
■■To cancel the drive mode
In step 2, select [ ] ([Single]) or [
].
••You can cancel the self-timer by turning off the camera. (When [Self Timer Auto Off] is
set to [ON].)
123
4K Photo and Drive Settings
Selecting a Drive Mode
Burst function
■■Setting [Burst Rate]
Select [Burst] and pressing
Select the burst rate with
Speed (pictures/sec.)
Live View during
burst recording
in step 2 (→123)
, and press [MENU/SET]
[H]
(High speed)
[M]
(Middle speed)
[AFS] / [MF]
10
7
[AFF] / [AFC]
6
6
[AFS] / [MF]
None
[AFF] / [AFC]
Available
With RAW files
Number of
recordable pictures*1 Without RAW files
Available
[L]
(Low speed)
2
Available
28 or more
85 or more
*1When recording is performed under the test conditions specified by Panasonic.
Pictures can be taken until the card becomes full. However, the burst speed will become slower
halfway through the recording. The number of burst pictures is limited by the picture-taking
conditions and the type and/or status of the card used.
■■About the maximum number of pictures that can be taken continuously
When you press the shutter button halfway, the maximum
number of pictures you can take continuously will appear. You
can check the approximate number of pictures that can be
taken before the burst speed slows down.
Example: When 20 pictures can be taken: [r20]
••Once recording starts, the maximum number of pictures that can be taken continuously
will decrease. When [r0] appears, the burst speed will slow down.
••When [r99+] is displayed, you can take 100 or more pictures continuously.
124
4K Photo and Drive Settings
Selecting a Drive Mode
Focusing in burst mode
Focusing varies depending on focus settings and the setting of [Focus/Release Priority] in the
[Custom] ([Focus / Release Shutter]) menu.
Focus settings
[Focus/Release Priority]
[AFS]
[FOCUS]/
[BALANCE]/
[RELEASE]
[FOCUS]
[H]
[M], [L]
At the first picture
Predicted focusing*3
Normal focusing*4
[AFF] / [AFC]*2
[BALANCE]/
[RELEASE]
Predicted focusing*3
[MF]
—
Focus set with Manual Focus
*2Focus is fixed in the first picture when dark subjects are recorded.
*3The camera predicts the focus within a possible range by giving higher priority to the burst speed.
*4Since the camera records a burst of pictures while it adjusts the focus, the burst speed may be
slower.
●●The burst speed may become slower depending on the following settings:
[Sensitivity], [Picture Size], [Quality], [AFS/AFF/AFC], [Focus/Release Priority]
●●When the burst speed is set to [H] (when [AFS/AFF/AFC] is set to [AFS] or when the focus mode
is set to [MF]), the exposure and White Balance are fixed to those of the first picture.
When the burst speed is set to [H] (when [AFS/AFF/AFC] is set to [AFF] or [AFC]), [M], or [L], the
exposure and White Balance are adjusted individually for each still picture.
●●It may take a while to store still pictures that were taken using the burst function. If you
continue to record while storing, the number of burst pictures that can be taken will be
reduced. A high-speed card is recommended when recording using the burst function.
●●This function is not available in the following cases:
•• [Glistening Water], [Glittering Illuminations], [Handheld Night Shot], [Soft Image of a Flower]
(Scene Guide Mode)
•• [Rough Monochrome], [Silky Monochrome], [Miniature Effect], [Soft Focus], [Star Filter],
[Sunshine] (Creative Control Mode)
•• When recording using the flash
•• When [Multi Exp.] is set
•• When using [Time Lapse Shot]
•• When [Auto Shooting] of [Stop Motion Animation] is set to [ON]
125
4K Photo and Drive Settings
Selecting a Drive Mode
Taking pictures with self-timer
■■Setting the self-timer operation
Select [Self Timer] and pressing in step 2 (→123)
Select the self-timer operation with
, and press [MENU/SET]
The shutter is activated after 10 seconds.
The shutter is activated after 10 seconds and three pictures are taken at intervals of
approximately 2 seconds.
The shutter is activated after 2 seconds. This is also effective for preventing jitter when
pressing the shutter button.
●●After the self-timer indicator flashes, recording will start.
●●The focus and exposure are fixed when the shutter button is pressed halfway.
●●We recommend using a tripod.
●●It cannot be set to [ ] in the following cases:
•• When recording using [Bracket]
•• When [Multi Exp.] is set
•• When [Simultaneous Record w/o Filter] of [Filter Settings] is set to [ON]
●●This function is not available in the following cases:
•• During motion picture recording
•• When using [Time Lapse Shot]
•• When [Auto Shooting] of [Stop Motion Animation] is set to [ON]
126
4K Photo and Drive Settings
Taking Pictures While Adjusting a Setting
Automatically (Bracket Recording)
Recording mode:
You can take multiple pictures while automatically adjusting a setting by pressing the
shutter button.
1
Set the menu
→
[Rec] → [Bracket] → [Bracket Type]
(Exposure Bracket)
(Aperture Bracket)
(Focus Bracket)
(White Balance Bracket)
Press the shutter button to perform recording while adjusting
the exposure. (→128)
Press the shutter button to perform recording while adjusting
the aperture. (→129)
•• Available in Aperture-Priority AE Mode or when the ISO
sensitivity is set to [AUTO] in Manual Exposure Mode.
Press the shutter button to perform recording while adjusting
the focus position. (→129)
Press the shutter button once to take three pictures with
different white balance settings automatically. (→106)
2
Press
3
Focus on the subject and take a picture
to select [More Settings] and then press [MENU/SET]
••For information on [More Settings], refer to the page that describes each function.
••Press the shutter button halfway to exit the menu.
••When Exposure Bracket is selected, the bracket display flashes until all of the
pictures you have set are taken. If you change the bracket settings or turn off
the camera before all of the pictures you have set are taken, the camera restarts
recording from the first picture.
■■To cancel [Bracket]
Select [OFF] in step 1.
127
4K Photo and Drive Settings
Taking Pictures While Adjusting a Setting Automatically (Bracket Recording)
●●Bracket recording is disabled in the following cases.
•• [Glistening Water], [Glittering Illuminations], [Handheld Night Shot], [Soft Image of a Flower]
(Scene Guide Mode)
•• [Rough Monochrome], [Silky Monochrome], [Miniature Effect], [Soft Focus], [Star Filter],
[Sunshine] (Creative Control Mode)
•• When recording using the flash (except for White Balance Bracket)
•• When recording motion pictures
•• When recording 4K photos
•• When recording using [Post Focus]
•• When [Multi Exp.] is set
•• When using [Time Lapse Shot]
•• When [Auto Shooting] of [Stop Motion Animation] is set to [ON]
Exposure Bracket
■■About [More Settings] (step 2 in (→127))
[Step]
Sets the number of pictures to be taken and the exposure compensation
range.
] (Takes three pictures with an interval of 1/3 EV) to [
]
[
(Takes seven pictures with an interval of 1 EV)
[Sequence]
Sets the order in which pictures are taken.
[Single Shot Setting]*
[
[
]:Takes one picture each time you press the shutter button.
]:Takes all the pictures set to be taken when you press the shutter
button once.
*Not available for burst recording. When using burst recording, if you press and hold the shutter
button, recording will be performed continuously until a specified number of pictures are taken.
[Step]: [
1st picture
±0 EV
], [Sequence]: [0/–/+]
2nd picture
–1/3 EV
3rd picture
+1/3 EV
●●When taking pictures using Exposure Bracket after setting the Exposure Compensation value, the
pictures taken are based on the selected Exposure Compensation value.
128
4K Photo and Drive Settings
Taking Pictures While Adjusting a Setting Automatically (Bracket Recording)
Aperture Bracket
Recording mode:
■■About [More Settings] (step 2 in (→127))
[3]:Takes a specified number of pictures with different aperture values
within the range based on the initial aperture value.
[ALL]: Takes pictures using all aperture values.
[Image Count]
••When using burst recording, if you press and hold the shutter button, recording will be
performed until a specified number of pictures are taken.
Example:
3.3 4
5.6
8
When the initial position is set to F4:
first picture, second picture, third picture,
fourth picture
Focus Bracket
■■About [More Settings] (step 2 in (→127))
[Step]
[Image Count]*
[Sequence]
Sets the interval between focus positions.
Sets the number of pictures to be taken.
[0/–/+]:Takes pictures with different focus positions within the range
based on the initial focus position.
[0/+]:Takes pictures with different focus positions toward the far side
based on the initial focus position.
*Not available for burst recording. When using burst recording, if you press and hold the shutter
button, recording will be performed continuously until a specified number of pictures are taken.
[Sequence]: Example when [0/–/+] is selected
[Sequence]: Example when [0/+] is selected
Close-up
Infinity
first picture,
second picture...
fifth picture...
●●Pictures taken with Focus Bracket are displayed as a set of group pictures.
129
4K Photo and Drive Settings
Taking pictures automatically at set intervals
[Time Lapse Shot]
Recording mode:
You can preset data such as recording start time and time lapse to take still pictures
automatically. This setting is convenient for taking pictures at constant intervals for
landscape scenes, observation of the gradual changes in animals/plants, and other
applications. The pictures are recorded as a set of group pictures.
••Complete the date and time settings in advance. (→29)
1
Set the menu
→
[Rec] → [Time Lapse Shot]
[Shooting Interval
Setting]
[ON]:Sets the time from recording start time to the next recording
start time.
[OFF]:After recording is finished, the next recording is started without
any interval.
[Start Time]
[Now]
Starts the recording by fully-pressing the shutter
button.
[Start Time Set]
Any time up to 23 hours 59 minutes ahead can
be set.
Press
to select the item (hour and/or
to set the start time, and press
minute), and
[MENU/SET]
[Image Count] /
[Shooting Interval]*1
: Select the item (digit)
: Setting
[MENU/SET]: Set
*1Can be set only when [Shooting Interval Setting] is set to [ON].
••The estimated recording ending time is displayed on the setting screen. (When
[Shooting Interval Setting] is set to [OFF], the recording ending time is displayed
only when the focus mode is set to [MF] in Shutter-Priority AE Mode or Manual
Exposure Mode.)
••The camera may not be able to record using the pre-set interval and number of
pictures to be recorded or may not finish recording at the estimated recording
ending time under some recording conditions.
2
3
130
Press
to select [Start] and press [MENU/SET]
Press the shutter button halfway to focus
4K Photo and Drive Settings
Taking pictures automatically at set intervals [Time Lapse Shot]
4
Press the shutter button fully
••The recording starts automatically.
••During recording standby, the camera turns off automatically when no operation
is performed for a preset interval. The [Time Lapse Shot] recording will continue
even if the camera is turned off, and the camera is automatically turned on at the
recording start time. If you want to turn on the camera manually, press the shutter
button halfway.
••Operations during recording standby (The camera is turned on)
Operation
Touch operation
*3
[Fn1]*2
Description
Displays a selection screen that lets you pause or stop
the recording
Displays a selection screen that lets you resume or stop
the recording (during pause)
*2When you record pictures by setting [Shooting Interval Setting] to [OFF], you can press
[Fn1] even while recording is in progress. After recording (exposure) of a picture taken at
the time when you pressed [Fn1] is finished, a selection screen is displayed.
*3When you record pictures by setting [Shooting Interval Setting] to [OFF], you cannot
perform touch operation.
5
6
131
Select the motion picture creation method
••[Rec Format]: [MP4]
[Rec Quality]
Sets the picture quality of the motion picture.
[Frame Rate]
Set the number of frames per second. The higher the number is, the
smoother the motion picture will be.
[Sequence]
[NORMAL]: Stitches the still pictures in the recording sequence.
[REVERSE]: Stitches the still pictures in the reverse order of recording.
Press
to select [OK] and press [MENU/SET]
••You can also create a motion picture using [Time Lapse Video] in the [Playback]
menu.
4K Photo and Drive Settings
Taking pictures automatically at set intervals [Time Lapse Shot]
●●This function is not intended for application-specific systems (monitoring cameras).
●●When using zoom, the camera could tilt when the lens barrel extends. Make sure to secure the
camera in place with a tripod or by other means.
●●[Time Lapse Shot] is paused in the following cases:
•• When the remaining battery power runs out
•• Turning the camera off
If the number of pictures set has not been taken yet, you can restart the operation by turning
off the camera in the pause state, replacing the battery or card, and then turning the camera on
again. (Note, however, that the pictures recorded after restarting the operation are saved as a
separate set of group pictures.)
●●We recommend using auto focus for time lapse recording in cases where a long [Shooting
Interval] is set and the camera will turn off automatically between shots.
●●When creating motion pictures at a picture quality size of [4K], recording times are limited to
29 minutes and 59 seconds.
If using an SDHC memory card, you will not be able to create motion pictures with a file size
greater than 4 GB. With an SDXC memory card, you can create motion pictures with a file size
greater than 4 GB.
●●When creating a motion picture with a picture quality size of [FHD] or [HD], you will be unable to
create it if the recording time is more than 29 minutes and 59 seconds or the file size is greater
than 4 GB.
●●This function is not available in the following cases:
•• [Handheld Night Shot] (Scene Guide Mode)
•• When [Multi Exp.] is set
•• When using [Stop Motion Animation]
132
4K Photo and Drive Settings
Creating stop motion animation
[Stop Motion Animation]
Recording mode:
You can stitch still pictures to create stop motion animation. The pictures are recorded as
a set of group pictures.
••Complete the date and time settings in advance. (→29)
1
2
3
4
5
6
Set the menu
→
[Rec] → [Stop Motion Animation]
[Auto Shooting]
[ON]: Takes pictures automatically at a set recording interval.
[OFF]: Takes pictures manually, one frame at a time.
[Shooting Interval]
(Only when [Auto Shooting] is set to [ON])
Set the interval used for [Auto Shooting].
Press
to select [Start] and press [MENU/SET]
Press to select [New] and press
[MENU/SET]
Press the shutter button halfway to focus
Press the shutter button fully
••Up to 9,999 frames can be recorded.
Move the subject to decide on the
composition
••Repeat the recording of still pictures in the same way.
••When you turn off the camera during recording, a message to restart recording
will appear when you turn on the camera.
How to create stop motion animation effectively
●●Up to two previously recorded pictures are displayed on the recording screen. Check this screen as
a guideline for determining the amount of required motion.
] (Playback) button to check the recorded pictures. Press [ ] button to delete
unnecessary pictures. To return to the recording screen, press [ ] (Playback) button again.
●●You can press [
133
4K Photo and Drive Settings
Creating stop motion animation [Stop Motion Animation]
7
Touch [
8
Select a method to create a stop motion animation
9
] to end the recording
••You can also end the recording by selecting [Stop
Motion Animation] in the [Rec] menu, and then
pressing [MENU/SET].
••When [Auto Shooting] is set to [ON], select [End] on
the confirmation screen. (If you select [Pause], press
the shutter button fully to resume recording.)
••[Rec Format]: [MP4]
[Rec Quality]
Sets the picture quality of the motion picture.
[Frame Rate]
Set the number of frames per second. The higher the number is, the
smoother the motion picture will be.
[Sequence]
[NORMAL]: Stitches the still pictures in the recording sequence.
[REVERSE]: Stitches the still pictures in the reverse order of recording.
Press
to select [OK] and press [MENU/SET]
••You can also create a stop motion animation using [Stop Motion Video] in the
[Playback] menu.
■■Adding pictures to an already recorded stop motion animation group
When you select [Additional] in step 3, group pictures recorded using [Stop Motion
Animation] are displayed. Select a set of group pictures and press [MENU/SET]. Then,
select [Yes] on the confirmation screen.
134
4K Photo and Drive Settings
Creating stop motion animation [Stop Motion Animation]
●●[Auto Shooting] may not be performed according to the preset interval because recording could
take time under some recording conditions, such as when pictures are taken using a flash.
●●When creating motion pictures at a picture quality size of [4K], recording times are limited to
29 minutes and 59 seconds.
If using an SDHC memory card, you will not be able to create motion pictures with a file size
greater than 4 GB. With an SDXC memory card, you can create motion pictures with a file size
greater than 4 GB.
●●When creating a motion picture with a picture quality size of [FHD] or [HD], you will be unable to
create it if the recording time is more than 29 minutes and 59 seconds or the file size is greater
than 4 GB.
●●You cannot select only one recorded still picture using [Additional].
●●This function is not available in the following cases:
•• When [Multi Exp.] is set
•• When using [Time Lapse Shot]
●●[Auto Shooting] in [Stop Motion Animation] cannot be used in the following case:
•• [Handheld Night Shot] (Scene Guide Mode)
135
Stabilizer, Zoom and Flash
Correcting jitter
Recording mode:
Automatically detects and prevents jitter.
→
(Normal)
[Rec] /
[Motion Picture] → [Stabilizer]
Corrects vertical and horizontal jitter.
(Panning)
Corrects vertical jitter. This setting is ideal for panning (technique of recording a
subject by matching the camera movement with the movement of a subject going in
a specific direction).
[OFF]
[Stabilizer] does not work.
To prevent jitter
If a warning is displayed about jitter, use [Stabilizer], a tripod, or [Self Timer]. p
●●Using a slower shutter speed can cause motion blur. Shutter speed will be60
slower particularly in the following cases. Keep the camera still from the
moment the shutter button is pressed until the picture appears on the screen.
We recommend using a tripod.
•• [Slow Sync.]
•• [Slow Sync./Red-Eye]
•• [Clear Nightscape], [Cool Night Sky], [Warm Glowing Nightscape],
[Artistic Nightscape], [Glittering Illuminations], [Clear Night Portrait]
(Scene Guide Mode)
136
Stabilizer, Zoom and Flash
Correcting jitter
●●When you use a tripod, we recommend setting [Stabilizer] to [OFF].
●●[Stabilizer] cannot be used by selecting [ ] (Normal) in Panorama Shot Mode.
●●In the following cases, the [Stabilizer] will switch to [ ] (Normal), even if it is set to [
]
(Panning):
•• During motion picture recording
•• When recording 4K photos
•• When recording using [Post Focus]
●●[Stabilizer] cannot be used when recording with [High Speed Video].
●●The 5-axis Hybrid Image Stabilizer function automatically functions while recording motion
pictures. This decreases the jitter of the image when recording motion pictures while zooming or
walking, etc.
•• The recording range may become narrower.
●●In the following cases, The 5-axis Hybrid Image Stabilizer function is not available.
•• When using the Digital Zoom
•• When recording motion pictures with [Rec Quality] set to [4K/100M/30p] or [4K/100M/24p]
•• When recording using [4K Live Cropping]
●●Cases where the stabilizer function may be ineffective:
•• When there is a lot of jitter
•• When the zoom magnification is high (also in the Digital Zoom range)
•• When taking pictures while following a moving subject
•• When the shutter speed becomes slower to take pictures indoors or in dark places
●●The panning effect by selecting [ ] is not fully achieved in the following cases:
•• Bright summer days or other bright locations
•• When the shutter speed is higher than 1/100 seconds
•• When the motion of a subject is slow and the speed with which the camera is moved is too slow
(a nice background blur is not achieved)
•• When the camera is not adequately tracking the motion of a subject
137
Stabilizer, Zoom and Flash
Using Zoom
Zoom types and use
Optical Zoom
Recording mode:
You can zoom in without degrading the picture quality.
Maximum magnification: 15x
●●This function is not available in the following case:
•• When recording with [Macro Zoom]
Extended optical zoom
Recording mode:
This function works when picture sizes with [ ] have been selected in [Picture Size].
Extended optical zoom allows you to zoom in using a higher zoom ratio than Optical
Zoom, without degrading the picture quality. The maximum zoom ratio varies depending
on the picture size.
Maximum magnification: 30x (Including the optical zoom ratio.)
●●This function is not available in the following cases:
•• [Handheld Night Shot] (Scene Guide Mode)
•• [Toy Effect], [Toy Pop] (Creative Control Mode)
•• When recording 4K photos
•• When recording using [Post Focus]
•• When [HDR] is set to [ON]
•• When [Multi Exp.] is set
•• When [iHandheld Night Shot] is set to [ON]
•• When [iHDR] is set to [ON]
•• When [Quality] is set to [ ]
•• When recording with [Macro Zoom]
•• During motion picture recording
138
Stabilizer, Zoom and Flash
Using Zoom
[i.Zoom]
Recording mode:
You can use the camera’s Intelligent Resolution technology to increase the zoom ratio up
to 2x higher than the original zoom ratio with limited deterioration of picture quality.
→
[Rec] /
[Motion Picture] → [i.Zoom]
Settings: [ON] / [OFF]
●●When [Picture Size] is set to [S], the zoom ratio can be increased to up to 1.5x the original zoom
ratio.
●●[i.Zoom] works automatically in Intelligent Auto Mode or Intelligent Auto Plus Mode.
●●This function is not available in the following cases:
•• [Handheld Night Shot] (Scene Guide Mode)
•• [Impressive Art], [Toy Effect], [Toy Pop] (Creative Control Mode)
•• When recording with [Macro Zoom]
•• When [HDR] is set to [ON]
•• When [Multi Exp.] is set
•• When [iHandheld Night Shot] is set to [ON]
•• When [iHDR] is set to [ON]
], [
] or [ ]
•• When [Quality] is set to [
139
Stabilizer, Zoom and Flash
Using Zoom
[Digital Zoom]
Recording mode:
Zoom 4x further than Optical/Extended optical zoom. When [Digital Zoom] is used
simultaneously with [i.Zoom], you can increase the combined zoom ratio up to 4x.
Note that, with Digital Zoom, enlarging will decrease picture quality.
→
[Rec] /
[Motion Picture] → [Digital Zoom]
Settings: [ON] / [OFF]
●●When using [Digital Zoom], we recommend using a tripod and the self-timer (→126) for taking
pictures.
●●The AF area is largely displayed at the center in the Digital Zoom range.
●●This function is not available in the following cases:
•• When [Monitor Display Speed] is set to [ECO 30fps] (setting at the time of purchase)
•• When [LVF Display Speed] is set to [ECO 30fps]
•• [Handheld Night Shot] (Scene Guide Mode)
•• [Impressive Art], [Toy Effect], [Toy Pop], [Miniature Effect] (Creative Control Mode)
•• When recording using [Post Focus]
•• When recording with [High Speed Video]
•• When [HDR] is set to [ON]
•• When [Multi Exp.] is set
], [
] or [ ]
•• When [Quality] is set to [
The illustration is an example of when using Optical Zoom, [i.Zoom], and [Digital Zoom] in Program AE
Mode.
Focus range
Optical Zoom range
i.Zoom range
Digital Zoom range
Current zoom position (Focal lengths the same as those of a 35 mm film camera)
140
Stabilizer, Zoom and Flash
Using Zoom
Using the zoom by performing touch operations (Touch zoom)
1
2
Touch [
3
Perform zoom operations by dragging the slide
bar
Touch [
]
]
•• The slide bar is displayed.
•• The zoom speed varies depending on the touched position.
[
]/[
] Slow zooming
[
]/[
] Fast zooming
•• Touch [
141
] again to end touch zoom operations.
Stabilizer, Zoom and Flash
Taking pictures with flash
Recording mode:
■■Open/Close the built-in flash
To open the flash
Slide the flash open lever.
•• Be careful when opening the flash as the flash will jump out.
To close the flash
Press the flash until it clicks.
•• Be careful not to catch a finger or any other part of your body or any
object when you close the flash.
•• Forcibly closing the flash can damage the camera.
•• Be sure to close the built-in flash when not in use.
•• The flash setting is fixed to [ ] (Forced Flash Off) while the flash is
closed.
142
Stabilizer, Zoom and Flash
Taking pictures with flash
Changing Flash Mode
Recording mode:
Set the flash to match the recording.
→
[Rec] → [Flash] → [Flash Mode]
: [Forced Flash On]
: [Forced On/Red-Eye]
: [Slow Sync.]
: [Slow Sync./Red-Eye]
The flash is activated every time regardless of the recording
conditions.
•• Use this when your subject is back-lit or under
fluorescent light.
Takes brighter pictures such as pictures of subjects against a
nightscape by decreasing the shutter speed when firing a flash.
•• Ideal for taking pictures of people against a nightscape.
•• Using a slower speed can cause motion blur. We
recommend using a tripod.
The flash is activated twice. The interval between the first and second flash is
longer when [
] or [
] is set. The subject should not move until the second
flash is activated.
••The red-eye reduction effect varies depending on the subject and is affected by factors
such as distance from the subject and whether the subject is looking at the camera
during the preliminary flash. In some cases, red-eye reduction may be negligible.
143
Stabilizer, Zoom and Flash
Taking pictures with flash
■■Flash settings for each Recording mode (○: Available, –: Not available)
Recording mode*1
Program AE Mode
Aperture-Priority AE Mode
Shutter-Priority AE Mode
Manual Exposure Mode
[Clear Portrait]
[Silky Skin]
[Clear in Backlight]
[Sweet Child’s Face]
[Clear Night Portrait]
Scene Guide
[Soft Image of a Flower]
Mode
(●: Default
[Appetizing Food]
settings)
[Cute Dessert]
[Freeze Animal Motion]
[Clear Sports Shot]
[Monochrome]
*1 For details about flash settings in Intelligent Auto Mode ([
●●The flash is fixed to [
○
○
○
○
○
○
–
–
○
○
●
○
–
●
●
●
●
●
●
●
●
–
●
–
–
–
–
–
–
○
–
–
–
–
–
–
–
–
–
–
○
–
–
–
–
●
–
–
–
–
–
○
] or [
]), refer to (→53).
] (Forced Flash Off) in the following cases:
•• [Backlit Softness], [Relaxing Tone], [Distinct Scenery], [Bright Blue Sky],
[Romantic Sunset Glow], [Vivid Sunset Glow], [Glistening Water], [Clear Nightscape],
[Cool Night Sky], [Warm Glowing Nightscape], [Artistic Nightscape], [Glittering Illuminations],
[Handheld Night Shot] (Scene Guide Mode)
•• During motion picture recording
•• When recording 4K photos
•• When recording using [Post Focus]
•• When using the electronic shutter
•• When [HDR] is set to [ON]
•• When [Silent Mode] is set to [ON]
•• When a picture effect in [Filter Effect] of [Filter Settings] is set
●●The Scene Guide Mode flash setting is returned to the initial value with each change of scene.
144
Stabilizer, Zoom and Flash
Taking pictures with flash
■■Shutter speeds for each flash mode
Flash Mode
Shutter speed (seconds)
1/60*2 - 1/2000
Flash Mode
Shutter speed (seconds)
1 - 1/2000
*2The shutter speed is set to 60 seconds in Shutter-Priority AE Mode. The shutter speed is set to T
(Time) in Manual Exposure Mode.
••In Intelligent Auto Mode ([
detected scene.
] or [
]), the shutter speed changes depending on the
■■The available flash range
Edges of a picture may become slightly dark if using flash at short distances without using
zoom (close to max. Wide). This may be remedied by using a little zoom.
Max. Wide
Max. Tele
Approx. 0.6 m - 6.8 m (2.0 feet - 22 feet)
Approx. 1.0 m - 3.9 m (3.3 feet - 13 feet)
••These ranges are obtained, the ISO sensitivity is set to [AUTO], and [ISO Auto Upper
Limit (Photo)] is set to [AUTO].
●●Avoid doing the following, as the heat or light could cause deformation or discoloration.
•• Putting the flash close to objects
•• Covering the flash with your hand as it is firing
•• Closing the flash as it is firing
●●Do not close the flash immediately after the preliminary flash is operated prior to taking pictures for
Forced ON/Red-Eye Reduction and other flash settings. If you close the flash immediately, it will
cause a malfunction.
●●Flash charging may take time if battery is low or if using flash repeatedly. When the flash is being
charged, the flash icon flashes red, and you cannot take a picture even when you fully press the
shutter button.
145
Stabilizer, Zoom and Flash
Taking pictures with flash
Setting the 2nd curtain sync
Recording mode:
2nd curtain sync is a recording method in which the flash fires just before the shutter
closes when you take a picture of a moving subject (such as a car) using the flash with a
slow shutter speed.
→
[Rec] → [Flash] → [Flash Synchro]
[1ST]
1st curtain sync is the normal recording method when
using the flash.
[2ND]
The light source is captured in back of the subject and
this produces a picture that is vibrant and lively.
●●If you set to [2ND], [2nd] will be displayed in the flash icon on the screen.
●●When a fast shutter speed is set, the [Flash Synchro] effect may not be sufficiently achieved.
●●When [2ND] is set, you cannot set the flash setting to [ ] or [ ].
Adjusting the flash output
Recording mode:
Adjust the flash output if a picture taken using the flash is too bright or too dark.
→
1
Press
[Rec] → [Flash] → [Flash Adjust.]
to set the flash output and press [MENU/SET]
Settings: –2 EV to +2 EV (unit: 1/3 EV)
When you do not want to adjust the intensity of the flash, select [±0 EV].
●●When the intensity of the flash is adjusted, [+] or [-] is displayed on the flash icon.
146
Recording motion pictures
Recording Motion Picture/4K Motion Picture
Recording mode:
You can record full high-definition quality images that comply with the AVCHD standard,
as well as motion pictures recorded in MP4. You can also record a 4K motion picture in
MP4. (→149)
Audio is recorded in stereo.
1
Press the motion picture button to start
recording
Recording state indicator
Elapsed recording time
Remaining recording time
2
••Recording of motion picture appropriate for each
motion picture mode is possible.
••Immediately release the motion picture button after
pressing it.
••While you are recording motion pictures, the recording
status indicator (red) will flash.
Press the motion picture button again to
end recording
••With recording in a quiet environment, the
sound of aperture, focus and other actions may
be recorded in motion pictures. This is not a
malfunction.
The focus operation during recording of motion
pictures can be set to [OFF] in [Continuous AF].
(→151)
About operation sound when recording ends
If the operation sound of the motion picture button pressed to end recording bothers you, try the
following:
●●Record the motion picture about three seconds longer, and then divide the last part of the motion
picture using [Video Divide] (→220) in the [Playback] menu.
■■Recording motion picture in Creative Video Mode
You can record a motion picture by setting the aperture, shutter speed, and ISO
sensitivity using touch operation. (→77)
147
Recording motion pictures
Recording Motion Picture/4K Motion Picture
●●If the surrounding temperature is high, or a motion picture is recorded continuously, [
] is
displayed and recording may be stopped halfway through. Wait until the camera cools down.
●●Note that if you perform operations such as zoom, using buttons or dials, while recording a motion
picture, operation noise may be recorded.
●●If Extended optical zoom is used before pressing the motion picture button, these settings will be
cleared, and the recordable area will be changed significantly.
●●If the aspect ratio is different for still pictures and motion pictures, the angle of view will change
when starting to record a motion picture.
], the angle of view setting used for recording motion pictures is
When you set [Rec Area] to [
displayed.
●●The zoom speed will be slower than normal during motion picture recording.
●●Depending on the type of the card, the card access indication may appear for a while after
recording motion pictures. This is not a malfunction.
●●ISO sensitivity is set to [AUTO] (for motion pictures) while a motion picture is being recorded. You
can set ISO sensitivity and record motion pictures in Creative Video Mode.
●●The below-mentioned motion picture recording modes are set in the following cases:
Selected Scene Guide Mode
Recording mode at the time of
recording motion pictures
[Clear in Backlight]
Portrait Mode
[Clear Nightscape], [Artistic Nightscape],
[Handheld Night Shot], [Clear Night Portrait]
Low Light Mode
●●This function is not available in the following cases:
•• [Glistening Water], [Glittering Illuminations], [Soft Image of a Flower] (Scene Guide Mode)
•• [Rough Monochrome], [Silky Monochrome], [Soft Focus], [Star Filter], [Sunshine] (Creative
Control Mode)
•• When [Post Focus] is set
•• When using [Time Lapse Shot]
•• When using [Stop Motion Animation]
148
Recording motion pictures
Recording Motion Picture/4K Motion Picture
Setting the format, picture size and recording frame rate
1
2
Set the menu
→
[Motion Picture] → [Rec Format]
[AVCHD]
This is a data format suitable for playback on high-definition TVs.
[MP4]
This data format is suited for playing back motion pictures on a computer and other
such devices.
Use
to select [Rec Quality] and press [MENU/SET]
When [AVCHD] is selected
[Rec Quality]
Picture size
Recording frame rate
Sensor output
Bit rate
1920×1080
60p
60 fps
28 Mbps
[FHD/17M/60i]
1920×1080
60i
60 fps
17 Mbps
[FHD/24M/30p]
1920×1080
60i
30 fps
24 Mbps
[FHD/24M/24p]
1920×1080
24p
24 fps
24 Mbps
Picture size
Recording frame rate
Sensor output
Bit rate
3840×2160
30p
30 fps
100 Mbps
[4K/100M/24p]*2
3840×2160
24p
24 fps
100 Mbps
[FHD/28M/60p]
1920×1080
60p
60 fps
28 Mbps
[FHD/20M/30p]
1920×1080
30p
30 fps
20 Mbps
[HD/10M/30p]
1280×720
30p
30 fps
10 Mbps
[FHD/28M/60p]*1
When [MP4] is selected
[Rec Quality]
[4K/100M/30p]*2
*1 AVCHD Progressive
*2 4K motion pictures
149
Recording motion pictures
Recording Motion Picture/4K Motion Picture
••The quality becomes higher when the number of bit rate gets bigger. This unit uses the
“VBR” recording method, and the bit rate is changed automatically depending on the
subject to record. Therefore, the recording time is shortened when a subject with fast
movement is recorded.
••4K motion picture cannot be set when using [Miniature Effect] (Creative Control Mode).
••To record 4K motion pictures, use a UHS Speed Class 3 card.
••When you record 4K motion pictures, the angle of view will be narrower than motion
pictures of other sizes.
••To ensure highly accurate focus, 4K motion pictures are recorded at reduced Auto
Focus speeds. It may be difficult to focus on the subject with Auto Focus, but this is not
a malfunction.
••Limitations on continuous recording (→28)
■■About the compatibility of the recorded motion pictures
Motion pictures recorded in [AVCHD] or [MP4] may be played back with poor picture or
sound quality or playback may not be possible even when played back with equipment
compatible with these formats. Also, the recording information may not be displayed
properly.
••When you play back and import motion pictures recorded with [FHD/28M/60p],
[FHD/24M/30p], or [FHD/24M/24p] in [AVCHD] using a device other than this unit, a
compatible Blu-ray disc recorder or PC installed with “PHOTOfunSTUDIO” software is
required.
••For details on motion pictures recorded with [4K/100M/30p] or [4K/100M/24p] in the
[MP4] format, refer to “Enjoying 4K motion pictures” (→268).
150
Recording motion pictures
Recording Motion Picture/4K Motion Picture
Adjusting the focus while recording motion pictures
([Continuous AF])
Recording mode:
Focusing varies depending on the setting of focus and the setting of [Continuous AF] in
the [Motion Picture] menu.
→
[Motion Picture] → [Continuous AF]
Focus setting
[AFS]/[AFF]/[AFC]
[MF]
[Continuous AF]
Setting
[ON]
Allow the focus to be constantly adjusted
automatically while recording motion pictures.
[OFF]
Fix focus position at the start of motion picture
recording.
[ON] / [OFF]
Allow the focus to be adjusted manually.
●●When the focus setting is set to [AFS], [AFF], or [AFC], the camera will refocus if the shutter
button is pressed halfway while recording motion pictures.
●●When Auto Focus is activated while you are recording motion pictures, the focusing operation
sound may be recorded under some conditions. If you want to suppress this sound, we
recommend taking pictures after setting [Continuous AF] to [OFF].
●●When using zoom while recording motion pictures, it may take some time to focus.
●●This function is not available in the following cases:
•• While [Pull Focus] in [Snap Movie] is in operation.
•• When recording with [High Speed Video]
•• When recording using [4K Live Cropping]
151
Recording motion pictures
Taking still pictures while a motion picture is being
recorded
Recording mode:
1
Press the shutter button fully during the
motion picture recording
••Simultaneous recording indicator is displayed while
recording still pictures.
••Recording with the Touch Shutter function is also
available.
●●Pictures will be recorded with a picture size determined by the [Rec Quality] setting for motion
pictures.
●●Up to 40 still pictures can be recorded during recording of the motion picture.
(A motion picture with a [Rec Quality] size of [4K]: up to 10 pictures)
●●The aspect ratio of a still picture is fixed to [16:9].
●●Only pictures in JPEG file format are recorded when [Quality] is set to [
([Quality] is used with the [ ] setting when [ ] is set.)
●●This function is not available in the following case:
•• When [Snap Movie] is set to [ON]
152
], [
], or [
].
Recording motion pictures
Recording Snap Movies
Recording mode:
You can specify the recording time in advance and record motion pictures casually like
you take snapshots. The function also allows you to shift a focus at the start of recording
and add fade in/out effects in advance.
••Motion pictures will be recorded with [FHD/20M/30p] in [MP4].
••Using the smartphone/tablet app “Panasonic Image App”, you can combine motion
pictures recorded with the camera. Music can be added and various editing operations
can be performed when you combine them. In addition, you can send the combined
motion picture to a web service. (→243)
→
[Motion Picture] → [Snap Movie] → [ON]
••Press the shutter button halfway to exit the menu.
1
Press the motion picture button to start
recording
Elapsed recording time
Set recording time
••Immediately release the motion picture button after
pressing it.
••You cannot stop motion picture recording in the
middle. The recording will stop automatically when the
set recording time has elapsed.
■■Deactivating Snap Movie
Set [Snap Movie] to [OFF].
153
Recording motion pictures
Recording Snap Movies
■■Changing the settings
→
[Motion Picture] → [Snap Movie] → [SET]
[Record time]
Sets the recording time of motion pictures.
[Pull Focus]
Allows dramatic imaging expression by shifting focus gradually at the start of
recording. (→155)
[Fade]
Adds a fade-in (gradual appearance) effect to an image and audio as recording
starts or adds a fade-out (gradual disappearance) effect to them as recording
ends.
[WHITE-IN] / [WHITE-OUT]:
Adds a fade-in or fade-out effect that uses a white screen.
[BLACK-IN] / [BLACK-OUT]:
Adds a fade-in or fade-out effect that uses a black screen.
[COLOR-IN] / [COLOR-OUT]:
Adds an effect that fades in from black-and-white to color or an effect that fades
out from color to black-and-white. Audio will be recorded normally.
[OFF]
●●Motion pictures recorded with [WHITE-IN] or [BLACK-IN] are displayed as all-white or all-black
thumbnails in Playback Mode.
●●If you assign [Snap Movie] to [Fn Button Set] in [Custom] ([Operation]) menu (→47), you can
display a screen that lets you switch [Snap Movie] between [ON]/[OFF] by pressing the assigned
function button. If you press [DISP.] button while the screen is displayed, you can change the
settings for Snap Movie.
●●[Snap Movie] will be set to [OFF] when you connect to Wi-Fi with [Remote Shooting & View].
●●This function is not available in the following cases:
•• [Miniature Effect] (Creative Control Mode)
•• When [4K PHOTO] is set
•• When [Post Focus] is set
•• When [4K Live Cropping] is set
•• When recording with [High Speed Video]
154
Recording motion pictures
Recording Snap Movies
Setting up [Pull Focus]
Set the frames that specify the positions where the [Pull
Focus] starts (first position) and stops (second position).
Touch operation
Touch a subject (first position), drag your finger to the desired location (second position),
and release the finger.
•• To cancel the frame settings, touch [
].
Button operation
Assign [AF Mode] to a function button ([Fn1] - [Fn4]) (→47)
Press the function button that [AF Mode] has assigned to at step
Press
to move the frame, and press [MENU/SET] (First position)
•• If you press [DISP.] button before pressing [MENU/SET], the frame will return to the center.
Repeat step
(Second position)
•• To cancel the frame settings, press [MENU/SET].
●●A greater effect can be achieved by creating a striking contrast of focus between the start
and end positions, for example by shifting focus from the background to foreground, or vice
versa.
●●After setting focus, try to keep the distance between the subject and the camera constant.
●●When the camera fails to set the frame, it returns to the first position.
●●When [Pull Focus] is set to [ON]
], a setting specially designed for [Pull Focus].
•• Auto Focus Mode will be switched to [
] will take place at the first frame position.
•• If you take a picture, the Auto Focus operation [
●●When [Metering Mode] is set to [ ] (Spot), the spot metering target is fixed at the start position
(first position) of [Pull Focus].
●●This function is not available in the following cases:
•• In Manual Focus
•• When using the Digital Zoom
155
Playing Back and Editing Pictures
Viewing your pictures
1
Press [
2
Press
to select a picture to be
displayed
] (Playback) button
••When you press and hold
, the pictures are
displayed one after another.
••Pictures can also be forwarded or rewound by rotating
the rear dial or dragging the screen horizontally.
••If you keep your finger touching the left or right edge of
the screen after scrolling the pictures, the pictures will
continue to be scrolled. (The pictures are displayed in
a reduced size.)
Sending pictures to the WEB services
If you press while a single picture is being displayed, you can send the picture to the WEB service
quickly. (→256)
■■Ending Playback
Press [ ] (Playback) button again.
The Playback can also be ended by pressing the shutter button halfway.
●●The playback screen appears if the camera is turned on while pressing [ ] (Playback) button.
●●When [Lens Retraction] is set to [ON], the lens barrel is retracted after approx. 15 seconds as the
camera is switched to the playback screen from the recording screen.
●●This camera is compliant with the unified DCF (Design rule for Camera File system) standard
formulated by the Japan Electronics and Information Technology Industries Association (JEITA),
and with Exif (Exchangeable image file format). Files that are not DCF-compliant cannot be played
back.
●●It may not be possible to properly play back pictures taken using other cameras on this unit or it
may not be possible to use the functions of this unit for those pictures.
156
Playing Back and Editing Pictures
Viewing motion pictures
This unit was designed to play motion pictures using the AVCHD and MP4 formats.
••Motion pictures are displayed with the motion picture icon ([ ]).
1
Press
to start playback
Motion picture recording time
••Touching [
] in the middle of the screen allows you
to play back motion pictures.
••Motion pictures recorded with [Snap Movie] are played
back automatically.
••Some information will not be displayed for motion
pictures recorded in [AVCHD].
■■Operations during motion picture playback
Operation
Touch operation
Description
Play / pause
Fast rewind*1
Single-frame rewind*2 (while paused)
Fast forward*1
Single-frame forward (while paused)
Stop
Volume up
Volume down
*1The fast forward or rewind speed increases if you press
again.
*2Motion pictures recorded in [AVCHD] are rewound frame by frame approximately every
0.5 seconds.
■■Operations during automatic Snap Movie playback
Playback from the beginning
Returning to the previous picture
Scrolling to the next picture
••If you touch the screen, automatic playback will stop.
●●Motion pictures can be viewed on your computer using “PHOTOfunSTUDIO”.
157
Playing Back and Editing Pictures
Viewing motion pictures
Capturing still pictures from motion pictures
1
Display the picture that you want to capture as a still
picture by pressing to pause a motion picture being
played back on the camera
•• If you press
while paused, you can make finer adjustments
to the positions in a motion picture.
2
Press [MENU/SET]
•• The same operation can be performed by touching [
].
•• The still picture is saved with aspect ratio of [16:9] and [Quality]
of [ ]. The picture size varies depending on the motion picture
being played back.
[Rec Quality]
[Picture Size]
[4K]
[M] (8M)
[FHD], [HD]
[S] (2M)
●●The picture quality becomes slightly lower depending on the [Rec Quality] setting of the original
motion picture.
●●When a still picture captured from a motion picture is played back, [
158
] is displayed.
Playing Back and Editing Pictures
Switching the Playback Method
Zooming in and viewing “Playback Zoom”
1
Move the zoom lever toward T side
Current zoom position
•• Each time you move the zoom lever toward the T side, the
magnification increases through four levels: 1x, 2x, 4x, 8x, and
16x.
Operation
—
Touch
operation
Description
—
Enlarges/reduces the screen in large
steps.
Pinch out /
Pinch in
Enlarges/reduces the screen in small
steps.
Drag
Moves the enlarged area (during
enlarged display).
—
Forwards/rewinds a picture while
maintaining the same zoom
magnification and zoom position
(during Playback Zoom).
•• You can also zoom in by quickly touching the display twice.
(If the display was enlarged, it returns to the same magnification
ratio.)
Viewing a list of pictures “Multi Playback”
1
Move the zoom lever toward W side
•• Move the zoom lever toward the W side and you can switch the
display methods in the following order: 1-picture screen (fullscreen) → 12-picture screen → 30-picture screen → Calendar
screen. (Move the lever to the T side to return.)
•• It is possible to switch the playback screen by touching the
following icons.
]: 1-picture screen
–– [
]: 12-picture screen
–– [
]: C
alendar screen (→160)
–– [
]: 30-picture screen
–– [
•• The screen can be switched gradually by dragging the screen up
or down.
•• When you select a picture using the cursor button and press
[MENU/SET] on the 12-picture or 30-picture screen, the selected
picture is displayed on the 1-picture screen (full-screen). (When
you select a motion picture, it is automatically played back.)
●●Pictures displayed with [!] cannot be played back.
159
Playing Back and Editing Pictures
Switching the Playback Method
Viewing pictures by their recording date “Calendar Playback”
1
Move the zoom lever toward the W side to display the
calendar screen
2
Use
to select recording date and press
[MENU/SET]
Selected date
•• Pictures are displayed in a 12-picture screen.
•• Turn the zoom lever toward the W side to return to the Calendar
screen display.
SUN MON
2018
12
THU
FRI
2
3
TUE WED
4
5
6
7
SAT
8
9
10
11
12
13
14
15
1
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
●●You can display the calendar between January 2000 to December 2099.
●●Pictures taken without clock settings are displayed with the date January 1st, 2018.
●●Pictures taken with destination settings made in [World Time] are displayed in the calendar screen
using the appropriate date for the destination’s time zone.
160
Playing Back and Editing Pictures
Viewing group pictures
You can consecutively play back multiple pictures in a group or play back group pictures
one by one.
[
]:Group picture saved using [4K PHOTO Bulk Saving]
[
]:Group pictures recorded using Focus Bracket
15 pic.
[
]:Group pictures recorded using [Time Lapse Shot]
[
]:Group pictures recorded using [Stop Motion Animation]
••You can delete or edit pictures in group units. (For example, if you delete one of
pictures in a group, all pictures in that group will be deleted.)
●●Pictures will not be grouped if they are recorded without setting [Clock Set].
Playing back group pictures consecutively
1
Press
•• The same operation can be performed by touching the group picture icon ([
], [
], [
]).
•• When you play back group pictures one by one, the option settings are displayed.
After you select [Burst Play] (or [Sequential Play]), select one of the following playback methods.
[From the first picture]:Play back the group pictures consecutively from the first picture in a
group.
[From the current picture]: Play back the group pictures consecutively from the picture currently
played back.
■■Operations during continuous playback
Operation
161
Touch
operation
Description
Continuous playback /
Pause
Operation
Touch
operation
Description
Stop
Fast rewind playback
Fast forward playback
Returning to the previous
(while paused)
Scrolling to the next picture
(while paused)
Playing Back and Editing Pictures
Viewing group pictures
Playing back group pictures one by one
1
Press
2
Use
162
•• The same operation can be performed by touching [
]/[
].
[
to scroll through the pictures
]/[
]/
•• Pressing again or touching [
] will return you to the normal
playback screen.
•• You can use the same operations for pictures stored in a group
as in normal still picture playback. (Multi Playback, Playback
Zoom, deletion of pictures, etc.)
15 pic.
Playing Back and Editing Pictures
Deleting pictures
Deleted pictures cannot be recovered.
[Delete Single]
1
Press [
2
Use
] button to delete displayed picture
•• The same operation can be performed by touching [
].
to select [Delete Single] and press [MENU/SET]
To delete multiple (up to 100*)/To delete all pictures
*A picture group is handled as 1 picture. (All the pictures in the selected picture group
are deleted.)
1
2
Press [
Use
] button while viewing a picture
to select [Delete Multi]/[Delete All] and press [MENU/SET]
•• You can select [Delete All Non-rating] in [Delete All] if there are pictures that have been set as
[Rating].
(When [Delete Multi] is selected)
to select picture and press [MENU/SET]
3 Use
(repeat)
Picture selected
•• To cancel → Press [MENU/SET] again.
OK
4
163
Press [DISP.] button to execute
•• May take time depending on number of pictures deleted.
Using Menu Functions
Menu list
Menus to be displayed in each recording mode
[Intelligent Auto]
••[Intelligent Auto Mode] (→52)
••[iHandheld Night Shot] (→54)
••[iHDR] (→55)
[Creative Video]
••[Exposure Mode] (→77)
••[High Speed Video] (→78)
••[4K Live Cropping] (→79)
[Custom Mode]
You can select your preferred custom setting from [Set1], [Set2], and [Set3]. (→82)
[Panorama Shot]
••[Direction] (→65)
••[Picture Size] (→65)
[Scene Guide]
••[Scene Switch] (→67)
[Creative Control]
••[Filter Effect] (→71)
••[Simultaneous Record w/o Filter] (→71)
[Rec]
→165
[Motion Picture]
→179
[Custom]
→181
[Setup]
→195
[My Menu]
→205
[Playback]
→206
164
Using Menu Functions
Menu list
[Rec]
••The [AFS/AFF/AFC], [Sensitivity], [AF Mode], [Photo Style], [Filter Settings], [Metering
Mode], [Highlight Shadow], [i.Dynamic], [i.Resolution], [Diffraction Compensation],
[Stabilizer], [i.Zoom] and [Digital Zoom] menu items are common for both [Rec] and
[Motion Picture] menus. If a setting in one menu is changed, the setting with the same
name in other menu will also be changed automatically.
••[Aspect Ratio] (→165)
••[Picture Size] (→166)
••[Quality] (→166)
••[AFS/AFF/AFC] (→84)
••[Sensitivity] (→101)
••[AF Mode] (→85)
••[Photo Style] (→167)
••[Filter Settings] (→169)
••[Color Space] (→170)
••[Metering Mode] (→171)
••[Highlight Shadow] (→172)
••[i.Dynamic] (→173)
••[i.Resolution] (→173)
••[Flash] (→143)
••[Red-Eye Removal] (→173)
••[ISO Auto Upper Limit (Photo)] (→174)
••[Min. Shtr Speed] (→174)
••[Long Shtr NR] (→174)
••[Diffraction Compensation] (→175)
••[Stabilizer] (→136)
••[i.Zoom] (→139)
••[Digital Zoom] (→140)
••[Burst Rate] (→124)
••[4K PHOTO] (→107)
••[Self Timer] (→126)
••[Time Lapse Shot] (→130)
••[Stop Motion Animation] (→133)
••[Silent Mode] (→175)
••[Shutter Type] (→176)
••[Bracket] (→127)
••[HDR] (→177)
••[Multi Exp.] (→178)
[Aspect Ratio]
Recording mode:
This allows you to select the aspect ratio of the pictures to suit printing or the playback
method.
→
[Rec] → [Aspect Ratio]
[4:3]
Aspect ratio of a 4:3 TV
[3:2]
Aspect ratio of standard film cameras
[16:9]
Aspect ratio of high-definition TV, etc.
[1:1]
Aspect ratio of a square image
165
Using Menu Functions
Menu list
[Picture Size]
Recording mode:
The higher the numbers of pixels, the finer the detail of the pictures will appear even
when they are printed onto large sheets.
→
[Rec] → [Picture Size]
[Aspect Ratio]
4:3
[L] 17.5M
[Picture Size]
[
3:2
[L] 20M
4864×3648
M] 9M
3456×2592
[
S] 4.5M
2432×1824
16:9
[L] 17M
5472×3648
[
5472×3080
3648×3648
M] 10M
[
M] 8M
[
S] 5M
[
S] 2M
[
3888×2592
[
1:1
[L] 13.5M
3840×2160
2736×1824
1920×1080
M] 6.5M
2592×2592
S] 3.5M
1824×1824
●●The picture size will be fixed to [4K] when recording 4K photos or recording in [Post Focus].
[Quality]
Recording mode:
Set the compression rate used for storing pictures.
→
Settings
[
]
[
]
]
[
]
166
]
File format
JPEG
[
[
[Rec] → [Quality]
Description
Gives priority to picture quality and saves pictures in JPEG file
format.
Saves pictures in JPEG file format using standard picture quality.
This setting is useful when you want to increase the number of
recordable pictures without changing the number of pixels.
RAW + JPEG
Saves pictures in both RAW and JPEG file format ([
simultaneously.
RAW
Saves pictures in RAW file format.
] or [
])
Using Menu Functions
Menu list
About RAW file
In RAW file format the data is saved without any picture processing by the camera. To play back and
edit RAW file pictures, you must use this unit or dedicated software.
•• You can develop the RAW file pictures using [RAW Processing] in the [Playback] menu. (→211)
•• To develop and edit RAW file pictures on a PC, use the software (Ichikawa Soft Laboratory’s
“SILKYPIX Developer Studio”). To get this software, download it from the supplier’s website and
install it on your PC. (→276)
●●A RAW still picture is always recorded at [3:2] (5472×3648).
] or [
] from the camera, the corresponding RAW and
●●If you delete a picture recorded in [
JPEG pictures are also deleted.
●●When you play back a picture recorded with [
], the gray area is displayed according to the
aspect ratio of the picture during recording.
●●The setting is fixed to [ ] when recording 4K photos or recording in [Post Focus].
], [
] or [ ] in the following cases:
●●You cannot set to [
•• Panorama Shot Mode
•• [Handheld Night Shot] (Scene Guide Mode)
[Photo Style]
Recording mode:
You can adjust the colors and picture quality according to the concept of the picture that
you want to create.
→
[Rec] → [Photo Style]
[Standard]
Standard setting.
[Vivid]*
Setting with slightly high contrast and saturation.
[Natural]*
Setting with slightly low contrast.
[Monochrome]
Setting that creates a picture using monochrome shades of gray only,
such as black and white.
[L.Monochrome]*
Setting that creates a monochrome picture using rich shades of gray
with deep solid black tones.
[Scenery]*
Setting that creates a picture using vivid colors for the blue sky and
green.
[Portrait]*
Setting that produces the look of a healthy complexion.
[Custom]*
Setting for using colors and picture quality that were registered in
advance.
* This setting is not available in Intelligent Auto Plus Mode.
167
Using Menu Functions
Menu list
●●In Intelligent Auto Plus Mode, the setting will be reset to [Standard] when the camera is switched
to another Recording mode or this unit is turned on and off.
●●Only picture quality adjustment can be set in the Scene Guide Mode. (→168)
■■Adjusting the picture quality
••Picture quality cannot be adjusted in the Intelligent Auto
Plus Mode.
Press
to select the type of Photo Style
Press
to select an item and press
to adjust
[Contrast]
[Sharpness]
[Noise Reduction]
[Saturation]*1
[Color Tone]*1
[Filter Effect]*2
Standard
[+]
[–]
[+]
[–]
Increases the contrast in a picture.
Decreases the contrast in a picture.
Enhances the outlines in a picture.
Softens the outlines in a picture.
Increases the noise reduction effect to reduce noise. This
[+]
setting may slightly lower the resolution.
Lowers the noise reduction effect to achieve a picture
[–]
quality with clearer resolution.
[+]
Gaudy coloring
[–]
Subdued coloring
[+]
Bluish coloring
[–]
Yellowish coloring
Enhances the contrast of a subject. (Effect: Low)
[Yellow]
Records a blue sky clearly.
Enhances the contrast of a subject. (Effect: Medium)
[Orange]
Records a blue sky with vibrant colors.
Enhances the contrast of a subject. (Effect: High)
[Red]
Records a blue sky with even more vibrant colors.
Applies subdued coloring for the skin and lips of a person.
[Green]
Emphasizes green leaves and makes them brighter.
[Off]
—
*1[Color Tone] is displayed only when [Monochrome] or [L.Monochrome] is selected. Otherwise,
[Saturation] is displayed.
*2 Displayed only when [Monochrome] or [L.Monochrome] is selected.
•• When the picture quality is adjusted, [+] will be displayed in the [Photo Style] icon.
Press [MENU/SET]
■■Registering the setting for the adjusted picture quality to [Custom]
Perform the picture quality adjustment in Step
press the [DISP.] button
168
of “Adjusting the picture quality” and
Using Menu Functions
Menu list
[Filter Settings]
Recording mode:
You can apply picture effects (filters) that are available for Creative Control Mode to
images in other modes, such as Aperture-Priority AE Mode or Panorama Shot Mode.
(→71)
→
[Rec] → [Filter Settings] → [Filter Effect]
Settings: [ON] / [OFF] / [SET]
■■With touch screen operations
Touch [ ]
Touch the item you want to set
[ ]: Picture effects ON or OFF
[ ]: Picture effects (Filter)
[ ]: Adjusting the picture effect
●●[Rough Monochrome], [Silky Monochrome], [Soft Focus], [Star Filter] and [Sunshine] are not
available in the following cases.
•• Creative Video Mode
•• During motion picture recording
●●The following functions are not available in Panorama Shot Mode.
–– [Toy Effect], [Toy Pop], [Miniature Effect], [Sunshine]
●●When recording panorama pictures, the following effects are not applied to the recording screen.
–– [Rough Monochrome], [Silky Monochrome], [Soft Focus], [Star Filter]
●●When recording a panorama picture in a scene with low brightness, you may not be able to
achieve the desired results if [High Key] is used in the Panorama Shot Mode.
●●The available ISO sensitivity settings will be limited up to [3200].
●●The ISO sensitivity for [High Dynamic] will be fixed to [AUTO].
●●When using [Filter Effect], you cannot use menus or recording functions which are not available in
Creative Control Mode.
●●This function is not available in the following cases:
•• When recording with [High Speed Video]
•• When recording using [4K Live Cropping]
169
Using Menu Functions
Menu list
■■Taking two still pictures with and without picture effects
([Simultaneous Record w/o Filter])
You can take two still pictures at the same time by pressing the shutter button once; one
with effects and one without effects.
→
[Rec] → [Filter Settings] → [Simultaneous Record w/o Filter]
Settings: [ON] / [OFF]
••The camera will take a still picture with the effects applied and then a still picture
without the effects.
••After taking the picture, [Auto Review] will display only the still picture with the effects
applied.
●●This function is not available in the following cases:
•• Panorama Shot Mode
•• When using [Burst]
•• When recording 4K photos
•• When recording using [Post Focus]
•• Taking still pictures while a motion picture is being recorded
], [
] or [ ]
•• When [Quality] is set to [
•• When recording using [Bracket]
•• When using [Time Lapse Shot]
•• When using [Stop Motion Animation]
[Color Space]
Recording mode:
You can set the method for reproducing the colors to correctly display the recorded
pictures on the screens of a PC or printer, etc.
→
[Rec] → [Color Space]
[sRGB]
Sets the sRGB color space. This setting is widely used for devices such as PCs.
[AdobeRGB]
Sets the AdobeRGB color space.
AdobeRGB color space has a wider color reproduction range than sRGB color
space. Therefore, AdobeRGB color space is mainly used for business applications
such as commercial printing.
●●Select [sRGB] if you do not have expert knowledge about AdobeRGB color space.
●●The setting is fixed to [sRGB] while recording motion pictures, recording 4K photos, or recording
in [Post Focus].
170
Using Menu Functions
Menu list
[Metering Mode]
Recording mode:
You can change the metering method used for measuring brightness.
→
[Rec] → [Metering Mode]
[Metering Mode]
(Multiple)
(Center weighted)
Brightness measurement position
Conditions
Whole screen
Normal usage
(produces balanced pictures)
Center and surrounding area
Subject in center
Center of [+] (spot metering target)
(Spot)
Great difference between
brightness of subject and
background
(e.g. person in spotlight on stage,
backlighting)
●●If you set the spot metering target on the edge of the screen, the metering may be affected by the
brightness around the location.
171
Using Menu Functions
Menu list
[Highlight Shadow]
Recording mode:
You can adjust the highlights and shadows in a picture while confirming the brightness of
these areas on the screen.
1 Set the menu
→
/
2
[Rec] → [Highlight Shadow]
([Standard])
No adjustments.
([Higher contrast])
Makes the highlighted areas brighter and shadowed areas
darker.
([Lower contrast])
Makes the highlighted areas darker and shadowed areas
brighter.
([Brighten shadows])
Makes the shadowed areas brighter.
/
You can set a custom registration shape.
(Custom)
Rotate the control ring to adjust the brightness of the
highlighted areas and rotate the rear dial to adjust the
brightness of the shadowed areas
Highlighted area
Shadowed area
Preview display
•• Adjustments can also be made by dragging the graph.
•• To register your preferred settings, press to select the
registration target icon (Custom 1, Custom 2, and Custom 3).
3
Press [MENU/SET]
●●You can press the [DISP.] button on the brightness adjustment screen to switch the screen display.
●●The settings adjusted in [
camera is turned off.
172
], [
], [
], or [
] will be restored to the default settings when the
Using Menu Functions
Menu list
[i.Dynamic]
Recording mode:
Automatically adjusts contrast and exposure to give more lifelike colors when there is
significant contrast between background and subject.
→
[Rec] → [i.Dynamic]
Settings: [AUTO] / [HIGH] / [STANDARD] / [LOW] / [OFF]
●●You may not see the effect depending on the recording conditions.
●●This function is not available in the following cases:
•• When [HDR] is set to [ON]
•• When [Sensitivity] is set to [H.16000], [H.20000] or [H.25600]
[i.Resolution]
Recording mode:
You can use the camera’s Intelligent Resolution technology to record still pictures with
sharper outlines and clearer resolution.
→
[Rec] → [i.Resolution]
Settings: [HIGH] / [STANDARD] / [LOW] / [OFF]
[Red-Eye Removal]
Recording mode:
Automatically detects red-eye and corrects still picture data when recording with flash
red-eye reduction ([
] or [
]).
→
[Rec] → [Red-Eye Removal]
Settings: [ON] / [OFF]
].
●●When this function is set to [ON], the flash icon changes to [ ]/[
●●Depending on the circumstance, it may not be possible to correct red-eye.
173
Using Menu Functions
Menu list
[ISO Auto Upper Limit (Photo)]
Recording mode:
You can set the upper limit of ISO sensitivity when ISO sensitivity is set to [AUTO] or
[
].
→
[Rec] → [ISO Auto Upper Limit (Photo)]
Settings: [AUTO] / [200] / [400] / [800] / [1600] / [3200] / [6400] / [12800]
●●This function is not available in the following cases:
•• [Clear Nightscape], [Cool Night Sky], [Warm Glowing Nightscape], [Handheld Night Shot]
(Scene Guide Mode)
[Min. Shtr Speed]
Recording mode:
Sets the minimum value for the shutter speed to be used when ISO sensitivity is set to
[AUTO] or [
].
→
[Rec] → [Min. Shtr Speed]
Settings: [AUTO] / [1/16000] to [1/1]
●●The shutter speed may be slower than the setting value under recording conditions in which the
correct exposure is not achieved.
[Long Shtr NR]
Recording mode:
The camera can automatically eliminate the noise made when taking pictures with a
slower shutter speed (e.g. to record night scenes).
→
[Rec] → [Long Shtr NR]
Settings: [ON] / [OFF]
●●While the camera eliminates the noise, [Long shutter noise reduction ongoing] is displayed for the
same period as the shutter speed for the signal processing time.
●●This function is not available in the following cases:
•• During motion picture recording
•• When recording 4K photos
•• When recording using [Post Focus]
•• When using the electronic shutter
174
Using Menu Functions
Menu list
[Diffraction Compensation]
Recording mode:
The camera raises the resolution by correcting the blurriness caused by diffraction when
the aperture is closed.
→
[Rec] → [Diffraction Compensation]
Settings: [AUTO] / [OFF]
●●Noise in the periphery of the picture may stand out with higher ISO sensitivity.
[Silent Mode]
Recording mode:
Disabling the beeps and flash at the same time.
→
[Rec] → [Silent Mode]
Settings: [ON] / [OFF]
••This mode will mute beeps, set the flash to [ ] (Forced Flash Off), and disable AF
Assist Lamp.
The settings for the following functions are fixed:
–– [Flash Mode]: [ ] (Forced Flash Off)
–– [Shutter Type]: [ESHTR]
–– [AF Assist Lamp]: [OFF]
–– [Beep Volume]: [ ] (Off)
–– [Shutter Vol.]: [ ] (Off)
●●Even when this mode is set to [ON], the following lamps/indicators will light or flash.
•• Self-timer indicator
•• WIRELESS connection lamp
●●The operation sounds of this camera such as the lens aperture sound are not muted.
175
Using Menu Functions
Menu list
[Shutter Type]
Recording mode:
You can take pictures using two types of shutter modes: the mechanical shutter and
electronic shutter.
Flash
Mechanical shutter
Electronic shutter
○
–
Shutter Speed
(seconds)
T (Time)*1,
60 - 1/2000
1 - 1/16000
Shutter sound
Mechanical shutter sound
+
Electronic shutter sound*2
Electronic shutter sound*2
*1This setting is available only in Manual Exposure Mode.
*2You can use [Shutter Vol.] and [Shutter Tone] to adjust the volume of the electronic shutter sound.
(→197)
→
[Rec] → [Shutter Type]
[AUTO]
The shutter mode automatically switches based on the recording conditions and
shutter speed.
•• The mechanical shutter mode has higher priority over the electronic shutter
mode because the mechanical shutter has less function-related restrictions
when recording with a flash, etc.
[MSHTR]
Uses only the mechanical shutter mode to take a picture.
[ESHTR]
Uses only the electronic shutter mode to take a picture.
●●When [ ] is displayed on the screen, recording is performed with an electronic shutter.
●●If you take a picture of a moving subject using the electronic shutter, the subject in the
picture may be skewed in some cases.
●●When you take a picture under a fluorescent or LED lighting fixture using the electronic
shutter, the recorded picture may have horizontal stripes. If you use a slower shutter
speed, the horizontal stripes may be reduced.
176
Using Menu Functions
Menu list
[HDR]
Recording mode:
The camera can combine 3 still pictures taken at different exposures into a single
properly exposed picture with rich gradation. The individual pictures used to create the
HDR picture are not saved. You can minimize the loss of gradations in bright areas and
dark areas when, for example, the contrast between the background and the subject is
large.
A combined HDR picture is saved in JPEG format.
→
[Rec] → [HDR]
Settings: [ON] / [OFF] / [SET]
■■Changing the settings
[Dynamic Range]
[AUTO]:Takes pictures after automatically setting the adjustment range of
the exposure based on the contrast of a subject.
[±1EV] / [±2EV] / [±3EV]: Takes pictures using the adjustment range of the
exposure being set.
[Auto Align]
[ON]:Automatically adjusts the displacement of pictures caused by jitter,
etc. We recommend using this setting to take pictures with a handheld
camera.
[OFF]:Does not adjust the displacement of pictures. We recommend using
this setting when you use a tripod.
●●After the shutter button has been pressed, do not move the camera during the burst operation.
●●Since a burst of still pictures are combined after they have been recorded, it will be a few
moments before you will be able to record another picture.
●●A subject that was in motion when it was recorded may be recorded as an afterimage.
●●When [Auto Align] is set to [ON], the angle of view narrows slightly.
●●When you take pictures using a flash, the flash mode is fixed to [ ] (Forced Flash Off).
●●This function will not work for still pictures while motion pictures are being recorded.
●●This function is not available in the following cases:
•• When using [Burst]
•• When recording 4K photos
•• When recording using [Post Focus]
•• When recording using [Bracket]
], [
] or [ ]
•• When [Quality] is set to [
•• When using [Time Lapse Shot]
•• When [Auto Shooting] of [Stop Motion Animation] is set to [ON]
177
Using Menu Functions
Menu list
[Multi Exp.]
Recording mode:
You can create an effect similar to the operation of up to four times of exposure on a
single picture.
→
1
2
Press
[Rec] → [Multi Exp.]
to select [Start] and press [MENU/SET]
Decide on your composition and take the first picture
•• After recording the first picture, press the shutter button halfway
to proceed to the next recording.
to select the item and press [MENU/SET]. You can
•• Press
perform the following operations.
–– [Next]: Proceed to the next recording.
–– [Retake]: Delete the result of the last shot and take another
picture.
–– [Exit]: E
xit Multi Exposure and save the picture that was taken.
3
Record the second, third, and fourth pictures
4
Press
Next
Retake
Exit
•• When you press [Fn3] button while taking pictures, the pictures
that you took are saved and Multi Exposure is closed.
to select [Exit] and press [MENU/SET]
•• You can also end the operation by pressing the shutter button
halfway.
Retake
Exit
■■Changing the settings
[Auto Gain]
If you select [OFF], all exposure results are superimposed as they are.
Compensate the exposure as necessary, depending on the subject.
[Overlay]
If you select [ON], you can apply Multi Exposure to previously recorded
pictures. After [Start] is selected, pictures on the card will be displayed. Select
a RAW image, and press [MENU/SET] to proceed to recording.
●●When you take the second and subsequent pictures, you cannot perform zoom operation.
●●Information for the picture taken last will be used as recording information of pictures taken using
Multi Exposure.
●●You can perform [Overlay] on RAW file pictures recorded using this camera only.
●●This function is not available in the following cases:
•• When using [Time Lapse Shot]
•• When using [Stop Motion Animation]
178
Using Menu Functions
Menu list
[Motion Picture]
••The [AFS/AFF/AFC], [Sensitivity], [AF Mode], [Photo Style], [Filter Settings], [Metering
Mode], [Highlight Shadow], [i.Dynamic], [i.Resolution], [Diffraction Compensation],
[Stabilizer], [i.Zoom] and [Digital Zoom] menu items are common for both [Rec] and
[Motion Picture] menus. If a setting in one menu is changed, the setting with the
same name in other menu will also be changed automatically. For details, refer to the
corresponding item of the [Rec] menu.
••[Rec Format] (→149)
••[Flkr Decrease] (→179)
••[Rec Quality] (→149)
••[Level Shot] (→179)
••[Snap Movie] (→153)
••[Wind Noise Canceller] (→180)
••[Continuous AF] (→151)
••[Zoom Mic] (→180)
••[ISO Auto Upper Limit (Video)] (→78)
[Flkr Decrease]
Recording mode:
The shutter speed can be fixed to reduce the flicker or striping in the motion picture.
→
[Motion Picture] → [Flkr Decrease]
Settings: [1/50] / [1/60] / [1/100] / [1/120] / [OFF]
[Level Shot]
Recording mode:
Level Shot function automatically detects the camera’s tilt while recording motion pictures,
and horizontally corrects the recording motion picture so it will not be tilted.
→
[Motion Picture] → [Level Shot]
Settings: [ON] / [OFF]
●●If you record while walking, or if the camera’s tilt is large, it may not be possible to horizontally
correct the motion pictures.
●●The angle of view becomes slightly narrow when motion picture recording starts.
●●Still pictures taken while recording motion pictures will not be horizontally corrected.
●●This function is not available in the following cases:
•• When recording with [High Speed Video]
•• When recording using [4K Live Cropping]
•• When [Stabilizer] is set to [OFF]
•• When [Rec Format] is set to [MP4], [Rec Quality] is set to [4K/100M/30p] or [4K/100M/24p]
179
Using Menu Functions
Menu list
[Wind Noise Canceller]
Recording mode:
This will reduce the wind noise coming into the built-in microphone while maintaining
sound quality.
→
[Motion Picture] → [Wind Noise Canceller]
Settings: [HIGH] / [STANDARD] / [OFF]
••[HIGH] effectively reduces the wind noise by minimizing the low-pitched sound when a
strong wind is detected.
••[STANDARD] extracts and reduces only the wind noise without deteriorating the sound
quality.
●●You may not see the full effect depending on the recording conditions.
[Zoom Mic]
Recording mode:
Coupled to the zoom operation, it will more clearly record far sounds during enlarging
image, and surrounding sounds with wide-angle.
→
[Motion Picture] → [Zoom Mic]
Settings: [ON] / [OFF]
●●When set to [ON] and performing zoom, the operation sound may be recorded enhanced in
accordance with the surrounding sounds. Also, audio recording level will be lower compared to
when [OFF].
●●The stereo effect of the audio is reduced during enlarging image.
180
Using Menu Functions
Menu list
[Custom]
[Exposure]
••[ISO Increments] (→182)
••[Extended ISO] (→182)
••[Exposure Comp. Reset] (→182)
[Focus / Release Shutter]
••[AF/AE Lock] (→99)
••[AF/AE Lock Hold] (→182)
••[Shutter AF] (→182)
••[Half Press Release] (→182)
••[Quick AF] (→182)
••[Eye Sensor AF] (→183)
••[Pinpoint AF Setting] (→183)
••[AF Assist Lamp] (→183)
••[Direct Focus Area] (→183)
••[Focus/Release Priority] (→184)
••[Focus Switching for Vert / Hor] (→184)
••[Loop Movement Focus Frame] (→184)
••[AF Area Display] (→184)
••[AF+MF] (→185)
••[MF Assist] (→185)
••[MF Assist Display] (→185)
[Operation]
••[Fn Button Set] (→47)
••[Q.MENU] (→46)
••[Ring/Dial Set] (→50)
••[Operation Lock Setting] (→185)
••[Touch Settings] (→185)
••[Dial Guide] (→186)
••[Zoom lever] (→186)
181
[Monitor / Display]
••[Auto Review] (→186)
••[Monochrome Live View] (→187)
••[Constant Preview] (→187)
••[Peaking] (→187)
••[Histogram] (→188)
••[Guide Line] (→188)
••[Center Marker] (→188)
••[Highlight] (→189)
••[Zebra Pattern] (→189)
••[Expo.Meter] (→190)
••[MF Guide] (→190)
••[LVF/Monitor Disp. Set] (→37)
••[Rec Area] (→190)
••[Remaining Disp.] (→190)
••[Menu Guide] (→190)
[Lens / Others]
••[Lens Position Resume] (→191)
••[Lens Retraction] (→191)
••[Self Timer Auto Off] (→191)
••[Face Recog.] (→191)
••[Profile Setup] (→194)
Using Menu Functions
Menu list
→
[Custom] →
[Exposure]
[ISO Increments]
You can change the setting to increase ISO sensitivity by 1 EV or 1/3 EV.
[Extended ISO]
You can extend the numeric values that can be set for ISO Sensitivity. (→101)
[Exposure Comp. Reset]
If the recording mode is changed or the camera is turned off, the exposure compensation
value setting is reset.
→
[Custom] →
[Focus / Release Shutter]
[AF/AE Lock Hold]
Focus and exposure stays locked even if you press and release the [AF/AE LOCK] button
(or the function button where [AF/AE LOCK] is registered). Press the button again to
cancel the lock.
[Shutter AF]
Set whether or not the focus is adjusted automatically when the shutter button is pressed
halfway.
[Half Press Release]
The shutter will immediately fire when the shutter button is pressed halfway.
[Quick AF]
The focus is automatically adjusted when camera blurring is small even when the shutter
button is not pressed. (Increases battery consumption.)
●●This function is not available in the following cases:
•• Preview Mode
•• When the lighting is low
182
Using Menu Functions
Menu list
→
[Custom] →
[Focus / Release Shutter]
[Eye Sensor AF]
Adjusts the focus automatically when the eye sensor is activated.
●●[Eye Sensor AF] may not work when the lighting is low.
[Pinpoint AF Setting]
[Pinpoint AF Time]
Sets the time for which the screen is enlarged when the shutter button is
].
pressed halfway with Auto Focus Mode set to [
[Pinpoint AF Display]
Sets whether to display the enlarged screen that appears when Auto
] in a window or full screen.
Focus Mode is set to [
[AF Assist Lamp]
Illuminates the AF Assist Lamp when the shutter button is pressed halfway when it is too
dark to facilitate focusing.
●●The AF Assist Lamp has an effective distance of 1.5 m (4.9 feet).
●●The setting is fixed to [OFF] in the following cases:
•• [Distinct Scenery], [Bright Blue Sky], [Romantic Sunset Glow], [Vivid Sunset Glow], [Glistening
Water], [Clear Nightscape], [Cool Night Sky], [Warm Glowing Nightscape], [Artistic Nightscape],
[Handheld Night Shot] (Scene Guide Mode)
•• When [Silent Mode] is set to [ON]
[Direct Focus Area]
Moves the AF area or MF assist using the cursor button while recording.
●●When [
], [
], [
], or [
] is selected, you can move the AF area, when [ ] is selected,
] is selected, you can move the focus position.
you can move the lock start position, and when [
●●Perform the setting of functions assigned to the cursor buttons using the Quick menu (→45) or
function buttons (→47).
●●[Direct Focus Area] is fixed to [OFF] in the following cases:
•• [Glistening Water] (Scene Guide Mode)
•• Creative Control Mode
•• When recording using [4K Live Cropping]
183
Using Menu Functions
Menu list
→
[Custom] →
[Focus / Release Shutter]
[Focus/Release Priority]
You can set whether to give higher priority to focusing or shutter release timing when you
take pictures using Auto Focus mode.
You can set the priority for each focus mode ([AFS/AFF], [AFC]) separately.
[FOCUS]
No picture is taken unless focusing is achieved.
[BALANCE]
A picture is taken with an appropriate balance between focusing and shutter
release timing.
[RELEASE]
A picture is taken even if the subject is out of focus.
[Focus Switching for Vert / Hor]
The camera saves the focus positions of a picture separately when it is recorded by
holding the camera vertically and horizontally. The camera saves the following positions
of the picture taken the previous time.
••AF area position (When [ ], [ ] and [ ] are set)
••Position displayed by MF Assist
[Loop Movement Focus Frame]
You can move a focus area from one edge to the opposite edge of the screen in a loop
when the AF area position or MF Assist area display position is set.
[AF Area Display]
You can perform the AF area display setting when the Auto Focus Mode is set to [
(49-area-focusing) or Custom Multi.
]
[ON]
Displays the AF area on the recording screen.
•• When the default AF area is selected in [
] (49-area-focusing) or [
] of Custom Multi-function, the AF area is not displayed.
[
[OFF]
Displays the AF area on the recording screen for only a few seconds after the AF area
is set.
●●The [ON] setting operates as [OFF] in the following cases.
•• When recording motion pictures
•• Creative Video Mode
•• When recording 4K photos
184
], [
], or
Using Menu Functions
Menu list
→
[Custom] →
[Focus / Release Shutter]
[AF+MF]
You can manually perform fine focusing during AF Lock (pressing the shutter button
halfway when [AFS/AFF/AFC] in [Rec] menu is set to [AFS] or setting AF Lock using the
[AF/AE LOCK]).
[MF Assist]
Sets whether to display the MF Assist (enlarged screen) during Manual Focus.
●●MF Assist is not displayed in the following cases:
•• During motion picture recording
] ([4K Pre-Burst]) of the 4K Photo function
•• When recording with [
•• When using the Digital Zoom
[MF Assist Display]
Sets whether to display the MF Assist (enlarged screen) in a window or full screen.
→
[Custom] →
[Operation]
[Operation Lock Setting]
You can set an object for which operation is disabled when [Operation Lock] is assigned
to the function button using [Fn Button Set] (→47) in the [Custom] ([Operation]) menu.
[Cursor]
Disables the operation of the cursor button and [MENU/SET] button.
[Touch Screen] Disables the touch operation using the touch panel.
[Touch Settings]
Enabling/disabling the touch operation.
[Touch Screen]
All touch operations.
[Touch Tab]
Operations of tabs, such as [
[Touch AF]
Operation to optimize the focus [AF] or both the focus and brightness
[AF+AE] for a touched subject.
[Touch Pad AF]
Operation to move the AF area by touching the monitor when the
viewfinder is in use. (→94)
185
] displayed on the right side of the screen.
Using Menu Functions
Menu list
→
[Custom] →
[Operation]
[Dial Guide]
Enabling/disabling the operation guide display when switching
recording modes.
Example
[Zoom lever]
Changing the zoom operation settings.
(Zoom)
The zoom operates in the normal way.
Each time zoom is operated, the zoom stops at the position for one of the
preset focal lengths.
(Step Zoom)
Focus range
Current zoom position
•• This setting does not work when
recording motion pictures or 4K photos
] ([4K Pre-Burst]).
with [
→
[Custom] →
[Monitor / Display]
[Auto Review]
[Duration Time (photo)]
Set the time to display the pictures you have taken after taking still
pictures.
[Duration Time (4K PHOTO)]
Set whether to display the pictures you have taken after recording
4K photos.
[Duration Time (Post Focus)]
Set whether to display the pictures you have taken after recording
using [Post Focus].
[Playback Operation Priority]
Allows you to switch the playback screen or to delete pictures
when the [Auto Review] function is activated.
●●When [Duration Time (photo)] is set to [HOLD], pictures are displayed until you press the shutter
button halfway. In this case, [Playback Operation Priority] is fixed to [ON].
186
Using Menu Functions
Menu list
→
[Custom] →
[Monitor / Display]
[Monochrome Live View]
You can display the recording screen in black and white. This function is useful when a
black and white screen will make it easier to adjust focus in Manual Focus mode.
●●When using the HDMI output during recording, the image is not displayed in black and white.
●●This does not affect recorded pictures.
[Constant Preview]
You can check the effects of the chosen aperture and shutter speed on the recording
screen in Manual Exposure Mode.
●●This function is disabled when the flash is used.
[Peaking]
When you perform Manual Focus operation, this function automatically adds color to the
portions of the image that are in Focus (portions on the screen with clear outlines).
●●When [Detect Level] in [SET] is set to [HIGH], portions to be highlighted are reduced, allowing you
to achieve a more precise focus.
●●Changing the [Detect Level] setting also changes the [Display Color] setting as follows.
[Detect Level]
[Display Color]
●●Each time [
[HIGH]
[LOW]
[
] (Light blue)
[
] (Blue)
[
] (Yellow)
[
] (Orange)
[
] (Yellow Green)
[
] (Green)
[
] (Pink)
[
] (Red)
[
] (White)
[
] (Gray)
] in [ ] is touched, the setting is switched in order of [
] ([Detect Level]: [HIGH]) → [OFF].
[LOW]) → [
●●This function is not available in the following case:
•• [Rough Monochrome] (Creative Control Mode)
187
] ([Detect Level]:
Using Menu Functions
Menu list
→
[Custom] →
[Monitor / Display]
[Histogram]
Enabling/disabling the histogram display.
When set to [ON], you can move the display position of the histogram by pressing
••Direct touch operation is also possible from the recording screen.
(Example)
Displays distribution of brightness in picture – e.g.
if the graph peaks at the right, this means there are
several bright areas in the picture. A peak in the center
represents correct brightness (correct exposure). This
can be used as a reference for exposure correction, etc.
Dark ← OK → Bright
●●When the histogram is not the same as that of the recorded picture under the following
conditions, histogram will be displayed in orange:
•• During Exposure Compensation.
•• When the flash fires.
•• When the correct exposure is not achieved, such as when the lighting is low.
[Guide Line]
Sets the pattern of the guidelines to be displayed while recording.
.
●●When you select [ ], you can move the position of the guideline by pressing
●●You can also set the position directly by touching [ ] on the guideline of the recording screen.
●●The guideline is not displayed during panorama picture recording.
[Center Marker]
A cross [+] is displayed to indicate the center of the recording screen. This is useful for
zooming while keeping the subject at the center of the screen.
188
.
Using Menu Functions
Menu list
→
[Custom] →
[Monitor / Display]
[Highlight]
You can set overexposed areas (areas that are too bright and where there are no shades
of gray) to flash on the screen when the [Auto Review] function is activated or during
playback.
●●To reduce overexposed areas, record a picture by setting negative
exposure compensation using the histogram display and so on as a
reference.
●●This feature is disabled during 4K photo playback, playback of pictures
recorded in [Post Focus], Multi Playback, Calendar Playback, or
Playback Zoom.
●●This does not affect recorded pictures.
[Zebra Pattern]
You can check the area in a picture, which could result in overexposure, by displaying
such an area using a zebra pattern.
[ZEBRA1]:
[ZEBRA2]:
Select [SET] to set the brightness to be displayed for each zebra pattern.
••The range of brightness you can select from is [50%] to [105%]. The [OFF] setting is
available for [Zebra 2]. When [100%] or [105%] is selected, only the overexposed areas
are displayed with the zebra pattern. When a smaller numeric value is set, the range of
brightness to be displayed by each zebra pattern will increase.
●●To reduce overexposed areas, record a picture by setting negative exposure compensation using
the histogram display and so on as a reference.
●●The displayed zebra pattern is not recorded.
●●When [Zebra Pattern] is assigned to the function button using [Fn Button Set] (→47) in the
[Custom] ([Operation]) menu, every time you press the assigned function button, the setting will
switch in the following order: [Zebra 1] → [Zebra 2] → [Zebra OFF]. When [Zebra 2] is set to
[OFF], you can switch the setting quickly in the following order: [Zebra 1] → [Zebra OFF].
189
Using Menu Functions
Menu list
→
[Custom] →
[Monitor / Display]
[Expo.Meter]
Enabling/disabling the exposure meter display.
Exposure meter
●●When you set this function to [ON], an exposure meter is displayed
during Program Shift, aperture setting, and shutter speed setting.
●●Proper exposure is not possible in the range indicated in red.
●●If the exposure meter is not displayed, press the [DISP.] button to
8
15
30
60
4.0
5.6
8.0
125
switch the display of the monitor.
●●The exposure meter will turn off if no operation is performed for
approximately 4 seconds.
[MF Guide]
When you focus manually, the MF guide is displayed on the
screen. You can check whether the point of focus is to the
near side or the far side.
Indicator for
(infinity)
[Rec Area]
Switching the angle of view setting used for recording still pictures and motion pictures.
Indicated as the angle of view when recording still pictures.
Indicated as the angle of view when recording motion pictures.
●●The recording area indicated is an approximation.
●●[Rec Area] is fixed to [ ] when recording 4K photos or recording in [Post Focus].
[Remaining Disp.]
Switching the display between the number of recordable pictures that you can take and
the available recording time.
[Menu Guide]
Displaying/not displaying the selection screen when the mode dial is switched to
[
]/[ ].
190
Using Menu Functions
Menu list
→
[Custom] →
[Lens / Others]
[Lens Position Resume]
Remember the zoom position and focus position when the camera is turned off.
[Lens Retraction]
Sets whether or not to retract the lens barrel a little while after the playback screen
appears.
[Self Timer Auto Off]
The self-timer is canceled if the unit is turned off.
[Face Recog.]
The Face Recognition function recognizes a face similar to a registered face and
automatically adjusts focus and exposure for the face with higher priority. Even if a person
you want to focus on is standing at the back or corner in a group photo, the camera will
automatically recognize the person and record this person’s face clearly.
Settings: [ON] / [OFF] / [MEMORY]
■■How the Face Recognition function works
During recording
••The camera recognizes a registered face and adjusts focus
and exposure.
••When registered faces that have set names are recognized,
the names are displayed (max. 3 people).
During playback
••The name and age are displayed.
191
Using Menu Functions
Menu list
→
[Custom] →
[Lens / Others]
■■Registering face pictures
Up to 6 people’s face pictures can be registered along with such information as name and
birthdate.
Use to select [MEMORY] and press [MENU/SET]
Use
to select [New] and press [MENU/SET]
1
New
2
3
5
6
KEN
4
Align the face with the guide and record
•• Faces of subjects other than people (e.g. pets) cannot be
registered.
•• When is pressed or [ ] is touched, an explanation is
displayed.
Use
to select the item for editing and press [MENU/SET]
[Name]
Set the name.
•• For details on how to enter characters, refer to “Entering Text” (→51)
[Age]
Set the birthdate.
[Add Images]
Up to 3 face pictures of the person can be registered.
Use
to select [Add] and press [MENU/SET]
•• When a registered face picture is selected with cursor button, a screen to
confirm deletion is displayed. Select [Yes] to delete the face picture.
Record the picture (step )
■■Editing or deleting information about registered persons
Use
to select [MEMORY] and press [MENU/SET]
Use
to select the picture of the person to be edited or deleted and press
[MENU/SET]
Use
to select the item and press [MENU/SET]
192
[Info Edit]
Edit name or other registered information. (Step
[Priority]
Set priority order for focus and exposure.
Use
to select the registration order and press [MENU/SET]
[Delete]
Delete information and face pictures of registered persons.
of “Registering face pictures”)
Using Menu Functions
Menu list
→
[Custom] →
[Lens / Others]
Good example for registering
Recording tips when registering face pictures
a face
••Make sure the subject’s eyes are open and mouth closed;
have the subject face the camera directly, and make sure
the outline of the face, the eyes and eyebrows are not
hidden by hair.
••Make sure there are no heavy shadows on the face. (During
registration, the flash is not used.)
If the camera seems to have difficulty recognizing faces when recording
••Register additional pictures of the same person’s face, indoors and outdoors or with
different expressions or angles.
••Register additional pictures at the place you are recording.
••If a registered person is no longer recognized, re-register that person.
••In some cases, the camera cannot recognize or incorrectly recognizes even registered
people depending on their expression or the environment.
●●[Face Recog.] functions only when Auto Focus mode is set to [ ].
●●Only the first picture of the burst recording will contain Face Recognition information.
●●The name of the person recognized in the first picture is displayed in the case of group pictures.
●●This function is not available in the following cases:
•• [Miniature Effect] (Creative Control Mode)
•• During motion picture recording
•• When recording 4K photos
•• When recording using [Post Focus]
•• When using [Time Lapse Shot]
193
Using Menu Functions
Menu list
→
[Custom] →
[Lens / Others]
[Profile Setup]
You can set a name or birthday of a baby or pet before taking a picture to record the
name or age in months/years in the picture.
Settings: [ ] ([Baby1]) / [
] ([Baby2]) / [
] ([Pet]) / [OFF] / [SET]
■■Setting the name and age in months/years
Use
Use
Use
Use
to select [SET] and press [MENU/SET]
to select [Baby1], [Baby2] or [Pet] and press [MENU/SET]
to select [Age] or [Name] and press [MENU/SET]
to select [SET] and press [MENU/SET]
Enter the [Age].
Enter the [Name].
•• For details on how to enter characters, refer to “Entering Text” (→51)
■■Canceling the display of the name and age in months/years
Set [Profile Setup] to [OFF].
●●[Name] and [Age] print settings can be made on your computer using “PHOTOfunSTUDIO”
software, which you download from a website. Text may also be stamped onto the still picture
using the camera’s [Text Stamp].
●●[Profile Setup] is not available for 4K photo recording or recording in [Post Focus].
●●You cannot record the name or age in months/years in the following cases:
•• During motion picture recording
•• Still pictures that are taken while recording motion pictures
194
Using Menu Functions
Menu list
[Setup]
→
••[Online Manual] (→195)
••[Cust.Set Mem.] (→81)
••[Clock Set] (→29)
••[World Time] (→195)
••[Travel Date] (→196)
••[Wi-Fi] (→196)
••[Bluetooth] (→197)
••[Wireless Connection Lamp] (→197)
••[Beep] (→197)
••[Economy] (→198)
••[Monitor Display Speed] (→199)
••[LVF Display Speed] (→199)
••[Monitor Display] / [Viewfinder] (→199)
••[Monitor Luminance] (→200)
[Setup]
••[m/ft] (→200)
••[Eye Sensor] (→200)
••[USB Mode] (→200)
••[TV Connection] (→201)
••[Language] (→202)
••[Version Disp.] (→202)
••[Folder / File Settings] (→202)
••[No.Reset] (→204)
••[Reset] (→204)
••[Reset Network Settings] (→204)
••[Level Gauge Adjust.] (→205)
••[Demo Mode] (→205)
••[Format] (→27)
[Online Manual]
Settings: [URL display] / [QR Code display]
[World Time]
Sets the times for the region where you live and your travel destination.
••You can set [Destination] after setting [Home].
Settings: [Destination] / [Home]
1
2
Use
to select [Destination] or [Home] and press [MENU/SET]
Use
to select area and press [MENU/SET]
When [Destination] has been selected
Current time at selected destination
City/area name
Difference with home time
195
When [Home] has been selected
Using Menu Functions
Menu list
→
[Setup]
■■To set daylight savings
Press in step 2. (Press again to release the setting)
•• When daylight savings [
] is set, the current time is advanced by 1 hour. If the setting is
canceled, the time automatically returns to the current time.
■■When you come back from your travel destination
Select [Home] in step 1 and press [MENU/SET].
●●If you cannot find your destination in the area displayed on the screen, set based on difference
with home time.
[Travel Date]
■■[Travel Setup]
If you set your travel schedule and record pictures, the day of your trip on which the
picture was taken will be recorded.
■■To record [Location]
Once the [Travel Setup] is set, you can set the location.
••For details on how to enter characters, refer to “Entering Text” (→51)
●●To print [Location] or the number of days that have passed, either use [Text Stamp] (→217) or
print using the “PHOTOfunSTUDIO” software.
●●The travel date is calculated from the set departure date and the date set in the camera’s clock.
When destination is set in [World Time], days elapsed are calculated based on local destination
time.
●●When [Travel Setup] is set to [OFF], the number of days elapsed is not recorded. It is not
displayed even if [Travel Setup] is set to [SET] after recording.
●●When the current date passes the return date, [Travel Setup] is automatically canceled.
●●[Travel Date] cannot be recorded for AVCHD motion pictures.
●●[Location] cannot be recorded while recording motion pictures, recording 4K photos, or recording
in [Post Focus].
[Wi-Fi]
■■[Wi-Fi Function] (→261)
■■[Wi-Fi Setup] (→267)
196
Using Menu Functions
Menu list
→
[Setup]
[Bluetooth]
■■[Bluetooth] (→227)
■■[Remote Wakeup] (→234)
■■[Returning from Sleep Mode] (→238)
■■[Auto Transfer] (→240)
■■[Location Logging] (→242)
■■[Auto Clock Set] (→243)
■■[Wi-Fi network settings]
Registers a wireless access point. (→261)
••The wireless access point used for the Wi-Fi connection is automatically registered.
••Up to 17 wireless access points can be registered. If you try to register more than 17
access points, the oldest registered access points will be deleted.
••Performing [Reset Network Settings] will delete registered wireless access points.
[Wireless Connection Lamp]
The lamp lights while the wireless function is operating.
Settings: [ON] / [OFF]
[Beep]
Sets the beep sounds or shutter sounds.
■■[Beep Volume]
■■[Shutter Vol.]
■■[Shutter Tone]
●●When [Silent Mode] is set to [ON], [Beep] is not available.
197
Using Menu Functions
Menu list
→
[Setup]
[Economy]
■■[Sleep Mode]
The camera is automatically turned off if the camera has not been used for the time
selected on the setting.
••When you want to use the camera again, either press the shutter button halfway or turn
the camera back on.
■■[Sleep Mode(Wi-Fi)]
The camera is automatically turned off if the camera has not been used for approx.
15 minutes with no Wi-Fi connection.
••When you want to use the camera again, either press the shutter button halfway or turn
the camera back on.
■■[Auto LVF/Monitor Off]
The monitor/viewfinder is automatically turned off if the camera has not been used for the
time selected on the setting.
••To turn the monitor/viewfinder on again, press any button.
●●This function is not available in the following cases:
•• During motion picture recording/playback
] ([4K Pre-Burst]) of the 4K Photo function
•• When recording with [
•• When recording in [Multi Exp.]
•• When connected to computer/printer
•• During Slide Shows
•• When using [Time Lapse Shot]
•• When [Auto Shooting] of [Stop Motion Animation] is set to [ON]
•• While the HDMI output is being used for recording.
●●When using the AC adaptor (optional) and DC coupler (optional), [Sleep Mode] or [Sleep
Mode(Wi-Fi)] is disabled.
198
Using Menu Functions
Menu list
→
[Setup]
[Monitor Display Speed] / [LVF Display Speed]
Sets the display speed of the monitor or viewfinder.
[ECO 30fps]
Minimizes power consumption and the operating time is extended.
[60fps]
You can display a moving subject in fluid motion. This setting is ideal for recording
fast-moving subjects.
●●When [Monitor Display Speed] or [LVF Display Speed] (or both) is set to [ECO 30fps], Digital
Zoom is not available.
●●Cannot set to [ECO 30fps] in the following cases:
•• Creative Video Mode
•• When recording 4K photos
•• When recording using [Post Focus]
●●[Monitor Display Speed] and [LVF Display Speed] are disabled while the HDMI output is being
used for recording.
●●The [Monitor Display Speed]/[LVF Display Speed] setting does not affect the recorded picture.
[Monitor Display] / [Viewfinder]
Adjust brightness and color of the monitor or viewfinder.
[Brightness]
Adjusts the brightness.
[Contrast]
Adjusts the contrast.
[Saturation]
Adjusts the vividness of colors.
[Red Tint]
Adjusts red hues.
[Blue Tint]
Adjusts blue hues.
●●It will adjust the monitor when the monitor is in use, and the viewfinder when the viewfinder is in
use.
●●Some subjects may look different from their actual appearance, but the recorded picture will not
be affected.
199
Using Menu Functions
Menu list
→
[Setup]
[Monitor Luminance]
Sets the monitor brightness according to the ambient light level.
(Auto)
The brightness is adjusted automatically depending on how bright it is
around the camera.
(Mode 1)
The brightness is increased.
(Mode 2)
The brightness is standard.
(Mode 3)
The brightness is decreased.
●●Some subjects may look different from their actual appearance, but the recorded picture will not
be affected.
] returns to ordinary brightness if there is no operation for 30 seconds when recording. (Press
any button or touch the screen to make the screen brighter again.)
●●Setting [ ] or [ ] reduces the operating time.
●●Cannot select [ ] during playback.
●●When the AC adaptor (optional) and DC coupler (optional) are used, the initial setting is [ ].
●●[
[m/ft]
Select how distance is displayed, in Ft or M.
[Eye Sensor]
[Sensitivity]
Use this setting to set the sensitivity of the eye sensor.
[LVF/Monitor Switch]
Use this setting to switch the display between the viewfinder and monitor.
[LVF/MON AUTO] (Automatic switching between viewfinder and monitor) /
[LVF] (Viewfinder display) / [MON] (Monitor display)
•• After the display is switched using the [LVF] button, the setting of [LVF/
Monitor Switch] will also change.
[USB Mode]
Select communication method for when connecting camera to a computer or printer with
USB connection cable (supplied).
200
[Select on connection]
Select communication method each time you connect to a
computer or PictBridge-compatible printer.
[PC(Storage)]
Select when connecting to a computer.
[PictBridge(PTP)]
Select when connecting to a PictBridge-compatible printer.
Using Menu Functions
Menu list
→
[Setup]
[TV Connection]
■■[HDMI Mode (Play)]
Set the format for the output.
[AUTO]
Automatically sets the output resolution based on information from a connected TV.
[4K/30p]
Outputs pictures with a output resolution of 3840×2160 pixels using a progressive scan
method for the number of effective scanning lines (2,160 lines).
[1080p]
Outputs pictures using a progressive scan method for the number of effective scanning
lines (1,080 lines).
[1080i]
Outputs pictures using an interlace scan method for the number of effective scanning
lines (1,080 lines).
[720p]
Outputs pictures using a progressive scan method for the number of effective scanning
lines (720 lines).
[480p]
Outputs pictures using a progressive scan method for the number of effective scanning
lines (480 lines).
●●If no image appears on the TV with [AUTO], switch the setting to one other than [AUTO] to set a
format supported by your TV. (Please read the operating instructions for the TV.)
■■[HDMI Info Display (Rec)]
Set whether to display recording information when you take pictures while you monitor
them on a TV or other device by connecting the camera via HDMI micro cable. (→272)
■■[VIERA Link]
If you select [ON], operations of the camera and the VIERA Link compatible equipment
connected to the camera with an HDMI micro cable are automatically linked, enabling you
to control the camera with the remote control of the VIERA Link compatible equipment.
(→273)
201
Using Menu Functions
Menu list
→
[Setup]
[Language]
Set the language displayed on the screen.
●●If you set a different language by mistake, select [
language.
] from the menu icons to set the desired
[Version Disp.]
Check the firmware version of the camera.
●●When you press [MENU/SET] while the version is displayed, software information for this unit,
such as the license, is displayed.
[Folder / File Settings]
Set the names of a folder and file for storing images.
Folder name
File name
100ABCDE
Folder number (3-digits, 100–999)
User-defined 5-digit number
202
Color space ([P]: sRGB, [ _ ]: AdobeRGB)
User-defined 3-digit number
File number (4-digits, 0001–9999)
File extension
Using Menu Functions
Menu list
→
[Select Folder]
[Setup]
Selects a folder for storing images.
•• The number of files that can be stored is displayed for the folder name.
Creates a new folder by advancing the folder number.
•• When no folder for storing images is available on a card, the folder number reset
screen is displayed.
[OK]
Creates a new folder using the same user-defined 5-digit
number comprising a folder name as the current setting.
[Change]
Creates a new folder by entering a new user-defined 5-digit
number comprising a folder name to change the current folder
name.
•• Characters that can be set: uppercase alphanumeric
characters, numbers, and [ _ ]
•• For details on how to enter characters, refer to “Entering Text”
(→51)
[Folder Number
Link]
Sets the same number in the folder name to a user-defined
3-digit number in a file name.
[User Setting]
Sets a file name by entering a new user-defined 3-digit number.
•• Characters that can be set: uppercase alphanumeric
characters, numbers, and [ _ ]
•• For details on how to enter characters, refer to “Entering Text”
(→51)
[Create a New
Folder]
[File Name
Setting]
●●Up to 1,000 files can be stored in a single folder.
●●The serial numbers from 0001 to 9999 are assigned to the files stored in the order in which
pictures are taken. When a folder destination is changed, the file is stored with the file number
following the preceding file number.
●●In the following cases, a new folder is automatically created by advancing the folder number when
the next file is saved.
•• When 1,000 files are stored in a folder
•• When a file consisting of the file number of “9999” is stored in a folder
●●When folders with numbers from 100 to 999 already all exist, you cannot create a new folder. We
recommend saving all necessary pictures to your computer or other devices and formatting the
card.
203
Using Menu Functions
Menu list
→
[Setup]
[No.Reset]
Reset picture file numbers. (The folder number is updated and the file number starts from
0001.)
••To reset folder number to 100:
First, format the card, and reset the file numbers using [No.Reset]. Then, select [Yes]
on the folder number reset screen.
●●A folder number between 100 and 999 can be assigned.
Numbers cannot be reset once folder number reaches 999. In this case, save all necessary
pictures to your computer, and format the card (→27).
[Reset]
The following settings are reset to the default:
■■Recording settings and drive mode
■■Setup settings ([Wi-Fi Setup] and [Bluetooth] settings)
■■Custom settings ([Face Recog.] and [Profile Setup] settings)
■■Setup/custom settings
(except for [Wi-Fi Setup], [Bluetooth], [Face Recog.] and [Profile Setup] settings)
●●When the setup/custom settings are reset, the following settings are also reset:
•• The [World Time] setting
•• The [Travel Date] setting (Departure date, Return date, [Location])
•• The settings of [Rotate Disp.] and [Picture Sort] in the [Playback] menu
●●Folder numbers and clock settings will not be reset.
[Reset Network Settings]
Network settings are reset to the default, such as equipment information you have
registered using [Wi-Fi Setup] or [Bluetooth].
(Excluding [LUMIX CLUB])
204
Using Menu Functions
Menu list
→
[Setup]
[Level Gauge Adjust.]
■■[Adjust.]
Hold the camera in a horizontal position, and press [MENU/SET]. The level gauge will be
adjusted.
■■[Level Gauge Value Reset]
Restores the default level gauge setting.
[Demo Mode]
You can try focusing, peaking, etc. in [Post Focus], with the image picture.
[My Menu]
You can register frequently used menus and display them on [My Menu]. Up to 23 menus
can be registered.
→
[My Menu] → [My Menu Setting]
[Add]
Select and register a menu to be displayed on [My Menu].
[Sorting]
Change the order of the menus to be displayed on [My Menu]. Select the
menu whose order you want to change and set the new location.
[Delete]
Delete a registered menu from the [My Menu] display.
[Delete Item]: Select and delete a menu from the displayed menus.
[Delete All]: Delete all displayed menus.
Set a screen to be displayed when the menu screen is displayed.
[Display from My Menu] [ON]: Displays [My Menu]
[OFF]: Displays the menu used the previous time
205
Using Menu Functions
Menu list
[Playback]
••[Slide Show] (→207)
••[Playback Mode] (→208)
••[Protect] (→209)
••[Rating] (→209)
••[Title Edit] (→210)
••[Face Rec Edit] (→210)
••[RAW Processing] (→211)
••[4K PHOTO Bulk Saving] (→213)
••[Light Composition] (→214)
••[Sequence Composition] (→215)
••[Clear Retouch] (→216)
••[Text Stamp] (→217)
••[Resize] (→218)
••[Cropping] (→219)
••[Rotate] (→219)
••[Video Divide] (→220)
••[Time Lapse Video] (→220)
••[Stop Motion Video] (→221)
••[Rotate Disp.] (→221)
••[Picture Sort] (→221)
●●It may not be possible to set or edit pictures taken with other cameras.
■■How to select an image(s) after selecting [Single] or [Multi]
When [Single] and [Multi] are not available, select a picture in the same way as when
[Single] is selected.
[Single]
Use
to select a still picture and press [MENU/SET]
•• If [Set/Cancel] is displayed at the right bottom of the screen, the
setting is canceled when [MENU/SET] is pressed again.
Set
[Multi]
When a screen similar to the one on the right is
displayed:
Use
to select a still picture and press [MENU/SET]
(repeat)
•• To cancel → Press [MENU/SET] again.
1
2
3
4
5
6
Press [DISP.] button to execute
When a screen similar to the one on the right is
displayed:
Use
to select a still picture and press [MENU/SET]
(repeat)
•• To cancel → Press [MENU/SET] again.
OK
1
2
3
4
5
6
Set/Cancel
206
Using Menu Functions
Menu list
[Slide Show]
Automatically plays back recorded pictures, one after another. You can organize slide
shows composed of only still pictures or only motion pictures. Recommended when
viewing on TV screen.
→
1
Use
2
Use
[Playback] → [Slide Show]
to select the item and press [MENU/SET]
•• If you select [Picture Only], 4K burst files and pictures recorded
using [Post Focus] will also be played back.
•• Only an in-focus representative image will be played back from
pictures recorded using [Post Focus].
to select [Start] and press [MENU/SET]
■■Operations during Slide Show
Operation
Touch operation
Description
Play / Pause
Previous
Next
Stop
Volume up
Volume down
207
Using Menu Functions
Menu list
■■To change settings
Select [Effect] or [Setup] and press [MENU/SET].
[Effect]
This allows you to select the screen effects when switching from one
picture to the next.
[Setup]
[Duration]
[Duration] can be set only when [Effect] is set to [OFF].
[Repeat]
[ON] / [OFF]
[Sound]
[AUTO]: With still pictures, music will play back, and with motion
pictures, audio will play back.
[Music]: Music effect will play back.
[Audio]: Audio is played back from motion pictures.
[OFF]: Music and audio will not play back.
●●During slide shows of 4K burst files, pictures recorded in [Post Focus], or group pictures, effects
will stay turned off even if [Effect] is set.
●●When you play back the following pictures in a slide show, the [Duration] setting is disabled.
•• Motion pictures
•• 4K burst files
•• Pictures recorded using [Post Focus]
•• Panorama pictures
•• Group pictures
[Playback Mode]
Selects the type of the pictures and play back. ([Normal Play], [Picture Only], [Video
Only])
→
1
208
Use
[Playback] → [Playback Mode]
to select the item and press [MENU/SET]
•• If you select [Picture Only], 4K burst files and pictures recorded using [Post Focus] will also be
played back.
Using Menu Functions
Menu list
[Protect]
Set protection to disable picture deletion. Prevents deletion of important pictures.
→
1
[Playback] → [Protect]
Select picture (→206)
■■To clear all
Select [Protect] → [Cancel] → [Yes], and then press [MENU/SET]
When you set the write-protect switch on the card to the “LOCK” position, the picture is not
erased.
●●The picture is erased when formatting, even if it is protected.
●●May not be effective when using other devices.
[Rating]
You can label the pictures in five levels (ratings). When you have performed [Rating], the
following operations will be available.
••Deletes all pictures except the labeled pictures.
••You can check the rating level of the pictures by displaying the details of the file on
Windows 8, Windows 8.1, and Windows 10 (only JPEG pictures).
→
1
2
[Playback] → [Rating]
Select picture (→206)
Use
to set the Rating levels (1 to 5) and press [MENU/SET]
(Repeat steps 1 and 2 to perform the setting with [Multi].)
■■To clear all
Select [Rating] → [Cancel] → [Yes], and then press [MENU/SET]
●●When you have performed [Rating] for group pictures, the setting applies to all pictures in the
group, and the number rating set is shown on the rating settings icon of the first picture. If the total
number of pictures is 1,000 or higher, [999+] is displayed.
●●Only when [Playback Mode] is set to [Normal Play], you can select [Cancel].
●●You can set only Rating [5] for AVCHD motion pictures.
209
Using Menu Functions
Menu list
[Title Edit]
You can enter characters (titles etc.) on a recorded picture. After text has been registered,
it can be stamped in prints using [Text Stamp] (→217).
→
[Playback] → [Title Edit]
1
Select a still picture (→206)
2
Enter characters
•• [
] is displayed for pictures with texts already stamped.
•• For details on how to enter characters, refer to “Entering Text” (→51)
•• To delete texts, delete all the characters in the character input screen.
●●You can print out texts using the “PHOTOfunSTUDIO” software.
●●You can set up to 100 pictures at one time with [Multi].
●●This function is not available in the following cases:
•• Motion pictures
•• 4K burst files
•• Pictures recorded using [Post Focus]
•• Still pictures recorded with the [Quality] setting [
], [
] or [
]
[Face Rec Edit]
Edit or delete the recognition information for pictures with incorrect information.
→
[Playback] → [Face Rec Edit] → [REPLACE] or [DELETE]
1
2
Use
to select picture and press [MENU/SET]
Use
to select a person and press [MENU/SET]
3
4
Use
•• If [DELETE], go to step 4.
Use
to select the person to replace for another and press [MENU/SET]
to select [Yes] and press [MENU/SET]
●●When Face Recognition information is deleted, it cannot be restored.
●●Edit the Face Recognition information in group units for a picture group. (You cannot edit the
information for each picture in a group.)
●●You can edit only the first picture in a group.
210
Using Menu Functions
Menu list
[RAW Processing]
You can use the camera to develop still pictures that were recorded in RAW format. The
created still pictures are saved in JPEG format.
→
1
2
Press
[Playback] → [RAW Processing]
to select RAW file and press [MENU/SET]
Press
to select the item and then press
[MENU/SET] to set
•• The following items can be set. The settings used during
recording are applied at the time of setting.
211
[White Balance]
You can select White Balance to make adjustments. When you select an
item with [
], you can develop the pictures using the same settings that
were applied for recording.
[Brightness
correction]
You can correct brightness in the range from –2 EV to +2 EV.
[Photo Style]
You can select the [Photo Style] effects.
[i.Dynamic]
You can select the [i.Dynamic] settings.
[Contrast]
You can adjust the contrast.
[Highlight]
You can adjust the brightness of a highlighted area.
[Shadow]
You can adjust the brightness of a shadowed area.
[Saturation] /
[Color Tone]
You can adjust the saturation. (You can adjust the coloring when
[Monochrome] or [L.Monochrome] is selected for [Photo Style].)
[Filter Effect]
You can select a Filter effect. (Only when [Monochrome] or
[L.Monochrome] is selected for [Photo Style].)
[Noise Reduction]
You can set noise reduction.
[i.Resolution]
You can select the [i.Resolution] settings.
[Sharpness]
You can adjust the impression of resolution.
[More Settings]
to select items and press [MENU/SET] to perform the following
Use
operations.
[Reinstate Adjustments]:You can restore the settings to the ones used
during recording.
[Color Space]:You can select [Color Space] from either [sRGB] or
[AdobeRGB].
[Picture Size]:You can select the picture size ([L], [M], or [S]) of a JPEG
file when saving pictures.
Using Menu Functions
Menu list
3
Press [MENU/SET] to finalize the setting
4
Press
•• The screen in step 2 reappears. To set another item, repeat steps 2 to 3.
to select [Begin Processing] and press [MENU/SET]
■■Setting each item
When you select an item, the setting screen appears.
Operation
Touch
operation
Drag
Description
Used to make adjustments
Set
[WB K Set]
Used to display the color
temperature setting screen
(Only when [White Balance] is set
])
to [
[Adjust.]
Used to display the White Balance
fine adjustment screen
(Only when [White Balance] is set)
[DISP.]
[DISP.]
[MENU/SET]
[Set]
-2
-1
0
Adjust.
+1
+2
Set
Used to display the comparison
screen
Used to finalize an adjustment you
just made and to return to the item
selection screen
••If you have selected [Noise Reduction], [i.Resolution], or [Sharpness], the comparison
screen is not displayed.
••Pictures can be enlarged by operating the zoom lever.
••You can also zoom in by quickly touching the display twice. (If the display was enlarged,
it returns to the same magnification ratio.)
212
Using Menu Functions
Menu list
The following operating methods are available to make adjustments on the comparison
screen.
Current setting
Touch
operation
Operation
Drag
[DISP.]
[MENU/SET]
Description
Used to make adjustments
[DISP.]
Used to return to the setting screen
[Set]
Used to finalize an adjustment you
just made and to return to the item
selection screen
••If you touch the picture at the center, it will be enlarged. If you touch [
be reduced to the original size.
Set
], the picture will
●●The result of a RAW file developed by this camera and a RAW file developed by the software
“SILKYPIX Developer Studio” will not be exactly the same.
●●A RAW image recorded on this camera is always recorded with the aspect ratio set to [3:2]
(5472×3648), but if you perform [RAW Processing] from the [Playback] menu, the picture will be
processed with the aspect ratio fixed as that at the time of recording.
●●The [White Balance] setting of still pictures recorded using [Multi Exp.] is fixed to the setting used
during recording.
●●Edit group pictures one by one. The edited pictures will be newly saved separately from the
original group pictures.
●●When an HDMI micro cable is connected, [RAW Processing] is disabled.
●●You can perform RAW processing on pictures recorded using this unit only.
[4K PHOTO Bulk Saving]
You can bulk save 5 seconds’ worth of 4K recording from a 4K burst file.
→
[Playback] → [4K PHOTO Bulk Saving]
1
Use
2
Select the first frame to be bulk saved as a picture (→111, 112)
213
to select the 4K burst files and press [MENU/SET]
•• If the burst time is 5 seconds or less, all the frames can be saved as a picture.
•• The picture will be saved in JPEG format as a single burst picture group.
Using Menu Functions
Menu list
[Light Composition]
Select multiple frames from 4K burst files that you wish to combine. Parts of the image
that are brighter than the preceding frame will be superimposed on the preceding frame
to combine the frames into one picture.
→
1
2
Use
[Playback] → [Light Composition]
to select the 4K burst files and press [MENU/SET]
Choose the combining method and press [MENU/SET]
■■[Composite Merging]: Selecting frames to combine
Drag the slide bar or use
Press [MENU/SET]
to select the frames to combine
•• The selected frames are remembered, and the display goes to
the preview screen.
to select items and press [MENU/SET] to perform
•• Use
the following operations.
–– [Next]:Lets you select more frames for combining.
–– [Reselect]:Discards the frame selected immediately before
and lets you select a different image.
Repeat steps - to select more frames to combine (up to 40 frames)
Press to select [Save], and then press [MENU/SET]
■■[Range Merging]: Selecting a range to combine
Select the frame of the first picture and then press [MENU/SET]
•• The selection method is the same as in step
of [Composite Merging] setting.
Select the frame of the last picture and then press [MENU/SET]
3
214
Select [Yes] at the confirmation screen and press [MENU/SET]
•• Pictures are saved in JPEG format. Recording information (Exif information) of the first frame
such as shutter speed, aperture, and ISO sensitivity are also registered.
Using Menu Functions
Menu list
[Sequence Composition]
Select multiple frames from a 4K burst file to create a sequence composition of a moving
subject into one picture.
→
1
2
Use
[Playback] → [Sequence Composition]
to select the 4K burst files and press [MENU/SET]
Select frames to combine
Select the frames so that the moving subject will not overlap on the preceding or
subsequent frames. (The sequence composition may not be created properly if the
subject overlaps.)
Drag the slide bar or use
to select the frames to combine
Press [MENU/SET]
•• The selected frames are remembered, and the display goes to
the preview screen.
to select items and press [MENU/SET] to perform
•• Use
the following operations.
–– [Next]:Lets you select more frames for combining.
–– [Reselect]:Discards the frame selected immediately before
and lets you select a different image.
Repeat steps - to select more frames to combine (from 3 to 40 frames)
Press to select [Save], and then press [MENU/SET]
3
Select [Yes] at the confirmation screen and press [MENU/SET]
•• Pictures are saved in JPEG format. Recording information (Exif information) of the first frame
such as shutter speed, aperture, and ISO sensitivity are also registered.
Tips for [Sequence Composition]
We recommend using a tripod to take pictures for [Sequence Composition].
215
Using Menu Functions
Menu list
[Clear Retouch]
You can erase unnecessary parts recorded on the pictures taken.
••The erasure operation can only be
performed by touching. [Clear Retouch]
automatically enables the touch
operation.
→
1
2
Use
[Playback] → [Clear Retouch]
to select a still picture and press [MENU/SET]
Drag your finger over the part you want to erase
•• The parts to be erased are colored.
•• Touching [Undo] will return the colored part back to its previous
state.
REMOVE
SCALING
Undo
Set
Erasing details (enlarging the display)
Touch [SCALING]
•• On the touch screen, pinch out your two fingers to zoom in, and
pinch in your two fingers to zoom out.
•• Dragging the screen allows you to move the enlarged part.
Touch [REMOVE]
•• This will bring you back to the operation of dragging your finger
over the part you want to erase. The part you want to erase can
be dragged even while the picture is enlarged.
3
4
216
Touch [Set]
Touch [Save] or press [MENU/SET]
REMOVE
SCALING
Undo
Set
Using Menu Functions
Menu list
●●Pictures may appear unnatural because the background of deleted parts is artificially created.
●●Edit group pictures one by one. The edited pictures will be newly saved separately from the
original group pictures.
●●Not available when the viewfinder is in use.
●●When an HDMI micro cable is connected, [Clear Retouch] is disabled.
●●This function is not available in the following cases:
•• Panorama pictures
•• Motion pictures
•• 4K burst files
•• Pictures recorded using [Post Focus]
•• Still pictures recorded with the [Quality] setting [
]
[Text Stamp]
You can stamp the recording date and time, names, travel destination, travel dates, etc.
on the recorded still pictures.
→
[Playback] → [Text Stamp]
1
Select a still picture (→206)
2
Use
•• [
] appears on screen if the picture is stamped with text.
to select [Set] and press [MENU/SET]
[Shooting Date]
[Name]
3
4
217
[W/O TIME]: Stamp recording date
[WITH TIME]: Stamp recording date and time
: Stamp name registered in Face Recognition
: Stamp name registered in [Profile Setup]
[Location]
Stamp location registered in [Setup] menu’s [Travel Date]
[Travel Date]
Stamp number of days that have elapsed since the travel date set in [Setup]
menu’s [Travel Date]
[Title]
Stamp text registered in [Title Edit]
Press [Q.MENU/ ] button
Use
to select [OK] and press [MENU/SET]
Using Menu Functions
Menu list
●●Do not request date printing in store or make date printing on printer for still pictures with
date stamps. (Date printing may be overlapped.)
●●You can set up to 100 pictures at one time with [Multi].
●●The picture quality may be coarser.
●●If you stamp text on the pictures in a group, the edited pictures will be newly saved separately
from the original group pictures.
●●This function is not available in the following cases:
•• Motion pictures
•• 4K burst files
•• Pictures recorded using [Post Focus]
•• Still pictures recorded with the [Quality] setting [ ]
•• Panorama pictures
•• Still pictures that other texts had already been stamped
•• Still pictures taken without setting clock
[Resize]
Picture size can be reduced to facilitate e-mail attachment and use in web pages, etc.
→
1
[Playback] → [Resize]
Select a still picture and size
[Single]
Use
Use
to select a still picture and press [MENU/SET]
to select size and press [MENU/SET]
Set
[Multi] (up to 100 pictures)
Use
to select size and press [MENU/SET]
Use
to select a still picture and press [MENU/SET]
(repeat)
•• To cancel → Press [MENU/SET] again.
Press [DISP.] button to execute
1
2
3
4
5
6
OK
●●Picture quality is reduced after resizing.
●●This function is not available in the following cases:
•• Motion pictures
•• 4K burst files
•• Pictures recorded using [Post Focus]
•• Still pictures recorded with the [Quality] setting [ ]
•• Panorama pictures
•• Group pictures
•• Still pictures that other texts had already been stamped
218
Using Menu Functions
Menu list
[Cropping]
Enlarge your still pictures and crop unwanted areas.
→
1
2
Use
[Playback] → [Cropping]
to select a still picture and press [MENU/SET]
Select area to crop and press [MENU/SET]
Operation
Touch operation
Description
Enlarges the picture
Reduces the picture
Drag
Moves the enlarged area
●●Edit group pictures one by one. The edited pictures will be newly saved separately from the
original group pictures.
●●Original Face Recognition information will not be copied when still pictures are cropped.
●●Picture quality is reduced after cropping.
●●This function is not available in the following cases:
•• Motion pictures
•• 4K burst files
•• Pictures recorded using [Post Focus]
•• Still pictures recorded with the [Quality] setting [ ]
•• Panorama pictures
•• Still pictures that other texts had already been stamped
[Rotate]
You can manually rotate the picture in 90-degree units.
••You cannot select [Rotate] when [Rotate Disp.] is set to [OFF].
→
1
2
Use
to select picture and press [MENU/SET]
Use
to select the rotation direction and press
[MENU/SET]
[
[
219
[Playback] → [Rotate]
]: Rotate a picture 90 degrees clockwise.
]: Rotate a picture 90 degrees counterclockwise.
Using Menu Functions
Menu list
[Video Divide]
A single motion picture can be split into 2 parts. This is convenient when you want to keep
just the necessary scenes, or if you wish to delete unnecessary scenes to increase free
space on your card, such as when traveling.
→
1
2
3
Use
[Playback] → [Video Divide]
to select a motion picture to split and press [MENU/SET]
Press at where you want to split a motion picture to
pause it
•• If you press
while paused, you can make finer adjustments
to the splitting positions in a motion picture.
Press
•• The original motion picture that was split does not remain.
(There will only be the 2 motion pictures that were created after
the split.)
●●During dividing, do not turn off the camera or remove the card or battery. If you do so, the motion
picture may be deleted.
●●Motion pictures cannot be divided at a location close to the start or end of the motion picture.
●●This function is not available in the following case:
•• Motion pictures with a short recording time
[Time Lapse Video]
You can create a motion picture from the pictures in a group that was recorded using
[Time Lapse Shot].
→
1
2
220
[Playback] → [Time Lapse Video]
Use
to select the [Time Lapse Shot] picture group and press
[MENU/SET]
Create a motion picture after selecting a production method
•• For details, refer to step 5 and the subsequent steps (→131).
Using Menu Functions
Menu list
[Stop Motion Video]
You can create a motion picture from the pictures in a group that was recorded using
[Stop Motion Animation].
→
1
2
Use
[Playback] → [Stop Motion Video]
to select a stop motion animation group and press [MENU/SET]
Create a motion picture after selecting a production method
•• For details, refer to step 8 and the subsequent steps (→134).
[Rotate Disp.]
This mode allows you to display pictures vertically if they were recorded holding the
camera vertically.
→
[Playback] → [Rotate Disp.] → [ON]
●●When you play back pictures on a PC, they cannot be displayed in the rotated direction unless the
OS or software is compatible with Exif. Exif is a file format for still pictures which allows recording
information, etc. to be added. It was established by “JEITA (Japan Electronics and Information
Technology Industries Association)”.
[Picture Sort]
You can set the display sequence used for playing back pictures on this unit.
→
[FILE NAME]
[DATE/TIME]
[Playback] → [Picture Sort]
Displays pictures in the folder name or file name sequence. This display
format allows you to find the storage location of a picture on a card more
easily.
Displays pictures according to the date and time that the pictures were taken
in chronological order. When the pictures are taken using several cameras
and stored on the same card, this display format allows you to find a specific
picture more easily.
●●Pictures may not be displayed according to the [DATE/TIME] sequence immediately after a card
is inserted into this unit. In that case, wait a while, and the pictures will be displayed in the [DATE/
TIME] sequence.
221
Wi-Fi/Bluetooth
What you can do with the Wi-Fi®/Bluetooth® function
Operating the camera by connecting it to a smartphone
••Operating the shutter button of the camera using a smartphone (remote
recording) (→235)
••Playing back or saving images stored on the camera, or uploading them on
social media sites (→239)
••Combining motion pictures recorded with Snap Movie according to your
preference on a smartphone (→243)
Expanding the scope of applications by connecting the
camera to a smartphone compatible with Bluetooth Low
Energy
••Pairing (connection setup) (→227)
••Turning on/off the camera using a smartphone (→234)
••[B] (Bulb) recording (→237)
••Transferring recorded images to a smartphone automatically (→240)
••Writing location information of a smartphone on a recorded image (→242)
••Synchronizing the camera’s clock with a smartphone (→243)
Displaying still pictures on a TV (→245)
Wireless printing (→250)
Sending pictures to AV device (→251)
Sending pictures to a PC (→252)
Using WEB services (→254)
••This manual uses the term “smartphone” for both smartphones and tablets unless it is
necessary to distinguish between them.
222
Wi-Fi/Bluetooth
Wi-Fi/Bluetooth Function
■■Before Use
••Complete the date and time settings in advance. (→29)
••To use the Wi-Fi function on this unit, a wireless access point or a destination device
equipped with the wireless LAN function is required.
■■Lighting of the WIRELESS connection lamp (Blue)
Lit: When the Wi-Fi/Bluetooth function is ON or
connected
Blinking: When sending picture data
••In [Wireless Connection Lamp] in the [Setup] menu,
you can set the lamp so that it will not light/flash.
(→197)
■■[Wi-Fi] button
In this Owner’s Manual, a function button to which [Wi-Fi] is assigned is referred to as the
[Wi-Fi] button. (At the time of purchase, [Wi-Fi] is assigned to [Fn5] button in recording
mode, and [Fn1] in playback mode.)
••For details on the function button, refer to (→47).
To start up the Wi-Fi function (When in recording mode):
223
Touch [
]
Touch [
]
Wi-Fi/Bluetooth
Wi-Fi/Bluetooth Function
■■Operations that can be performed by pressing the [Wi-Fi] button
If you press the [Wi-Fi] button when you do not have a Wi-Fi connection, the
camera enters a standby mode in which it can connect directly to the smartphone.
(→230)
••If you press the [DISP.] button at that time, you can select a destination from the history
of previous connections and quickly connect. (→265)
When the camera is connected to Wi-Fi, you can press [Wi-Fi] button and perform
the following operations.
[Terminate the Connection]
Terminates the Wi-Fi connection.
[Change the Destination]
Terminates the Wi-Fi connection, and allows you to
select a different Wi-Fi connection.
[Change Settings for Sending Images]
For details (→248).
[Register the Current Destination to
Favorite]
Registering the current connection destination or the
connection method, you can easily connect with the
same connection method next time.
[Network Address]
For details (→267).
••Depending on the Wi-Fi function being used or the connection destination, you may not
be able to perform some of these operations.
224
Wi-Fi/Bluetooth
Wi-Fi/Bluetooth Function
■■Describing method
When selecting “[Select a destination from History]”, etc. is
described in a step, perform any of the following operations.
With cursor button operations
Use cursor button to select [Select a destination from History]
and press [MENU/SET].
With touch screen operations
Touch [Select a destination from History].
●●Do not remove the memory card or battery or move to an area without any reception while
sending images.
●●The camera cannot be used to connect to a public wireless LAN connection.
●●We recommend that you use a fully charged battery when you send pictures.
●●When sending images on a mobile network, high packet communication fees may be incurred
depending on the details of your contract.
●●Pictures may not be completely sent depending on radio wave conditions. If the connection is
terminated while sending pictures, pictures with missing sections may be sent.
225
Wi-Fi/Bluetooth
Connecting the camera to a smartphone
You can remotely operate the camera using a smartphone.
The “Panasonic Image App” (hereafter “Image App”) must be installed on your
smartphone.
Installing the smartphone/tablet app “Panasonic Image App”
Supported OS
Installation
procedure
Android™:Android 4.2 or later
(Android 5.0 or higher is required to use the Bluetooth
function)
iOS: iOS 9.0 or later (The Bluetooth function cannot be used with the iPad 2)
Connect your device to a network
(Android) Select “Google Play™ Store”
(iOS) Select “App Store”
Enter “Panasonic Image App” or “LUMIX” into the search box
Select “Panasonic Image App” and install it
••Use the latest version.
••Supported OS versions as of February 2018. Supported OS versions may be changed
without prior notice.
••The service may not be able to be used properly depending on the type of smartphone
being used.
For the latest information on the “Image App”, refer to the support site below.
http://panasonic.jp/support/global/cs/dsc/ (This site is available in English only.)
••When downloading the app on a mobile phone network, high packet communication
fees may be incurred depending on the details of your contract.
••For details about the operating procedure, etc., refer to [Help] in the “Image App” menu.
••When you operate the “Image App” on the smartphone that is connected to the
camera via Wi-Fi, [Help] in the “Image App” may not be displayed depending on the
smartphone. In this case, after terminating the connection to the camera, reconnect the
smartphone to a mobile phone network or to a Wi-Fi router, and then display [Help] in
the “Image App”.
••Some of the screens and information provided in this document may be different
depending on the supported operating system and “Image App” version.
226
Wi-Fi/Bluetooth
Connecting the camera to a smartphone
Connecting the camera to a smartphone compatible with
Bluetooth Low Energy
You can connect the camera to a smartphone via a Bluetooth connection.
Supported
smartphones
Android:Android 5.0 or higher equipped with Bluetooth 4.0 or higher
(excluding those that do not support Bluetooth low energy)
iOS: iOS 9.0 or higher (excluding the iPad 2)
■■First-time connection
You need to set up pairing (connection) for the first time only. When pairing is set up, a
Wi-Fi connection is made automatically.
(On the camera)
→
[Setup] → [Bluetooth] → [Bluetooth]
→ [SET] → [Pairing]
••The camera enters pairing standby mode and displays its
device name.
(On your smartphone)
Start “Image App”
•• If a message is displayed indicating that the smartphone is searching for cameras, close the
message.
Select [Bluetooth]
Turn on the Bluetooth
Select the device name displayed on the camera’s screen from the [Camera enable to
be registered] list
•• Bluetooth connection between the camera and the smartphone will be made.
(For Android devices) A Wi-Fi connection will be made by selecting [Connection].
If you are using an Android device, follow the steps up to here to complete the setup.
Proceed to the steps below only if you are using an iOS device (iPhone/iPod touch/iPad).
•• If [Wi-Fi Password] (→267) is set to [OFF] on the camera, select [Wi-Fi Setup]. (At the time of
purchase, [Wi-Fi Password] is set to [OFF])
•• If [Wi-Fi Password] is set to [ON] on the camera, you need to install the profile.
Install the profile
•• If the smartphone is locked with a passcode, enter the passcode to unlock the smartphone.
Exit the browser
227
Wi-Fi/Bluetooth
Connecting the camera to a smartphone
Turn on the Wi-Fi function in the setting menu
On the Wi-Fi setting screen, select the SSID displayed on the
camera (The device name selected in step )
•• If the SSID is not displayed, it may be displayed after the Wi-Fi function is
turned off and on.
•• When you need to change the connected device, follow the on-screen
message to change the setting.
Start “Image App”
•• The paired smartphone will be registered as a paired device after
connected via Wi-Fi.
■■Connecting to the paired smartphone (connecting for the second and subsequent
times)
(On the camera)
Enable the Bluetooth function
→
[Setup] → [Bluetooth] → [Bluetooth] → [ON]
(On your smartphone)
Start “Image App”
•• If a message is displayed indicating that the smartphone is searching for cameras, close the
message.
Select [Bluetooth]
Turn on the Bluetooth
Select the device name displayed on the camera’s screen from the [Camera registered]
list
••Even if you set up pairing with more than one smartphone, you can only connect to one
smartphone at a time.
■■Terminating the Bluetooth connection
→
[Setup] → [Bluetooth] → [Bluetooth] → [OFF]
••The connection will be terminated and the camera’s Bluetooth function will be
deactivated.
••Even if you terminate the connection, the pairing information for it will not be deleted.
228
Wi-Fi/Bluetooth
Connecting the camera to a smartphone
■■Deleting the pairing information
(On the camera)
Set the menu
→
[Setup] → [Bluetooth] → [Bluetooth] → [SET] → [Delete]
Select the smartphone you want to delete
(On your smartphone)
Select the camera (device name) for which to delete the pairing information from the
[Camera registered] list, and delete the registration.
●●[
] is displayed on the recording screen when a Bluetooth device is connected. If the Bluetooth
function is enabled, but the smartphone is not connected, the displayed [ ] is semi-transparent.
●●When it takes time to set up pairing between a smartphone and a camera, delete the pairing
information of both devices and register them again. This may enable the devices to be
recognized properly.
●●Up to 16 smartphones can be registered. If you try to register more than 16 devices, the
smartphone with the oldest registration history will be replaced.
●●Performing [Reset Network Settings] will delete registered device information.
229
Wi-Fi/Bluetooth
Connecting the camera to a smartphone
Connecting the camera to a smartphone that does not support
for Bluetooth Low Energy
Connect to a smartphone via Wi-Fi.
••You can also connect via Wi-Fi to a smartphone that supports Bluetooth low energy by
following the same steps.
Connecting without using the password
You can easily establish a Wi-Fi connection on this unit without entering a password on
your smartphone.
(On the camera)
→
[Setup] → [Wi-Fi] → [Wi-Fi Function] → [New Connection]
→ [Remote Shooting & View]
SSID
•• The information required for directly connecting your smartphone to
this unit (SSID) is displayed.
•• You can also display the information by pressing [Wi-Fi] button on
the camera.
(On your smartphone)
1 Turn on the Wi-Fi function in the setting menu
2
3
Select the SSID displayed on the screen of the camera
Start “Image App”
•• When the connection confirmation screen appears on the camera, select
[Yes] and press [MENU/SET]. (Only when making a connection for the
first time.)
[Wi-Fi Password] is set to [OFF] at the time of purchase.
When you start a Wi-Fi connection, be sure to verify that the device displayed on the
camera’s connection confirmation screen is really the device you want to connect to.
Even if the wrong device is displayed, you will still be connected to it if you select “Yes”.
If there seem to be other Wi-Fi enabled devices in the vicinity, we recommend that you
set [Wi-Fi Password] to [ON] (→267).
230
Wi-Fi/Bluetooth
Connecting the camera to a smartphone
Using a password to set up a connection
When [Wi-Fi Password] is set to [ON], you can strengthen security by using manual input
or a QR code for password authentication.
Preparation
(On the camera) Set [Wi-Fi Password] to [ON]. (→267)
■■When reading a QR Code to connect
(On the camera)
→
[Setup] → [Wi-Fi] → [Wi-Fi Function] → [New Connection]
→ [Remote Shooting & View]
SSID and Password
QR Code
•• The information (QR Code, SSID and Password) required for
directly connecting your smartphone to this unit is displayed.
•• You can also display the information by pressing [Wi-Fi] button on
the camera.
(On your smartphone)
Start “Image App”
Select “QR code”
•• When the smartphone is connected to a wireless access point, it may take time to display QR
code.
•• (For iOS devices) A confirmation screen will be displayed. Select [OK] to proceed.
Use the “Image App” to scan the QR code displayed on the screen of the camera
•• If you press [MENU/SET] on the camera, the QR code will be enlarged.
If you are using an Android device, follow the steps up to here to complete the setup.
Proceed to the steps below only if you are using an iOS device (iPhone/iPod touch/iPad).
Install the profile
•• If the smartphone is locked with a passcode, enter the passcode to unlock the smartphone.
Exit the browser
Turn on the Wi-Fi function in the setting menu
On the Wi-Fi setting screen, select the SSID displayed on the
camera
Start “Image App”
••(iOS devices) Steps through are not required from the second
time on.
231
Wi-Fi/Bluetooth
Connecting the camera to a smartphone
■■Manually entering a password to set up a connection
(On the camera)
→
[Setup] → [Wi-Fi] → [Wi-Fi Function] → [New Connection]
→ [Remote Shooting & View]
SSID and Password
QR Code
•• The information (QR Code, SSID and Password) required for
directly connecting your smartphone to this unit is displayed.
•• You can also display the information by pressing [Wi-Fi] button on
the camera.
(On your smartphone)
Turn on the Wi-Fi function in the setting menu
On the Wi-Fi setting screen, select the SSID displayed on the
camera
Enter the password displayed on the camera (For first time
connection only)
Start “Image App”
Changing the Wi-Fi connection method
To change the connection method, follow the steps below:
→
[Setup] → [Wi-Fi] → [Wi-Fi Function]
→ [New Connection] → [Remote Shooting & View]
→ [DISP.] button
or
→ [DISP.] button → [New Connection]
→ [Remote Shooting & View] → [DISP.] button
232
Wi-Fi/Bluetooth
Connecting the camera to a smartphone
■■When connecting with [Via Network]
(On the camera)
Select [Via Network] and press [MENU/SET]
•• Connect the camera to a wireless access point by following the connection method (→261).
(On your smartphone)
Turn on the Wi-Fi function in the setting menu
Select the wireless access point you connected to the camera, and set
Start “Image App”
■■When connecting with [Direct]
(On the camera)
Select [Direct] and press [MENU/SET]
•• Connect the camera to the smartphone by following the connection method (→264).
(On your smartphone)
Start “Image App”
Closing the Wi-Fi connection
1
Set the camera to Recording Mode
2
Select the camera’s menu items to terminate the Wi-Fi
connection
•• Press the shutter button halfway to return to recording mode.
→
→ [Yes]
3
[Setup] → [Wi-Fi] → [Wi-Fi Function]
•• You can also terminate the connection by pressing [Wi-Fi] button
on the camera.
On the smartphone, close “Image App”
●●When recording with 4K Pre-Burst with the smartphone, terminate the connection only after
switching to 4K Burst recording by pressing [Q.MENU/
233
] button on the camera.
Wi-Fi/Bluetooth
Controlling with a Smartphone
■■Required wireless connectivity mode
The wireless connectivity mode required varies depending on the function to be used
after connecting to a smartphone.
Wireless connectivity
required
Support for Bluetooth low energy
Bluetooth
Indicates that the function can be used with smartphones that support
Bluetooth low energy.
Wi-Fi
Indicates that the function can be used with smartphones that do not
support Bluetooth low energy.
Bluetooth Wi-Fi
Indicates that the function can be used with smartphones that support
Bluetooth low energy.
•• Indicates that the function requires you to connect to a smartphone
using both Bluetooth and Wi-Fi.
Turning on/off the camera using a smartphone
Wireless connectivity required: Bluetooth Wi-Fi
Even when the camera is turned off, you can remotely
turn on and operate it from your smartphone. This
function allows you to turn on the camera from a distant
location and take pictures or view images on the camera
even when it is in your bag.
1
2
Make a Bluetooth connection to the smartphone (→227)
3
4
Set the Camera [ON/OFF] switch to [OFF]
5
Select the camera’s menu
→
[Setup] → [Bluetooth] → [Remote Wakeup] → [ON]
On the smartphone, start up the “Image App”, and set the Bluetooth function to
a state in which a connection can be made (standby state)
Operate the smartphone
Select [
]
Select [Remote operation]
•• The camera automatically turns on, allowing it to make a Wi-Fi connection automatically.
–– (iOS devices) Depending on the connection status of the smartphone, you may need to
change the connected device on the Wi-Fi setup screen. Follow the on-screen message on
the smartphone to change the setting.
234
Wi-Fi/Bluetooth
Controlling with a Smartphone
■■Turning off the camera with the smartphone
Select [
]
Select [
OFF]
●●When [Remote Wakeup] is set to [ON], the Bluetooth function continues to operate even after the
camera is turned off, thus causing the battery to drain.
Operating the shutter button of the camera using a
smartphone (remote recording)
Wireless connectivity required: Wi-Fi
1
2
Connect to a smartphone (→226)
Operate the smartphone
If the camera is already connected to the smartphone via Bluetooth, select [
] → [Remote
operation].
(iOS devices) Depending on the connection status of the smartphone, you may need to change the
connected device on the Wi-Fi setup screen. Follow the on-screen message on the smartphone to
change the setting.
Select [
]
Take pictures
•• The recorded images are saved in the camera.
•• Some settings are not available.
■■Setting the higher priority between the camera and smartphone to perform
operations
→
[Setup] → [Wi-Fi] → [Wi-Fi Setup] → [Priority of Remote Device]
[Camera]
Allows you to perform operations with both the camera and the smartphone.
•• The camera’s dial settings, etc. cannot be changed with the smartphone.
[Smartphone]
Allows you to perform operations only with the smartphone during remote
recording.
•• The camera’s dial can also be operated with the smartphone.
•• To end remote recording, press any of the buttons on the camera to turn
on the screen, and select [Cancel].
••The setting of this function cannot be changed while the connection is active.
235
Wi-Fi/Bluetooth
Controlling with a Smartphone
●●The camera could tilt when the lens barrel extends. Make sure to secure the camera in place with
a tripod or by other means.
●●This function is not available in the following cases:
•• Panorama Shot Mode (When [Priority of Remote Device] is set to [ ] ([Smartphone]), you can
switch temporarily to Program AE Mode for remote recording only during remote recording.)
•• When using [Time Lapse Shot]
236
Wi-Fi/Bluetooth
Controlling with a Smartphone
Using the smartphone to operate the shutter button via a Bluetooth
connection only
Wireless connectivity required: Bluetooth
1
2
Make a Bluetooth connection to the smartphone (→227)
Operate the smartphone
Select [ ]
Select [Shutter Remote Control]
Take pictures
•• Read the [Help] in the “Image App” menu for further details on how to operate [Shutter
Remote Control] of “Image App”.
•• [Shutter Remote Control] is available only when the Camera [ON/OFF] switch is set to [ON].
•• The Live View screen of the camera cannot be viewed on a smartphone.
•• When the camera turns off after [Sleep Mode] is activated during recording, select [Shutter
Remote Control] again using the smartphone to turn on the camera once more. (This function
is enabled only when [Remote Wakeup] is set to [ON] and [Auto Transfer] is set to [OFF].)
[B] (Bulb) (Approximately up to 120 seconds)
You can perform [B] (Bulb) recording when the shutter speed is set to [T]
(time) in Manual Exposure Mode.
This function is useful when you take pictures of stars in the night sky or a
night scene, since the shutter can be kept open from start of recording to end
of recording.
1 Operate the smartphone
Press [ ] to start recording (Press and hold [
Release your finger from [ ] to end recording
])
•• Slide [ ] in the direction of LOCK to record with the shutter button fixed in the fully pressed
condition. (Slide [ ] back in the opposite direction or press the shutter button of the camera to end
recording.)
•• If Bluetooth is disconnected during the [B] (Bulb) recording, reconnect Bluetooth and perform the
operation to end recording using the smartphone.
•• “[T] (time)” will be displayed on the camera screen.
237
Wi-Fi/Bluetooth
Controlling with a Smartphone
■■Reducing the time to recover from Sleep mode
Select the smartphone function to be used as a priority function when waking the camera
from [Sleep Mode] with a smartphone.
Preparation
Set [Bluetooth] and [Remote Wakeup] to [ON]. (→234)
→
238
[Setup] → [Bluetooth] → [Returning from Sleep Mode]
[Remote / Transfer Priority]
Shortens the time required to wake the camera with
[Remote operation] or [Transfer image].
[Shutter Remote Priority]
Shortens the time required to wake the camera with
[Shutter Remote Control].
Wi-Fi/Bluetooth
Controlling with a Smartphone
Playing back or saving images stored on the camera, or
uploading them on social media sites
Wireless connectivity required: Wi-Fi
1
2
Connect to a smartphone (→226)
Operate the smartphone
If the camera is already connected to the smartphone via Bluetooth, select [
] → [Remote
operation].
(iOS devices) Depending on the connection status of the smartphone, you may need to change the
connected device on the Wi-Fi setup screen. Follow the on-screen message on the smartphone to
change the setting.
Select [
]
•• You can switch a device of pictures to be displayed using the icon
at the top left on the screen. Select [LUMIX] to display a picture
saved in the camera.
(Playing back a picture)
When the picture is touched, it is played back at a
larger size
•• When playing back motion pictures, the data size is reduced
during transmission of motion pictures to “Image App”. Therefore,
the picture quality may be different from the actual motion picture
that you have recorded. Depending on your smartphone and its
usage environment, you may notice degradation in the picture
quality or skipping of sound when playing back motion pictures
and still pictures.
(Saving and sending pictures to web services such as
SNS)
Press and hold the picture and drag it
•• AVCHD motion pictures, MP4 motion pictures for which the [Rec
Quality] size is [4K], 4K burst files, and pictures recorded with
[Post Focus] cannot be saved.
•• RAW still pictures can be saved only on smartphones with Android
7.0 or higher or iOS 10.0 or higher. The pictures, however,
may not be displayed correctly on some smartphones or some
versions of operating systems.
239
Switch the
device of the
pictures to be
displayed
Wi-Fi/Bluetooth
Controlling with a Smartphone
Transferring recorded images to a smartphone automatically
Wireless connectivity required: Bluetooth Wi-Fi
The camera automatically transfers recorded images to a Bluetooth-connected
smartphone via Wi-Fi.
1 Make a Bluetooth connection to the smartphone (→227)
2
3
Select the camera’s menu
→
[Setup] → [Bluetooth] → [Auto Transfer] → [ON]
•• If a confirmation screen is displayed on the camera asking you to terminate the Wi-Fi
connection, select [Yes] to terminate it.
On the smartphone, select [YES] (Android devices) or [Wi-Fi Setup] (iOS
devices)
•• The camera automatically makes a Wi-Fi connection.
–– (iOS devices) Follow the on-screen message on the smartphone to change the connected
device on the Wi-Fi setup screen.
4
Check the send settings on the camera, and select [Set]
5
Take pictures on the camera
•• To change the send setting, press [DISP.] button. (→248)
] will be
•• The camera will enter a mode where it can automatically transfer images and [
displayed on the recording screen. (If [Auto Transfer] is not displayed on the recording screen,
images cannot be transferred automatically. Check the status of the Wi-Fi connections to the
smartphone.)
•• Every time you take a picture, it is automatically sent to a specified device.
•• While sending a file, [ ] is displayed on the recording screen.
If you set [Auto Transfer] to [ON] in advance, the Wi-Fi/Bluetooth connection will be
automatically established and Auto Transfer enabled the next time you turn on the camera and
start up “Image App” on your smartphone.
240
Wi-Fi/Bluetooth
Controlling with a Smartphone
■■To stop the automatic transfer of images
In step 2, select [OFF].
••A confirmation screen is displayed, asking you to terminate the Wi-Fi connection.
●●When [Auto Transfer] in the [Bluetooth] is set to [ON], [Wi-Fi Function] is disabled.
●●If the file transfer is interrupted because the camera turns off, turn the camera on again to restart
file transfer.
•• You may not be able to resend the files that did not get delivered if there is a change in their
storage status. For example, if you replace the card before turning on the camera again, the
files may not be resent.
•• If the number of files that did not get delivered is large, it may not be possible to resend all of
the files.
●●Motion pictures, 4K burst files, and pictures recorded with [Post Focus] cannot be automatically
transferred.
●●RAW still pictures can be saved only on smartphones with Android 7.0 or higher or iOS 10.0 or
higher. The pictures, however, may not be displayed correctly on some smartphones or some
versions of operating systems.
241
Wi-Fi/Bluetooth
Controlling with a Smartphone
Writing location information of a smartphone on a recorded
Wireless connectivity required: Bluetooth
The smartphone sends its location information to the camera via Bluetooth, and the
camera performs recording while writing the acquired location information.
Bluetooth
GPS
The smartphone acquires
location information.
The smartphone sends the
location information.
The camera performs recording
while writing the location
information.
Preparation
Enable the GPS function on the smartphone.
1
2
3
Make a Bluetooth connection to the smartphone (→227)
Select the camera’s menu
→
[Setup] → [Bluetooth] → [Location Logging] → [ON]
•• The camera will enter a mode where location information can be recorded and [
displayed on the recording screen.
] will be
Take pictures on the camera
•• Location information will be written to the recorded pictures.
When the displayed [
] is semi-transparent
Location information is not acquired, so data cannot be written. Positioning with the GPS on the
smartphone may not be possible if the smartphone is in a location such as a building or a bag.
Move the smartphone to a location where positioning performance can be optimized, such as that
offers a wide view of the sky, to try positioning. In addition, refer to the operating instructions of your
smartphone.
].
●●Images with location information are indicated with [
●●Be sure to pay special attention to the privacy, the likeness rights, etc. of the subject when
you use this function. Use at your own risk.
●●The smartphone battery drains faster while location information is being recorded.
●●The location information cannot be written in the following cases:
•• Motion pictures recorded in [AVCHD] format
242
Wi-Fi/Bluetooth
Controlling with a Smartphone
Synchronizing the camera’s clock with a smartphone
Wireless connectivity required: Bluetooth
Synchronize the [Clock Set] setting in the [Setup] menu and [Home] or [Destination]
setting in the [World Time] of the camera with those of a smartphone.
1 Make a Bluetooth connection to the smartphone (→227)
2
Select the camera’s menu
→
[Setup] → [Bluetooth] → [Auto Clock Set] → [ON]
Combining motion pictures recorded with Snap Movie
according to your preference on a smartphone
Wireless connectivity required: Wi-Fi
Using a smartphone, you can combine motion pictures recorded with the camera’s [Snap
Movie] function. Music can be added to motion pictures to be combined. In addition, you
can save the combined motion picture or upload it on a web service.
WEB
services
Combine the motion
pictures, save the
combined motion picture,
and send it to a web
service
Record motion pictures
with [Snap Movie]
Send the recorded
motion pictures
Edit
Combine the motion
pictures, and save the
combined motion picture
243
Wi-Fi/Bluetooth
Controlling with a Smartphone
■■Combining motion pictures by operating a smartphone
Connect to a smartphone (→226)
Operate the smartphone
If the camera is already connected to the smartphone via Bluetooth, select [
] → [Remote
operation].
(iOS devices) Depending on the connection status of the smartphone, you may need to change the
connected device on the Wi-Fi setup screen. Follow the on-screen message on the smartphone to
change the setting.
Select [
]
Select [
]
•• [Snap Movie] motion pictures with recent recording dates will be selected and automatically
sent to the smartphone.
•• When motion pictures with recent recording dates are not available, a screen that lets you
select motion pictures will be displayed. Select motion pictures and send them.
Operate the smartphone to edit the motion pictures
•• Read the [Help] in the “Image App” menu for further details on how to operate [Snap Movie] of
“Image App”.
●●[Snap Movie] of the “Image App” requires a smartphone that supports Android OS 4.3 or higher.
244
Wi-Fi/Bluetooth
Displaying still pictures on a TV
You can display still pictures on a TV that is compatible with a DLNA (DMR) function.
→
[Setup] → [Wi-Fi] → [Wi-Fi Function] → [New Connection]
→ [Playback on TV]
1
2
Select [Via Network] or [Direct] to connect (→261, 264)
3
Take or play back still pictures on this unit
Select the device you wish to connect to
•• When the connection is established, the screen is displayed.
•• To terminate the connection, follow the steps below:
→
[Setup] → [Wi-Fi] → [Wi-Fi Function] → [Yes]
(You can also close the connection by pressing the [Wi-Fi] button.)
●●When you display the pictures on a TV using the Wi-Fi function, they are not output using 4K
resolution. To output pictures using 4K resolution, connect this unit to the TV using an HDMI micro
cable. (→270)
●●When a TV is connected to this unit, the TV screen may temporarily return to the status before the
connection. Pictures are displayed again when you take or play back pictures.
●●Even if [Effect] and [Sound] are set on this unit, these settings are disabled when the pictures are
played back on a TV during Slide Show playback.
●●Motion pictures and 4K burst files cannot be played back.
●●The pictures displayed on “Multi Playback” screen or some screens of the camera are not
displayed on the TV.
●●When [Auto Transfer] in the [Bluetooth] is set to [ON], [Wi-Fi Function] is disabled.
245
Wi-Fi/Bluetooth
Sending pictures
When sending pictures, first select [New Connection], then select the method of sending
pictures.
→
[Setup] → [Wi-Fi] → [Wi-Fi Function] →
[New Connection] → [Send Images While Recording] /
[Send Images Stored in the Camera]
■■Images that can be sent
Destination
JPEG
RAW
MP4*1
AVCHD*1, *2
4K Burst File*1
Pictures recorded in
[Post Focus]*1
[Smartphone]
○
○*3
○*4
–
–
[PC]
○
○
○
○
○
[Cloud Sync. Service]
○
–
–
○
–
○*4
–
[Web service]
–
–
[AV device]
○
–
–
–
–
○
–
–
–
–
[Printer]*1
○*4
*1Sending by [Send Images While Recording] is not available.
*2Files larger than 4 GB cannot be sent.
*3An Android 7.0 or higher or iOS 10.0 or higher operating system is required.
*4Excluding motion pictures recorded with [Rec Quality] of [4K].
••Some images may not be played back or sent depending on the device.
••For more information about picture playback, see the operating instructions of the
destination device, or check the WEB service to which you will send the pictures.
[Send Images While Recording]
A picture can be automatically sent to a specified device every time you take it.
••[ ] is displayed on the recording screen while connected by
[Send Images While Recording], and [ ] is displayed while
files are being sent.
1
••To terminate the connection, follow the steps below:
→
[Setup] → [Wi-Fi] → [Wi-Fi Function] → [Yes]
••You cannot change the settings while sending a still picture.
246
Wi-Fi/Bluetooth
Sending pictures
●●Since the camera gives priority to recording, sending may take longer during the recording.
●●If you turn off the camera before you have completed sending, or if you close the Wi-Fi
connection, or in similar situations, unsent files will not be resent.
●●You may not be able to delete files or use the [Playback] menu while sending.
●●If you set [Time Lapse Shot], the Wi-Fi connection is terminated and you cannot use this function.
[Send Images Stored in the Camera]
You can select and send recorded images.
When selecting [Single Select]
Select the picture
Select [Set]
Set
When selecting [Multi Select]
Select the picture (repeat)
•• If selected again, the setting will be canceled.
Select [OK]
1
2
3
4
5
6
OK
••To close the connection, select [Exit].
●●Some images taken with a different camera may not be able to be sent.
●●Images that have been modified or edited with a computer may not be able to be sent.
247
Wi-Fi/Bluetooth
Sending pictures
Changing the settings for sending images
After you have completed connecting, you can change the send settings, such as the size
of pictures to be sent, by pressing the [DISP.] button.
[Size]
Resize the image to send.
[Original] / [Auto] / [Change] ([M], [S], [VGA])
•• If you select [Auto], the image size is determined by the
circumstances at the destination. Only available when the
destination is set to [Web service].
[File Format]
Only available when the destination is set to [PC].
[JPG] / [RAW+JPG] / [RAW]
[Delete Location Data]
Select whether to delete the location information from images before
sending them. Only available when the destination is set to [Cloud
Sync. Service] or [Web service].
[ON]:Delete the location information, then send.
[OFF]:The location information will not be deleted from the original
images stored in this unit.
[Cloud Limit]
You can select whether to send images when the Cloud Folder
runs out of free space. Only available when the destination is set to
[Cloud Sync. Service].
[ON]:Do not send images.
[OFF]:Delete images from the oldest ones, then send new images.
248
Wi-Fi/Bluetooth
Sending pictures to a smartphone
Preparation
Install “Image App” in advance. (→226)
→
[Setup] → [Wi-Fi] → [Wi-Fi Function] → [New Connection]
→ [Send Images While Recording] / [Send Images Stored in the Camera]
→ [Smartphone]
1
Select [Via Network] or [Direct] to connect (→261, 264)
(On your smartphone)
■■When connecting with [Via Network]
Set Wi-Fi function to “ON”
Select a wireless access point and set
Start “Image App”
■■When connecting with [WPS Connection]* in [Direct]
Start “Image App”
*WPS refers to a function that allows you to easily configure the settings related to the connection
and security of wireless LAN devices. To check if the smartphone you are using is compatible
with WPS, refer to the instruction manual of the smartphone.
■■When connecting with [Manual Connection] in [Direct]
Set Wi-Fi function to “ON”
Select the SSID displayed on this unit
Start “Image App”
2
3
Select the device you wish to connect to
Check the send settings, and select [Set]
•• To change the send setting, press the [DISP.] button. (→248)
[Send Images While Recording]
4 Take a still picture (→246)
[Send Images Stored in the Camera]
Select the picture (→247)
4
●●When [Auto Transfer] in the [Bluetooth] is set to [ON], [Wi-Fi Function] is disabled.
249
Wi-Fi/Bluetooth
Wireless printing
You can print out recorded still pictures wirelessly from a PictBridge (wireless
LAN-compatible)* printer.
*Compliant with the DPS over IP standards.
Contact the printer manufacturers for details on PictBridge (wireless LAN-compatible) printers.
→
[Setup] → [Wi-Fi] → [Wi-Fi Function] → [New Connection]
→ [Send Images Stored in the Camera] → [Printer]
1
2
3
Select [Via Network] or [Direct] to connect (→261, 264)
Select a printer you want to connect
Select the still picture and print
•• Pictures are selected the same way as when connecting by USB connection cable. For details
(→280).
•• To terminate the connection, press [Q.MENU/ ] button.
●●When [Auto Transfer] in the [Bluetooth] is set to [ON], [Wi-Fi Function] is disabled.
250
Wi-Fi/Bluetooth
Sending pictures to AV device
Still pictures and motion pictures can be sent to AV devices in the home (home AV
devices), such as DLNA compatible recorders.
Home AV device
Wireless access point
→
[Setup] → [Wi-Fi] → [Wi-Fi Function] → [New Connection]
→ [Send Images While Recording] / [Send Images Stored in the Camera]
→ [AV device]
1
2
3
Select [Via Network] or [Direct] to connect (→261, 264)
Select the device you wish to connect to
Check the send settings, and select [Set]
•• To change the send setting, press the [DISP.] button. (→248)
[Send Images While Recording]
4 Take a still picture (→246)
[Send Images Stored in the Camera]
Select the picture (→247)
4
●●Sending may fail depending on the operational status of the AV device. Also, sending may take a
while.
●●When [Auto Transfer] in the [Bluetooth] is set to [ON], [Wi-Fi Function] is disabled.
251
Wi-Fi/Bluetooth
Sending pictures to a PC
Preparations
•• Turn the computer on.
•• Prepare folders for receiving images on the PC before sending a picture to the PC (below).
•• If the standard settings are changed for the workgroup on the connected PC, you must change
settings in [PC Connection] on this unit. (→267)
To create a folder that receives images
••Create a PC user account (account name (up to 254 characters) and password (up to
32 characters)) consisting of alphanumeric characters. An attempt to create a receive
folder may fail if the account includes non-alphanumeric characters.
■■When using “PHOTOfunSTUDIO”
Install “PHOTOfunSTUDIO” on the PC (→275)
Create a folder that receives images with “PHOTOfunSTUDIO”
•• For details, refer to the operating instructions of “PHOTOfunSTUDIO” (PDF).
■■When not using “PHOTOfunSTUDIO”
(For Windows)
Supported OS: Windows 10 / Windows 8.1 / Windows 8 / Windows 7
Example: Windows 7
Select a folder you intend to use for receiving, then right-click
Select [Properties], then enable sharing of the folder
•• For details, refer to the operating instructions of your PC or Help on the operating system.
(For Mac)
Supported OS: OS X v10.5 to v10.11, macOS 10.12, macOS 10.13
Example: OS X v10.8
Select a folder you intend to use for receiving, then click on the items in the following
order
[File] → [Get Info]
Enable sharing of the folder
•• For details, refer to the operating instructions of your PC or Help on the operating system.
252
Wi-Fi/Bluetooth
Sending pictures to a PC
Sending pictures to a PC
→
[Setup] → [Wi-Fi] → [Wi-Fi Function] → [New Connection]
→ [Send Images While Recording] / [Send Images Stored in the Camera]
→ [PC]
1
2
Select [Via Network] or [Direct] to connect (→261, 264)
3
4
Select the folder you want to send to
Select the PC you want to connect to
•• If the PC you want to connect to is not displayed, select [Manual Input], then enter the computer
name (for Mac, enter the NetBIOS name).
Check the send settings, and select [Set]
•• To change the send setting, press the [DISP.] button. (→248)
[Send Images While Recording]
5 Take a still picture (→246)
[Send Images Stored in the Camera]
Select the picture (→247)
5
●●Folders sorted by the sent date are created in the specified folder, and pictures are saved in those
folders.
●●If the screen for a user account and password entry appears, enter the one you set on your PC.
●●If the computer name (for Mac, the NetBIOS name) contains spaces, etc., the name may not be
properly recognized. If you cannot connect, we recommend changing the computer name (for
Mac, the NetBIOS name) to a combination of 15 or less alphanumeric characters only.
●●If a firewall is enabled by the OS or security software, this unit may be unable to connect to the
computer.
●●When [Auto Transfer] in the [Bluetooth] is set to [ON], [Wi-Fi Function] is disabled.
253
Wi-Fi/Bluetooth
Using WEB services
Through “LUMIX CLUB”, you can send still pictures and motion pictures to social
networking services, etc. By selecting the setting to automatically transfer still pictures
and motion pictures to [Cloud Sync. Service], you can receive the transferred still pictures
and motion pictures on a PC or a smartphone.
WEB services
LUMIX CLUB
Wireless access point
Cloud
synchronization
services
When sending images to WEB service
Preparation
•• Register to “LUMIX CLUB” (→258)
•• To send images to a WEB service, you need to register the WEB service. (→255)
●●Panasonic assumes no responsibility for the damages resulting from the leakage, loss, etc.
of images uploaded on WEB services.
●●When uploading images to the WEB service, do not delete images from this camera, even
after they have finished sending, until you have checked that they have been properly
uploaded to the WEB service. Panasonic assumes no responsibility for the damages
resulting from the deletion of images stored in this unit.
●●Images uploaded to the WEB service cannot be displayed or deleted with this camera.
●●If sending images fails, a report email outlining the failure will be sent to the email address
registered with “LUMIX CLUB”.
254
Wi-Fi/Bluetooth
Using WEB services
Registering the WEB service to “LUMIX CLUB”
Check the “FAQ/Contact us” on the following site for compatible WEB services.
https://lumixclub.panasonic.net/eng/c/lumix_faqs/
Preparation
Make sure that you have created an account on the WEB service you want to use, and have the login
information available.
1
Connect to the “LUMIX CLUB” site using a smartphone or computer
2
3
Enter your “LUMIX CLUB” login ID and password and log in to the service
4
https://lumixclub.panasonic.net/eng/c/
If you have not registered your email address with “LUMIX CLUB”, register the
email address
Select the WEB service to be used for WEB service link settings and register it
•• Follow the instructions on the screen to register the service.
Sending pictures
→
[Setup] → [Wi-Fi] → [Wi-Fi Function] → [New Connection]
→ [Send Images While Recording] / [Send Images Stored in the Camera]
→ [Web service]
1
2
3
Select [Via Network] and connect (→261)
Select a WEB service you want to connect
Check the send settings, and select [Set]
•• To change the send setting, press the [DISP.] button. (→248)
[Send Images While Recording]
4 Take a still picture (→246)
[Send Images Stored in the Camera]
Select the picture (→247)
4
●●When [Auto Transfer] in the [Bluetooth] is set to [ON], [Wi-Fi Function] is disabled.
255
Wi-Fi/Bluetooth
Using WEB services
■■Quickly sending pictures in the camera to WEB services
Display the picture
Press , and then press to select [Yes]
(When you play back group pictures one by one, press
and then select [Upload(Wi-Fi)] or [Upload All(Wi-Fi)].)
•• The same operation can be performed by touching [
].
], [
], [
], [
],
(When selecting a group picture, touch [
], and then select [Upload(Wi-Fi)] or [Upload All(Wiand then [
Fi)].)
Select a WEB service you want to connect
Check the send settings, and select [Set]
•• Step , are not necessary when you continue to send another image.
•• To change the transmission setting for the picture, press the [DISP.] button. (→248)
•• To terminate the connection, press [MENU/SET] or operate other controls to exit the playback
screen. You can also terminate the connection by pressing [Wi-Fi] button on the camera.
To change the settings for sending images or web service
Terminate the Wi-Fi connection, and follow step and onwards again.
••You can also change the send settings by pressing [Wi-Fi] button while using a Wi-Fi
connection.
●●If the camera has no records of connections to wireless access points that are available, select the
connection method and connect the camera to a wireless access point. (→261)
●●When you are not registered to “LUMIX CLUB”, get a login ID and set a password. (→258)
●●When pictures are displayed as a group, they are all sent. When a single picture in a group is
displayed, only the picture being displayed is sent.
256
Wi-Fi/Bluetooth
Using WEB services
When sending images to [Cloud Sync. Service]
Preparation
You need to register to “LUMIX CLUB” (→258) and configure the Cloud Sync. setting to send a picture
to a Cloud Folder. Use “PHOTOfunSTUDIO” on a PC or “Image App” on a smartphone to configure the
Cloud Sync. settings.
■■About the images sent to a Cloud Folder by the use of [Cloud Sync. Service]
(Current as of February 2018)
••Sent pictures are temporarily saved in the cloud folder, and they can be synchronized
with the device in use, such as the PC or smartphone.
••A Cloud Folder stores transferred images for 30 days (up to 1,000 pictures).
Transferred images are deleted automatically 30 days after the transfer. Furthermore,
when the number of stored images exceeds 1,000, some images may be deleted
depending on the [Cloud Limit] (→248) setting even within 30 days after the transfer.
••When the download of images from a Cloud Folder to all specified devices is
complete, images may be deleted from the Cloud Folder even within 30 days after the
transfer.
→
[Setup] → [Wi-Fi] → [Wi-Fi Function] → [New Connection]
→ [Send Images While Recording] / [Send Images Stored in the Camera]
→ [Cloud Sync. Service]
1
2
Select [Via Network] and connect (→261)
Check the send settings, and select [Set]
•• To change the send setting, press the [DISP.] button. (→248)
[Send Images While Recording]
3 Take a still picture (→246)
[Send Images Stored in the Camera]
Select the picture (→247)
3
●●When [Auto Transfer] in the [Bluetooth] is set to [ON], [Wi-Fi Function] is disabled.
257
Wi-Fi/Bluetooth
Using WEB services
About the [LUMIX CLUB]
Acquire a “LUMIX CLUB” login ID (free).
Refer to the “LUMIX CLUB” site for details.
https://lumixclub.panasonic.net/eng/c/
Please note;
••The service may be suspended due to regular maintenance or unexpected problems,
and service contents may be changed or added to, without prior notice to the users.
••The service may be stopped in whole or in part with a reasonable period of advance
notice.
Acquiring a new login ID ([New account])
→
[Setup] → [Wi-Fi] → [Wi-Fi Setup] → [LUMIX CLUB]
→ [Set/Add Account] → [New account]
••Connect to the network. Proceed to the next page by selecting [Next].
Select the method for connecting to a wireless access point, and set (→261)
1
•• Proceed to the next page by selecting [Next].
2
Read through the “LUMIX CLUB” terms of use and select [Agree]
3
Enter the password
4
Check the login ID and select [OK]
258
•• You can press
to switch pages.
•• Turn the zoom lever to the T side to enlarge the page display (x2 magnification).
•• If you turn the zoom lever to the W side after enlarging the page, the page returns to its original
size (no magnification).
to move the position of the area to be enlarged.
•• You can use
•• Press [Q.MENU/ ] button to cancel the process without acquiring a login ID.
•• Enter any combination of 8 to 16 characters and numbers for the password.
•• For details on how to enter characters, refer to “Entering Text” (→51)
•• The login ID (12-digit number) will be displayed automatically.
When logging in to the “LUMIX CLUB” with a computer, you only need to enter the numbers.
•• Be sure to make a note of the login ID and password.
Wi-Fi/Bluetooth
Using WEB services
Confirming and changing login ID and password ([Set Login ID])
Preparation
To use a previously acquired login ID, confirm your ID and password.
To change the “LUMIX CLUB” password on the camera, access the “LUMIX CLUB” website from your
smartphone or PC and change the “LUMIX CLUB” password in advance.
→
[Setup] → [Wi-Fi] → [Wi-Fi Setup] → [LUMIX CLUB]
→ [Set/Add Account] → [Set Login ID]
••The login ID and password are displayed.
••The password is displayed as “ ”.
1
2
Select the item you wish to change
3
Select [Exit]
Enter your login ID or password
•• For details on how to enter characters, refer to “Entering Text” (→51)
•• Enter the new password you have created on your smartphone or PC into the camera.
To set the same login ID for the camera and the smartphone
Setting the same login ID on this unit and your smartphone is convenient for sending
images on this unit to other devices or WEB services.
■■When either this unit or the smartphone has acquired the login ID
Connect this unit to the smartphone (→230)
From the “Image App” menu, set the common login ID
••After connecting this unit to the smartphone, the setup screen for a common login ID
may appear when you display the playback screen.
■■When this unit and the smartphone have acquired different login IDs
Change the login ID and password of either device.
••To change the camera’s login ID and password: (→259)
259
Wi-Fi/Bluetooth
Using WEB services
Check the “LUMIX CLUB” terms of use
Check the details if the terms of use have been updated.
→
[Setup] → [Wi-Fi] → [Wi-Fi Setup] → [LUMIX CLUB] → [Terms of use]
Delete your login ID and account from the “LUMIX CLUB”
Delete the login ID from the camera when transferring it to another party or disposing of it.
You can also delete your “LUMIX CLUB” account.
••Changes and other actions to login IDs can only be made to the login ID acquired with
the camera.
→
[Setup] → [Wi-Fi] → [Wi-Fi Setup] → [LUMIX CLUB]
→ [Delete account]
1
Select [Yes] in the login ID delete confirmation screen
2
Select [Yes] on the confirmation screen for deleting the “LUMIX CLUB” account
3
Select [Next]
260
•• The message is displayed. Select [Next].
•• The message is displayed. Select [Next].
•• If you want to continue using the service, selecting [No] will only delete the login ID.
Wi-Fi/Bluetooth
About Wi-Fi connections
The following types of connections are available.
→
[Setup] → [Wi-Fi] → [Wi-Fi Function]
[New Connection]
A connection is made by selecting a Wi-Fi function and the connected
device. When the following screen is displayed, select either [Via
Network] (→261) or [Direct] (→264) and make a connection.
Wireless access point
[Select a destination
from History] /
[Select a destination
from Favorite]
Connection is made using the same settings as the previous time.
(→265)
Connecting via a wireless access point ([Via Network])
Select a connection method to the wireless access point.
[WPS (Push-Button)]
Save push button type wireless access point that is compatible with
Wi-Fi Protected Setup™ with a WPS mark.
1
Press the wireless access point WPS button until it
switches to WPS Mode
Save PIN code type wireless access point that is compatible with
Wi-Fi Protected Setup with a WPS mark.
[WPS (PIN code)]
1
2
3
[From List]
261
On the camera screen, select the wireless access point
you are connecting to
Enter the PIN code displayed on the camera screen
into the wireless access point
Press [MENU/SET] on the camera
Select this option when you are not sure about the WPS compatibility,
or when you want to search for and connect to a wireless access
point. (→262)
Wi-Fi/Bluetooth
About Wi-Fi connections
••The settings screen will only appear during the first connection. Connection methods
set on this unit are stored and will be used for subsequent connections. If you want to
change the wireless access point to connect to, press the [DISP.] button, then change
the connecting destination.
••WPS refers to a function that allows you to easily configure the settings related to the
connection and security of wireless LAN devices. To check if the wireless access point
you are using is compatible with WPS, refer to the instruction manual of the wireless
access point.
If you are not sure about the WPS compatibility
(connecting by [From List])
Search for available wireless access points.
••Confirm encryption key of the selected wireless access point if the network
authentication is encrypted.
1 Select the wireless access point you are connecting to
•• Pressing [DISP.] button will search for a wireless access point
again.
•• If no wireless access point is found, refer to “When connecting
with [Manual Input]”.
2
(If network authentication is encrypted)
Enter the encryption key
•• For details on how to enter characters, refer to “Entering Text” (→51)
262
Wi-Fi/Bluetooth
About Wi-Fi connections
■■When connecting with [Manual Input]
••When connecting by [Manual Input], confirm SSID, network authentication type,
encryption type, encryption key of the wireless access point you are using.
On the screen of step 1 of “If you are not sure about the WPS compatibility (connecting
by [From List])”, select [Manual Input]
Enter the SSID of the wireless access point you are connecting to, then select [Set]
•• For details on how to enter characters, refer to “Entering Text” (→51)
Select the network authentication type
[WPA2-PSK]
[WPA2/WPA-PSK]
Supported encryption methods: [TKIP] / [AES]
[No Encryption]
—
(When an option other than [No Encryption] is selected)
Enter the encryption key
●●Check the wireless access points instruction manual and settings when saving a wireless access
point.
●●If no connection can be established, the wireless access point’s radio waves may be too weak.
Refer to “Message displays” (→291) and “Q&A Troubleshooting” (→297) for details.
●●Transmission speed may decrease, or may not be usable depending on the environment it is used
in.
263
Wi-Fi/Bluetooth
About Wi-Fi connections
Connecting directly ([Direct])
You can directly connect the camera to your device.
[WPS (Push-Button)]
1
2
[WPS Connection]
On the camera screen, select [WPS (Push-Button)]
Set the device to WPS mode
•• You can extend waiting time for a connection by pressing the [DISP.]
button on this unit.
[WPS (PIN code)]
1
2
1
[Manual
Connection]
On the camera screen, select [WPS (PIN code)]
Enter the PIN code of the device into the camera
Enter the SSID and password
into the device. The SSID and
password are displayed on the
connection waiting screen of this
unit
SSID and Password
•• If a device to be connected is [Smartphone],
the password is not displayed. Select SSID
to connect. (→230)
••Read the operating instructions of your device for details.
264
Wi-Fi/Bluetooth
About Wi-Fi connections
Connecting quickly with the same settings as used previously
([Select a destination from History] / [Select a destination from
Favorite])
The camera keeps a History of times you used the Wi-Fi function. You can register items
in the History to Favorite.
You can easily connect with the same settings as used previously by connecting from
History or Favorite.
••If the Wi-Fi settings of the device to connect to have been changed, it may not be
possible to connect to the device.
1 Set the menu
→
2
[Setup] → [Wi-Fi] → [Wi-Fi Function]
[Select a destination from History]
Connects using the same settings as used previously.
[Select a destination from Favorite]
Connects using settings registered in Favorite.
Select the desired connection setting
•• When selecting History or Favorite items, you can view connection details by pressing the
[DISP.] button.
Registering History items to Favorite
→
[Setup] → [Wi-Fi] → [Wi-Fi Function]
→ [Select a destination from History]
1
2
265
Select the item you wish to register and press
Enter a registration name
•• For details on how to enter characters, refer to “Entering Text” (→51)
•• Up to 30 characters can be entered. A double-byte character will be treated as two characters.
Wi-Fi/Bluetooth
About Wi-Fi connections
Editing items registered in Favorite
→
[Setup] → [Wi-Fi] → [Wi-Fi Function]
→ [Select a destination from Favorite]
1
Select the Favorite item you wish to edit and press
[Remove from Favorite]
—
[Change the Order in Favorite]
Select the destination.
[Change the Registered Name]
•• For details on how to enter characters, refer to “Entering
Text” (→51)
●●The number of settings that can be saved in the history is limited. Register and save frequently
used Wi-Fi connection settings to Favorites.
●●Performing [Reset Wi-Fi Settings] deletes content registered in History and Favorite.
●●If the device you want to connect to (smartphone, etc.) is connected to a wireless access point
other than the camera, you cannot connect the device to the camera using [Direct]. Change the
Wi-Fi settings of the device you want to connect to so that the access point to be used is set to the
camera.
You can also select [New Connection] and reconnect the devices. (→261)
●●When connecting to a network to which many PCs are connected, it may be difficult to make
the connection because the camera searches for previously connected equipment out of a large
number of equipment pieces. If you cannot connect, retry the connection using [New Connection].
266
Wi-Fi/Bluetooth
[Wi-Fi Setup]
Configure the settings required for the Wi-Fi function.
[Wi-Fi Setup] cannot be changed when connected to Wi-Fi.
→
[Setup] → [Wi-Fi] → [Wi-Fi Setup]
[Priority of Remote Device]
(→235)
[Wi-Fi Password]
You can improve security
by enabling password entry
for a direct connection to a
smartphone.
[ON]:Connects the camera and a smartphone using an SSID and
password. (→231)
[OFF]:Connects the camera and a smartphone using an SSID.
(→230)
[LUMIX CLUB]
Acquires or changes the “LUMIX CLUB” login ID. (→258)
[PC Connection]
You can set the workgroup.
You must connect to the same workgroup as the destination
computer when sending pictures to the computer.
(The default is set to “WORKGROUP”)
•• When [ON] is selected, you can also set up a connection by
scanning a QR code.
Press [MENU/SET]
Enter the workgroup of the connecting PC
•• For details on how to enter characters, refer to “Entering Text”
(→51)
•• Pressing [DISP.] button will return the default setting
[Device Name]
You can change the name
(SSID) of this unit.
Press [DISP.] button
Enter the desired device name (Up to 32 characters can be
entered)
•• For details on how to enter characters, refer to “Entering Text”
(→51)
[Wi-Fi Function Lock]
To prevent incorrect operation
or use of the Wi-Fi function
by a third party and to protect
saved personal information,
it is recommended that you
protect the Wi-Fi function with
a password.
[Setup]: Enter any 4-digit numbers as the password.
[Cancel]
[Network Address]
Displays the MAC address and
IP address of this unit.
•• A “MAC Address” is a unique address that is used to identify
network equipment.
•• “IP address” refers to a number that identifies a PC connected to
a network such as the Internet. Usually, the addresses for homes
are automatically assigned by the DHCP function such as a
wireless access point. (Example: 192.168.0.87)
[Approved Regulations]
The authentication number is displayed.
267
•• For details on how to enter characters, refer to “Entering Text”
(→51)
•• If you forget the password, you can reset it with [Reset Network
Settings] (→204) in the [Setup] menu.
Connecting with other devices
Enjoying 4K motion pictures
Viewing 4K motion pictures
■■Viewing on TV screen
When you connect this unit to a 4K-compatible TV and play
back a motion picture recorded with [Rec Quality] of [4K],
you can enjoy high-resolution 4K motion pictures. Although
resolution output will be lower, you can also play back 4K
motion pictures by connecting to a high-definition TV and
other devices that do not have 4K support.
Preparations
•• Set [HDMI Mode (Play)] (→201) to [AUTO] or [4K/30p].
•• When connecting to a TV that does not support 4K motion picture, select [Auto].
Connect this unit to a 4K-compatible TV using an HDMI micro cable and display the
playback screen (→270)
•• When the [VIERA Link] setting on the camera is set to [ON] and the camera is connected to
a VIERA Link (HDMI)-compatible Panasonic television (VIERA), the television automatically
switches its input and the playback screen is displayed. For details (→273).
•• When you have motion pictures recorded with [Rec Format] set to
[MP4] and their size set to [4K] in [Rec Quality], you can also play
them back by inserting the card into the SD card slot of a TV that
supports motion pictures in 4K.
•• Read the operating instructions for the TV.
■■Viewing 4K motion pictures on a PC screen
To play back motion pictures recorded with [Rec Quality] of [4K] on a
PC, use the software “PHOTOfunSTUDIO”.
••To play back and edit 4K motion pictures, a high-performance PC
environment is required.
••For details, refer to the operating instructions of “PHOTOfunSTUDIO”
(PDF).
268
Connecting with other devices
Enjoying 4K motion pictures
Storing 4K motion pictures
You cannot dub 4K motion pictures to a Blu‑ray disc or DVD using a Panasonic recorder.
■■Storing 4K motion pictures on your PC
You can use the software “PHOTOfunSTUDIO” to import 4K motion pictures to a PC.
••For details, refer to the operating instructions of “PHOTOfunSTUDIO” (PDF).
269
Connecting with other devices
Viewing on TV screen
Preparation
Turn off both camera and TV.
1
Connect camera to TV
Check the plug direction and insert it straight in. (If the cable is inserted in the wrong
direction, the plug could become deformed and cause faulty operation.) Also, do not
insert into the wrong socket. Doing so may cause damage to this unit.
HDMI micro cable
Use a “High Speed HDMI micro cable” with the HDMI logo.
Cables that do not comply with the HDMI standards will not work.
“High Speed HDMI micro cable” (Type D - Type A plug, up to 2 m (6.6 feet) long)
[HDMI] socket
To HDMI video/audio input socket
2
3
270
Turn on the TV and switch the TV input source to match the
connection socket
Turn on the camera and press [
] (Playback) button
Connecting with other devices
Viewing on TV screen
●●Bars may appear at the sides or at the top and bottom of the screen, depending on the aspect
ratio setting.
●●Change the screen mode on your TV if the picture is displayed with the top or bottom cut off.
●●Check the [HDMI Mode (Play)]. (→201)
●●To play back 24p motion pictures, set [HDMI Mode] to [AUTO]. Otherwise, the picture is not output
at 24 frames per second.
●●Pictures are not displayed on the camera screen. Also, sound is not produced from the camera’s
speaker.
●●HDMI output will be canceled if a USB connection cable (supplied) is connected simultaneously.
●●Read the operating instructions for the TV.
The recorded pictures can be played back on a TV with an SD Memory Card
slot
●●Proper playback (aspect ratio) will be dependent on the TV used for viewing.
●●The file format of the motion pictures that can be played back differs depending on the TV model.
●●You may not be able to play back panorama pictures. Also you cannot perform automatic scrolling
playback of panorama pictures.
●●For cards compatible with playback, refer to the operating instructions of the TV.
271
Connecting with other devices
Viewing on TV screen
Recording while monitoring camera images
When using the HDMI output, you can take pictures while
monitoring the camera image on a TV, etc.
■■Switching the information displayed
You can change the display shown during HDMI output using [HDMI Info Display (Rec)]
in [TV Connection] on the [Setup] menu.
[ON]: The camera display is output as is.
[OFF]: Only images are output.
●●When using the Auto Focus Mode [
] or MF assist, the screen cannot be enlarged in windowed
mode.
●●If you use the HDMI output during recording, the aspect ratio setting is fixed to [16:9].
●●An electronic sound or shutter sound will not sound.
●●If you set up a Wi-Fi connection while using the HDMI output, no image will be displayed on the
camera monitor.
●●Some of setting screens are not output through the HDMI connection.
●●This function is not available in the following cases:
•• During motion picture recording
•• During panorama picture recording
•• When recording 4K photos
•• When recording using [Post Focus]
272
Connecting with other devices
Viewing on TV screen
VIERA Link (HDMI) (HDAVI Control™)
What is VIERA Link (HDMI)?
●●VIERA Link is a function that automatically links this camera to VIERA Linkcompatible devices by connecting HDMI micro cables for enabling easy operation
with the VIERA remote control. (Some operations are not available.)
●●VIERA Link (HDMI) is an exclusive Panasonic function added to the industrystandard HDMI control functions known as HDMI CEC (Consumer Electronics
Control). Operation is not guaranteed when connecting with non-Panasonic HDMI
CEC-compatible devices. Refer to your product manual to verify compatibility with
VIERA Link (HDMI).
●●This camera supports VIERA Link (HDMI) Version 5. This is the Panasonic standard
that also supports previous Panasonic VIERA Link devices.
Preparation
Set [VIERA Link] to [ON] (→201).
1
2
3
Connect the camera to a VIERA Link (HDMI)-compatible Panasonic television
(VIERA) with an HDMI micro cable (→270)
Turn on the camera and press [ ] (Playback) button
Operate with the remote control for the TV
Turning the unit OFF
••The camera can also be turned off when the television is turned off with the remote
control.
Automatic input select
••When the camera and TV are connected by HDMI micro cable, the camera is
turned ON, and the camera’s [ ] (Playback) button is pressed, the television input
automatically switches to the camera’s screen. The television can also be switched on
via the camera from Standby Mode (if “Power on link” on the television is set to “on”).
●●Operations via the camera buttons will be limited.
●●To play back the audio of the motion pictures in a slide show, set the [Sound] in the Slide Show
setting screen to [AUTO] or [Audio].
●●Use a “High Speed HDMI micro cable” with the HDMI logo.
Cables that do not comply with the HDMI standards will not work.
“High Speed HDMI micro cable” (Type D - Type A plug, up to 2 m (6.6 feet) long)
●●If VIERA Link (HDMI) does not function correctly (→299)
273
Connecting with other devices
Storing recorded still pictures and motion pictures
on your PC
Still/motion pictures can be copied from the camera to your computer by connecting the
two together.
••Some computers can read directly from the camera’s memory card.
For details, see the instruction manual for your computer.
■■Computer specifications
You can connect the camera to a computer that can detect a mass storage device (device
that stores a large volume of data).
••Windows: Windows 10 / Windows 8.1 / Windows 8 / Windows 7
••Mac: OS X v10.5 - v10.11, macOS 10.12, macOS 10.13
Some motion pictures recorded in [AVCHD] may not be scanned correctly by
copying a file or folder
●●When using Windows, be sure to use the “PHOTOfunSTUDIO” software to copy motion pictures
recorded in [AVCHD].
●●When using Mac, you can copy motion pictures recorded in [AVCHD] using “iMovie”. Note, however,
that it may not be possible to copy pictures depending on the picture quality settings.
(For details about iMovie, please contact Apple Inc.)
274
Connecting with other devices
Storing recorded still pictures and motion pictures on your PC
Downloading software
••To download the software, the PC must be connected to the Internet.
••It may take time to download the software in some communication environments.
••Supported OS versions as of February 2018. Supported OS versions may be changed
without prior notice.
PHOTOfunSTUDIO 10.0 AE
You can capture still pictures or motion pictures to your PC, or organize captured pictures
by categorizing by recording date, model name of the digital camera used to record, etc.
You can also correct still pictures, edit motion pictures, or write to DVD.
Check the website below to download/install the software.
The software is available for download until the end of March 2023.
http://panasonic.jp/support/global/cs/soft/download/d_pfs10ae.html
••Operating environment
Supported OS
Windows® 10 (32-bit/64-bit)
Windows® 8.1 (32-bit/64-bit)
Windows® 7 (32-bit/64-bit) SP1
•• To support 4K motion pictures or 4K photos, you need the 64-bit version
OS of Windows 10, Windows 8.1 or Windows 7.
CPU
Pentium® 4
Display
1024×768 pixels or more (1920×1080 pixels or more recommended)
RAM
1 GB or more (32-bit) / 2 GB or more (64-bit)
Free hard disk
space
450 MB or more for installing software
2.8 GHz or higher
••For further information on the operating environment required for the playback and
edit functions of 4K motion pictures and for the 4K photo cropping function, refer to
the operating instructions for “PHOTOfunSTUDIO” (PDF file).
••“PHOTOfunSTUDIO” is not compatible with Mac.
275
Connecting with other devices
Storing recorded still pictures and motion pictures on your PC
SILKYPIX Developer Studio SE
This software develops and edits RAW file pictures. Edited pictures can be saved in a file
format such as JPEG or TIFF that can be displayed on a PC, etc.
Check the website below to download/install the software.
http://www.isl.co.jp/SILKYPIX/english/p/
••Operating environment
Supported OS
Windows® 10
Windows® 8.1
Windows® 8
Windows® 7
Mac OS X v10.6 - v10.11, macOS 10.12, macOS 10.13
••For details on the operating environment and how to use the SILKYPIX Developer
Studio, refer to the “Help” or the Ichikawa Soft Laboratory’s support website.
LoiLoScope 30 day full trial version
(Windows 10 / 8.1 / 8 / 7)
Motion pictures can be edited easily.
Check the website below to download/install the software.
http://loilo.tv/product/20
••For more information on how to use LoiLoScope and its operating environment, read
the LoiLoScope manual available for download at the website.
••“LoiLoScope” is not compatible with Mac.
276
Connecting with other devices
Storing recorded still pictures and motion pictures on your PC
Copying still pictures and motion pictures
Preparations
•• Install “PHOTOfunSTUDIO” on your computer before starting the copying procedure. (→275)
•• Turn on the camera and computer.
1
Connect camera to computer
•• Check the plug direction and insert it straight in. (If the cable is inserted in the wrong direction,
the plug could become deformed and cause faulty operation.) Also, do not insert into the wrong
socket. Doing so may cause damage to this unit.
•• Do not use any other USB connection cables except the supplied one.
[Access]
•• Do not disconnect the USB connection cable (supplied) while [Access] is displayed.
[USB/CHARGE] socket
USB connection cable (supplied)
2
Use
3
Use “PHOTOfunSTUDIO” to copy pictures to your computer
to select [PC(Storage)] and press [MENU/SET]
•• If you set the [USB Mode] to [PC(Storage)] in the [Setup] menu in advance, the camera will be
automatically connected to the PC without displaying the [USB Mode] selection screen.
•• Do not delete or move copied files and folders using Windows Explorer or other browsers.
Otherwise, you will not be able to play back or edit the files using “PHOTOfunSTUDIO”.
●●Before inserting or removing a card, turn the camera off and disconnect the USB connection
cable. Otherwise, data may be destroyed.
●●Use a battery with sufficient battery power or the AC adaptor (optional) and DC coupler (optional).
●●When the battery begins to run out during communication, a warning beep sounds. Remove the
USB connection cable safely. Otherwise, data may be destroyed.
277
Connecting with other devices
Storing recorded still pictures and motion pictures on your PC
■■Copying to your computer without using “PHOTOfunSTUDIO”
You can save pictures to use on your computer by dragging and dropping folders and
files into separate folders on your computer.
••The card of this unit contains the following files (folder structure).
DCIM (Still/motion pictures)
100XXXXX
Card
Folder number
●●Windows
Drive (“LUMIX”) is
displayed in “Computer”.
●●Mac
Drive (“LUMIX”) is
displayed on the desktop.
.JPG : Still pictures
.RW2 :Still pictures recorded in RAW
file
.MP4 :[MP4] Motion Pictures,
4K burst files
File number
Color Space P: sRGB
_: AdobeRGB
101XXXXX
999XXXXX
PRIVATE
AVCHD (Motion pictures in AVCHD)
278
Connecting with other devices
Storing recorded still pictures and motion pictures in
the recorder
If you insert a card that has pictures recorded with this camera into
a Panasonic recorder, you can dub the content to a Blu-ray Disc or
DVD etc.
••The method of importing still pictures and motion pictures recorded
in this unit to other devices will vary depending on the file format
(JPEG, RAW, AVCHD, or MP4).
••See the instruction manual for the recorder for details for copying and playing back.
279
Connecting with other devices
Printing
You can connect a camera directly to a PictBridge-compatible printer for printing.
Preparations
•• Adjust the print quality or other settings on your printer, as needed.
•• Turn on the camera and printer.
1
Connect camera to printer
••Check the plug direction and insert it straight in. (If the cable is inserted in the
wrong direction, the plug could become deformed and cause faulty operation.)
Also, do not insert into the wrong socket. Doing so may cause damage to this unit.
••Do not use any other USB connection cables except the supplied one.
[
]
•• Do not disconnect the USB connection cable (supplied) when the cable disconnection icon
[ ] is displayed (may not be displayed with some printers).
[USB/CHARGE] socket
USB connection cable (supplied)
2
3
4
280
Use
to select [PictBridge(PTP)] and press [MENU/SET]
Use
to select a picture and press [MENU/SET]
Use
to select [Print start] and press [MENU/SET]
Connecting with other devices
Printing
Printing multiple pictures
Multiple pictures are printed at one time.
1 Press to select [Multi Print] in step 3 of “Printing” (→280)
2
Use
to select the item and press [MENU/SET]
[Multi Select]
3
Scroll between pictures with
, select pictures to print with
[MENU/SET] (Press [MENU/SET] again to release selection.)
Press [DISP.] button to execute
[Select All]
Print all pictures.
[Rating]
Print pictures selected as [Rating].
Use
to select [Print start] and press [MENU/SET]
●●The group pictures are displayed one by one instead of all pictures at the same time.
●●Use a battery with sufficient battery power or the AC adaptor (optional) and DC coupler (optional).
When the battery begins to run out during communication, a warning beep sounds. Cancel printing
and disconnect USB connection cable (supplied).
●●Before inserting or removing a card, turn the camera off and disconnect the USB connection
cable.
●●Some printers can print directly from the camera’s memory card. For details, see the manual for
your printer.
●●A yellow “●” displayed during printing indicates an error message.
●●Print may be divided into several pictures if printing a large amount of pictures. (Remaining sheets
display may differ from the number of pictures set for printing.)
●●Motion pictures, 4K burst files, and pictures recorded with [Post Focus] cannot be printed.
●●Still pictures recorded in a RAW file cannot be printed. (The still pictures recorded in JPEG file
format at the same time as the RAW file can be printed.)
281
Connecting with other devices
Printing
■■Making print settings on the camera
Setting options include the number of printed pictures and their size. Make settings before
selecting [Print start].
[Print with Date]
[ON] / [OFF]
[Num.of prints]
Sets number of pictures (up to 999 pictures).
[Paper Size]
Sets the paper size.
[Page Layout]
Sets whether or not to add borders and how many pictures to be printed on
each sheet of paper.
●●If the printer does not support date printing, the date cannot be printed on the picture.
●●When setting [Print with Date] to [ON], check the date printing settings on the printer (printer
settings may be prioritized).
●●Items may not be displayed if incompatible with printer.
●●To print to paper sizes/layouts not supported by this camera, set to [
printer. (Consult your printer’s operating manual.)
] and make settings on the
Printing with date and text
Time and date can be set to be printed on the picture when taking the picture by
activating the [Text Stamp] function in the [Playback] menu. (→217)
■■Printing date without [Text Stamp]
Printing in store:
Only recording date can be printed. Request date printing in store.
••The characters entered for [Age] or [Name] of [Profile Setup] or [Face Recog.],
[Location] in [Travel Date], and [Title Edit] cannot be printed at a store.
Using printer:
Recording date can be printed by setting [Print with Date] (→282) to [ON] when
connecting to a printer compatible with date printing.
Print settings for recording date and text information can be made using
“PHOTOfunSTUDIO” software.
282
Others
Optional accessories
AC adaptor (optional) / DC coupler (optional)
By using the AC adaptor (DMW-AC10: optional) and DC coupler (DMW-DCC11: optional),
you can record and play back without worrying about the remaining battery charge.
The optional DC coupler can only be used with the designated Panasonic AC adaptor.
●●Always use a genuine Panasonic AC adaptor (optional).
●●Also read the AC adaptor and DC coupler operating instructions.
283
Others
List of monitor/viewfinder displays
••The following images are examples of when [Monitor Disp. Set] is set to [
] (monitor
style) in the monitor.
••The information displayed, such as histograms, magnifications, and numeric values, are
only for the purpose of reference.
In recording
60p
Recording mode (→35)
Simultaneous recording
indicator (→152)
[Photo Style] (→167)
Automatic switching between
viewfinder and monitor (→32)
[Rec Format]/[Rec Quality]
(→149)
[Snap Movie] (→153)
[Aspect Ratio] (→165)/
[Picture Size] (→166)
Image size (Panorama Shot
Mode) (→64)
Picture effect (Filter)
adjustment display (→72, 169)
Types of picture effects (Filter)
(→169)
Card (displayed only during
recording) (→26)
284
Elapsed recording time*1
(→147)
Custom Set (→81)
Flash setting (→143, 146)
60p
XXhXXmXXs
[Peaking] (→187)
[Highlight Shadow] (→172)
[HDR] (→177)/[iHDR] (→55)
[Multi Exp.] (→178)
Electronic shutter (→176)
Overheat indicator (→294)
Others
List of monitor/viewfinder displays
[Quality] (→166)
120fps
[High Speed Video] (→78)
[AFS/AFF/AFC] (→84)/
AFS AFF AFC MF
MF (→97)
Focus Bracket (→129)
[AF Mode] (→85)
[Pull Focus] (→155)
[Face Recog.] (→191)
AFL
Name*2 (→194)
Travel elapsed days*3 (→196)
Age in years/months*2 (→194)
Location*3 (→196)
Current date/time*3
Travel destination setting*3:
(→195)
Exposure meter (→190)
Zoom (→140)
AF Lock (→99)
Burst (→124)
[4K PHOTO] (→107)
AF area (→91)
[Post Focus] (→118)
Spot metering target (→171)
[Self Timer] (→126)
[Center Marker] (→188)
Remaining battery (→23)
[Self Timer] (→126)
Macro recording (→96)
[Zoom Mic] (→180)
[Level Shot] (→179)
[Stabilizer] (→136)
[Silent Mode] (→175)
AEL
Jitter alert (→136)
Focus (Lights green.) (→34)/
Recording state (Flashes red.)
(→147)
Focus (Under low illumination)
(→83)
Focus (Starlight AF) (→83)
Wi-Fi connection status
Bluetooth connection status
(→229)
Location Logging (→242)
Histogram (→188)
285
AE Lock (→99)
[Metering Mode] (→42, 171)
Program Shift (→57)
3.3
Aperture value (→34)
Aperture Bracket (→129)
60
Shutter speed (→34)
Exposure compensation
(→100)
Exposure Bracket (→128)
Brightness (exposure)
(→56, 76)
Manual Exposure Assist (→60)
ISO sensitivity (→101)
Others
List of monitor/viewfinder displays
Coloring (→56)
AWBc
[Dial Guide] (→186)
Defocus control function
(→56, 76)
White Balance (→103)
Brightness (exposure)
(→56, 76)
White Balance Bracket (→106)
Type of defocus ([Miniature
Effect]) (→74)
White Balance Fine Adjustment
(→105)
[One Point Color] (→75)
Coloring (→55)
98
Number of recordable pictures
(→27)
r20
Maximum number of pictures
that can be taken continuously
(→124)
RXXmXXs
Available recording time*1
(→28)
[Sunshine] (→75)
(→56)
(→76)
(→77)
Picture effect (Filter)
adjustment display
(→72, 169)
Picture effects ON or OFF
(→169)
Picture effects (Filter)
(→169)
Aperture value (→77)
Shutter speed (→77)
Touch tab (→185)
Touch zoom (→141)
ISO sensitivity (→77)
Touch Shutter (→41)
Touch AF (→41)
[Touch AE] (→42)
[Peaking] (→187)
Function buttons (→48)
*1[h], [m] and [s] indicate “hour”, “minute” and “second”.
*2This is displayed for about 5 seconds when the camera is turned on if the [Profile Setup] setting is
set.
*3This is displayed for about 5 seconds when the camera is turned on, after setting the clock and after
switching from Playback Mode to Recording mode.
286
Others
List of monitor/viewfinder displays
In playback
15 pic.
1ST DAY
11 months 20 days
Playback Mode (→208)
Protected picture (→209)
Icon indicating the presence of
a marker (→111, 112)
With location information
(→242)
4K Photo (4K burst file) (→107)
[Rating] (→209)
[Post Focus] (→118)
[Focus Stacking] (→121)
Cable disconnect prohibit icon
(→280)
Motion picture playback
(→157)
[Aspect Ratio] (→165)/
[Picture Size] (→166)
60p
Panorama picture playback
(→66)
Continuous playback of picture
group (→161)
Save pictures from the 4K
burst file (→110)
Save a picture from pictures
recorded using [Post Focus]
(→120)
Group pictures recorded using
Focus Bracket (→161)
Text stamped display (→217)
XXhXXmXXs Elapsed playback time*1
287
[Rec Format]/[Rec Quality]
(→149)
[Snap Movie] (→153)
[Quality] (→166)
120fps
[High Speed Video] (→78)
Remaining battery (→23)
1/98
Picture number/Total pictures
Wi-Fi connection status
15 pic.
XXhXXmXXs
Number of group pictures
Motion picture recording time*1
(→157)
Others
List of monitor/viewfinder displays
Clear Retouch completed icon
(→216)
Acquiring information icon
Playback (Motion Pictures)
(→157)
Name*2 (→192, 194)
Location*2 (→196)
Title*2 (→210)
Age in years/months (→192, 194)
1ST DAY Travel elapsed days (→196)
Upload (Wi-Fi) (→256)
Picture Group Display (→162)
Recording information
Submenu icon (→256)
[Silent Mode] (→175)
Multi Playback (→159)
Delete (→163)
*1[h], [m] and [s] indicate “hour”, “minute” and “second”.
*2It is displayed in order of [Title], [Location], [Name] ([Baby1]/[Baby2], [Pet]), [Name] ([Face Recog.]).
288
Others
List of monitor/viewfinder displays
Detailed information display
Histogram display
1/5
2/5
R
G
5500
B
AM10:00 DEC. 1.2018
100-0001
AM10:00 DEC. 1.2018
100-0001
Photo style, Highlight shadow display
Y
White balance display
3/5
Standard
4/5
Auto White Balance
G
Contrast
Sharpness
Noise Reduction
A
Saturation
AM10:00 DEC. 1.2018
100-0001
AM10:00 DEC. 1.2018
100-0001
B
M
Lens information display
5/5
N/A
Focal Length
8.8mm
35mm Focal Length 24mm
Long Shtr NR
OFF
AM10:00 DEC. 1.2018
100-0001
Recording information (Basic)
Recording date/time
World time (→195)
100-0001
Folder/File number (→278)
Recording information (Advanced)
White Balance (color
5500
temperature) (→103)
[i.Dynamic] (→173)
[HDR] (→177)/[iHDR] (→55)
[i.Resolution] (→173)
289
Others
Message displays
The following explains the meaning of major messages displayed on the screen, and how
to respond to them.
■■Memory cards
[Memory Card Error] / [Format this card?]
•• Save needed data on a computer or other device, and then use [Format] on the camera. (→27)
•• Try with a different card.
[Read Error] / [Write Error] / [Please check the card]
•• Check whether card has been inserted correctly (→25).
•• Turn off the camera and remove the card. Reinsert the card and turn the camera on again.
•• Try with a different card.
[Recording was cancelled due to the limitation of the writing speed of the card]
•• The speed class of a required card varies depending on [Rec Format] and [Rec Quality] of a motion
picture. 4K photo recording requires a card that meets a particular speed class rating. Use a card
that meets the rating. Be sure to use a card of the recommended speed class (→26).
•• If recording stops even when using a card of the recommended speed class (→26), the data writing
speed has dropped. If this happens, we recommend backing up the data on the memory card and
formatting it (→27). Depending on the type of the card, recording may stop in the middle.
[Memory Card Error] / [This memory card cannot be used]
•• Use a compatible card. (→26)
■■Battery
[This battery cannot be used]
•• Use a genuine Panasonic battery. Consult the dealer or your nearest Service Center if display still
remains.
•• Wipe any dirt away from the battery terminal.
290
Others
Message displays
■■Wi-Fi function
[Failed to connect wireless access point] / [Connection failed] / [No destination found]
•• The wireless access point information set on this unit is wrong. Check the authentication type,
encryption type, and encryption key. (→262)
•• Radio waves from other devices may block the connection to a wireless access point. Check other
devices that are connected to the wireless access point and devices that use the 2.4 GHz band.
[Connection failed. Please retry in a few minutes.] / [Network disconnected. Transfer stopped.]
•• Radio waves from the wireless access point are getting weak. Perform the connection closer to the
wireless access point.
•• Depending on the wireless access point, connection may be automatically disconnected after
specific time has passed. Reconnect the connection again.
[Connection failed]
•• Change the access point to connect to in the smartphone Wi-Fi settings to this camera.
■■Others
[Some pictures cannot be deleted] / [This picture cannot be deleted]
•• Non-DCF pictures (→156) cannot be deleted. Save needed data on a computer or other device,
and then use [Format] on the camera. (→27)
[Cannot be set on this picture]
•• [Title Edit], [Text Stamp], and other functions cannot be used for pictures that are not compliant with
the DCF standard (→156).
[A folder cannot be created]
•• A folder cannot be created because available folder numbers have been already assigned.
Save all necessary pictures to your computer or other devices and format the card (→27).
After you format the card, execute [No.Reset] in the [Setup] menu to reset the folder number to
100. (→204)
[Please turn camera off and then on again] / [System Error]
•• Turn the camera on again. (Consult the dealer or your nearest Service Center if display still
remains.)
291
Others
Q&A
Troubleshooting
Try checking these items (→292 - 300) first.
If the problem persists,
Performing [Reset] in the [Setup] menu may resolve the issue (→204).
Also, see the Panasonic support site for the latest support information.
http://panasonic.jp/support/global/cs/dsc/
(This site is available in English only.)
■■Battery, power
The charging lamp blinks.
•• Charging is being performed in a place with extremely high or low temperature.
→→Reconnect the USB connection cable (supplied) and retry charging in a place where ambient
temperature is 10 °C to 30 °C (50 °F to 86 °F) (temperature conditions also apply to the battery
itself).
•• Charging is not possible if the power supply capacity of the computer is low.
Camera does not work even if the camera is turned on. Camera switches off as soon as the
camera is turned on.
•• Battery needs recharging.
→→Charge the battery. (→19)
This unit is turned off automatically.
•• [Economy] is activated. (→198)
The battery runs down quickly.
] ([4K Pre-Burst]).
•• [4K PHOTO] is set to [
] ([4K Pre-Burst]) has been selected, the battery drains faster.
→→When [
] ([4K Pre-Burst]) only when recording.
Select [
•• The Wi-Fi connection has been on for a long time.
→→The battery is used up faster with a Wi-Fi connection. Turn off the camera as often as possible
using [Economy] (→198) or other methods.
292
Others
Q&A Troubleshooting
■■Recording
Striping or flicker may appear under lighting such as fluorescent lighting and LED lighting
fixture.
•• This is characteristic of MOS sensors which serve as the camera’s pickup
sensors. This is not a malfunction.
•• If you are taking still pictures using the electronic shutter, the striping may be
reduced by setting a slower shutter speed. (→59)
•• When noticeable flicker or striping is seen under lighting such as a fluorescent
or LED lighting fixture in the motion picture recording mode, you can reduce
the flicker or striping by setting up [Flkr Decrease] (→179) and fixing the
shutter speed. It is possible to select a shutter speed from [1/50], [1/60],
[1/100], or [1/120]. You can set the shutter speed manually in the Creative
Video Mode. (→77)
Cannot record pictures. The shutter will not operate immediately when the shutter button is
pressed.
•• When [Focus/Release Priority] is set to [FOCUS], the camera will not record until proper focusing is
achieved. (→184)
Recorded pictures look white.
•• Lens is dirty (fingerprints, etc.).
→→Turn the camera on to extract lens barrel, and clean lens surface with a soft, dry cloth.
Recorded pictures are too bright/too dark.
•• AE Lock (→99) is set inappropriately.
Some pictures are taken when I press the shutter button just once.
•• Drive Mode is set to other than [Single]. (→123)
•• Bracket recording is set. (→127)
Focus not aligned correctly.
•• Subject outside of focus range.
•• [Focus/Release Priority] is set to [RELEASE]. (→184)
•• [Shutter AF] is set to [OFF]. (→182)
•• AF Lock (→99) is set inappropriately.
•• If there are fingerprints or dirt on the lens, the focus may be set to the lens and not the subject.
Recorded pictures are blurred. The stabilizer function ineffective.
•• Shutter speed is slower in dark locations and the stabilizer function is less effective.
→→Use a tripod and the self-timer (→126) when using a slower shutter speed.
293
Others
Q&A Troubleshooting
Recorded pictures appear coarse, or there is interference.
•• We recommend trying the following methods.
→→Lower ISO sensitivity (→101).
→→Either adjust [Noise Reduction] of [Photo Style] to a higher setting or set each item other than
[Noise Reduction] to a lower setting. (→168)
→→Set [Long Shtr NR] to [ON]. (→174)
Subject appears skewed in pictures.
•• If you take a picture of a moving subject in the electronic shutter mode, motion picture recording
mode, or 4K photo recording mode, the subject in the picture may be skewed in some cases.
This is characteristic of MOS sensors which serve as the camera’s pickup sensors. This is not a
malfunction.
Brightness or coloring of recorded picture different from real life.
•• When recording under fluorescent or LED lighting fixture etc., increasing the shutter speed may
introduce slight changes to brightness and color. These are a result of the characteristics of the
light source and do not indicate a malfunction.
•• When recording subjects in extremely bright locations or recording under fluorescent lighting, LED
lighting fixture, mercury lamp, sodium lighting etc., the colors and screen brightness may change or
horizontal striping may appear on the screen.
4K photo recording stops before finishing.
•• When the ambient temperature is high or recording of the 4K Photo function is performed
] and stop the recording. Wait until the camera cools
continuously, the camera may display [
down.
294
Others
Q&A Troubleshooting
■■Motion Picture
Cannot record motion pictures.
•• When a large capacity card is used, you may not be able to take a picture for a while after you turn
on the camera.
Motion picture recording stops midway.
•• When the ambient temperature is high or motion picture is recorded continuously, the camera may
] and stop the recording. Wait until the camera cools down.
display [
•• The speed class of a required card varies depending on [Rec Format] and [Rec Quality] of a motion
picture. Be sure to use a card of the recommended speed class (→26).
Sometimes focus adjustment with Auto Focus mode is difficult while recording 4K motion
pictures.
•• This may occur when taking a picture by reducing the Auto Focus speed in order to adjust the
focus at high precision. This is not a malfunction.
A noise, such as a clicking or buzzing noise, is recorded on a motion picture. Audio is
recorded at low volumes.
•• With recording in a quiet environment, the sound of aperture, focus and other actions may be
recorded in motion pictures. This is not a malfunction. The focus operation during recording of
motion pictures can be set to [OFF] in [Continuous AF] (→151).
•• If you block the microphone with your fingers while motion pictures are being recorded, the audio
may be recorded at a low volume or may not be recorded at all. In this case, the camera may pick
up the lens operating sounds more easily.
Operating sounds are recorded in a motion picture.
•• We recommend recording motion pictures in Creative Video Mode if you are concerned about
operating noise. (→77)
■■Flash
No flash emitted.
•• The flash becomes unavailable in the following cases.
–– The flash is closed.
–– Flash set to [ ] (Forced Flash Off). (→142, 144)
•• Set [Shutter Type] to [AUTO] or [MSHTR]. (→176)
•• Set [Silent Mode] to [OFF]. (→175)
295
Others
Q&A Troubleshooting
■■Monitor/viewfinder
The monitor/viewfinder is turned off although the camera is turned on.
•• If no operations are performed during the set time period [Auto LVF/Monitor Off] (→198) is
activated, and the monitor/viewfinder turns off.
•• When a hand or an object is close to the eye sensor, the monitor display mode could be switched
to viewfinder display mode. (→32)
It may flicker for an instant or the brightness of the screen may change significantly for an
instant.
•• This occurs due to the aperture of the lens changing when the shutter button is pressed halfway, or
when the brightness of the subject changes. This is not a malfunction.
Cannot switch between the monitor and viewfinder when pressing [LVF] button.
•• When it is connected to a computer or printer, the camera can display pictures on the monitor only.
■■Playback
Cannot view pictures. There are no recorded pictures.
•• A card is not inserted in the camera.
•• Has the file name of the picture been changed on a computer? If so, it cannot be played back on
the camera.
→→It is recommended to use the “PHOTOfunSTUDIO” software (→275) to write pictures from PC
to card.
•• Set [Playback Mode] to [Normal Play]. (→208)
Red areas in pictures appear blackened.
], [
]) is operating, red areas may be blackened.
•• When the digital red-eye correction ([
→→We recommend closing the built-in flash, setting the flash mode to [ ], or setting [Red-Eye
Removal] to [OFF] before recording. (→173)
296
Others
Q&A Troubleshooting
■■Wi-Fi function
A Wi-Fi connection cannot be established. Radio waves get disconnected. Wireless access
point is not displayed.
General tips for using a Wi-Fi connection
•• Use within the communication range of the wireless LAN network.
•• Is any device, such as microwave oven, cordless phone, etc., that uses 2.4 GHz frequency
operated nearby?
→→Radio waves may get interrupted when used simultaneously. Use them sufficiently away from
the device.
•• When the battery indicator is flashing red, the connection with other equipment may not start or the
connection may be disrupted. (A message such as [Communication error] is displayed.)
•• When this unit is placed on a metal table or shelf, the connection may not be established easily.
Use the camera away from metal surfaces.
About a wireless access point
•• Check if the wireless access point to connect is in operating state.
•• Check the radio wave condition of the wireless access point.
→→Perform the connection closer to the wireless access point.
→→Move the location or change the angle of the wireless access point.
•• It may not display even if the radio waves exist depending on the setting of the wireless access
point.
→→Turn off the wireless access point and then turn it back on.
•• Is the network SSID of the wireless access point set not to broadcast?
→→It may not be detected when it is set not to broadcast. Enter and set the network SSID. (→262)
Alternatively, set the network SSID of the wireless access point to broadcast.
This unit is not displayed in the Wi-Fi setting screen of the smartphone.
•• Try switching the ON/OFF of the Wi-Fi function in the Wi-Fi settings of the smartphone.
I am having a problem connecting to my Windows 8 PC. The user name and password are not
recognized.
•• Depending on the OS version, on Windows 8, for example, there are two types of user account
(local account/Microsoft account).
→→Be sure to set the local account and use the user name and password for the local account.
297
Others
Q&A Troubleshooting
The Wi-Fi connection is not recognizing my PC.
The camera cannot be connected to Mac computer/Windows PC via Wi-Fi connection.
•• By default, the Wi-Fi connection uses the default workgroup name of “WORKGROUP”. If the name
of the workgroup has been changed, it will not be recognized.
→→Select [PC Connection] in the [Wi-Fi Setup] to change the workgroup name to match that of your
PC. (→267)
•• Please confirm login name and password are correctly typed.
•• When the system time of a computer connected to a camera differs severely from that of the
camera, the camera cannot be connected to the computer in some OSs.
→→Please confirm clock set and world time of the camera matches with time, date and time zone in
the computer. When both settings do not match severely, please match them.
Images cannot be transmitted to the WEB service.
•• Confirm that the login information (login ID/user name/email address/password) is correct.
It takes time to transmit an image to the WEB service.
Transmission of the image fails midway. There is an image that could not be transmitted.
•• Is the size of the image too large?
→→Transmit after dividing the motion picture with [Video Divide] (→220).
→→Reduce the image size at [Size] (→248), and then send.
•• It may take longer time to transmit when distance to the wireless access point is far.
→→Transmit closer to the wireless access point.
•• File format of the picture that can be sent differs depending on the destination. (→246)
I have forgotten the password for the Wi-Fi.
→→Execute the [Reset Network Settings] in the [Setup] menu. (→204)
However, the information you have set on the [Wi-Fi Setup] or [Bluetooth] will be reset.
298
Others
Q&A Troubleshooting
■■TV, computer, printer
No image appears on TV. Image blurred or not colored.
•• Not connected correctly (→270).
•• The television has not been switched to auxiliary input.
VIERA Link (HDMI) is not working.
•• Is the camera’s [VIERA Link] setting set to [ON]? (→201)
→→Check the VIERA Link (HDMI) settings on the device you are connecting to.
→→Turn the camera off and on again.
Cannot communicate with the computer.
•• Set [USB Mode] to [PC(Storage)] (→200, 277).
•• Turn the camera off and then on again.
Computer does not recognize card. (When using an SDXC Memory Card)
•• Check whether your computer is compatible with SDXC Memory Cards.
•• A message prompting you to format the card may appear when you connect it. Do not format the
card.
•• If the [Access] indicator on the screen does not go off, turn the camera off before disconnecting the
USB connection cable (supplied).
Cannot print when connecting to printer.
•• Printer not compatible with PictBridge.
•• Set [USB Mode] to [PictBridge(PTP)] (→200, 280).
The edges of pictures are cut off when printing.
•• Release any trimming or edgeless printing settings on printer before printing.
•• The aspect ratio of pictures is different from that of paper used for printing.
→→If printing in shop, check if 16:9 sizes can be printed.
299
Others
Q&A Troubleshooting
■■Others
The lens makes a clicking noise.
•• When the camera is turned on or off, the lens is moved, or an aperture operation is performed,
such a noise may be heard. This is not a malfunction.
•• When the brightness changes after a zooming operation or moving the camera, the lens may make
a noise while adjusting the aperture. This is not a malfunction.
Zooming stops instantaneously.
•• When using the Extended optical zoom, the zooming action will stop temporarily. This is not a
malfunction.
Red lamp illuminated when pressing shutter button halfway in dark locations.
•• [AF Assist Lamp] is set to [ON] (→183).
Camera is hot.
•• Camera may become a little warm during use, but this does not affect performance or quality.
Clock is incorrect.
•• If you do not use the camera for a long time, the clock may be reset.
→→Reset the clock (→30).
When using zoom, picture becomes slightly warped and the edges of the subject become
colored.
•• Pictures may be slightly warped or colored around the edges, depending on the zoom ratio, but this
is not a fault.
300
Others
Usage cautions and notes
When in use
●●Keep this unit as far away as possible from electromagnetic equipment (such as
microwave ovens, TVs, video games etc.).
••If you use this unit on top of or near a TV, the pictures and/or sound on this unit may
be disrupted by electromagnetic wave radiation.
••Do not use this unit near cell phones because doing so may result in noise adversely
affecting the pictures and/or sound.
••Recorded data may be damaged, or pictures may be distorted, by strong magnetic
fields created by speakers or large motors.
••Electromagnetic wave radiation may adversely affect this unit, disturbing the pictures
and/or sound.
••If this unit is adversely affected by electromagnetic equipment and stops functioning
properly, turn this unit off and remove the battery or disconnect AC adaptor. Then
reinsert the battery or reconnect AC adaptor and turn this unit on.
Do not use this unit near radio transmitters or high-voltage lines.
••If you record near radio transmitters or high-voltage lines, the recorded pictures and/
or sound may be adversely affected.
●●Do not extend the supplied cord or cable.
●●Do not allow camera to come into contact with pesticides or volatile substances (can
cause surface damage or coating to peel).
●●Do not keep objects that may be influenced magnetically close to the speaker.
••Magnetized objects such as bank cards, commuter passes, watches, may be
adversely affected by the magnetic influence of the speaker.
●●Never leave the camera and the battery in a car or on a car hood in the summer.
Doing so may cause leakage of the battery electrolyte, overheating, fire or a battery
explosion due to the high temperature.
301
Others
Usage cautions and notes
Caring for your camera
To clean your camera, remove the battery, the DC coupler (optional) or a card, or
disconnect the power plug from the outlet, and wipe with a soft, dry cloth.
●●Use a damp cloth to remove stubborn stains, before wiping with a dry cloth.
●●Do not use benzine, thinners, alcohol, or kitchen detergent, as these may damage the
outer casing and finish of the camera.
●●If using a chemically-treated cloth, read the supplied instructions carefully.
●●Do not touch the lens barrier.
Lens barrier
When not using for a while
●●Turn off the camera before removing battery and card.
••Ensure that battery is removed to prevent damage through over-discharge.
••Clock settings will be saved for approx. 3 months even after the battery is removed,
provided a fully charged battery was installed in the camera for 24 hours beforehand.
●●Do not leave in contact with rubber or plastic bags.
●●Store together with a drying agent (silica gel) if leaving in drawer, etc. Store batteries in
cool (15 °C to 25 °C (59 °F to 77 °F)) places with low humidity (40%RH to 60%RH) and
no major temperature changes.
●●Charge battery once per year and use completely before storing again.
●●Check all the parts before taking pictures when you have not used the camera for a
long period of time.
Monitor/viewfinder
●●Do not press hard on the monitor. This may cause uneven display and damage the
monitor.
●●In cold climates or other situations when the camera becomes cold, the monitor or
the viewfinder may appear slightly darker than normal immediately after the camera is
turned on. Normal brightness will return once the internal components have warmed up.
The monitor and viewfinder are made with extremely high precision technology.
However there may be some dark or bright spots (red, blue or green) on the screen.
This is not a malfunction. The monitor and viewfinder screens are controlled with
extremely high precision, but some pixels may be inactive. The spots will not be
recorded on pictures on a card.
302
Others
Usage cautions and notes
Lens
●●Do not press the lens with excessive force.
●●Images may appear slightly white if lens is dirty (fingerprints, etc.). Turn the camera on,
hold the extracted lens barrel with your fingers, and gently wipe the lens surface with a
soft, dry cloth.
●●Do not leave the camera with the lens facing the sun as rays of light from the sun may
cause it to malfunction. Also, be careful when placing the camera outside or near a
window.
●●Do not touch the lens barrier, as this may damage the lens. Be careful when removing
camera from bag, etc.
Battery
The battery is a rechargeable lithium ion battery.
This battery is easily affected by temperature and humidity, and is affected more when the
temperature is high or low.
●●Remove battery from camera after use.
••Keep the battery in a plastic bag, making sure that it is kept away from metallic
objects (such as clips) when carrying or storing it.
●●The time required for charging varies depending on conditions of battery usage.
Charging takes longer at high or low temperatures and when the battery has not been
used in some time.
●●Battery will be warm during charging and for some time thereafter.
●●Battery will run out if not used for long periods of time, even after being charged.
●●Do not leave any metal items (such as clips) near the contact areas of the power plug.
Otherwise, a fire and/or electric shocks may be caused by short-circuiting or the
resulting heat generated.
●●Frequently charging up battery is not recommended.
(Frequently charging battery reduces maximum usage time and can cause battery to
expand.)
●●If available battery power is significantly reduced, battery is reaching end of lifespan.
Please purchase a new battery.
●●When charging:
••Wipe dirt from the battery terminal with a dry cloth.
••Keep at least 1 m (3.3 feet) away from AM radio (may cause radio interference).
●●Do not use a damaged or dented battery (especially connectors), e.g. by dropping (can
cause faults).
303
Others
Usage cautions and notes
AC adaptor (supplied)
●●Keep at least 1 m (3.3 feet) away from AM radio (may cause radio interference).
●●The AC adaptor (supplied) may generate whirring sounds when it is being used. This is
not a malfunction.
●●After use, be sure to disconnect the power supply device from the electrical outlet. (A
very small amount of current is consumed if it is left connected.)
Memory cards
●●To prevent damage to cards and data
••Avoid high temperatures, direct sunlight, electromagnetic waves, and static electricity.
••Do not bend, drop, or expose to strong impacts.
••Put the card in the card case or the storage bag after use and when storing or
carrying the card.
••Do not touch terminals on reverse of card or allow them to become dirty or wet.
●●Recorded data may be damaged or lost if the camera breaks down due to inappropriate
handling. Panasonic will not be liable for any damage caused due to loss of recorded
data.
●●When disposing of/transferring memory cards
••If using the “format” or “delete” functions on your camera or computer, this only
changes the file management information, and does not completely delete the data
from within the memory card. When disposing of or transferring your memory cards,
we recommend physically destroying them, or using commercially available computer
data erasing software to completely delete the data from the card. Data within
memory cards should be managed responsibly.
When using a tripod or unipod
●●Do not apply excessive force or tighten screws when they are crooked. (This may
damage the camera, screw hole, or label.)
●●Ensure that the tripod is stable. (Refer to the tripod instructions.)
●●You may not be able to remove the card or the battery when using a tripod or unipod.
304
Others
Usage cautions and notes
Personal Information
To protect personal information, we recommend that you set a Wi-Fi password or a Wi-Fi
function lock. (→267)
If names or birthdays are set in [Profile Setup] or in the [Face Recog.] function, keep in
mind that the camera and recorded pictures will contain personal information.
Be sure to pay special attention to the privacy, likeness rights, etc. of a subject and
take your own responsibility when you use the [Silent Mode], or use functions such
as writing the location information and changing the shutter noise, etc.
●●Disclaimer
••Data containing personal information can be altered or lost due to malfunction, static
electricity, accidents, breakdowns, repairs, or other operations.
Panasonic will not be liable for any damage that occurs, direct or indirect, as a result
of the alteration or loss of data containing personal information.
●●When ordering repairs or transferring/disposing of the camera
••After you make a note of the personal information, perform [Reset Network Settings]/
[Delete account] to delete data containing personal information such as wireless LAN
connection settings that you registered or set in this unit. (→204, 260)
••To protect your personal information, please reset the settings. (→204)
••Remove the memory card from the camera.
••When ordering repairs, settings may be returned to the initial purchase state.
••If the above operations cannot be performed because of a camera malfunction,
consult with the dealer or nearest Service Center.
●●When transferring or disposing of your memory card, see “When disposing of/
transferring memory cards” in the previous section. (→304)
●●Uploading pictures to WEB services
••Pictures may contain personal information that can be used to identify the user, such
as titles, recording dates and times, and location information. Before uploading the
pictures to WEB services, check the pictures carefully for information that should not
be disclosed.
305
Others
Usage cautions and notes
Wi-Fi function
■■Use the camera as a wireless LAN device
When using equipment or computer systems that require more reliable security than
wireless LAN devices, ensure that the appropriate measures are taken for safety designs
and defects for the systems used. Panasonic will not take any responsibility for any
damage that arises when using the camera for any purpose other than as a wireless LAN
device.
■■Use of the Wi-Fi function of this camera is presumed to be in countries where
this camera is sold
There is the risk that the camera violates the radio wave regulations if used in countries
other than those where this camera is sold, and Panasonic takes no responsibility for any
violations.
■■There is the risk that data sent and received via radio waves may be intercepted
Please note that there is the risk that data sent and received via radio waves may be
intercepted by a third party. We strongly recommend that you enable encryption in the
settings of your wireless access point to ensure information security.
■■Do not use the camera in areas with magnetic fields, static electricity or
interference
••Do not use the camera in areas with magnetic fields, static electricity or interference,
such as near microwave ovens. Radio waves may not reach the camera.
••Using the camera near devices such as microwave ovens or cordless telephones
that use the 2.4 GHz radio wave band may cause a decrease in performance in both
devices.
■■Do not connect to the wireless network you are not authorized to use
When the camera utilizes its Wi-Fi function, wireless networks will be searched
automatically. When this happens, wireless networks that you are not authorized to use
(SSID*) may be displayed, however do not attempt to connect to the network as it may be
considered as unauthorized access.
*SSID refers to the name that is used to identify a network over a wireless LAN connection. If the
SSID matches for both devices, transmission is possible.
306
Others
Usage cautions and notes
●●SDXC Logo is a trademark of SD-3C, LLC.
●●The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are
trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States
and other countries.
●●HDAVI Control™ is a trademark of Panasonic Corporation.
●●“AVCHD”, “AVCHD Progressive” and the “AVCHD Progressive” logo are trademarks of
Panasonic Corporation and Sony Corporation.
●●Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.
●●Adobe is a trademark or registered trademark of Adobe Systems Incorporated in the United
States and/or other countries.
●●Pentium is a trademark of Intel Corporation in the U.S. and/or other countries.
●●Windows is either registered trademark or trademark of Microsoft Corporation in the United
States and/or other countries.
●●iMovie, Mac, OS X and macOS are trademarks of Apple Inc., registered in the U.S. and other
countries.
●●iPad, iPhone, iPod, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other
countries.
●●App Store is a service mark of Apple Inc.
●●Android and Google Play are trademarks or registered trademarks of Google Inc.
●●The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG,
Inc. and any use of such marks by Panasonic Corporation is under license. Other trademarks
and trade names are those of their respective owners.
●●The Wi-Fi CERTIFIED™ Logo is a certification mark of Wi-Fi Alliance®.
●●The Wi-Fi Protected Setup™ Logo is a certification mark of Wi-Fi Alliance®.
●●“Wi-Fi®” is a registered trademark of Wi-Fi Alliance®.
●●“Wi-Fi Protected Setup™”, “WPA™”, and “WPA2™” are trademarks of Wi-Fi Alliance®.
●●DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification
marks of the Digital Living Network Alliance.
●●QR Code is a registered trademark of DENSO WAVE INCORPORATED.
●●This product uses “DynaFont” from DynaComware Corporation. DynaFont is a registered
trademark of DynaComware Taiwan Inc.
●●Other names, company names, and product names mentioned in these instructions are
trademarks or registered trademarks of the companies concerned.
307
Others
Usage cautions and notes
This product is licensed under the AVC Patent Portfolio License for the personal use of a consumer
or other uses in which it does not receive remuneration to (i) encode video in compliance with
the AVC Standard (“AVC Video”) and/or (ii) decode AVC Video that was encoded by a consumer
engaged in a personal activity and/or was obtained from a video provider licensed to provide AVC
Video. No license is granted or shall be implied for any other use. Additional information may be
obtained from MPEG LA, L.L.C.
See http://www.mpegla.com
308
