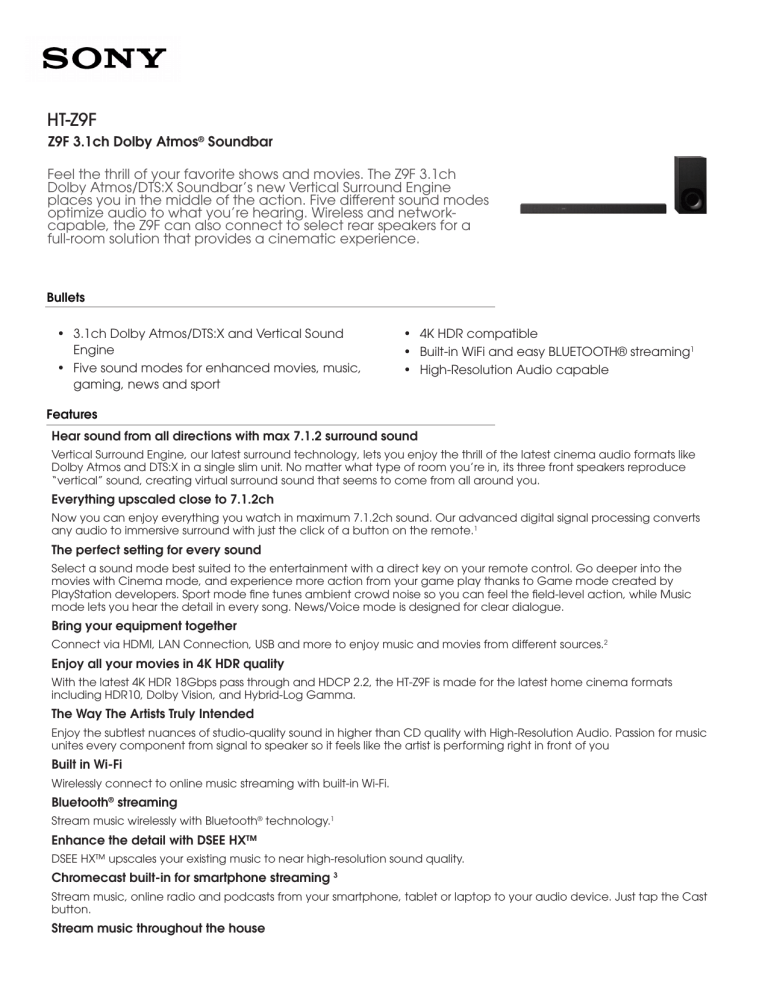

HT-Z9F
Z9F 3.1ch Dolby Atmos® Soundbar
Feel the thrill of your favorite shows and movies. The Z9F 3.1ch
Dolby Atmos/DTS:X Soundbar’s new Vertical Surround Engine
places you in the middle of the action. Five different sound modes
optimize audio to what you’re hearing. Wireless and networkcapable, the Z9F can also connect to select rear speakers for a
full-room solution that provides a cinematic experience.
Bullets
• 3.1ch Dolby Atmos/DTS:X and Vertical Sound
Engine
• Five sound modes for enhanced movies, music,
gaming, news and sport
• 4K HDR compatible
• Built-in WiFi and easy BLUETOOTH® streaming1
• High-Resolution Audio capable
Features
Hear sound from all directions with max 7.1.2 surround sound
Vertical Surround Engine, our latest surround technology, lets you enjoy the thrill of the latest cinema audio formats like
Dolby Atmos and DTS:X in a single slim unit. No matter what type of room you’re in, its three front speakers reproduce
“vertical” sound, creating virtual surround sound that seems to come from all around you.
Everything upscaled close to 7.1.2ch
Now you can enjoy everything you watch in maximum 7.1.2ch sound. Our advanced digital signal processing converts
any audio to immersive surround with just the click of a button on the remote.1
The perfect setting for every sound
Select a sound mode best suited to the entertainment with a direct key on your remote control. Go deeper into the
movies with Cinema mode, and experience more action from your game play thanks to Game mode created by
PlayStation developers. Sport mode fine tunes ambient crowd noise so you can feel the field-level action, while Music
mode lets you hear the detail in every song. News/Voice mode is designed for clear dialogue.
Bring your equipment together
Connect via HDMI, LAN Connection, USB and more to enjoy music and movies from different sources.2
Enjoy all your movies in 4K HDR quality
With the latest 4K HDR 18Gbps pass through and HDCP 2.2, the HT-Z9F is made for the latest home cinema formats
including HDR10, Dolby Vision, and Hybrid-Log Gamma.
The Way The Artists Truly Intended
Enjoy the subtlest nuances of studio-quality sound in higher than CD quality with High-Resolution Audio. Passion for music
unites every component from signal to speaker so it feels like the artist is performing right in front of you
Built in Wi-Fi
Wirelessly connect to online music streaming with built-in Wi-Fi.
Bluetooth® streaming
Stream music wirelessly with Bluetooth® technology.1
Enhance the detail with DSEE HX™
DSEE HX™ upscales your existing music to near high-resolution sound quality.
Chromecast built-in for smartphone streaming 3
Stream music, online radio and podcasts from your smartphone, tablet or laptop to your audio device. Just tap the Cast
button.
Stream music throughout the house
Use the Sony | Music Center App (previously called SongPal) [FN_04] to group selected Sony soundbars and speakers
together, then stream music in multiple rooms.3
Connect to rear speakers
Extend your surround sound setup with wireless rear speakers.
Specifications
Amplifier
Amplifier
S-master
Digital
Amplifier
Yes
DSEE HX
Yes
Upscale Up to: 88.2kH,96kHz/24bit
Upscale from: 44.1kHz,48kHz/16bit,24bit
Night Mode
Yes
Number
of amp.
channels
3.1ch (Wireless Subwoofer)
S-Force
PRO Front
Surround
S-Force PRO: Yes
Type
S-Master HX
Center
(Reference)
100W
Front
(Reference)
100W/100W
Power
Output
(Total)
400W
Subwoofer
(Reference)
100W
Dolby
Digital/DTS
Yes
DTS 96/24
Yes
LPCM
HDMI ARC:
Yes (2ch only)
LPCM fs: 48KHz/24bit
HDMI input:
Yes
Yes (2ch only)
LPCM fs: 192Hz/24bit
Optical Input:
LPCM 2ch, LPCM fs: 48kHz/24bit
Dolby
ATMOS
Yes (Dolby Digital plus/Atmos)
Dolby Dual
Mono
Yes
DSD
Yes
DSD fs: 2.8MHz
Multi-channel: 2ch/5.1ch
Bluetooth
4.2 Version
RX(reciever) / TX(transmitter)
AV Sync
Yes (0-300msec)
Amplifier/Receiver
Amplifier Features
Audio Power Output
Decoding Format(s)
Function
Audio Feature
Audio Feature
Amplifier/Receiver
HDMI™
Inputs and Outputs
Sound mode
BRAVIA®
SYNC™
(CEC
Control)
Yes (HDMI CEC)
Home
Theatre
Control
Yes
Scene
Select Sync
Yes
Ethernet
Yes
USB
USB type A
File System: exFAT,FAT12/16/32,vFAT
External HDD: Yes (less than 2TB / Read only)
Auto
Auto Sound: Yes
GAME
Yes
Music
Yes
SPORTS
Yes
Standard
Yes
Color
Black
NUX
Yes (GUI only)
Auto Power
Off (Auto
Stand-by)
Yes
Easy Setup
(Quick
Setup)
Yes
USB
Yes
Network
Yes
4K/60p
4K/60p/YUV4:4:4: Yes
Chinese
(Simplified)
Yes
Chinese
(Traditional)
Yes
English (US)
or English
(GB)
Yes
French or
French (CA)
Yes
German
Yes
Japanese
Yes
Spanish or
Spanish (LA)
Yes
Built in
Demo
Yes
Control
via Analog
Input (4-Pin)
Yes
DEMO
mode
Yes (1/2/3/4)
USB
playback
demo
Yes
Color
Colors
Convenient Features
GUI
FW Update
HDMI Features
OSD language
Shop Front Mode
Playback features
Playback Control
Repeat All
Yes
Repeat
Folder
(music)
Yes
Repeat
Track
Yes
Resume Stop
Resume: Yes
Shuffle
Yes
Enclosure
Type
Bass Reflex
Speaker
Type
Wireless
Speaker Unit
Subwoofer: 160 mm
Woofer unit
Number of speaker: 2
Enclosure Type: Acoustic suspention
Unit size: 46 mm
Diaphragm material: Mica
Power
Bar: 52W
SW: 20W
Power
Bar: 0.5W
SW: 1W
Bluetooth standby mode:
Bar: 2.4W
SW:1W
Power
120V AC
A2DP(SINK)
Yes (1.3)
Subwoofer
General Features
Front Speaker
General Features
Power
Power
Wireless Connection
Yes (1.3)
Bluetooth
AAC
Yes
AVRCP
Yes (AVRCP TG ver.1.5/AVRCP CT ver.1.5)
LDAC
Yes
SBC
Yes
Supplied
Accessories
Remote Commander (RMT-AH400U)
Batteries for remote commander
HDMI Cable
Wall Hanging Bracket (with screws x 2)
Wall Mount Template
Customer Registration Card
Warranty Card (1Y)
Quick Setup Guide (English, Spanish, French)
Instruction Manual (English, Spanish, French)
Dimensions
(Approx.)
Bar speaker: 1000 × 64 × 98 mm (without grille frame), 1000 × 64 ×99 mm (with grille frame) (not including
projection portion)
Subwoofer: 190 x 382 x 386 mm (not including projection portion)
Carton (L shape): 1070 x 251 x 530 mm (WxHxD)
Weight
(Approx.)
Bar speaker: 3.1 kg
Subwoofer: 8.1 kg
gross weight: 14.5 kg
Accessories
Accessories
Weights and Measurements
Weights and Measurements
1. Interoperability and compatibility among Bluetooth® devices vary.
2. Requires HDMI® cable; sold separately.
3. Requires download of Sony Music Center app for iPhone from the App Store or for Android from Google Play. User must link compatible devices in order to control operation. Subject
to app terms and conditions.Software update required, see compatible products.
© 2018 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Features and specifications are subject to change without notice.
Sony and Sony logo are trademarks of Sony Corporation. HDMI is a trademark of HDMI Licensing LLC. Bluetooth is trademark of Bluetooth SIG Inc. dts is a trademark of DTS, Inc. Dolby is a
