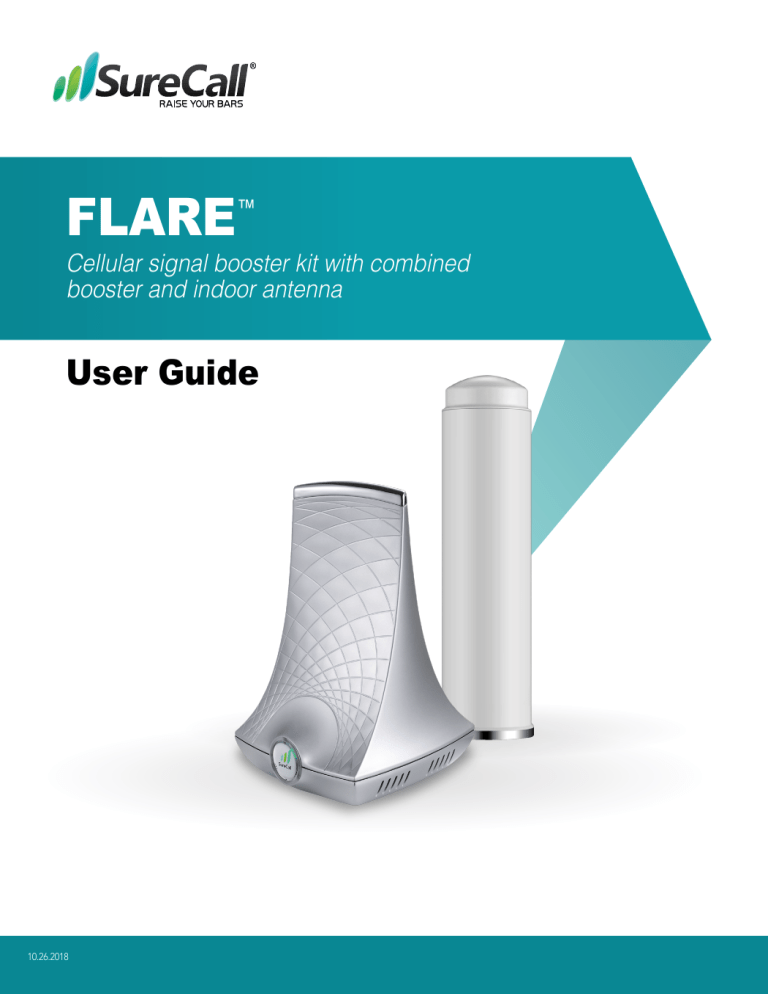

SureCall SC-Poly-DT-O-Kit User manual

SureCall SC-Poly-DT-O-Kit User manual
FLARE
™
Flare
3.0 /booster
Flarekit with
3.0combined
CA
Cellular signal
™
™
booster
and booster
indoor antenna
Cellular
signal
kit with combined
booster and indoor antenna
User Guide
10.26.2018
Table of Contents
Introduction
Thank you for purchasing SureCall’s Flare cellular signal booster kit. SureCall’s Flare was specifically designed to
eliminate frustrations over dropped calls and limited range by amplifying incoming and outgoing cellular signals in
homes and offices.
If you have any questions during setup, please reach out to our US-based experienced support technicians:
Call: 1-888-365-6283
TABLE OF CONTENTS
How it works ...................................................................................................................................... 4
PACKAGE CONTENTS...........................................................................................................5
BEFORE INSTALLATION.........................................................................................................6
Email: [email protected]
Installation Overview.......................................................................................................................... 6
Or,visit: www.surecall.com/support
INSTALLATION........................................................................................................................6
Step 1. Find the Area With the Strongest Signal............................................................................... 6
Watch
installation,
optimization and
troubleshooting techniques
on our SureCall
YouTube channel
@SureCall
Stay up to date
with all things
SureCall
Step 2. Install the Outside Antenna................................................................................................... 8
Step 3. Place the Booster .................................................................................................................. 9
Step 4: Connect to Power................................................................................................................ 10
Enjoy Boosted Signal....................................................................................................................... 10
IF YOU WANT TO IMPROVE PERFORMANCE....................................................................10
LED INDICATORS.................................................................................................................10
TROUBLESHOOTING...........................................................................................................11
SPECIFICATIONS..................................................................................................................12
Kitting Information........................................................................................................................... 13
CONSUMER GUIDELINES....................................................................................................14
WARRANTY...........................................................................................................................15
Three-Year Product Warranty........................................................................................................... 15
Limitations of Warranty, Damages and Liability............................................................................... 15
2
SureCall | www.surecall.com | 1-888-365-6283 | [email protected]
SureCall | www.surecall.com | 1-888-365-6283 | [email protected]
3
How It Works
Package Contents
How it works
PACKAGE CONTENTS
1.
An outside antenna collects signal from the cell tower.
2.
The outside antenna sends the signal to the booster through coax cable.
3.
The booster amplifies the cell signal and rebroadcasts the signal indoors to all mobile devices within range.
4.
The booster amplifies outgoing cell signal back to the tower.
Unpack all package contents. For missing or damaged items, contact your reseller.
Turn over the signal booster and record the model and serial number for reference:
Serial #: ________________________________________________________________
Purchase Date: __________________________________________________________
Keep the carton and packing material to store the product in case you need to return. Your Flare signal booster
package includes the following items:
1.
SureCall Flare signal booster
2.
Power supply
3.
Cable for connecting the outside antenna to the booster
4.
Outside omni antenna
1. Flare Cellular Booster
2. Power Supply
3. Indoor Cable (50 ft.)
4. Outside Omni Antenna
Outside Omni Antenna
min
imu
m2
5 ft
. se
par
atio
n
Booster
Cable
Power
Supply
How the SureCall Flare Booster Works
Warning: Unauthorized antennas, cables, and/or coupling devices are prohibited by FCC new rules. Please contact FCC for details: 1-888-CALL-FCC.
Changes or modifications not expressly approved by SureCall could void the user’s authority to operate the equipment.
4
SureCall | www.surecall.com | 1-888-365-6283 | [email protected]
SureCall | www.surecall.com | 1-888-365-6283 | [email protected]
5
Before Installation
Installation
BEFORE INSTALLATION
Decibels are measured in the negatives, and a score closer to zero indicates you have a better signal. A signal of -120
dB indicates you have no service, while a score of about -50 dB means you have excellent signal strength
1.
Prior to securing the location of any booster parts, a “soft install” is recommended as adjustments may be needed
to optimize performance.
2.
Your planned location for the booster (central to where signal is needed) should be near an existing electrical outlet.
3.
Ensure adequate separation between the planned locations of the booster and outside antenna (at least 25 ft.).
4.
Ensure sufficient cable length between the outside antenna location and booster location. The length of the
provided cable is 50 ft.
Installation Overview
Websites like Cell Reception and Antenna Search or applications like OpenSignal (Android | iPhone) and Network
Signal Info (Android) are easy ways to find towers and get a general reading of your cell phone signal. The approach we
suggest is field test mode.
How to Enter Field Test Mode for iPhones:
1.
2.
If not running iOS 11 Go into your Settings / WiFi / Turn Off WiFi
Step 1. Find the outside area with the strongest signal.
For iOS 9.3 and later go to Settings > Cellular > Cellular Data Options > Enable LTE > Turn Off LTE
For iOS 9.2 and earlier Settings > Cellular > Enable LTE > Turn Off LTE
Step 2. Install the outside antenna
Step 3. Place the Flare on a table or desktop, center of the area where signal is needed.
3.
4.
Step 4. C
onnect the booster to an AC power source.
Make a phone call to *3001#12345#* and press call
Select Serving Cell Measurements and refer to the top item named Measured RSSI
How to Enter Field Test Mode for Android
INSTALLATION
Step 1. Find the Area With the Strongest Signal
Using your phone, identify the outside location with the strongest signal for placement of your outside antenna.
Generally, this is found above the roofline on the side facing your nearest cell tower and as high as possible – where the
antenna can ‘see’ your cell tower.
Best
1.
2.
3.
Settings > More Options or More Settings
Tap on About Phone > Mobile Networks > Signal Strength
Under Signal Strength you will see your dB reading. If you do not see it there you will see it under Network Type or
SIM Status.
(dB)
1-2 Bars
(-85 to -95)
Flare with Omni antenna
1000
estimated coverage (sq. ft.)
SureCall | www.surecall.com | 1-888-365-6283 | [email protected]
Poor
3-4 Bars
(-75 to -84)
5 Bars
(-65 to -74)
2,000
4,000
Good
-60 dB
-50 dB
-70 dB
-80 dB
-90 dB
Best Antenna Separation
Note that Bars are not always a reliable measure
of signal. The best way to confirm signal
coverage is the ability to place and hold a call.
Putting your phone in Field Test mode will,
Estimated coverage:
however, indicate what level of decibels (dB) your
phone is currently receiving.
Outdoor signal strength
Signal Strength
OK
-100 dB
Antenna Position
The coverage area that the booster provides is
directly related to the strength of incoming signal
received by the outdoor antenna. Mounting the
outside antenna where the signal is the strongest
will provide the best results. Please note, as seen
in the table below, if signal is extremely weak
where the outside antenna is installed, indoor
coverage will be limited.
6
Check your iOS
For iOS 11 and later go to Settings / Cellular / Cellular Data Options / Enable LTE / Turn Off LTE
Excellent
SureCall | www.surecall.com | 1-888-365-6283 | [email protected]
7
Installation
Installation
Step 2. Install the Outside Antenna
Outside
Antenna
After identifying the area of strongest signal, choose the surface where you will mount the outside antenna.
Using the provided hardware, mount the outside antenna at the highest possible elevation, allowing a minimum
separation of 25 feet from the planned location of the booster.
min
im u
L-Bracket
The omni antenna is omni-directional, which receives and sends signals in a 360º radius. The
provided hardware allow for either a surface mount or pole-mount.
m2
5f
t. s
epa
rat
ion
Planned
Booster
Location
Mount antenna to a vertical surface:
1.
Using vertical plate of bracket, mark position of desired placement. The omni antenna
should be mounted in an upright position (See “Omni Outside Antenna Install
Illustration” on page 9)
2.
Unscrew nut from end of stucco screw and remove it along with lock washer and regular
washer.
3.
Place vertical plate into desired location and tap the screws, head first, along with
sleeve, into stucco 1/2 to 5/8 inches deep into place.
4.
In this order, place washer, lock washer and nut on each screw and tighten until secure.
When tightening screw, sleeve will expand to secure plate.
5.
Remove screws from antenna base and use to secure antenna onto horizontal plate.
6.
Connect antenna to one end of the provided RG6 cable and tighten the connection.
Run the cable along route to planned location of your booster.
Note: Alternate screws may be required for differing surfaces such as wood or concrete.
Screws
Nuts &
Washers
Cable
Anchors /
Sleeves
Cable
Omni Outside Antenna Install Illustration
Omni antenna with
surface mount hardware
Step 3. Place the Booster
Pole-mount hardware
Place the booster in a central location where signal is needed and at least 25 ft. from the outdoor antenna location.
When placing the booster, note that further separation between the booster and outside antenna will increase booster
performance. Connect the open end of the RG6 cable from the outside antenna to the booster and tighten connection.
Please note that the performance and range of your booster depends on three factors:
1.
Signal strength at the location of the outside antenna.
2.
Interior building materials between the booster and
your mobile device.
3.
Distance between the outside antenna and booster
(while at least 25 ft. separation is recommended, further
separation will increase performance).
Do not collocate antennas or operate the outdoor antenna with any other antenna or signal booster.
Placing Booster and connecting cable
Note: T
his booster should not be used near open fire or flame. Storage and transportation: Store and place in non-extreme room-temperature
and dry environment.
8
SureCall | www.surecall.com | 1-888-365-6283 | [email protected]
SureCall | www.surecall.com | 1-888-365-6283 | [email protected]
9
Specifications
LED Indicators & Troubleshooting
Step 4: Connect to Power
TROUBLESHOOTING
Once the booster and outside antenna are connected and
in place, connect the power cord to the signal booster and
plug into a power outlet.
If you have any questions during setup, please reach out to our US-based experienced support technicians:
Call: 1-888-365-6283, Email: [email protected], or Visit: www.surecall.com/support
Enjoy Boosted Signal
Place a call in the room where the booster is located to confirm
that your phone is receiving a boosted signal. Remember: Bars
are not always a reliable measure of signal. The best way to
confirm signal coverage is the ability to place and hold a call.
Connecting the Power Supply
Signal booster has no
power
Connect the power supply to an alternate power source.
Be sure the power source is not controlled by a switch that can remove power from the outlet.
Check the POWER LED () on the signal booster. If it is OFF, contact tech support at:
After installing your signal
booster system, you have
no signal or reception
•
•
Identify a location outside that receives a stronger signal and move the outside antenna to that location (higher is usually
better).
Increase the distance between the booster and outside antenna.
Consider upgrading your outside antenna to directional outside antenna that can be aimed to your nearest cell tower.
•
See more tips and tricks or contact us at www.SureCall.com/support
LED INDICATORS
LED
Position Condition
Resolution
1-888-365-6283 or [email protected], or go to www.surecall.com/support
IF YOU WANT TO IMPROVE PERFORMANCE
•
Problem
Verify that cable connections are tightly fitted to the booster and antenna.
Try further separating the booster and antenna.
Verify that there is usable signal where the antenna is placed.
Remember: Bars are not always a reliable measure of signal. The best way to confirm signal coverage is
the ability to place and hold a call.
Booster Diagram
Power LED
Indication
Left
LED
Right
LED
Left or
Right
OFF -OR Solid Yellow
Normal active operation.
Left
Yellow Flashing
Normal operation. Automatic Gain Control (AGC) is self-adjusting.
Left
Red Flashing
The booster is receiving too strong of a signal which could cause the booster to automatically shut down.
If this happens, relocate the outside antenna to a location where the signal is weaker. Move in
small increments away from cell tower until Red flashing stops.
Right
Yellow Flashing
Automatic Gain Control (AGC) is preventing oscillation.
Increased separation between outside antenna and booster is recommended to optimize performance.
Right
10
Red/Yellow
Alternately
Flashing
Booster has shut down to prevent oscillation.
Increased separation between the outside antenna and booster is required to continue
operation.
SureCall | www.surecall.com | 1-888-365-6283 | [email protected]
Note: T
his booster is rated for 5-15V input voltage. DO NOT use the booster with a higher voltage power supply. This can damage the
booster, cause personal injury, and void your warranty.
IMPORTANT: FCC 27.5 (d)(4): Fixed, mobile, and portable (hand-held) stations operating in the 1710-1755 MHz band as well as mobile and
portable stations operating in the 1695-1710 MHz and 1755-1780 MHz bands are limited to 1 watt EIRP.
Fixed stations operating in the 1710-1755 MHz band are limited to a maximum antenna height of 10 meters above ground.
SureCall | www.surecall.com | 1-888-365-6283 | [email protected]
11
Kitting
Kitting
SPECIFICATIONS
Kitting Information
Component
Product number Gain/Loss
Uplink Frequency Range (MHz):
698–716 / 776–787 / 824–849 / 1850–1915 / 1710–1755
Downlink Frequency Range (MHz):
728–746 / 746–757 / 869–894 / 1930–1995 / 2110–2155
Donor/Server Port Impedance:
75 ohm / 50 ohm
Outdoor Antenna*
Note
LTE-A
707 MHz
LTE-V
731 MHz
Cellular
800 MHz
PCS
1900 MHz
AWS
1700 / 2100 MHz
SC-289W
3 dBi
3 dBi
3 dBi
4 dBi
4 dBi / 4 dBi
Flare 3.0 (U.S.) ; Flare 3.0 CA (Canada)
SC-231W
8 dBi
8 dBi
8 dBi
10 dBi
10 dBi / 10 dBi
72 dB
Outdoor Cable*
SC-RG6-50
3.32 dB
3.32 dB
3.95 dB
6.42 dB
6.22 dB / 6.68 dB
Noise Figure:
7 dB
Indoor Antenna
SC-322W
2.5 dBi
2.5 dBi
3 dBi
5 dBi
4 dBi / 5 dBi
VSWR:
≤2.0
SC-302W
2.5 dBi
2.5 dBi
3 dBi
5 dBi
4 dBi / 5 dBi
Supported Standards:
CDMA, WCDMA, GSM, EDGE, HSPA+, EVDO 4G and all cellular standards
AC Input:
Input: AC 110 – 240 V, 60 Hz ; Output: DC 5V / 3A
Maximum Output Power:
1 Watt EIRP
Cable:
RG6 (50 ft.)
RF Connectors:
Donor port: F Female, Server port: Integral
Power Consumption:
<12W
Weight:
1. 8125 lb.
Dimensions:
5.125 × 7.25 × 5.625 inches
Certifications:
FCC ID: RSNFLARE-3 ; IC : 7784A-FLARE3
Maximum Gain:
50 Feet or longer
*Note: The Flare 3.0 booster is suitable for use with all equivalent and lower gain antennas, as well as, equivalent or greater lengths of cable.
Note: The term “IC” before the radio certification number only signifies that Industry Canada technical specifications were met.
Warning: Any product modifications that use unauthorized antennas, cables, and/or coupling devices are prohibited by the FCC. Contact FCC
for details: 1-888-CALL-FCC. Changes or modifications not expressly approved by SureCall could void the user’s authority to operate
the equipment.
12
SureCall | www.surecall.com | 1-888-365-6283 | [email protected]
SureCall | www.surecall.com | 1-888-365-6283 | [email protected]
13
Consumer Guidelines
Warranty
CONSUMER GUIDELINES
This is a CONSUMER device
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the
use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider.
In Canada, BEFORE USE you must meet all requirements set out in ISED CPC-2-1-051
You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches)
from (i.e. MUST NOT be installed within 20 cm of) any person.
You MUST cease operation of this device immediately if requested by the FCC (or ISED in Canada) or a licensed wireless service provider.
WARNING: E911 location information may not be provided or may be inaccurate for calls served by using this device.
This device may be operated ONLY in a fixed location, for in-building use.
Ce produit est un appareil de CONSOMMATION
AVANT DE L’UTILISER, vous DEVEZ ENREGISTRER CE DISPOSITIF auprès de votre fournisseur de services cellulaires et obtenir son consentement.
La plupart des fournisseurs de services cellulaires autorisent l’utilisation d’amplificateurs de signal. Il se peut que certains fournisseurs n’autorisent pas
l’utilisation de ce dispositif sur leur réseau. Si vous n’êtes pas sûr, contactez-le.
Au Canada, AVANT DE L’UTILISER vous devez répondre à toutes les exigences ISED CPC-2-1-052
Vous DEVEZ utiliser ce dispositif avec les antennes et les câbles autorisés, tel que le spécifie le fabricant. Les antennes DOIVENT être installées à au moins
20 cm (8 po) (NE DOIVENT PAS être installées à moins de 20 cm) de toute personne avoisinante.
Vous DEVEZ arrêter cet appareil immédiatement à la demande de la FCC (ISED au Canada) ou de tout fournisseur de services cellulaires autorisé.
AVERTISSEMENT: Il se peut que les informations relatives à la localisation E911 ne soient pas disponibles ou soient inexactes pour les appels qui utilisent
cet appareil.
WARRANTY
Three-Year Product Warranty
Activate your three-year manufacturer’s warranty at www.SureCall.com/activate
SureCall warrants its products for three years from the date of purchase against defects in workmanship and/or materials. Specifications are subject to
change. The three-year warranty only applies to products meeting the latest FCC Certification Guidelines stated on 2/20/2013 and going into effect April
30, 2014. A two-year warranty applies to any products manufactured before May 1, 2014.
Products returned by customers must be in their original, un-modified condition, shipped in the original or protective packaging with proof-of-purchase
documentation enclosed, and a Return Merchandise Authorization (RMA) number printed clearly on the outside of the shipping container.
Buyers may obtain an RMA number for warranty returns by calling the SureCall Return Department toll-free at 1-888-365-6283. Any returns received by
SureCall without an RMA number clearly printed on the outside of the shipping container will be returned to sender. In order to receive full credit for
signal boosters, all accessories originally included in the signal booster box must be returned with the signal booster. (The Buyer does not need to include
accessories sold in addition to the signal booster, such as antennas or cables.)
This warranty does not apply to any product determined by SureCall to have been subjected to misuse, abuse, neglect, or mishandling that alters or
damages the product’s physical or electronic properties.
SureCall warrants to the Buyer that each of its products, when shipped, will be free from defects in material and workmanship, and will perform in full
accordance with applicable specifications. The limit of liability under this warranty is, at SureCall’s option, to repair or replace any product or part thereof
which was purchased up to THREE YEARS after May 1, 2014 or TWO YEARS for products purchased before May 1, 2014, as determined by examination
by SureCall, prove defective in material and/or workmanship. Warranty returns must first be authorized in writing by SureCall. Disassembly of any SureCall
product by anyone other than an authorized representative of SureCall voids this warranty in its entirety. SureCall reserves the right to make changes in any
of its products without incurring any obligation to make the same changes on previously delivered products.
Cet appareil peut fonctionner seulement à un emplacement fixe à l’intérieur d’un bâtiment;
As a condition to the warranties provided for herein, the Buyer will prepay the shipping charges for all products returned to SureCall for repair, and SureCall
will pay the return shipping with the exception of products returned from outside the United States, in which case the Buyer will pay the shipping charges.
Register your cellular booster with your wireless carrier at the following urls:
The Buyer will pay the cost of inspecting and testing any goods returned under the warranty or otherwise, which are found to meet the applicable
specifications or which are not defective or not covered by this warranty.
Verizon: http://www.verizonwireless.com/wcms/consumer/register-signal-booster.html
AT&T: https://securec45.securewebsession.com/attsignalbooster.com/
T-Mobile: https://support.t-mobile.com/docs/DOC-9827
Sprint: https://www.sprint.com/legal/fcc_boosters.html
U.S. Cellular: http://www.uscellular.com/uscellular/support/fcc-booster-registration.jsp
Products sold by SureCall shall not be considered defective or non-conforming to the Buyer’s order if they satisfactorily fulfill the performance requirements
that were published in the product specification literature, or in accordance with samples provided by SureCall. This warranty shall not apply to any
products or parts thereof which have been subject to accident, negligence, alteration, abuse, or misuse. SureCall makes no warranty whatsoever in respect
to accessories or parts not supplied by it.
Limitations of Warranty, Damages and Liability
This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may cause undesired operation.
EXCEPT AS EXPRESSLY SET FORTH HEREIN, THERE ARE NO WARRANTIES, CONDITIONS, GUARANTEES, OR REPRESENTATIONS AS TO
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR OTHER WARRANTIES, CONDITIONS, GUARANTEES, OR REPRESENTATIONS,
WHETHER EXPRESSED OR IMPLIED, IN LAW OR IN FACT, ORAL OR IN WRITING.
CAN ICES-3 (B)/NMB-3(B) (Canada) :
SURECALL AGGREGATE LIABILITY IN DAMAGES OR OTHERWISE SHALL NOT EXCEED THE PAYMENT, IF ANY, RECEIVED BY CELLPHONE-MATE,
INC. FOR THE UNIT OF PRODUCT OR SERVICE FURNISHED OR TO BE FURNISHED, AS THE CASE MAY BE, WHICH IS THE SUBJECT OF CLAIM OR
DISPUTE. IN NO EVENT SHALL SURECALL BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL, OR SPECIAL DAMAGES, HOWSOEVER CAUSED.
This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation
The Manufacturer’s rated output power of this equipment is for single carrier operation. For situations when multiple carrier signals are present, the rating
would have to be reduced by 3.5 dB, especially where the output signal is re-radiated and can cause interference to adjacent band users. This power
reduction is to be by means of input power or gain reduction and not by an attenuator at the output of the device.
Cet appareillage numérique de la classe B répond a toutes les exigencies de l’interférence canadienne causant des réglements d’équipment. L’opération
est sujette aux deux conditions suivantes: (1) ce dispositif peut ne pas causer l’interférence nocive, et (2) ce dispositif doit accepter n’importe quelle
intérference reçue, y compris l’intérference qui peut causer l’opération peu désirée.
La puissance de sortie nominale indiquée par le fabricant pour cet appareil concerne son fonctionnement avec porteuse unique. Pour des appareils
avec porteuses multiples, on doit réduire la valeur nominale de 3,5 dB, surtout si le signal de sortie est retransmis et qu’il peut causer du brouillage aux
utilisateurs de bandes adjacentes. Une telle réduction doit porter sur la puissance d’entrée ou sur le gain, et ne doit pas se faire au moyen d’un atténuateur
raccordé à la sortie du dispositif.
1 For details on the requirements specified in ISED CPC-2-1-05, visit: http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08942.html
2 Pour plus de détails sur les exigences ISED CPC-2-1-05, reportez-vous au site: http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08942.html
14
SureCall | www.surecall.com | 1-888-365-6283 | [email protected]
All matters regarding this warranty shall be interpreted in accordance with the laws of the State of California, and any controversy that cannot be settled
directly shall be settled by arbitration in California in accordance with the rules then prevailing of the American Arbitration Association, and judgment
upon the award rendered may be entered in any court having jurisdiction thereof. If one or more provisions provided herein are held to be invalid or
unenforceable under applicable law, then such provision shall be ineffective and excluded to the extent of such invalidity or unenforceability without
affecting in any way the remaining provisions hereof.
SureCall has made a good faith effort to ensure the accuracy of the information in this document and disclaims the implied warranties of merchantability
and fitness for a particular purpose and makes no express warranties, except as may be stated in its written agreement with and for its customers. SureCall
shall not be held liable to anyone for any indirect, special or consequential damages due to omissions or errors. The information and specifications in this
document are subject to change without notice. © 2018. All Rights Reserved. All trademarks and registered trademarks are the property of their respective
owners.
SureCall, Inc
48346 Milmont Drive
Fremont, California 94538, USA
888.365.6283 | www.surecall.com
SureCall | www.surecall.com | 1-888-365-6283 | [email protected]
15
SureCall, Inc
48346 Milmont Drive
Fremont, California 94538, USA
888.365.6283 | www.surecall.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
