Canon 1276C002 Specification

Canon 1276C002 Specification

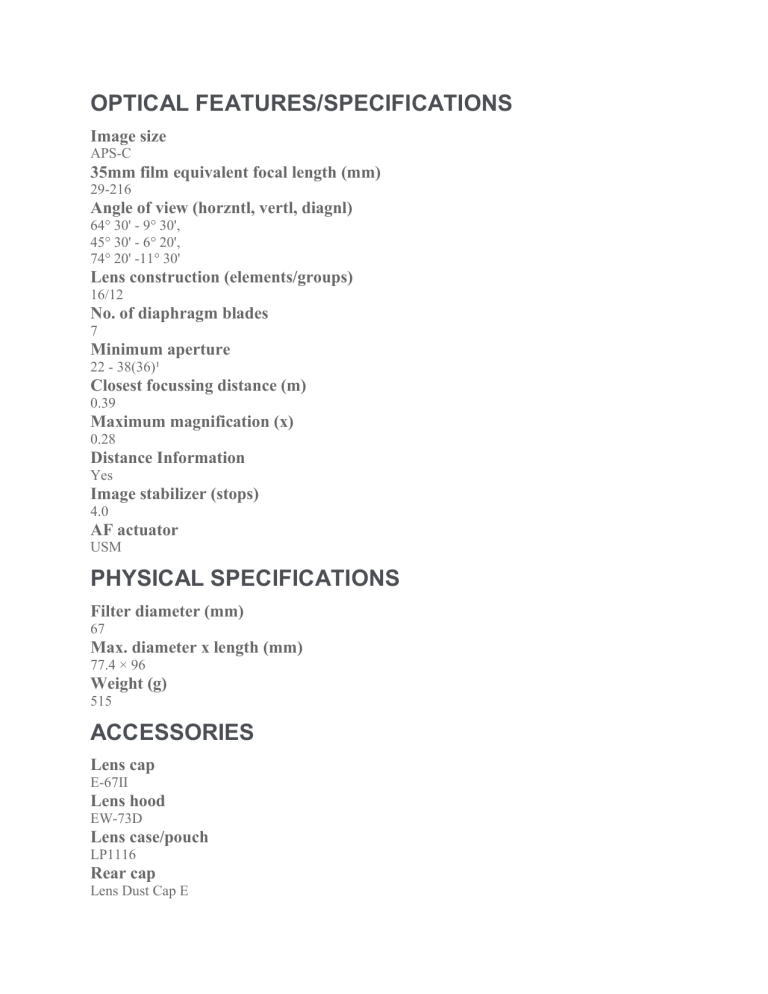

OPTICAL FEATURES/SPECIFICATIONS
Image size
APS-C
35mm film equivalent focal length (mm)
29-216
Angle of view (horzntl, vertl, diagnl)
64° 30' - 9° 30',
45° 30' - 6° 20',
74° 20' -11° 30'
Lens construction (elements/groups)
16/12
No. of diaphragm blades
7
Minimum aperture
22 - 38(36)¹
Closest focussing distance (m)
0.39
Maximum magnification (x)
0.28
Distance Information
Yes
Image stabilizer (stops)
4.0
AF actuator
USM
PHYSICAL SPECIFICATIONS
Filter diameter (mm)
67
Max. diameter x length (mm)
77.4 × 96
Weight (g)
515
ACCESSORIES
Lens cap
E-67II
Lens hood
EW-73D
Lens case/pouch
LP1116
Rear cap
Lens Dust Cap E
Magnification Extension Tube EF12 II
0.43-0.09¹
Magnification Extension Tube EF25 II
0.61-0.21¹
Extender Compatiblity
Not Compatible
Other Accessories
Power Zoom Adapter PZ-E1
Footnotes
Minimum aperture - ¹ Minimum aperture if using 1/3stop increments
Magnification Extension Tube EF12 II - ¹ Only when using the telephoto end of the zoom
Magnification Extension Tube EF25 II - ¹ Only when using the telephoto end of the zoom
