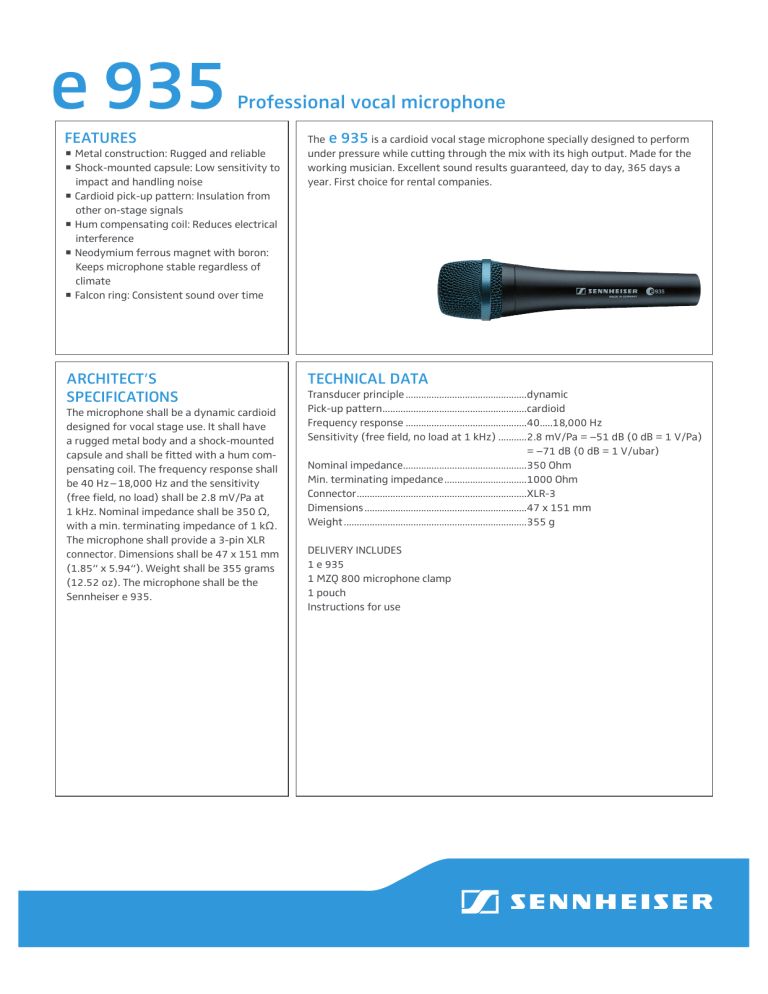

e 935
Professional vocal microphone
FEATURES
Metal
construction: Rugged and reliable
Shock-mounted capsule: Low sensitivity to
impact and handling noise
Cardioid pick-up pattern: Insulation from
other on-stage signals
Hum compensating coil: Reduces electrical
interference
Neodymium ferrous magnet with boron:
Keeps microphone stable regardless of
climate
Falcon ring: Consistent sound over time
ARCHITECT’S
SPECIFICATIONS
The microphone shall be a dynamic cardioid
designed for vocal stage use. It shall have
a rugged metal body and a shock-mounted
capsule and shall be fitted with a hum compensating coil. The frequency response shall
be 40 Hz – 18,000 Hz and the sensiti­vity
(free field, no load) shall be 2.8 mV/Pa at
1 kHz. Nominal impedance shall be 350 O,
with a min. terminating impedance of 1 kO.
The microphone shall provide a 3-pin XLR
connector. Dimensions shall be 47 x 151 mm
(1.85“ x 5.94“). Weight shall be 355 grams
(12.52 oz). The microphone shall be the
Sennheiser e 935.
The e 935 is a cardioid vocal stage microphone specially designed to perform
under pressure while cutting through the mix with its high output. Made for the
working musician. Excellent sound results guaranteed, day to day, 365 days a
year. First choice for rental companies.
TECHNICAL DATA
Transducer principle................................................dynamic
Pick-up pattern.........................................................cardioid
Frequency response................................................40.....18,000 Hz
Sensitivity (free field, no load at 1 kHz)............2.8 mV/Pa = –51 dB (0 dB = 1 V/Pa)
= –71 dB (0 dB = 1 V/ubar)
Nominal impedance.................................................350 Ohm
Min. terminating impedance.................................1000 Ohm
Connector...................................................................XLR-3
Dimensions................................................................47 x 151 mm
Weight........................................................................355 g
Delivery includes
1 e 935
1 MZQ 800 microphone clamp
1 pouch
Instructions for use
e 935 Professional vocal microphone
FREQUENCY RESPONSE
RECOMMENDED ACCESSORIES
12/12
MZQ 800 – universal stand adapter clip for most Evolution
handheld wired microphones
Cat. No. 004711
POLAR PATTERN
Sennheiser is a registered trademark of Sennheiser electronic GmbH & Co. KG. www.sennheiser.com. Copyright © 12/2012. All rights reserved. Errors and omissions excepted.
DIMENSIONS
Contact your local Service Partner:
Sennheiser electronic GmbH & Co. KG
Am Labor 1, 30900 Wedemark, Germany
www.sennheiser.com
