Canon 2316C002 Specification

Canon 2316C002 Specification

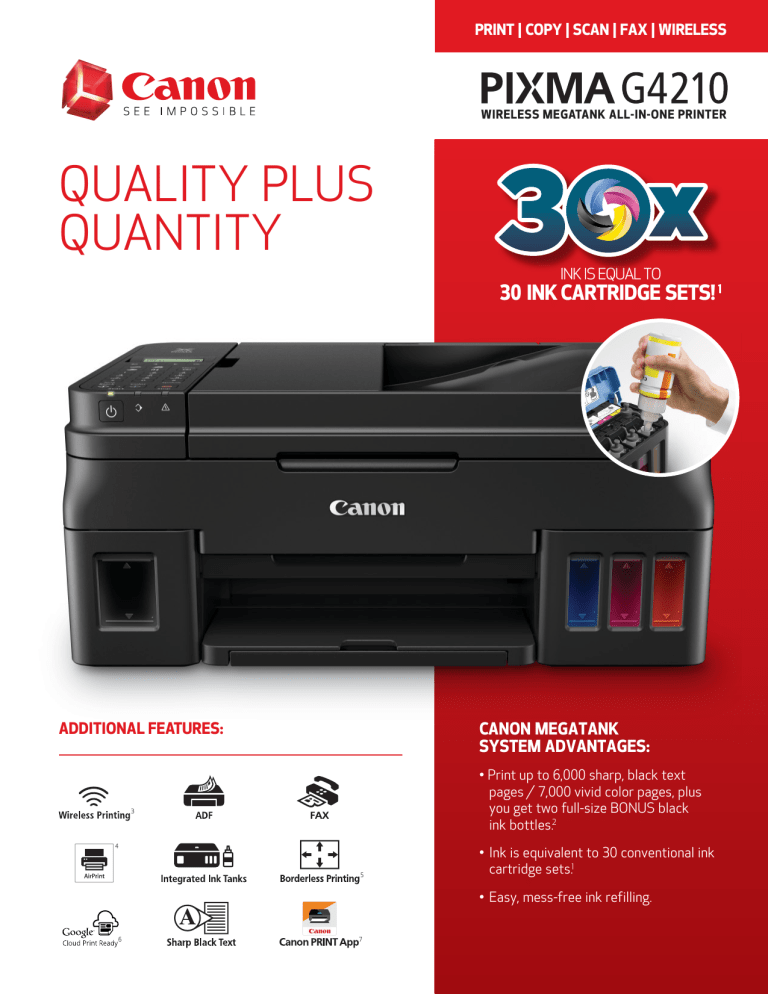

• Print up to 6,000 sharp, black text
pages / 7,000 vivid color pages, plus
you get two full-size BONUS black
ink bottles.2
• Ink is equivalent to 30 conventional ink
cartridge sets.1
• Easy, mess-free ink refilling.
Print Features
Print Speed12
AirPrint,4 Auto Photo Fix II, Borderless Printing,5 Business Card Printing,
Canon PRINT app,7 Document Printing, Easy PhotoPrint,+8 Google Cloud
Print,6 High Page Yield, Image Cropping, Message In Print,9 Mopria Device
Printing,10 My Image Garden,11 Photo Printing, PIXMA Cloud Link,7 Red-Eye
Correction, Single Sided Printing, Special Filters, Square Media Printing
Support, Template Print, Wireless Printing3
4" x 6" Borderless Photo: Approx. 60 seconds
ESAT (Black): Approx. 8.8 ipm
ESAT (Color): Approx. 5.0 ipm
Number of Nozzles
Color: 1,152 / Pigment Black: 320 / Total: 1,472
Print Resolution13
Up to 4800 x 1200 dpi
Paper Sizes
4" x 6," 5" x 5" Square, 5" x 7," 8" x 10," Letter, Legal, U.S. #10 Envelope
Paper Tray Capacity
Rear Paper Tray: 100 Sheets of Plain Paper OR
Photo Paper: 20 Sheets of 4" x 6" / 10 Sheets of 5" x 7"
Copy Features
4-on-1 / 2-on-1 Copy, Auto Exposure Copy, Borderless Copy, Collated
Copy, Copy Job Reservation, Document Removal Reminder, Fit-to-Page,
Frame Erase Copy, ID Card Copy, Preset Copy Ratios, Standard Copy
Copy Speed12
FCOT (Color): Approx. 24 seconds
25% – 400%
Scan Features
Auto Scan Mode,14 Document Removal Reminder, Scan to Network,3 Save
to PC, Scan to Canon PRINT app,7 Wireless Scanning3
Scanner Type
Flatbed & ADF
Scanning Method
Contact Image Sensor (CIS)
Scanning Resolution15
600 x 1200 dpi (Optical), 19,200 x 19,200 dpi (Interpolated)
Maximum Color Depth
48-bit Internal / 24-bit External
Maximum Document Size
Flatbed: 8.5" x 11.7," ADF: 8.5" x 14.0"
ADF Capacity
20 Sheets of Plain Paper / 5 Sheets of Legal Size Paper
Fax Features
Answering Machine Connectivity, Caller Rejection, Check RX Fax Info.,
Dial Search, Extra Fine Mode, Fax Reception Reject, Fax Number
Re-Entry, Memory Transmission, Redial, Remote Reception
Modem Speed16
Up to 33.6 Kbps (Super G3 Color Fax)
Transmission Speed17
Black: Approx. 3 seconds per page
Color: Approx. 60 seconds per page
Memory Capacity18
Approx. 50 pages
Group Dialing
19 Locations
General Features
4-Color MegaTank Refillable Ink System, Auto Power On/Off, Canon
PRINT app,7 Energy Star® Certified, PIXMA Cloud Link,7 Quiet Mode
Hi-Speed USB, Wi-Fi® (802.11b/g/n wireless networking, 2.4 GHz)3
17.6"(L) x 13.0"(W) x 7.8"(H) / 16.0 lbs.
Software (Windows®19/Mac®20)
PIXMA G4210 MegaTank All-In-One Printer Driver, PosterArtist Lite,21
Scan Utility, Master Setup, My Image Garden11 (Full HD Movie Print,22
Special Filters, Image Correction/ Enhance, and scanning are accessed
through My Image Garden), Quick Menu
OS Compatibility
Computer Operating Systems:
Windows:19 Windows® 10, Windows 8.1, Windows 7 SP1,
Mac:20 Mac OS® X v10.10.5 – Mac OS v10.12 (Sierra)
Mobile Operating Systems:23 iOS,® Android,™ Windows 10 Mobile,
and Amazon Fire devices24
1-Year limited warranty with InstantExchange Program.
1-Year toll-free U.S.-based technical phone support
For the name of the nearest dealer, call: 1-800-OK-CANON
Model No.
Wireless MegaTank All-In-One Printer 2316C002AA
Compatible Inks
GI-290 BK
GI-290 C
GI-290 M
GI-290 Y
Pigment Black Ink Bottle
Cyan Ink Bottle
Magenta Ink Bottle
Yellow Ink Bottle
specifications are subject to change without notice.
all viewscreen and printer output images are simulated.
1 30 ink cartridge sets is based on print yield of the included black and color ink bottles as compared to the following
standard-capacity cartridge sets: PG-245 Black Ink Cartridge and CL-246 Color Ink Cartridge as of August 2016.
2 Page yield of included ink bottles used for initial setup is lower than the replacement ink bottles, as a certain amount
of ink is consumed to fill into the print head during setup (charging the print head initially). Page yield is the estimated
value based on Canon individual test method using the ISO/IEC 24712 chart and continuous printing simulation with the
replacement ink bottles after initial setup. Page yield of color inks is an average yield of cyan, magenta and yellow inks
combined. Page yield varies significantly depending on content printed, ink levels maintained in all four reservoirs, and
other factors. Up to 6,000 (black)/7,000 (color) printed page yields are approximate, based off document pages printed.
3 Wireless printing and scanning requires a working network with wireless 802.11b/g/n/ac or ad capability, operating at
2.4GHz. Wireless performance may vary based on terrain and distance between the printer and wireless network clients.
4 AirPrint functionality requires a compatible iPad, iPhone, or iPod Touch device running iOS 7.0 or later, and an AirPrintenabled printer connected to the same network as your iOS device. A printer connected to the USB port of your Mac,
PC, AirPort Base station, or Time Capsule is not supported.
5 Paper types NOT supported for borderless printing are as follows: Envelope, High Resolution Paper, T-Shirt Transfer and
Photo Stickers. The maximum borderless printing size is 4"x 6."
6 Requires an Internet connection and Google account. Subject to Google Terms of Service. Certain exceptions may apply.
7 Requires an Internet connection and the Canon PRINT Inkjet/SELPHY app, available for free on the App Store and at
Google Play. Compatible with iPad, iPhone 3GS or later, and iPod touch 3rd generation or later devices running iOS 7.0
or later, and Android mobile devices running Android 2.3.3 or later. Your device must be connected to the same working
network with wireless 802.11 b/g/n/ac/ad capability as your printer. Requires a compatible social media account and is
subject to that social media account’s Terms of Service. Certain exceptions may apply.
8 Works edited by using this application cannot be displayed, edited, or printed without this application. Compatible with
Android device of 7 inches or more using Chrome (latest version compatible with your current version of Android OS),
iOS Devices of 7 inches or more using Safari 5.1 or later, Windows PC (excluding RT) using Internet Explorer 10 or later
of Microsoft Modern UI version, Microsoft Internet Explorer 9 or later, Mozilla Firefox 31 or later, or Google Chrome
version 36 or later, and with Mac OS X 10.6.8 or later using Safari 5.1 or later.
9 Requires an Internet connection and the Message In Print app, available for free on the App Store starting November
2017. Compatible with iPad, iPhone 6 or later devices running iOS 9.0 or later. Your device must be connected to a
working network with wireless 802.11 b/g/n/ac/ad capability. Requires original content to be created using the Message
In Print app/service, then printed on a compatible Canon Printer released between August 2009 or later and delivered
to recipient who views image and content through the compatible Message In Print app on their compatible device.
Compatible paper sizes include 4” x 6” and Square 5” x 5” only, and compatible media types include Genuine Canon
Photo Paper Glossy, Photo Paper Semi-Gloss, Photo Paper Luster and Photo Paper Matte only. Certain exceptions
may apply.
10 Requires Android mobile device with Android 4.4 operating system or later with the Mopria Print Service pre-loaded with
that device and the compatible PIXMA printer on the same wireless network. The Mopria experience is also available on
Android 4.4 mobile devices with a download of the Mopria Print Service from Google Play.
11 To install using Windows® OS, .NET Framework 4 is required. Compatible still image formats are PDF (created using
Canon PDF Creator only), JPEG (Exif), TIFF, and PNG. Compatible video formats are MOV (from select Canon digital
cameras only) and MP4 (from select Canon digital camcorders only).
12 Document print speeds are the averages of ESAT in Office Category Test for the default simplex mode, ISO/IEC 24734.
Photo print speed is based on the default setting using ISO/JIS-SCID N2 on Photo Paper Plus Glossy II and does not
take into account data processing time on host computer. Print speed may vary depending on system configuration,
interface, software, document complexity, print mode, page coverage, type of paper used etc. Copy speeds are the
average of sFCOT and sESAT, ISO/IEC 29183. Copy speed may vary depending on document complexity, copy mode,
page coverage, type of paper used etc. and does not take into account warming up time.
See for additional details.
13 Resolution may vary based on printer driver setting. Color ink droplets can be placed with a horizontal pitch of 1/4800
inch at minimum.
14 For network users, Auto Scan Mode is only available when scanning at a computer using My Image Garden software
and selecting the 1-click feature then “Save to PC.”
15 Optical resolution is a measure of maximum hardware sampling resolution, based on ISO 14473 standard.
16 The Public Switched Telephone Network currently supports fax modem speeds of 28.8 Kbps or lower, depending on
telephone line conditions. Sending and receiving fax machines need to conform to ITU-T v.34 guidelines.
17 Black & white document fax transmission speed is based on default setting using ITU-T No.1 chart. Color document fax
transmission speed is based on default setting using Canon Color Fax Test Sheet. Actual speed varies depending on
document complexity, fax setting at receiving end, and line conditions etc.
18 Page count is based on ITU-T No.1 chart or Canon FAX Standard Chart No.1. The number of pages able to be kept in
memory will vary based on remaining memory capacity and document complexity.
19 Operation can only be guaranteed on a PC with pre-installed Windows 10, Windows 8.1, Windows 7 SP1.
20 Internet Connection required during software installation. For full compatibility macOS v10.12.1 or later is recommended.
21 PosterArtist Lite software v2.60.00 is compatible with 64/32 bit versions of Microsoft® Windows®10, Windows 8.1,
Windows 8, Windows 7 and Windows Vista,® and only compatible with Canon PIXMA (released after July 2015),
MAXIFY, imagePROGRAF and Océ printers. Minimum computer system requirements: Pentium4 2.4Ghz CPU or higher
with 1GB RAM, 1024x768 pixel display and 5GB of system hard drive space.
22 “Full HD Movie Print” is available from “MOV” and “MP4” movie files created by select Canon EOS Digital SLRs,
PowerShot, and VIXIA digital cameras and camcorders. Requires PC or Mac with Intel® processor and Canon
ZoomBrowser EX 6.5 or later or Canon ImageBrowser 6.5 or later for “MOV” files, or Canon ImageBrowser
EX 1.0 or later for “MOV” or “MP4” files. Print quality is determined by the video resolution. Function does
not upscale video resolution.
23 Some functions may not be available with these Operating Systems. Please refer to the manual or website for details.
24 Requires “Canon Print Plug-in” available for free from the Amazon Appstore and an Amazon Fire Phone, Amazon Kindle
Fire HD6 or HDX7 device or later running Fire OS 4.0 or later.
25 Warranty programs are subject to certain conditions and restrictions. See for details.
©2018 Canon U.S.A., Inc. Canon and PIXMA are registered trademarks of Canon Inc. in the U.S. and may be registered trademarks or trademarks in other countries. Microsoft, Windows, the Windows logo and Internet Explorer are trademarks or registered trademarks of the Microsoft
group of companies in the U.S. and other countries. Apple, iPad, iPhone, iPod touch and Time Capsule are registered trademarks of Apple Inc. Android and Google Play are trademarks of Google Inc. The USB-IF logo is a trademark of Universal Serial Bus Implementers Forum, Inc. Wi-Fi is a
registered trademark of the Wi-Fi Alliance. The ‘Wi-Fi CERTIFIED’ logo is a certification mark of the Wi-Fi Alliance. The Wi-Fi Protected Setup Mark is a mark of the Wi-Fi Alliance. All other product and brand names are trademarks of their respective owners. As an ENERGY STAR®partner,
Canon U.S.A., Inc. has certified this product as meeting the ENERGY STAR® energy efficiency criteria through an EPA-recognized certification body.
