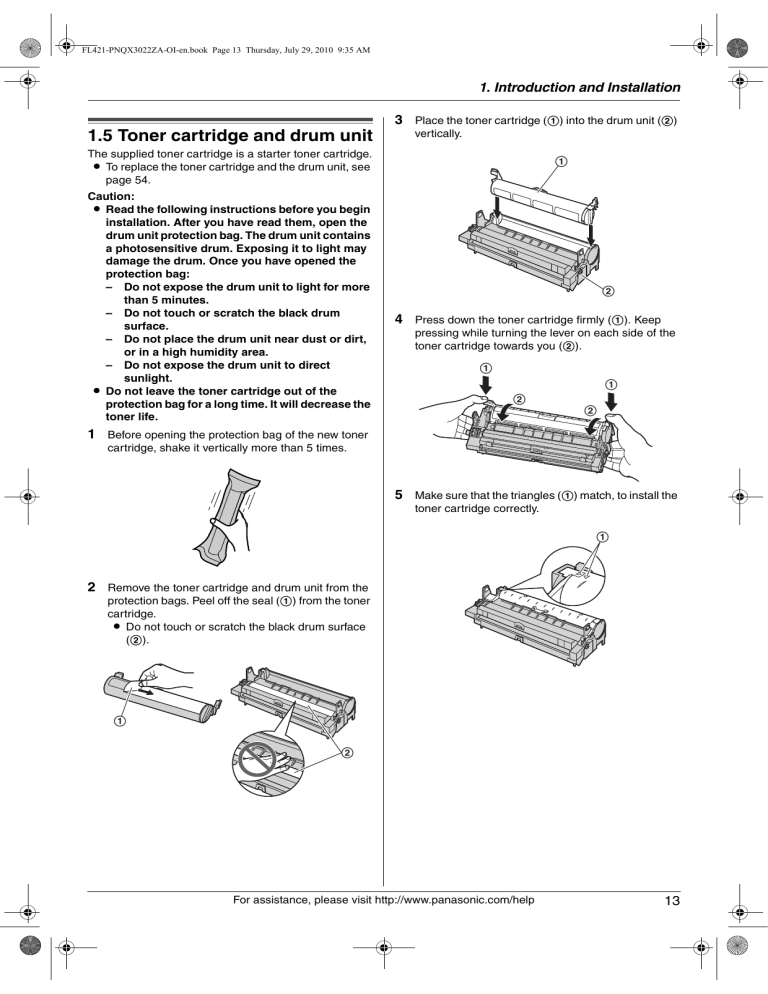

FL421-PNQX3022ZA-OI-en.book Page 13 Thursday, July 29, 2010 9:35 AM
1. Introduction and Installation
3 Place the toner cartridge (1) into the drum unit (2)
Installation
1.5 Toner cartridge and drum unit
vertically.
The supplied toner cartridge is a starter toner cartridge.
L To replace the toner cartridge and the drum unit, see
page 54.
Caution:
L Read the following instructions before you begin
installation. After you have read them, open the
drum unit protection bag. The drum unit contains
a photosensitive drum. Exposing it to light may
damage the drum. Once you have opened the
protection bag:
– Do not expose the drum unit to light for more
than 5 minutes.
– Do not touch or scratch the black drum
surface.
– Do not place the drum unit near dust or dirt,
or in a high humidity area.
– Do not expose the drum unit to direct
sunlight.
L Do not leave the toner cartridge out of the
protection bag for a long time. It will decrease the
toner life.
1
2
4 Press down the toner cartridge firmly (1). Keep
pressing while turning the lever on each side of the
toner cartridge towards you (2).
1
1
2
2
1 Before opening the protection bag of the new toner
cartridge, shake it vertically more than 5 times.
5 Make sure that the triangles (1) match, to install the
toner cartridge correctly.
1
2 Remove the toner cartridge and drum unit from the
protection bags. Peel off the seal (1) from the toner
cartridge.
L Do not touch or scratch the black drum surface
(2).
1
2
For assistance, please visit http://www.panasonic.com/help
13
FL421-PNQX3022ZA-OI-en.book Page 14 Thursday, July 29, 2010 9:35 AM
1. Introduction and Installation
6 Lift open the front cover (1), holding the dotted area
(2) on the right side.
L Make sure that the triangles (3) match to install
the drum and toner unit correctly.
3
1
2
L If the lower glass (3) is dirty, clean it with a soft
and dry cloth.
8 Close the front cover (1) by pushing down on both
sides, until locked.
3
7 Install the drum and toner unit (1) by holding the
1
tabs.
2
Toner save feature
If you want to reduce toner consumption, set the toner
save setting to ON (feature #79 on page 45). The toner
cartridge will last approximately 40 % longer. This
feature may lower the print quality.
1
L Do not touch the transfer roller (2).
14
For assistance, please visit http://www.panasonic.com/help
