Canon 6228B002 Specification

Canon 6228B002 Specification
Dye-Based 8-Ink System
8 Dye-based inks for amazing
gradients and color, 3 of which
are dedicated grayscale inks for
beautiful black & white prints.

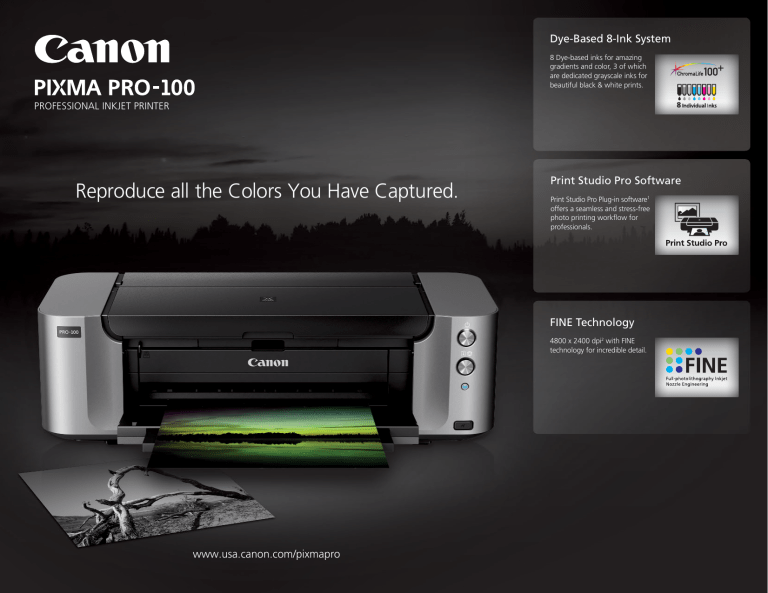

PROFESSIONAL INKJET PRINTER
Reproduce all the Colors You Have Captured.
Print Studio Pro Software
Print Studio Pro Plug-in software1
offers a seamless and stress-free
photo printing workflow for
professionals.
FINE Technology
4800 x 2400 dpi2 with FINE
technology for incredible detail.
www.usa.canon.com/pixmapro
PROFESSIONAL INKJET PRINTER
Technical Information
PRINT
Print Features
AirPrint,™3 Auto Photo Fix II, Borderless Printing,4 Optimum Image
Generating System, Photo Printing, Grayscale Photo Printing,
Wireless Printing5
Print Speed6
8" x 10" Image on A4 with Border: Approx. 51 seconds
11" x 14" Image on A3+ with Border: Approx. 1 minute, 30 seconds
Number of Nozzles
Total: 6,144
Picoliter Size (Color)
3
Print Resolution2
Color: Up to 4800 x 2400 dpi
Black: Up to 4800 x 2400 dpi
Paper Sizes
4" x 6," 5" x 7," 8" x 10," Letter, Legal, 11" x 17," 13" x 19"
Paper Tray Capacity
(Plain Paper)
Auto Sheet Feeder: 150 Sheets, 4" x 6" Photo Paper: 20 Sheets,
Letter / 8" x 10": 10 Sheets, A3+: 1 Sheet, Manual Feed Slot: Photo
Paper: All sizes: 1 Sheet
2 Resolution may vary based on printer driver setting. Color ink droplets can be placed with a horizontal pitch of 1/4800 inch at minimum.
3 AirPrint functionality requires an iPad, iPhone 3GS or later, or iPod touch 3rd generation or later device running iOS 4.2 or later, and
an AirPrint-enabled printer connected to the same network as your iOS device. A printer connected to the USB port of your Mac, PC,
AirPort Base station, or Time Capsule is not supported.
5 Wireless printing requires a working Ethernet network with wireless 802.11b/g or n capability. Wireless performance may vary based
on terrain and distance between the printer and wireless network clients.
8 Individual Ink Tanks, Advanced Pattern Print, Ambient Light
Correction,7 Auto Sheet Feeder, Index Print, PictBridge, Fine Art
Paper support, Optimum Image Generating System, Wired and
Wireless LAN Support
Standard Features
1 Print Studio Pro plug-in software is compatible with Adobe Photoshop CS4/CS5/CS5.1, Adobe Photoshop Elements 8/9/10, Adobe
Photoshop Lightroom 2.7/3, and Canon Digital Photo Professional 3.12 or later.
4 Envelopes and High Resolution Paper are NOT supported for borderless printing.
GENERAL
General Features
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL PRINTER OUTPUT IMAGES ARE SIMULATED.
6 Photo print speeds are based on the standard mode driver setting using photo test pattern(s) and select Canon Photo Paper.
Print speed is measured as soon as first page begins to feed into printer and will vary depending on system configuration,
interface, software, document complexity, print mode, types of paper used, and page coverage.
See www.usa.canon.com/printspeed for additional information.
7 Compatible with Windows Vista, Windows 7, and Windows 8.
8 System requirements vary by application. For Mac OS, an Internet connection is required during software installation. For Windows OS,
.NET Framework 4 is required to install My Image Garden and Quick Menu.
9 To install using Windows® OS, .NET Framework 4 is required. Compatible still image formats are PDF (created using Canon PDF
Creator only), JPEG (Exif), TIFF, and PNG. Compatible video formats are MOV (from select Canon digital cameras only) and MP4
(from select Canon digital camcorders only).
10 “Full HD Movie Print” is available from “MOV” and “MP4” movie files created by select Canon EOS, PowerShot, and VIXIA digital
cameras and camcorders. Requires PC or Mac with Intel® processor and Canon ZoomBrowser EX 6.5 or later or Canon ImageBrowser 6.5
or later for “MOV” files, or Canon ImageBrowser EX 1.0 or later for “MOV” or “MP4” files. Print quality is determined by the video
resolution. Function does not upscale video resolution.
Wireless LAN (IEEE 802.11b/g/n),5 Ethernet, Hi-Speed USB,
PictBridge (Cable not Included)
11 CREATIVE PARK PREMIUM is a premium content service available exclusively to users only when all of the colors of genuine Canon
inks are installed.
Noise Level
Approx. 38.5 dB(A)
12 Warranty programs are subject to certain conditions and restrictions. See www.usa.canon.com/support for details.
Power Consumption (Approx.)
19W (2.3W Standby)
Size/Weight
27.2"(W) x 15.2"(D) x 8.5"(H) / 43.2 lbs.
Setup Software & User’s Guide CD-ROM, PIXMA PRO-100 Printer
Driver, My Image Garden9 (Full HD Movie Print,10 CREATIVE PARK
PREMIUM,11 Special Filters and Image Correction/Enhance are
accessed through My Image Garden), Print Studio Pro, Quick Menu
OS Compatibility8
Computer Operating Systems:
Windows: Windows® 10, Windows 7, Windows 7 SP1, Windows
8, Windows Vista SP1, Vista SP2, Windows XP SP3 32-bit,
Mac: Mac OS® X v10.7.5 to v10.11
® 8
Warranty12
Preserve the nuances of the image you envisioned with the
quality and accuracy you expect. Your vision, technique, and
attention to detail are kept true in the final print with the
Canon PIXMA series of professional printers.
FOR MORE INFORMATION VISIT:
Software (Windows /Mac )
®
Improve on perfection.
www.usa.canon.com/pixmapro
For the name of the nearest dealer, call: 1-800-OK-CANON
Canon U.S.A., Inc.
One Canon Park, Melville, NY 11747
1-800-OK-CANON
1-Year limited warranty with InstantExchange Program.
1-Year toll-free U.S.-based technical phone support
PRODUCT INFO / INKS
Model No.
PIXMA PRO-100 Wireless Professional Inkjet Printer
6228B002
Compatible Inks
CLI-42 BK
CLI-42 GY
CLI-42 LGY
CLI-42 C
CLI-42 PC
CLI-42 M
CLI-42 PM
CLI-42 Y
6384B002
6390B002
6391B002
6385B002
6388B002
6386B002
6389B002
6387B002
Black Ink Tank
Gray Ink Tank
Light Gray Ink Tank
Cyan Ink Tank
Photo Cyan Ink Tank
Magenta Ink Tank
Photo Magenta Ink Tank
Yellow Ink Tank
©2016 Canon U.S.A., Inc. Canon and PIXMA are registered trademarks of Canon Inc. in the U.S. and may be registered trademarks or trademarks in other countries. Microsoft, Windows, the Windows logo, and Internet Explorer are trademarks or registered trademarks of the Microsoft group of companies in the U.S. and other countries. AirPort, Apple, iPad, iPhone, iPod touch, and Time Capsule are registered
trademarks of Apple Inc. AirPrint is a trademark of Apple Inc. App Store is a service mark of Apple Inc. iOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license. Macintosh, Mac, iPhone, iPad, iPod, and iPod touch are trademarks of Apple Inc., Android and Google Play are trademarks of Google Inc. The USB-IF logo is a trademark of Universal Serial Bus
Implementers Forum, Inc. Wi-Fi is a registered trademark of the Wi-Fi Alliance. The ‘Wi-Fi CERTIFIED’ logo is a certification mark of the Wi-Fi Alliance. The Wi-Fi Protected Setup Mark is a mark of the Wi-Fi Alliance. All other product and brand names are trademarks of their respective owners. As an ENERGY STAR® partner, Canon U.S.A., Inc. has determined that this product meets the ENERGY STAR®
guidelines for energy efficiency.
0167W742
