HP 1AS85A#B1H Specification

HP 1AS85A#B1H Specification
HP Sprocket 200 Printer
Share the present with instant
2 x 3 inch photos from your
smartphone. Easily connect
smartphones to your Sprocket
so everyone can print and
view from a shared photo
album. Relive every fun-filled
moment with an amazing
Print speed: As fast as 40 sec
Standard connectivity: Bluetooth 5.0
Borderless printing: Yes
Photos in seconds, wherever you go
● Sprocket wakes instantly from sleep mode, so you can print quickly using Bluetooth®.3
● About the size of a cell phone, this portable printer travels light and fits anywhere.
● Get a 10-sheet pack of HP Sprocket Photo Paper and print instant 2 x 3-inch photos or stickers.
Share the fun
● With seamless Bluetooth® connectivity, everyone can print and view a shared album with Google Photos.4
● Share all of the photos printed to your Sprocket, using the HP Sprocket app.1
● Name your Sprocket and customize the LED light color that lights up when you print.1
Your new favorite photo app
● Download the HP Sprocket app to customize your photos before you print them.1
● Use the HP Sprocket app to print social media photos.1
● Scan printed photos to view photo collections and unlock content.1
Bring photos to life
● Scan your Sprocket with the Sprocket app to view your shared print queue in augmented reality.1
1 HP Sprocket app required. 2 HP Sprocket app required. A limited amount of users can connect at once. 3 HP Sprocket app required. Bluetooth is a trademark owned by its proprietor and used by Hewlett-Packard Company under license. 4 HP Sprocket app required.
A limited amount of users can connect at once. Bluetooth is a registered mark owned by its proprietor and used by HP Inc. under license. Learn more at http://hp.com/go/mobileprinting.

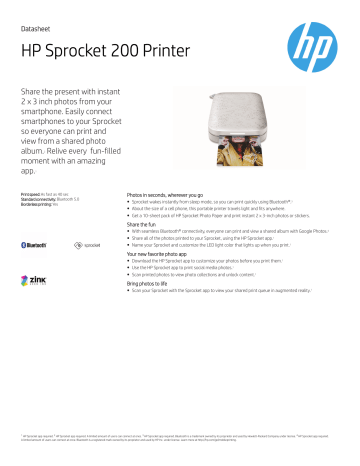

Datasheet | HP Sprocket 200 Printer
HP Sprocket 200 Printer Specifications Table
Functions / Multitasking
Print / No
What's in the box
Print Speed
Print Resolution
As fast as 40 sec
1AS85A HP Sprocket 200 Photo Printer; USB cable, HP ZINK™ Sticky-Backed Photo
Paper (10-sheets); Warranty sheet; Regulatory sheet
Replacement Cartridges
Color (best): 313 x 400 dpi
HP ZINK TM Sticky-Backed Photo Paper
Print Technology
Product Dimensions1
W x D x H: 3.15 x 4.63 x 0.98 in; Maximum: 3.15 x 4.63 x 0.98 in
Product Weight
Borderless Printing
0.38 lb
Warranty Features
Standard Print languages
One-year limited hardware warranty; access to world class support services through
Standard Connectivity
Bluetooth 5.0
Control Panel
Power button
Network Capabilities
Display Description
Wireless Capability
Bluetooth 5.0
Mobile Printing Capability
Yes, through the Sprocket app
Standard: 64 MB; Maximum: 64 MB
Back LED charge light: Red: low charge, Blink-red: charging, Green: charge complete,
Amber: medium charge; Front status LED: reserved: red-no paper/paper jam/cover
open, Default: White-power on/idle On first use opening the app and setting
preferences, user can choose 6 personal customizable colors-powering on/powering
off/sleep/idle/printing/other error
Media Types Supported
Software Included
iOS and Android Sprocket app (iOS App store, Google Play)
Media Sizes Supported
2 x 3 in
Compatible Operating Systems
Android: 4.4 above / iOS: 8.0 above
Minimum System Requirements
PC: Not compatible with Windows; MAC: Not compatible with MacOS
Power Supply Type: Li-Polymer 7.4 V; 2 cell, 550 mAh internal battery; Power
Consumption: Idle: 0.55 W; Printing max: 31-32 W; Average: 16 W
Operating Environment
Operating Temperature Range: 41 to 104°F; Recommended Operating Temperature:
59 to 90°F; Storage Temperature Range: -22 to 158°F; Non-Operating Humidity
Range: 5 to 90% RH; Operating Humidity Range: 5 to 70% RH; Recommended
Humidity Operating Range: 5 to 70% RH
HP Service and Support Options
U6N07E HP 2 year Next Business Day Exchange Service for Portable Printer; U6N08E
HP 3 year Next Business Day Exchange Service for Portable Printer; U6N10E HP 2 year
Next Business Day Exchange with Accidental Damage Protection Service for Portable
Printer; U6N11E HP 3 year Next Business Day Exchange with Accidental Damage
Protection Servicefor Portable Printer.
Media Sizes Custom
2 x 3 in
Paper Handling
Standard Paper Trays: 1; Input Capacities: Up to 10 sheets standard
Learn more at
1 Dimensions vary as per configuration
© Copyright 2018 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements
accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. ENERGY STAR and the
ENERGY STAR logo are registered U.S. marks. Windowsis a registered trademark of Microsoft Corporation. AirPrint, iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
August 2018, R2
