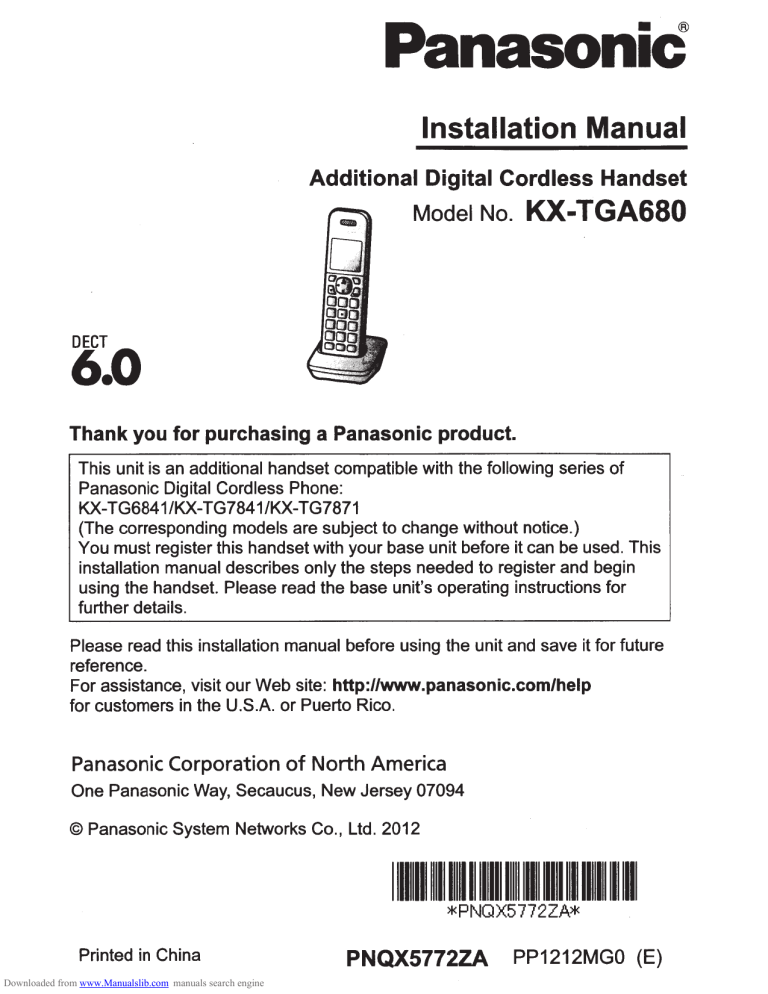

PanasoniC
Installation Manual
Additional Digital Cordless Handset
KX-TGA680
Model No.
DECT
6.0
Thank you for purchasing a Panasonic product.
This unit is an additional handset compatible with the following series of
Panasonic Digital Cordless Phone:
KX-TG6841 /KX-TG7841 /KX-TG7871
(The corresponding models are subject to change without notice.)
You must register this handset with your base unit before it can be used. This
installation manual describes only the steps needed to register and begin
using the handset. Please read the base unit's operating instructions for
further details.
Please read this installation manual before using the unit and save it for future
reference.
For assistance, visit our Web site: http://www.panasonic.com/help
for customers in the U.S.A. or Puerto Rico.
Panasonic Corporation of North America
One Panasonic Way, Secaucus, New Jersey 07094
© Panasonic System Networks Co., Ltd. 2012
*PNQX5772ZA*
Printed in China
Downloaded from www.Manualslib.com manuals search engine
PNQX5772ZA
PP1212MGO (E)
Installa tion
Acce ssory inform ation
Suppli ed access ories
Quantity
Accesso ry item/Order number
Charger/PNLC 1040ZB
1
Rechargeable batteries/HHR-4DPA
2
Handset cover*1/PNYNTGA680BR
1
Belt clip/PNKE1268Z1
1
*1
The handset cover comes attached to the handset.
Note:
• Please read the base unit's operating instructions for additional/replacement
accessories.
- Optional headsets: KX-TCA60, KX-TCA93, KX-TCA400, KX-TCA430
Settin g up
Connections/Wall mount ing
27.2 mm
(1 1/16 inches)
Screws
(Not supplied)
• To power outlet
Note:
• The AC adaptor must remain connected at all times. (It is normal for the adaptor
. to feel warm during use.)
• Make sure that the wall and the fixing method are strong enough to support the
weight of the unit.
2
For assistance, please visit http://w ww.pan asonic. com/he lp
Downloaded from www.Manualslib.com manuals search engine
Installation
Battery installation/Battery charging
Important:
• Use the supplied rechargeable batteries. For replacement, we recommend using
the Panasonic rechargeable batteries noted on page 2.
• Wipe the battery ends(~,
with a dry cloth.
or the unit contacts.
• Avoid touching the battery ends(~,
• Confirm correct polarities (~,
• USE ONLY Ni-MH batteries AAA (R03) size.
• Do NOT use Alkaline/Manganese/Ni-Cd batteries.
8>
8).
8>
Charge for about 7 hours.
• When the batteries are fully charged, "Fully charged" is displayed.
Rechargeable
Ni-MH ONLY
"Charqinq"
is displayed.
~
Q
Note:
• If the batteries are fully charged, but the operating time seems to be shorter,
clean the battery ends(~,
and the charge contacts with a dry cloth and
charge again.
8>
Registering a handset to a base unit
1 Base unit:
Press and hold [LOCATOR] for about 5 seconds.
• Depending on the base unit, a registration tone sounds.
• If all registered handsets start ringing, press [LOCATOR] again to stop,
then repeat this step.
2
Handset:
Place the handset on the base unit or charger, then wait until a long beep
sounds and Tis displayed.
Note:
• If an error tone sounds, or if Y is displayed, register the handset according to
the base unit's operating instructions.
For assistance, please visit http://www.panasonic.com/help
Downloaded from www.Manualslib.com manuals search engine
3
Installat ion
Display language
1
2
[MENU][!][ 1J[][Q]
[~]:Select the desired setting.~ [SAVE]~ [OFF]
For your safety
To prevent severe injury and loss of life/property, read this section carefully before
using the product to ensure proper and safe operation of your product.
WARNING
Power connection ·
• Completely insert the AC adaptor/power plug into the power outlet. Failure to do
so may cause electric shock and/or excessive heat resulting in a fire.
• Regularly remove any dust, etc. from the AC adaptor/power plug by pulling it
from the power outlet, then wiping with a dry cloth. Accumulated dust may cause
an insulation defect from moisture, etc. resulting in a fire.
• Unplug the product from power outlets if it emits smoke, an abnormal smell, or
makes an unusual noise. These conditions can cause fire or electric shock.
Confirm that smoke has stopped emitting and contact the Panasonic Call Center
at 1-800-211- PANA (1-800-211-7262).
Installation
• To prevent the risk of fire or electrical shock, do not expose the product to rain
or any type of moisture.
• Do not place or use this product near automatically controlled devices such as
automatic doors and fire alarms. Radio waves emitted from this product may
cause such devices to malfunction resulting in an accident.
CAUTION
Installation and location
• The AC adaptor is used as the main disconnect device. Ensure that the AC
outlet is installed near the product and is easily accessible.
Battery
• We recommend using the supplied batteries or additional/replacement batteries
noted on page 2 for replacement battery information. USE ONLY rechargeable
Ni-MH batteries AAA (R03) size.
• Do not mix old and new batteries.
4
For assistance, please visit http://www.panasonic.com/help
Downloaded from www.Manualslib.com manuals search engine
Installation
• Do not open or mutilate the batteries. Released electrolyte from the batteries is
corrosive and may cause burns or injury to the eyes or skin. The electrolyte is
toxic and may be harmful if swallowed.
• Exercise care when handling the batteries. Do not allow conductive materials
such as rings, bracelets, or keys to touch the batteries, otherwise a short circuit
may cause the batteries and/or the conductive material to overheat and cause
burns.
• Charge the batteries provided with or identified for use with this product only, in
accordance with the instructions and limitations specified in this manual.
• Only use a compatible base unit (or charger) to charge the batteries. Do not
tamper with the base unit (or charger). Failure to follow these instructions may
cause the batteries to swell or explode.
Attention:
A nickel metal hydride battery that is
recyclable powers the product you have
purchased.
Please call 1-800-8-BATTERY
( 1-800-822-8837) for information on how
to recycle this battery.
For assistance, please visit http://www.panasonic.com/help
Downloaded from www.Manualslib.com manuals search engine
5
Installation
Important safety instructions
When using your product, basic safety precautions should always be followed to
reduce the risk of fire, electric shock, and injury to persons, including the following:
1. Do not use this product near water for example, near a bathtub, washbowl,
kitchen sink, or laundry tub, in a wet basement or near a swimming pool.
2. Do not use the telephone to report a gas leak in the vicinity of the leak.
3. Use only the power cord and batteries indicated in this manual. Do not dispose
of batteries in a fire. They may explode. Check with local codes for possible
special disposal instructions.
SAVE THESE INSTRUCTIONS
Other information
• Operating the product near electrical appliances may cause interference. Move
away from the electrical appliances.
CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of
used batteries according to the instructions.
Routine care
• Wipe the outer surface of the product with a soft moist cloth.
• Do not use benzine, thinner, or any abrasive powder.
Notice for product disposal, transfer, or return
• This product can store your private/confidential information. To protect your
privacy/confidentiality, we recommend that you erase information such as
phonebook or caller list entries from the memory before you dispose of, transfer,
or return the product.
FCC and other information
This equipment is hearing aid compatible as defined by the FCC in 4 7 CFR Section
68.316.
When you hold the phone to your ear, noise might be heard in your Hearing Aid.
Some Hearing Aids are not adequately shielded from external RF (radio frequency)
energy. If noise occurs, use an optional headset accessory or the speakerphone
option (if applicable) when using this phone. Consult with your audiologist or
Hearing Aid manufacturer about the availability of Hearing Aids which provide
adequate shielding to RF energy commonly emitted by digital devices.
6
For assistance, please visit http://www.panaso nic.com/help
Downloaded from www.Manualslib.com manuals search engine
Installation
WHEN PROGRAMMING EMERGENCY NUMBERS AND(OR) MAKING TEST
CALLS TO EMERGENCY NUMBERS:
1) Remain on the line and briefly explain to the dispatcher the reason for the call.
2) Perform such activities in the off-peak hours, such as early morning or late
evenings.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation. Privacy of communications may not be ensured when using this phone.
CAUTION:
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this device.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC RF Exposure Warning:
• This product complies with FCC radiation exposure limits set forth for an
uncontrolled environment.
• This handset may not be collocated or operated in conjunction with any other
antenna or transmitter.
• The handset may be carried and operated with only the specific provided
belt-clip. Other non-tested belt-clips or similar body-worn accessories may not
comply and must be avoided.
Notice:
• FCC ID can be found inside the battery compartment or on the bottom of the
unit.
For assistance, please visit http://www.panasonic.com/help
Downloaded from www.Manualslib.com manuals search engine
7
Installation
Compliance with TIA-1083 standard:
Compatible with
Hearing Aid T-Coil
Telephone handsets identified with this logo have reduced
noise and interference when used with T-Coil equipped
hearing aids and cochlear implants.
TIA-1083
Notice:
•This product is designed for use in the United States of America. Sale or use
of this product in other countries may violate local laws.
•Cet appareil est con~u pour etre utilise aux Etats-Unis d'Amerique. La vente
ou l'emploi de cet appareil dans certains autres pays peut constituer une
infraction a Ia legislation locale.
• Este producto esta disenado para usarse en los Estados Unidos de America.
La venta o el empleo de este producto en ciertos paises puede constituir
violaci6n de Ia legislaci6n local.
•*~~-~~~~m~fto~~X~~-~~d~m'~~*~&~~$Mo
•.=O)rl~r~ . s*~E*~O)ifJ=t=J~EHt-Je: L -c~~t~n -ccJs LJ .. s*~EP'J~O)
ilmr~;tffil& e: ~ LJ *9 0 ~-=>-c .. ~i±~r~ s *~EP'lr::cJsL '-c r~mtftiJ e: L
""Cif!lto: cO)-+t- t::: AI~~ L:fJ':td-*9 o
IMPORTANT!
If your product is not working properly...
CD
Reconnect AC adaptor to the base unit.
® Check if telephone line cord is connected.
® Use rechargeable Ni-MH batteries.
(Aikaline/Manganese/Ni-Cd batteries CANNOT be used.)
@ Read troubleshooting page in the base unit's
Operating Instructions.
Visit our Web site: http://www.panas onic.com/help
• FAQ and troubleshooting hints are available.
8
For assistance, please visit http://www.panaso nic.com/help
Downloaded from www.Manualslib.com manuals search engine
Appendix
Custome r services
Customer Services Directory (United States and
Puerto Rico
Obtain Product Information and Operating Assistance; locate your nearest
Dealer or Service Center; purchase Parts and Accessories; or make Customer
Service and Literature requests by visiting our Web Site at:
http://www.panasonic.com/help
or, contact us via the web at:
http://www.panasonic.com/contactinfo
You may also contact us directly at: 1-800-211-PANA (1-800-211-7262),
Monday - Friday 9 am to 9 pm; Saturday - Sunday 10 am to 7 pm, EST.
TTY users (hearing or speech impaired users) can ca111-877-833-8855.
Accessory Purchases (United States and
Puerto Rico
Purchase Parts, Accessories and Instruction Books online for all Panasonic
Products by visiting our Web Site at:
http://www.pstc.panasonic.com
or, send your request by E-mail to:
[email protected]
You may also contact us directly at: 1-800-332-5368 (Phone)
1-800-237-9080 (Fax Only)
(Monday- Friday 9 am to 9 pm, EST.)
Panasonic Service and Technology Company
20421 84th Avenue South, Kent, WA 98032
(We Accept Visa, MasterCard, Discover Card, American Express, and Personal
Checks.)
TTY users (hearing or speech impaired users) can ca111-866-605-1277.
For assistance, please visit http://www.p anasonic.co m/help
Downloaded from www.Manualslib.com manuals search engine
9
Appendix
Warrant y (For United States and Puerto Rico)
PANASONIC CORPORATION OF NORTH AMERICA
One Panasonic Way, Secaucus, New Jersey 07094
Panaso nic Telephone Produc ts
Limited Warran ty
Limited Warranty Coverage
If your product does not work properly because of a defect in materials or workmanship,
Panasonic Corporation of North America (referred to as "the warrantor") will, for the length
of the period indicated on the chart below, which starts with the date of original purchase
("Limited Warranty period"), at its option either (a) repair your product with new or refurbished
parts, or (b) replace it with a new or a refurbished product. The decision to repair or replace
will be made by the warrantor.
Labor
Parts
One (1) Year
One (1) Year
During the "Labor" Limited Warranty period there will be no charge for labor. During the
"Parts" Limited Warranty period, there will be no charge for parts. You must mail-in your
product prepaid during the Limited Warranty period. This Limited Warranty excludes both
parts and labor for batteries, antennas, and cosmetic parts (cabinet). This Limited Warranty
only applies to products purchased and serviced in the United States or Puerto Rico. This
Limited Warranty is extended only to the original purchaser and only covers products
purchased as new.
Ship-In Service
For assistance in the continental United States and Puerto Rico in obtaining repairs please
ship the product prepaid to:
Panasonic Exchange Center,
4900 George McVay Drive, Suite B Door #12, McAllen, TX 78503
[email protected]
Online Repair Request
To submit a new repair and for quick repair status visit our web site at
http://www.panasonic.com/help
When shipping the unit carefully pack in a padded shipping carton, include all accessories,
and send it prepaid. Include a letter detailing the complaint, a return address and provide a
day time phone number where you can be reached. P.O. Boxes are not acceptable. Keep
the tracking number for your records. A copy of valid registered receipt is required under
the 1 year parts and labor Limited Warranty.
For Limited Warranty service for headsets if a headset is included with this product please
follow instructions above.
IF REPAIR IS NEEDED DURING THE LIMITED WARRANTY PERIOD THE PURCHASER
WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE
INDICATING DATE OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE.
CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT
SUCH PROOF OF PURCHASE.
10
For assistance, please visit http://www.panasonic.com/help
Downloaded from www.Manualslib.com manuals search engine
Appendix
Limited Warranty Limits And Exclusions
This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship,
and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty
ALSO DOES NOT COVER damages which occurred in shipment, or failures which are
caused by products not supplied by the warrantor, or failures which result from accidents,
misuse, abuse, neglect, bug infestation, mishandling, misapplication, alteration, faulty
installation, set-up adjustments, misadjustment of consumer controls, improper maintenance,
power line surge, lightning damage, modification, introduction of sand, humidity or liquids,
commercial use such as hotel, office, restaurant, or other business or rental use of the
product, or service by anyone other than a Factory Service Center or other Authorized
Servicer, or damage that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER "LIMITED
WARRANTY COVERAGE". THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR
ARISING OUT OF ANY BREACH OF THIS LIMITED WARRANTY. (As examples, this
excludes damages for lost time, lost calls or messages, cost of having someone remove or
re-install an installed unit if applicable, travel to and from the servicer. The items listed are not
exclusive, but are for illustration only.) ALL EXPRESS AND IMPLIED WARRANTIES,
INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD
OF THE LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential damages,
or limitations on how long an implied warranty lasts, so the exclusions may not apply to you.
This Limited Warranty gives you specific legal rights and you may also have other rights
which vary from state to state. If a problem with this product develops during or after the
Limited Warranty period, you may contact your dealer or Service Center. If the problem is not
handled to your satisfaction, then write to the warrantor's Consumer Affairs Department at the
addresses listed for the warrantor.
PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE
YOUR RESPONSIBILITY.
When you ship the product
•
•
•
•
Carefully pack your unit, preferably in the original carton.
Attach a letter, detailing the symptom.
Send the unit to Panasonic Exchange Center, prepaid and adequately insured.
Do not send your unit to Panasonic Corporation of North America listed on the front
cover or to executive or regional sales offices. These locations do not repair consumer
products.
For assistance, please visit http://www.panasonic.com/help
Downloaded from www.Manualslib.com manuals search engine
11
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
