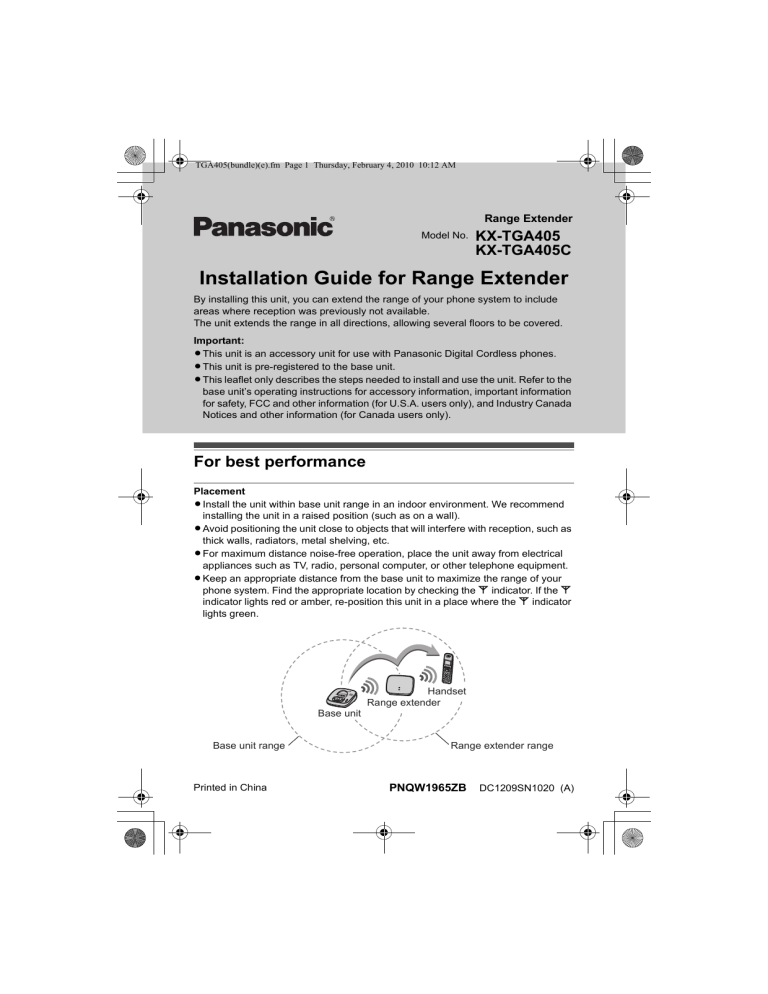

TGA405(bundle)(e).fm Page 1 Thursday, February 4, 2010 10:12 AM
Range Extender
Model No.
KX-TGA405
KX-TGA405C
Installation Guide for Range Extender
By installing this unit, you can extend the range of your phone system to include
areas where reception was previously not available.
The unit extends the range in all directions, allowing several floors to be covered.
Important:
L This unit is an accessory unit for use with Panasonic Digital Cordless phones.
L This unit is pre-registered to the base unit.
L This leaflet only describes the steps needed to install and use the unit. Refer to the
base unit’s operating instructions for accessory information, important information
for safety, FCC and other information (for U.S.A. users only), and Industry Canada
Notices and other information (for Canada users only).
For best performance
Placement
L Install the unit within base unit range in an indoor environment. We recommend
installing the unit in a raised position (such as on a wall).
L Avoid positioning the unit close to objects that will interfere with reception, such as
thick walls, radiators, metal shelving, etc.
L For maximum distance noise-free operation, place the unit away from electrical
appliances such as TV, radio, personal computer, or other telephone equipment.
L Keep an appropriate distance from the base unit to maximize the range of your
phone system. Find the appropriate location by checking the w indicator. If the w
indicator lights red or amber, re-position this unit in a place where the w indicator
lights green.
Handset
Range extender
Base unit
Base unit range
Printed in China
Range extender range
PNQW1965ZB
DC1209SN1020 (A)
TGA405(bundle)(e).fm Page 2 Thursday, February 4, 2010 10:12 AM
Controls
A STATUS indicator
B w indicator
ID indicator
C {PROGRAM}
A
B
C
Understanding the STATUS indicator and w indicator
Indicator
Light status
Meaning
STATUS
indicator
Green
On
L Within base unit range. The unit is ready for
use.
Flashing
L 1 handset is communicating with the base
unit through this unit.
Flashing
rapidly
L 2 handsets are communicating with the base
unit through this unit.
On
L Out of base unit range.
Red
Off
w
indicator
L The power is off. (AC adaptor is not
connected properly.)
Green
On
L Signal strength of the base unit is strong.
Amber
On
L Signal strength of the base unit is weak.
Red
On
L Out of base unit range.
Off
L The unit is not being used.
L The power is off.
Installation
1 Connect the unit.
L Use only the supplied Panasonic AC adaptor PQLV219.
Hook
(120 V AC, 60 Hz)
Press plug firmly.
L When the unit is turned on, the STATUS indicator and w indicator light amber
for about 2 seconds.
–2–
TGA405(bundle)(e).fm Page 3 Thursday, February 4, 2010 10:12 AM
2 Confirm that the STATUS indicator and w indicator light green. (The unit is
ready for use.)
L If the indicators do not light green, re-position the unit in a place where the
indicators light green.
Note:
L The AC adaptor must remain connected at all times. (It is normal for the adaptor to
feel warm during use.)
L The AC adaptor should be connected to a vertically oriented or floor-mounted AC
outlet. Do not connect the AC adaptor to a ceiling-mounted AC outlet, as the weight
of the adaptor may cause it to become disconnected.
L The unit can support a maximum of 2 handsets at a time.
L Up to 2 range extenders can be registered to the base unit.
Wall Mounting
Drive the screws (not supplied) into the wall. Mount the unit, then slide it down.
Note:
L Make sure that the wall is strong enough to support the weight of the unit.
Screws
37.0 mm
(1 15 /32 inches)
Specifications
N Standard: DECT 6.0 (Digital Enhanced Cordless Telecommunications 6.0)
N Frequency range: 1.92 GHz to 1.93 GHz
N RF transmission power: 115 mW (max.)
N Power source: 120 V AC, 60 Hz
N Power consumption: Standby: Approx. 1.0 W, Maximum: Approx. 1.8 W
N Operating conditions:
0 °C – 40 °C (32 °F – 104 °F), 20 % – 80 % relative air humidity (dry)
Note:
L Design and specifications are subject to change without notice.
L The illustrations in these instructions may vary slightly from the actual product.
–3–
TGA405(bundle)(e).fm Page 4 Thursday, February 4, 2010 10:12 AM
Troubleshooting
Problem
Cause/solution
The unit does not work.
L When the indicators do not light, the AC adaptor is not
connected properly. Check the connections.
L When the indicators do not light green, move the unit
closer to the base unit.
L Registration may have been canceled.
Deregister the unit, then re-register.
Deregister:
1 Unplug the AC adaptor, then press and hold
{PROGRAM}.
2 While pressing and holding {PROGRAM},
re-connect the AC adaptor.
3 Keep pressing and holding {PROGRAM} for about
10 seconds until the STATUS indicator flashes
amber. Then release {PROGRAM}.
Re-register:
1 Range extender: Unplug the AC adaptor.
2 Base unit: Press and hold {LOCATOR} for about
5 seconds until the registration tone sounds.
– The next step must be completed within 90
seconds.
3 Range extender: Connect the AC adaptor, then
wait until the STATUS indicator lights green.
4 Base unit: To stop the registration tone, press
{LOCATOR}.
While talking using the
handset, sound cuts in
and out.
L The handset is out of range. Move the handset closer
to this unit.
The STATUS indicator
continues to light
amber for a while.
L {PROGRAM} was pressed. The unit is in
programming mode. To exit, press {PROGRAM}
again. Do not press {PROGRAM}, except when
deregistering the unit.
–4–
