HP 5XH49A Specification

HP 5XH49A Specification
HP Sprocket Select Photo Printer
Your Moment. Your Take. Instantly print 30% larger photos
from your smartphone.4
Make the moment yours with
exclusive designer stickers and
frames for printing instant photos
from your smartphone that are
30% larger than Sprocket.2 Easily
transform photos into curated
memories—perfect for journaling
and photo walls.2,3
Your photo stylist
Print speed: Up to 68 sec per print
Standard Connectivity: Bluetooth 5.0
Mobile printing capability: Yes, through the Sprocket app
Borderless Printing: Yes
Access exclusive designer features for fashionable frames, stickers, and more, using the HP
Sprocket app.3
Edit and print wallet-sized photos from your smartphone, with the HP Sprocket app.2
Download the HP Sprocket app to customize your photos with stickers and doodles before
you print them.2
Scan Sprocket Select and photos for content in augmented reality— videos, geolocation
features, and more.2
Tag it. Print it.
Seamlessly print photos from your smartphone—favorite in your camera roll or bookmark
on social media.2
Sprocket Select wakes instantly from sleep mode—print quickly through the HP Sprocket
app using Bluetooth®.5
Create a shared album with Google Photos.2 View and print photos in one place with the
HP Sprocket app.2
Easily share Sprocket Select with additional smartphones, and track photos with
customizable LED colored lights.6
Bigger photos.4 Better stories.
Print glossy 2.3 x 3.4 inch sticky-backed photos for journals and other creative projects.2
About the size of a cell phone, this portable photo printer goes virtually anywhere.
This thin, portable photo printer is designed to match your style.
Easily load the HP Sprocket 2.3 x 3.4 inch Photo Paper for simple photo printing.
Bluetooth is a registered mark owned by its proprietor and used by HP Inc. under license. Learn more at http://hp.com/go/mobileprinting. 2 HP Sprocket app required. 3 Certain stickers, frames and other content are only available to HP
Sprocket Select users. HP Sprocket app required. 4 Compared to HP Sprocket. 5 HP Sprocket app required. Bluetooth is a registered mark owned by its proprietor and used by HP Inc. under license. Learn more at
http://hp.com/go/mobileprinting. 6 HP Sprocket app required. A limited amount of users can connect at once.

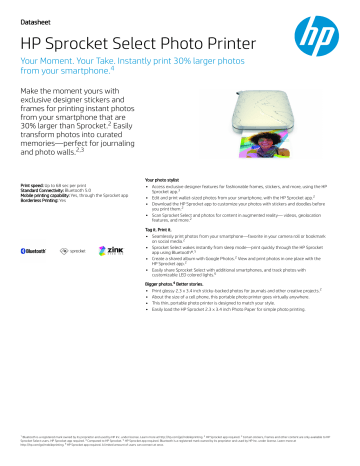

Data sheet | HP Sprocket Select Photo Printer
HP Sprocket Select Photo Printer Technical specifications
Functions / Multitasking
Print / No
What's in the box
Print speed
olor (ISO): Up to 68 sec per print
Replacement cartridges
HP ZINK™ 2.3 x 3.4 in Sticky-Backed Photo Paper
Product dimensions
W x d x h: 3.48 x 5.13 x 0.69 in; Maximum: 3.48 x 5.13 x 0.69 in
Print resolution
olor (best): 321 x 600 dpi
Print technology
Borderless printing
5XH49A HP Sprocket Select; USB cable, HP ZINK™ Sticky-Backed Photo Paper
(10-sheets); Warranty sheet; Regulatory sheet; setup guide
Product weight
0.40 lb
Warranty features
One-year limited hardware warranty; access to world class support services
through http://www.support.hp.com
Standard connectivity
Bluetooth 5.0
Control panel
Power Button; Reset button
Network capabilities
Display description
Network ready
Wireless capability
Back LED charge light: Red: low charge, Blink-red: charging, Green: charge
complete, Amber: medium charge; Front status LED: reserved: red-low battery,
no paper/paper jam, locked up, lid off. Default: White-power on/idle, on first use
opening the app and setting preferences, user can choose 6 personal
customizable colors
Compatible operating
Android: 5.1 above; iOS: 10.0.2 above
Minimum system
PC: iOS and Android HP Sprocket app (iOS App store, Google Play); Mac: Not
compatible with MacOS
Power supply type: Li-ion, 2 cell, 7.4 V, 700 mAh; Power requirements: Internal
Li-ion battery pack, charged via USB 1.2 compliant USB Charger; Voltage = 5
V/Current: 0.5 to 1 A Power consumption: Idle: 0.94 W, power consumption max
36.2 W; Average 22.46 W
Operating environment
Operating temperature range: 41 to 104°F; Recommended operating
temperature: 59 to 90°F; Storage temperature range: -40 to 140°F; Nonoperating humidity range: 5 to 90% RH; Operating humidity range: 5 to 70% RH;
Recommended humidity operating range: 10 to 70% RH
Mobile printing capability
Yes, through the Sprocket app
Standard: 64 MB; Maximum: 64 MB
Media types supported
Media sizes supported
2.3 x 3.4 in
Paper handling
Input Capacities: Up to 10 sheets Standard
Sttandard paper trays: 1
Learn more at
1 Dimensions vary as per configuration
© Copyright 2019 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the
express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein. ENERGY STAR and the ENERGY STAR logo are registered U.S. marks. Windows is a registered trademark of Microsoft Corporation. AirPrint, iPad, iPhone, and
iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
4AA7-6177ENUC, September 2019, R1
