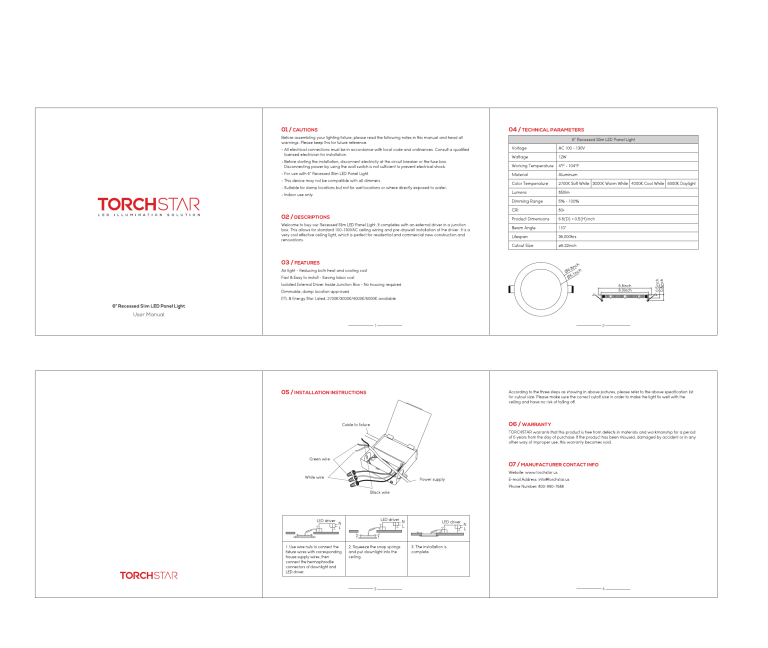

 TORCHS [AIR
LED ILLUMINATION SOLUTION
6" Recessed Slim LED Panel Light
User Manual
O1 / CAUTIONS
Before assembling your lighting fixture, please read the following notes in this manual and head all
warnings. Please keep this for future reference.
- All electrical connections must be in accordance with local code and ordinances. Consult a qualified
licensed electrician for installation.
- Before starting the installation, disconnect electricity at the circuit breaker or the fuse box.
Disconnecting power by using the wall switch is not sufficient to prevent electrical shock.
- For use with 6” Recessed Slim LED Panel Light.
- This device may not be compatible with all dimmers.
- Suitable for damp locations but not for wet locations or where directly exposed to water.
- Indoor use only.
O2 / DESCRIPTIONS
Welcome to buy our Recessed Slim LED Panel Light. It completes with an external driver in a junction
box. This allows for standard 100-130VAC ceiling wiring and pre-drywall installation of the driver. It is a
very cost effective ceiling light, which is perfect for residential and commercial new construction and
renovations.
O3 / FEATURES
Air tight - Reducing both heat and cooling cost
Fast & Easy to install - Saving labor cost
Isolated External Driver Inside Junction Box - No housing required
Dimmable, damp location approved
ETL & Energy Star Listed, 2700K/3000K/4000K/5000K available
04 / TECHNICAL PARAMETERS
6" Recessed Slim LED Panel Light
Voltage AC 100 - 130V
Wattage 12W
Working Temperature | 4°F - 104°F
Material Aluminum
Color Temperature 2700K Soft White | 3000K Warm White | 4000K Cool White | 5000K Daylight
Lumens 850Im
Dimming Range 5% - 100%
CRI 80+
Product Dimensions 6.8(D) * 0.5(H)inch
Beam Angle 110°
Lifespan 36,000hrs
Cutout Size 26.22inch
6.8inch
6.0inch
TORCHSIAR
O5 / INSTALLATION INSTRUCTIONS
Cable to fixture
Green wire
White wire Power supply
Black wire
LED driver LED driver y LED driver
L L ï
= E
C >
1. Use wire nuts to connect the 2. Squeeze the snap springs 3. The installation is
fixture wires with corresponding | and put downlight into the complete.
house supply wires, then ceiling.
connect the hermaphrodite
connectors of downlight and
LED driver.
3
According fo the three steps as showing in above pictures, please refer to the above specification list
for cutout size. Please make sure the correct cutoff size in order to make the light fix well with the
ceiling and have no risk of falling off.
06 / WARRANTY
TORCHSTAR warrants that this product is free from defects in materials and workmanship for a period
of 5 years from the day of purchase. If the product has been misused, damaged by accident or in any
other way of improper use, this warranty becomes void.
07 / MANUFACTURER CONTACT INFO
Website: www.torchstar.us
E-mail Address: [email protected]
Phone Number: 800-990-7688
