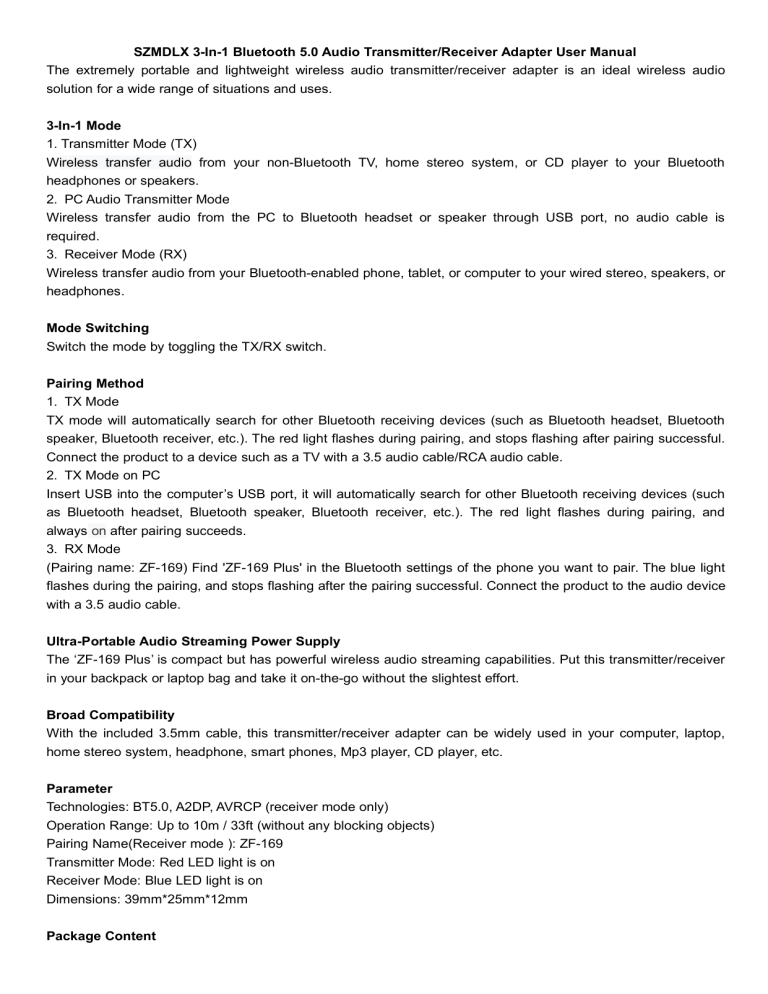

SZMDLX 3-In-1 Bluetooth 5.0 Audio Transmitter/Receiver Adapter User Manual
The extremely portable and lightweight wireless audio transmitter/receiver adapter is an ideal wireless audio
solution for a wide range of situations and uses.
3-In-1 Mode
1. Transmitter Mode (TX)
Wireless transfer audio from your non-Bluetooth TV, home stereo system, or CD player to your Bluetooth
headphones or speakers.
2. PC Audio Transmitter Mode
Wireless transfer audio from the PC to Bluetooth headset or speaker through USB port, no audio cable is
required.
3. Receiver Mode (RX)
Wireless transfer audio from your Bluetooth-enabled phone, tablet, or computer to your wired stereo, speakers, or
headphones.
Mode Switching
Switch the mode by toggling the TX/RX switch.
Pairing Method
1. TX Mode
TX mode will automatically search for other Bluetooth receiving devices (such as Bluetooth headset, Bluetooth
speaker, Bluetooth receiver, etc.). The red light flashes during pairing, and stops flashing after pairing successful.
Connect the product to a device such as a TV with a 3.5 audio cable/RCA audio cable.
2. TX Mode on PC
Insert USB into the computer’s USB port, it will automatically search for other Bluetooth receiving devices (such
as Bluetooth headset, Bluetooth speaker, Bluetooth receiver, etc.). The red light flashes during pairing, and
always on after pairing succeeds.
3. RX Mode
(Pairing name: ZF-169) Find 'ZF-169 Plus' in the Bluetooth settings of the phone you want to pair. The blue light
flashes during the pairing, and stops flashing after the pairing successful. Connect the product to the audio device
with a 3.5 audio cable.
Ultra-Portable Audio Streaming Power Supply
The ‘ZF-169 Plus’ is compact but has powerful wireless audio streaming capabilities. Put this transmitter/receiver
in your backpack or laptop bag and take it on-the-go without the slightest effort.
Broad Compatibility
With the included 3.5mm cable, this transmitter/receiver adapter can be widely used in your computer, laptop,
home stereo system, headphone, smart phones, Mp3 player, CD player, etc.
Parameter
Technologies: BT5.0, A2DP, AVRCP (receiver mode only)
Operation Range: Up to 10m / 33ft (without any blocking objects)
Pairing Name(Receiver mode ): ZF-169
Transmitter Mode: Red LED light is on
Receiver Mode: Blue LED light is on
Dimensions: 39mm*25mm*12mm
Package Content
1x Bluetooth 5.0 Audio Transmitter/Receiver Adapter
1x 3.5mm Aux Cable
1x User Manual
